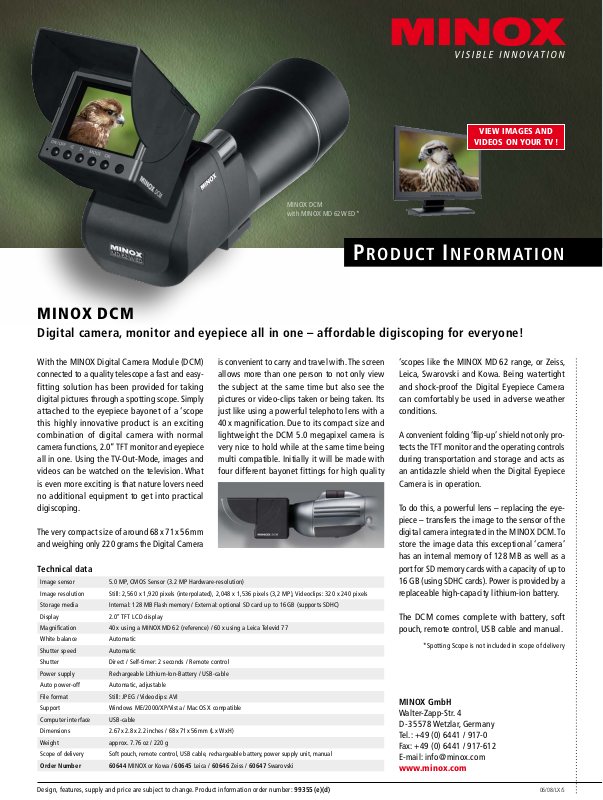

Minox DCM BROCHURE

MINOX DCM
with MINOX MD 62 W ED*

VIEW IMAGES AND

VIDEOS ON YOUR TV !

Pr o d u c t In f o r m at I o n

MIN OX DCM

Digital camera, monitor and eyepiece all in one – affordable digiscoping for everyone!

With the MINOX Digital Camera Module (DCM)
connected to a quality telescope a fast and easy­fitting solution has been provided for taking
digital pictures through a spotting scope. Simply
attached to the eyepiece bayonet of a ‘scope
this highly innovative product is an exciting
combination of digital camera with normal
camera functions, 2.0“ TFT monitor and eyepiece
all in one. Using the TV-Out-Mode, images and
videos can be watched on the television. What
is even more exciting is that nature lovers need
no additional equipment to get into practical
digiscoping.

The very compact size of around 68 x 71 x 56 mm
and weighing only 220 grams the Digital Camera

Technical data

Image sensor 5.0 MP, CMOS Sensor (3.2 MP Hardware-resolution)

Image resolution Still: 2,560 x 1,920 pixels (interpolated), 2,048 x 1,536 pixels (3,2 MP), Videoclips: 320 x 240 pixels

Storage media Internal: 128 MB Flash memory / External: optional SD card up to 16 GB (supports SDHC)

Display 2.0’’ TFT LCD display

Magnification 40 x using a MINOX MD 62 (reference) / 60 x using a Leica Televid 77

White balance Automatic

Shutter speed Automatic

Shutter Direct / Self-timer: 2 seconds / Remote control

Power supply Rechargeable Lithium-Ion-Battery / USB-cable

Auto power-off Automatic, adjustable

File format Still: JPEG / Videoclips: AVI

Support Windows ME/2000/XP/Vista / Mac OS X compatible

Computer interface USB-cable

Dimensions 2.67 x 2.8 x 2.2 inches / 68 x 71 x 56 mm (L x W x H)

Weight approx. 7.76 oz / 220 g

Scope of delivery Soft pouch, remote control, USB cable, rechargeable battery, power supply unit, manual

Order Number 60644 MINOX or Kowa / 60645 Leica / 60646 Zeiss / 60647 Swarovski

Design, features, supply and price are subject to change. Product information order number: 99355 (e)(d) 06/08/LX/S

is convenient to carry and travel with. The screen
allows more than one person to not only view
the subject at the same time but also see the
pictures or video-clips taken or being taken. Its
just like using a powerful telephoto lens with a
40 x magnification. Due to its compact size and
lightweight the DCM 5.0 megapixel camera is
very nice to hold while at the same time being
multi compatible. Initially it will be made with
four different bayonet fittings for high quality

‘scopes like the MINOX MD 62 range, or Zeiss,
Leica, Swarovski and Kowa. Being watertight
and shock-proof the Digital Eyepiece Camera
can comfortably be used in adverse weather
conditions.

A convenient folding ‘flip-up’ shield not only pro­tects the TFT monitor and the operating controls
during transportation and storage and acts as
an antidazzle shield when the Digital Eyepiece
Camera is in operation.

To do this, a powerful lens – replacing the eye­piece – transfers the image to the sensor of the
digital camera integrated in the MINOX DCM. To
store the image data this exceptional ‘camera’
has an internal memory of 128 MB as well as a
port for SD memory cards with a capacity of up to
16 GB (using SDHC cards). Power is provided by a
replaceable high-capacity lithium-ion battery.

The DCM comes complete with battery, soft
pouch, remote control, USB cable and manual.

*Spotting Scope is not included in scope of delivery
