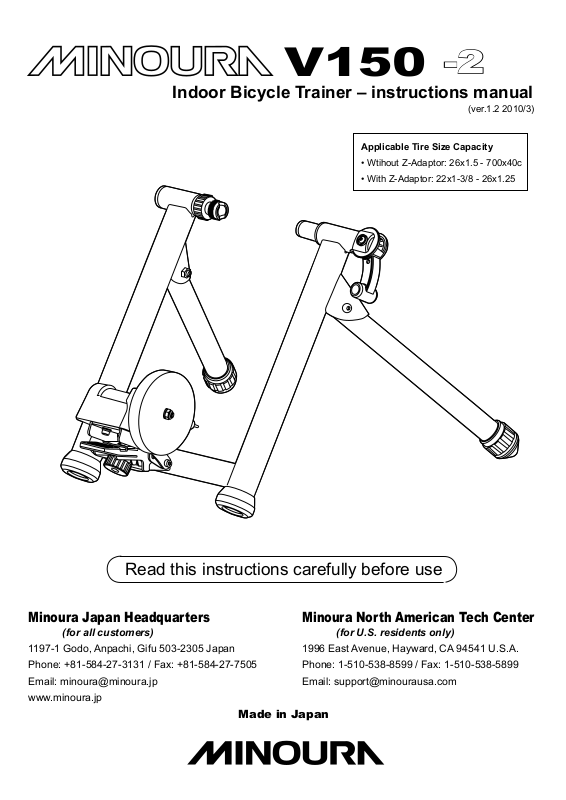

Minoura V150-2 SCHEMATICS

V150

-2

Indoor Bicycle Trainer – instructions manual

(ver.1.2 2010/3)

Applicable Tire Size Capacity

• Wtihout Z-Adaptor: 26x1.5 - 700x40c

• With Z-Adaptor: 22x1-3/8 - 26x1.25

Read this instructions carefully before use

Minoura Japan Headquarters Minoura North American Tech Center

(for all customers) (for U.S. residents only)

1197-1 Godo, Anpachi, Gifu 503-2305 Japan 1996 East Avenue, Hayward, CA 94541 U.S.A.

Phone: [phone] / Fax: [phone] Phone: [phone] / Fax: [phone]

Email: [e-mail] Email: [e-mail]

www.minoura.jp

Made in Japan

IMPORTANT NOTICE

• For use with a normal 2-wheel bicycle only. Do not use a tandem, recumbent, or other.

• Hub nut type rear wheel axle is not compatible with V150 in standard.
You need to replace the left side coupling (UF-8) with optional "Left Side Coupling for
Hub Nut Axle".

• Fits tire size between 22 x 1-3/8" and 700 x 40c. 29" tire is not compatible with this
model. To use 26x1.5" or smaller tire, install the supplied Small Wheel Adaptor.

• Some assembly required. Use correct tools (10mm spanner & M4 hex wrench).

Tools are not supplied in the kit.

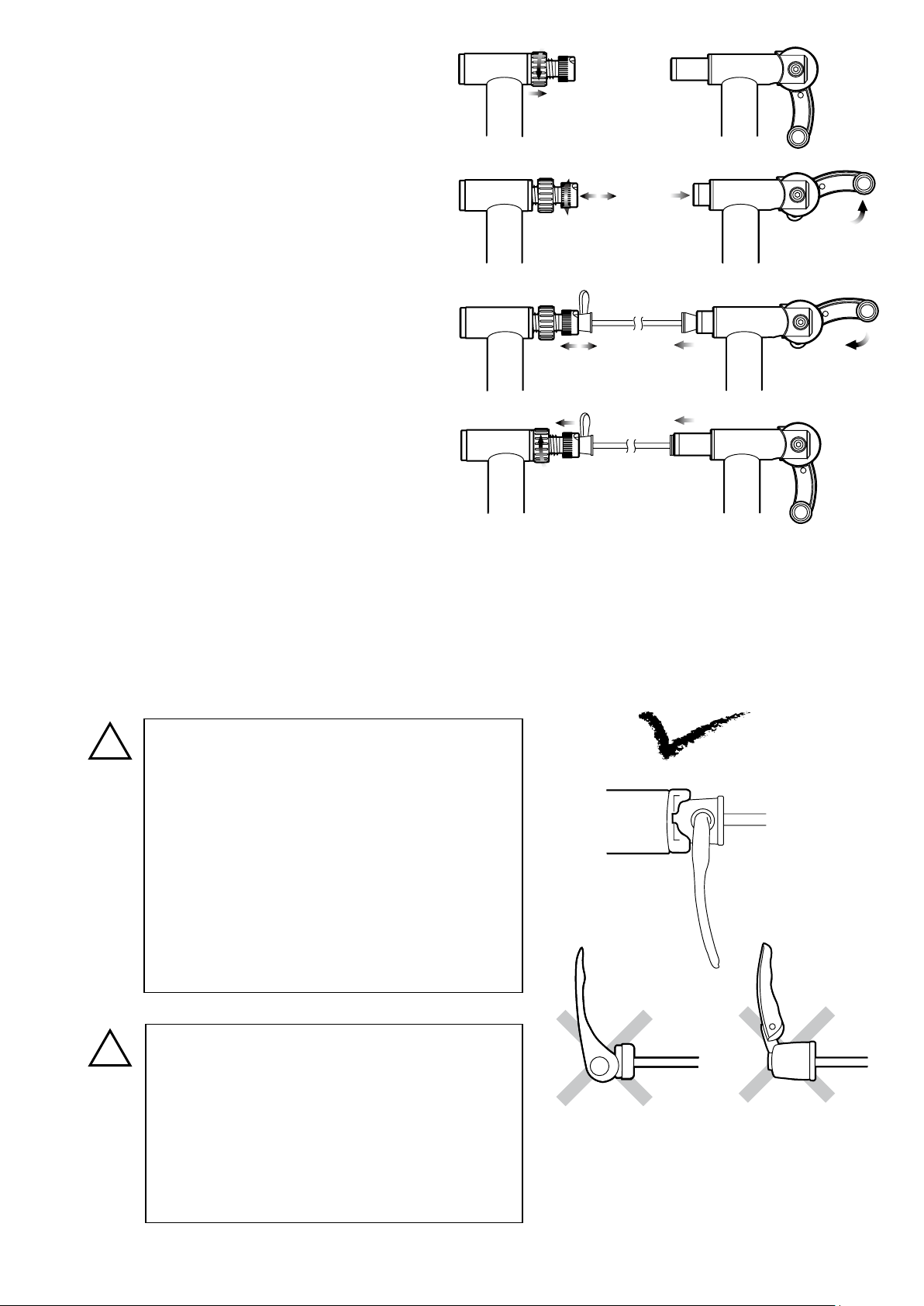

• Use the supplied rear quick release skewer for maximum stability.
Minoura is not responsible for any problem caused from using your own skewer.

• Use on at and level oor or ground for your safety.

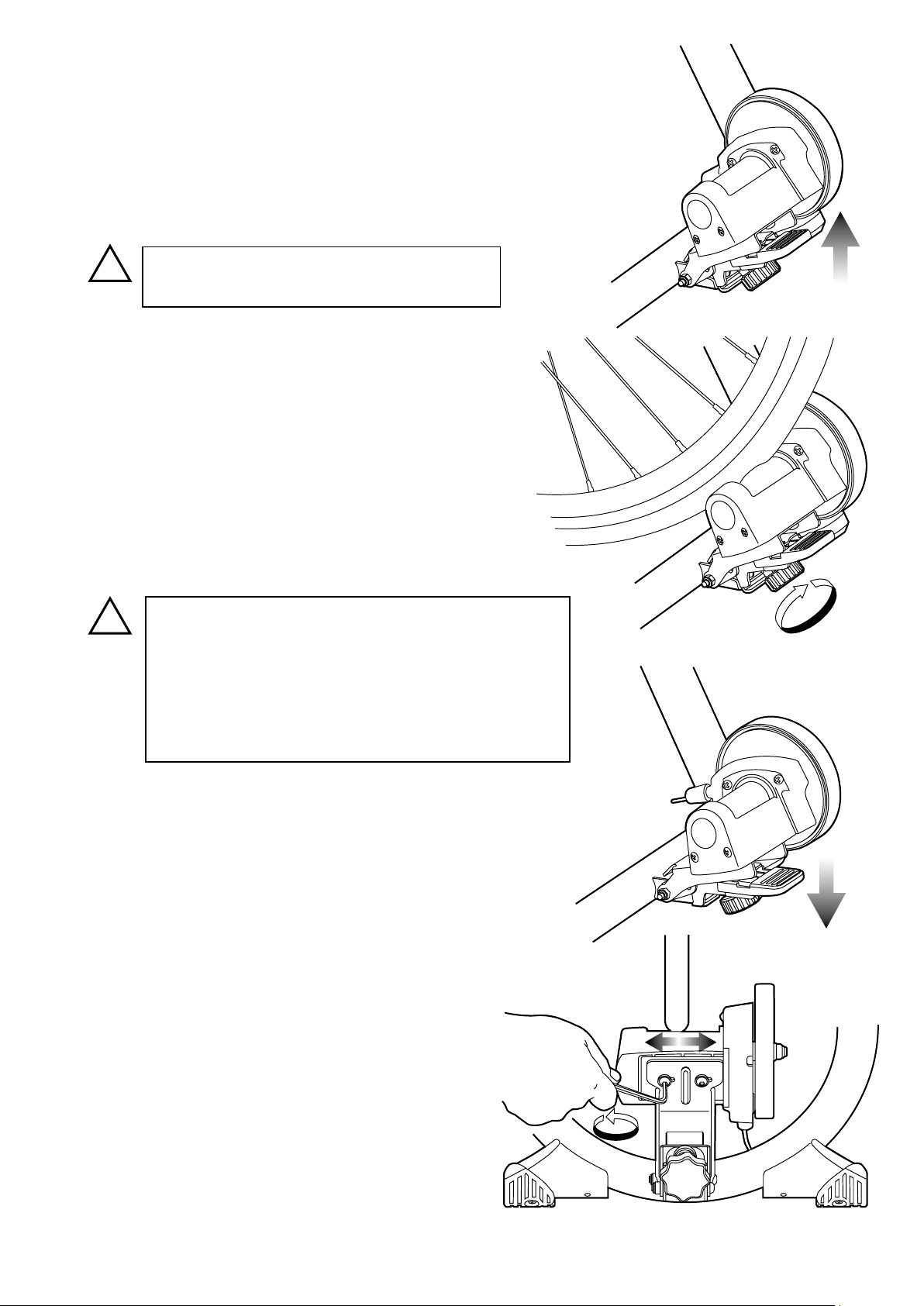

• Adjust the roller pressure to the rear tire properly in order to maximize your tire life.

Tire and roller contact will eventually wear both your tire and the trainer roller.

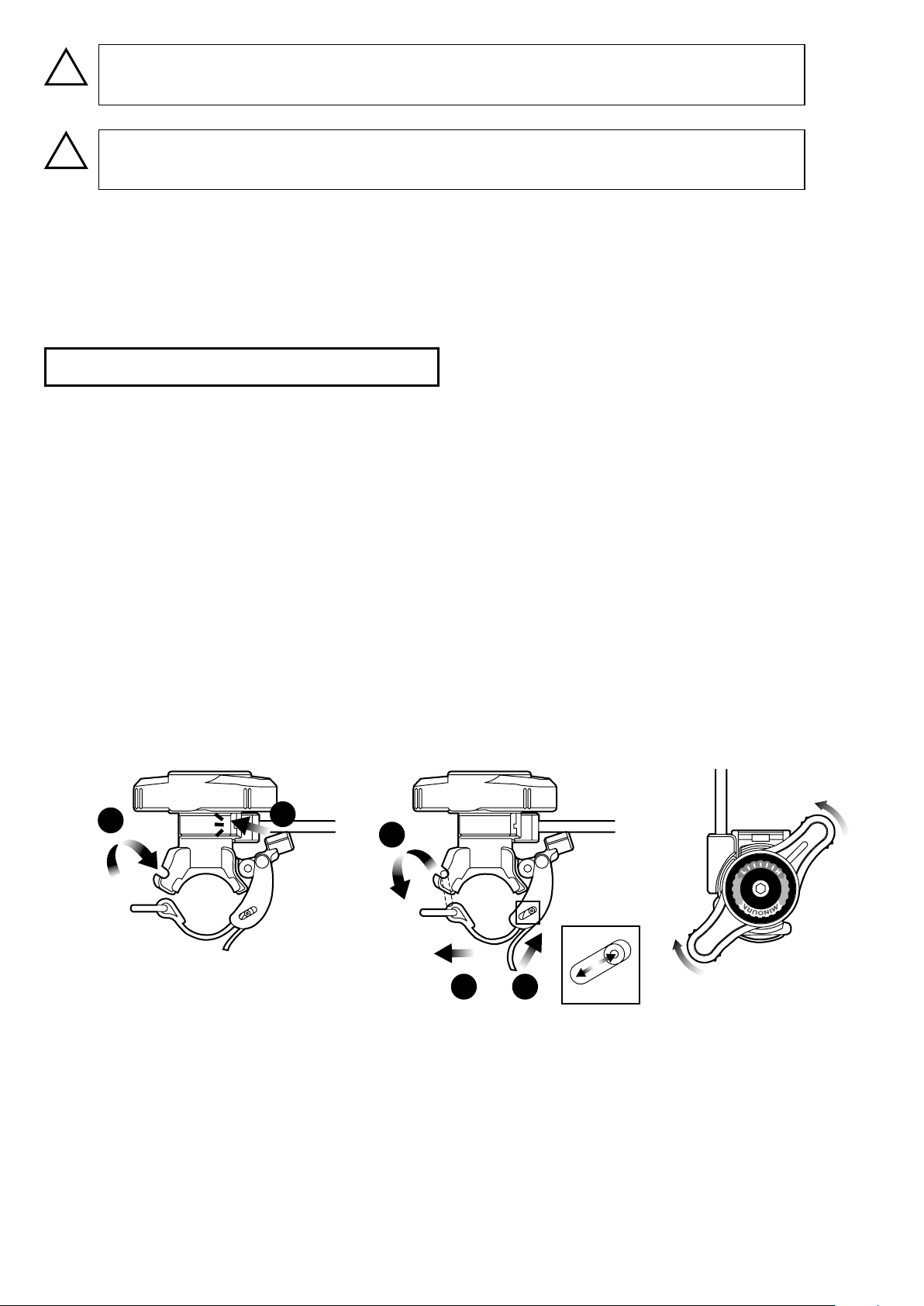

• Check and adjust the remote shifter cable tension when you cannot set at L or H even

though you turn the shifter lever.

• Touching the spinning wheel and/or any other moving parts while training may cause

serious injury. Keep children and pets away from the trainer when in use.

• It is not possible to convert the remote controllable resistance unit to the non-remote

version one due to a difference in the inside mechanism.

• If you feel any strange noise or smell, stop using V150 immediately and contact the

retailer where you purchased the V150.

• Any warranty will be void if you use V150 for other purpose than instructed.

Minorua offers 1-year limited warranty on the resistance unit and 5-year limited
warranty on the frame from the date of your purchase for any problem caused by
manufacturer's defect.

Any damage or problem caused by transporting process is not covered under warranty.
Any damage from shipping or moving must be made to the shipping company.

Read enclosed "Minoura Limited Warranty Policy" card for more detail.

- Page 2 -

V150-2 Schematics

UF-17

GM-20

UF-13

UF-9

UF-6

UF-7

UF-8

M8-4

GM-4

GM-3

GM-2

GM-9

GM-10

GM-12

GM-13

GM-7

GM-11

GM-14

UF-13

GM-6

GM-5

{

GM-15

UF-6: Right Side Coupling & Clamp Lever GM-6: Drive Roller, Axle & Bearing

GM-16

UF-7: Clamp Lever Guide GM-7: Drive Roller Holder

UF-8: Left Side Coupling GM-9: Axle End Cap

UF-9: Coupling Lock Ring (Red) GM-10: Mag Unit Fitting Bracket

UF-13: Rubber Cap (45mm) GM-11: Rubber Shim

UF-17: V150-2 Main Frame (White) GM-12: Mount Base

M8-4: Rubber Foot Cap (35mm) GM-13: Rubber Washer & Bolt Set

GM-2: Alloy Rotor GM-14: Foot Pedal

GM-3: Housing Cover GM-15: Micro Adjust Knob

GM-4: Neodymium Magnet (for V130/150/270) GM-16: Flywheel (1.5 kgs for V130/150)

GM-5: Main Housing GM-20: Remote Shifter (Chrome Plated)

- Page 3 -
