Minoura V100, V130 SCHEMATICS

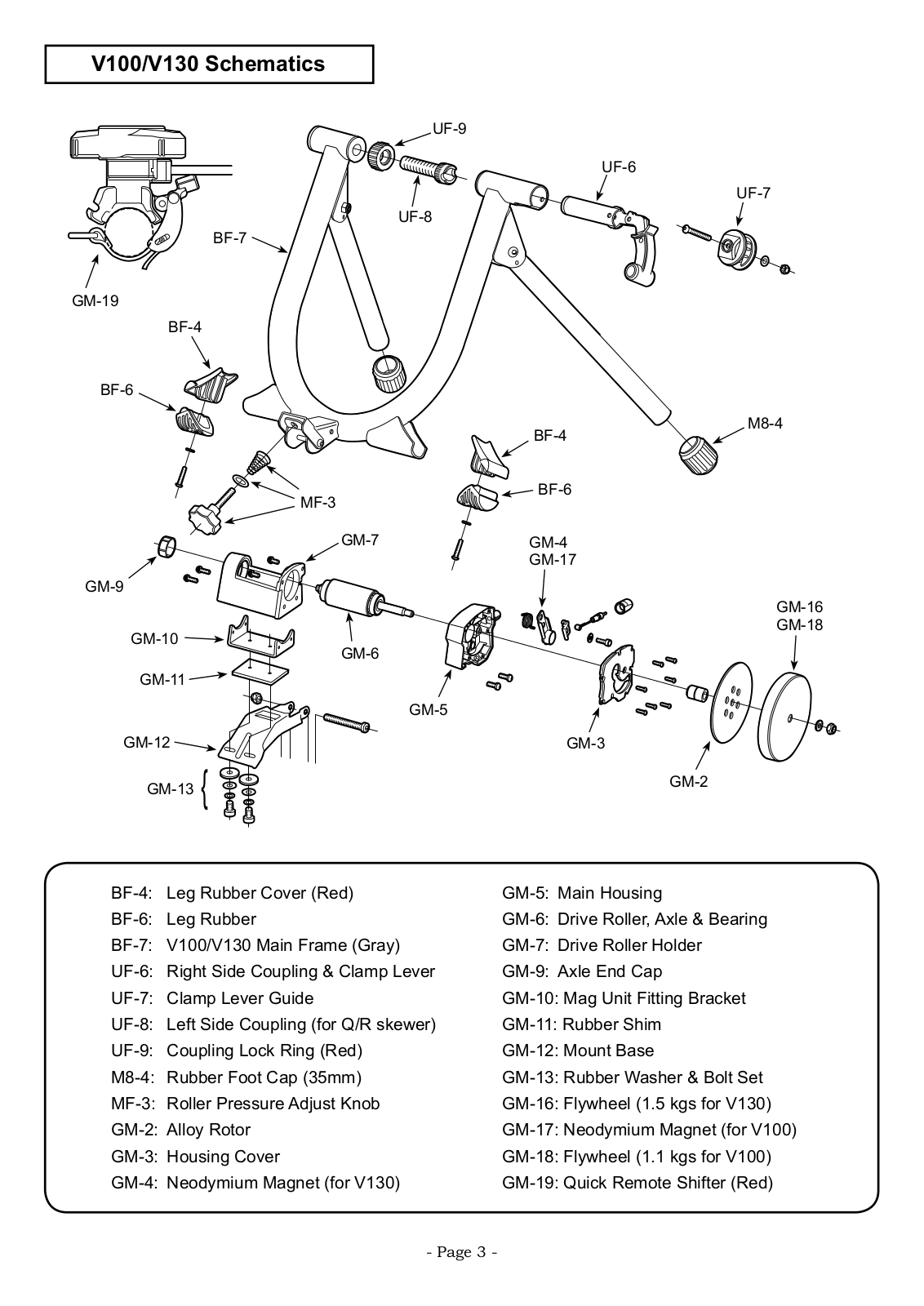

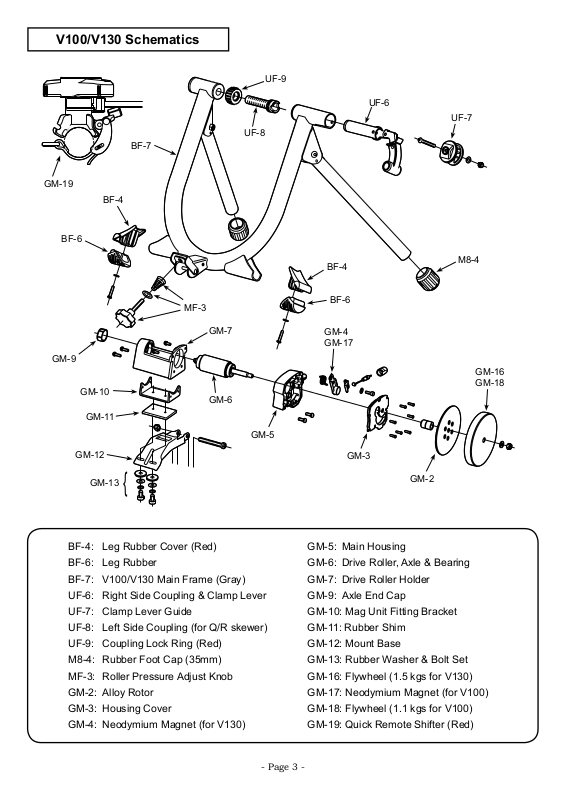

V100/V130 Schematics

BF-7

GM-19

BF-4

BF-6

UF-9

UF-6

UF-7

UF-8

GM-9

GM-10

GM-11

GM-12

GM-13

{

MF-3

GM-7

GM-6

GM-5

BF-4

BF-6

GM-4
GM-17

M8-4

GM-16
GM-18

GM-3

GM-2

BF-4: Leg Rubber Cover (Red) GM-5: Main Housing

BF-6: Leg Rubber GM-6: Drive Roller, Axle & Bearing

BF-7: V100/V130 Main Frame (Gray) GM-7: Drive Roller Holder

UF-6: Right Side Coupling & Clamp Lever GM-9: Axle End Cap

UF-7: Clamp Lever Guide GM-10: Mag Unit Fitting Bracket

UF-8: Left Side Coupling (for Q/R skewer) GM-11: Rubber Shim

UF-9: Coupling Lock Ring (Red) GM-12: Mount Base

M8-4: Rubber Foot Cap (35mm) GM-13: Rubber Washer & Bolt Set

MF-3: Roller Pressure Adjust Knob GM-16: Flywheel (1.5 kgs for V130)

GM-2: Alloy Rotor GM-17: Neodymium Magnet (for V100)

GM-3: Housing Cover GM-18: Flywheel (1.1 kgs for V100)

GM-4: Neodymium Magnet (for V130) GM-19: Quick Remote Shifter (Red)

- Page 3 -
