Minoura REMOTE SHIFTER KIT User Manual
Instruction Manual

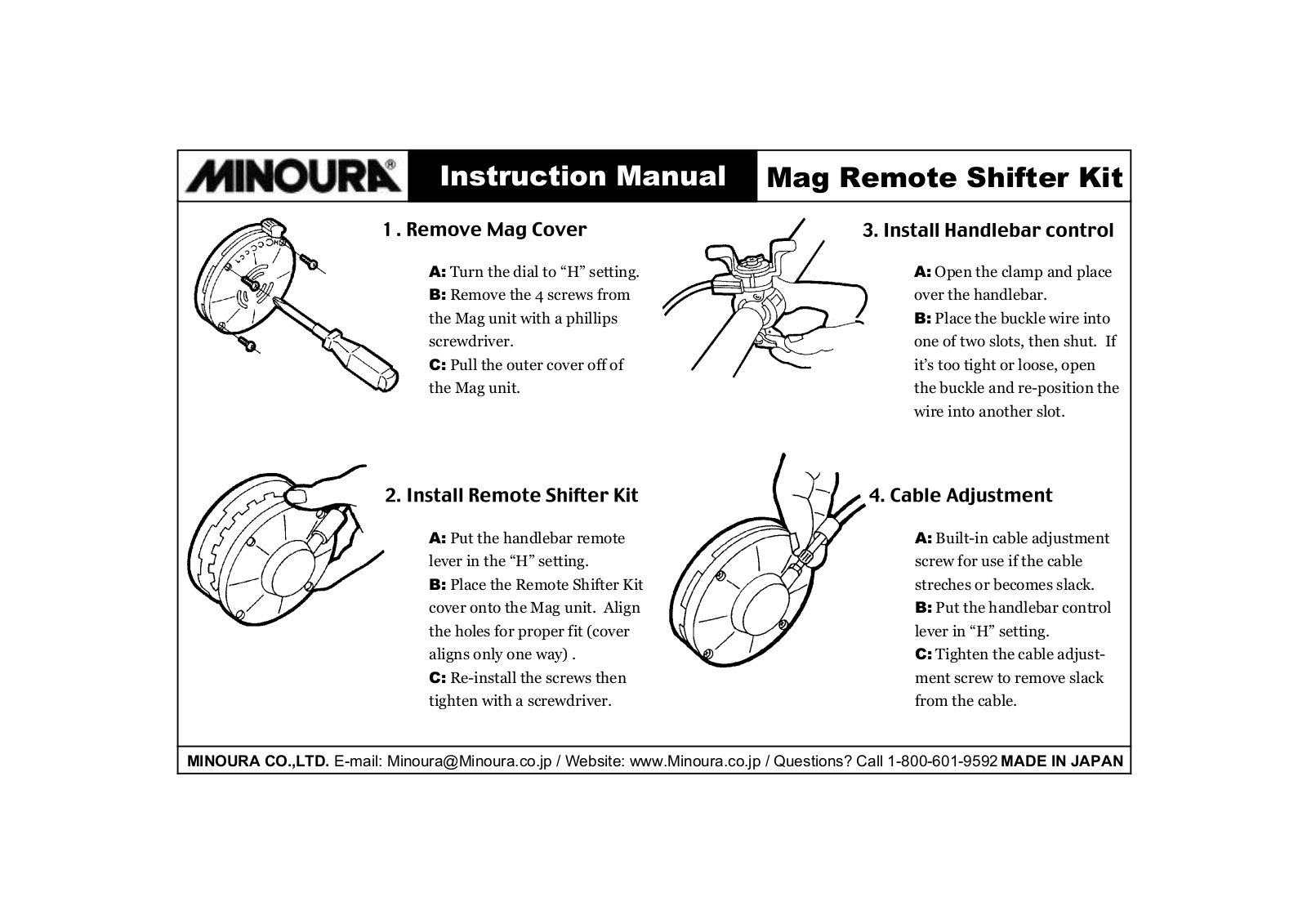

Mag Remote Shifter Kit
A: Turn the dial to “H” setting.
B: Remove the 4 screws from
the Mag unit with a phillips
screwdriver.
C: Pull the outer cover off of
the Mag unit.
A: Put the handlebar remote
lever in the “H” setting.
B: Place the Remote Shifter Kit
cover onto the Mag unit. Align
the holes for proper fit (cover
aligns only one way) .
C: Re-install the screws then
tighten with a screwdriver.
A: Open the clamp and place
over the handlebar.
B: Place the buckle wire into
one of two slots, then shut. If
it’s too tight or loose, open
the buckle and re-position the
wire into another slot.
A: Built-in cable adjustment
screw for use if the cable
streches or becomes slack.
B: Put the handlebar control
lever in “H” setting.
C: Tighten the cable adjustment screw to remove slack
from the cable.
