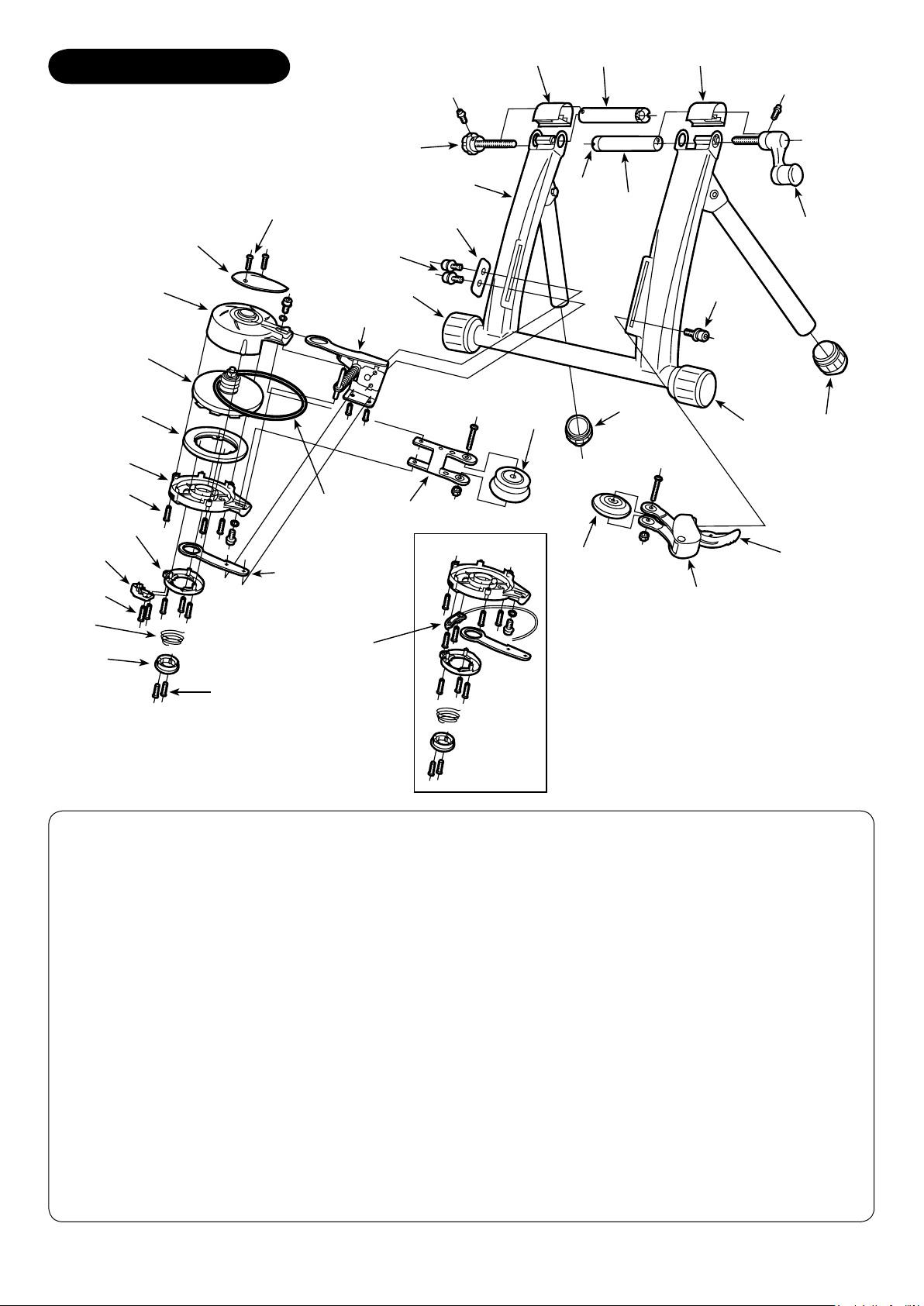

RDA80 Schematics
F-8
F-4
F-2
F-4
ER-2
Screw-L
ER-4
ER-5
Screw-S
ER-9
ER-6
ER-1
ER-7
ER-8
ER-3
Screw-M
SR-5
ER-11
Screw w/ washer
ER-15
SR-12
M8-3
ER-10
SR-13
ER-12
R8-1
SR-7
F-9
SR-8
F-1
M8-4
SR-12
ER-13
M8-3
F-7
M8-4
ER-14
Screw-M
<Remote Version>
F-1 : Coupling (Right) ER-1 : Upper Case
F-2 : Coupling (Left) ER-2 : Lower Case
F-4 : Coupling Cover (move side) ER-3 : Top Cover (blue)
F-7 : Hub Handle (3/8” thread) ER-4 : Magnet Guide Ring (blue)
F-8 : Wheel Position Adjust Knob ER-5 : Dial Lever (blue)
F-9 : Hub Nut Protector (Grommet) ER-6 : Spring Holder
R8-1 : RDA80 Main Frame ER-7 : Flywheel, Alloy Rotor & Axle
M8-3 : Rubber Frame Cap (38mm) ER-8 : Magnet
M8-4 : Rubber Foot Cap (32mm) ER-9 : Spring
SR-5 : V-Belt (K-16) ER-10 : Main Arm
SR-7 : Drive Roller Pulley ER-11 : Sub Arm
SR-8 : Assistant Roller Pulley ER-12 : Pulley Arm
SR-12 : Cap Bolt (M6x12) ER-13 : Assistant Pulley Holder
SR-13 : Reinforcement Plate ER-14 : Tension Lever
ER-15 : Remote Bracket & Cable
