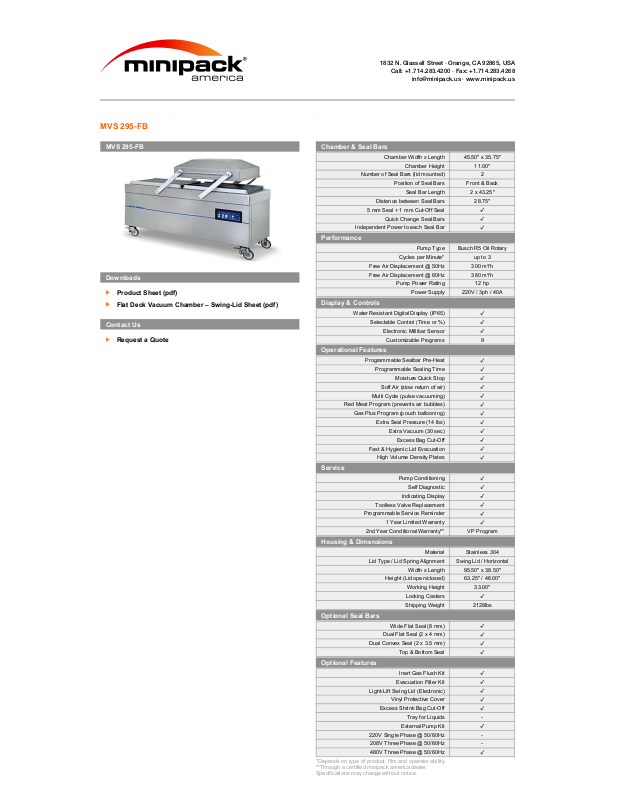

MVS 295-FB

1832 N. Glassell Street · Orange, CA 92865, USA

Call: +1.714.283.4200 · Fax: [phone]

[e-mail] · www.minipack.us

MVS 295-FB

Downloads

Product Sheet (pdf)

Flat Deck Vacuum Chamber – Swing-Lid Sheet (pdf)

Contact Us

Request a Quote

Chamber & Seal Bars

Chamber Width x Length 45.50" x 35.75"

Number of Seal Bars (lid moun ted) 2

5 mm Seal + 1 mm Cut-Off Seal

Independent Power to each Seal Bar

Chamber Height 11.00"

Position of Seal Bars Front & Back

Seal Bar Length 2 x 43.25"

Distance between Seal Bars 28.75"

Quick Change Seal Bars

Performance

Pump Type Busch R5 Oil Rota ry

Cycles per Minute* up to 3

Free Air Displacement @ 50Hz 300 m³/h

Free Air Displacement @ 60Hz 360 m³/h

Pump Power Rating 12 hp

Power Supply 220V / 3ph / 40A

Display & Controls

Water Resistant Digital Display (IP65)

Selectable Control (Time or %)

Electronic Millibar Sensor

Customizable Programs 9

Operational Features

Programmable Sealbar Pre -Heat

Programmable Sealing Time

Moisture Quick Stop

Soft Air (slow return of air)

Multi Cycle (pulse vacuuming)

Red Meat Program (prevents air bubbles)

Gas Plus Program (pouch ballooning)

Extra Seal Pressure (14 lbs)

Extra Vacuum (30 sec)

Excess Bag Cut-Off

Fast & Hygienic Lid Evacuation

High Volume Density Plates

Service

Pump Conditioning

Self Diagnostic

Indicating Display

Toolless Valve Replacement

Programmable Service Reminder

1 Year Limited Warranty

2nd Year Conditional Warranty** VP Program

Housing & Dimensions

Lid Type / Lid Spring Alignment Swing Lid / Horizontal

Height (Lid open/closed) 63.25" / 46.00"

Material Stainless 304

Width x Length 95.50" x 38.50"

Working Height 33.00"

Locking Casters

Shipping Weight 2128lbs

Optional Seal Bars

Wide Flat Seal (8 mm)

Dual Flat Seal (2 x 4 mm)

Dual Convex Seal (2 x 3.5 mm)

Top & Bottom Seal

Optional Features

Inert Gas Flush Kit

Evacuation Filter Kit

Light-Lift Swing Lid (Electronic)

Vinyl Protective Cover

Excess Shrink Bag Cut-Off

Tray for Liquids -

220V Single Phase @ 50/60Hz -

208V Three Phase @ 50/60Hz -

*Depends on type of product, film and operator ability.
**Through a certified minipack america dealer.
Specifications may change without notice.

480V Three Phase @ 50/60Hz

External Pump Kit
