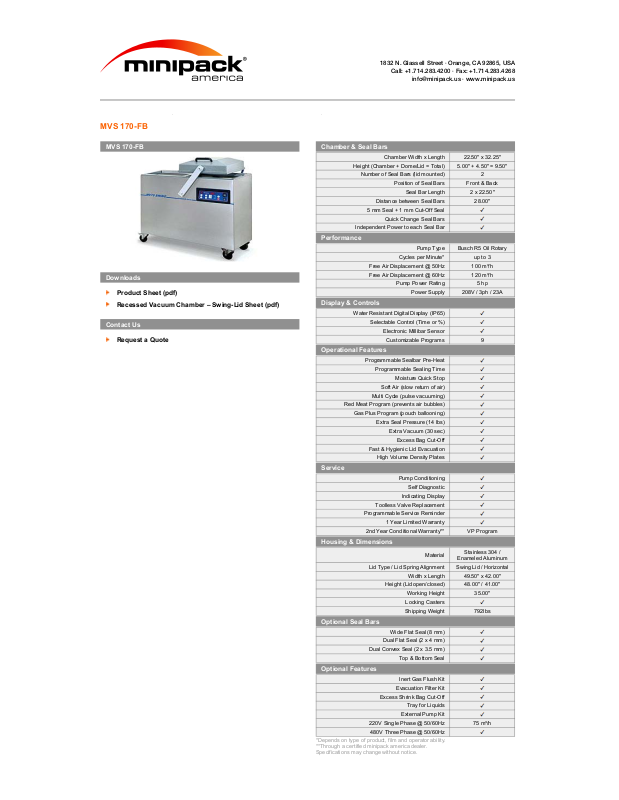

minipack MVS 170-FB User Manual

Share

|

Home Products Support Contact Us Driving Directions

Products / Machine Technologies / Vacuum Sealers / Recessed Vacuum Chamber – Swing-Lid / MVS 170-FB

MVS 170-FB

1832 N. Glassell Street · Orange, CA 92865, USA

Call: +1.714.283.4200 · Fax: [phone]

[e-mail] · www.minipack.us

MVS 170-FB

Chamber & Seal Bars

Performance

Downloads

Product Sheet (pdf)

Recessed Vacuum Chamber – Swing-Lid Sheet (pdf)

Display & Controls

Contact Us

Request a Quote

Operational Features

Red Meat Program (prevents air bubbles)

Service

Housing & Dimensions

Optional Seal Bars

Optional Features

*Depends on type of product, film and operator ability.
**Through a certified minipack america dealer.
Specifications may change without notice.

Height (Chamber + Do me/Lid = Total) 5.00" + 4.50" = 9.50"

Water Resistant Digital Display (IP65)

Gas Plus Program (pouch ballooning)

Chamber Width x Length 22.50" x 32.25"

Number of Seal Bars (lid moun ted) 2

Independent Power to each Seal Bar

Position of Seal Bars Front & Back

Seal Bar Length 2 x 22.50"

Distance between Seal Bars 28.00"

5 mm Seal + 1 mm Cut-Off Seal

Quick Change Seal Bars

Pump Type Busch R5 Oil Rotary

Cycles per Minute* up to 3

Free Air Displacement @ 50Hz 100 m³/h

Free Air Displacement @ 60Hz 120 m³/h

Pump Power Rating 5 hp

Power Supply 208V / 3ph / 23A

Selectable Control (Time or %)

Electronic Millibar Sensor

Customizable Programs 9

Programmable Sealbar Pre -Heat

Programmable Sealing Time

Moisture Quick Stop

Soft Air (slow return of air)

Multi Cycle (pulse vacuuming)

Extra Seal Pressure (14 lbs)

Extra Vacuum (30 sec)

Excess Bag Cut-Off

Fast & Hygienic Lid Evacuation

High Volume Density Plates

Pump Conditioning

Self Diagnostic

Indicating Display

Toolless Valve Replacement

Programmable Service Reminder

1 Year Limited Warranty

2nd Year Conditional Warranty** VP Program

Material

Lid Type / Lid Spring Alignment Swing Lid / Horizontal

Width x Length 49.50" x 42.00"

Height (Lid open/closed) 48.00" / 41.00"

Working Height 35.00"

Locking Casters

Shipping Weight 792lbs

Wide Flat Seal (8 mm)

Dual Flat Seal (2 x 4 mm)

Dual Convex Seal (2 x 3.5 mm)

Top & Bottom Seal

Inert Gas Flush Kit

Evacuation Filter Kit

Excess Shrink Bag Cut-Off

Tray for Liquids

External Pump Kit

220V Single Phase @ 50/60Hz 75 m³/h

480V Three Phase @ 50/60Hz

Stainless 304 /

Enameled Aluminum
