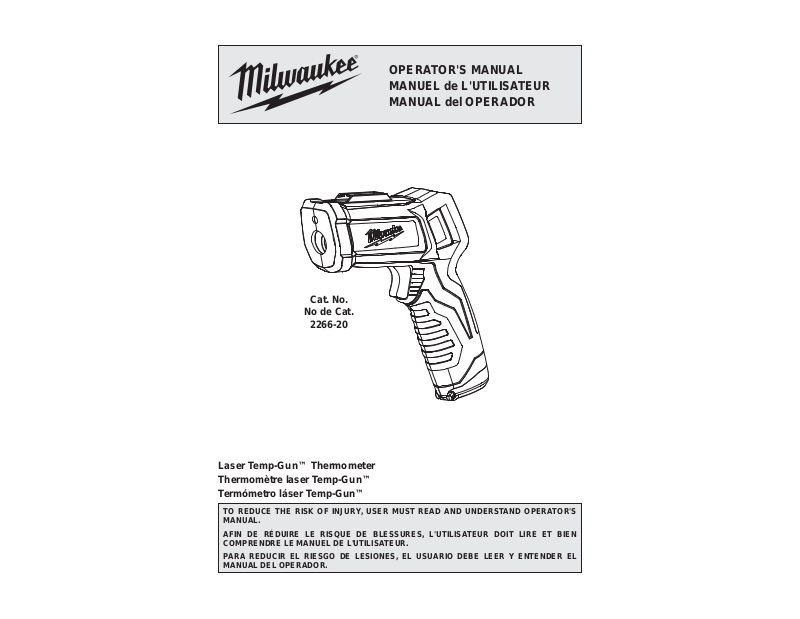

Milwaukee 2266-20 User Manual

Cat. No.

No de Cat.

2266-20

OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR

Laser Temp-Gun™ Thermometer
Thermomètre laser Temp-Gun™
Termómetro láser Temp-Gun™

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.

AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN
COMPRENDRE LE MANUEL DE L'UTILISATEUR.

PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL
MANUAL DEL OPERADOR.

IMPORTANT SAFETY INSTRUCTIONS

WARNING READ ALL SAFETY W ARNINGS AND INSTRUCTIONS. Failure to follow

the warnings and instructions may result in electric shock, fi re and/or serious injury. Save

these instructions - This operator’s manual contains important safety and operating instructions

for the MILWAUKEE Laser Temp-Gun™ Thermometer . Before using the T emp-Gun™, read this
operator’s manual and all labels on the Temp-Gun™.

• Laser light - Do not stare into beam or view

LASER SAFETY

directly with optical instruments. Do not point
laser light at others. Laser light can cause eye

damage.

• Avoid exposure to laser radiation. Laser may

emit hazardous radiation.

• Do not point laser at refl ective surfaces. Un-

predictable results may occur.

WORK AREA SAFETY

• Keep children and bystanders away while op­erating Temp-Gun™. Store idle Temp-Guns™
out of the reach of children and do not allow
persons unfamiliar with the tool or these in­structions to operate them.

• Avoid dangerous environments. Do not use in

rain, snow, damp or wet locations. Do not use in
the presence of explosive atmospheres (gaseous
fumes, dust or fl ammable materials) because
sparks may be generated when inserting or remov­ing battery pack, possibly causing fi re.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use
common sense when operating Temp-Gun™.
Do not use while you are tired or under the
infl uence of drugs, alcohol or medication. A

moment of inattention may result in serious per­sonal injury.

• Do not overreach. Keep proper footing and
balance at all times. This enables better control

in unexpected situations.

BA TTER Y USE AND CARE

• This tool is designed to be powered by
3-AA batteries properly inserted into the

MILWAUKEE Temp-Gun™ Do not attempt to use
with any other voltage or power supply.

• Do not leave batteries within the reach of
children.

• Do not mix new and used batteries. Do not mix
brands (or types within brands) of batteries.

• Do not mix rechargeable and non-recharge­able batteries.

• Install batteries according to polarity (+ / –)
diagrams.

• Properly dispose of used batteries immedi­ately.

• Do not incinerate or dismantle batteries.

• Under abusive conditions, liquid may be eject-

ed from the battery, avoid contact. If contact
accidentally occurs, fl ush with water. If liquid
contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation
or burns.

SERVICE

• Have your Temp-Gun™ serviced by a qualifi ed
repair person using only identical replacement
parts. This will ensure that the safety of the tool is

maintained.

• Do not disassemble. Incorrect reassembly may
result in the risk of electric shock or fi re. If it is dam-
aged, take it to a MILWAUKEE service facility.

• Store in a cool, dry place. Do not store where
temperatures may exceed 120°F (50°C) such as
in direct sunlight, a vehicle or metal building during
the summer.

• Do not remove or deface labels. Maintain labels
and nameplates. These carry important information.

If unreadable or missing, contact a MILWAUKEE
service facility for a free replacement.

Symbology

Volts Direct Current

CAUTION Laser Light - Do Not
Stare Into Beam

Laser product
Avoid Exposure: Laser Radiation Is
Emitted From This Aperture

To reduce the risk of injury, user must
read operator’s manual.

Federal Communications Commission

WARNING: Changes or modifi cations to this unit not
expressly approved by the party responsible for com­pliance could void the user’s authority to operate the
equipment.

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not in­stalled and used in accordance with the instructions, may
cause harmful interference to radio communications.

However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep-

2

tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit dif­ferent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV techni­cian for help.

Specifi cations

Laser Type: Class II
Max Power: <1mW
Wavelength: 630-670 nm
IR Temperature range*: -30°C to 500°C

(-22°F to 932°F) *Assume ambient operating
temperature of 23°C to 25°C (73°F to 75°F)
IR Accuracy:-30°C to 10°C (-22°F to 50°F): ±1.5°C (3°F)
10°C to 30°C (50°F to 86°F): ±1.0°C (2°F)
30°C to 380°C (86°F to 716°F): ±1.5°C (3°F)
or 1.5% of reading, whichever is greater
380°C to 500°C (716°F to 932°F): ±2°C (4°F)
or 2% of reading, whichever is greater
Min. measuring distance: 2” < 50°C (122°F),
4” > 50°C (122°F)

Display resolution: 0.1°C (0.1°F)
Contact temperature range:

-30°C to 450°C (-22°F to 842°F)

Contact temperature input accuracy: ± 1.1°C (± 2°F)
Temperature display resolution:

0.1°C/°F in Primary, 1°C/°F in Secondary

Emissivity: 0.95
Response time:<500 msec
Spectral response: 8 to 14μm
Distance to spot: 12 to 1
Drop: 1.5 meter
Repeatability: ±0.5% OR ±1°C(±2°F)

(whichever is greater)

Operating temperature: 0°c to 50°C (32°F to 122°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)

w/o battery
Relative humidity: 10 to 90% RH non-condensing
at <30°C ambient

Voltage: 4.5 DC
Battery life: Greater than 12 hrs with all functions

ASSEMBLY

Loading/Changing the Batteries

1. Press in the battery door lock

and open the battery door.

2. Before installing batteries

for the fi rst time, remove the
white, rectangular tag in the
battery compartment.

3. Insert three (3) AA batteries,

as displayed.

4. Close the battery door securely.

Selecting Celsius or Fahrenheit

Switch between Celsius and Fahrenheit tempera­ture display anytime by using the switch inside the
battery compartment.

FUNCTIONAL DESCRIPTION

12

11

13

1

14

19

18

15

17

16

CAUTION

6

7

8

10

9

LASER RADIATION - DO NOT STARE INTO BEAM

MAXIMUM POWER < 1mW WAVE LENGTH 630-670 nm

CLASS II LASER PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11

1. K-Type thermocouple input

2. Laser window

3. Infrared sensor

4. Nameplate

5. Trigger

6. Accessory bay

7. Display

8. Alarm Button

9. Battery door

10. Battery door lock

11. Hold indicator

12. Laser active indicator

13. Alarm indicator

14. C° or F° indicator

15. Primary measurement

16. Secondary
measurement

17. Max reading indicator

18. K-Type thermocouple indicator

19. Low battery indicator

5

LASER TEMP-GUN

4

3

4

SER.

AVOID EXPOSURE LASER RADIATION
IS EMITTED FROM THIS APERTURE

READ OPERATORS

MADE IN CHINA

CAT. NO. 2266-20

OPERATION

Scanning Object IR Temperature

1. Pull and hold the trigger for at least 2 seconds
and scan the surface temperature of an object.
A laser pointer indicates the
center of the circular area being
scanned.

NOTE: The object should be larg-

er than the spot being scanned. If
not, readings will be affected. See
Distance To Spot for necessary
object size.

2. As you continue to hold the
trigger, the icon is displayed
along with the surface tempera­ture (primary measurement) and
maximum temperature (secondary measure­ment) readings.

3. Release the trigger. HOLD is displayed until the
screen shuts off in about seven seconds.

NOTE: A quick change in temperature (>10°F) af­fects the meter’s readings. Allow the meter to reach
ambient temperature before use (5 to 30 minutes,
depending on temperature change).

3

2

MANUAL

Distance to Spot 12:1

—— Center of Spot
– – – Laser pointer (approx. 3/4" above center of spot)

Spot size at distance indicated

ACCESSORIES

WARNING Always remove batteries

before changing or removing accessories.
Only use accessories specifi cally recommend-
ed for this tool. Others may be hazardous.

For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online to

www.milwaukeetool.com. To obtain a catalog, con­tact your local distributor or a service center.

At 3' away, spot is 3" in diameter

At 5' away, spot is 5" in diameter

WARNING Never connect the Tem-

perature Probe to an energized circuit.

Contact Temperature Measurement with K-T ype
Probe

Only use K-type Temperature Probes with this
meter.

1.Insert the probe. The unit detects a connection of
a K-type probe and displays the contact tempera­ture (KTC) as the secondary measurement.

2 The display will continue to update

the contact temperature (KTC)
while the temperature probe reach­es thermal equilibrium with the
object being measured. The display
will shut off after about 20 min.

3.To return to IR mode, remove the K-type probe.

Temperature Alarm

Press the Alarm button to turn on the alarm func­tion. If the temperature reading is outside the preset
range, the temperature reading and bell icon will
fl ash and an alarm will sound.

Muting Alarm

Mute the alarm by pressing the
Alarm button. The bell icon will go
off. The temperature reading will
continue to fl ash as long as it is
outside the preset range.

Setting Preset Range for the
Alarm

1. To set the alarm range, pull and

hold the trigger and then press
the Alarm button. Repeat to toggle
between LO and HI settings.

2. Pull the trigger to increase the

values, press the Alarm button
to decrease the values. Wait 3
seconds for the ranges to save
and exit.

Low Battery

When the Low Battery icon is dis­played, change the batteries.

At 1' away, spot is 1½" in diameter

MAINTENANCE

WARNING To reduce the risk of injury ,

always remove the batteries from the tool
before performing any maintenance. Never
disassemble the tool. Contact a MILWAUKEE
service facility for ALL repairs.

Maintaining Tool

Keep your tool in good repair by adopting a regular
maintenance program. After six months to one year,
depending on use, return the tool to a MILWAUKEE
service facility for repairs.
If the tool does not start or operate at full power
with fully charged batteries, clean the contacts
on the battery door. If the tool still does not work
properly, return the tool to a MILWAUKEE service
facility for repairs.

Cleaning the Laser Windows

Clean the laser windows with a soft, moist cloth to
keep them clean and clear. Remove battery pack
before cleaning.

WARNING To reduce the risk of per-

sonal injury and damage, never immerse
your tool in liquid or allow a liquid to fl ow
inside it.

Cleaning

Clean dust and debris from tool. Keep tool handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean the tool since certain
cleaning agents and solvents are harmful to plastics
and other insulated parts. Some of these include
gasoline, turpentine, lacquer thinner, paint thinner,
chlorinated cleaning solvents, ammonia and house­hold detergents containing ammonia. Never use
fl ammable or combustible solvents around tools.

Repairs

For repairs, return the tool to the nearest service
center listed on the back cover of this operator's
manual.

4

LIMITED WARRANTY -

USA AND CANADA

MILWAUKEE Test & Measurement Products (including bare
tool, li-ion battery pack(s) and battery charger but excluding
alkaline batteries) are warranted to the original purchaser
only to be free from defects in material and workmanship.
Subject to certain exceptions, MILWAUKEE will repair or
replace any part on this product which, after examination,
is determined by MILWAUKEE to be defective in material or
workmanship for a period of fi ve (5) years* after the date of
purchase. Return the Test & Measurement tool and a copy
of proof of purchase to the nearest Milwaukee Electric Tool
Corporation - factory Service Center. This warranty does not
apply to damage that MILWAUKEE determines to be from re-
pairs made or attempted by anyone other than MILWAUKEE
authorized personnel, misuse, alterations, abuse, normal
wear and tear, lack of maintenance, or accidents.

*The warranty period for the LITHIUM-ION battery pack
that ships with the Test & Measurement tool is two (2)
years from the date of purchase. *Alkaline battery that
ships with Test & Measurement tool is separately war­ranted by the battery manufacturer. *The warranty period
for a NON-CONTACT VOLTAGE DETECTOR – 2201 20
is one (1) year from the date of purchase.

Warranty Registration is not necessary to obtain the
applicable warranty on MILWAUKEE product. The manu­facturing date of the product will be used to determine the
warranty period if no proof of purchase is provided at the
time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT
REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON­TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT . IF
YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PUR­CHASE THE PRODUCT . IN NO EVENT SHALL MILWAUKEE BE LIABLE
FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE
DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES,
LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF
ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT
INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF
PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER
EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT
PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WAR-
RANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WAR­RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT
PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED
TO THE DURATION OF THE APPLICABLE EXPRESS W ARRANTY AS
DESCRIBED ABOVE. SOME ST ATES DO NOT ALLOW LIMIT ATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HA VE OTHER
RIGHTS WHICH VARY FROM STATE T O STATE.
This warranty applies to product sold in the U.S.A. and Canada only.

LIMITED WARRANTY - MEXICO,

CENTRAL AMERICA AND CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 year since the original
purchase date.
This warranty card covers any defect in material and workmanship
on this Power Tool.
To make this warranty valid, present this warranty card, sealed/
stamped by the distributor or store where you purchased the product,
to the Authorized Service Center (ASC). Or, if this card has not been
sealed/stamped, present the original proof of purchase to the ASC.
Call toll-free 1 800 832 1949 to fi nd the nearest ASC, for service, parts,
accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed/
stamped by the distributor or store where you purchased the product,
and there any faulty piece or component will be replaced without
cost for you. We will cover all freight costs relative with this warranty
process.

Exceptions

This warranty is not valid in the following situations:
a) When the product is used in a different manners from the end-user
guide or instruction manual.
b) When the conditions of use are not normal.
c) When the product was modifi ed or repaired by people not autho-
rized by TECHTRONIC INDUSTRIES.
Note: If cord set is damaged, it should be replaced by an Authorized
Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER
Rafael Buelna No.1.
Col. Tezozomoc Mexico, Azcapotzalco D.F.
Ph. 01 800 832 1949

IMPORTED AND COMMERCIALIZED BY:
TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.
Av. Santa Fe 481 piso 6, Col. Curz Manca.
CP 05349, Cuajimalpa, D.F.

Model:
Date of Purchase:
Distributor or Store Stamp:

5
