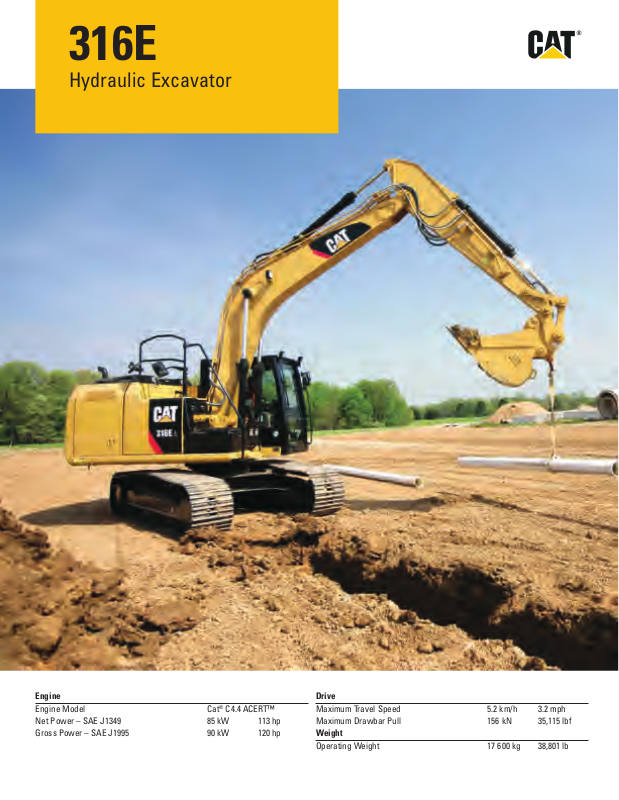

316E

Hydraulic Excavator

Engine Drive

Engine Model Cat
Net Power – SAE J1349 85 kW 113 hp Maximum Drawbar Pull 156 kN 35,115 lbf
Gross Power – SAE J1995 90 kW 120 hp Weight

®

C4.4 ACERT™ Maximum Travel Speed 5.2 km/h 3.2 mph

Operating Weight 17 600 kg 38,801 lb

Introduction

Since its introduction in the 1990s, the 300 Series
family of excavators has become the industry
standard in general, quarry, and heavy construction
applications. The all-new E Series and the 316E
will continue that trend-setting standard.

The 316E meets today’s U.S. EPA Tier 4 Interim
emission standards. It is also built with several
new fuel-saving and comfort-enabling features
and benets that will delight owners and operators.

If you are looking for more productivity and
comfort less fuel consumption and emissions,
andeasier and more sensible serviceability, you
will  nd it in the all-new 316E and the E Series
family of excavators.

Contents

Engine ...................................................................3

Operator Station..................................................4

Hydraulics ............................................................5

Structures & Undercarriage .............................6

Front Linkage .......................................................7

Work Tools............................................................8

Integrated Technologies..................................10

Serviceability.....................................................11

Safety..................................................................12

Complete Customer Care.................................13

Sustainability .....................................................14

Specications....................................................15

Standard Equipment.........................................25

Optional Equipment...........................................26

Engine

Reduced emissions, economical and reliable performance

Cat® C4.4 ACERT™ Engine

The Cat C4.4 ACERT engine delivers the same level of
performance using signicantly less fuel than the previous
series engine.

Emissions Solution

Equipped to meet U.S. EPA Tier 4 Interim emission
standards, the 316E’s C4.4 ACERT engine features an
aftertreatment regeneration solution that ensures the
machine works as normal with no operator intervention
needed. The regeneration process automatically starts
once the ltering system detects soot buildup – with no
interruption to machine performance or the work process.

Biodiesel-Ready Fuel System

The C4.4 ACERT engine is equipped with an electronic­controlled high-pressure fuel system that includes an electric
priming pump and three-layer fuel hoses to allow the use
of biodiesel (meeting ASTM 6751 or EN 14214) up to B20
(biodiesel 20% mixture).

Cooling System

The cooling system features an air-to-air aftercooler
andA/Ccondenser that tilt up and swing out of the way
foreasy servicing.

Speed and Power Control

The 316E features speed control to maximize performance
while minimizing fuel consumption. Two different power
modes are offered: high power mode when you need maximum
production; economy mode when you need performance
withthe lowest fuel consumption. The operator can easily
change between modes through the console switch panel
tomeet the needs for the job at hand – all to help manage
and conserve fuel.

3

Operator Station

Comfort and convenience to keep people productive

Seats

The seat range includes air suspension, heated, and air cooled
options. All seats include a reclining back, upper and lower
seat slide adjustments, and height and tilt angle adjustments
to meet operator needs for comfort and productivity.

Controls

The right and left joystick consoles can be adjusted to meet
individual preferences, improving operator comfort and
productivity during the course of a day. With the touch of a
button, one-touch idle reduces engine speed to help save fuel;
touch it again or move the joystick and the machine returns
to normal operating level.

Monitor

The 316E is equipped with a 7" LCD (Liquid Crystal Display)
monitor (1) that’s 40% bigger than the previous model’s with
higher resolution for better visibility. In addition to an improved
keypad and added functionality, it’s programmable to provide
information in a choice of 44 languages to support today’s
diverse workforce.

An “Engine Shutdown Setting” accessible through the monitor
allows owners and operators to specify how long the machine
should idle before shutting down the engine, which can save
signicant amounts of fuel.

The image of the rearview camera is displayed directly on the
monitor, which will help keep you focused on the job at hand.

Power Supply

Two 12-volt power supply sockets are located near key
storage areas for charging electronic devices such as an
MP3player and cell phone.

Storage

Storage spaces are located in the front, rear, and side consoles.

1

A dedicated space near the auxiliary power supply holds MP3
players and cell phones. The drink holder accommodates
large mugs with handles, and a shelf behind the seat stores
large lunch or toolboxes.

Automatic Climate Control

The climate control system features ve air outlets with
positive ltered ventilation, which makes working in the heat
and cold much more pleasant.

4

Hydraulics

Power to move more dirt, rock, and debris with speed and precision

Hydraulic Horsepower

Hydraulic horsepower is the actual machine power available to do work through implements and work tools. It’s much more
than just the engine power under the hood – it’s a core strength that differentiates Cat machines from other brands.

Main Control Valve and Auxiliary Valves

The 316E uses a high-pressure system to tackle the toughest of work in short order. The machine features a highly efcient
andsimple main control valve to improve fuel consumption; it also allows for greater tool versatility.

Electric Boom Regeneration System

The 316E regenerates the ow of oil from the head end of the boom cylinder to the rod end of the boom cylinder during a
boom down operation to save energy, which helps improve fuel efciency. It is optimized for any dial speed setting being used
bythe operator, which results in less pressure loss for higher controllability, more productivity, and lower operating costs.

5

Structures & Undercarriage

Built to work in rugged environments

Frame

The upper frame includes reinforced mountings to support the Roll-Over Protective Structure (ROPS)
cab; the lower frame is reinforced to increase component durability.

Undercarriage

Long undercarriage supports various work applications. The track rollers are a double solid-pin-type
design to improve reliability compared to the single solid-pin-type design. A segmented two-piece
guiding guard is now offered to help maintain track alignment and improve performance in multiple
applications.

Counterweight

Built with an integrated rearview camera housing, the counterweight comes with integrated links
toenable easy removal for maintenance or shipping.

6

Front Linkage

Made for high stress and long service life

Booms and Sticks

The 316E is offered with a reach boom and three stick
congurations: R3.1 m (10'2"), R2.9 m (9'6"), and R2.6 m
(8'6"). Also, a new thumb-ready stick with brackets to attach
a Cat thumb on the machine is an available option. Each boom
and stick is built with internal bafe plates for added durability,
and each undergoes ultrasound inspection to ensure weld
quality and reliability.

Reach conguration balances digging force and bucket
capacity. It covers all applications this size of machine was
designed to take on such as digging, loading, trenching,
andworking with hydraulic tools.

Large box-section structures with thick, multi-plate
fabrications, castings, and forgings are used in high-stress
areas such as the boom nose, boom foot, boom cylinder,
and stick foot to improve durability. Also, the front linkage
pins’ inner bearing surfaces are welded with a self-lubricated
bearing used to extend service intervals and increase uptime.

7

Work Tools

Dig, hammer, rip, and cut with condence

An extensive range of Cat Work Tools for the 316E includes
buckets, compactors, grapples, scrap and demolition shears,
pulverizers, hammers and thumbs. Each is designed to optimize
the versatility and performance of your machine.

Quick Couplers

Quick couplers allow one person to change work tools in
seconds for maximum performance and exibility on a job
site. One machine can move rapidly from task to task, and
a eet of similarly equipped machines can share a common
work tool inventory.

Cat Center-Lock™ Pin Grabber Coupler

Center-Lock is the pin grabber style of coupler featuring a
patented locking system. A highly visible lock clearly shows
the operator when the coupler is engaged or disengaged from
the bucket or work tool.

Buckets

Cat buckets are designed as an integral part of the 316E
system and feature new geometry for better performance.
The leading edge has been pushed forward, resulting in
more efcient lling and better operator control for greatly
improved productivity. Wear coverage in the corners and
side cutter and sidebar protector coverage are improved.
Allbenets are captured in a new bucket line with a new
bucket naming convention.

8

Durability Categories Suitable for Any Situation

Caterpillar offers standard bucket categories for excavators.
Each category is based on intended bucket durability
whenused in recommended applications and materials.
Eachbucket durability is available as pin-on or can be
usedwith a quick coupler.

General Duty (GD)

GD buckets are for digging in low-impact, low-abrasion
material such as dirt, loam, and mixed compositions
ofdirtand ne gravel.

Severe Duty (SD)

SD buckets are for higher abrasion conditions such as
well shot granite and caliche. Red area on bucket image
illustrates additional protection against wear as compared
toaGDbucket.

Specialty Buckets

In addition to the standard four bucket categories,
specialtybucket styles are available for the 316E, each
withadifferent purpose:

• Ditch Cleaning buckets for cleaning ditches, slope

grading, and other nish work.

• Center-Lock Pin Grabber Performance buckets for

maximum digging performance while keeping the
versatility and convenience of a coupler.

• Wide Tip buckets for low impact material where leaving

asmoother oor and minimal spillage are necessary.

1 2

1) General Duty 2) Severe Duty

Hydraulic Kits

Caterpillar offers eld-installed hydraulic kits that are uniquely
designed to integrate Cat Work Tool attachments with Cat
excavators. Hoses and tubes are pre-made, pre-shaped, and
pre-painted to make installation quick and easy.

Comprehensive Product Support

All Cat Work Tools are backed up by a world-wide network
of well-stocked parts depots and highly experienced service
and support personnel.

9

Integrated Technologies

Solutions that make work easier and more efcient

Cat® Grade Control Depth and Slope

This optional system combines traditional machine control and
guidance with standard factory-installed and calibrated components,
making the system ready to go to work the moment it leaves the factory.
The system utilizes internal front linkage sensors – well protected from
the harsh working environment – to give operators real-time bucket
tip position information through the cab monitor (1), which minimizes
the need and cost for traditional grade checking and enhances job site
safety. It also helps the operator complete jobs in fewer cycles, which
means less fuel use. Cat dealers can upgrade the system to full three­dimensional control by adding proven Cat AccuGrade™ positioning
technologies, including GPS and Universal Total Station (UTS).

1

2

Cat Product Link

This optional system is deeply integrated into the machine monitoring
system (2 and 3) and is designed to help customers improve their overall
eet management effectiveness. Events and diagnostic codes as well as
hours, fuel consumption, idle time, machine location, and other detailed
information are transmitted to a secure web based application called
VisionLink™, which uses powerful tools to communicate to users
anddealers.

10

3

Serviceability

Fast, easy and safe access built in

Service Doors

Wide service doors (1) feature sturdier hinges and latches and
a new screen design to help prevent debris entry; a one-piece
hood (2) provides easier access to the engine and cooling
compartments.

Compartments

The radiator (3), pump, and air cleaner compartments
provide easy access to major components. The fresh air
lteris located on the side of the cab to make it easy
toreachand replace as needed.

Other Service Benets

The water separator with water level sensor has a primary
fuel lter element located in the pump compartment near
ground level; the electric priming pump is mounted before
the primary lter base and is easy to service compared to
atraditional hand-priming pump.

The fuel tank features a remote drain cock located in the
pump compartment to make it easy to remove water and
sediment during maintenance.

The engine oil check gauge is situated in front of the engine
compartment for easy access, and a uniquely designed drain
cock helps prevent spills.

1

2

3

11

Safety

Features to help protect people

ROPS Cab

The ROPS-certied cab (1) allows an Operator Protective
Guard (OPG) to be bolted directly to it.

Sound Proong

Improved sealing and cab roof lining lower noise levels inside
the cab signicantly during machine operation.

Anti-Skid Plates

The surface of the upper structure and the top of the
storagebox area (2) are covered with anti-skid plates to
helpprevent service personnel and operators from slipping
during maintenance.

21

Steps, Hand and Guard Rails

Steps on the track frame and storage box along with extended
hand (3) and guard rails to the upper deck enable operators
tosecurely work on the machine.

Time Delay Lights

When the light switch is on, cab and boom lights will
illuminate to enhance visibility after the engine start key
hasbeen turned off.

High Intensity Discharge (HID) Lights

Halogen lights are standard, but they can be upgraded to
HIDfor greater visibility.

Windows

The 70/30 split conguration features an upper window

3

equipped with handles on the top and both sides so the
operator can slide it to store in the ceiling. The lower window
is removable and can be stored on the left wall of the cab shell.
The large skylight provides great overhead visibility, excellent
natural lighting, and good ventilation. The skylight can be
opened completely to become an emergency exit.

Wiper System

A lower wiper is available as an option to maximize visibility
in poor weather conditions. The lower wiper motor is integrated
to the upper frame so it doesn’t obstruct the forward view.

Monitor Warning System

The machine features a buzzer in the monitor that tells
customers when critical events like plugged lters or low
hydraulic pressure need to be immediately addressed.

Rearview Camera

4

An optional rearview camera is housed in the counterweight
(4). The image projects through the cab monitor to give the
operator a clear view of what is behind the machine.

12

Complete Customer Care

Service you can count on

Product Support

Cat dealers utilize a worldwide parts network to maximize your machines’ uptime. Plus they can help
you save money with Cat remanufactured components.

Machine Selection

What are the job requirements and machine attachments? What production is needed? Your Cat dealer
can provide recommendations to help you make the right machine choices.

Purchase

Consider nancing options and day-to-day operating costs. Look at dealer services that can be included
in the machine’s cost to yield lower owning and operating costs over time.

Customer Support Agreements

Cat dealers offer a variety of customer support agreements and work with you to develop a plan to meet
your specic needs. These plans can cover the entire machine, including attachments, to help protect
your investment.

Operation

Improving operating techniques can boost your prots. Your Cat dealer has videos, literature, and other
ideas to help you increase productivity. Caterpillar also offers simulators and certied operator training
to help maximize the return on your investment.

Replacement

Repair, rebuild, or replace? Your Cat dealer can help you evaluate the cost involved so you can make the
best choice for your business.

13

Sustainability

Generations ahead in every way

• The C4.4 ACERT engine, along with the Cat Clean Emissions Module (CEM), meets
U.S. EPA Tier 4 Interim emission standards.

• Even when operating in high horsepower and high production applications, the 316E performs
asimilar amount of work while burning up to 8% less fuel than the previous D Series model.
Thismeans more efciency, less resources consumed, and fewer emissions.

• The 316E has the exibility of running on either ultra-low-sulfur diesel (ULSD) fuel with 15 ppm
ofsulfur or less or biodiesel (B20) fuel blended with ULSD that meets ASTM 6751 or EN 14214
standards.

• An overll indicator rises when the fuel tank is full to help service technicians avoid spilling.

• The QuickEvac™ option ensures fast, easy, and secure changing of engine and hydraulic oil.

• The 316E is built to be rebuilt with major structures and components capable of being
remanufactured to reduce waste and replacement costs.

• An efcient engine oil lter eliminates the need for painted metal cans and aluminum top plates.
The cartridge-style spin-on housing enables the internal lter to be separated and replaced; the used
internal element can be incinerated to help reduce waste.

• The 316E is an efcient, productive machine that’s designed to conserve our natural resources for
generations ahead.

14

316E Hydraulic Excavator Specications

Engine Drive Track

Engine Model Cat® C4.4 ACERT™ Maximum 5.2 km/h 3.2 mph Number of Shoes 44 pieces

Net Power – 85 kW 113 hp
SAEJ1349 Maximum 156.2 kN 35,115 lbf Number of Track 7 pieces

Gross Power – 90 kW 120 hp
SAEJ1995

Bore 105 mm 4.13 in

Stroke 127 mm 5.00 in

Displacement 4.4 L 269 in

Hydraulic System

Main System –
Maximum Flow
(Total)

Swing System –
Maximum Flow

Maximum Pressure
–Equipment

Maximum Pressure
– Travel

Maximum Pressure
– Swing

Pilot System –
Maximum Flow

Pilot System –
Maximum Pressure

Boom Cylinder –
Bore

Boom Cylinder –
Stroke

Stick Cylinder –
Bore

Stick Cylinder –
Stroke

Bucket Cylinder –
Bore

Bucket Cylinder –
Stroke

300 L/min 79 gal

150 L/min 40 gal

35 000 kPa 5,076 psi

35 000 kPa 5,076 psi

22 600 kPa 3,278 psi

25.8 L/min 1,574 in
min

4120 kPa

110 mm

1193 mm 47 in

120 mm 5 in

1331 mm 52 in

110 mm 4 in

1039 mm 41 in

598 psi

4 in

TravelSpeed (each side)

DrawbarPull Rollers (eachside)

Swing Mechanism

Swing Speed 9.3 rpm

3

Swing Torque 44.7 kN·m 32,969 lb ft

Service Rell Capacities

Fuel Tank Capacity

Cooling System

Engine Oil
(withlter)

Swing Drive

Final Drive (each)

Hydraulic System
(including tank)

Hydraulic Tank

3

/

290 L

24 L

13.5 L

2.4 L

5 L

190 L

106 L

76.61 gal

6.34 gal

3.57 gal

0.63 gal

1.32 gal

50.19 gal

28.00 gal

Number of Carrier
Rollers (eachside)

Sound Performance

Operator – ISO 6396 71 dB(A)

Spectator – ISO 6395 101 dB(A)

• When properly installed and maintained,

• Hearing protection may be needed when

Standards

Brakes

ROPS cab

Cab/OPG

2 pieces

the cab offered by Caterpillar, when tested
with doors and windows closed according
to ANSI/SAE J1166 OCT98, meets OSHA
and MSHA requirements for operator
sound exposure limits in effect at time
ofmanufacture.

operating with an open operator station
and cab (when not properly maintained or
doors/windows open) for extended periods
or in noisy environment.

ISO 10265 2008

ISO 12117-2

ISO 10262 1998

15

316E Hydraulic Excavator Specications

Dimensions

All dimensions are approximate.

3

9

7

8

Stick

Shipping Height*

1

Shipping Height with Guard Rail

Shipping Height with Top Guard

Shipping Length

2

Tail Swing Radius

3

Length to Center of Rollers

4

Track Length

5

Ground Clearance

6

Track Gauge

7

Transport Width

8

500 mm (20") Shoes

600 mm (24") Shoes

700 mm (28") Shoes

Cab Height

9

Cab Height with Top Guard

Counterweight Clearance**

10

1

10

6

4
5

2

Reach Booms

5.1 m (16'9")

R3.1

(10'2")

mm (ft)

3370 (11'1")

3180 (10'5")

3180 (10'5")

8570 (28'1")

2500 (8'2")

3170 (10'5")

3970 (13'0")

440 (1'5")

1990 (6'6")

2520 (8'3")

2590 (8'6")

2690 (8'10")

2890 (9'6")

3100 (10'2")

1010 (3'4")

R2.9

(9'6")

mm (ft)

3180 (10'5")

3180 (10'5")

3180 (10'5")

8580 (28'2")

2500 (8'2")

3170 (10'5")

3970 (13'0")

440 (1'5")

1990 (6'6")

2520 (8'3")

2590 (8'6")

2690 (8'10")

2890 (9'6")

3100 (10'2")

1010 (3'4")

R2.6

(8'6")

mm (ft)

3180 (10'5")

3180 (10'5")

3180 (10'5")

8570 (28'1")

2500 (8'2")

3170 (10'5")

3970 (13'0")

440 (1'5")

1990 (6'6")

2520 (8'3")

2590 (8'6")

2690 (8'10")

2890 (9'6")

3100 (10'2")

1010 (3'4")

*Including shoe lug height.

**Without shoe lug height.

16

Working Ranges

All dimensions are approximate.

35

30

25

20

15

10

10

15

20

25

MetersFeet

11

10

9

8

7

6

5

4

3

2

5

1

0

0

1

5

2

3

4

5

6

7

8

3

7

1

111098765 34

4

5

2

R3.1 (10'2")
R2.9 (9'6")

6

8 ft

2101

R2.6 (8'6")

Meters

35 30 25 20 15 10 5 0 Feet

Stick

Maximum Digging Depth

1

Maximum Reach at Ground Level

2

Maximum Cutting Height

3

Maximum Loading Height

4

Minimum Loading Height

5

Maximum Depth Cut for 2440 mm (8'0") Level Bottom

6

Maximum Vertical Wall Digging Depth

7

R3.1

(10'2")

mm (ft)

6590 (21'7")

9260 (30'5")

9210 (30'3")

6570 (21'7")

1810 (5'11")

6400 (21'0")

5400 (17'9")

Reach Booms

5.1 m (16'9")
R2.9

(9'6")

mm (ft)

6390 (21'0")

8990 (29'6")

8880 (29'2")

6270 (20'7")

2000 (6'7")

6160 (20'3")

4910 (16'1")

R2.6

(8'6")

mm (ft)

6090 (20'0")

8780 (28'10")

8920 (29'3")

6280 (20'7")

2300 (7'7")

5870 (19'3")

4930 (16'2")

17

316E Hydraulic Excavator Specications

Operating Weight and Ground Pressure

700 mm (28") 600 mm (24") 500 mm (20")

Triple Grouser Shoes Triple Grouser Shoes Triple Grouser Shoes

kg (lb) kPa (psi) kg (lb) kPa (psi) kg (lb) kPa (psi)

Reach Boom – 5.1 m (16'9")

R3.1 (10'2") 17 800 (39,242) 36 (5.22) 17 600 (38,801) 42 (6.09) 17 400 (38,367) 49 (7.1)

R2.9 (9'6") 17 800 (39,242) 36 (5.22) 17 600 (38,801) 42 (6.09) 17 400 (38,367) 49 (7.1)

R2.6 (8'6") 17 700 (39,022) 36 (5.22) 17 500 (38,581) 41 (5.95) 17 300 (38,147) 49 (7.1)

Major Component Weights

kg lb

Base Machine (with boom cylinder, without counterweight, front linkage and track) 5720 12,610

Long Undercarriage 3770 8,310

Counterweight 2.8 mt (3.1 t) 2800 6,170

Boom (includes lines, pins and stick cylinder)

Reach Boom – 5.1 m (16'9") 1320 2,910

Reach Boom – 5.1 m (16'9") for CGC 1330 2,930

Stick (includes lines, pins, bucket cylinder, and bucket linkage)

R3.1 (10'2") 930 2,050

R2.9 (9'6") 910 2,010

R2.6 (8'6") 840 1,850

Track Shoe (Long/per two tracks)

500 mm (20") Triple Grouser 2190 4,830

600 mm (24") Triple Grouser 2420 5,340

700 mm (28") Triple Grouser 2650 5,840

All weights are rounded up to nearest 10 kg and lb except for buckets. Kg and lb were rounded up separately so some of the kg and lb do not match.

Base machine includes 75 kg (165 lb) operator weight, 90% fuel weight, and undercarriage with center guard.

18

Bucket and Stick Forces

Reach Booms

5.1 m (16'9")

Stick R3.1 R2.9 R2.6

(10'2") (9'6") (8'6")

kN (lbf) kN (lbf) kN (lbf)

General Duty

Bucket Digging Force (ISO) 111 (25,000) 111 (25,000) 111 (25,000)

Stick Digging Force (ISO) 71 (16,000) 75 (16,900) 80 (18,000)

Bucket Digging Force (SAE) 98 (22,000) 98 (22,000) 98 (22,000)

Stick Digging Force (SAE) 69 (15,500) 73 (16,400) 77 (17,300)

Severe Duty

Bucket Digging Force (ISO) 111 (25,000) 111 (25,000) 111 (25,000)

Stick Digging Force (ISO) 71 (16,000) 75 (16,900) 80 (18,000)

Bucket Digging Force (SAE) 96 (21,600) 96 (21,600) 96 (21,600)

Stick Digging Force (SAE) 69 (15,500) 72 (16,200) 77 (17,300)

19

316E Hydraulic Excavator Specications

Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.1 m (16'9") Counterweight – 2.8 mt (3.1 t) Bucket – None
Stick – R3.1 (10'2") Shoes – 700 mm (28") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg *2700 *2700 5.49

25.0 ft lb *6,050 *6,050 17.57

6.0 m kg *3650 3450 *2450 *2450 6.76

20.0 ft lb *7,850 7,400 *5,350 *5,350 21.96

4.5 m kg *3850 3400 *2450 2350 *2350 2300 7.52

15.0 ft lb *8,450 7,250 *5,150 5,100 24.58

3.0 m kg *7450 *7450 *5300 4950 *4450 3250 3650 2300 *2400 2050 7.93

10.0 ft lb *15,850 *15,850 *11,400 10,700 *9,650 6,950 *7,500 4,850 *5,250 4,550 25.98

1.5 m kg *7550 *7550 *6700 4600 5000 3050 3600 2200 *2550 2000 8.03

5.0 ft lb *18,100 17,700 *14,450 9,900 10,750 6,550 7,700 4,700 *5,550 4,350 26.36

Ground

kg *6650 *6650 7500 4350 4850 2900 3500 2150 *2800 2000 7.85

Line

lb *15,300 *15,300 16,100 9,300 10,400 6,250 7,550 4,600 *6,150 4,400 25.77

–1.5 m kg *5050 *5050 *9300 7700 7350 4200 4750 2850 *3350 2150 7.36

–5.0 ft lb *11,250 *11,250 *21,150 16,550 15,800 9,050 10,250 6,100 *7,350 4,750 24.12

–3.0 m kg *8400 *8400 *11 350 7800 7350 4200 4800 2850 4300 2600 6.49

–10.0 ft lb *18,850 *18,850 *24,500 16,750 15,800 9,050 10,300 6,150 9,500 5,700 21.18

–4.5 m kg *9000 8050 *6100 4350 *5150 3750 5.04

–15.0 ft lb *19,200 17,300 *12,850 9,450 *11,400 8,500 16.24

m
ft

Boom – 5.1 m (16'9") Counterweight – 2.8 mt (3.1 t) Bucket – None
Stick – R2.9 (9'6") Shoes – 700 mm (28") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

m
ft

7.5 m kg *2950 *2950 5.08

25.0 ft lb *6,500 *6,500 16.21

6.0 m kg *3650 3450 *2650 *2650 6.43

20.0 ft lb *7,350 7,350 *5,800 *5,800 20.89

4.5 m kg *4050 3350 *2550 2500 7.23

15.0 ft lb *8,850 7,250 *5,650 5,450 23.63

3.0 m kg *8000 *8000 *5500 4950 *4600 3200 *3300 2300 *2650 2200 7.66

10.0 ft lb *17,000 *17,000 *11,900 10,600 *10,000 6,900 *6,050 4,850 *5,800 4,850 25.09

1.5 m kg *7100 *7100 *6900 4550 5000 3050 3600 2200 *2850 2100 7.77

5.0 ft lb *17,000 *17,000 *14,900 9,850 10,750 6,550 7,700 4,750 *6,250 4,600 25.48

Ground

kg *7050 *7050 7500 4300 4850 2950 3500 2150 *3200 2100 7.58

Line

lb *16,150 *16,150 16,050 9,300 10,450 6,300 *7,050 4,650 24.87

–1.5 m kg *5700 *5700 *10 100 7750 7350 4200 4800 2850 3800 2300 7.07

–5.0 ft lb *12,750 *12,750 *22,900 16,600 15,800 9,100 10,300 6,150 8,400 5,100 23.16

–3.0 m kg *9300 *9300 *11 100 7850 7400 4250 4800 2900 4650 2800 6.16

–10.0 ft lb *20,850 *20,850 *23,950 16,800 15,900 9,150 10,350 6,250 10,300 6,200 20.07

–4.5 m kg *8550 8100 *5700 4450 *5550 4300 4.60

–15.0 ft lb *18,150 17,450 *12,150 9,800 14.75

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the
above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to
handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

20

Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.1 m (16'9") Counterweight – 2.8 mt (3.1 t) Bucket – None
Stick – R2.6 (8'6") Shoes – 700 mm (28") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg *3250 *3250 4.76

25.0 ft lb *7,500 *7,500 *7,300 *7,300 15.09

6.0 m kg *3500 3400 *2850 *2850 6.18

20.0 ft lb *6,450 *6,450 *6,350 *6,350 20.05

4.5 m kg *4600 *4600 *4300 3350 *2750 2600 7.01

15.0 ft lb *10,000 *10,000 *9,400 7,200 *6,100 5,750 22.89

3.0 m kg *8850 *8850 *5900 4900 *4800 3200 *2800 2300 7.44

10.0 ft lb *18,850 *18,850 *12,650 10,550 *10,450 6,900 *6,200 5,100 24.39

1.5 m kg *7200 4550 5000 3050 *3400 2250 *3000 2200 7.56

5.0 ft lb *15,550 9,800 10,750 6,600 *6,600 4,800 24.80

Ground

kg *6250 *6250 7500 4350 4900 2950 *3400 2250 7.36

Line

lb *14,400 *14,400 16,100 9,350 10,500 6,350 *7,450 4,900 24.16

–1.5 m kg *5750 *5750 *10 150 7850 7450 4300 4800 2900 4050 2450 6.84

–5.0 ft lb *12,800 *12,800 *23,100 16,850 15,950 9,200 10,350 6,250 8,850 5,400 22.40

–3.0 m kg *9950 *9950 *10 750 8000 *7450 4350 5000 3050 5.89

–10.0 ft lb *22,400 *22,400 *23,200 17,100 *16,000 9,300 11,150 6,750 19.19

–4.5 m kg *7750 *7750 *5400 4950 4.23

–15.0 ft lb *16,300 *16,300 *11,900 11,350 13.51

Boom – 5.1 m (16'9") Counterweight – 2.8 mt (3.1 t) Bucket – None
Stick – R3.1 (10'2") Shoes – 600 mm (24") triple grouser

m
ft

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

m
ft

7.5 m kg *2700 *2700 5.49

25.0 ft lb *6,050 *6,050 17.57

6.0 m kg *3650 3400 *2450 *2450 6.76

20.0 ft lb *7,850 7,300 *5,350 *5,350 21.96

4.5 m kg *3850 3350 *2450 2300 *2350 2300 7.52

15.0 ft lb *8,450 7,150 *5,150 5,050 24.58

3.0 m kg *7450 *7450 *5300 4900 *4450 3200 3600 2250 *2400 2050 7.93

10.0 ft lb *15,850 *15,850 *11,400 10,550 *9,650 6,850 *7,500 4,800 *5,250 4,500 25.98

1.5 m kg *7550 *7550 *6700 4550 4950 3000 3550 2150 *2550 1950 8.03

5.0 ft lb *18,100 17,500 *14,450 9,750 10,600 6,500 7,550 4,650 *5,550 4,250 26.36

Ground

kg *6650 *6650 7400 4250 4800 2900 3450 2100 *2800 1950 7.85

Line

lb *15,300 *15,300 15,850 9,200 10,250 6,200 7,450 4,500 *6,150 4,300 25.77

–1.5 m kg *5050 *5050 *9300 7600 7250 4150 4700 2800 *3350 2150 7.36

–5.0 ft lb *11,250 *11,250 *21,150 16,300 15,550 8,950 10,100 6,000 *7,350 4,700 24.12

–3.0 m kg *8400 *8400 *11 350 7700 7250 4150 4700 2800 4250 2550 6.49

–10.0 ft lb *18,850 *18,850 *24,500 16,500 15,600 8,950 10,150 6,050 9,350 5,650 21.18

–4.5 m kg *9000 7950 *6100 4300 *5150 3700 5.04

–15.0 ft lb *19,200 17,100 *12,850 9,300 *11,400 8,400 16.24

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the
above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to
handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

21

316E Hydraulic Excavator Specications

Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.1 m (16'9") Counterweight – 2.8 mt (3.1 t) Bucket – None
Stick – R2.9 (9'6") Shoes – 600 mm (24") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg *2950 *2950 5.08

25.0 ft lb *6,500 *6,500 16.21

6.0 m kg *3650 3400 *2650 *2650 6.43

20.0 ft lb *7,350 7,250 *5,800 *5,800 20.89

4.5 m kg *4050 3350 *2550 2450 7.23

15.0 ft lb *8,850 7,150 *5,650 5,400 23.63

3.0 m kg *8000 *8000 *5500 4900 *4600 3200 *3300 2250 *2650 2150 7.66

10.0 ft lb *17,000 *17,000 *11,900 10,500 *10,000 6,850 *6,050 4,800 *5,800 4,800 25.09

1.5 m kg *7100 *7100 *6900 4500 4950 3000 3550 2200 *2850 2050 7.77

5.0 ft lb *17,000 *17,000 *14,900 9,700 10,600 6,500 7,600 4,650 *6,250 4,550 25.48

Ground

kg *7050 *7050 7400 4250 4800 2900 3500 2100 *3200 2100 7.58

Line

lb *16,150 *16,150 15,850 9,150 10,300 6,200 *7,050 4,600 24.87

–1.5 m kg *5700 *5700 *10 100 7650 7250 4150 4700 2800 3750 2300 7.07

–5.0 ft lb *12,750 *12,750 *22,900 16,350 15,600 8,950 10,150 6,050 8,250 5,000 23.16

–3.0 m kg *9300 *9300 *11 100 7750 7300 4200 4750 2850 4600 2750 6.16

–10.0 ft lb *20,850 *20,850 *23,950 16,600 15,650 9,000 10,250 6,150 10,200 6,100 20.07

–4.5 m kg *8550 8000 *5700 4400 *5550 4250 4.60

–15.0 ft lb *18,150 17,250 *12,150 9,650 14.75

m
ft

Boom – 5.1 m (16'9") Counterweight – 2.8 mt (3.1 t) Bucket – None
Stick – R2.6 (8'6") Shoes – 600 mm (24") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

m
ft

7.5 m kg *3250 *3250 4.76

25.0 ft lb *7,500 *7,500 *7,300 *7,300 15.09

6.0 m kg *3500 *2850 *2850 6.18

20.0 ft lb *6,450 *6,350 *6,350 20.05

4.5 m kg *4600 *4600 *4300 *2750 2550 7.01

15.0 ft lb *10,000 *10,000 *9,400 *6,100 5,700 22.89

3.0 m kg *8850 *8850 *5900 4850 *4800 *2800 2300 7.44

10.0 ft lb *18,850 *18,850 *12,650 10,400 *10,450 *6,200 5,000 24.39

1.5 m kg *7200 4500 4950 *3400 2200 *3000 2150 7.56

5.0 ft lb *15,550 9,700 10,600 *6,600 4,750 24.80

Ground

kg *6250 *6250 7400 4300 4800 *3400 2200 7.36

Line

lb *14,400 *14,400 15,900 9,250 10,350 *7,450 4,850 24.16

–1.5 m kg *5750 *5750 *10 150 7750 7350 4200 4750 3950 2400 6.84

–5.0 ft lb *12,800 *12,800 *23,100 16,600 15,700 9,100 10,250 8,750 5,350 22.40

–3.0 m kg *9950 *9950 *10 750 7850 7400 4250 4950 3000 5.89

–10.0 ft lb *22,400 *22,400 *23,200 16,900 15,850 9,200 11,000 6,650 19.19

–4.5 m kg *7750 *7750 *5400 4900 4.23

–15.0 ft lb *16,300 *16,300 *11,900 11,200 13.51

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the
above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to
handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

3350

*6,450

3300

7,100

3200

6,850

3050

6,500

2900

6,250

2850

6,150

22

Work Tool Offering Guide*

Boom Type Reach Boom
Stick Size R3.1 (10'2") R2.9 (9'6") R2.6 (8'6")

Hydraulic Hammer H110Es H110Es H110Es

Pulverizer P215 P215 P215

Mobile Scrap and Demolition Shear S325B** S325B** S325B**

Compactor (Vibratory Plate) CVP75 CVP75 CVP75

Contractors’ Grapple G115B G115B G115B

Trash Grapple

Thumbs

Center-Lock Pin Grabber Coupler

*Matches are dependent on excavator configurations. Consult your Cat dealer for proper work tool match.

**Boom-mount.

H115Es H115Es H115Es
H120Es H120Es H120Es

These work tools are available for the 316E.

Consult your Cat dealer for proper match.

23

316E Hydraulic Excavator Specications

Bucket Specifications and Compatibility

Width Capacity Weight Fill

3

mm in (8'6") (9'6") (10'2") Thumb*

m

3

yd

kg lb %

Without Quick Coupler

General Duty (GD) 600 24 0.35 0.46 445 980 100%

750 30 0.49 0.64 502 1,106 100%

900 36 0.62 0.81 548 1,208 100%

1050 42 0.76 1.00 595 1,312 100%

1200 48 0.91 1.19 672 1,480 100% X X

Severe Duty (SD) 600 24 0.35 0.46 496 1,093 90%

750 30 0.49 0.64 564 1,243 90%

900 36 0.62 0.81 644 1,420 90%

1050 42 0.76 1.00 689 1,519 90%

1200 48 0.91 1.19 762 1,678 90% X X

Maximum load pin-on (payload + bucket) kg 2205 2095 1945 1875

lb 4,860 4,617 4,287 4,133

With Center Lock Quick Coupler

General Duty (GD) 600 24 0.35 0.46 445 980 100%

750 30 0.49 0.64 502 1,106 100%

900 36 0.62 0.81 548 1,208 100%

1050 42 0.76 1.00 595 1,312 100%

1200 48 0.91 1.19 672 1,480 100%

Severe Duty (SD) 600 24 0.35 0.46 496 1,093 90%

750 30 0.49 0.64 564 1,243 90%

900 36 0.62 0.81 644 1,420 90%

1050 42 0.76 1.00 689 1,519 90%

1200 48 0.91 1.19 762 1,678 90%

Maximum load with coupler (payload + bucket) kg 1815 1705 1555 1485

lb 4,000 3,758 3,427 3,273

Reach Booms

R3.1

R2.6 R2.9 R3.1 (10'2")

Maximum Material Density:

3

The above loads are in compliance with hydraulic excavator standard EN474, they do not exceed
87%of hydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended
atgroundline with bucket curled.

1800 kg/m3 (3,000 lb/yd3)

1500 kg/m3 (2,500 lb/yd3)

Capacity based on ISO 7451. 1200 kg/m

Bucket weight with General Duty tips. 900 kg/m

2100 kg/m

(3,500 lb/yd3)

3

(2,000 lb/yd3)

3

(1,500 lb/yd3)

* Densities with 3.1 m (10'2") thumb stick does not consider thumb weight. X Not recommended

Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are
outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including
but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or
catching of heavy loads will reduce the life of the boom and stick.

24

Standard equipment may vary. Consult your Cat dealer for details.

316E Standard Equipment

ENGINE

C4.4 diesel engine
Biodiesel capable
Meets EPA Tier 4 Interim emission standards
2300 m (7,500 ft) altitude capability
Electric priming pump
Automatic engine speed control
Economy and high power modes
Two-speed travel
Side-by-side cooling system
Radial seal air lter
Primary lter with water separator

andwater separator indicator
Secondary lter
Screen lter in fuel line
Cold weather battery –25° C (–13° F)
Jump start receptacle

HYDRAULIC SYSTEM

Regeneration circuit for boom and stick
Reverse swing dampening valve
Automatic swing parking brake
High-performance hydraulic return lter
Capability of installing HP stackable valve

and medium and QC valve
Capability of installing additional auxiliary

pump and circuit
Capability of installing boom lowering

control device and stick lowering

checkvalve
Fine swing control

CAB

Pressurized operator station

with positive ltration

Sliding upper door window

(left-hand cab door)
Glass-breaking safety hammer
Removable lower windshield

with in cab storage bracket
Coat hook
Beverage holder
Literature holder
AM/FM radio
Radio with MP3 auxiliary audio port
Two 12V stereo speakers
Storage shelf suitable for lunch or toolbox
Color LCD display with indicators,

lter/uid change, and working hour

information
Adjustable armrest
Height adjustable joystick consoles
Neutral lever (lock out) for all controls
Travel control pedals with

removable hand levers
Capability of installing two additional pedals
Two power outlets, 10 amp (total)
Travel alarm
Laminated glass front upper window

andtempered other windows
Sunscreen

UNDERCARRIAGE

Grease Lubricated Track GLT2, resin seal
Towing eye on base frame
Swivel guard

COUNTERWEIGHT

2.8 mt (3.1 t)

ELECTRICAL

80 amp alternator
Circuit breaker
Capability to electrically connect a beacon

LIGHTS

Halogen boom light (left side)
Time delay function for boom light

and cab light

Exterior lights integrated into storage box

SECURITY

Cat one key security system
Door locks
Cap locks on fuel and hydraulic tanks
Lockable external tool/storage box
Signaling/warning horn
Secondary engine shutoff switch
Openable skylight for emergency exit
Rearview camera-ready

25

316E Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

ENGINE

Quick drains, engine and hydraulic oil

HYDRAULIC SYSTEM

Control pattern quick-changer, two way
Auxiliary hydraulics
Boom and stick lines
High-pressure line
Medium-pressure line
Cat quick coupler line – high-pressure capable
Boom lowering and stick lowering

controldevice

Cat Bio hydraulic oil

CAB

Cab hatch emergency exit
Seat, high-back air suspension

with heater and cooling
Seat, high-back air suspension with heater
Seat, high-back mechanical suspension
Windshield wiper, lower with washer
Air pre-lter
Left foot switch
Left pedal
Straight travel pedal
Rain protector
Cab mirror
Ashtray

UNDERCARRIAGE

500 mm (20") triple grouser shoes
600 mm (24") triple grouser shoes
700 mm (28") triple grouser shoes
Full-length track guiding guard
Guard, heavy-duty bottom
Center track guiding guard
Segmented (2 piece) track guiding guard

FRONT LINKAGE

Quick coupler
Bucket linkage, without lifting eye

5.1 m (16'9") reach boom

2.6 m (8'6") stick

2.9 m (9'6") stick

3.1 m (10'2") stick

3.1 m (10'2") thumb-ready stick

LIGHTS

Working lights, cab mounted with time delay
HID lights, cab mounted with time delay
Halogen boom lights (right side)

SECURITY

FOGS, bolt-on
Side steel bumper
Guard rail
Guard, cab front, mesh
Guard, vandalism
Rearview camera

TECHNOLOGY

Cat Grade Control Depth and Slope
Product Link

26

Notes

27

316E Hydraulic Excavator

For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com

© 2011 Caterpillar Inc.
All rights reserved

Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.

AEHQ6433 (10-2011)

(Americas)
