Page 1

Milesight IoT

PIR & Light Sensor

Featuring LoRaWAN

WS202

User Guide

Page 2

Safety Precautions

Milesight will not shoulder responsibility for any losses or damages resulting from not following

the instructions of this operating guide.

 The device must not be modified in any way.

 Do not expose the PIR lens to direct sunlight.

Do not paint or clean the PIR lens, or it will affect the detection of the device.



 Do not place the device where the temperature is below/above the operating range.

 Do not place the device close to objects with naked flames, , heat source (oven or sunlight),

cold source, liquid and extreme temperature changes.

 The device is not intended to be used as a reference sensor, and Milesight will not take

responsibility for any damages which may result from inaccurate readings.

When installing the battery, please install it accurately, and do not install the reverse or



wrong model.

 Remove the battery if the device will not be used for a long period of time. Otherwise, the

battery will leak and damage the device.

 The device must never be subjected to shocks or impacts.

Declaration of Conformity

WS202 is in conformity with the essential requirements and other relevant provisions of the CE,

FCC, and RoHS.

All information in this guide is protected by copyright law. Whereby, no organization or individual

shall copy or reproduce the whole or part of this user guide by any means without written

authorization from Xiamen Milesight IoT Co., Ltd.

For assistance, please contact

Milesight technical support:

Email: [email protected]

Tel: 86-592-5085280

Fax: 86-592-5023065 Address: 4/F, No.63-2 Wanghai Road,

2ndSoftware Park, Xiamen, China

Page 3

Revision History

Date

Doc Version

Description

July 15, 2021

V 1.0

Initial version

Page 4

Contents

1. Product Introduction

1.1 Overview

1.2 Features

2. Hardware Introduction

2.1 Packing List

2.2 Hardware Overview

2.3 Dimensions (mm)

2.4 LED Patterns

3. Operation Guide

3.1 NFC Configuration

3.2 LoRaWAN Settings

3.3 General Settings

3.4 Threshold Settings

3.5 Maintenance

3.5.1 Upgrade

3.5.2 Backup

3.5.3 Reset to Factory Default

4. Installation

5. Device Payload

5.1 Basic Information

5.2 Sensor Data

5.3 Downlink Commands

................................................................................................................................................

.................................................................................................................................

...........................................................................................................................................

............................................................................................................................................

......................................................................................................................................

....................................................................................................................................

.........................................................................................................................................

..................................................................................................................................

...............................................................................................................................

.................................................................................................................................

........................................................................................................................................

....................................................................................................................................

..............................................................................................................................

.........................................................................................................................

...........................................................................................................................

..........................................................................................................................

............................................................................................................................

........................................................................................................................

...................................................................................................

..........................................................................................................................

...................................................................................................................

Page 5

1. Product Introduction

1 ×

WS202 Sensor

2 ×

Wall Mounting Kits

1 ×

3M Tape

1 ×

Quick Guide

If any of the above items is missing or damaged, please contact your sales representative.

1.1 Overview

WS202 is a PIR sensor based on passive infrared technology to detect a motion or occupancy.

WS202 can detect whether there is movement within the range of 6-8 m. Besides, WS202 equips

with light sensor which can link PIR detection results to trigger scenes. WS202 can be widely us

ed in smart homes, smart offices, schools, warehouses, etc.

Sensor data are transmitted in real-time using the standard LoRaWAN®protocol. LoRaWAN

enables encrypted radio transmissions over long distances while consuming very little power.

The user can get alarm through Milesight IoT Cloud or through the user's own

Application Server.

1.2 Features

Built-in light sensor, combine PIR sensor to achieve triggers



 Up to 15 km communication range

 Easy configuration via NFC

Standard LoRaWAN®support



 Cpmpatible with Milesight IoT Cloud

2. Hardware Introduction

2.1 Packing List

Page 6

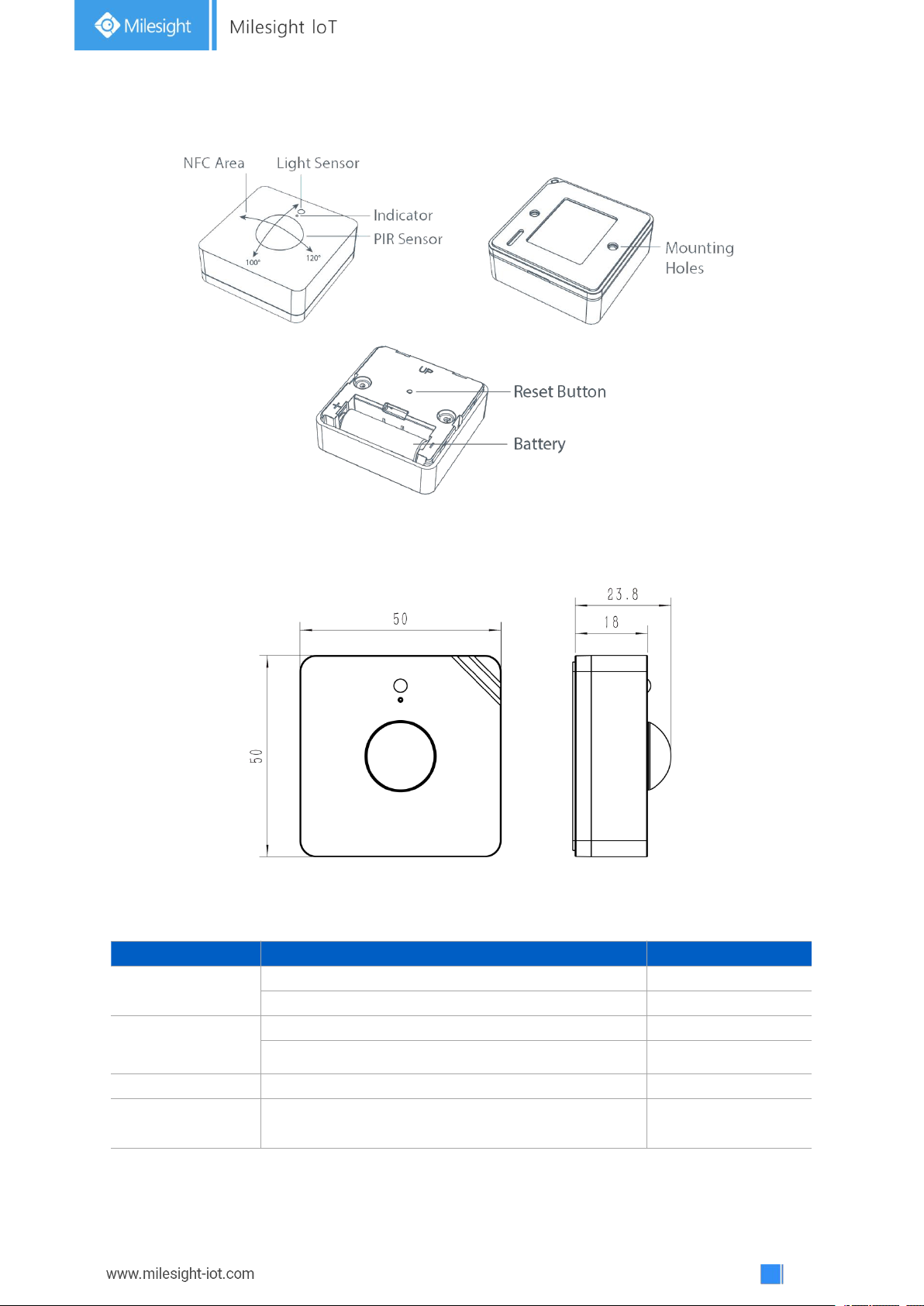

2.2 Hardware Overview

Function

Action

LED Indicator

PIR Detection

PIR is triggered (network unregistered)

Red, blink once

PIR is triggered (network registered)

Green, blink once

Network Status

Send join network requests

Red, blinks once

Joined the network successfully

Green, blinks twice

Reboot

Press and hold the reset button for more than 3s

Slowly blinks

Reset to Factory

Default

Press and hold the reset button for more than 10s

Quickly blinks

2.3 Dimensions (mm)

2.4 LED Patterns

Page 7

3. Operation Guide

3.1 NFC Configuration

WS202 can be configured via NFC-enabled smartphone.

1. Pull out the battery insulating sheet to power on the device. The indicator will light up in green for 3

seconds when device turns on.

2. Download and install “Milesight ToolBox” App from Google Play or App Store.

3. Enable NFC on the smartphone and open Milesight ToolBox.

4. Attach the smartphone with NFC area to the device to read device information.

5. Basic information and settings of the device will be shown on ToolBox if it’s recognized

successfully. You can read and configure the device by tapping the Read/Write device on the

App. In order to protect the security of the device, password validation is required when

configuring via a new smartphone. Default password is 123456.

Note:

1) Check the location of smartphone NFC area and it’s recommended to take off phone case.

2) If the smartphone fails to read/write configurations via NFC, move the phone away and back

to try again.

3) WS202 can also be configured by ToolBox software via dedicated NFC reader provided by

Milesight IoT, you can also configure it via TTL interface inside the device.

3.2 LoRaWAN Settings

LoRaWAN settings are used for configuring the transmission parameters in LoRaWAN®network.

Page 8

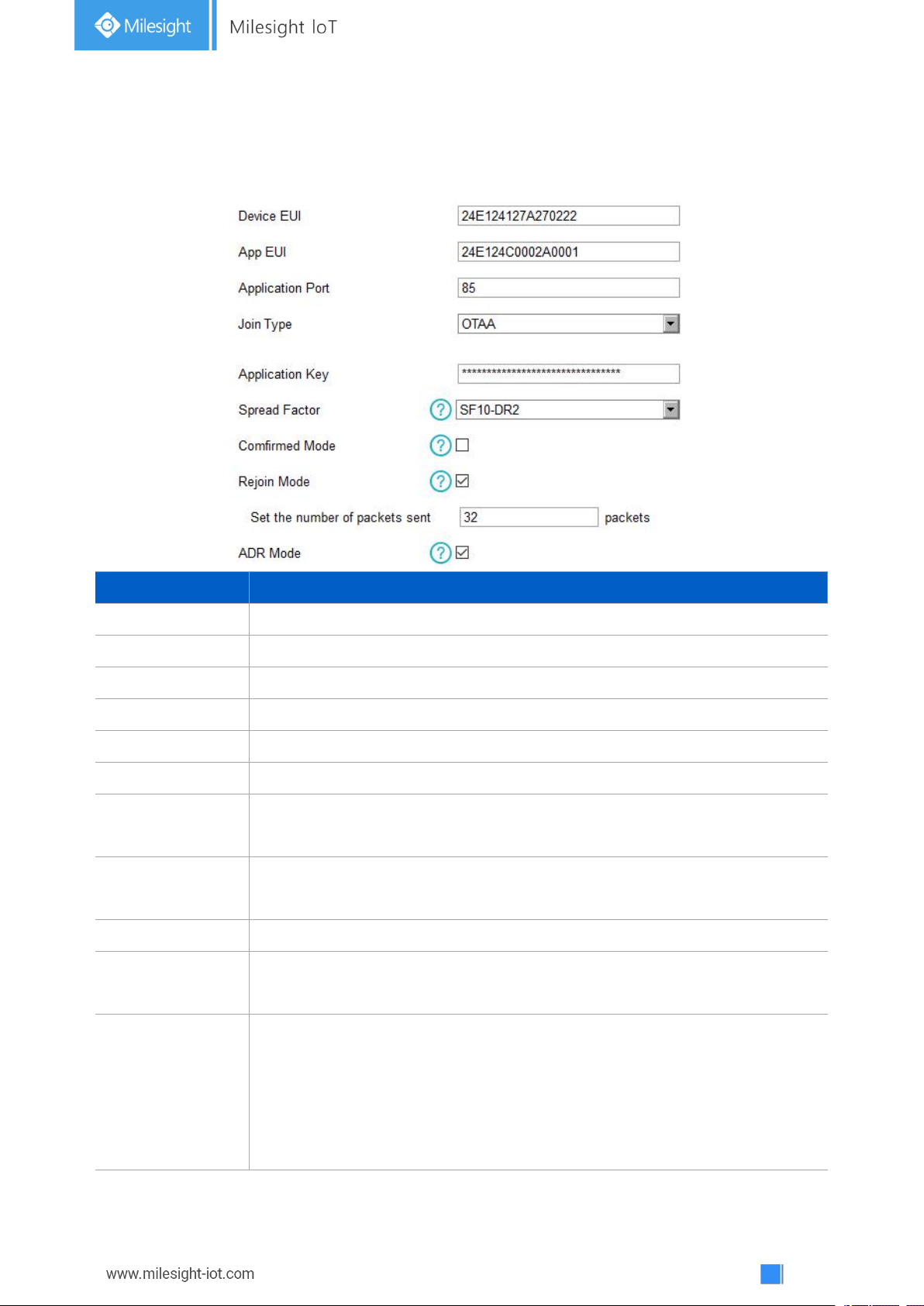

Basic LoRaWAN Settings:

Parameters

Description

Device EUI

Unique ID of the device which can also be found on the label.

App EUI

Default App EUI is 24E124C0002A0001.

Application Port

The port used for sending and receiving data, default port is 85.

Join Type

OTAA and ABP modes are available.

Application Key

Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823.

Device Address

DevAddr for ABP mode, default is the 5thto 12thdigits of SN.

Network Session

Key

Nwkskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.

Application

Session Key

Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823.

Spread Factor

If ADR is disabled, the device will send data via this spread factor.

Confirmed Mode

If the device does not receive ACK packet from network server, it will resend

data 3 times at most.

Rejoin Mode

Reporting interval ≤ 30 mins: device will send specific mounts of LoRaMAC

packets to check connection status every 30 mins; If no reply after specific

packets are being sent, the device will re-join.

Reporting interval > 30 mins: device will send specific mounts of LoRaMAC

packets to check connection status at every reporting interval; If no reply after

Go to Device -> Setting -> LoRaWAN Settings of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default.

Page 9

specific packets are being sent, the device will re-join.

ADR Mode

Allow network server to adjust data rate of the device.

Tx Power

Transmit power of device.

Note:

1) Please contact sales representative for device EUI list if there are many units.

2) Please contact sales representative if you need random App keys before purchase.

3) Select OTAA mode if you use Milesight IoT Cloud to manage devices.

4) Only OTAA mode supports rejoin mode.

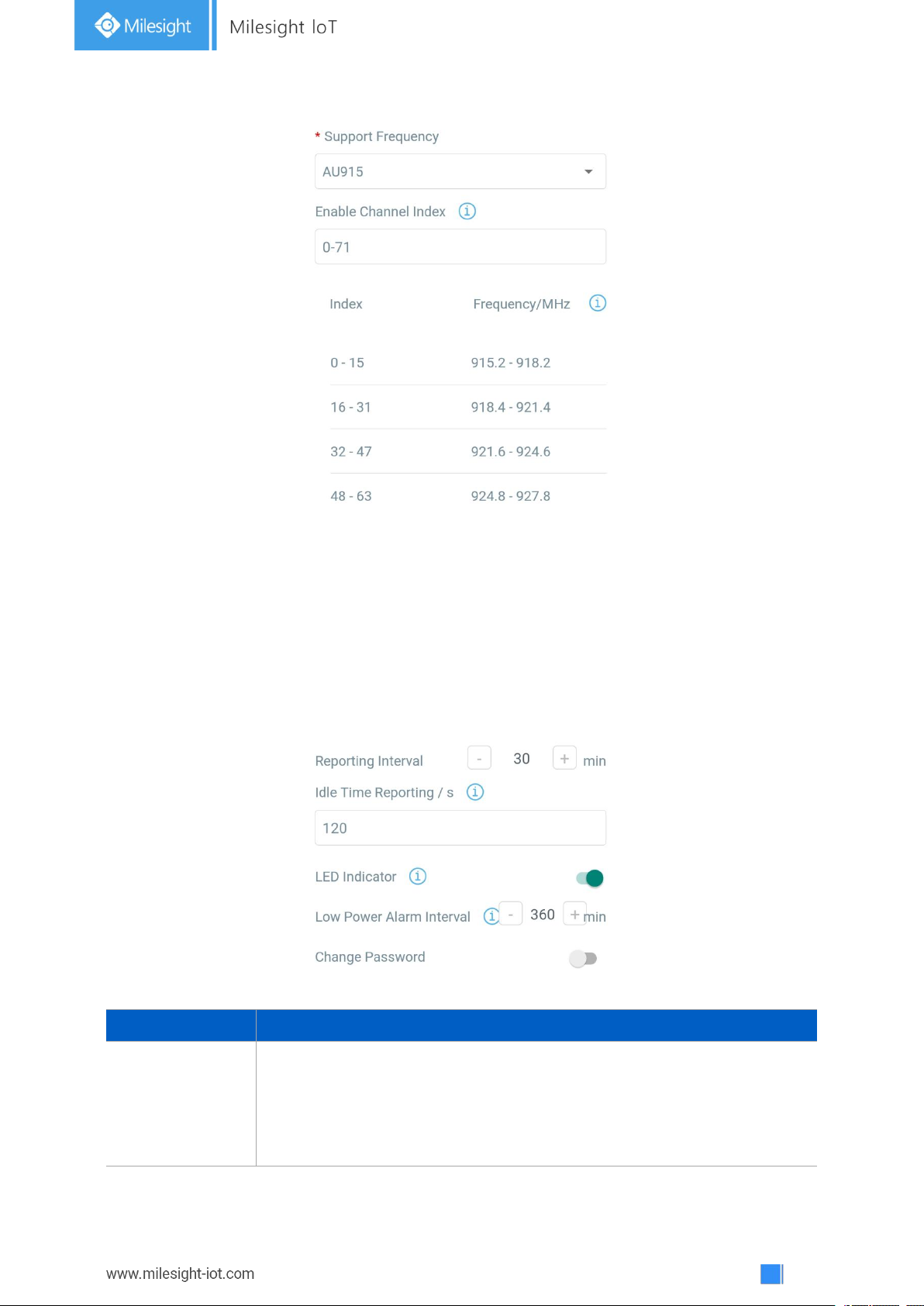

LoRaWAN Frequency Settings:

Go to Setting->LoRaWAN Settings of ToolBox App to select supported frequency and select channels to send uplinks. Make sure the channels match the LoRaWAN®gateway.

If device frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas.

Examples:

1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled

Page 10

Note:

Parameters

Description

Reporting Interval

The interval of reporting PIR, light status and battery level to network

server. Default: 30 mins

Note: WS202 will also report “triggered” status of PIR sensor immediately

when it detect motions.

For -868M model, default frequency is EU868;

For -915M model, default frequency is AU915.

3.3 General Settings

Go to Device->Setting->General Settings of ToolBox App to change the reporting interval, etc.

Page 11

Idle Time

Reporting/s

When the PIR sensor does not detect motion for a period of Idle Time ,

device will report “not triggered” status. Default: 120 s

LED Indicator

Enable or disable the light indicating in chapter 2.4.

Note: The indicator of reset button is not allowed to disable.

Low Battery Alarm

Interval

The device will report low battery alarms according to this interval when the

battery remaining capacity is lower than 10%.

Change Password

Change the password for ToolBox App to write this device.

3.4 Threshold Settings

Users can define the Bright or Dark state via detection data of light sensor in threshold settings. Besides, when the PIR sensor is triggered and light status meets the threshold, WS202 will send alarms immediately. Otherwise, it will not send data right away.

3.5 Maintenance

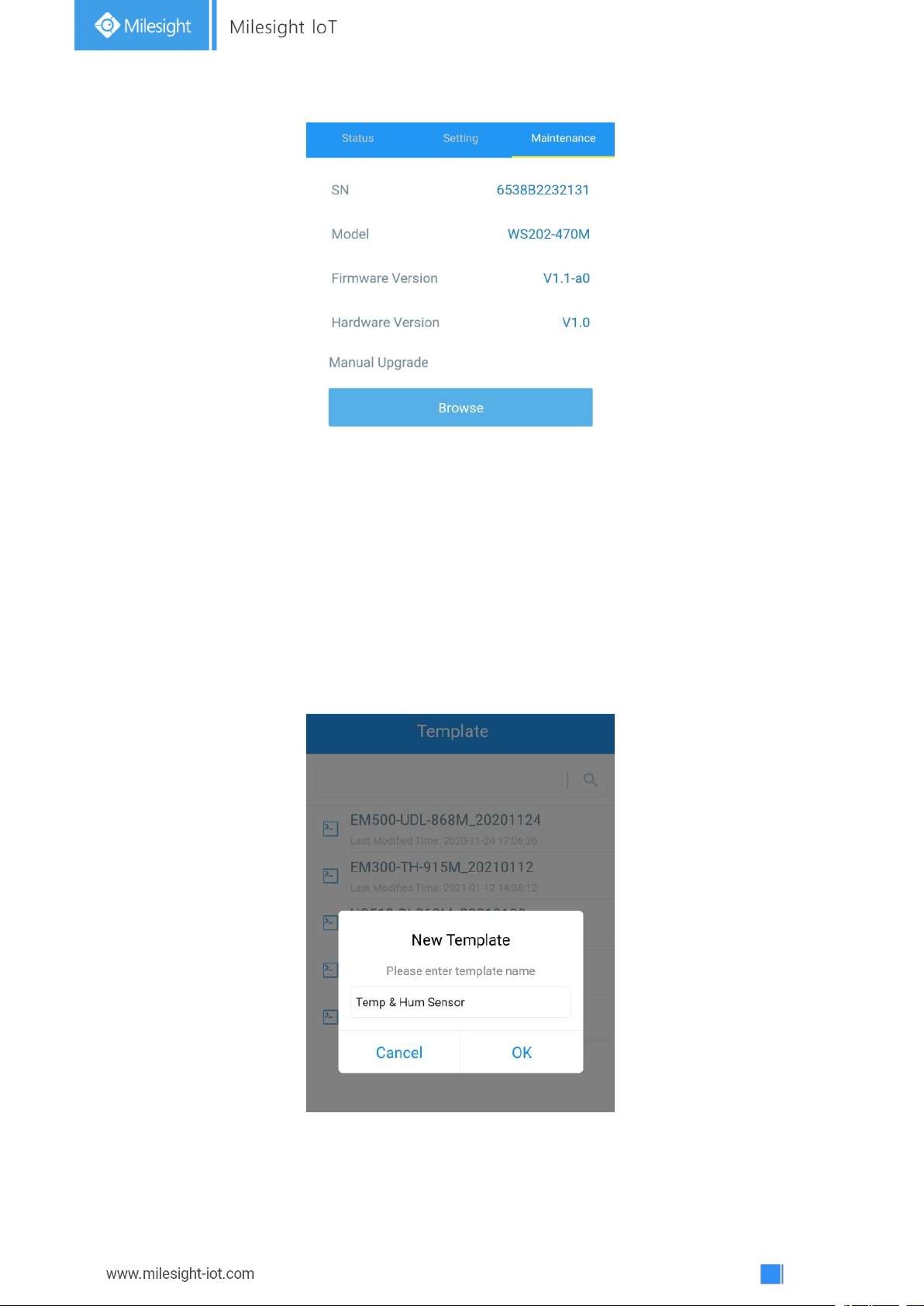

3.5.1 Upgrade

1. Download firmware from Milesight website to your smartphone.

2. Open ToolBox App and click “Browse” to import firmware and upgrade the device.

Note:

1) Operation on ToolBox is not supported during upgrade.

2) Only Android version ToolBox supports the upgrade feature.

Page 12

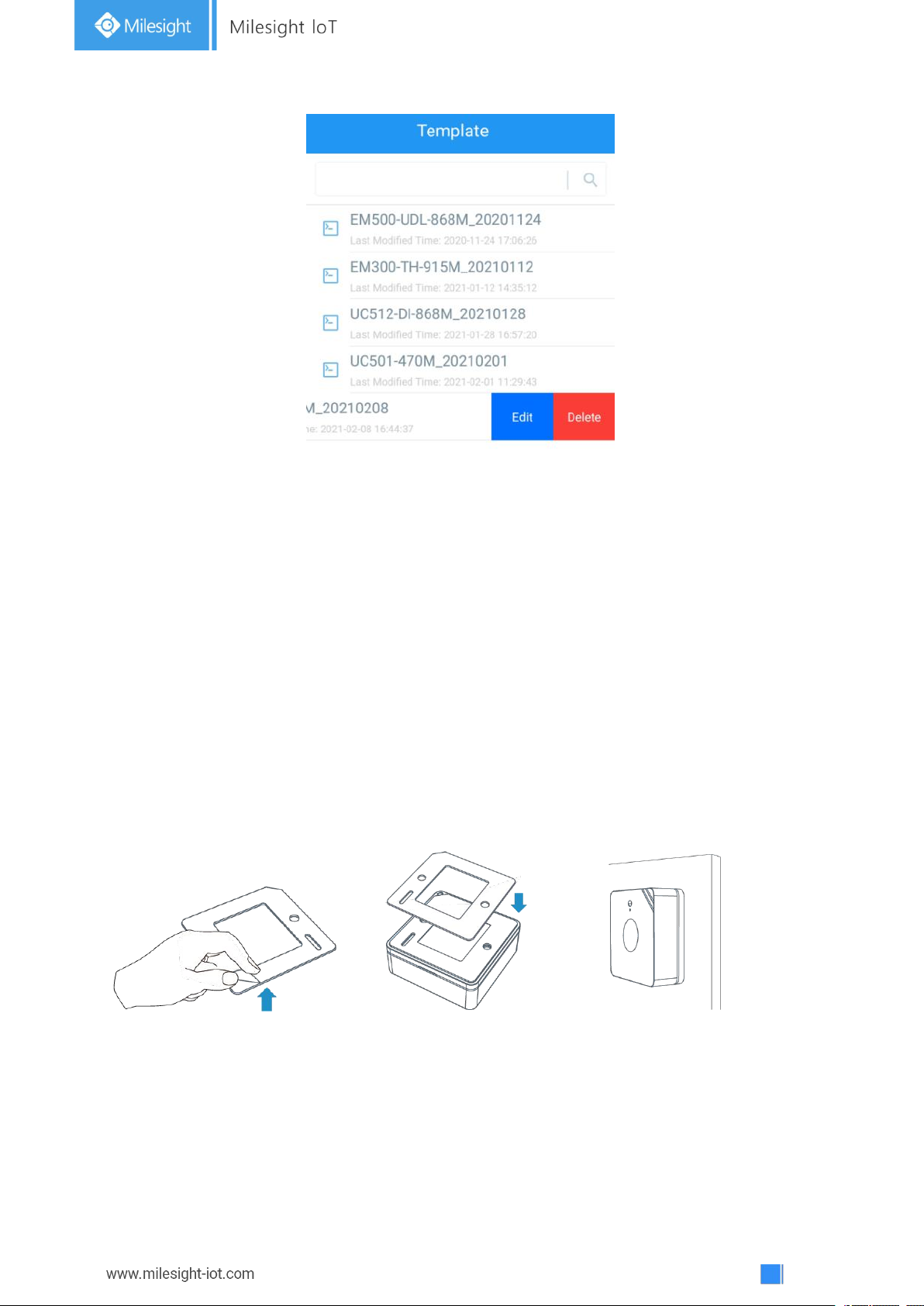

3.5.2 Backup

WS202 supports configuration backup for easy and quick device configuration in bulk. Backup is

allowed only for devices with the same model and LoRa frequency band.

1. Go to “Template” page on the App and save current settings as a template. You can also edit

the template file.

2. Select one template file that saved in the smartphone and click “Write”, then attach it to

another device to write configuration.

Note: Slide the template item to the left to edit or delete the template. Click the template to edit

the configurations.

Page 13

3.5.3 Reset to Factory Default

Please select one of the following methods to reset device:

Via Hardware: Hold on the reset button for more than 10s. After reset complete, the indicator

will blink in green twice, then device will reboot.

Via ToolBox App: Go to Device -> Maintenance to tap “Reset”, then attach smartphone with NFC

area to device to complete reset.

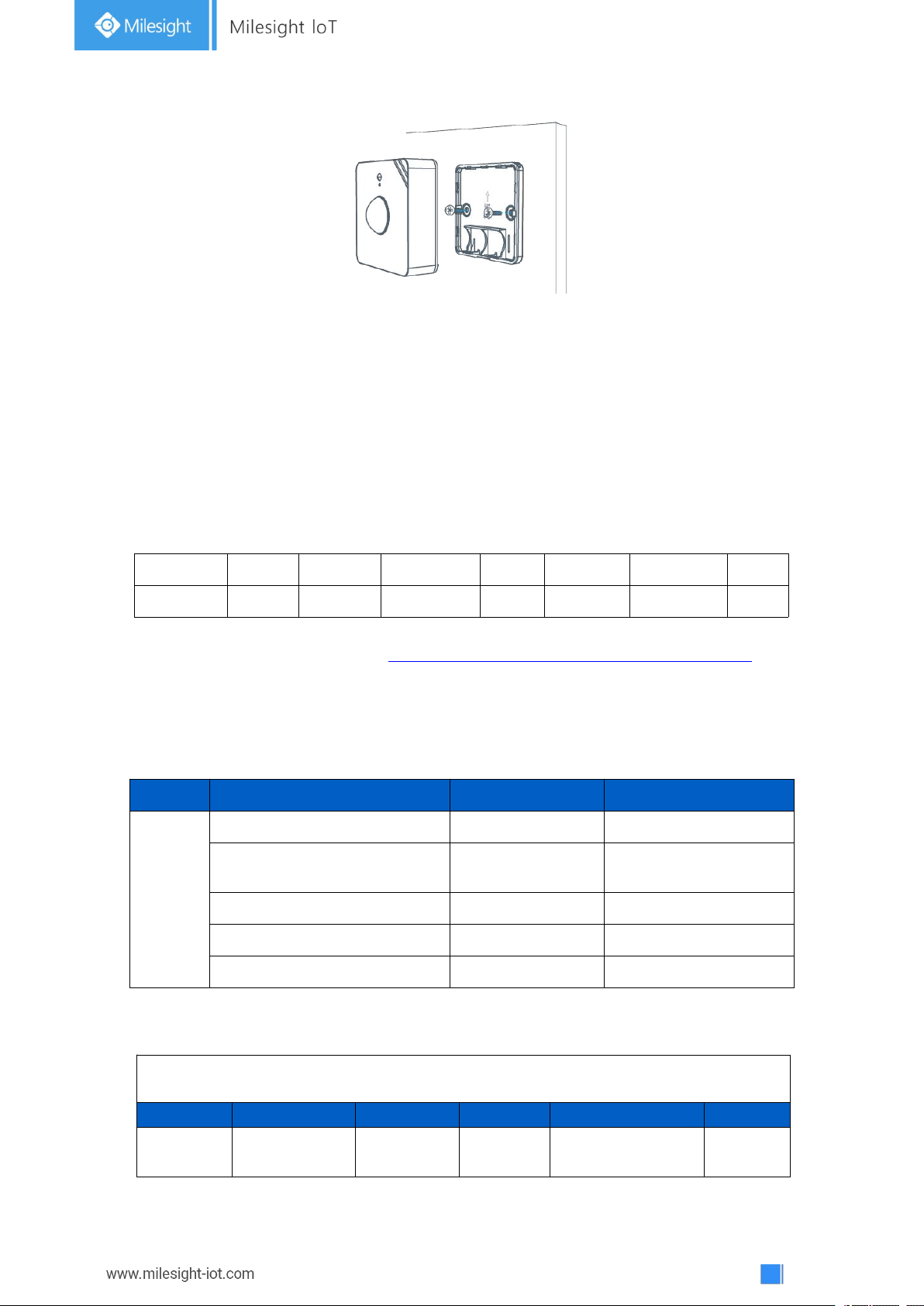

4. Installation

3M Tapes Fix:

Paste 3M tape to the back of the device, then tear the other side and place it on a flat surface.

Screw Fix:

Remove the back cover of the device, screw the wall plugs into the wall and fix the cover with scr ews on it, then install back the device.

Page 14

Note:

Channel1

Type1

Data1

Channel2

Type2

Data2

Channel 3

...

1 Byte

N Bytes

1 Byte

M Bytes

1 Byte

...

Channel

Type

Data Example

Description

01(Protocol Version)

08 (Device SN)

61 27 a2 17 41 32

Device SN is

6127a2174132

09 (Hardware Version)

01 40

V1.4

0a (Software Version)

01 14

V1.14

0f (Device Type)

Class A

ff 09 01 00 ff 0a 01 02 ff 0f 00

Channel

Type

Value

Channel

Type

Value

(Hardware

0100 (V1.0)

(Software Version)

0102

(V1.2)

1. Adjust the installation direction according to detection area requirement.

2. WS202 can be mounted on wall or ceiling. It’s recommended to install at 1.5~2.5m from the floor.

3. Ensure the detection area not have moving object like waving trees and fans.

4. Ensure the detection area is not blocked by curtains or barriers.

5. Device Payload

All data are based on the following format (HEX):

For decoder examples you can find at https://github.com/Milesight-IoT/SensorDecoders.

5.1 Basic Information

WS202 reports basic information of device every time when it joins the network.

Example:

Page 15

5.2 Sensor Data

Version)

Channel

Type

Value

(Device Type)

(Class A)

Channel

Type

Description

75 (Battery Level)

UINT8, Unit: %

00 (PIR Status)

01: PIR is triggered

00: PIR is not triggered

00 (Light Status)

01: Bright

00: Dark

01 75 64 03 00 01 04 00 01

Channel

Type

Value

Channel

Type

Value

75 (Battery)

64 => 100%

00 (PIR Status)

01=> PIR is

triggered

Channel

Type

Value

00 (Light

Status)

01=> Bright

Channel

Type

Data Example

Description

03 (Set Reporting

Interval)

b0 04

b0 04 => 04 b0 = 1200s

WS202 reports sensor data and battery level according to reporting interval (30 mins by default) or when PIR or light status changes.

Example:

5.3 Downlink Commands

WS202 supports downlink commands to configure the device. Application port is 85 by default.

-END-
