Miele WCI 660 Operating instructions

Operating instructions

for washing machines

To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.

en-GB

M.-Nr. 11 009 920

Contents
Caring for the environment ..................................................................................		6
Warning and Safety instructions .........................................................................		7
Operating the washing machine ........................................................................		14
Control panel.........................................................................................................		14
Display...................................................................................................................		16
Examples on how to operate the machine............................................................		16
Before using for the first time ............................................................................		17
1.	Set the language ...............................................................................................	18
2.	Setting up Miele@home ....................................................................................	18
3.	Remove the transit bars ....................................................................................	20
4.	Commissioning TwinDos ...................................................................................	20
5.	Starting the calibration programme...................................................................	23
Washing environmentally and economically ....................................................		24
EcoFeedback ...................................................................................................		25
1.	Prepare the laundry.........................................................................................	26
2.	Select a programme........................................................................................	27
3.	Load the washing machine.............................................................................	29
4.	Select programme settings ............................................................................	30
Selecting a temperature/spin speed .....................................................................		30
Selecting an extra option.......................................................................................		30
Level of soiling..................................................................................................		30
Delay start/SmartStart .....................................................................................		31

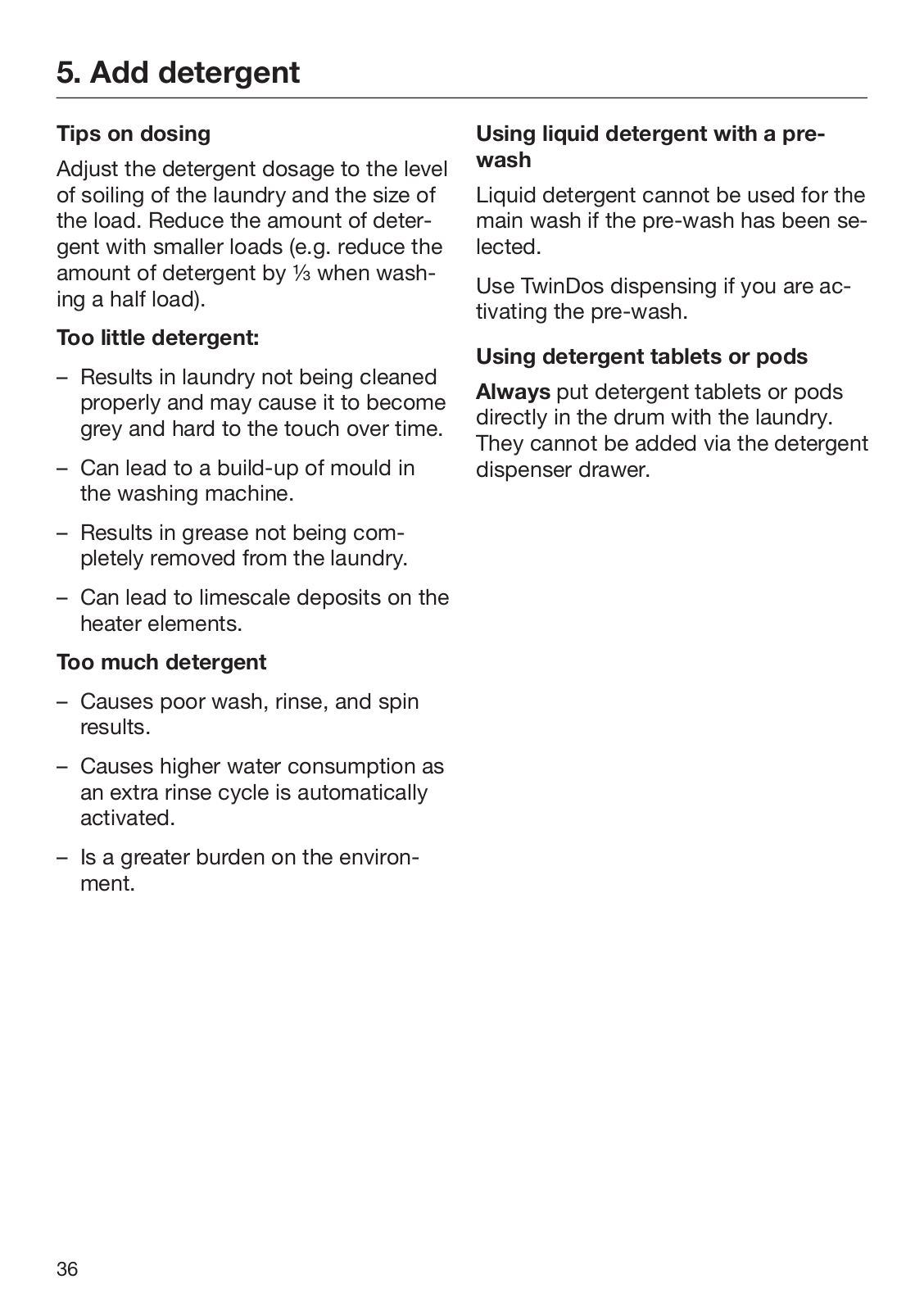

5.	Add detergent ..................................................................................................	33
TwinDos.................................................................................................................		33
Detergent dispenser drawer ..................................................................................		35

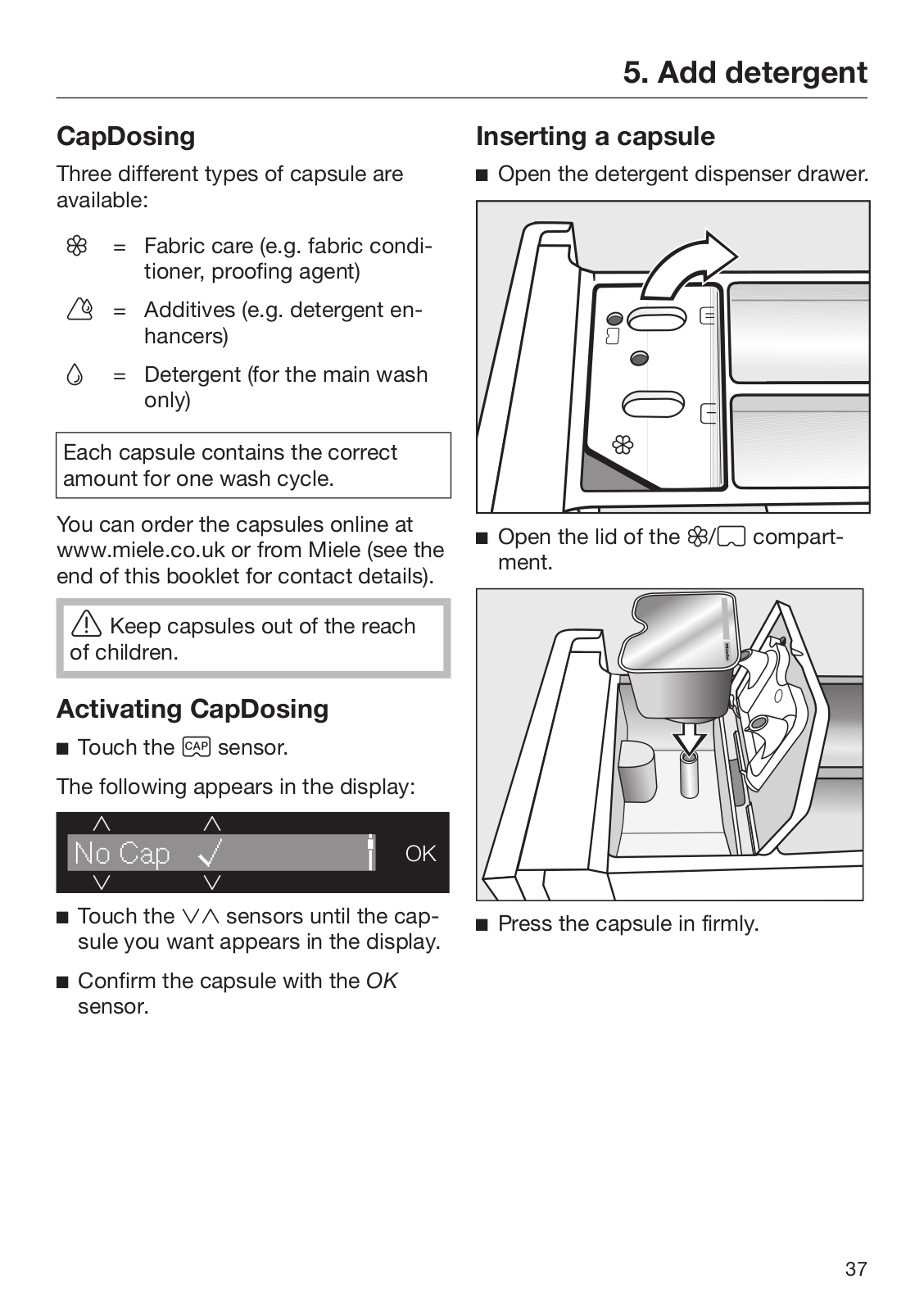

CapDosing.............................................................................................................		37
6.	Start the programme - the end of a programme ..........................................	39
Spinning................................................................................................................		40
Final spin speed in the programme.......................................................................		40
Interim spin............................................................................................................		41
Omitting the final spin (Rinse hold)........................................................................		41
Omitting the interim spin and the final spin...........................................................		41

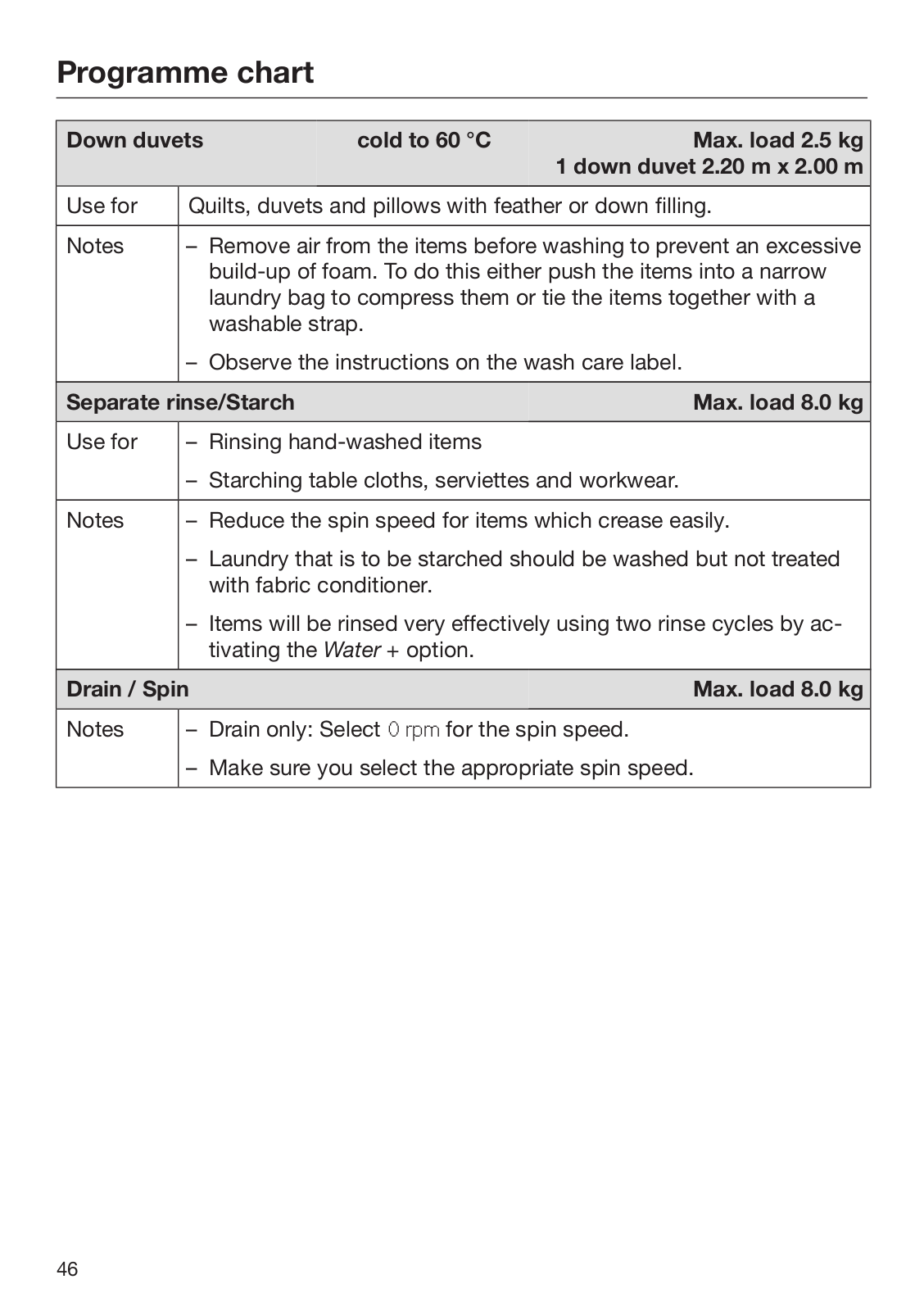

Programme chart ................................................................................................		42

Contents
Extra options........................................................................................................	48
Short......................................................................................................................	48
Water +..................................................................................................................	48
Extra options can be selected using the “Extras” sensor control .........................	49
Stains................................................................................................................	49
Pre-wash ..........................................................................................................	49
Soak .................................................................................................................	49
Intensive ...........................................................................................................	49
Extra quiet ........................................................................................................	49
Extra gentle ......................................................................................................	49
AllergoWash .....................................................................................................	49
Wash programme chart - Extra options ................................................................	50
Garment care label symbols...............................................................................	51
Programme sequence.........................................................................................	52

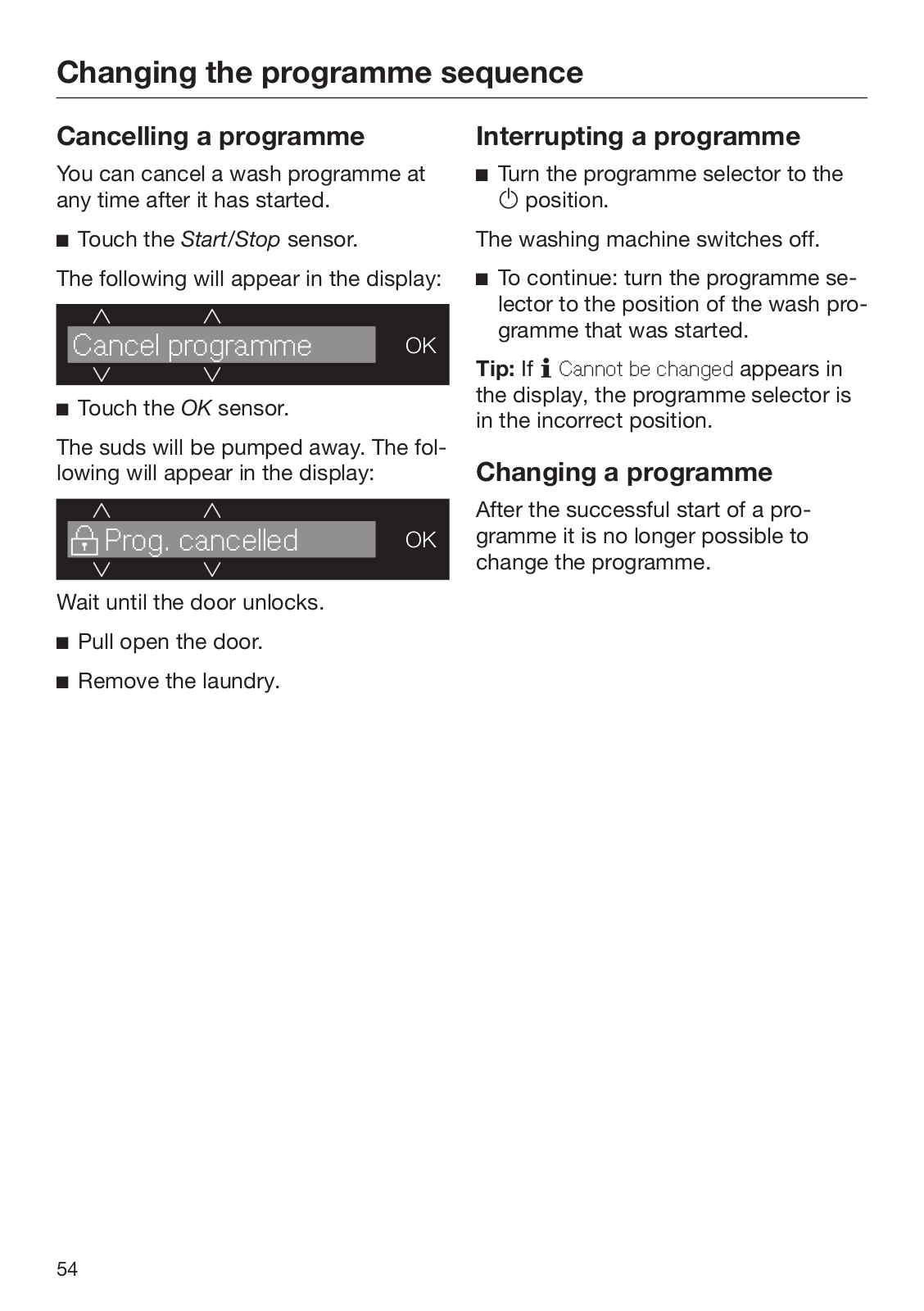

Changing the programme sequence ................................................................	54
Cancelling a programme .......................................................................................	54
Interrupting a programme......................................................................................	54
Changing a programme.........................................................................................	54
Safety lock.............................................................................................................	55
Adding or removing laundry ..................................................................................	55
Detergent .............................................................................................................	56
The correct detergent............................................................................................	56
Water softeners .....................................................................................................	56
Dispensing aids .....................................................................................................	56
Fabric conditioner and liquid starch......................................................................	56
Miele recommended detergents ...........................................................................	58
Recommended detergents in accordance with Directive (EU) Nr. 1015/2010......	59
Cleaning and care ...............................................................................................	60
Cleaning the drum (Hygiene info) ..........................................................................	60
External casing and fascia panel...........................................................................	60
Cleaning the detergent dispenser drawer .............................................................	60
TwinDos maintenance ...........................................................................................	62

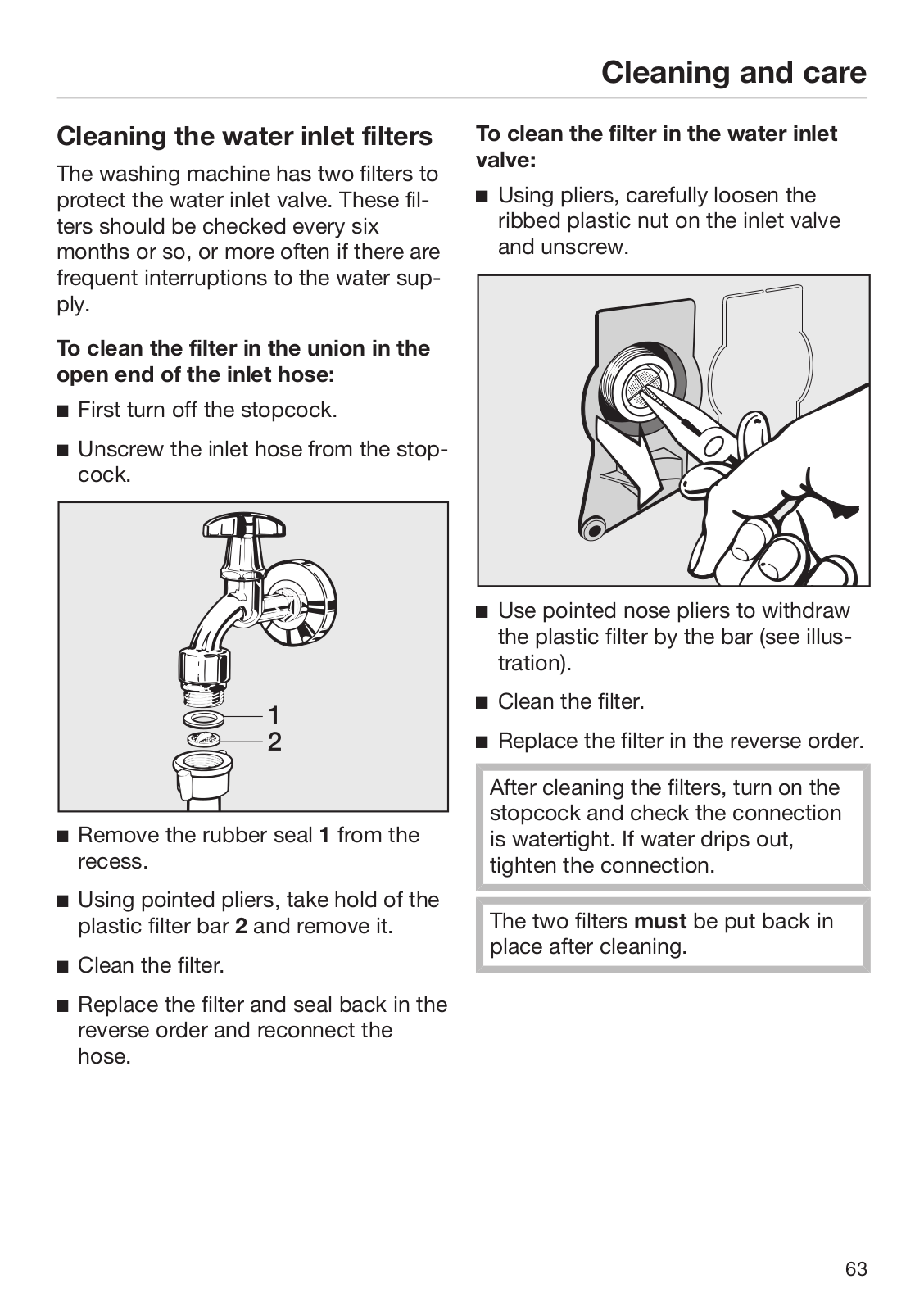

Cleaning the water inlet filters ...............................................................................	63

Contents
Problem solving guide ........................................................................................	64
The programme does not start..............................................................................	64
Fault message after a programme has been interrupted. .....................................	65
Fault message at the end of a programme ...........................................................	66
Messages or faults with the TwinDos system .......................................................	67
General problems with the washing machine .......................................................	68
An unsatisfactory wash result ...............................................................................	70
The door will not open...........................................................................................	71
Opening the door in the event of a blocked drain outlet and/or power cut ..........	72
Service..................................................................................................................	74
Contact in case of malfunction .............................................................................	74
Optional accessories.............................................................................................	74
Warranty ................................................................................................................	74
Installation and connection ................................................................................	75
Front view ..............................................................................................................	75

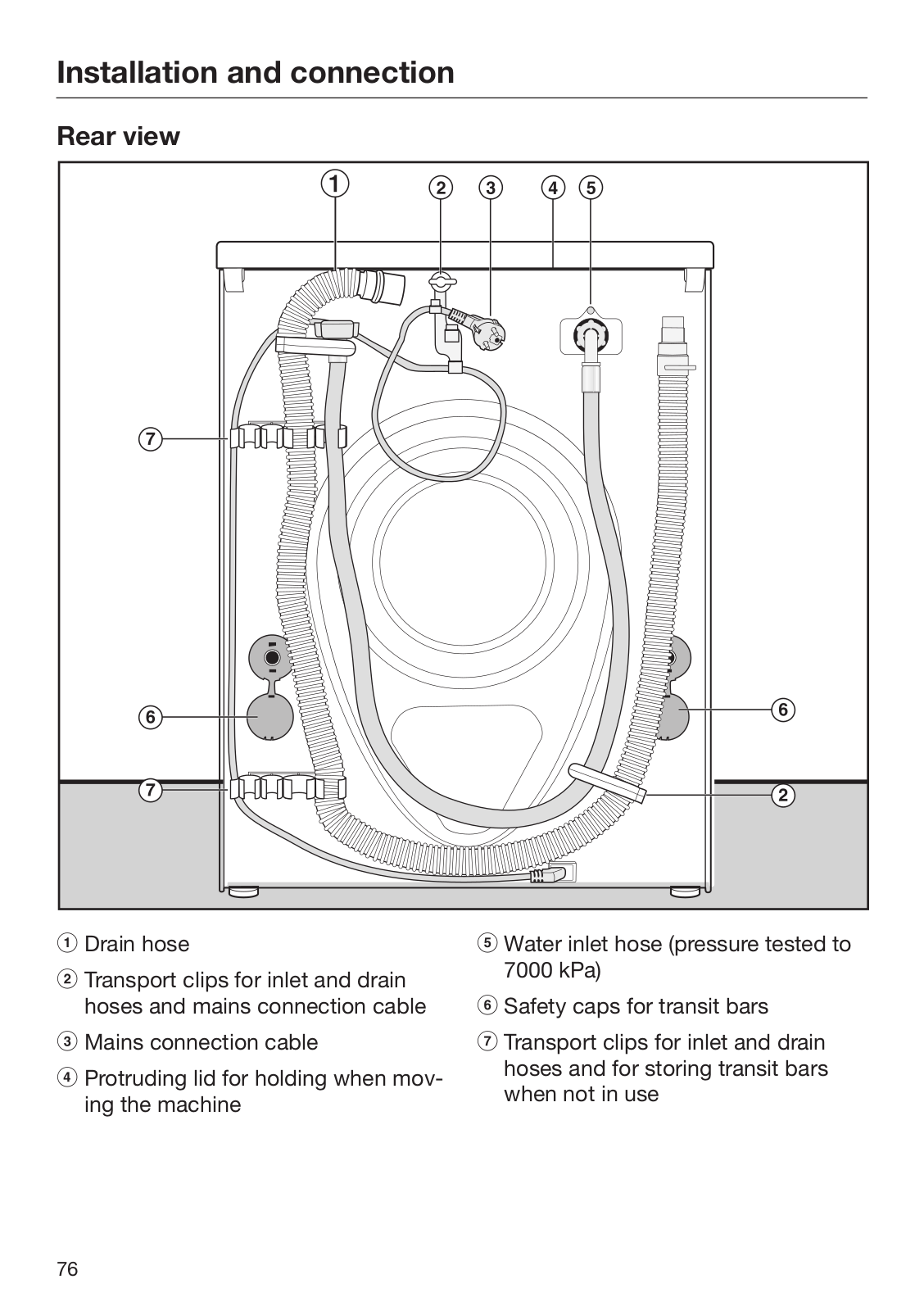

Rear view...............................................................................................................	76

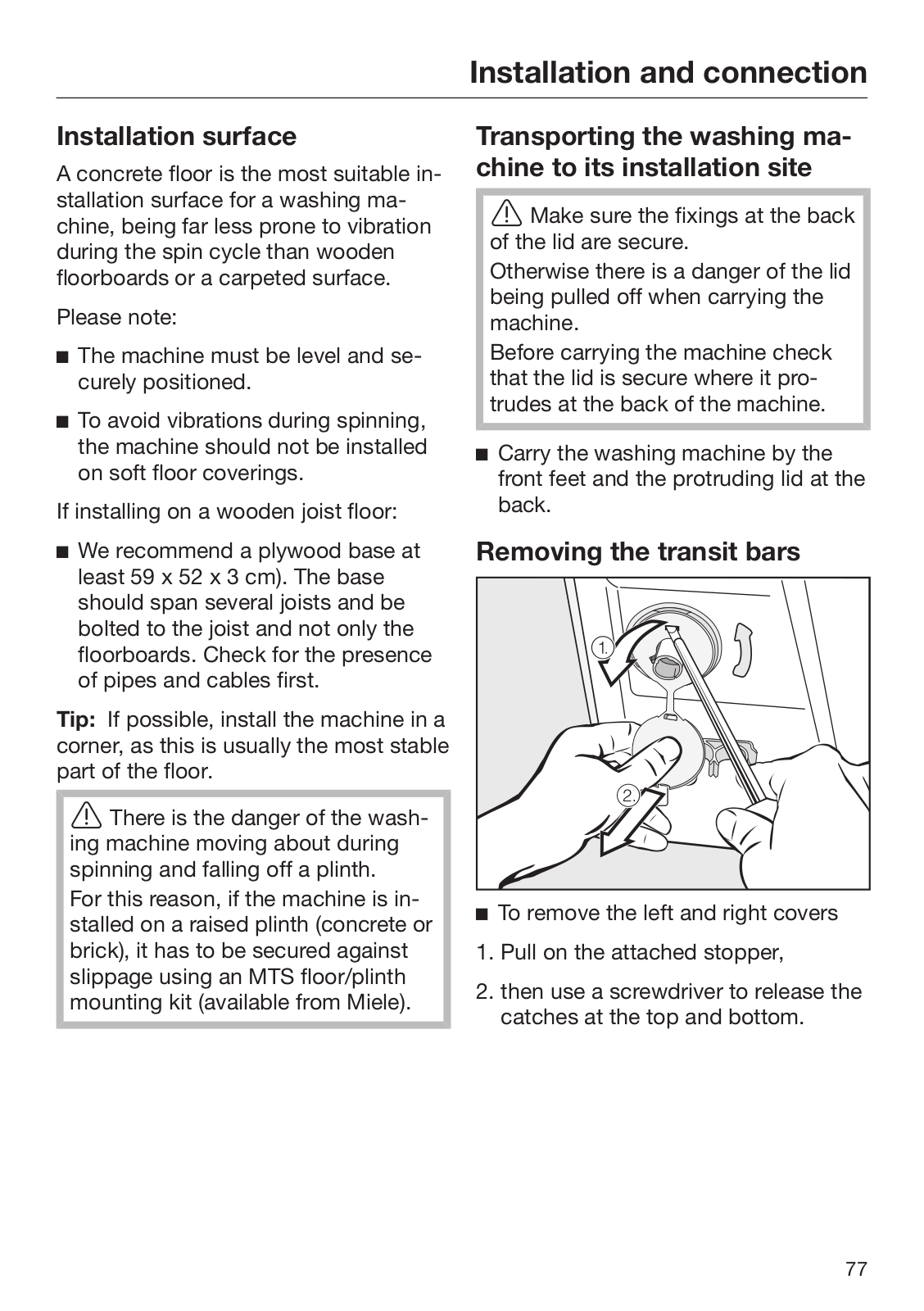

Installation surface ................................................................................................	77
Transporting the washing machine to its installation site......................................	77
Removing the transit bars .....................................................................................	77
Re-fitting the transit bars.......................................................................................	79

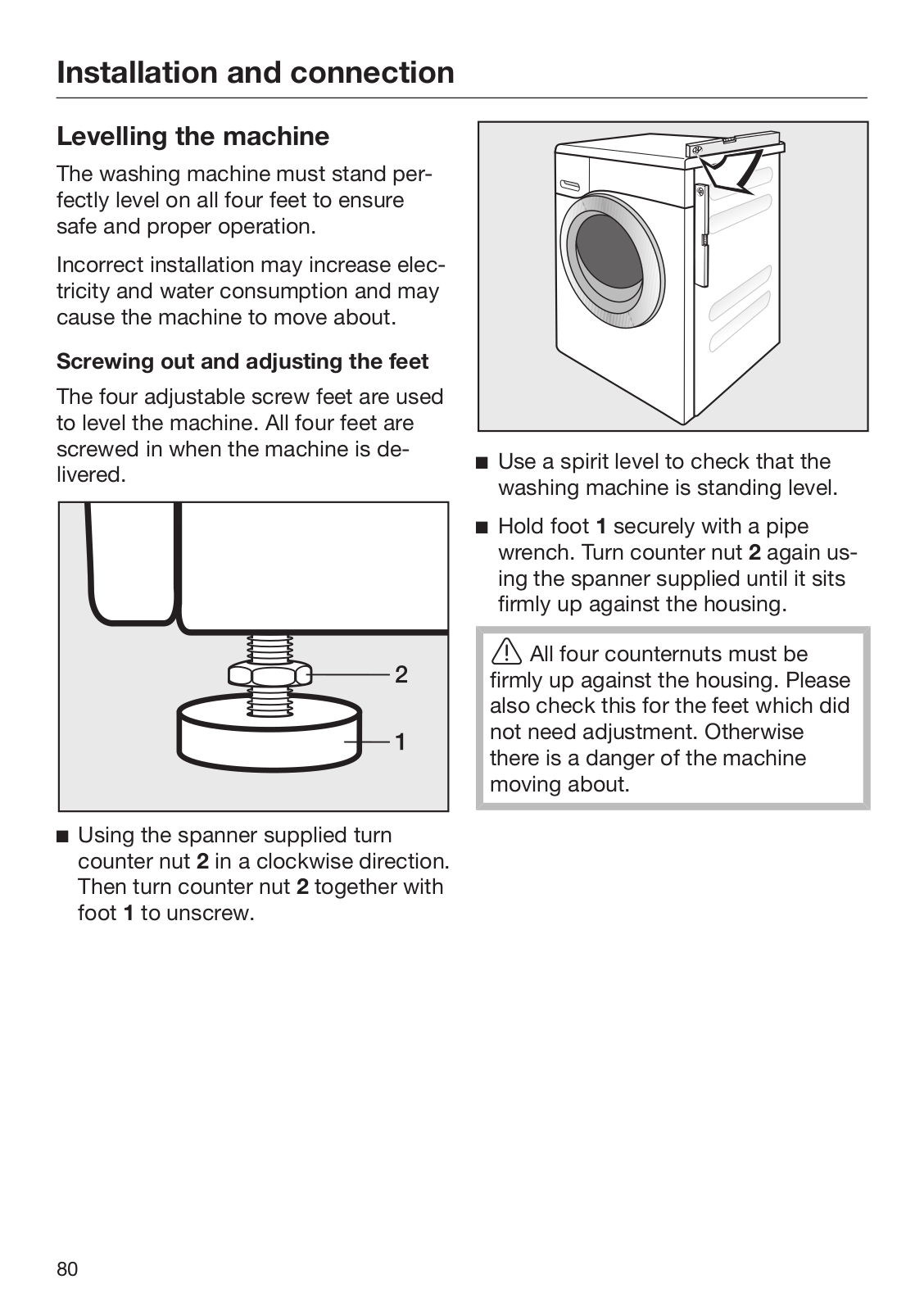

Levelling the machine............................................................................................	80
Screwing out and adjusting the feet.................................................................	80
Building under a continuous worktop/ in a kitchen run....................................	81
Washer-dryer stack ..........................................................................................	81
The water protection system.................................................................................	82
Connection to the water supply ............................................................................	83
Water drainage ......................................................................................................	84

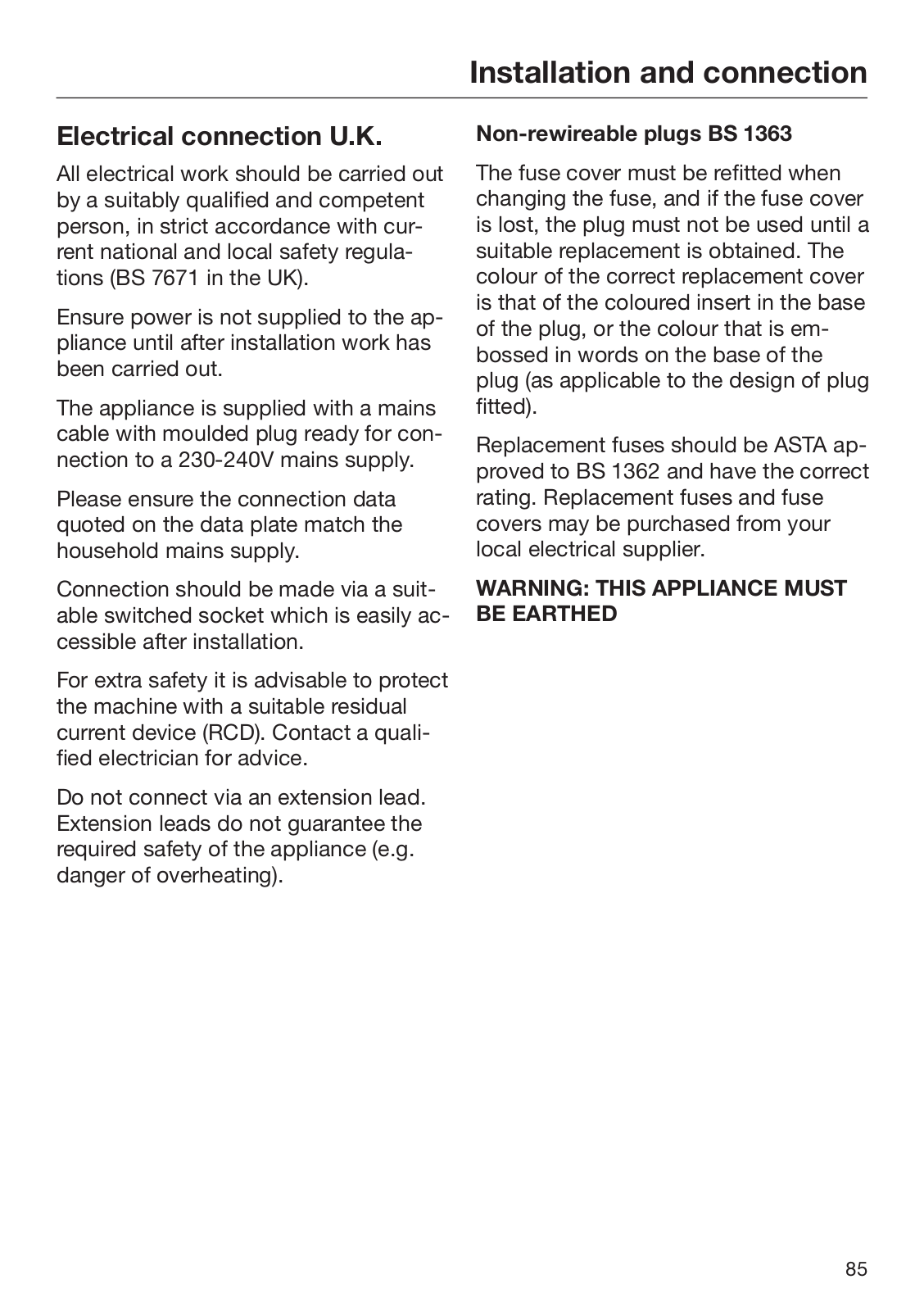

Electrical connection U.K. .....................................................................................	85

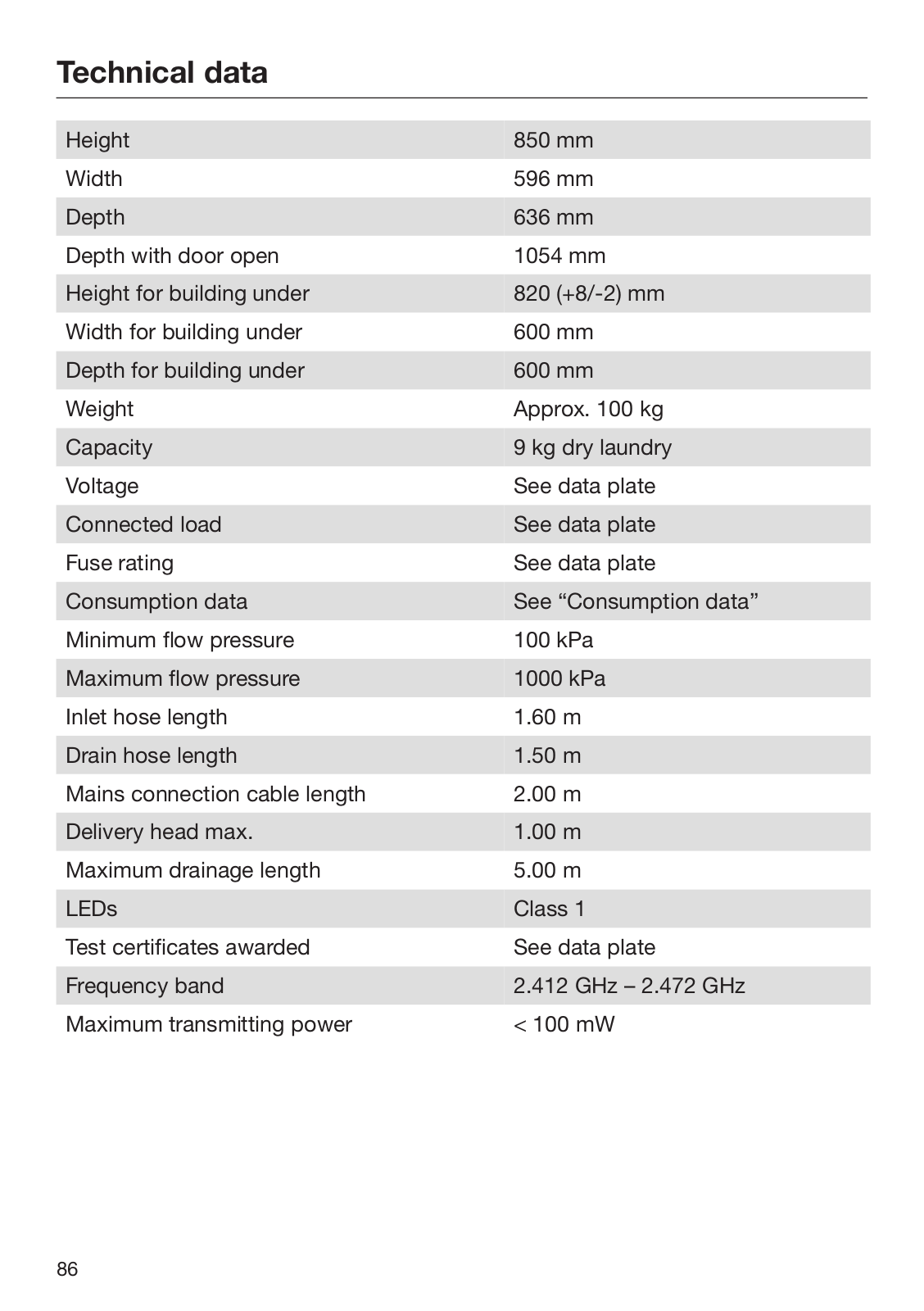

Technical data......................................................................................................	86
Conformity declaration ..........................................................................................	87
Data sheet household washing machines.............................................................	88
Consumption data...............................................................................................	90
Note for test institutes ...........................................................................................	90

	Contents
Settings ................................................................................................................	91
Calling up settings.................................................................................................	91
Selecting settings..................................................................................................	91
Changing a setting ................................................................................................	91
Closing the settings menu.....................................................................................	91
Language ...........................................................................................................	92
TwinDos.................................................................................................................	92
Degree of soiling....................................................................................................	93
Buzzer volume.......................................................................................................	93
Keypad tone ..........................................................................................................	93
Welcome tone .......................................................................................................	93
Consumption.........................................................................................................	93
Code......................................................................................................................	94
Units ......................................................................................................................	94
Brightness .............................................................................................................	94

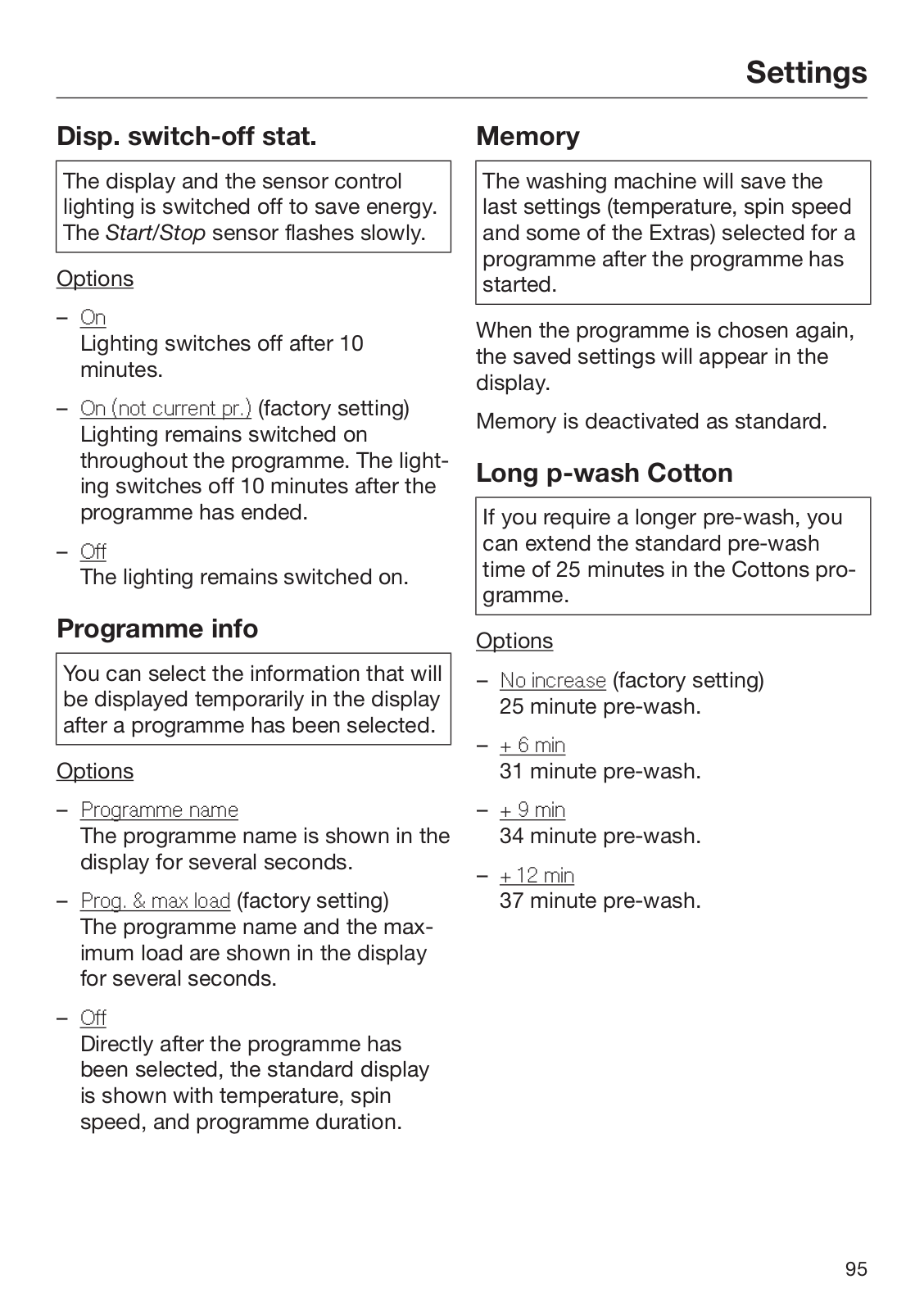

Disp. switch-off stat. .............................................................................................	95
Programme info .....................................................................................................	95
Memory .................................................................................................................	95
Long p-wash Cotton .............................................................................................	95
Soak duration ........................................................................................................	96
Gentle action .........................................................................................................	96
Temp. reduction.....................................................................................................	96
Water plus .............................................................................................................	96
Water plus level .....................................................................................................	96
Maximum rinse level..............................................................................................	97
Suds cooling..........................................................................................................	97
Low water pressure ...............................................................................................	97
Anti-crease ............................................................................................................	97
Miele@home ..........................................................................................................	98
Remote control......................................................................................................	99
SmartGrid ..............................................................................................................	99
RemoteUpdate ....................................................................................................	100
Running a RemoteUpdate..............................................................................	100
Optional accessories ........................................................................................	101
Detergent.............................................................................................................	101
Specialist detergents...........................................................................................	102
Fabric care...........................................................................................................	102
Additive ...............................................................................................................	103
Machine care.......................................................................................................	103

Caring for the environment

Disposal of the packing mater-

ial

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Disposing of your old appli-

ance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible (by law, depending on country) for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

Warning and Safety instructions

This washing machine complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the machine, please read these instructions carefully before using it for the first time. They contain important information on its safety, use and maintenance.

Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future user.

Correct application

This washing machine is intended for use in domestic households and similar working and residential environments.

The washing machine is not intended for outdoor use.

It must be used only as a domestic appliance to wash items which are specified by the manufacturer as being washable on the wash care label. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.

The washing machine can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it safely and recognise and understand the consequences of incorrect operation.

Warning and Safety instructions

Safety with children

Children under 8 years of age must be kept away from the washing machine unless they are constantly supervised.

Children 8 years and older may only use the washing machine unsupervised if they have been shown how to use it safely and recognise and understand the consequences of incorrect operation.

Children must not be allowed to clean or maintain the washing machine unsupervised.

Please supervise children in the vicinity of the washing machine and do not let them play with it.

Technical safety

Please observe the instructions in “Installation and connection” and “Technical data”.

Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged machine.

Before connecting the washing machine, ensure that the connection data on the data plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.

Reliable and safe operation of this washing machine can only be assured if it has been connected to the mains electricity supply.

Warning and Safety instructions

The electrical safety of this washing machine can only be guaranteed when correctly earthed.

It is essential that this standard safety requirement is met. If in any doubt, please have the wiring system of the building tested by a qualified electrician.

Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Do not connect the washing machine to the mains electricity supply by a multi-socket adapter, extension lead or similar. These do not guarantee the required safety of the machine (fire hazard due to the risk of overheating).

Faulty components must only be replaced by genuine Miele original spare parts. Only when these parts are fitted can Miele guarantee the safety standards of the machine.

The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.

Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.

If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.

Warning and Safety instructions

The machine must be isolated from the electricity supply when cleaning and maintaining the machine and in the event of a fault.

The machine must only be connected to the on-site water supply using a new hose kit. Old hose kits must not be re-used. Check the condition of the hoses regularly so that you can replace them in good time and avoid the risk of any water damage.

The water flow pressure must be at least 100 kPa and should not exceed 1000 kPa.

In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the warranty.

The machine must not be used in a non-stationary location (e.g. on a ship).

Do not make any alterations to the machine, unless authorised to do so by Miele.

Warning and Safety instructions

Correct use

Do not install the washing machine in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

Before using the machine for the first time, check that the transit bars at the rear of the machine have been removed (see “Installation and connection - Removing the transit bars”). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances.

Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

Flooding danger.

If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.

Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum), which in turn can result in damage to the laundry.

Warning and Safety instructions

Take care when opening the drum door after using the steam function. Danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass. Stand back away from the machine and wait until the steam has dissipated.

The maximum load for this washing machine is 9 kg (dry weight). See the “Programme chart” for the maximum recommended loads for individual programmes.

If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use a proprietary natural citric acid based descaling agent. Miele recommends using Miele descaling agent which is available to order online at www.miele.co.uk or from Miele. Strictly observe the instructions on the packaging.

Textiles which have been pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine.

Do not use solvent based cleaning agents, e.g. those containing benzine, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and explosion hazard.

Do not use solvent based cleaning agents, e.g. those containing benzine, to clean the surfaces of the machine. They can cause damage to plastic surfaces.

Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine. Always observe the manufacturer's instructions carefully.

Warning and Safety instructions

Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.

If detergent comes into contact with the eyes, rinse them thoroughly with lukewarm water immediately. If swallowed, seek medical assistance immediately and retain the packaging or label for reference. Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent.

Accessories

Accessory parts may only be fitted when expressly approved by Miele. If other parts are used, warranty, performance and product liability claims will be invalidated.

A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.

If installing the machine on a Miele plinth, (available as an optional accessory, depending on country), please make sure you order the correct one for this washing machine.

Miele cannot be held liable for damage caused by non-compliance

with these Warning and Safety instructions.

Operating the washing machine

Control panel

a Control field

The control field consists of a display and various sensor controls. The individual sensors are explained in the following sections.

bDisplay

The following values are shown on the display and/or selected from it:

1.The temperature, spin speed, and time left for the selected wash programme.

2.The individual values for selected extras and settings.

csensors

Values shown in the display can be changed with the sensors. The

sensor increases the value or moves up the list; the sensor decreases the value or moves down the list.

d OK sensor

The OK sensor is used for confirming selected values.

e TwinDos sensor controls with options for Whites and Colours

The TwinDos sensor is used for deactivating and activating automatic detergent dispensing. Depending the colour mix of your load you can control the detergent combination by selecting Whites or Colours. Further information can be found in the “TwinDos” chapter.

f Optical interface

This is used by the Service department as a transmission point.

Operating the washing machine

g Sensors for extra options

You can supplement wash programmes with extra options.

If a wash programme has been selected, the sensor controls for the possible Extras light up dimly.

h sensor control

You can view information about the energy and water consumption of your washing machine with the sensor.

See “Washing environmentally and economically, Eco Feedback” for more information.

The following information will appear in the display:

–An estimate of the energy and water consumption before the programme begins.

–The actual energy and water consumption and the cost during the programme or at the end of the programme.

isensor

The sensor starts the delay start function. With Delay start you can delay the start of the programme. The start of the programme can be delayed from 15 minutes up to a maximum of 24 hours. This allows you to make use of night-time economy electricity rates, for example. Please see “Delay start” for more information.

j sensor

You can specify the level of soiling of the load in three settings. This sensor is only active with the TwinDos option activated.

k Start/Stop sensor

Touching the Start/Stop sensor starts the selected programme or cancels a programme that has already been started. The sensor flashes slowly as soon as it is possible for a programme to be started and then lights up constantly after the programme has started.

l sensor

This sensor is used for activating Cap dispensing.

m Programme selector

This is used for selecting programmes and for switching off. The washing machine is switched on when you select a programme, and switched off by turning the programme selector to the position.

Operating the washing machine

Display

The standard display shows the follow-

ing from left to right:


1600	2:59	OK

–the selected wash temperature

–the selected spin speed

–the programme duration

Examples on how to operate

the machine

Scrolling through a list

The scroll bar in the display indicates that a list of choices is available.

Language		OK

Scroll down the list with the sensor. Scroll up the list with the sensor. The

OK sensor is used to activate the option shown in the display.

Identifying the selected option


	Cap			OK

An activated option in a list will have a

tick next to it.

Setting numerical values

Start in

:00 h

The numerical value is highlighted in white. Touching the sensor decreases the value. Touching the sensor increases the value. The OK sensor is used to activate the value shown in the display.

Leaving a submenu

Select Back to exit a submenu.

Before using for the first time

Before using the machine for the first time ensure that it is correctly installed and connected. See “Installation and connection”. Also check that the drain filters are securely tightened to prevent the risk of water leaks during use.

Remove the detergent cart-

ridges and the drain hose el-

bow from the drum

Two detergent cartridges for automatic detergent dispensing and an elbow piece for the drain hose are stored in the drum.

Remove the protective foil and

stickers

Remove

–the protective foil from the door.

–any stickers from the front and the lid.

Please do not remove any labels (e.g. the data plate), visible when you open the door.

This washing machine has undergone a complete functional test at the factory and there will be some residual water in the drum from this process.

Reach under the door grip and pull the door open.

Take the two cartridges and the elbow piece out of the drum.

Shut the door with a gentle swing.

Before using for the first time

Switching on the washing ma-

chine

Turn the programme selector to the

Cottons programme.

The welcome tone will sound and the welcome screen will light up.

The display will guide you through the

5 steps of the initial commissioning process.

1. Set the language

You will be asked to select the language you require for the display. It is possible to change the language at any time by setting the programme selector to the

Further programmes/ position in the

Settings sub-menu.


	english (GB)			OK

Touch the sensors until the language you want appears in the display.

Confirm your selection of the language by touching the OK sensor.

2. Setting up Miele@home

Your washing machine is equipped with an integrated WiFi module. The washing machine can be connected to the household WiFi network.

You will then be able to operate the washing machine via the Miele@mobile app.

The following message appears in the display:

Miele@home

Confirm with OK.

The following message then appears in the display:

Set up now

To set up Miele@home now: Touch the OK sensor.

To postpone setup until later: Touch the sensor until the following appears in the display: Set up later and press OK to confirm.

Select the required connection type from the display.

1. Connect via WPS

2. Connect via App

Before installing the washing machine in its final location, ensure the signal strength is sufficient for your WiFi network.

Before using for the first time

Miele@mobile App

The Miele@mobile App is available to download free of charge from the Apple App Store® or from the Google Play Store™.

Connecting via WPS

Your WiFi router must support WPS (WiFi Protected Setup).

Follow the instructions in the display.

If the connection fails, you have probably not activated WPS on your router quickly enough. Repeat the steps above.

Tip: If your WiFi router does not support WPS, please connect via the Miele@mobile app.

Connecting via the app

The Miele@mobile app can be used to connect to your network.

Install the Miele@mobile app on your mobile device.

Follow the instructions in the app. To log in you will need:

1. Your WiFi network password

2. Your washing machine password

The password for your washing machine consists of the last nine digits on the serial number. These can be found on the appliance's data plate.

If the connection is successful, the following will appear in the display:


	Connection OK		OK

Confirm with OK

Before using for the first time

3.Remove the transit bars

Failure to remove the transit bars can result in damage to the washing machine and to adjacent cabinetry or appliances.

Remove the transit bars as described in “Installation and connection”.

The following message appears in the display:

Remove transit bars

Confirm with the OK sensor.

4. Commissioning TwinDos

The UltraPhase 1 and UltraPhase 2 values are pre-set in the standard settings and only need to be confirmed.

The following message appears in the display:

TwinDos

Confirm with OK

The following message appears in the display:

Set now

To set up TwinDos now, touch the OK sensor.

To postpone setup until later: Touch the sensor until the following appears in the display: Set later and press OK to confirm.

Settings for compartment

The UltraPhase 1 values are pre-set in the standard settings.


	Agent for		OK

Confirm with the OK sensor.

Miele UltraPhase 1			OK

Confirm with the OK sensor.

The following will appear in the display:

Set the dosage. Observe water hardness

levels

Confirm with the OK sensor.

The dispensing quantity for UltraPhase 1 is pre-set for (hardness range II).

Per load

Confirm the pre-set value with the OK sensor or correct the value with the

sensors and confirm this with the

OK sensor.

UltraPhase 1

Hardness level I	48 ml
Hardness level II	60 ml
Hardness level III	72 ml

Before using for the first time

The following appears in the display:

Insert

Remove the foil or the stopper from the detergent cartridge.

Open the access panel for TwinDos.

Push the UltraPhase 1 detergent

cartridge into compartment 1 until it

locks into position.

Before using for the first time

Settings for compartment

The UltraPhase 2 values are pre-set in the standard settings.

After the cartridge has been pushed in, the display message switches to:


	Agent for	OK

Confirm with the OK sensor.

	Miele UltraPhase 2	OK

Confirm with the OK sensor.

The dispensing quantity for UltraPhase 2 is pre-set for (hardness range II).

Per load

Confirm the pre-set value with the OK sensor or correct the value with the

sensors and confirm this with the

OK sensor.

UltraPhase 2

Hardness level I	36 ml
Hardness level II	45 ml
Hardness level III	54 ml

The following appears in the display:

Insert

Remove the foil or the stopper from the detergent cartridge.

Push the UltraPhase 2 detergent cartridge into compartment 2 until it locks into position.

When the cartridge is pushed in, the display message switches to:

"TwinDos" is set. Can be changed in "Set-

tings".

Confirm with the OK sensor.

Close the TwinDos access panel.

Before using for the first time

Using other detergents with TwinDos

The TwinDos dispenser can be used for other liquid detergents. Refillable TwinDos containers (optional accessories) are required for this. See “Settings - TwinDos” for more detailed information.

5. Starting the calibration pro-

gramme

For optimum water and energy consumption and excellent wash results, it is important to calibrate the washing machine.

To do this, the Cottons programme must be run without laundry.

No other programmes can be started until calibration has been carried out.

The following message appears in the display:

Open and run "Cottons" 90°C without

laundry.

Touch the sensor until the OK sensor lights up and confirm this with

OK.


90°	1600	1:55	OK

Open the stopcock.

Touch the Start/Stop sensor.

The calibration programme then starts. It will take approximately 2 hours.

At the end of the programme the following message will appear in the display:

Set up complete

Reach under the door grip and pull the door open.

Tip: Leave the door slightly open to allow the drum to dry.

Turn the programme selector to the

position.

Washing environmentally and economically

Energy and water consumption

–To get the most out of your machine, load the maximum dry load for the programme you are using.

The energy and water consumption will be the lowest in relation to the size of the load.

–When smaller amounts of laundry are washed, the automatic load control system will reduce the amount of water and energy used.

–Use the Express 20 programme for small, lightly soiled loads.

–Modern detergents make it possible to wash at lower temperatures (e.g.

20 °C). Using lower temperature settings will save energy.

–Washing at low temperatures and/or using liquid detergents can cause bacteria and odours to build up in the washing machine. Miele therefore recommends cleaning the washing machine once every month.

The washing machine reminds you to do so with the following message in

the display: Hygiene info: run a pro-

gramme at min. 75 °C or the "Clean ma-

chine" programme.

Detergent

–For precise dispensing use automatic detergent dispensing.

–Adjust the dosage to the degree of soiling of the laundry.

–Do not exceed the amounts of detergent recommended by the manufacturer on the packaging.

When drying with a tumble dryer

Selecting the highest possible spin speed for the wash programme will save energy when drying in a tumble dryer afterwards.

Washing environmentally and economically

EcoFeedback

You can view information about the energy and water consumption of your washing machine with the sensor.

The following information will appear in the display:

–An estimate of the energy and water consumption before the programme begins.

–The actual energy and water consumption and the cost during the programme or at the end of the programme.

1. Estimate

After selecting a programme, touch the sensor.

The estimated energy and water consumption levels will be displayed as a bar chart.

				OK

The more bars visible (), the higher the energy or water consumption.

The estimate will vary depending on the wash programme, temperature and any options selected.

Touch the OK sensor or wait until the display automatically returns to the standard display.

2. Actual consumption

You can view the actual amount of energy and water used by a programme both during and at the end of the programme.

Touch the sensor.

Energy

< 0.1 kWh

Use the sensors to change to the estimated water consumption levels.

The consumption will alter as the programme progresses.

If the door is opened or the machine has switched off automatically at the end of the programme, the data will revert to the estimated consumption.

Tip: You can view the consumption data for the last wash programme in

Settings under Consumption.

1. Prepare the laundry

Empty all pockets.

Foreign objects (e.g. nails, coins, paper clips, etc.) can cause damage to garments and to components in the machine.

Check the laundry before washing and remove any foreign objects.

Sort the laundry

Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

Tip: Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.

Pre-treat stains

Badly soiled areas, stains etc. should be cleaned as soon as possible, preferably whilst still fresh. Spillages should be carefully dabbed off using a soft, colourfast cloth. Do not rub.

Tip: Badly soiled areas can be pretreated with liquid detergent, stain removers etc. first, following the manufacturer's instructions. With particularly stubborn stains ask your dry cleaner for advice.

Solvent-based cleaners (e.g. benzine) can damage plastic parts. When pre-treating garments, make sure that any plastic parts (e.g. buttons) are protected from cleaning agent.

Chemical (solvent-based) cleaning agents can cause severe damage to the washing machine.

Do not use solvent-based cleaning agents in this machine.

General tips

–Curtains: Remove lead weights first or place in a laundry bag.

–Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in.

–Close any zips, attach velcro fasteners, fasten hooks and eyes etc. before washing.

–Fasten duvet covers, pillow cases etc. to prevent small items from being rolled up inside them.

Do not wash any items in this washing machine which are specified by the manufacturer as not washable on the care label ( symbol).

2. Select a programme

Switching on the washing ma-

chine

Turn the programme selector to a programme.

Programme selection

There are three possible ways to select a programme:

1. Select standard programmes with the programme selector dial

Turn the programme selector to the required programme.

The selected programme will be shown in the display. The standard display will then appear.

2. Select additional programmes by setting the programme selector to the “Further programmes/ ” position and using the display:

Turn the programme selector to the

Further programmes/ position.

The following appears in the display:

Sportswear OK

Touch the sensors until the programme you want appears in the display.

Confirm the programme with the OK sensor.

Preset programme parameters will be displayed, depending on the programme selected.

2.Select a programme

3.Selecting programmes via the Mo-

bileControl programme selector position and the Miele@mobile app

Tip: In order to use MobileControl , the washing machine must be logged on to the WiFi network and Remote control must be switched on.

Turn the programme selector to the

MobileControl position.

The following appears in the display:

Load laundry, close the door and press

"Start". Appliance can be remotely con-

trolled

Follow the instructions in the display and start the programme.

The following appears in the display:

MobileControl

The washing machine can now be operated with the Miele@mobile app.

3. Load the washing machine

Open the door

Close the door

Reach under the door grip and pull the door open.

Check the drum for pets or foreign objects before loading it with laundry.

The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creases.

Unfold the laundry and load loosely into the drum.

Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.

Tip: Please note the maximum load for the different wash programmes. The relevant programme load is always shown in the display when you select a programme.

Make sure that no items are caught between the door and the seal.

Shut the door with a gentle swing.

4. Select programme settings

Selecting a temperature/spin

speed

You can alter the pre-set temperature/ spin speed of a wash programme, if this option is permitted for that programme.


1600	2:59	OK

Touch the sensors above or below the temperature or spin speed value in the display until the temperature/spin speed you want appears in the display.

Selecting an extra option

Touch the sensor for the extra you want. It then lights up brightly.

Tip: You can select multiple Extras for a wash programme.

Not all extra options can be selected with every programme. If an extra option is not dimly lit, this option is not permitted for the wash programme (see “Extra options”).

Extras sensor control

You can select additional extras using the Extras sensor.

Touch the Extras sensor.

The following appears in the display:


	No Extras			OK

Touch the sensors until the extra option you want appears in the display.

Confirm the extra option with OK.

Level of soiling

The sensor is only active with the TwinDos option activated. See “5. Add detergent, TwinDos” for more information.

+ 78 hidden pages
