Operating instructions

Washing machine

To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.

en-AU, NZ

M.-Nr. 11 661 250

Contents
Warning and Safety instructions .....................................................................	5
Operating the washing machine ......................................................................	12
Control panel.......................................................................................................	12
How the control panel works ..............................................................................	13
Caring for the environment ..............................................................................	14
Before using for the first time ..........................................................................	15
Washing environmentally and economically ..................................................	17
1. Preparing the laundry....................................................................................	18
2. Loading the washing machine .....................................................................	19
3. Selecting a programme ................................................................................	20
4. Adding detergent...........................................................................................	22
Detergent dispenser drawer ................................................................................	22
CapDosing...........................................................................................................	24
5. Starting the programme ...............................................................................	26
Adding laundry during a programme sequence (AddLoad) ................................	26
6. At the end of the programme .......................................................................	27
Spinning..............................................................................................................	28
Delay start ..........................................................................................................	29
Programme chart ..............................................................................................	30
Extras..................................................................................................................	34
Short....................................................................................................................	34
Water +................................................................................................................	34
Pre-wash .............................................................................................................	34
Pre-ironing...........................................................................................................	34
The following Extras can be selected in addition to the programme ..................	35
Programme sequence.......................................................................................	36
Changing the programme sequence ...............................................................	38
Changing the programme (safety lock) ...............................................................	38
Cancelling a programme .....................................................................................	38
Garment care label symbols.............................................................................	39

Contents
Detergent ...........................................................................................................	40
The correct detergent..........................................................................................	40
Detergent dispensing aids...................................................................................	40
Fabric softeners and liquid starch .......................................................................	40
Miele detergents..................................................................................................	42
Cleaning and care .............................................................................................	44
External casing and fascia panel.........................................................................	44
Cleaning the detergent dispenser drawer ...........................................................	44
Hygiene info(Cleaning the drum) .........................................................................	46
Cleaning the water inlet filter...............................................................................	46
Problem solving guide ......................................................................................	47
The programme does not start............................................................................	47
The programme is cancelled and a fault indicator light lights up in the control
panel....................................................................................................................	48
During the programme, a symbol appears in the time display ...........................	49
At the end of the programme, an indicator light lights up in the control panel ...	49
General problems with the washing machine .....................................................	50
An unsatisfactory wash result .............................................................................	52
The door will not open.........................................................................................	53
Opening the door in the event of a blocked drain outlet and/or power cut ........	54
Service................................................................................................................	56
Contact in case of fault .......................................................................................	56
Optional accessories...........................................................................................	56
Warranty ..............................................................................................................	56
Installation..........................................................................................................	57
Front view ............................................................................................................	57
Rear view.............................................................................................................	58
Installation surface ..............................................................................................	59
Transporting the washing machine to its installation site....................................	59
Removing the transit bars ...................................................................................	60
Fitting the transit bars .........................................................................................	62
Levelling the machine..........................................................................................	63
Screwing out and adjusting the feet...............................................................	63
Installing under a continuous worktop ...........................................................	64
Washer and dryer stack .................................................................................	64
The Miele water protection system .....................................................................	65
Connection to the water supply ..........................................................................	65
Drainage ..............................................................................................................	67
Electrical connection ..........................................................................................	68

Contents
Technical data....................................................................................................	69
Consumption data.............................................................................................	70
Programmable functions ..................................................................................	71
Choosing and selecting programmable functions ..............................................	71
Editing and saving the programmable function ..................................................	72
Exiting the programming level.............................................................................	72
Keypad tone...................................................................................................	72
PIN Code.......................................................................................................	73
Control panel standby status .......................................................................	73
Memory ........................................................................................................	74
Longer pre-wash Cottons ............................................................................	74
Gentle action ................................................................................................	74
Reduce temperature.....................................................................................	74
Water plus.....................................................................................................	75
Water plus level .............................................................................................	75
Maximum rinse level.....................................................................................	75
Suds cooling .................................................................................................	75
Anti-crease ...................................................................................................	76
Low water pressure......................................................................................	76
Backlight brightness dimmed ......................................................................	76

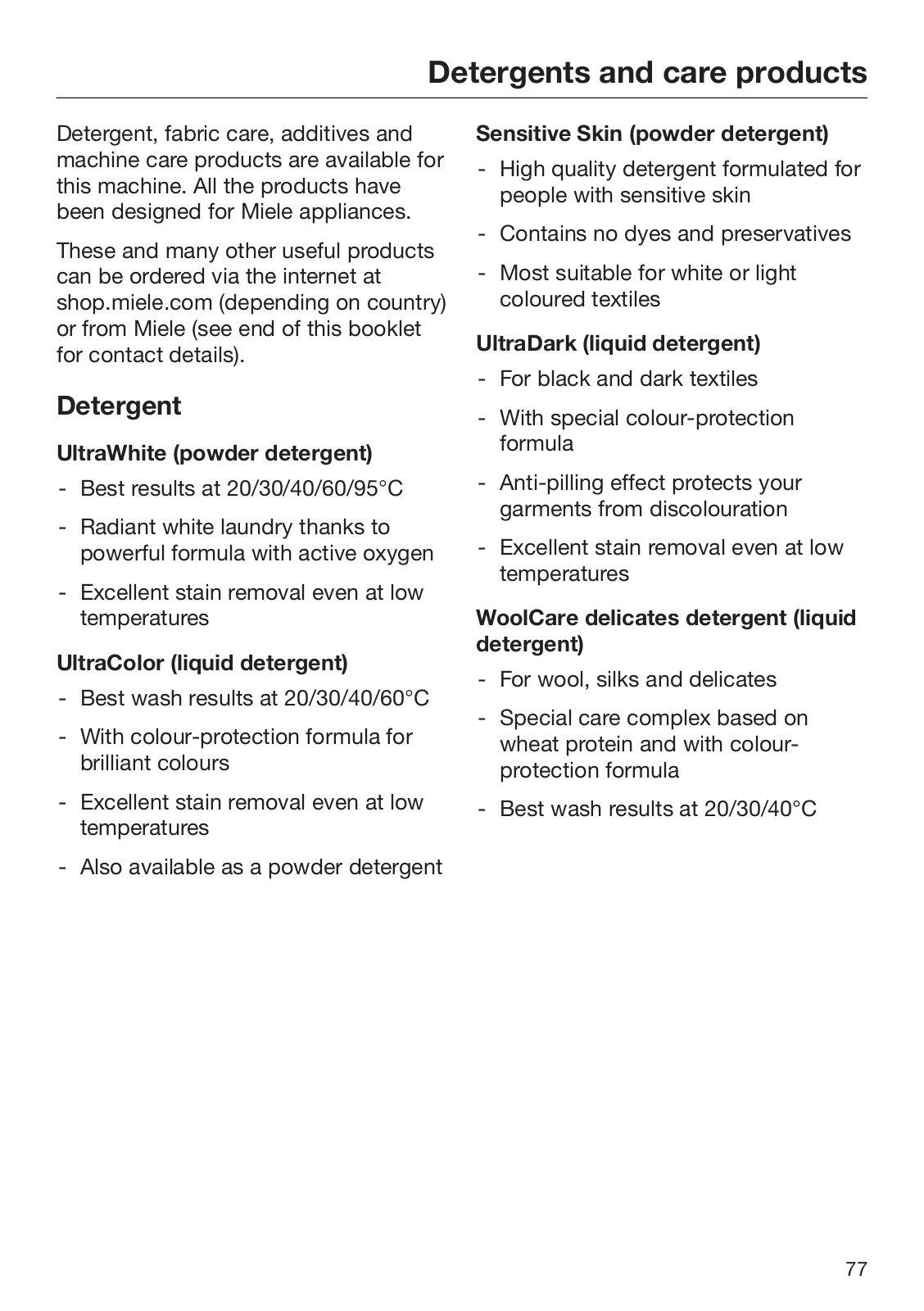

Detergents and care products .........................................................................	77
Detergent.............................................................................................................	77
Sensitive Skin (powder detergent)..................................................................	77
Specialist detergents ....................................................................................	78
Fabric care ....................................................................................................	79
Additive ........................................................................................................	79
Machine care products........................................................................................	79

Warning and Safety instructions

This washing machine complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.

Read the operating instructions carefully before using the washing machine. They contain important information on safety, installation, use and maintenance of the appliance. This prevents both personal injury and damage to the washing machine.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in “Installation”, as well as in the “Warning and Safety instructions”.

Miele cannot be held liable for injury or damage caused by noncompliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Correct application

This washing machine is designed for domestic use and for use in similar environments by guests in hotel or motel rooms, bed & breakfasts and other typical living quarters. This does not include common/shared facilities or commercial facilities within hotels, motels or bed & breakfasts.

The washing machine is not suitable for outdoor use.

It must only be used to wash garments which have been declared suitable for washing by the manufacturer indicated on the garment care label. Any other use is not permitted. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.

Warning and Safety instructions

This washing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning its use by a person responsible for their safety.

Safety with children

Young children must not be allowed to use this appliance.

Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.

Cleaning work may only be carried out by older children under the supervision of an adult.

Please supervise children in the vicinity of the washing machine and do not let them play with it.

Technical safety

Please observe the instructions in “Installation” and “Technical data”.

Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged machine.

Before connecting the washing machine, ensure that the connection data on the data plate (fuse rating, voltage and frequency) matches the mains electricity supply. If in any doubt, consult a qualified electrician.

Warning and Safety instructions

Reliable and safe operation of this washing machine can only be assured if it has been connected to the mains electricity supply.

The electrical safety of this washing machine can only be guaranteed when continuity is complete between it and an effective earthing system which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested and, where there is any doubt, the household wiring system should be inspected by a qualified electrician. Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Do not connect the washing machine to the mains electricity supply by a multi-socket adapter, extension lead or similar. These do not guarantee the required safety of the machine (fire hazard due to the risk of overheating).

Faulty components must only be replaced by genuine Miele spare parts. Miele can only guarantee the safety of the appliance when Miele replacement parts are used.

The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.

Unauthorised repairs could result in unforeseen dangers for the user, for which Miele cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.

The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele approved service technician.

Warning and Safety instructions

If the connection cable is faulty, it must only be replaced by a Miele approved service technician to protect the user from danger.

In the event of a fault or for cleaning purposes, the washing machine is only completely isolated from the electricity supply when:

-it is switched off at the wall socket and the plug is withdrawn, or

-it is switched off at the mains circuit breaker.

The machine must only be connected to the on-site water supply using a new hose kit. Old hose kits must not be re-used. Check the condition of the hoses regularly so that you can replace them in good time and avoid the risk of any water damage.

The water flow pressure must be at least 100 kPa and must not exceed 1000 kPa.

This washing machine must not be installed and operated in mobile installations (e.g. on a ship).

Do not make any alterations to the machine, unless authorised to do so by Miele.

In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the machine warranty.

Warning and Safety instructions

Correct use

Do not install the washing machine in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

Before using the machine for the first time, check that the transit bars at the rear of the machine have been removed (see “Installation - Removing the transit bars”). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances.

Turn off the tap if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

Flooding danger.

If hooking the drain hose into a laundry washtub, check that the water can drain off quickly enough to prevent the laundry tub from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.

Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum), which in turn can result in damage to the laundry.

Warning and Safety instructions

Take care when opening the drum door after using the steam function. There is a danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass. Stand back away from the machine and wait until the steam has dissipated.

The maximum load for this washing machine is 8.0 kg (dry weight). See the “Programme chart” for the maximum recommended loads for individual programmes.

If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use a proprietary natural citric acid based descaling agent. Miele recommends using Miele descaler for washing machines which is available to order online at shop.miele.com (depending on country) or from Miele. Strictly observe the instructions on the packaging.

Textiles which have been pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine.

Do not use solvent based cleaning agents, e.g. those containing benzine, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and explosion hazard.

Do not use solvent based cleaning agents, e.g. those containing benzine, to clean the external surfaces of the machine. They can cause damage to plastic surfaces.

Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine. Always observe the manufacturer's instructions carefully.

Warning and Safety instructions

Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.

If detergent comes into contact with the eyes, rinse them thoroughly with lukewarm water immediately. If swallowed, seek medical assistance immediately and retain the packaging or label for reference. Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent.

Accessories

Only use genuine Miele spare parts and accessories with this appliance. If spare parts or accessories from other manufacturers are used, this will invalidate the warranty, and Miele cannot accept liability.

A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.

Miele will guarantee to supply functional spare parts for a minimum of 10 years and up to 15 years following the discontinuation of your washing machine.

Miele cannot be held liable for damage caused by non-compliance

with these Warning and Safety instructions.

Operating the washing machine

Control panel

a Control panel

The control panel consists of a time display and various sensor controls. The individual sensors are explained in the following.

b Sensor controls – temperature for selecting the temperature.

c Sensor controls – spin speeds for selecting the spin speed.

d Sensor controls for Extras

You can supplement wash programmes with Extras.

If a wash programme has been selected, the sensor controls for the possible Extras light up dimly.

e Indicator lights

lights up if there are faults with the water inlet and drainage

lights up if excess detergent was used

lights up as a reminder about hygiene information

The Add laundry function cannot be selected

f Sensor controls – CapDosing

CapDosing of fabric care products (e.g. fabric softener)

CapDosing of additives (e.g. booster)

CapDosing of detergent (for the main wash only)

Operating the washing machine

g Time display

After the programme has started, the programme duration will appear in the display in hours and minutes. When Delay start is being used, the programme duration will appear after the Delay start time has elapsed.

h sensor controls

The Delay start time selected will appear in the time display.

After the programme has started, the Delay start time will begin to count down.

Once the Delay start time has elapsed, the programme begins and the estimated programme duration appears in the time display.

After touching the sensor, a later start time for the programme (Delay start) can be selected. Once selected, lights up brightly.

The duration of the Delay start period is increased by touching the sensor.

The duration of the Delay start period is reduced by touching the sensor.

iStart/Add laundry sensor

The programme can be started as soon as the sensor is flashing on and off. Touching the Start/Add laundry sensor starts the selected programme. The sensor lights up constantly.

Once the programme has been started, the Start/Add laundry sensor allows you to add laundry.

j Optical interface

For service technicians.

k Programme selector

For selecting programmes and for switching off the appliance. The washing machine is switched on by selecting a programme, and switched off by turning the programme selector to the position.

How the control panel works

The , , , , and sensors react to fingertip contact. Selection is possible as long as the respective sensor is illuminated.

If a sensor is brightly lit, this means: currently selected

If a sensor is dimly lit, this means: selection possible

Caring for the environment

Disposal of the packing

material

The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of your old

appliance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances. You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

Before using for the first time

Damage resulting from incorrect installation and connection. Installing and connecting the washing machine incorrectly will cause serious damage to property. See “Installation”.

Removing the protective foil

and advertising stickers

Remove:

-the protective foil from the door (if present).

-any advertising stickers from the front and the lid.

Please do not remove any labels (e.g. the data plate) which are visible when you open the door.

Remove the drain hose elbow

from the drum

An elbow piece for the drain hose is stored in the drum.

Reach under the door grip and pull the door open.

Remove the elbow piece.

Shut the door with a gentle swing.

This washing machine has undergone a complete functional test at the factory and there will be some residual water in the drum from this process.

Before using for the first time

Running the first programme

For optimum water and energy consumption and excellent wash results, it is important to calibrate the washing machine.

To do this, the Cottons programme must be run without laundry and without detergent.

Turn on the tap.

Turn the programme selector to the

Cottons position.

The washing machine is now switched on and in the control panel the temperature 40°C lights up.

Touch the Start/Add laundry sensor.

The programme will start.

Opening the door at the end of

the programme

The door remains locked during the Anti-crease phase. The control panel lights up for 10 minutes after the programme ends. The control panel then goes out and the Start/Add laundry sensor flashes.

Turn the programme selector to the

position.

appears in the time display and the indicator light goes out.

The door will unlock.

Useful tip: After the Anti-crease phase, the washing machine will have switched off and the door unlocked automatically. The control panel is completely dark.

After 10 minutes, the indicators dim, except for the Start/Add laundry sensor.

Reach under the door grip and pull the door open.

Useful tip: For safety reasons, close the door when the washing machine is not in use. Otherwise there is a danger of objects being placed inadvertently in the drum. If these remain unnoticed and were washed in the next load, they could damage the laundry. An open door is also a danger to pets and children.

The appliance is now ready for use.

Washing environmentally and economically

Energy and water consumption

-To get the most out of your machine, load the maximum dry load size for the wash programme you are using. This will keep the energy and water consumption to a minimum in relation to the size of the load.

-Programmes that are more efficient with regard to energy and water consumption generally have a longer running time. By extending the programme running time, the wash temperature that is actually reached can be reduced while still providing the same wash results.

For example, the Cottons programme has a longer running time than the Cottons 40°C or 60°C programme, but the Cottons programme is more efficient in terms of energy and water consumption.

-Use the Express 20 programme for small, lightly soiled loads.

-Modern detergents make it possible to wash at lower temperatures (e.g. 20°C). Using lower temperature settings will save energy.

Hygiene in the washing

machine

Washing at low temperatures and/or using liquid detergents can cause bacteria and odours to build up in the washing machine. Miele therefore recommends cleaning the washing machine once every month.

When the indicator light appears in the control field, the washing machine must be cleaned.

Information about subsequent

tumble drying

The spin speed selected affects the residual moisture in the laundry and the sound emissions of the washing machine.

The higher the spin speed, the lower the residual moisture in the laundry. However, the sound emissions of the washing machine will increase.

Select the highest possible spin speed for the wash programme to save energy in the subsequent tumble dryer cycle.

Detergent consumption

-Do not exceed the amounts of detergent recommended by the manufacturer on the packaging.

-Adjust the dosage to the degree of soiling of the laundry.

-Reduce the amount of detergent with smaller loads (approx. ⅓ less than the amount recommended can be used when washing a half load).

1. Preparing the laundry

Empty all pockets.

Damage due to foreign objects.

Nails, coins, paper clips, and so on can cause damage to garments and components in the machine.

Check the laundry before washing and remove any foreign objects.

Sorting the laundry

Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

Useful tip: Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash white and coloured items separately.

Pre-treating stains

Badly soiled areas and stains should be cleaned as soon as possible, preferably whilst still fresh. Spillages should be carefully dabbed off using a soft, colourfast cloth. Do not rub.

Useful tip: Please refer to the Miele website or Miele@mobile App for more information on stain removal.

Damage due to solvent-based cleaning agents.

Cleaning agents containing benzine, stain remover, etc., can damage plastic parts.

When pre-treating garments, make sure that any plastic parts (e.g. buttons) do not come into contact with cleaning agent.

Risk of explosion due to solventbased cleaning agents.

If solvent-based cleaning agents are used, an explosive mixture can form. Never use solvent-based cleaning agents in the washing machine.

General tips

-Curtains: Remove lead weights first or place in a laundry bag.

-Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in.

-Close any zips, attach Velcro fasteners, fasten hooks and eyes etc. before washing.

-Fasten duvet covers and pillow cases to prevent small items from being rolled up inside them.

Do not wash any items in this machine which are specified by the manufacturer as not washable on the care label ( symbol).

2. Loading the washing machine

Opening the door

Closing the door

Reach under the door grip and pull the door open.

Check the drum for pets or foreign objects before loading it with laundry.

The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creases.

Unfold the laundry and load loosely in the drum.

Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.

Useful tip: Please note the maximum load for the different wash programmes.

Make sure that no items are caught between the door and the seal.

Shut the door with a gentle swing.

3. Selecting a programme

Programme selection

The washing machine is switched on by turning the programme selector to a wash programme.

Turn the programme selector to the required programme.

The likely wash time is shown in the time display and the pre-set temperature and spin speed light up in the control panel.

Selecting the temperature and spin speed

The wash programme's pre-set temperature and spin speed light up brightly. The choice of temperatures and spin speeds selectable for the wash programme light up dimly.

The temperatures reached in the washing machine may differ from the selected temperatures. The combination of energy input and washing time achieves an optimum washing result.

Touch the sensor for the temperature you want. It then lights up brightly.

Touch the sensor for the spin speed you want. It then lights up brightly.

3. Selecting a programme

Selecting Extras

The selection of Extras available for the wash programme lights up dimly.

Touch the sensor for the Extra you want. It then lights up brightly.

Useful tip: You can select multiple

Extras for a wash programme.

Please refer to “Extras” for more information.

4. Adding detergent

Detergent dispenser drawer

Adding fabric softener

Any detergent suitable for automatic front loading washing machines can be used with this appliance. Please observe the instructions for use and dosage on the detergent packaging.

Filling with detergent

Pull out the detergent drawer and add detergents to the compartments.

Detergent for the pre-wash (divide the total recommended amount as follows: add ⅓ to compartment

and ⅔ to compartment )

Detergent for the main wash

Fabric softener, liquid starch, or

capsules

Add fabric softener or liquid starch to the compartment. Do not exceed the maximum level mark.

It will be automatically dispensed in the final rinse. At the end of the programme a small amount of water remains in the fabric softener compartment.

Starch can make the siphon tube sticky.

If starching frequently, thoroughly clean the dispenser compartment, especially the siphon tube, regularly.

4. Adding detergent

Tips on dosing

Adjust the detergent dosage to the level of soiling of the laundry and the size of the load. Reduce the amount of detergent with smaller loads (e.g. reduce the amount of detergent by ⅓ when washing a half load).

Too little detergent results in:

-laundry not getting properly clean and with time it may become grey and hard to the touch.

-a build-up of mould in the washing machine.

-grease not being completely removed from the laundry.

-limescale deposits on the heater elements.

Too much detergent results in:

-poor wash, rinse, and spin results.

-a higher water consumption as an extra rinse cycle is automatically activated.

-a greater burden on the environment.

Using liquid detergent with a prewash

Liquid detergent cannot be used for the main wash if the pre-wash has been selected.

Use powder detergent for the main wash.

Using detergent tablets or pods

Always put detergent tablets or pods directly in the drum with the laundry. They cannot be added via the detergent dispenser drawer.

See “Detergent” for further information on detergents and dosage.

4. Adding detergent

CapDosing

Three different types of capsule are available:

= Fabric care (e.g. fabric softener)

= Additives (e.g. booster)

= Detergent (for the main wash only)

Each capsule contains the correct amount for one wash cycle.

You can order the capsules online at shop.miele.com (depending on country) or from Miele (see the end of this booklet for contact details).

Capsules pose a health risk. The ingredients of capsules can be hazardous to health if they are swallowed or come into contact with skin.

Keep capsules out of the reach of children.

Activating CapDosing

Touch the sensor for the capsule you want to use.

Sensor		Capsule
	for
	for
	for

Inserting a capsule

Open the detergent dispenser drawer.

Open the lid of the / compartment.

Press the capsule in firmly.

4. Adding detergent

Close the lid and press it firmly shut.

Close the detergent dispenser drawer.

The capsule is opened by the act of inserting it in the detergent dispenser drawer. The contents can run out of the capsule if you then remove it from the drawer before it is used.

In this case, dispose of the capsule and do not re-use it.

The wash programme will dispense the contents of the capsule at the correct time.

Water intake to the compartment is solely via the capsule.

No additional fabric softener may be added to the compartment when using a capsule.

Remove the empty capsule at the end of the programme.

For technical reasons a small amount of water will remain in the capsule.

Deactivating/Changing

CapDosing

In order to switch off CapDosing, touch the brightly lit sensor.

In order to change CapDosing, touch one of the other capsule sensors.

5. Starting the programme

Starting a programme

Touch the flashing Start/Add laundry sensor.

The door will lock and the programme will start.

If a Delay start time has been selected, this counts down in the time display. At the end of the Delay start time or immediately after the programme has started (if no Delay start time has been selected), the programme duration will appear in the time display.

Energy savings

After 10 minutes, the indicators will dim. The Start/Add laundry sensor flashes slowly.

You can reactivate the indicators:

Touch the Start/Add laundry sensor (this does not have any effect on a running programme).

Adding laundry during a

programme sequence

(AddLoad)

Laundry can be added or removed at any time, provided that the symbol is not illuminated in the control panel.

Touch the Start/Add laundry sensor.

Rotating bars ... ... are shown in the time display.

If the word appears in the time display, the door can be opened.

Open the door and add or remove laundry.

Close the door.

Touch the Start/Add laundry sensor. The wash programme will continue.

Laundry cannot be added or removed if:

-The suds temperature is above 55°C

-The water inside the drum is above a certain level

+ 58 hidden pages
