Miele W 5902 Premium Plus Operating instructions

Operating instructions

for Washing machine
W 5902 Premium Plus

To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.

en-GB

M.-Nr. 09 007 570

Caring for our environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Disposal of your old machine

Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your machine.
Please do not therefore dispose of it
with your household waste.

Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

2

Contents

Caring for our environment .........................................2

Warning and Safety instructions .....................................6

Operating the washing machine.....................................10

Control panel .....................................................10

Display ..........................................................11

Before using for the first time.......................................12

Washing environmentally and economically ..........................14

Energy and water consumption ....................................14

Detergent .....................................................14

How to wash correctly.............................................15

Programme selection .............................................20

Extra options ....................................................22

Spinning ........................................................23

Delay start.......................................................24

Programme chart .................................................25

Garment care label symbols ........................................27

Programme sequence .............................................28

Changing the programme sequence .................................30

Cancelling a programme ............................................30

Interrupting a programme ...........................................30

Changing a programme ............................................30

Adding or removing laundry after a programme has started ................31

3

Contents

Detergent .......................................................32

The correct detergent ..............................................32

Water softener ....................................................33

Washing with several components ....................................33

Fabric conditioners and liquid starch ..................................34

Automatic dispensing of fabric conditioner or liquid starch to laundry

at the end of a programme ........................................34

Adding fabric conditioner or starch separately ........................34

Colour run and dye removers/dyes ....................................34

Cleaning and care ................................................35

External casing and fascia panel .....................................35

Cleaning the detergent dispenser drawer...............................35

Cleaning the water inlet filters ........................................37

Problem solving guide ............................................38

The programme does not start .......................................38

Fault messages in the display ........................................39

General problems .................................................40

An unsatisfactory wash result ........................................41

The door will not open ..............................................42

Opening the drum door in the event of a blocked drain outlet

and/or power failure................................................43

Blocked drain outlet .............................................43

After sales service ................................................45

Future updates (PC) .............................................45

Appliance guarantee ............................................45

Optional spare parts and accessories ...............................45

Installation and connection ........................................46

Front view........................................................46

Rear view ........................................................47

Installation surface.................................................48

Transporting the washing machine to its installation site .................48

Removing the transit bars ...........................................48

Re-fitting the transit bars ............................................50

4

Contents

Levelling the machine ..............................................51

Screwing out and adjusting the feet .................................51

Building under a continuous worktop/in a kitchen run ...................52

Washer and Dryer stack ..........................................52

The Miele water protection system ....................................53

Connection to the water supply .......................................54

Connection to the drainage system....................................55

Electrical connection U.K. ...........................................56

Consumption data ................................................57

Notes for test institutes: ..........................................57

Technical data ...................................................58

Settings menu ...................................................59

To open the Settings menu ..........................................59

To select a setting .................................................59

To close the Settings menu ..........................................59

Language

Gentle action .....................................................60

Soak ............................................................60

Water plus .......................................................60

Longer pre-wash ..................................................60

Suds cooling .....................................................61

Lock code .......................................................61

Buzzer ..........................................................62

Keypad tone .....................................................63

Display brightness .................................................63

Display contrast ...................................................63

Text brightness ...................................................63

Standby display ...................................................64

Memory .........................................................64

Anti-crease.......................................................64

! ......................................................59

Optional accessories..............................................65

CareCollection ....................................................65

5

Warning and Safety instructions

It must only be used as a domestic

~

This washing machine conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.

To avoid the risk of accidents and
damage to the washing machine,
please read these instructions
carefully before using it for the first
time. They contain important
information on its installation, safety,
use and maintenance.

Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

appliance to wash items which are
specified by the manufacturer as being
washable on the care label.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
washing machine.

This washing machine is not

~

intended for use by people with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they are supervised
whilst using it or have been shown how
to use it by a person responsible for
their safety.

Correct application

This washing machine is not

~

designed for commercial use. It is
intended for use in domestic
households and in similar working and
residential environments such as:

–

Shops

–

Offices and showrooms

and by residents in establishments
such as

–

Hostels and guest houses

This washing machine is not

~

intended for outdoor use.

Safety with children

Keep children away from the

~

washing machine at all times. It is not a
toy! To avoid the risk of injury do not
allow children to play on or near it or to
play with its controls. Supervise
children whilst you are using it.

Older children may only use the

~

washing machine if its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.

For machines with a 'porthole' door,

~

remember that the porthole glass will
be hot when washing at very high
temperatures.
Do not let children touch it.

6

Warning and Safety instructions

Technical safety

Before setting up the washing

~

machine, check it for any externally
visible damage.
Do not install or use a damaged
washing machine.

Before connecting the washing

~

machine, ensure that the connection
data on the data plate (voltage and
connected load) match the mains
electricity supply. If in any doubt,
consult a qualified electrician.

The electrical safety of this washing

~

machine can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).

Do not connect the washing

~

machine to the mains electricity supply
by an extension lead. Extension leads
do not guarantee the required safety of
the appliance (e.g. danger of
overheating).

Faulty components must only be

~

replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.

Unauthorised repairs could result in

~

unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.

If the connection cable is faulty it

~

must only be replaced by a Miele
approved service technician to protect
the user from danger.

In the event of a fault or for cleaning

~

purposes, the washing machine is only
completely isolated from the electricity
supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn, or the

screw-out fuse is removed (in
countries where this is applicable).

This washing machine must only be

~

connected to the on-site water supply
using a new hose kit. Old hoses must
not be re-used.

In countries where there are areas

~

which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.

7

Warning and Safety instructions

This appliance must not be used in

~

a non-stationary location (e.g. on a
ship).

Do not make any alterations to the

~

washing machine, unless authorised to
do so by Miele.

Correct use

Do not install your washing machine

~

in rooms where temperatures below
freezing may occur. Frozen hoses may
burst or split. The reliability of the
electronic control unit may be impaired
at temperatures below freezing point.

Before using the washing machine

~

for the first time, check that the transit
bars at the rear of the machine have
been removed (see section on
"Installation and connection"). During
spinning, a transit bar which is still in
place may result in damage to both the
machine and adjacent furniture or
appliances.

Turn off the stopcock if the machine

~

is to be left for any length of time (e.g.
holiday), especially if there is no floor
drain (gully) in the immediate vicinity.

Flooding danger.

~

If hooking the drain hose into a wash
basin, check that the water can drain
off quickly enough to prevent the sink
from overflowing. Make sure the drain
hose is secure, so that the force of the
water flowing out of the hose does not
dislodge it.

Take care to ensure that foreign

~

objects (e.g. nails, pins, coins, paper
clips) do not find their way into the
machine with the laundry. These may
damage components of the machine
(e.g. suds container, drum), which in
turn can result in damage to the
laundry.

8

Warning and Safety instructions

If the correct amount of detergent is

~

dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging. A
special descaling agent is available to
order from the Miele Spare Parts
Department or via the internet on
www.miele-shop.com.

Textiles which have been

~

pre-treated with solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
in this machine, as this may result in
damage to component parts and create
toxic fumes. Such agents also pose a
fire and explosion hazard.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
to clean the outside surfaces of this
machine. They can cause damage to
plastic surfaces.

Colour run and dye removers

~

contain sulphur compounds which can
cause damage such as corrosion. Do
not use these products in this machine.

If detergent comes into contact with

~

the eyes, rinse them thoroughly with
lukewarm water immediately. If
swallowed, seek medical assistance
immediately and retain the packaging
or label for reference. Those with skin
problems or sensitive skin should avoid
their skin coming into contact with
detergent.

Only remove laundry from the

~

washing machine once the drum has
stopped turning. Reaching into a
moving drum is extremely dangerous
and could result in injury.

Accessories

Accessory parts may only be fitted

~

when expressly approved by Miele. If
other parts are used, guarantee,
performance and product liability
claims will be invalidated.

Only use dyes specified by the

~

manufacturer as being suitable for use
in a domestic washing machine. Always
observe the manufacturer's instructions
carefully.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

9

Operating the washing machine

Control panel

a Display

See the following page for more
information.

b PC / Optical interface

This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.

c Start button

Starts the programme selected. The
green backlighting of the word Start
will flash when a programme can be
started, and will light up constantly
when a programme has started.

d Delay start button

For selecting delay start. If a Delay
start time has been selected, the
word Delay start will be backlit in
yellow.

e Extra options buttons

Various extra options can be added
to the washing programmes. If an
extra option has been selected, the
relevant word will be backlit in
yellow.

f Spin button

For selecting the spin speed or
deselecting the spin (No spin). The
spin speed selected will be backlit in
yellow.

g Programme selector

For selecting the wash programme
and temperature for that programme.
The programme selector can be
turned clockwise or anti-clockwise.

h Button K

For switching the washing machine
on and off.
To save energy, the washing
machine will switch itself off
automatically 15 minutes after the
end of the programme/anti-crease
phase or after being switched on, if
no other selection is made.

i Door button

Opens the machine door.

10

Operating the washing machine

Display

The display shows:

the programme duration (Time left

–

display)

the programme sequence

–

the delay start time selected

–

settings

–

fault messages and information

–

Display template

The Start and Delay start buttons have
a second function which is used when
preparing the washing machine for use
and also in the Settings menu.

The display template makes this
second function visible.

Programme duration

After the start of a programme, the
estimated programme duration will
appear in the display in hours and
minutes.

When delay start is being used, the
programme duration will appear after
the delay start time has elapsed.

During the first 8 minutes the washing
machine measures how much water is
being absorbed by the laundry and
uses this to calculate the load. The
programme duration may be longer or
shorter depending on this absorbency
rate.

Delay start

The delay start time selected will
appear in the display.

After the Start button has been
pressed, the delay start time will start
counting down.

Once the delay start time has elapsed,
the programme will begin and the
estimated programme duration will
appear in the display.

Settings

The settings can be used to tailor
washing programmes to suit your
individual requirements. In the Settings
menu the display will show the function
selected.

11

Before using for the first time

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of leaks
during use.

This washing machine has
undergone a complete functional test
at the factory and there will be some
residual water in the drum from this
process.

Preparing the washing machine for use
is done in four stages. The washing
machine guides you automatically
through steps 1 to 3.

For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.

Using detergent could result in an
excessive build-up of foam.

1. Welcome screen

^ Place the display template on top of

the control panel as shown.

^ Press the K button in.

M

Willkommen

The welcome screen will appear in
the display every time the washing
machine is switched on until a
programme lasting longer than
1 hour has been completed.

This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.

12

Before using for the first time

2. Language for the display

You will be asked to select the
language you require for the display. It
is possible to change the language at
any time via the Settings menu.

Sprache

deutsch

) OK

If the language shown is not the one

^

you want, select the language you do
want by pressing the ~ button. Press
the OK button to confirm your
selection.

3. Reminder to remove transport bars

To avoid the risk of damage, the
transport bars must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.

4. Run your first programme

Your machine is now ready for the first
programme to be run.

Select

programme

Turn the programme selector to the

^

Cottons 60°C position.

Duration

2:09 h

The green backlighting of the word
Start will flash.

^ Press the Start button.

The washing machine will now carry out
the entire wash programme.

Anti-crease

Finished

Remove transport

:

^

After removing the transport bars (if
this has not already been done by
your fitter) press the OK button.

^

Remove the display template.

bars

OK

^

Turn the programme selector to
Finish.

^

Switch off the washing machine.

The washing machine is now ready for
use.

13

Washing environmentally and economically

Energy and water consumption

Water consumption and energy

–

usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.

When smaller amounts of laundry are

–

washed, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.

– Using the Cottons 60°C programme

instead of the Cottons 95°C
programme will give energy savings
of between 35% and 45%. This is
sufficient for most levels of soiling.
For stubborn or old stains, use the
Soak extra option.

Detergent

Do not exceed the amounts of

–

detergent recommended by the
manufacturer on the packaging.

Adjust the dosage to the degree of

–

soiling of the laundry.

Reduce the amount of detergent with

–

smaller loads (approx.

1

/3less than
the amount recommended can be
used when washing a half load).

Choosing the correct Extra options
(Short, Soak, Pre-wash)

Select:

– A wash programme together with the

Short extra option for light soiling
where there are no obvious marks.

– A wash programme without any extra

options for normal to heavy soiling
with visible staining.

– A wash programme together with the

Soak extra option for very heavily
soiled laundry.

14

–

The Pre-wash extra option for laundry
with large amounts of dirt (e.g. dust,
sand).

When drying with a tumble dryer

Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.

Brief instructions

The headings numbered A, B, C,...
show the operating sequence and can
be used as brief instructions.

A Sort the laundry

^ Empty all pockets.

,

Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.

^

Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.

How to wash correctly

If you use a solvent-based clean

,

ing agent (e.g. one containing ben
zene) to pre-treat a stain, make sure
that any plastic parts (e.g. buttons)
are protected, and that the cleaning
agent is rinsed off before washing the
garment in the machine.

Do not use solvent-based

,

cleaning agents in or on this machine.

Sort the laundry by colour and by

^

care label. Most garments have a
textile care label in the collar or side
seam.

Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–

Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.

–

Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.

–

Close any zips, fasten hooks and
eyes etc before washing.

–

Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.

-

-

Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (h symbol)

15

How to wash correctly

B Switch on the washing machine

Press the K button in.

^

Select

programme

C Load the drum

Press the Door button to open the

^

drum door.

Unfold the laundry and load loosely

^

in the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.

The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.

Shut the door with a gentle swing.

^

D Select a programme

Make sure that no items are caught
between the drum door and seal.

16

^

Turn the programme selector to the
required programme.

Duration

1:45 h

The estimated programme duration will
show in the display.

How to wash correctly

E Select an extra option(s), (if

wished)

^ Press the button for the extra option.

The name of the extra option
selected will be backlit in yellow.

Not all the extra options are suitable for
use with every programme. You can
only select extra options which are
compatible with the programme being
used.

See "Extra options" for more
information.

F Select a spin speed (if wished)

You can reduce the pre-set spin speed.

^ Press the Spin button repeatedly until

the spin speed you want is backlit in
yellow.

See "Spinning" for more information.

G Select delay start (if desired)

The start of a programme can be
delayed from 15 minutes up to 23 hours
45 minutes, allowing you to make use of
night-time economy electricity rates, for
example.

See "Delay start" for more information.

17

How to wash correctly

H Add detergent

It is important to dispense the correct
amount, because...

. . . too little detergent results in:

Laundry not getting properly clean

–

and with time it may become grey
and hard to the touch.

Greasy particles clinging to the

–

laundry.

Limescale deposits on the heater

–

elements.

. . . too much detergent results in:

– Excessive foam which causes a low

level of agitation and poor wash,
rinse and spin results.

– Higher water consumption (an

additional rinse cycle will
automatically switch in).

Pull out the detergent drawer and

^

place detergent in the compartments
as follows:

i

Detergent for the pre-wash (divide
the total recommended amount as
follows: add

2

and

/3to compartment j)

1

/3to compartment i

– A burden to the environment.

j

Detergent for the main wash

§

Fabric conditioner or liquid starch

^

Close the detergent drawer.

See "Detergent" for further information.

18

I Start the programme

Press the Start button.

^

If a delay start time has been selected,
then this will count down in the display.
At the end of the delay start time or im
mediately after the programme has
started (if no delay start time has been
selected) the estimated programme
duration will appear in the display.
During the first 8 minutes the machine
measures how much water is being
absorbed by the laundry. The
programme duration may be longer or
shorter depending on this absorbency
rate.

The programme sequence is also
shown in the display. The machine lets
you know which section of the
programme has been reached.

J Remove the laundry at the end of

the programme

Anti-crease

Finished

How to wash correctly

Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become

-

discoloured themselves.

^ Check the folds in the door seal for

any small articles, e.g. buttons, which
might be lodged there.

^ Turn the programme selector to

Finish.

^

Switch the machine off with the K
button.

^

Press the Door button to open the
door.

The machine will switch off
automatically 15 minutes after the
end of the anti-crease phase. You will
need to press the K button to switch
it back on again.

^

Remove the laundry.

^

Close the drum door. Otherwise there
is the danger of objects being placed
inadvertently in the drum. If these
remained unnoticed and were
washed in the next load, they could
damage the laundry.

19

Programme selection

Fibre/fabric Colour Programme*

Cotton, linen or cotton mix
fabrics, e.g. table linen,
towelling, underwear,
T-shirts etc.

Synthetic, mixed fibre and
easy care cotton
garments, e.g. shirts,
blouses, skirts etc.

Delicate garments made of
synthetic fibre, mixed fibre,
rayon and easy care
cotton.

Light

Dark

Light

Dark

Light

Cottons 95°C

Cottons 60°C

Cottons 40°C

Cottons 30°C

Minimum iron 60°C

Minimum iron 40°C

Minimum iron 30°C

Delicates 40°C

Dark

Curtains

Garments made from
cotton, mixed fibre or
denim.

Machine and
hand-washable wool or
wool blend garments.

* Please observe the instructions on the wash care label.

20

Dark

Delicates 30°C

Dark garments /

Denim 40°C

Woollens 30°C

Degree of soiling Extra option

Lightly soiled with no visible
dirt or stains

Possibly slight body odour.

Normal to heavily soiled
Visibly dirty and stained

Programme selection

Short

–

Normal to very heavily soiled
Visibly dirty, with dried on

stains and soiling

Large amounts of dirt
Garments contain dust or

sand

Soak

Pre-wash

21

Extra options

Short

For light to normal soiling with no visible
staining.

The duration of the main wash is
reduced.

Soak

For heavily soiled and stained items
with protein stains (e.g. blood, fats and
oils, cocoa).

A length of time of between 30

–

minutes and 2 hours can be
programmed in 30 minute
increments for the soak process.

– The default setting is 1 hour.

To programme in a different soak
period see "Settings - Soak".

The following extra options can be
selected in addition to the programme:

Pre-wash

Water plus

Soak

Short

Cottons XXXX

Minimum iron XXXX

Delicates X X X

Dark garments /
Denim

Woollens

XX

Water plus

The water level in the main wash and
the rinses will be increased.

You can also select other settings for
the Water plus extra option. These are
described in "Settings - Water plus".

Pre-wash

For laundry with large amounts of dirt
e.g. dust, sand.

22

Spinning

Final spin speed

Programme rpm

Cottons 1400

Minimum iron 1200

Delicates 400

Dark garments / Denim 1200
Woollens / 1200

Separate rinse/Starch 1200

Drain/Spin 1400

You can reduce the final spin speed.
However, you cannot select a final spin
speed higher than that shown in the
chart above.

Rinse and interim spin

There is a spin after the main wash and
between the rinses. A reduction in the
final spin speed will also reduce the
interim spin speed. If a spin speed of
400 rpm is selected for a Cottons
programme, an additional rinse is
introduced.

To omit rinse and interim spin and
the final spin (Without spin)

Use the Spin button to select the

^

Without spin setting.

The laundry is not spun after the final
rinse. The water will drain away and the
machine will go straight into the
anti-crease stage. An additional rinse
is introduced if this setting is selected
with the Cottons and Minimum iron
programmes.

Press the Door button and remove

^

the dripping wet laundry.

or

^ Turn the programme selector to

Drain/Spin.

^ Check which spin speed is set.

^ Press the Start button.

23

Delay start

Delay start allows you to delay the start
of a programme from 15 minutes up to
a maximum of 23 hours 45 minutes,
allowing you to make use of night-time
economy electricity rates, for example.

To select delay start

Select the programme you want and

^

then press the Delay start button.

The display will show:

Start in

0:15 h

^ Each press on the Delay start button

increases the delay start time by 15
minutes.

If you keep the Delay start button
pressed in, the time will continue to
count up to 23 hours 45 minutes.

To begin delay start

Press the Start button.

^

The delay start time selected will count
down. The programme will begin when
the delay start time has elapsed.

To cancel delay start

You can delete the delay start time and
start the selected programme straight
away.

Press the Delay start button.

^

To change a delay start time which
has been entered

^

Turn the programme selector to
Finish.

^

Select the programme you want
again.

^

Press the Delay start button and
enter a different delay start time.

24

Programme chart

Cottons 9876* 95°C, 60°C, 40°C, 30°C Max. load 7.0 kg

Use for Cotton, linen and mixed fibre fabrics including table linen, towelling,

underwear, T-shirts etc.

Note for test institutes:

Short programme: 3.5 kg load and Short extra option

Minimum iron
421876*

Use for Synthetic and mixed fibre garments as well as easy care cotton. If

fabrics have a high proportion of man-made fibres it is advisable to
programme the machine for "Gentle action". See "Settings menu".

Tipp Reduce the spin speed for fabrics which crease easily.

Delicates 21ac* 40°C, 30°C Max. load 2.5 kg

Use for Delicate garments made of synthetic fibre, mixed fibre, rayon and

easy care cotton.
Curtains, including net curtains, specified as machine-washable by

the manufacturer.

Notes – Dust in curtains usually makes using a programme with pre-wash

advisable.

– Deselect the spin for items which crease easily.

Dark garments / Denim 40°C Max. load 3.0 kg

Use for Black and dark garments made from cotton, mixed fibre or denim.

Notes

–

Wash inside out.

–

Denim often contains excess dye and may run during the first few
washes. Wash light and dark coloured items separately.

60°C, 40°C, 30°C Max. load 3.5 kg

25

Programme chart

Woollens /c* 30°C Max. load 2.0 kg

Use for Machine-washable or hand-washable wool or wool blend fabrics.

Note Reduce the spin speed for items which crease easily.

Separate rinse/Starch Max. load 7.0 kg

Use for

Notes

Drain/Spin

Notes

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

Rinsing handwashed items.

–

Starching table cloths, serviettes and workwear.

–

Use a low spin speed for items which crease easily.

–

Items for starching should be freshly laundered but not treated

–

with fabric conditioner.

Drain only: Select Without spin.

–
– Make sure you select the appropriate spin speed.

26

Garment care label symbols

Washing

The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicates the
level of agitation permitted.

9 No bar under the symbol: =

normal agitation

4 One bar under the symbol: =

reduced agitation

c Two bars under the symbol: =

much reduced agitation

/ Hand wash (if no temperature

is specified use the lowest
temperature or cold)

h Do not wash

Drying

The number of dots indicates the
drying temperature

q Normal temperature
r Low temperature

s Do not tumble dry

Ironing

The number of dots indicates the
ironing temperature

I Hot iron (max sole plate temp.

approx. 200°C)

H Medium hot iron (max sole

plate temp. approx. 150°C)

G Cool iron (max sole plate

temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.

J Do not iron

Professional cleaning

f Dry clean only. The letters

p

w Professional Wet Clean only

D Do not dry clean

x Any oxidising bleaching

{ Only use an oxygen based

indicate the type of cleaning
agent required.

Bleaching

agent can be used

bleach or a non-chlorine
bleach

z Do not bleach

27

Programme sequence

Main wash Rinses Spinning

Water

level

Cottons d a ( 2-4
Minimum iron ( c e 2-3

Wash

rhythm

Water

level

Rinses Interim

spin

1)2)

3)

LL

LL

Final

spin

Delicates e d e 3 – L

Dark garments /

( b d 3 – L

Denim
Woollens /ef e 2 LL
Separate rinse/Starch – – e 2 – L

Drain/Spin – ––––L

Please see next page for description of the symbols

28

Programme sequence

d = Low water level
( = Medium water level
e = High water level

a = Intensive rhythm

b = Normal rhythm

c = Gentle rhythm

d = Sensitive rhythm

e = Ultra sensitive rhythm

f = Handwash rhythm

This machine has fully electronic
controls with automatic load
recognition. It takes in the right amount
of water required for the programme
depending on the amount of laundry
and its absorbency rate. This means
that programme cycles and durations
can vary.

Special features in the programme
sequences:

Anti-crease:

At the end of the programme, the drum
continues to turn at intervals for up to
30 minutes to help prevent creasing.
Exception

: There is no anti-crease
phase in the Woollens programme.
The door can be opened and laundry
removed at any time during the
anti-crease phase.

1)

A second rinse is carried out when a
temperature between 60°C and 95°C
has been selected. A third rinse is
carried out when a temperature
below 60°C is selected.

2)

An third or fourth rinse is carried out
if:

– there is too much foam in the drum

The programme sequences outlined in
the chart are based on the basic
programme with a full load. Extra
options which can be selected have not
been taken into account.

The display shows the stage the
programme has reached.

– a spin speed lower than 700 rpm has

been selected

– No . has been selected.

3)

A third rinse is carried out if:

No . has been selected.

29

Changing the programme sequence

Cancelling a programme

You can cancel a programme at any
time after it has started.

Turn the programme selector to

^

Finish.

The suds will be pumped away.

If you want to remove the laundry:

Press the Door button.

^

If you want to select a different
programme:

Switch the machine off with the K

^

button.

^ Switch the machine back on again.

^ Check that there is still detergent in

the detergent drawer. Add detergent,
if necessary.

Interrupting a programme

Switch the machine off with the K

^

button.

To continue with the same programme:

Switch the machine back on again

^

with the K button.

Changing a programme

Programme and temperature

After the start of a programme it is no
longer possible to select a different
programme or temperature.

Spin speed

It is possible to change the spin speed
up until the final spin begins.

^ Turn the programme selector to the

required programme.

^ Press the Start button to start the

programme straight away.

Extra options

It is possible to select or deselect the
Short and Water plus extra options up
to 5 minutes after the programme has
started.

30

Changing the programme sequence

Adding or removing laundry
after a programme has started

Press the Door button to open the

^

drum door.

Add or remove items.

^

Close the drum door.

^

The programme will continue
automatically.

Please note:

Once a programme has started the
machine cannot recognise any
adjustment to the load.

For this reason, if laundry is added or
removed after the start of a programme,
the machine will always complete the
programme cycle assuming a full load
which can lead to a change in the
programme duration shown in the
display.

The door cannot be opened if:

–

the suds temperature is above 55°C.

–

the water is above a certain level.

–

the programme has reached the
Final spin stage.

If you press the Door button when the
above conditions are present, the
following will appear in the display:

/ Door locked

31

Detergent

The correct detergent

All modern detergents produced for automatic washing machines are suitable.
Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets
are suitable for full loads, but note that it may be impractical to reduce tablets for
smaller loads. Some tablets do not dissolve as rapidly as others, and may not be
suitable for programmes with short durations.

Do not use biological detergents on silk as the enzymes may damage the silk!
Instructions for use and recommended dosage amounts are given on the
detergent packaging.

See "Optional accessories" at the end of this booklet for details of Miele
branded care products including detergents and fabric conditioner.

Universal

detergent

Detergent

for

coloureds

Detergent

for

delicates

Specialist

detergent*

Proofing

agent**

Fabric

conditioner

Cottons X X – – – X

Minimum iron X X – – – X

Delicates X X X – – X

Dark garments /
Denim

1)

XXX ––X

Woollens / ––– X–X

Separate

–––X–X

rinse/Starch

Drain/Spin – – – – – –

1)

Liquid detergent
For programmes with a pre-wash you will need to purchase a special container
from the Miele Spare Parts Department which sits in the main wash
compartment j. Add liquid detergent to this container for the main wash and
to compartment i for the pre-wash

2)

Use powder detergent

* Specialist detergent

Detergent designed specifically for the wash programme or type of fabric.

** Only use proofing agents containing fluorochemical compounds which are

stated by the manufacturer as being "suitable for use on membrane textiles".
Do not use proofing agents which contain paraffin. Add proofing agents to
compartment §.

32

Detergent

The right amount to dispense will
depend on the following:

The quantity of the laundry

–

The soiling level of the laundry

–

Lightly soiled
No visible dirt or stains. Possibly
slight body odour.

Normally soiled
Visibly dirty and/or just a few slight
stains.

Heavily soiled
Stains and soiling clearly visible.

– The water hardness level.

Check with your local water supplier
if you do not know the hardness level
in your area.

Water softener

A water softener can be used to cut
down on the use of detergents in hard
water areas. Dispense according to the
amount specified on the packaging.
First add detergent and then the water
softener.

Miele branded water softening tablets
are available from the Miele Spare Parts
Department or via the internet on
www.miele-shop.com.

Use a quantity of detergent as for soft
water.

Miele do not recommend connecting
the machine to a household water
softener.

Washing with several
components

If you wash using several components
(e.g. special application detergents),
we recommend always dispensing the
agents into compartment j in the
following order:

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed
more evenly.

33

Detergent

Fabric conditioners and liquid
starch

Fabric conditioners make garments soft
to handle and help prevent static cling
when tumble drying.

Starch stiffens and gives body to items
of laundry, e.g. shirts, tablecloths and
bed linen.

Automatic dispensing of fabric
conditioner or liquid starch to
laundry at the end of a programme

If starching frequently, thoroughly
clean the dispenser compartment,
especially the siphon tube and
fabric conditioner channel, regularly.

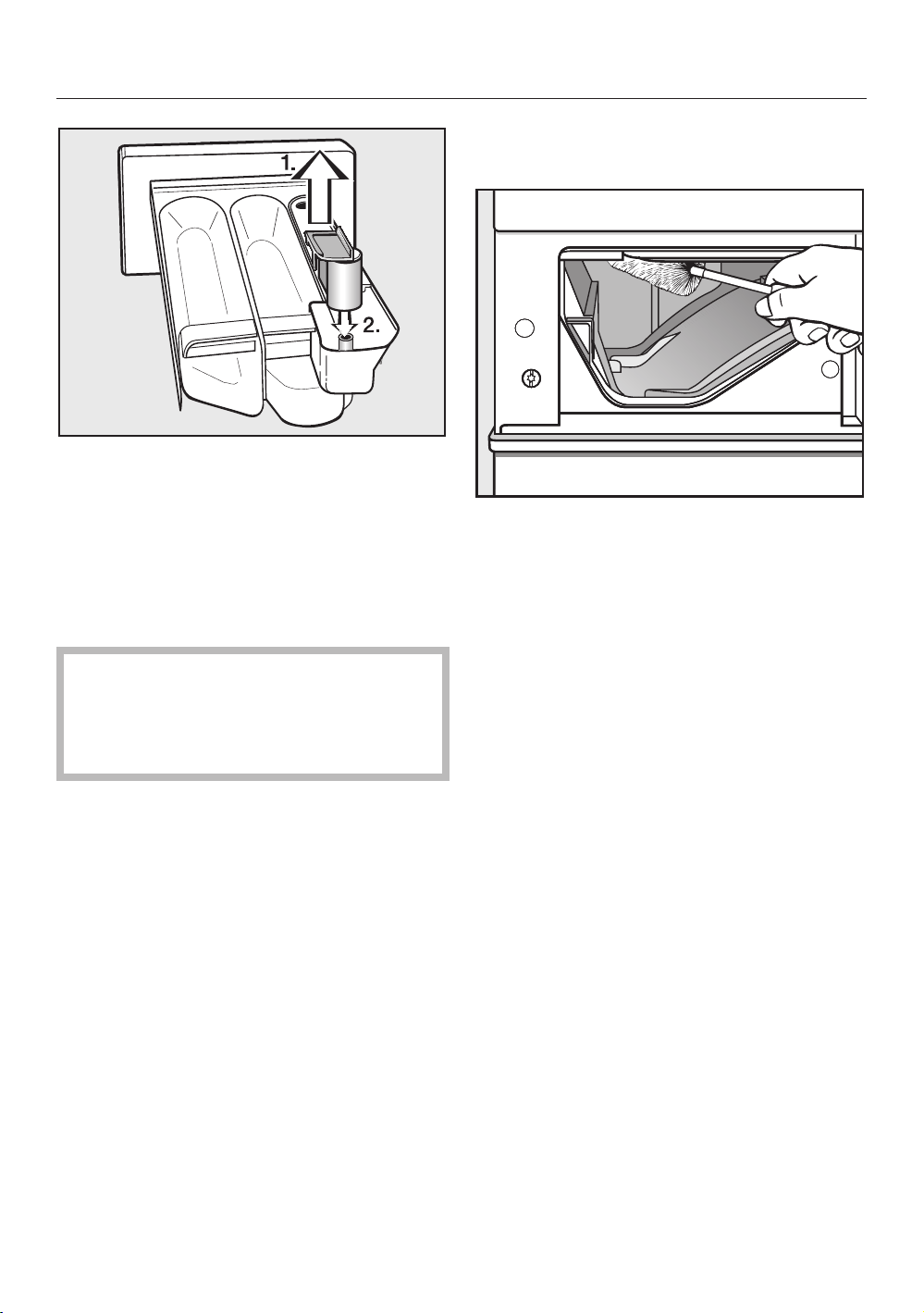

See "Cleaning the detergent
dispenser drawer". Do not use
powder starch formulations or
viscous liquid starch in the §
compartment as it will clog up.

Adding fabric conditioner or starch
separately

Dispense in accordance with

^

manufacturer's instructions on the
packaging.

^ Dispense liquids into the §

compartment and powder or viscous
formulations into the i
compartment.

^

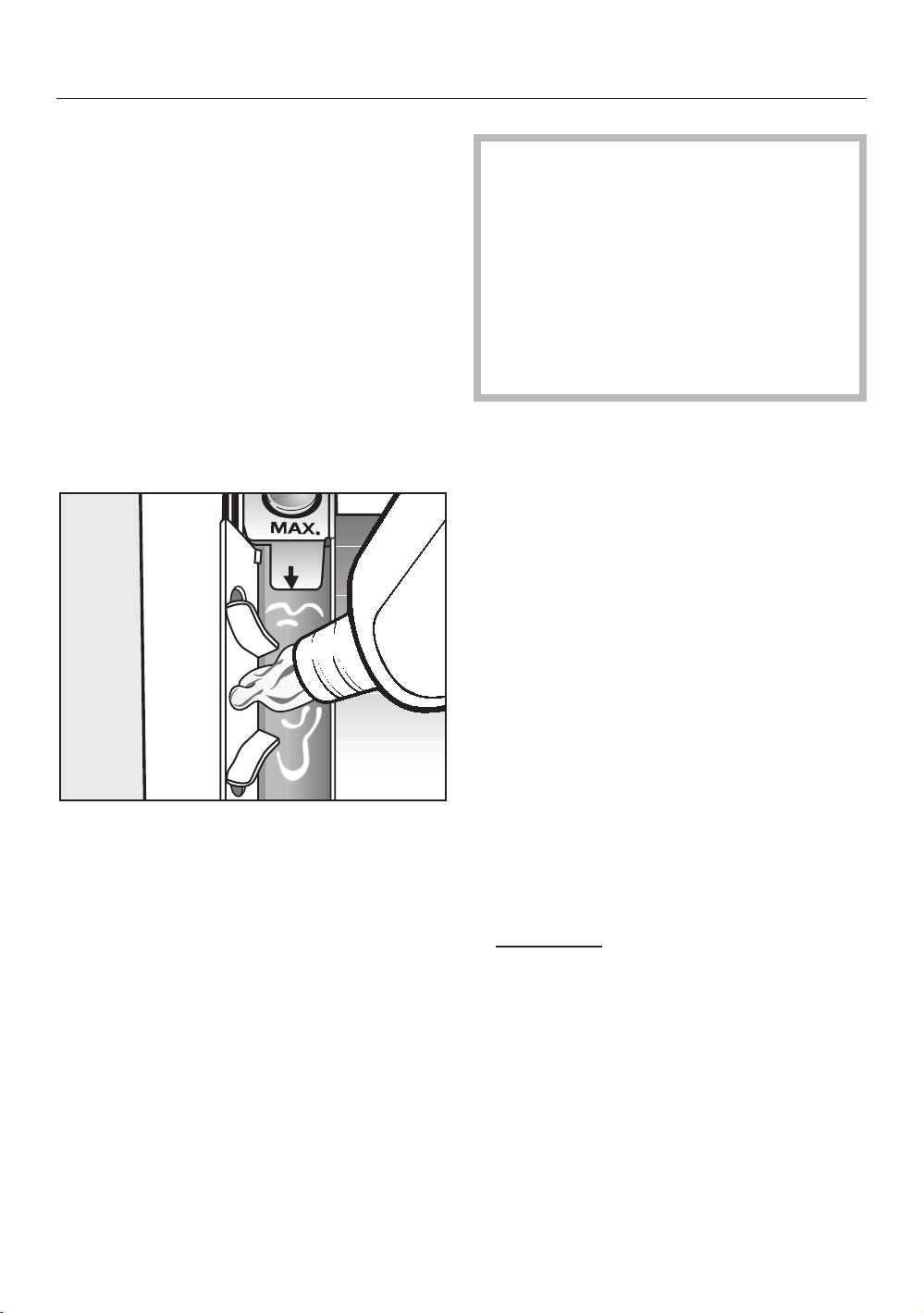

Add the fabric conditioner or liquid
starch to compartment §. Do not

exceed the maximum level mark.

It will be dispensed automatically in the
last rinse. At the end of the programme
a small amount of water remains in the
fabric conditioner compartment §.

^ Turn the programme selector to

Separate rinse/Starch.

^ Select a spin speed.

^

Press the Start button.

Colour run and dye
removers/dyes

^

Do not use
removers in this machine.

^

Dyes suitable for use in domestic
washing machines can be used.
However, please note that the salt
used in the dyeing process can
cause corrosion to stainless steel
components in the machine if you
dye frequently. Follow the
manufacturer's instructions carefully.

colour run or dye

34

Disconnect the machine from the

,

mains electricity supply and
withdraw the plug from the socket
before cleaning the machine.

The washing machine must not

,

be hosed down.

A range of Miele branded cleaning and
conditioning agents is available to
order from the Miele Spare Parts
Department, or via the internet on
www.miele-shop.com.

External casing and fascia
panel

Cleaning and care

Cleaning the drum

Washing at low temperatures and/or
using liquid detergent can cause
bacteria and unpleasant smells to build
up in the drum. In order to clean the
drum and also to prevent unpleasant
smells building up, carry out a hot wash
(75°C or above) with powder detergent
once a month.

Cleaning the detergent
dispenser drawer

The pre-wash and main wash
compartments of the detergent
dispensing drawer are self-cleaning.
For hygienic reasons, clean the entire
drawer at regular intervals.

Clean the casing using a Miele E-Cloth,
or with a mild, non-abrasive cleaning
agent or soap and water using a well
wrung-out cloth. Wipe dry with a soft
cloth.

^ The drum and any stainless steel

outer panels can be cleaned using a
suitable stainless-steel cleaning
agent following the instructions on
the packaging.

,

Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaning agents.
These might damage plastic
surfaces and other components
because of the chemicals they
contain.

^

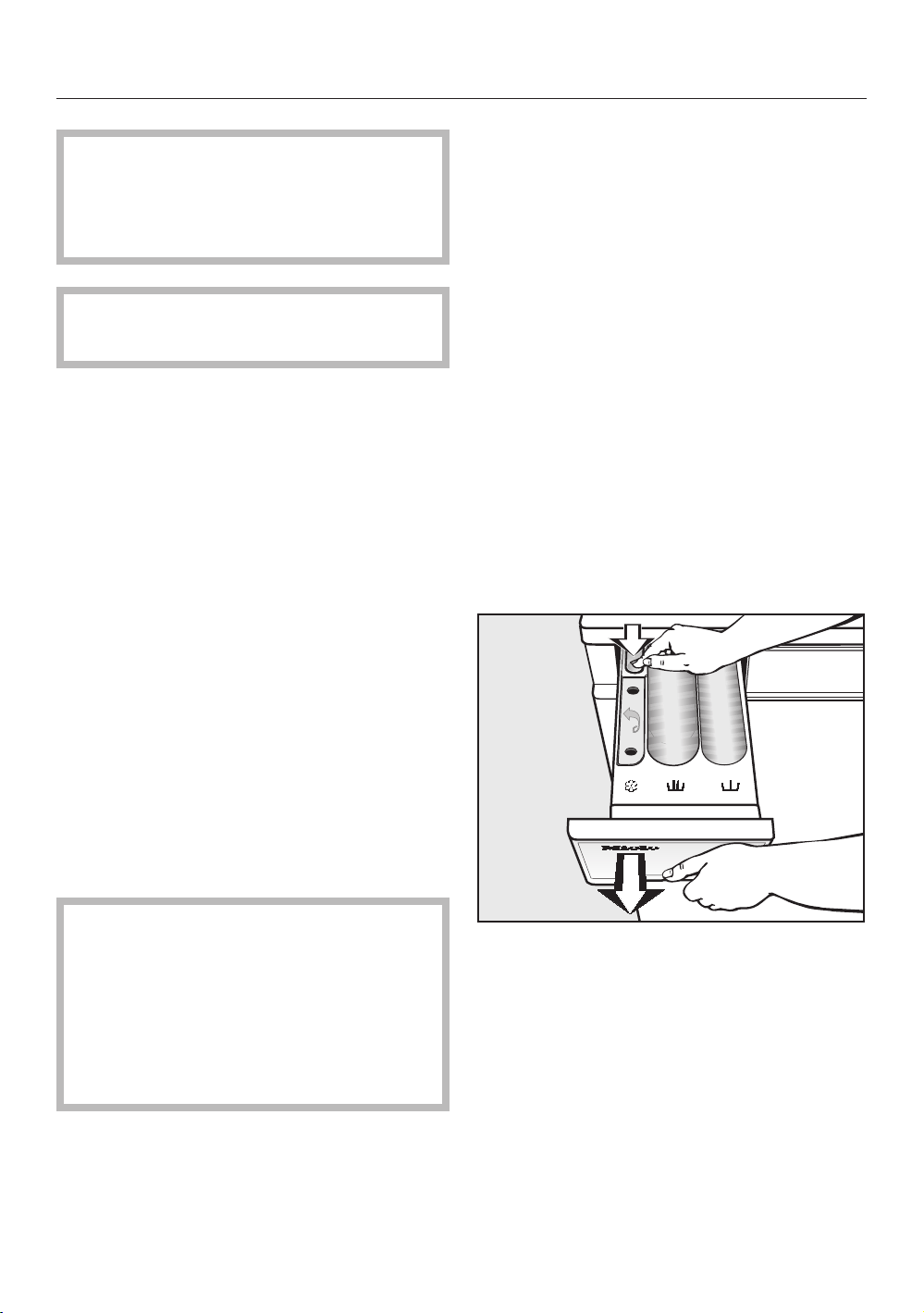

Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.

^

Clean the detergent drawer with
warm water.

35

Cleaning and care

Clean the siphon.

^

1. Remove the siphon from

compartment § and rinse under
warm running water. Clean the
siphon tube in the same way.

2. Replace the siphon.

Cleaning the detergent dispenser
drawer housing

^ Use a bottle brush to remove

detergent residues and limescale
from the jets inside the detergent
dispenser drawer housing.

If starching frequently, thoroughly
clean the siphon and siphon tube
regularly. A build-up of starch will
cause them to get clogged.

36

Cleaning and care

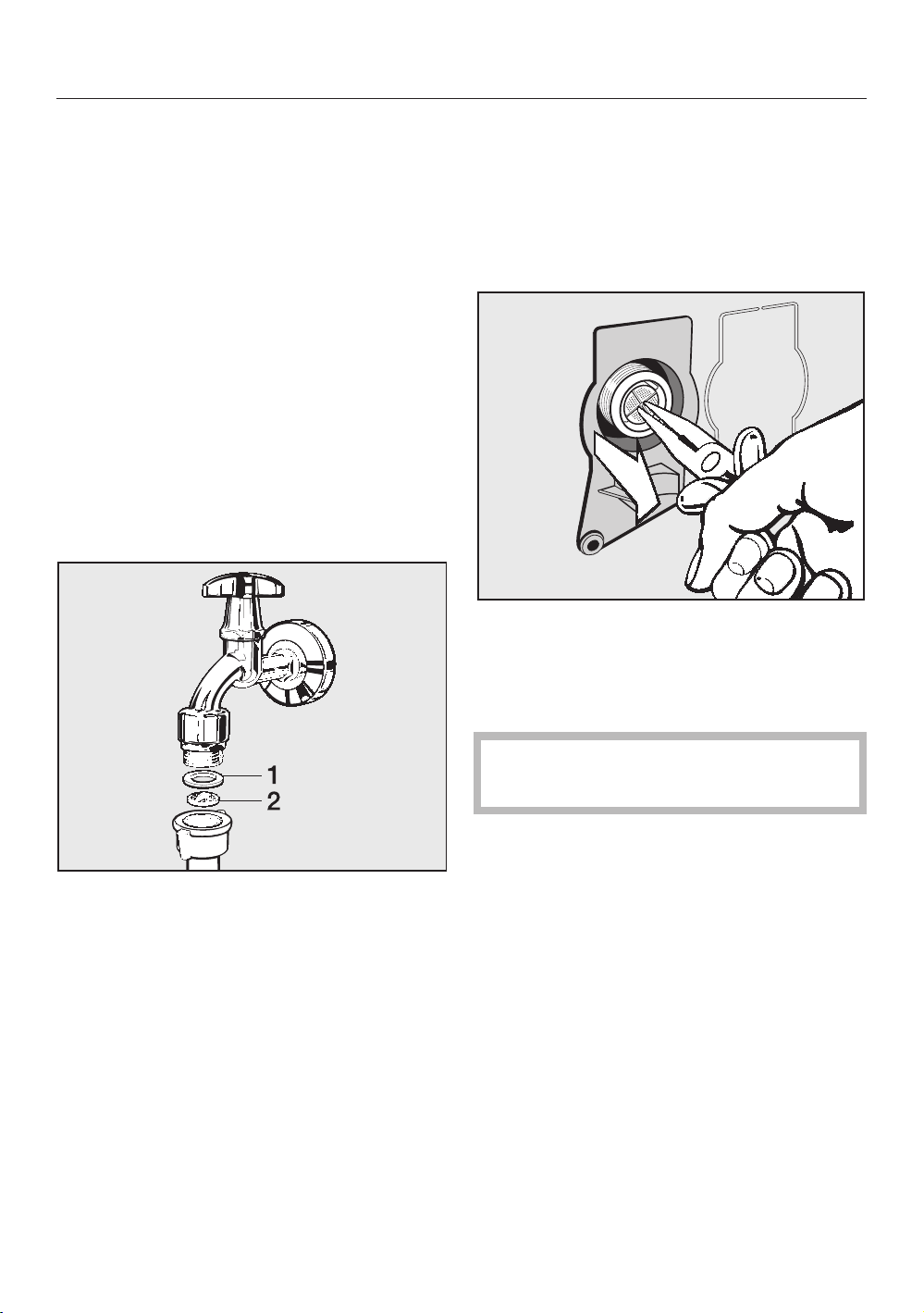

Cleaning the water inlet filters

The washing machine has two filters to
protect the inlet valves.

These filters should be checked every
six months or so, or more often if there
are frequent interruptions to the water
supply.

To clean the filter in the union in the
open end of the inlet hose:

First turn off the stopcock.

^

Unscrew the threaded union

^

connecting the free end of the inlet
hose to the stopcock.

To clean the filter in the water inlet
valve:

Using pliers, carefully loosen the

^

ribbed plastic nut on the inlet valve
and unscrew.

^ Use pointed nose pliers to withdraw

the plastic filter by the bar (see
illustration). Clean, put back and
secure.

^

Remove rubber seal 1 from the
recess.

^

Using pointed pliers, take hold of
plastic filter bar 2, remove the filter
and clean it.

^

Put the filter and seal back in the
reverse order and reconnect the
hose.

^

Turn on the stopcock and check the
connection is watertight. If it leaks,
tighten the connection.

The two filters must be put back in
place after cleaning.

37

Problem solving guide

With the help of the following notes, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting the Service Department.

Repair work to electrical appliances should only be carried out by a

,

suitably qualified person in strict accordance with current local and national
safety regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains
dark and the
programme selector is
not lit up.

You are asked to enter
a code.

The display is dark. The display has

There is no power to
the machine.

Access via a code has
been activated.

switched off
automatically to save
energy (Standby
mode).

Check whether
– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

Enter the code and confirm
the entry. Deactivate the
code if you do not wish this
message to appear in the
display the next time the
machine is switched on.

Press a button. Standby
comes to an end.

38

Fault messages in the display

Problem Possible cause Remedy A

Problem solving guide

2

2

L

;

Fault
Check drainage
system

Fault
Water intake
Open stopcock

Waterproof system
activated
Close the stopcock

Technical fault.
Call the Service
Department

The water outlet is

–

blocked or

Clean the drain filter and

–

the drain pump.

restricted.
The drain hose has

–

been fixed too high.

The water inlet is
blocked or restricted.

The maximum delivery

–

head is 1 m.

Check whether

the stopcock is opened

–

properly.
the inlet hose is kinked.

–
– the water pressure is too

low.

The water protection
system has reacted.

– Close the stopcock.
– Call the Service

Department.

There is a fault. Start the programme again.

If the fault message
appears again, contact the
Service Department.

The following flashes in
the display:

Anti-crease

alternately with

Check detergent

Excessive foam has
built up during
washing.

Use less detergent next
time and follow the
manufacturer's instructions
on dosage given on the
packaging.

A To switch off the fault message: Switch the machine off with the K button.

39

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes
during the spin cycle.

The laundry has not
been spun properly and
is still wet.

The laundry has not
been spun satisfactorily.

The pump makes
strange noises.

There is a lot of
detergent residue in the
detergent drawer.

Fabric conditioner is not
completely dispensed or
too much water remains
in the § compartment.

The machine feet are not
level.

The machine detected an
imbalance during the final
spin and reduced the
spin speed automatically.

The spin speed selected
was too low.

This is not a fault! These noises occur at the end of
a pump sequence as a normal part of the operation.

The water pressure is too
low.

Powder detergent used
with water softeners can
be sticky.

The siphon tube is not
correctly positioned, or is
clogged up.

Level the machine (see
"Installation and
connection").

Include both large and
small items in the load as
this will give better
distribution.

Select a higher spin
speed next time.

– Clean the water inlet

filter.

– Select Water plus.

Add washing powder
and then add the water
softener.

Clean the siphon, (see
“Cleaning and care ­Cleaning the detergent
dispenser drawer”).

The display is in a
different language.

When laundry is dry it
feels hard to the touch.

Power cut Once power has been restored, switch the washing

40

A different language has
been selected in Settings

Language

Too vigorous wash
action.

Not enough detergent
used.

No fabric conditioner
used.

machine on with the K button to continue the
programme.

!.

Set the language you
want. The flag symbol
will guide you.

Programme in gentle
action and more water.

Increase detergent dose
to prevent limescale
build up in laundry.

Use fabric conditioner in
last rinse.

An unsatisfactory wash result

Problem Possible cause Remedy

Problem solving guide

Liquid detergent
does not give the
required result.

Grey, greasy
particles cling to
washed laundry.

White residues
which look like
powder detergent
are seen on dark
textiles after
washing.

Liquid detergents usually
contain no bleaching
agents. They do not
remove fruit, coffee and
tea stains.

Insufficient amounts of
detergent were used to
break down the particles
of grease in heavily
soiled laundry.

The detergent contained
compounds (zeolites) to
aid water softening
which are not soluble in
water. They have ended
up on the laundry.

Use a general purpose

–

detergent containing a
bleaching agent.

Add stain removers into

–

compartment j of the
detergent dispenser drawer
and liquid detergent into a
dispenser ball.

Never put stain removers

–

and liquid detergent together
in the dispenser drawer.

– Use more detergent.
– Before washing the next load

run a Cottons 75°C
programme with powder
detergent but without a load.

– Try and brush off the

residues with a soft brush
once the laundry is dry.

–

Wash dark textiles using a
detergent which contains no
zeolites. Liquid detergents
usually contain no zeolites.

–

Use the Dark garments /
Denim programme for dark
coloured laundry.

41

Problem solving guide

The door will not open

Possible cause Remedy

The washing machine is
not connected to the
electricity supply and/or is
not switched on.

Access via a code has
been activated.

Power cut. Open the drum door as described in the next

The door was not correctly
engaged.

There is still water in the
drum and the machine is
unable to drain.

For safety reasons the drum door cannot be opened if the suds temperature is
higher than 55°C.

Insert the plug in the socket and switch on and / or
switch the machine on with the K button.

Deactivate the code as described in the Settings
menu.

section.

Press hard against the lock side of the drum door
and then press the Door button.

Clean the drain filter and drain pump as described
in the next section.

42

Problem solving guide

Opening the drum door in the
event of a blocked drain outlet
and/or power failure

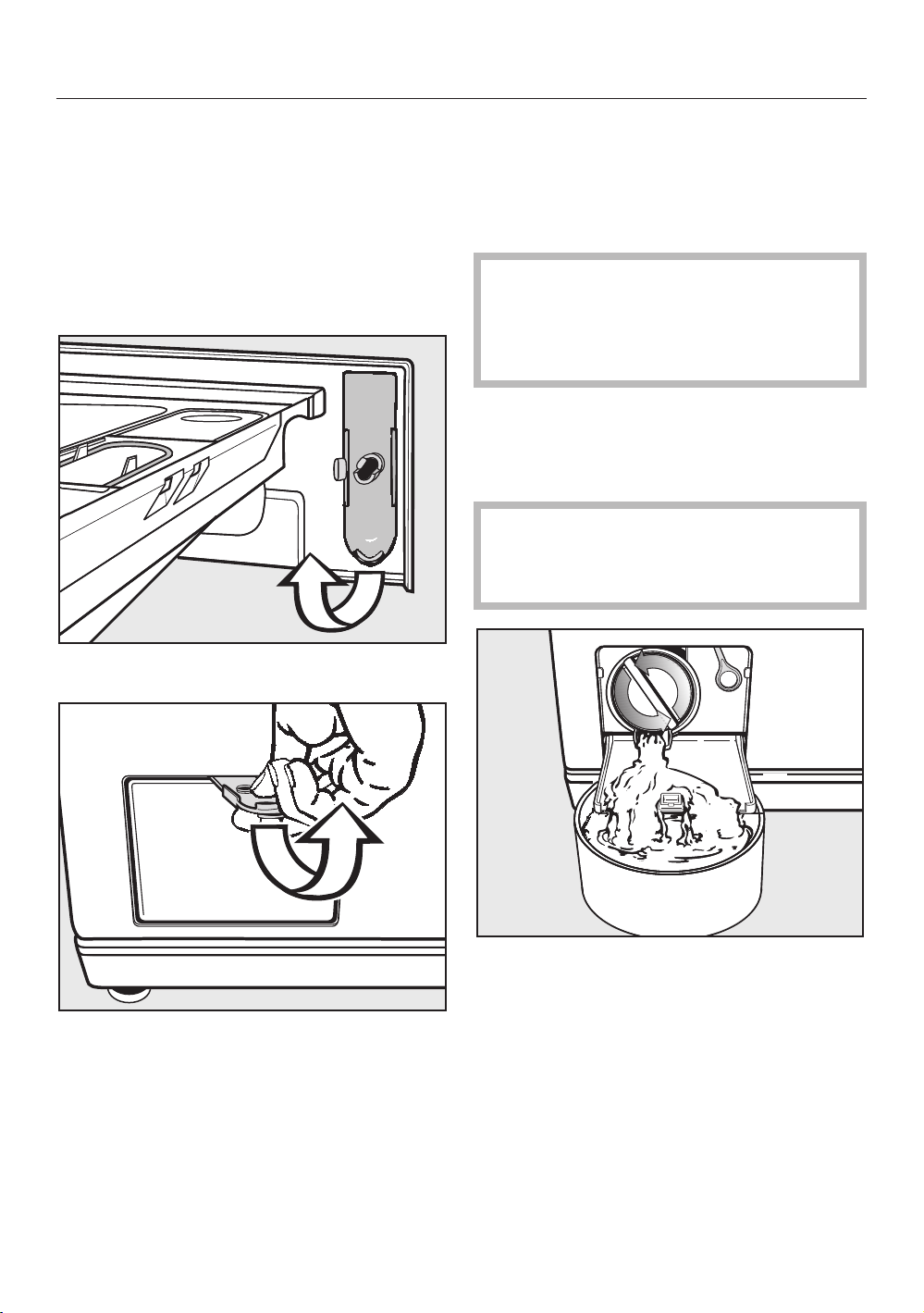

Switch the washing machine off.

^

There is a lever behind the detergent
drawer fascia panel.

Blocked drain outlet

If the drain outlet is blocked, up to
25 litres of water will be retained in the
machine.

Caution: if laundry has been

,

washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!

Procedure for draining the machine

Place a suitable container under the

^

access flap.

When draining water from the
machine, do not unscrew the drain
filter completely or take it right out.

^ Remove the lever.

^

Use it to open the access flap.

^

Slowly and carefully unscrew the
drain filter to let the water out.

If you need to interrupt the flow of
water:

^

Tighten the drain filter back up again.

43

Problem solving guide

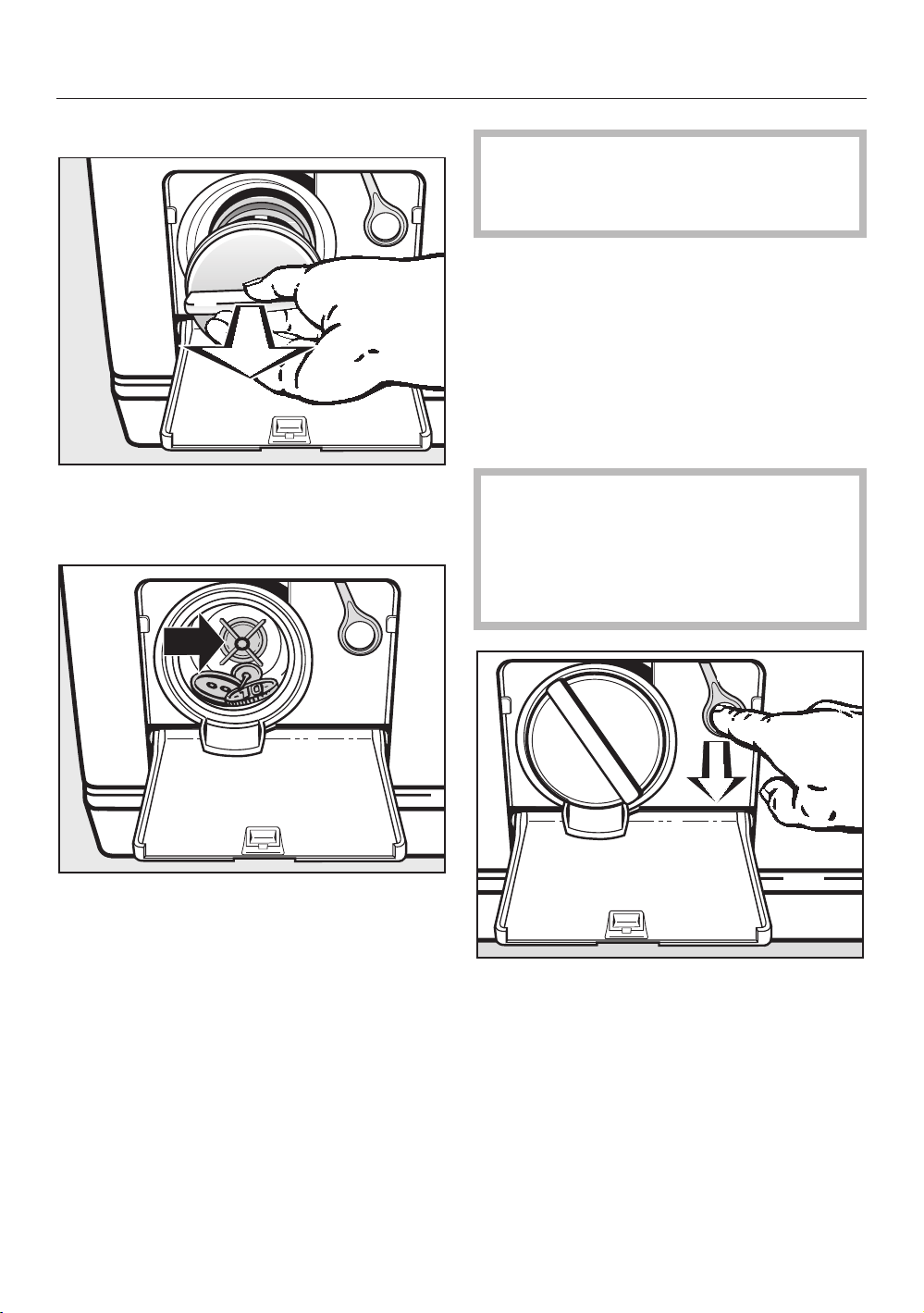

Once the flow of water ceases:

Remove the drain filter completely.

^

^ Clean it thoroughly.

Make sure the drain filter is

,

securely tightened. Otherwise there
is a risk of water leakage during use.

To avoid loss of detergent, pour
approx. 2 litres of water into the
detergent dispenser drawer after
cleaning the drain filter. Excess water
will be pumped out automatically
before the next wash programme.

Opening the drum door

Always make sure that the drum

,

is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.

^

Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff from the
filter housing. Turn the impeller by
hand to check that it rotates freely.
Any foreign object causing an
obstruction should be removed.

^

Put the drain filter back in place and
secure.

44

^

Pull the emergency release
downwards (see illustration). The
drum door will open.

After sales service

In the event of any faults which you
cannot remedy yourself, please
contact:

your Miele Dealer or

–

Miele (see back cover for contact

–

details).

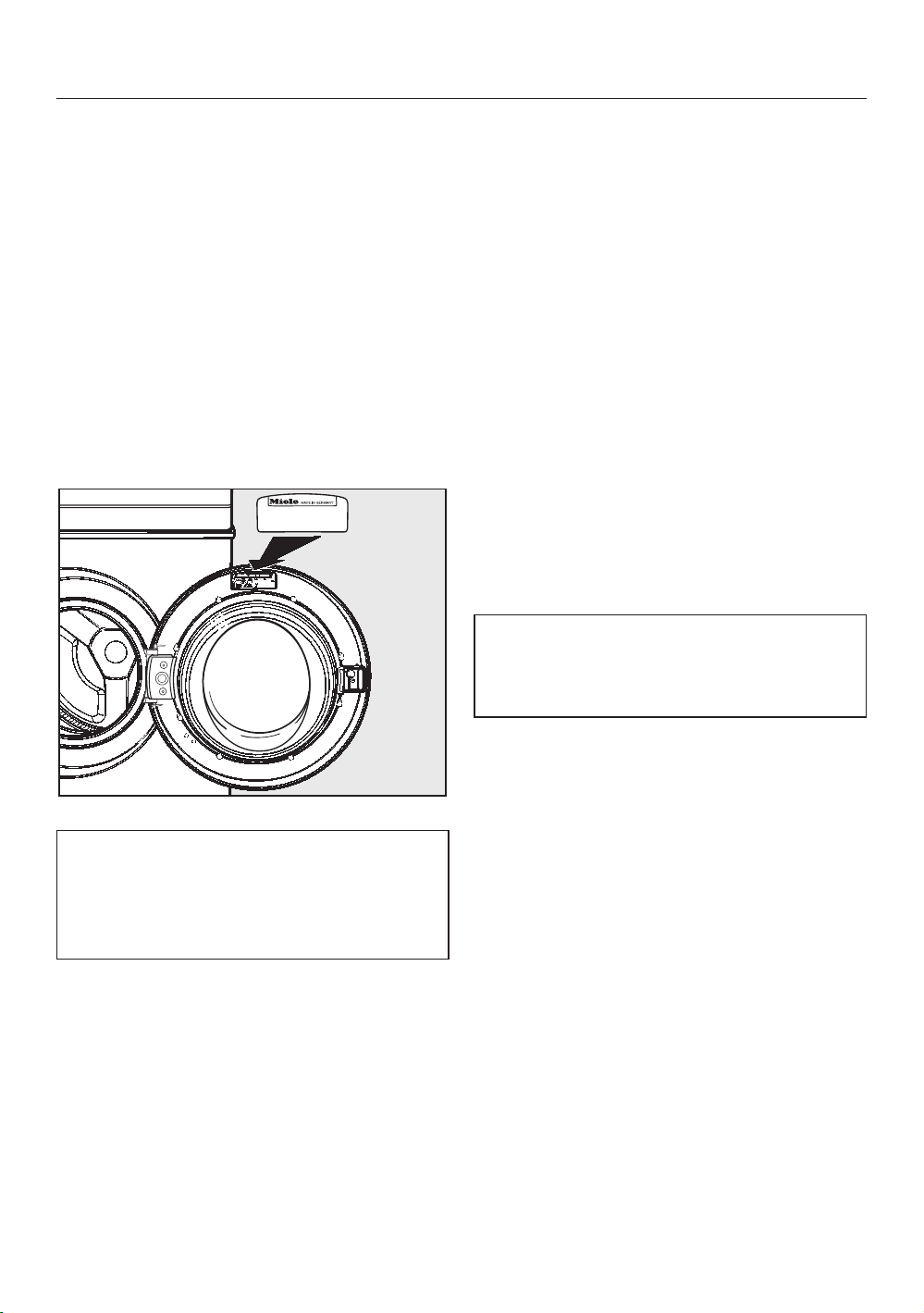

When contacting your Dealer or Miele,
please quote the model and serial
number of your machine, both of which
are shown on the data plate visible
above the porthole glass when the door
is open.

Future updates (PC)

The indicator light marked PC is the
interface used by Miele service
technicians during servicing work for
testing purposes and for updating the
machine's programme data.

Appliance guarantee

Please see the guarantee card
supplied with your machine.

Optional spare parts and accessories

Optional spare parts and accessories
for this washing machine are available
from your Miele Dealer, the Miele Spare
Parts Department or via the internet at
www.miele-shop.com.

Please note that telephone calls may
be monitored and recorded for
training purposes.

N.B. A call-out charge will be applied
for service visits where the problem
could have been resolved as
described in these instructions.

45

Installation and connection

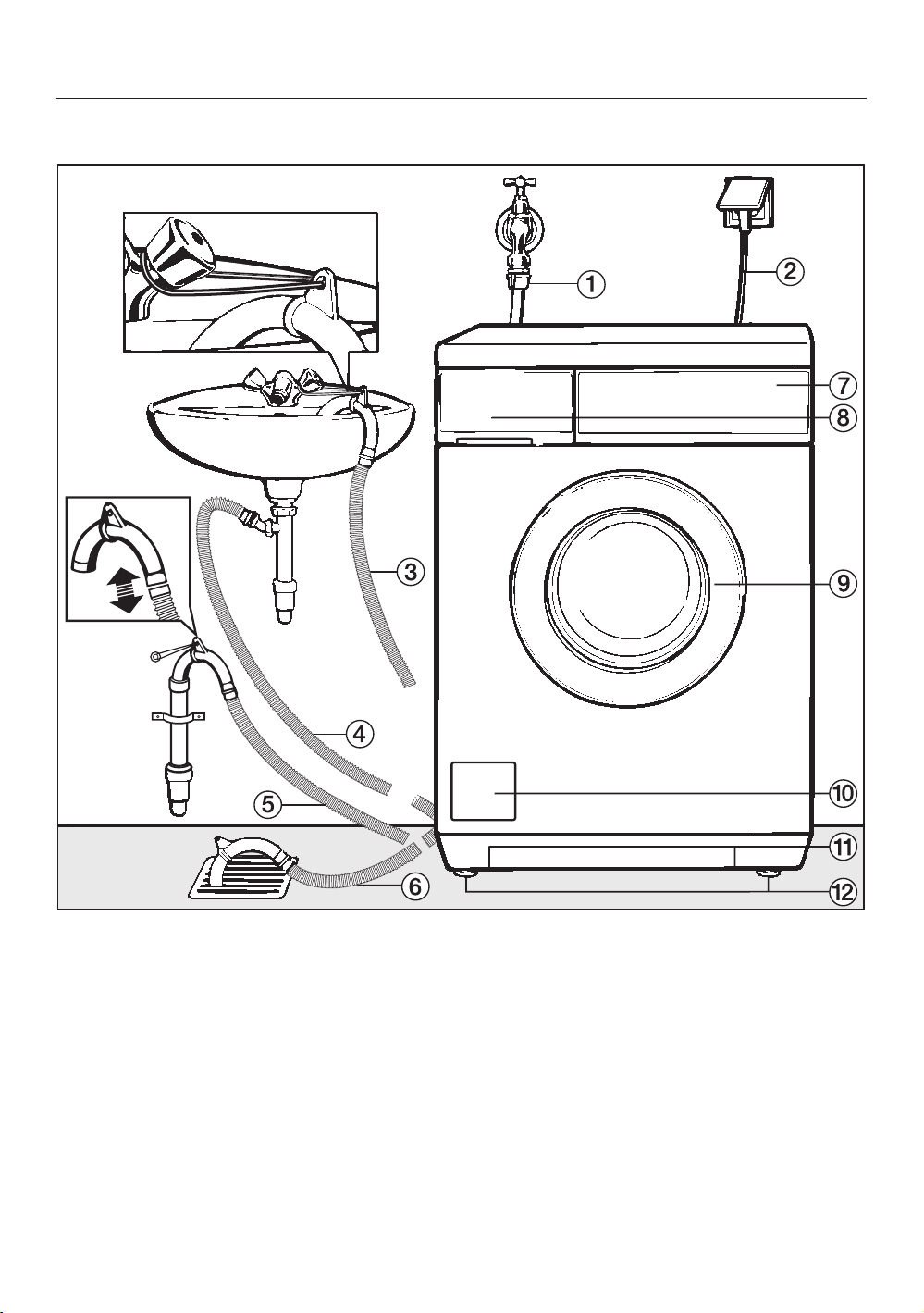

Front view

a Inlet hose (tested to withstand

pressure of at least 7,000 kPa)

b Electricity supply cable

c - f Flexible drain hose (with

detachable swivel elbow)

g Control panel

46

h Detergent dispenser drawer

i Drum door

j Access to drain filter, drain pump

and emergency release

k Handle recesses for moving the

machine

l Four height adjustable feet

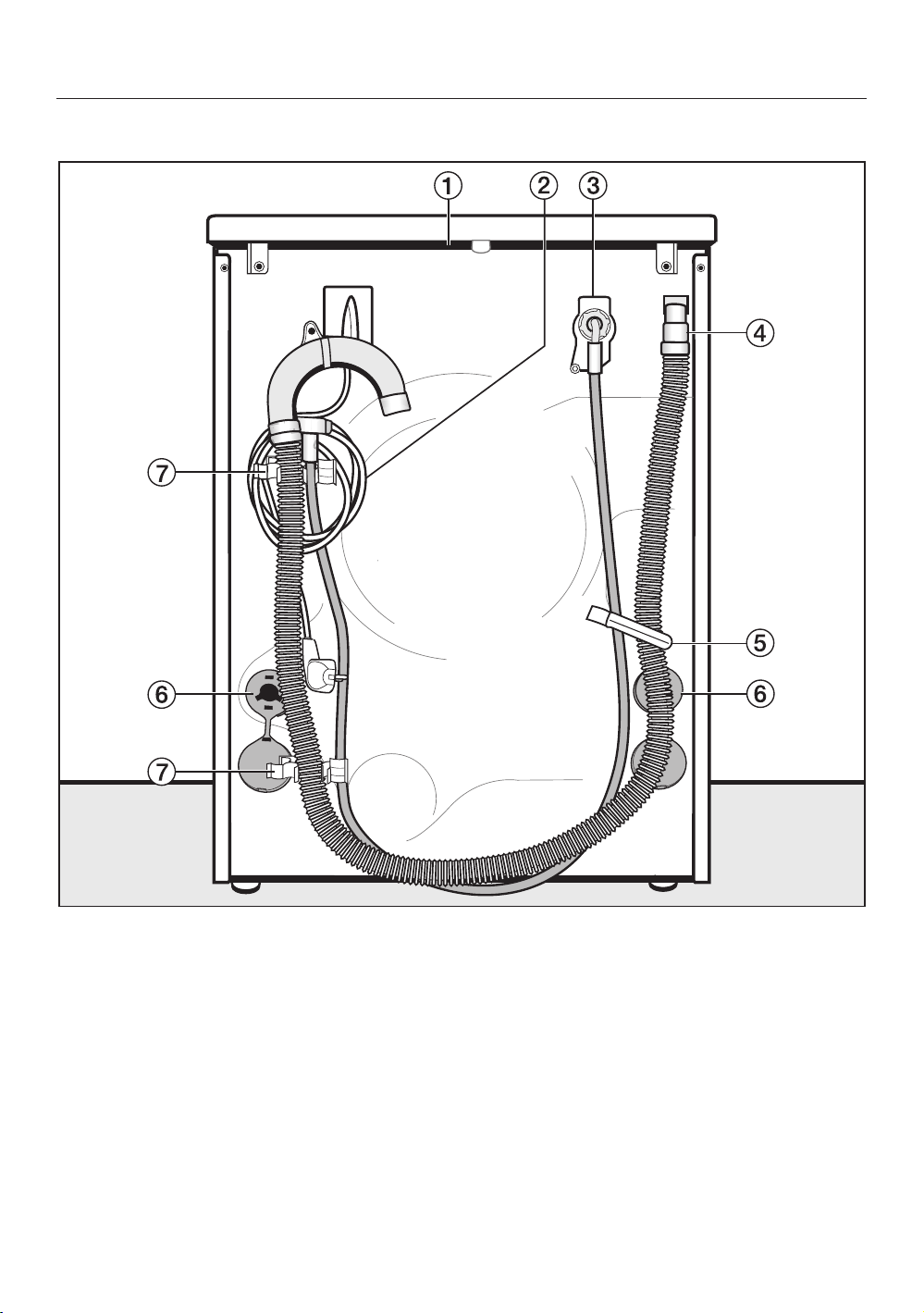

Rear view

Installation and connection

a Protruding lid for holding when

moving the machine

b Electricity supply cable

c Inlet hose (tested to withstand

pressure of at least 7,000 kPa)

d Drain hose

e Transport clip for inlet and drain

hoses

f Safety cap for transit bars

g Transport clip for inlet and drain

hoses and for storing transit bars
when not in use.

47

Installation and connection

Installation surface

A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.

Please note:

The machine must be level and

^

securely positioned.

To avoid vibrations during spinning,

^

the machine should not be installed
on soft floor coverings.

If installing on a wooden joist floor:

^ We recommend a plywood base (at

least 59x52x3 cm). The base should
span several joists and be bolted to
the joists and not only to the
floorboards. Check for the presence
of pipes and cables first.

Transporting the washing machine to
its installation site

To manoeuvre the machine out of its
packing case to its installation site, hold
it by the edge of the lid where it
protrudes to the rear of the machine as
well as by the handle recesses at the
front.

Ensure that the machine feet and

,

the floor are dry to prevent the
machine from slipping during the
spin cycle.

Removing the transit bars

If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.

,

If the machine is installed on a
raised plinth, it has to be secured
against slippage during spin using
retaining clips (available from the
Miele Spare Parts Dept). Otherwise
there is the danger of the machine
moving and falling off the plinth.

48

^

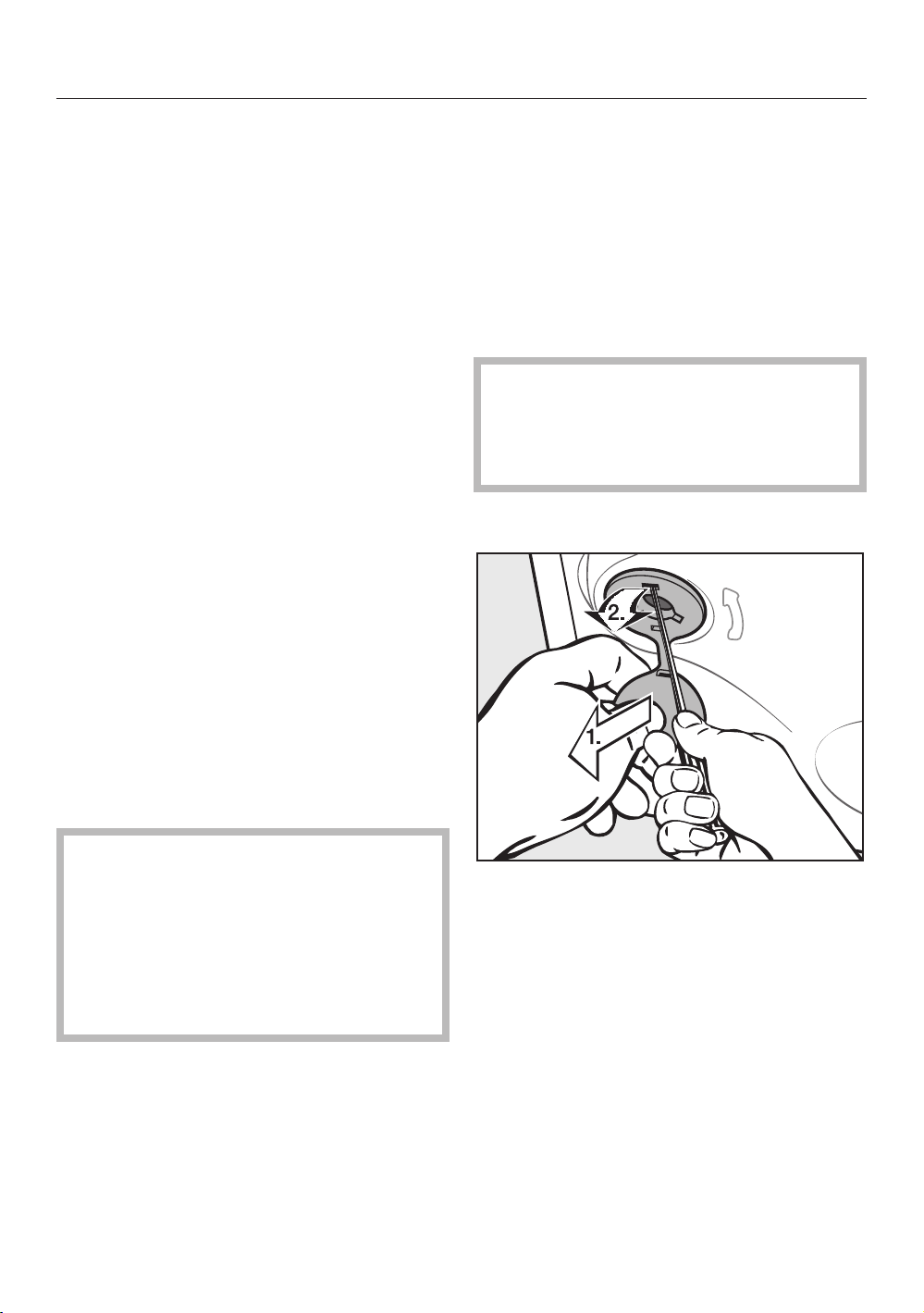

To remove the left and right covers

1. Pull on the attached stopper,

2. then use a screwdriver to release the

catch at the top.

Installation and connection

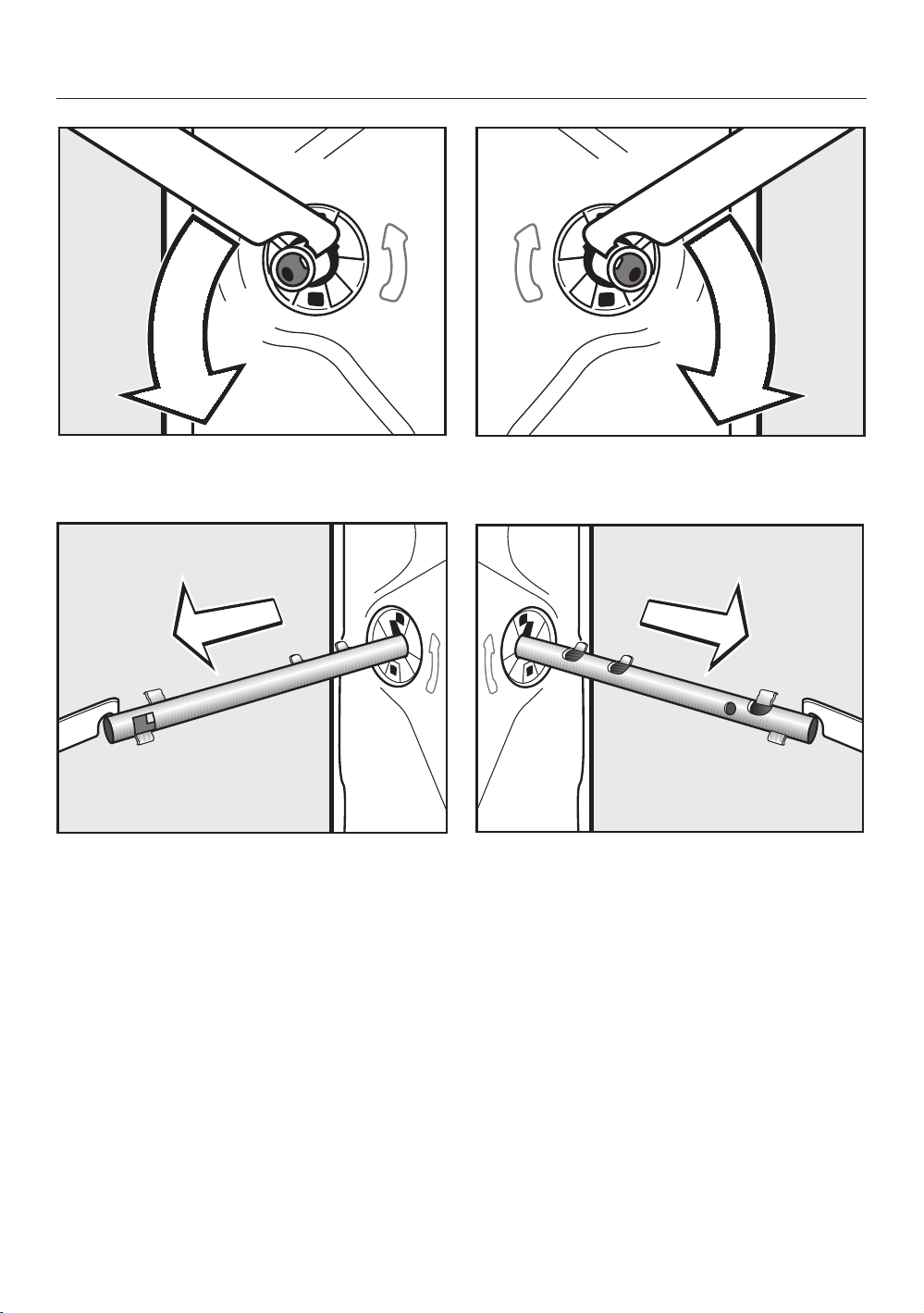

Using the spanner supplied, turn the

^

left-hand transit bar 90°, then

^

withdraw the transit bar.

Turn the right-hand transit bar 90°,

^

then

^

withdraw the transit bar.

49

Installation and connection

To avoid the risk of injury the

,

holes for the transit bars must be
covered after the transit bars have
been removed.

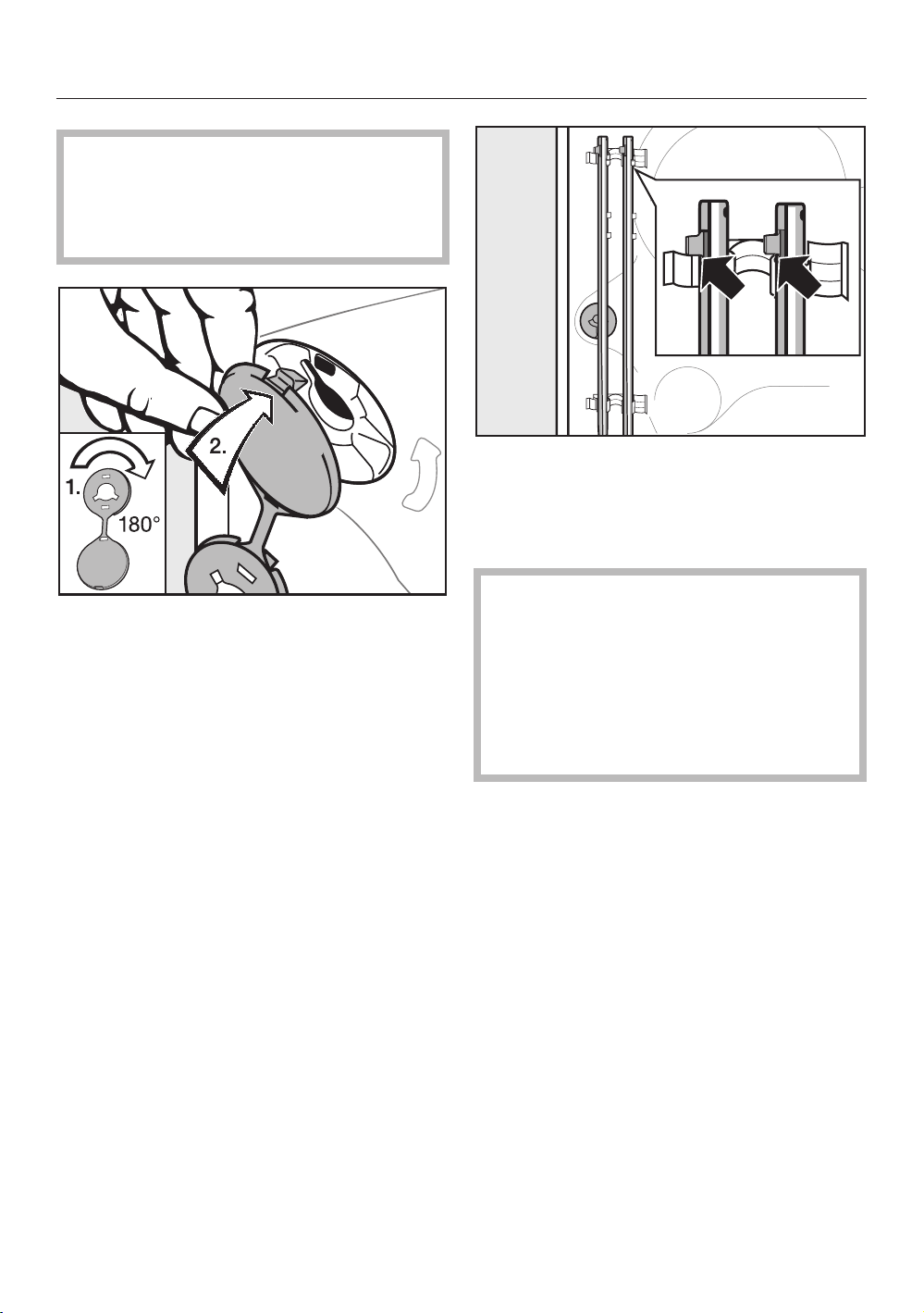

^ Plug the holes with the plastic caps

as illustrated.

Secure the transit bars to the back of

^

the washing machine. Make sure that
the top catch is located above the
holder.

The machine must not be moved

,

without the transit bars in place.
Store them as shown or keep them
in a safe place for future use. They
must be re-fitted if the machine is to
be moved again (e.g. when moving
house).

50

Re-fitting the transit bars

Re-fitting is carried out by reversing the
procedure.

Levelling the machine

The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.

Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.

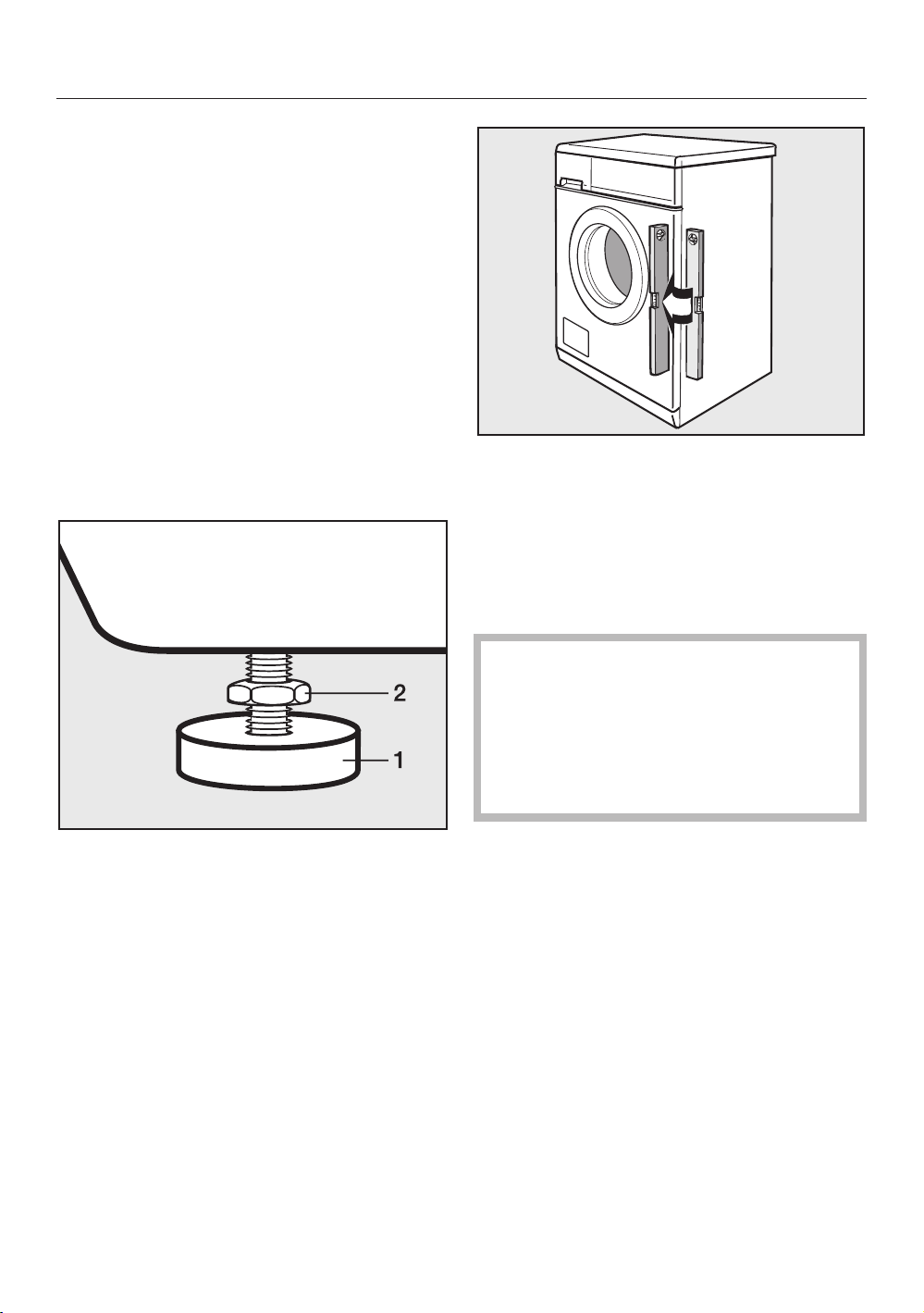

Screwing out and adjusting the feet

The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.

Installation and connection

Use a spirit level to check the

^

machine is standing level.

^ Hold foot 1 securely with a pipe

wrench. Turn counternut 2 again
using the spanner supplied until it
sits firmly up against the housing.

^

Using the spanner supplied turn
counternut 2 in a clockwise direction.
Then turn counternut 2 together with
foot 1 to unscrew.

,

All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.

51

Installation and connection

The fitting of building-under kits*
and stacking kits* must only be
undertaken by qualified and
competent persons, in accordance
with the instructions supplied with
the kit.

Building under a continuous
worktop/in a kitchen run

If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the
conversion kit is not necessary.
Otherwise the conversion kit is
essential.

– A special building-under conversion

kit* is required.
To ensure electrical safety, the
washing machine lid must be
replaced by the cover plate supplied
with the conversion kit.

Washer and Dryer stack

A Miele tumble dryer can be stacked
with the washing machine. A "WTV"
stacking kit* is necessary.

Please note:

– For installation under a work surface

900/910 mm from the floor, a raising
kit* is required.

–

Connections for electricity, water and
drainage should be installed in such
a way that they remain accessible
when the machine is in place.

Fitting instructions are supplied with the
conversion kit.

All parts marked* are available from
your Dealer, the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

52

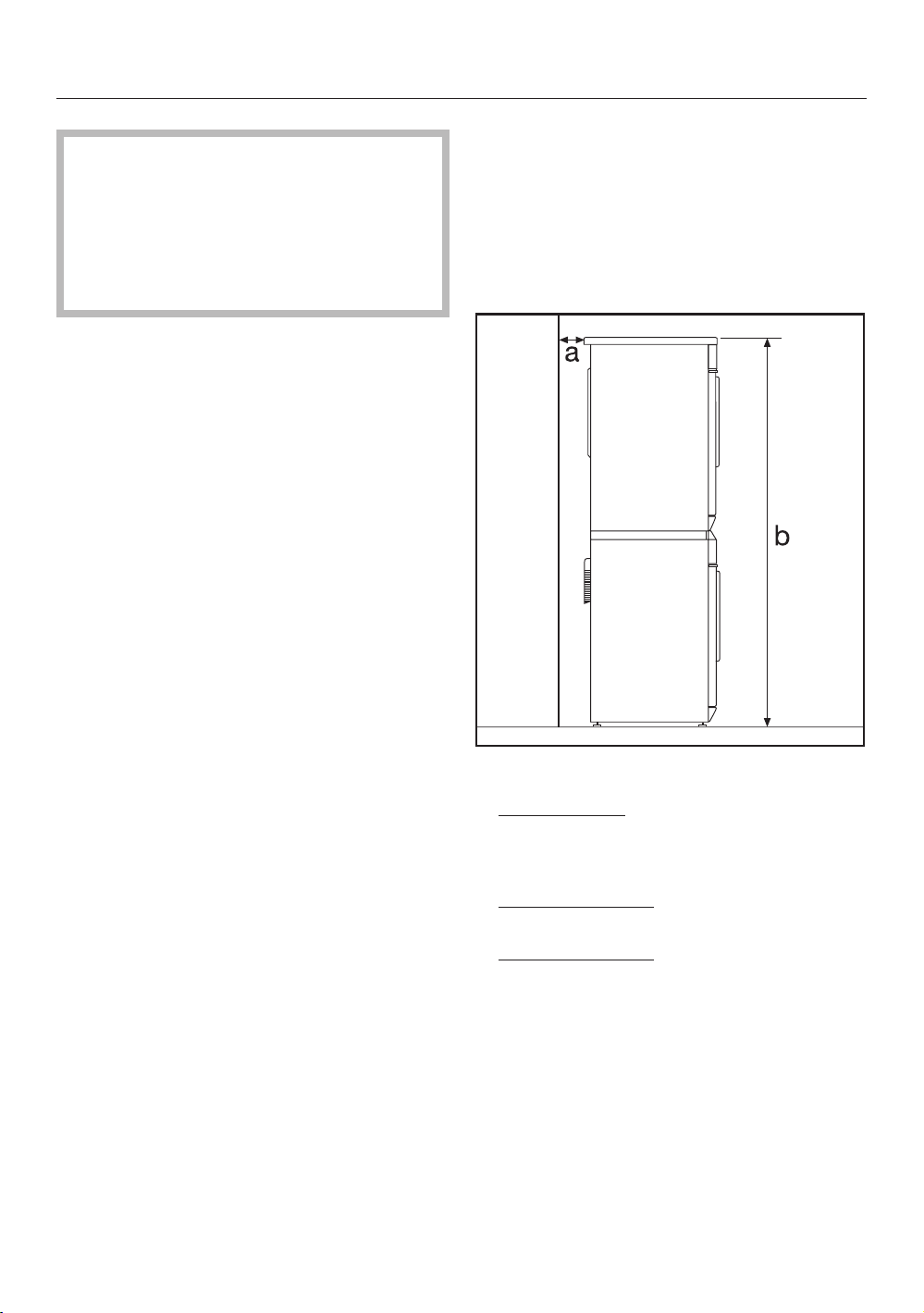

a Safety distance to wall:

at least 2 cm

b Height:

Stacking kit with pull-out shelf:
approx. 169 cm
Stacking kit without pull-out shelf:
approx. 170 cm

The Miele water protection
system

The Miele water protection system
protects the washing machine from
water damage.

The system consists of three main
components:

1) the inlet hose

2) the electronic unit and the washing
machine housing

3) the drain hose

1) Inlet hose

The inlet hose can withstand
pressure of more than 7,000 kPa.

Installation and connection

Overflow protection

–

This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.

3) Drain hose

The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.

2) Electronic unit and washing
machine housing

– Sump

Any leaking water is collected in a
sump in the base of the machine. A
float switches off the safety valves,
preventing any more water flowing
into the machine and water in the
suds container is pumped away.

53

Installation and connection

Connection to the water
supply

The machine should be connected to a
mains water supply in accordance with
local and national safety regulations.
The German authorities do not require it
to have a non-return valve as the
washing machine has been designed
to comply with DIN regulations.

The machine is designed to operate
with a flow pressure of between
100 kPa and 1,000 kPa. If it is higher
than 1,000 kPa it is essential to fit a
pressure reducing valve.

Connection to the mains water supply
should incorporate a mains stopcock

3

with

/4" thread. The stopcock should

be fitted by a qualified plumber.

In order to protect the water inlet
valve, the two dirt filters - one in the
open end of the inlet hose, one at
the inlet point in the machine - must
not be removed.

Extension hose

Longer hoses 2.5 or 4.0 m in length

–

are available from your Miele dealer
or the Miele Spare Parts Department
as optional extras.

,

The connection point is subject
to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.

The washing machine is not suitable
for connection to a hot water supply.

Maintenance and care

Only use a genuine Miele hose should
you ever need a replacement or
extension. These are tested to
withstand pressure of at least
7,000 kPa.

54

Installation and connection

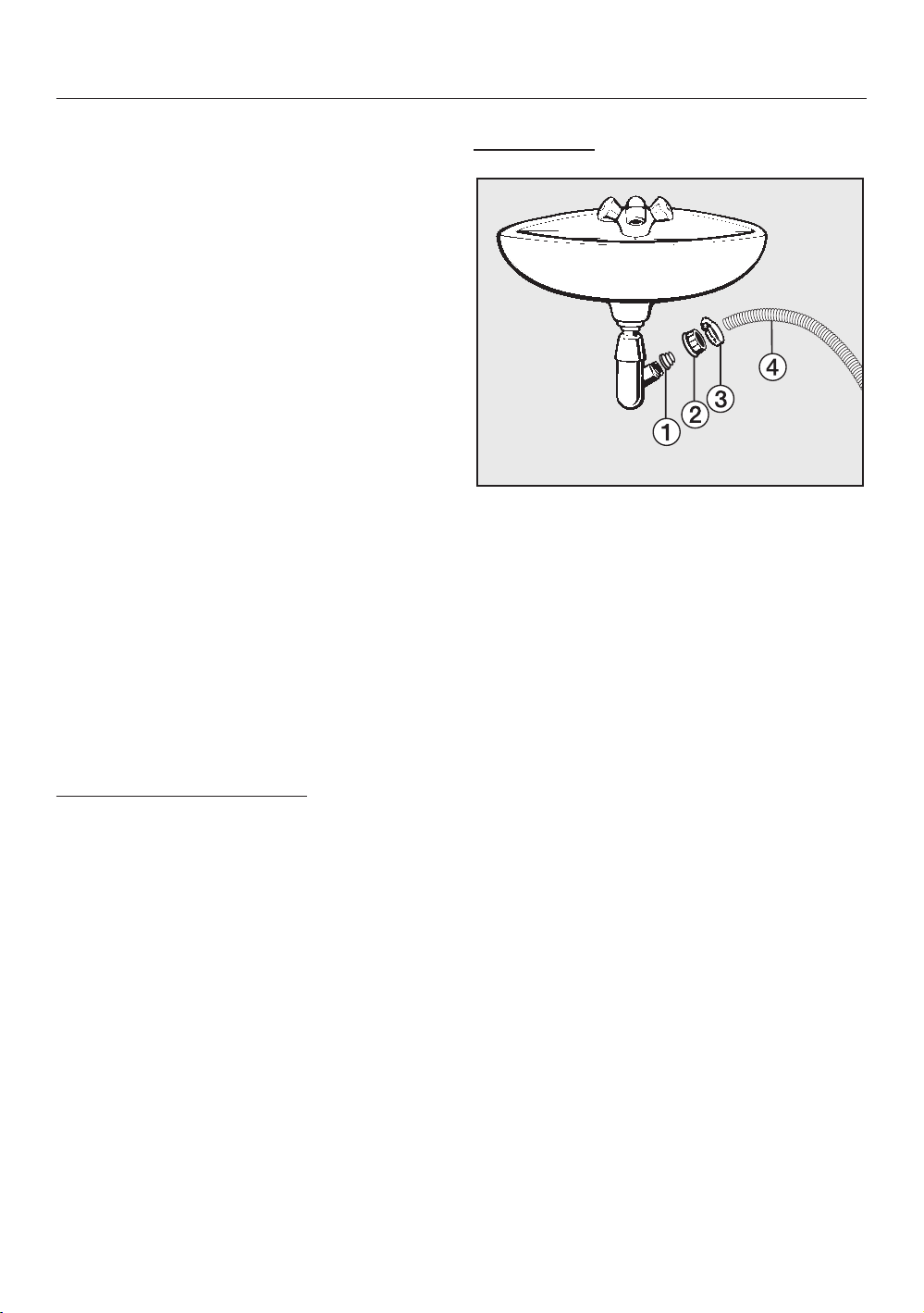

Connection to the drainage
system

The machine drains via a drain pump
with a delivery head of 1 metre*. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.

If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can purchased from
the Miele Spare Parts Department or
your Miele dealer.

* For a delivery head of more than 1 m
(up to a max. of 1.8 m) a replacement
drain pump will need to be fitted.
Please contact the Miele Spare Parts
Department or your Miele Dealer.

Drain hose connection:

Please note:

a Adapter

b Nut

c Hose clip

d End of the hose

^ Fit adapter a to the sink drain outlet

using nut b.

1. Direct into a sink or basin:

Please note the following:

–

Hook the hose over the edge and
secure.

–

Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.
There is no need to use a non-return
valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

^ Attach the end of the hose d to

adapter a.

^

Use a screwdriver to tighten hose
clip c up close to the nut.

55

Installation and connection

Electrical connection U.K.

All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).

Ensure power is not supplied to the
appliance until after installation work
has been carried out.

The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply.

Please ensure the connection data
quoted on the data plate match the
household mains supply.

Connection should be made via a
suitable switched socket which is easily
accessible after installation.

Non-rewireable plugs BS 1363

The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).

Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING: THIS APPLIANCE
MUST BE EARTHED

For extra safety it is advisable to protect
the machine with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.

Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

56

Consumption data

Load Consumption data

Energy Water Duration

in kWh in litres Short Normal

Cottons 95°C 7,0 kg 2,20 55 2 h 29 min

1)

60°C

60°C 3,5 kg 0,64 45 2 h 29 min

1)

40°C

2)

40°C

Minimum iron 40°C

Delicates 30°C 2,0 kg 0,38 69 49 min 59 min

Dark garments /
Denim

Woollens / 30°C 2.0 kg 0.23 39 – 39 min

1)

40°C 3.0 kg 0.60 52 1 h 01 min 1 h 11 min

Notes for test institutes:

1)

EN 60456 test programme

2)

Short programme for test institutes; the Short extra option must be selected.

7,0 kg 1,05 55 2 h 59 min

7,0 kg 0,77 68 2 h 34 min

3,5 kg 0,45 45 1 h 10 min

3.5 kg 0.50 50 1 h 41 min

Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any extra options
selected.

57

Technical data

Height 850 mm

Width 595 mm

Depth 615 mm

Depth with door open 975 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 650 mm

Weight 98 kg

Capacity 7 kg dry laundry

Voltage see data plate

Connected load see data plate

Fuse rating see data plate

Consumption data see "Consumption data"

Minimum water flow pressure 100 kPa (1 bar)

Maximum water flow pressure 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Max. delivery head 1.00 m

Maximum drainage length 5.00 m

Test certificates awarded see data plate

58

The Settings menu can be used to
alter the machine's electronics to suit
changing requirements.
Settings can be altered at any time.

To open the Settings menu

Close the door of the washing

^

machine.

Turn the programme selector to the

^

Finish position.

Place the display template on top of

^

the control panel.

Settings menu

A tick L will appear beside the option
to show that it has been set.

To change a value

Some settings do not have any options
but the set value can be altered.
The set value will increase each time
the ~ button is pressed. Once the
maximum setting has been reached,
the value will revert to the minimum
setting the next time the button is
pressed.
Press the OK button to confirm the
value you want.

^ Switch on the washing machine.

^ Press both the ~ and OK buttons at

the same time until the following
appears in the display:

Settings

Language !

Continue

OK

This will take you into the Settings
menu.

To select a setting

^

Press the ~ button until the setting
you want is highlighted in the display.

^

Press the OK button to select the
setting.

To select an option

^

Press the ~ button until the option
you want is highlighted in the display.

To come out of the selected setting

Select

Back A from a setting which

has options.

To close the Settings menu

^ Switch off the washing machine.

Language !

The display can be set to appear in
one of several different languages.

You can change the language via the
Language sub-menu.
The flag after the word language acts
as a guide to prevent a language which
will not be understood from being set.
A tick L will appear beside the
language selected to show that it has
been set.

^

Press the OK button to select the
option.

59

Settings menu

Gentle action

Activating gentle action reduces the
drum action and is suitable for
washing slightly soiled items more
gently. It should be activated for
garments with a single bar under the
care label and for articles which feel
too hard after they have been dried.

Gentle action can be activated for the
Cottons and the Minimum iron
programmes.

The machine is delivered with the
Gentle action setting deactivated.

The option which is currently set will
have a tick L beside it.

Soak

A length of time of between 2 hours
and 30 minutes can be programmed
in 30 minute increments for the soak
process.

Water plus

This setting is used to select the
water intake setting for the Water plus
extra option.

There are three different options:

Water +

(The machine is delivered with this
option selected.)

The water level is increased in the wash
and rinse stages.

Extra rinse

An extra rinse is introduced.

Water+ & Extra rinse

The water intake is increased in the
wash and rinse stages and an extra
rinse is carried out.

The option which is currently set will
have a tick L beside it.

If the Soak extra option button is
pressed, the selected soak time will be
carried out for the period selected
before the wash programme is run.

The washing machine is delivered with
a one hour soak time set as standard.

The option which is currently set will
have a tick L beside it.

60

Longer pre-wash

The pre-wash for the Cottons
programme can be extended by 6, 9
or 12 minutes.

The default setting for the pre-wash is
25 minutes.

If you require a longer pre-wash, this
time of 25 minutes can be extended.

The option which is currently set will
have a tick L beside it.

Settings menu

Suds cooling

When this is activated, additional
water flows into the drum at the end
of the main wash to cool the suds
down. Hot suds can damage plastic
drainage pipes.

Suds cooling takes place when
temperatures of 95°C and 75°C are
selected.

Suds cooling should be activated:

to prevent the danger of scalding if

–

the drain hose is hooked over the
edge of a sink or basin.

– where the drainage pipes do not

comply with DIN 1986.

The machine is delivered with this
option deactivated.

Lock code

The code prevents your machine
being used without your knowledge.

To activate the lock code

Lock code

Activate

Continue

Press the OK button.

^

The display will now request that a

^

OK

code is entered. The code is 125 and
cannot be altered.

To enter the lock code

Lock code

0 __

*

OK

^ Use the ~ button to enter the first

number. Confirm your selection of
this number by pressing the OK
button. Now enter the second
number.

^ Repeat the process until all three

numbers have been entered.

When the code has been activated, you
have to enter a code after switching the
washing machine on. Otherwise the
washing machine cannot be operated.

Confirm code

125

Back OK

^

Confirm the code with the OK button
or if you want to correct a mistake,
press the ~ button.

61

Settings menu

The following will appear in the display:

Lock code activated.

0

Once the washing machine is switched
off, it can only be used again if the lock
code is entered.

To use the washing machine when
the lock code is activated

When the washing machine is switched
on again, the display will request the
code.

^ Enter code 125 as described above

and confirm the entry.

The following will appear in the display:

Entry OK

Buzzer

When the buzzer function has been
activated, an audible tone sounds at
the end of a programme.

You can select one of two volumes or
switch the buzzer off.

Off

(The machine is delivered with this
option selected.)

The buzzer is switched off.

Normal

The buzzer sounds at the end of the
programme.

Loud

Ready

1

The washing machine is now unlocked
and ready for use.

To deactivate the code

Proceed as for activating the lock code.

The following will appear in the display:

1

Entry OK

Lock code
deactivated.
Entry OK

The buzzer sounds at maximum volume
(laut) at the end of the programme.

The option which is currently set will
have a tick L beside it.

62

Settings menu

Keypad tone

An audible tone sounds each time a
button is pressed.

The washing machine is delivered with
the keypad tone switched off.

The option which is currently set will
have a tick L beside it.

Display brightness

There are ten display brightness
settings.

The washing machine is delivered with
the display brightness on setting 5.

The bar chart shows you the setting.

The brightness is set as soon as it is
selected.

Display contrast

There are ten display contrast
settings.

The washing machine is delivered with
the display brightness on setting 5.

The bar chart shows you the setting.

The contrast is set as soon as it is
selected.

Text brightness

There is a choice of ten settings for
the brightness of the text backlit
areas (backlighting of Start, Delay
start, Extra options and spin speeds)

The washing machine is delivered with
the text brightness on setting 5.

The bar chart shows you the setting.

The brightness is set as soon as it is
selected.

63

Settings menu

Standby display

In order to save energy, the display
and the backlit areas will go dark and
the green backlighting of the word
Start will flash slowly.

The display and the backlit areas are
not illuminated,

if a programme is not selected within

–

10 minutes of the washing machine
being switched on.

10 minutes after the end of a

–

programme.

Pressing one of the buttons switches
the display and the backlit areas back
on again.

You can choose whether you want the
display and backlit areas to go out
during a programme or to remain on.

Memory

If an extra option has been selected
for a programme, or the
recommended temperature or spin
speed has been altered, the machine
will store the changes in memory at
the start of the programme.

When this programme is chosen again
these settings will appear in the
display.

The machine is delivered with the
memory function deactivated.

Anti-crease

Anti-crease helps prevent creasing if
laundry is not normally removed im­mediately after the end of a
programme.

On

The standby function is activated. The
display and backlit areas will go out 10
minutes after the start of a programme.

Not in current programme

(The machine is delivered with this
option selected.)

The standby function is deactivated.
The display and backlit areas remain lit
up whilst the programme is running.

The drum will turn at intervals for up to
30 minutes after the programme has
finished. The door can be opened and
items removed at any time during the
anti-crease phase.

On

(The machine is delivered with this
option selected.)

Anti-crease is activated.

Off

Anti-crease is deactivated.

64

Optional accessories

Miele washing machines offer perfect
care for your laundry and feature a
wide range of special programmes
designed to suit the fabric being
washed. Miele have also developed a
range of specialist CareCollection
detergents and conditioning products
to offer you a complete package for
cleaning and caring for your laundry.

The Miele CareCollection detergents
and conditioning products are listed
below. You can order these and many
other useful products via the internet at:

All the products can also be ordered
via the Miele Customer Contact Centre
(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your
water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is
designed to clean sportswear and
remove odours whilst taking care of the
special microfibres used in these
garments.

"Down Items"

This special-purpose detergent
contains a mild tenside and has been
specially formulated to keep down-filled
items supple and to give them bounce.

Miele proofing agent

This special finishing agent reproofs
garments against wind and water and
provides a dirt-repellent finish whilst
retaining elasticity and breathability.

65

Optional accessories

"UltraWhite" detergent

This multi-purpose powder detergent
has excellent stain removal properties
and is suitable for white and light
coloured laundry as well as heavily
soiled coloured items.

"UltraColor" detergent for coloured
garments

This liquid detergent is particularly
suitable for cleaning coloured and dark
garments. The special formulation
offers effective stain removal, even at
low temperatures, while helping to
prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the
gentle treatment of delicate fabrics,
such as wool and silk. Its special
formulation cleans effectively at
temperatures as low as 20°C, while
protecting the colour of your delicate
garments.

Fabric conditioner

The Miele fabric conditioner will give
your laundry a fresh, natural fragrance.
It makes garments soft to handle and
prevents static build-up during tumble
drying.

66

67

Alteration rights reserved/1811/W 5902 Premium Plus

M.-Nr. 09 007 570 / 00

M.-Nr. 09 007 570 / 00
