Miele T8866WP User Manual

Operating instructions
for heat pump tumble dryer T 8866 WP
To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
en-GB
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal and should be recycled.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Disposing of your old appliance
Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste.
Energy saving tips
To avoid unnecessarily long drying times and high consumption of energy:
Make sure that your laundry is
thoroughly spun before drying. The higher the spin, the greater the savings that can be made in energy and time during drying.
Load according to the optimum
amount of laundry recommended for the programme being used. Underloading is uneconomical. Overloading gives a poorer quality of drying, and may cause unnecessary creasing.
– Make sure that the room temperature
is not too high. If there are other heat producing appliances in the room in which the dryer is located, make sure the room is well ventilated and switch the other appliances off, if possible.
– After every cycle remove fluff from
the surfaces of the fluff filters.
Please dispose of it at your local community waste collection / recycling centre or contact your dealer for advice.
Ensure that it presents no danger to children while being stored for disposal.
2
Contents
Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the tumble dryer.........................................14
Control panel .....................................................14
Notes on laundry care .............................................16
Garment care label symbols .........................................16
Tips on drying ....................................................16
How to dry correctly ..............................................17
Brief instructions ..................................................17
Extra options / Delay start..........................................20
Extra options .....................................................20
Gentle tumble ..................................................20
Buzzer........................................................20
Delay start .......................................................20
Programme chart .................................................21
Changing the programme sequence .................................24
Once a programme has started ......................................24
- cancelling the programme and then selecting a different programme .....24
- cancelling the programme and then removing the laundry ..............24
Altering Delay start ................................................24
Adding or removing laundry after a programme has started ................24
Time remaining ...................................................24
Cleaning and care ................................................25
Emptying the condensed water container...............................25
Make sure you clean all the filters at the correct intervals...................26
When to clean the surfaces of the fluff filters ..........................26
When to clean the fine filter .......................................26
3
Contents
Cleaning the surfaces of the fluff filters .................................27
Cleaning them whilst dry .........................................27
Cleaning with water .............................................28
Replacing the filters .............................................28
Fine filter ........................................................29
Removing .....................................................29
Cleaning the fine filter ............................................29
Cleaning the cover for the fine filter .................................30
Cleaning the heat exchanger ......................................30
Replacing .....................................................31
Cleaning the tumble dryer ...........................................31
Problem solving guide ............................................32
Check and fault messages ..........................................32
An unsatisfactory drying result .......................................34
Other problems ...................................................35
Cleaning the cooling fins (bottom right grille) ............................37
Changing the lamp ................................................38
After Sales service................................................39
Repairs..........................................................39
Future updates (PC) ...............................................39
Appliance guarantee ...............................................39
Optional accessories ...............................................39
Installation and connection ........................................40
Front view........................................................40
Rear view ........................................................41
Transporting the dryer ..............................................41
Installation site ....................................................42
Building under a continuous worktop/ in a row of kitchen units .............42
Levelling the appliance...........................................43
Washer-dryer stack..............................................43
4
Contents
External condensed water outlet ......................................44
Arranging the drain hose .........................................44
External drainage via a sink or gully ................................45
Installation conditions requiring a non-return valve .....................45
Electrical connection .............................................47
Electrical connection U.K. ...........................................47
Consumption data ................................................48
Technical data ...................................................49
Electronic system lock ............................................51
Programmable functions...........................................52
Altering the residual moisture level in the Cottons programme...............52
Altering the residual moisture level in the Minimum iron programme ..........53
Anti-crease ......................................................54
Altering the volume of the buzzer .....................................55
Altering the residual moisture level in the Automatic plus programme .........56
Standby .........................................................57
Memory function ..................................................59
Keypad tone .....................................................60
Adjusting the dryer's electronics for very soft water .......................61
Extending the range of the drying levels ................................62
Optional accessories..............................................63
5
Warning and Safety instructions
It is essential to read these instructions.
~
This tumble dryer conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the tumble dryer, please read these instructions carefully before using it for the first time. They contain important information on its safety, installation, use and maintenance.
Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.
Correct application
This tumble dryer is not designed for commercial use. It is
~
intended for use in domestic households and similar working and residential environments.
The tumble dryer is not intended for outdoor use.
~
It must only be used as a domestic appliance to dry items which
~
have been washed in a water solution and which are marked on the manufacturer's care label as being suitable for tumble drying. If using dry cleaning kits, do so at your own risk, and follow the instructions provided on the packaging. Any other usage is not supported by the manufacturer and could be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.
6
Warning and Safety instructions
The tumble dryer can only be used by people with reduced
~
physical, sensory or mental capabilities, or lack of experience or knowledge, if they are are supervised whilst using it or have been shown how to use it in a safe way and understand the hazards involved.
Safety with children
Children under 8 years of age must be kept away from the tumble
~
dryer unless they are constantly supervised.
Children 8 years and older may only use, clean or maintain the
~
tumble dryer without supervision if they have been shown how to do so in a safe way and understand the hazards involved.
The tumble dryer is not a toy! To prevent the risk of injury, do not
~
allow children to play with it or near it, or to play with the controls.
7
Warning and Safety instructions
Technical safety
Before setting up the tumble dryer, check it for any externally
~
visible damage. Do not install or use a damaged tumble dryer.
Before connecting the tumble dryer, ensure that the connection
~
data on the data plate (voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.
The electrical safety of this tumble dryer can only be guaranteed
~
when correctly earthed. It is most important that this basic safety requirement is observed and regularly tested, and where there is any doubt, the household wiring system should be inspected by a qualified electrician. Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
Do not connect the tumble dryer to the mains electricity supply by
~
an extension lead. Extension leads do not guarantee the required safety of the tumble dryer (e.g. danger of overheating).
If the electrical connection cable is faulty it must only be replaced
~
by a Miele approved service technician to protect the user from danger.
Unauthorised repairs could result in unforeseen dangers for the
~
user, for which Miele cannot accept liability. Repairs should only be undertaken by a Miele approved service technician, otherwise any subsequent damage will not be covered by the guarantee. Ensure current is not supplied to the tumble dryer until after maintenance or repair work has been carried out.
Faulty components must only be replaced by genuine Miele
~
original spare parts. Only when these parts are fitted can the safety standards of the tumble dryer be guaranteed.
8
Warning and Safety instructions
The tumble dryer must be isolated from the electricity supply in
~
the event of a fault and during cleaning and maintenance.
The tumble dryer must not be used in a non-stationary location
~
(e.g. on a ship).
Do not make any alterations to the tumble dryer, unless
~
authorised to do so by Miele.
Heat pump technology and refrigerant:
~
The heat pump in this tumble dryer uses a refrigerant which is condensed by the compressor and led in a closed circuit through the heat exchanger unit where heat exchange with the circulating drying air takes place.
– The humming noises caused by the heat pump are normal and do
not impair the efficient functioning of the dryer.
– The refrigerant is not flammable or explosive.
– In general it is not necessary to leave the dryer standing for any
length of time before it is put into operation provided it has been transported correctly (see "Installation"). However, if it has not been transported as described, ensure that the recommended standing time prior to first operation is observed. Otherwise the heat pump can be damaged.
In areas which may be subject to infestation by cockroaches or
~
other vermin, pay particular attention to keeping the tumble dryer and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee.
9
Warning and Safety instructions
Correct use
To prevent the risk of fire, the following textiles must not be dried
~
in this appliance:
items which have not been washed.
items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other deposits (such as cosmetics, lotions etc). If items have not been thoroughly cleaned there is a danger that these might self-ignite when heated, even after they have been removed from the dryer at the end of the programme.
– items (e.g. mops and floor cloths) which have been treated with
inflammable cleaning agents or which contain residues of acetone, alcohol, benzine, petrol, kerosene, stain remover, turpentine, wax and wax remover or other chemicals.
– items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
When washing such heavily soiled items, ensure that you use additional detergent and select a high temperature. If in doubt, wash the items several times.
Remove all items such as lighters and matches from pockets.
~
Warning: Do not switch the tumble dryer off before the drying
~
programme has finished. If this is done, the laundry must be hung up or spread out to cool it down.
10
Warning and Safety instructions
Danger.
~
This tumble dryer must not be connected to a controllable socket (e.g. a timer switch or a peak load shut-off device). If the dryer programme were to be interrupted before the end of the cooling down phase, the laundry could self-combust.
To prevent the risk of fire, the following must not be tumble dried:
~
items which have been cleaned using chemicals (e.g.
professional dry-cleaning agents).
fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex foam rubber, shower caps, waterproof textiles, rubberised articles and items of clothing and pillows with foam rubber filling.
– damaged items which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of igniting in the dryer.
In many programmes, the heating phase is followed by a cooling
~
down phase to ensure that the items are not too hot to handle when you remove them (this also avoids the danger of the laundry self-igniting). The programme is not finished until the cooling down phase has been completed. As soon as the programme has finished, remove all laundry from the drum.
Fabric conditioner and similar products must be used according
~
to the instructions on the manufacturer's packaging.
Do not let anyone sit or lean on the door, as this can cause the
~
tumble dryer to tip up.
Always close the door after use. This way you will avoid the
~
danger of: –
children climbing into the dryer or hiding things in it.
pets or other small animals climbing into it.
11
Warning and Safety instructions
The tumble dryer must not be used:
~
without the fluff filters in place or if the fluff filters are damaged in
any way.
without the fine filters in place of if the fine filters are damaged in
any way.
This would cause an excessive build-up of fluff which in turn would cause a fault.
After every cycle remove fluff from the surfaces of the fluff filters.
~
The fluff filters and the fine filters must be thoroughly dried after
~
cleaning. Damp or wet filters could cause operational faults.
Do not install the tumble dryer in a room where there is a risk of
~
frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and in the drain hose.
If the water is drained externally instead of being collected in the
~
condensed water container, make sure the drain hose is securely attached if you hang it in a sink or basin to avoid the hose slipping and the water causing damage.
Condensed water is not drinking water. It can cause health
~
problems in both people and animals.
Always keep the area around the tumble dryer free of dust and
~
fluff. Dust drawn into the tumble dryer can cause blockages in the heat exchanger unit over time.
The tumble dryer must not be hosed down.
~
12
Warning and Safety instructions
Accessories
Only use genuine Miele original spare parts and accessories with
~
this tumble dryer. If non-Miele parts are used, guarantee, performance and product liability claims may be invalidated.
Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
13
Operating the tumble dryer
Control panel
a Gentle tumble button
Delicate fabrics are dried using reduced mechanical action.
b Drying level button
with indicator lights to show the drying level selected for sensor controlled drying programmes. See also "How to dry correctly".
c Display
See next page.
d Delay start button
This button is used for:
- Delaying the start of a programme
- Selecting the duration of the timed drying Warm air programme.
e Buzzer button
An audible tone sounds at the end of the programme.
f Perfect Dry indicator
For all sensor controlled drying programmes. See next page.
g Check lights
See "Problem solving guide" and "After sales service" for a description of these.
h Start/Stop button
For starting or cancelling a programme. The button flashes while a programme is being selected and then lights up constantly after the programme has started.
i Programme selector
Can be turned clockwise or anti-clockwise. Indicator lights show the programme selected.
j Door button
Pressing this button will open the door even when the dryer is switched off at the mains.
k jkbutton
For switching the appliance on and off.
14
Operating the tumble dryer
The display shows:
Programme duration
Programme stage
Drying Cooling down Finish
Check and fault messages
The following are selected via the display:
Duration of the Warm air programme
Delay start.
You can select a programme and set it to start automatically at a later time.
– Programmable functions.
Default settings can be altered to adapt the dryer to different requirements. See "Programmable functions".
Perfect Dry indicator
The Perfect Dry system measures the residual moisture content in the laundry in sensor controlled programmes to ensure perfect drying results. After a programme has started, the electronics will estimate the duration of the programme (time remaining). The Perfect Dry indicator will flash while this is happening. After a short while, the programme duration will appear in the display and the indicator will go out. The Perfect Dry indicator will light up again when the selected drying level is reached and remain on until the programme is finished. The Perfect Dry indicator does not light up during time controlled programmes:
Woollens, Proofing, Warm air, Gentle smoothing.
Estimated time remaining
The estimated duration (time remaining) will appear in the display. The following factors all affect the estimated time remaining: residual moisture content after spinning; type of fabric; size of load; room temperature; fluctuations in power supply. The electronics continually assess conditions in the machine and adjust the estimated time remaining for a more accurate reading. Because of this, the time displayed can alter during the course of a programme. Programmes can also finish earlier than expected, if, for example, particularly fine fabric is being dried, the load is very small or items were partially dry beforehand.
Before using for the first time
,
Ensure that the dryer is installed and connected to the electricity supply correctly. If the tumble dryer has not been transported as described in "Installation and connection" then it must be left to stand for at least 1 hour before it is connected to the electricity supply.
15
Notes on laundry care
Garment care label symbols
Drying
q/r Normal/low temperature
Drying is carried out at a low temperature in every programme in this dryer, so you do not need to sort your garments according to whether they have the q or r symbol.
s Do not tumble dry
Ironing
I Very hot H Hot G Warm J Do not iron
Tips on drying
– Always observe the maximum
recommended loads given in the "Programme chart". Never overload the drum.
Overloading can cause unnecessary wear and tear to the laundry, give a disappointing drying result and cause more creasing.
Do not put soaking wet items into the tumble dryer. Spin fabrics for at least 30 seconds before drying.
Open jackets evenly.
Use the Automatic plus programme for drying mixed loads of cottons and minimum iron fabrics.
so that they can dry
Pure linen
dried if specified as suitable by the manufacturer on the garment care label, as the surface of the fabric may otherwise become rough.
Loopknit garments
underwear) tend to shrink depending on their quality. Do not over-dry these textiles. When purchasing these garments it is advisable to take their shrinkage properties into account.
Minimum iron fabrics
more, the larger the load. This is also the case for garments made from very fine weave fabrics, such as shirts or blouses. Make sure you select a suitable programme. If in doubt, divide the garments into smaller loads and select the Gentle tumble extra option.
– Starched laundry
tumble dryer. To achieve the usual finish, double the amount of starch should be used.
New dark coloured garments be washed and dried separately from light coloured garments to avoid the danger of colours running and discolouring other garments or even plastic components in the dryer. Dark coloured fibres can also settle on light coloured garments and vice versa.
should only be machine
(e.g. T-shirts and
tend to crease
can be dried in the
should
16
How to dry correctly
Brief instructions
The headings numbered (A, B, C ...) show the operating sequence and can be used as a brief guide to using your dryer.
A Sort the laundry
To ensure an even drying result sort laundry according to: . . . the drying level required . . . the type of fibre or weave . . . size . . . the moisture content after spinning.
Make sure that objects e.g.
,
detergent dispensing balls have been removed from the laundry. They could melt, and cause damage to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
– Fasten duvet covers and pillow
cases to prevent small items from being trapped inside them.
C Load the tumble dryer
Press the Door button to open the
^
door.
Load the laundry loosely into the
^
drum.
Do not overload the drum. See the "Programme chart" for recommended loads for each programme. Overloading can cause unnecessary wear and tear to the laundry and give a disappointing drying result.
^ Before closing the door make sure
the fluff filter is correctly positioned.
Fasten hooks and eyes etc.
Tie fabric belts and apron strings.
Sew in or remove underwiring from bras.
B Turn on the tumble dryer
^
Switch the dryer on by pressing the On/Off jk button in.
The tumble dryer may be switched on after loading, saving energy as the light will not come on.
Check the laundry is right inside the drum so that it cannot get trapped or damaged when the door is shut.
^
Shut the door either with a gentle swing, or lean against it and push it shut.
17
How to dry correctly
D Select a programme
Select the programme you want.
^
The indicator for the programme selected will light up. A drying level or extra option indicator may also light up and the duration may also be displayed.
Drying level programmes
– Cottons, Minimum iron, Outerwear,
Express, Automatic plus, Shirts, Denim, Hygiene
the drying level for the Hygiene programme cannot be changed.
Note
You can extend the range of the drying levels for some programmes (see "Programmable functions").
Gentle smoothing, Woollens, Proofing programmes
These programmes cannot be
changed.
Selecting the duration of the timed drying Warm air programme
The indicator light for the Delay start button will flash when the Warm air programme is selected.
^ Press the Delay start button
repeatedly until the required duration shows in the display.
You can select a duration of 20 minutes up to 2:00 hours in 10 minute steps.
^
Press the drying level button repeatedly until the indicator for the drying level you want lights up.
Any of the four drying levels can be selected for the Cottons and Express programmes. The choice of drying level is limited for the other programmes and
18
E Select any Extra options / Delay
start
^
Gentle tumble, Buzzer and Delay start are selected by pressing the
appropriate button (see "Extra options/Delay start"). Anti-crease (see next page) is permanently switched on.
N.B.: It is not possible to select Delay start when using the Warm air programme.
How to dry correctly
F Start the programme
The Start/Stop button will flash when a programme is being selected. The flashing indicates that a programme can be started.
Press the Start/Stop button.
^
The Start/Stop button will now light up constantly.
The Perfect Dry indicator will only flash or light up constantly with the sensor controlled drying programmes. It will not come on at all with timed drying programmes (see "Operating the tumble dryer").
Please note: The programme duration shown in the display is an estimate and can vary.
Before the end of a programme
There is a cooling down phase at the end of the drying sequence (Cooling down will light up). The programme is not finished until the cooling down phase has been completed.
G Remove the laundry when the
programme has finished
0 and Finish will appear in the display to indicate that the programme has finished. The buzzer (if selected) will sound at intervals.
will go out and the Start/Stop button will flash slowly. See also "Programmable functions".
Press the Door button.
^
Open the door.
^
Remove the laundry.
^
Check that all items have been removed from the drum. If items are left in the dryer, they could be damaged by overdrying when the dryer is next used.
If the dryer is switched on at the mains and the door is opened, the drum lighting will come on. It will go out a few minutes later to save energy.
^ Press the jk button to switch the
dryer off.
^ Clean the fluff filters.
^ Close the door.
^ Empty the condensed water
container. We recommend connecting the dryer for external drainage as you will not need to empty the condensed water container.
The drum will continue to rotate at intervals for up to two hours to prevent laundry creasing, if you do not wish to remove it immediately (anti-crease phase). There is no anti-crease phase at the end of the Woollens programme.
The dryer has a standby mode: after the programme has finished the display
19
Extra options / Delay start
Extra options
The relevant indicator light will come on when the option is selected.
Gentle tumble
For drying items which can be dried in a tumble dryer but which are particularly susceptible to creasing or which are not suitable for drying with a great deal of mechanical action. When this option is selected, the drum will rotate less frequently. The programme duration is longer. If in doubt, reduce the load.
Buzzer
A buzzer sounds (at intervals for a maximum of 1 hour) to let you know the programme has finished. The buzzer will always sound when there is a fault, even if it has been switched off.
Delay start
Delay start allows you to delay the start of a programme from 30 minutes up to a maximum of 24 hours.
^
Select a programme.
^
Press the Delay start button repeatedly until the required delay period shows in the display.
The Delay start indicator light will flash.
Times of up to i0^ are selected in steps of half an hour, and more than i0^ in one-hour steps.
If you keep the Delay start button
pressed in, the time will continue to increase up to 24^.
To begin delay start
Press the Start/Stop button.
^
The Delay start indicator will light up
constantly. Delay start times of more than i0^
will count down in hours, and of less than i0^ in minutes to the start of the programme.
The drum will turn briefly every hour
to help prevent creasing.
To cancel / alter delay start
^ Press the Start/Stop button to cancel
delay start.
^ To alter the delay start time, press the
Delay start button repeatedly until the required delay period shows in the display.
^
Press the Start/Stop button to start the altered delay start time counting down from the beginning again.
To add laundry after the delay start time has started counting down
While the delay start time is counting down, you can still add laundry to the drum:
^
Switch the dryer off.
Opening the door without switching the dryer off will cancel delay start.
^
Open the door and add the laundry.
^
Close the door and switch the dryer back on again.
20
Extra options
Gentle tumble
Programme chart
This option can be selected with the following programmes:
Buzzer
This option can be selected with all programmes.
Cottons, Minimum iron, Shirts, Denim, Warm air
Programmes
Cottons Max. load 8 kg*
Extra dry, Normal**
Use for Single and multi-layered cotton fabric such as towelling, T-shirts,
underwear, flannelette bed linen and baby clothes
Notes – Select Extra dry for multi-layered and very thick fabric.
– Do not use Extra dry for loopknit fabric (e.g. T-shirts, underwear,
baby clothes), as they have a tendency to shrink.
Hand iron, Machine iron
Use for Cotton or linen fabric e.g. table linen, bed linen, starched laundry
Note To prevent laundry from drying out it should be rolled up until you are
ready for ironing.
Minimum iron Max. load 3.5 kg*
Normal, Hand iron
Use for Minimum iron cotton, synthetic and mixed fibre fabric e.g. tops,
dresses, trousers, skirts and table cloths.
* Weight of dry laundry Note for test institutes: –
** Test programme (without selecting any Extra options) in accordance with Regulation 392/2012/EU for energy labelling measured in accordance with EN 61121.
When selecting the Cottons programme, drain the condensed water away through the drainage hose.
21
Programme chart
Woollens Max. load 2 kg*
Use for Woollen and woollen mix fabric
Notes
Outerwear Max. load 2.5 kg*
Normal, Hand iron
Use for Outerwear which is suitable for drying in a tumble dryer.
Proofing Max. load 2 kg*
Use for Drying microfibre fabric, skiwear, fine, closeweave cotton garments
Notes – This programme includes a proofing fixing phase.
Express Max. load 3.5 kg*
Extra dry, Normal, Hand iron, Machine iron
Use for Fabric which can tolerate high temperatures and which can be dried
Note Short programme duration.
Automatic plus Max. load 5 kg*
Normal, Hand iron
Use for Mixed loads of garments suitable for the Cottons and Minimum iron
Shirts Max. load 2 kg*
Normal, Hand iron
Use for Shirts and blouses.
Denim Max. load 3 kg*
Normal, Hand iron
Use for Denim garments, e.g. jeans, jackets, skirts, shirts.
* Weight of dry laundry
This programme only fluffs up woollen garments. They are not dried
completely. Remove garments as soon as the programme has finished and
leave to finish drying at room temperature.
(poplin) or tablecloths which are suitable for drying in a tumble dryer and have been treated to provide a water and dirt resistant finish.
– Only use proofing agents containing fluorochemical compounds
which are stated by the manufacturer as being "suitable for use on membrane textiles".
– Do not dry items which have been treated with proofing agents
containing paraffin. Fire hazard.
using the Cottons programme.
programmes. Sort according to colour.
22
Programme chart
Hygiene Max. load 3.5 kg*
Use for Cottons and linen fabric which is in direct contact with the skin, e.g.
underwear, baby clothes, bed linen, towelling.
Note The temperature is held constant for a longer period of time (longer
temperature holding time) to deactivate micro-organisms, e.g. bacteria or house dustmites, and also to reduce the number of allergens in the laundry. To ensure that the micro-organisms are deactivated, do not interrupt the programme.
Warm air Max. load 7 kg*
Use for
Note Do not select the longest drying time to start with. Check the items as
Note You can use the Warm air programme to help remove odours from
Gentle smoothing Max. load 1 kg*
Use for – Cotton and linen fabric
Notes
* Weight of dry laundry
Drying voluminous and multi-layered fabric whose layers have
different drying characteristics, e.g. jackets, pillows. For drying individual items, e.g. bath towels, swimwear, tea-towels.
you are drying them to find the optimum time.
clean cotton clothing (select a duration of between 1/2 and 1 hour). Items must be suitable for drying in a tumble dryer. Dampen the garments a little beforehand. Odours will not be removed as effectively from any parts of the garments which are made of synthetic fibres.
Minimum iron mixed fibre, cotton or synthetic fabric, e.g. trousers, anoraks, shirts
Suitable for dry and damp laundry. Dry garments are time-controlled, damp garments are smoothed to the Hand iron stage.
Smooths out creasing caused during the spin cycle in the washing machine.
Remove garments as soon as the programme has finished so that they are easy to iron.
23
Changing the programme sequence
You cannot change to another programme once a programme has started (this prevents unintentional alterations).
You will need to cancel the current programme before you can select a new one.
Once a programme has started
- cancelling the programme and then selecting a different programme
Press the Start/Stop button.
^
The items will be cooled down, depending on the temperature reached and how long they have been dried for.
If you press the Start/Stop button again during the cooling down phase, Finish will light up in the display.
^ Press the jk button to switch the
dryer off.
Altering Delay start
See "Delay start".
^
Adding or removing laundry after a programme has started
Press the Door button.
^
Open the door.
^
Add or remove items as required.
^
Close the door.
^
Press the Start/Stop button.
^
Time remaining
The time left shown in the display may now vary from the actual drying time.
^
Press the jk button to switch the dryer back on.
^
Select another programme and start it.
- cancelling the programme and then removing the laundry
^
Proceed as described below in "Adding or removing laundry after a programme has started".
^
Switch the dryer off after closing the door.
24
Emptying the condensed water container
The condensed water will be collected in the condensed water container.
Empty the condensed water container after every drying programme.
If the maximum level of the condensed water container is reached
the programme will be cancelled.
the Empty container light will come
on.
Cleaning and care
Empty the container.
^
^ Replace the container in the dryer.
The indicator light will go out when the door is opened and closed again with the dryer switched on.
^
Pull out the condensed water container.
^
To prevent water running out, hold it at the front and towards the back and keep it in a horizontal position when carrying it.
Condensed water should not be
,
consumed. It could lead to health problems for people and animals.
Condensed water can be put to household use (e.g. in a steam iron or humidifier). To ensure that any residual particles of fluff in the condensed water are removed before use, pass it through a fine sieve or paper filter first.
25
Cleaning and care
Make sure you clean all the filters at the correct intervals
This tumble dryer has a multi-stage filter system, consisting of the fluff
filters and a fine filter.
This dryer must not be used
without the fluff filters or fine filter in place. The grille in the bottom right must always be in place.
Make sure that the fluff filters and
the fine filter are not damaged. Replace them immediately, if they are damaged in any way.
If the above instructions are not
,
observed, an excessive build-up of fluff can occur which in turn can cause a fault.
When to clean the surfaces of the fluff filters
Clean the surfaces of the fluff filters after each drying programme.
The fluff filters located in the door and the door opening collect fluff from items being dried.
^ See "Cleaning the surfaces of the fluff
filters".
When to clean the fine filter
The fine filter only needs to be cleaned when the Clean the filters indicator light comes on.
26
The fine filter is behind the service panel on the bottom left. It collects finer fluff, hair and detergent residues which have got through the surfaces of the fluff filters in the door and the door opening.
^
See "Fine filter".
Cleaning the surfaces of the fluff filters
When to clean
Clean the surfaces of the fluff filters in the door and the door opening after each drying programme.
Cleaning them whilst dry
Note: You can also use a vacuum cleaner to remove the fluff.
Cleaning and care
Use your fingers or a vacuum cleaner
^
to remove the fluff from the surface of the filter.
1 Fluff filter 2 Door seal
^

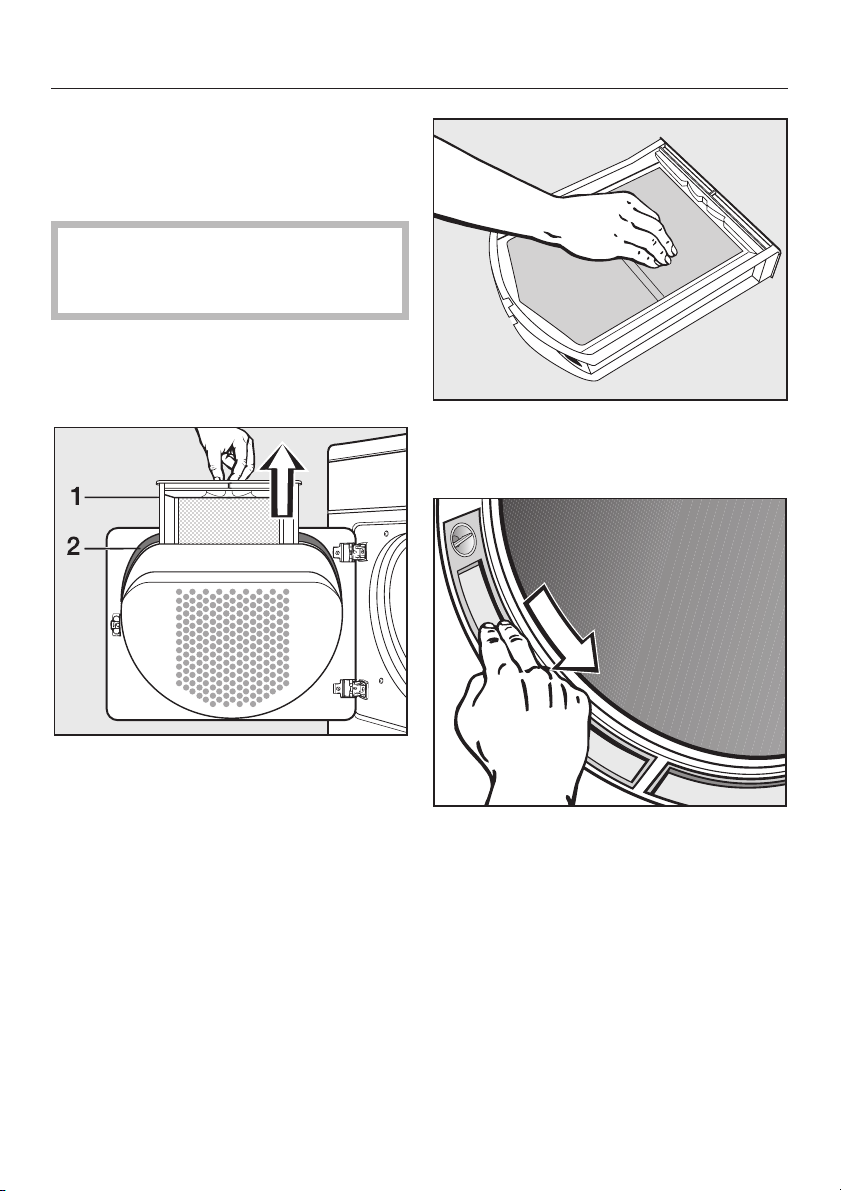

Open the door and pull the fluff filter (1) out of the door as illustrated.
^
Remove any fluff from the hollow part of the door with a bottle brush or a vacuum cleaner.
^
Also clean the door seal (2) with a damp cloth.
^
Use your fingers or a vacuum cleaner to remove the fluff from the two fluff filters in the door opening.
^
Once clean, push the filter back into the door holder until it clicks into position. Ensure it is facing the correct way.
^
Close the door.
27
Cleaning and care
Cleaning with water
If there is a great deal of compacted fluff on any of the filters, they can be removed and cleaned under hot running water.
Open the door and pull the fluff filter
^
out of the door as described previously.
The two filters in the door opening can also be removed if you need to clean them with water.
Replacing the filters
Do not replace the filters if they
,
are damp or wet. Damp or wet filters could cause operational faults.
Push the large filter back into the
^
door holder until it clicks into position. Ensure it is facing the correct way.
Replace the filters in the door
^
opening by first inserting them at the bottom and then pressing them into place at the top.
Lock both dials (you will hear them
^
click).
^
Turn dial a until you hear it click.
^
Pull the filter by the dial out of the door opening as shown b.Dothe same on the other side.
^
Rinse the filters under hot, running water.
^
Dry the filters thoroughly with care.
^
Also clean the airways underneath them, e.g. with a vacuum cleaner.
28
Fine filter
When to clean
Only clean the fine filter when the Clean filter indicator light comes on.
To switch off the Clean filter indicator light:
Remove, clean and replace the fine
^
filter with the tumble dryer switched on.
Removing
On the front left of the tumble dryer:
Cleaning and care
Pull the filter out by the handle.
^
^
Press to open the service panel for the fine filter (see arrow).
The panel will spring open.
^ Pull the handle out of the filter.
Cleaning the fine filter
^
Clean the fine filter thoroughly under running water.
^
Then squeeze the fine filter thoroughly.
,
It must not be replaced dripping wet as this can cause a fault.
^
Use a damp cloth to remove any fluff from the handle.
29
Cleaning and care
Cleaning the cover for the fine filter
Use a damp cloth to remove any
^
fluff. Make sure that you do not damage the rubber seal when doing this.
^ Check whether the cooling fins are
blocked with fluff (as follows).
Cleaning the heat exchanger
Danger of injury.
,
Do not touch the cooling fins. You could cut yourself.
Prevent damage.
,
Carefully pass the vacuum cleaner brush over the surface, without applying any pressure. Otherwise the cooling fins or the struts in front of them could become damaged.
Visible soiling:
30
^
Remove any visible soiling carefully with a vacuum cleaner using a dusting brush or a narrow crevice nozzle.
Replacing
Fit the filter back on the handle. Make
^
sure it is the correct way round.
To ensure that the filter is positioned correctly in the front of the heat exchanger unit:
Cleaning and care
The filter must be fitted correctly and the access flap closed to ensure that water cannot leak from the condenser system and to ensure that the dryer functions efficiently.
Cleaning the tumble dryer
Disconnect the dryer from the mains electricity supply.
Clean the housing, control panel and
^
door seal with a slightly damp cloth and a mild detergent or soapy water.
^ The drum and other stainless steel
parts can be cleaned with a suitable proprietary stainless steel cleaner following the manufacturer's instructions.
Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic sufaces and other parts.
^
First insert the handle with the filter attached over the two guide pins.
Make sure that the yellow dot on the handle is on the right.
^
Push the filter in completely.
^
Close the access flap.
^
Dry all parts with a soft cloth.
31
Problem solving guide
With the help of the following notes, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be put right without contacting the Service Department. However, please note:
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in strict accordance with current local and national safety regulations. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
Check and fault messages
Problem Possible cause Remedy
0-§ lights up and the Gentle tumble check light flashes
0 and Finish light up and the programme is cancelled.
The buzzer sounds. *
The Empty container indicator light comes on and the programme is cancelled.
The buzzer sounds. *
* To switch off the indicator light: Open and shut the door with the dryer switched on.
The electronic system lock is activated.
This is not a fault. The electronic unit has
recognised that there is no laundry or insufficient laundry in the drum and cancelled the programme. Drying individual garments or items which are already dry can also cause the programme to be cancelled.
The condensed water container is full or there is kink in the drain hose.
You will need to deactivate the system lock before the dryer can be used (see "Electronic system lock").
Use the Warm air programme for drying individual items.
Empty the container.
Check the drain hose.
32
Problem solving guide
Problem Possible cause Remedy
The Clean the filters indicator light comes on at the end of the programme.
~F~ appears and a programme cannot be started
Bars are flashing at the end of the programme:
—œ–...C~–...Cœ˜...
The programme will be cancelled.
The buzzer may sound and Cooling down or Finish may also flash in the display.
The Start/Stop indicator light is flashing slowly and the display is dark.
The Start/Stop button flashes/does not flash.
This is a reminder to clean the fine filter in front of the heat exchanger unit under running water.
The fine filter is missing or has been replaced the wrong way round.
Removing the filter during a drying cycle will cause the programme to be cancelled. Cooling down flashes.
The programme has finished but the laundry is still being cooled down.
No obvious cause. – Switch the dryer off and
The dryer is in Standby mode. This is quite normal and not indicative of any fault.
The flashing indicates that a programme can be started.
Clean the fine filter.
See "Cleaning and care".
– To switch off the Clean the
filters indicator light:
Remove, clean and replace
the fine filter with the tumble dryer switched on.
Replace the fine filter
correctly. ~F~ goes out. See "Cleaning and care".
Replace the fine filter.
Switch the dryer off and
back on again.
You can either unload the drum and leave the laundry to cool at room temperature or leave it in the dryer to continue cooling.
back on again.
Then start the programme again.
If this problem happens again, there is a fault. Contact Miele Service.
See "Setting standby" in "Programmable functions"
After the programme has started, the flashing will change to a constant light.
33
Problem solving guide
An unsatisfactory drying result
Problem Possible cause Remedy
The laundry is not sufficiently dry.
Laundry or feather filled pillows smell after drying.
Items made of synthetic fibres are charged with static electricity after drying.
There is a build-up of fluff.
The load consisted of different fabrics.
Note: You can alter the residual moisture level for some programmes
Laundry was washed
with insufficient detergent.
– Feathers are a natural
product and this is quite normal.
Synthetic fibres tend to attract static charge.
Fluff is principally the result of friction when garments are being worn and to some extent when they are being washed. Machine drying causes less fluff to form.
Finish drying using the
Warm air programme. Select a different
programme next time.
See "Programmable functions".
Laundry: Use sufficient
detergent.
– Pillows: The smell will
dissipate after airing.
Static charge can be reduced by adding fabric conditioner to the final rinse in the washing programme or a fabric conditioner sheet to the load when drying.
Fluff is collected by the fluff filters and can be removed easily (see "Cleaning and care").
34
Problem solving guide
Other problems
Problem Possible cause Remedy *
The drying process goes on too long or even switches off.
* Switch the dryer off and then on again before starting the programme.
Ventilation to and from the dryer may be insufficient, e.g. because it is installed in a room which is too small. This can cause the temperature in the room to rise sharply.
Detergent residues, hair
and fine fluff can clog the fluff filters and the fine filters.
– The cooling ribs can be
clogged.
The cool air intake (bottom right grille) is blocked.
The fluff filters and fine filter were wet when replaced.
The laundry has not been spun sufficiently.
The tumble dryer has been overloaded.
Metallic components, e.g. zips have prevented the dryer from registering the correct moisture level in the laundry.
Open a door or window while the dryer is in operation for increased air flow.
Clean the fluff filters and fine
filter. Remove any visible fluff:
. . . From the heat exchanger unit, bottom left, behind the flap in the heat exchanger cavity (see "Cleaning and care"). . . . From the cooling fins behind the grille, bottom right (see this section).
Move any objects, such as a laundry basket, away from the grille.
The fluff filters and fine filter must be dry.
Make sure that your laundry is thoroughly spun at the appropriate spin speed in the washing machine.
Do not exceed the maximum load for the programme selected.
Open zips next time.
If the problem occurs again, dry garments with long zips using the Warm air programme (timed drying).
35
Problem solving guide
Problem Possible cause Remedy
There are humming noises.
The programme does not start.
Power cut. When power is restored, any programme which was
The interior drum lighting does not come on.
The compressor is operating.
No obvious cause.
running will restart automatically.
The lighting switches off automatically (to save energy).
These noises are quite normal and do not indicate a fault.
Is the dryer switched on?
Is the plug correctly
inserted into the socket and switched on?
Is the door closed
properly? Has the fuse or circuit
breaker tripped? If you cannot remedy the
problem, then there could be a fault. Contact Miele Service.
– Switch the dryer off and
then on again.
– If the light needs to be
replaced, follow the instructions in "Changing the light" at the end of this section.
36
Cleaning the cooling fins (bottom right grille)
In general, the cooling fins do
,
not need cleaning. They should only be cleaned if the drying process is taking an exceptionally long time due to a very high level of dust or fluff in the room in which the dryer is installed.
Use the yellow lever supplied to open the bottom right grille.
Problem solving guide
To prevent damaging the
,
cooling fins, only pass the vacuum cleaner brush over them lightly, without applying any pressure.
^ Vacuum up any soiling carefully
using a vacuum cleaner dusting brush or small crevice nozzle.
^
Insert the lever in the middle of the gap at the top and lift it up gently (see arrow) until the grille opens out at the top.
^
Now remove the grille by pulling it diagonally upwards.
^
Check whether the cooling fins are clogged.
,
Danger of injury. Do not touch the cooling fins with your hand. You could cut yourself.
^
To replace the grille, first insert the bottom of the grille (as shown).
^
Then push the grille firmly into position at the top.
37
Problem solving guide
Changing the lamp
Disconnect the tumble dryer from the mains electricity supply.
The light specification and maximum wattage is stated on the data plate and on the light cover.
Open the door.
^
You will find the interior light cover at the top of the drum aperture.
^ Insert a suitable tool, such as a wide
bladed screwdriver, under the side edge of the light cover as illustrated.
^
Apply a little pressure and whilst doing so turn your wrist in the direction of the arrow to open the cover.
Turn the light anti-clockwise to
^
remove.
Replace the lamp.
^
To close the cover push it upwards
^
and press it on the left and right until you hear it click into position.
Ensure that it is fitted into
,
position securely, as any moisture could cause a short circuit.
The cover will open downwards.
The temperature resistant lamp should only be ordered from your Miele Dealer or the Miele Spare Parts Department.
38
After Sales service
Repairs
In the event of any faults which you cannot remedy yourself, please contact
your Miele dealer or
the Miele Service Department (see
back cover for contact details).
When contacting your dealer or the Service Department, please quote the model and serial number of your appliance, both of which are shown on the data plate. This is visible when you open the door.
Future updates (PC)
The indicator or check light marked PC on the fascia panel is the interface used by the Miele service technicians during service work for testing purposes and for updating the appliance's programme data.
Appliance guarantee
In the U.K. your appliance is guaranteed for 2 years from the date of purchase. However you must activate your cover by calling 0845 365 6640 or registering online at www. miele.co.uk.
For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details.
Optional accessories
Optional accessories for this dryer are available from your Miele Dealer, the Miele Spare Parts Department or via the internet at www.miele-shop.com.
N.B. A call-out charge will be applied for service visits where the problem could have been resolved as described in these instructions.
Please note that telephone calls may be monitored and recorded for training purposes.
39
Installation and connection
Front view
a Mains connection cable
b Control panel
c Condensed water container (empty
after every drying programme)
d Door
e Service panel for the fine filter (do
not open during drying)
40
f Four height adjustable screw feet
g Cool air intake grille (do not obstruct
with a laundry basket or other objects)
h External drainage of condensed
water hose (see "External condensed water outlet")
Rear view
a Protruding lid for holding when
moving the dryer (see arrows)
b Mains connection cable
c Hose for external drainage of
condensed water
d Accessories for connection to a sink
drain outlet
Installation and connection

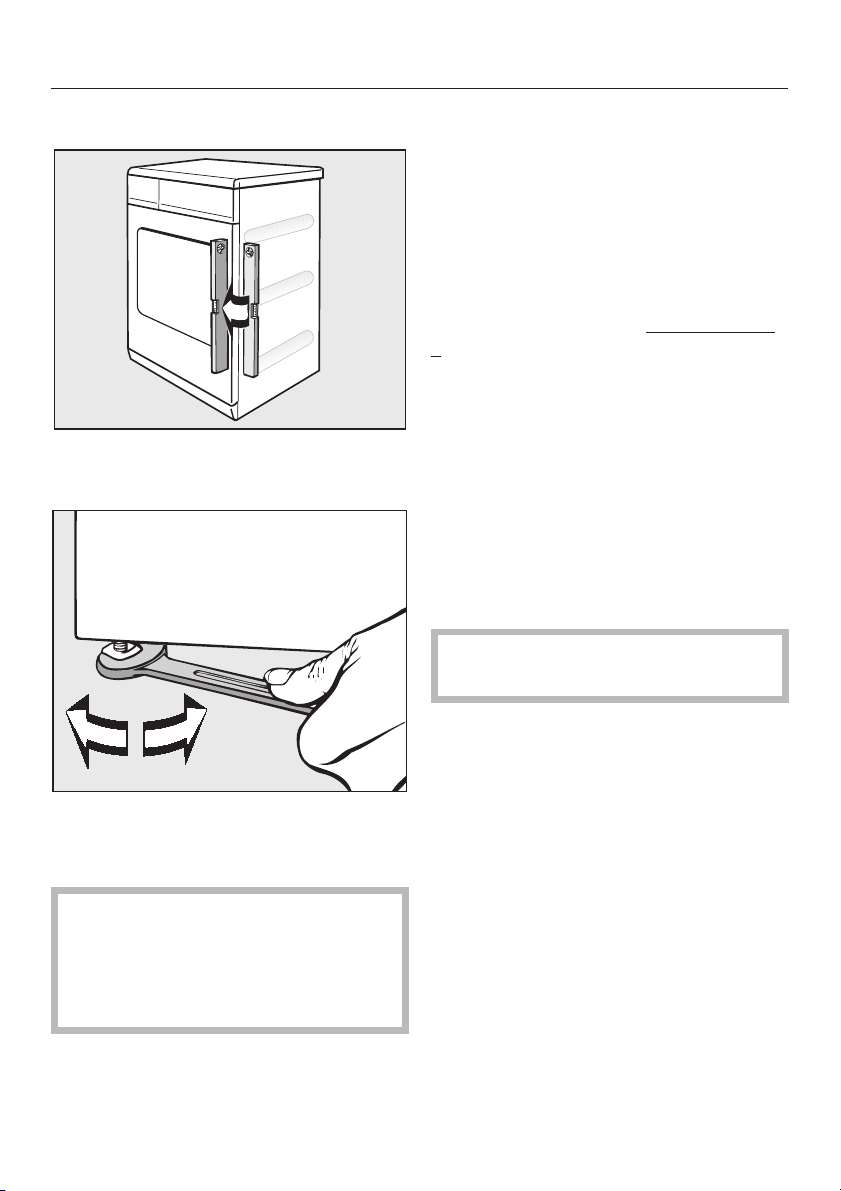

If transporting the dryer at an
,
angle, only tip it towards its left side.
Transporting the dryer
When moving the dryer, hold it by the lid where it protrudes to the rear. To manoeuvre the dryer out of its packing case to its installation site you will also need to hold it by the front feet.
,
Only transport the dryer as shown in the following illustrations.
,
If the tumble dryer has not been transported as described, then it must be left to stand for at least 1 hour before electricity supply. Otherwise the heat pump can be damaged.
it is connected to the
41
Installation and connection
Installation site
Make sure the dryer door can be
,
opened without hindrance after installation.
The cool air intake panel at the
,
front of the dryer must not be blocked or covered, e.g. by a laundry basket, as this would cause a fault.
Building under a continuous worktop/ in a row of kitchen units
It is very important to avoid a
,
build-up of heat. The warm air which is expelled from the rear of the dryer must be able to dissipate. Warm air which cannot dissipate could cause a fault.
A build-up of heat can be avoided by:
Adjusting the screw feet so that there is a gap of at least 20 mm between the floor and the bottom of the dryer.
Creating a gap for the dryer in the kitchen furniture plinth facing.
Creating ventilation gaps in the kitchen unit.
N.B. When built under, drying times may be longer.
The dryer should not be installed
,
next to a refrigeration appliance. The warm air expelled from the rear of the dryer would increase the temperature around the refrigeration appliance's heat exchanger causing the compressor to run continuously. If it is not possible to install the dryer anywhere else, then the refrigeration appliance must be sealed off from the dryer.
A building-under kit (Miele
,
accessory, available to order) with a coverplate to replace the appliance´s lid is required. It must be fitted by a suitably qualified person to ensure electrical safety.
N.B. If you wish to push the tumble dryer under a worktop and there is space to do this without removing the lid the building-under kit is not necessary. Otherwise the building-under kit is essential.
The building-under kit is supplied with its own installation instructions.
N.B. When built under, drying times may be longer.
The electrical socket must be located in an accessible position near the appliance.
With niche heights of:
42
830-840 mm, longer screw feet* are required.
870-885 / 915-930 mm, one or two raising kits* are required.
* Miele accessory available to order
Installation and connection
Levelling the appliance
The appliance must be perfectly level to ensure safe and proper operation.
Before moving the tumble dryer again (e.g. when moving house)
After each use a small quantity of condensed water will collect in the area around the pump. This water can run out if the tumble dryer is tipped up when it is being moved. It is a good idea to run the Cool air programme for approximately 1 minute before moving it. Any remaining condensed water will then be fed into the condensed water container or out through the drain hose.
Washer-dryer stack
The tumble dryer can also be combined with a Miele washing machine in a washer-dryer stack. The appropriate "WTV" stacking kit* to match your dryer is required.
* Miele accessory available to order
,
Stacking kits must only be installed by a suitably qualified fitter.
^
The screw feet can be adjusted to compensate for any unevenness in the floor.
,
Do not block the gap between the bottom of the tumble dryer and the floor with plinth facings, deep pile carpet etc. This would hinder a sufficient flow of air to the dryer.
43
Installation and connection
External condensed water outlet
General notes
When drying is in progress, condensed water is pumped into the condensed water container through the drain hose at the back of the dryer. The condensed water can also be drained off directly if the tumble dryer is installed near a sink, drain outlet etc. so that the condensed water container does not have to be emptied.
Drain hose length ............1.50 m
Maximum delivery head .......1.50 m
Maximum drain hose length ....4.00 m
If the on-site water drainage
,
system is not fitted with a non-return valve or an appropriate air gap, one must be fitted to prevent the risk of back-flow. (See "Installation conditions requiring a non-return valve").
There will be a small amount of
^
residual water in the drain hose. Have a container ready to collect this.

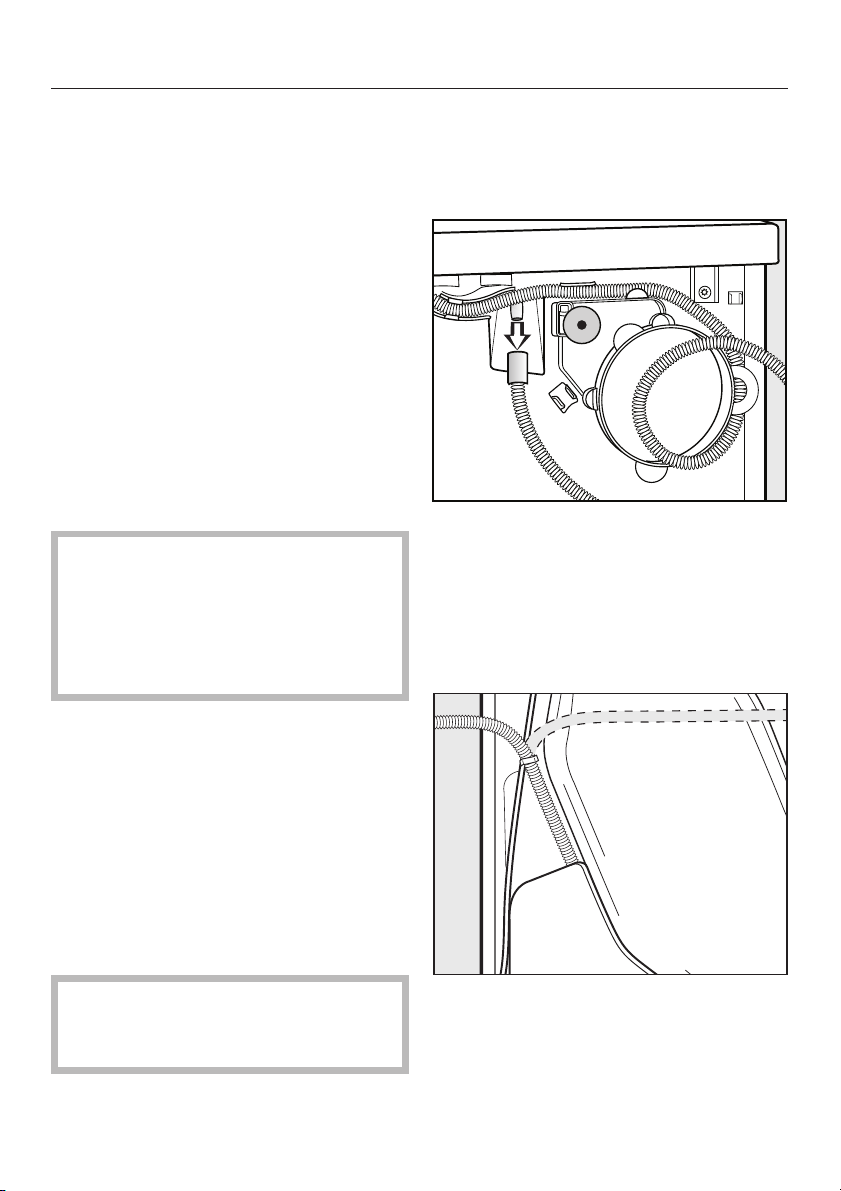

^ Pull the hose off its connection (see
arrow).
^ Allow any residual water to run into
the container.
^ Unwind the hose and pull it carefully
out of the holders.
The following optional accessories are available:
an extension hose
a non-return valve kit for connection to an external condensed water outlet (includes an extension hose). Maximum delivery head with non-return valve fitted: 1.00 m
Arranging the drain hose
,
Do not pull on the drain hose and do not stretch it or allow it to become kinked as it could get damaged.
44
^
Position the hose to the right or left hand side as necessary.
Leave the hose in the middle holder to prevent it from becoming kinked inadvertently.
Installation and connection
External drainage via a sink or gully
See "Front view" illustration.
^
If you want to drain the water off
,
into a sink you will need to secure the hose carefully, e.g. by tying it to a tap to make sure it cannot slip during use. Otherwise there is a risk of overflowing water which could cause damage.
Use the bow-shaped guide to
^
prevent the drain hose from becoming kinked.
Installation conditions requiring a non-return valve
Certain installation conditions
,
require the fitting of a non-return valve for external water connection (available as an
optional accessory). A non-return valve will prevent the risk of back-flow out of the dryer which could cause damage.
Example: Connection to a sink drain outlet
The drain hose with non-return valve fitted can be connected directly to a suitable sink drain outlet.
^ Remove the following from the back
of the dryer at the top: Adapter 1 and hose clip 3 behind it.
A non-return valve is required:
If the tumble dryer is connected to a sink drain outlet (see the following section).
If the tumble dryer is connected to a drainage system already in use by another appliance, e.g. a dishwasher or washing machine.
45
Installation and connection
1 Adapter
Fit adapter 1 to the sink drain outlet
^
using nut 2.
If this nut has a flat disc in it you should take the disc out first.
Attach the end of hose 4 to adapter
^
1.
Use a screwdriver to tighten hose
^
clip 3 up close to the nut.
Non-return valve 5 has to be
,
fitted with the arrow pointing in the direction of flow (i.e. towards the sink). Otherwise water will not drain out of the appliance.
2 Nut
3 Hose clip
4 End of the hose
5 Non-return valve
6 Tumble dryer drain hose
^ Fit non-return valve 5 to tumble dryer
drain hose 6 (make sure it is fitted in the correct direction - see arrow on non-return valve).
^ Secure the non-return valve using
hose clips.
46
Electrical connection
Electrical connection U.K.
All electrical work should be carried out by a suitably qualified and competent person, in strict accordance with current national and local safety regulations (BS 7671 in the UK).
Ensure power is not supplied to the appliance until after installation work has been carried out.
The appliance is supplied with a mains cable with moulded plug ready for connection to a 230-240V mains supply. Please ensure the connection data quoted on the data plate match the household mains supply.
Connection should be made via a suitable switched socket which is easily accessible after installation.
For extra safety it is advisable to protect the appliance with a suitable residual current device (RCD). Contact a qualified electrician for advice.
Non-rewireable plugs BS 1363
The fuse cover must be refitted when changing the fuse, and if the fuse cover is lost, the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is embossed in words on the base of the plug (as applicable to the design of plug fitted).
Replacement fuses should be ASTA approved to BS 1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.
WARNING: THIS APPLIANCE MUST BE EARTHED
Do not connect via an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).
47
Consumption data
1
Load
Cottons Normal
Cottons Normal 8.0
Cottons Normal + Gentle tumble 8.0 1000 60 2,05 140
Cottons Hand iron rr 8.0
Minimum iron Normal 3.5 1200 40 0,60 47
Minimum iron Normal + Gentle tumble 3.5 1200 40 0,65 49
Minimum iron Hand iron 3.5 1200 40 0,50 41
Automatic plus Normal 5.0 800 50 1,50 99
Shirts Normal + Gentle tumble
Gentle smoothing 1.0 1000 60 0,35 30
Proofing Normal 2.0 800 50 1,25 85
Denim Normal + Gentle tumble
Express Normal 3.5 1000 60 1,10 75
Woollens 2.0 1000 50 0,20 20
Cottons Hygiene Normal 3.5 1000 60 1,90 126
1
Weight of dry laundry
2
Test programme in accordance with Regulation 392/2012/EU for energy labelling measured in
accordance with EN 61121.
All data was calculated using EN 61121 unless otherwise stated.
Notes for test institutes:
When selecting the Cottons programme, drain the condensed water away through the drainage hose.
Before testing in accordance with EN 61121, drya3kgload of cotton laundry with 70% residual moisture as per the above standard using the Cottons Normal programme without any extra options.
Consumption data can vary from the nominal values given above depending on the size of the load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity supply and any extra options selected.
2
kg rpm % kWh Minutes
8.0
4.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
2.0
2.0
3.0
3.0
Final spin speed
in a domestic washing
machine
1000 1000
1200 1400 1600 1800
1000 1200 1400 1600 1800
600 600
900 900
Residual moisture
60 60
53 50 44 43
60 53 50 44 43
60 60
60 60
Energy Duration
2,18 1,32
1,95 1,85 1,65 1,60
1,55 1,35 1,25 1,10 1,05
0,70 0,75
1,40 1,45
147
89
133 126 113 110
99 87 81 69 67
53 59
94 99
48
Height 850 mm
Width 595 mm
Depth 596 mm
Depth with door open 1071 mm
Height for building under 820 mm
Width for building under 600 mm
Depth for building under 600 mm
Suitable for pushing under a worktop
Suitable for stacking Yes
Weight 61 kg
Drum volume 111 litres
Maximum capacity 1-8 kg dry weight
Capacity of condensed water container
Hose length 1.5 m
Maximum delivery head 1.5 m
Maximum drain hose length 4 m
Length of connection cable 2 m
Voltage
Connected load
Fuse rating See data plate
Light wattage
Test certificates awarded
Energy consumption see "Consumption data"
Yes
Approx. 4.2 litres
Technical data
49
Electronic system lock and Programmable functions for altering default settings
50
The system lock prevents the dryer being used without your knowledge.
It can be activated if wished.
The dryer's electronics are then locked. The dryer can still be switched on but a programme cannot be started.
If an attempt is made to start a
programme, the indicator light for the Gentle tumble button will come on and a key symbol 0-§ will appear in the display.
The door is not locked and can be opened at any time.
To activate the lock
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
A Press the Gentle tumble button and
keep it pressed in whilst carrying out steps B to E.
B Press the jk button.
The Automatic plus indicator light will come on.
:
Electronic system lock
D Now slowly turn the programme
selector six positions stage by stage in an anti-clockwise direction. Each of the six programme indicator lights must come on one after the other.
The indicator light for the Gentle tumble button will flash, and the key symbol 0-§ will appear in the display.
E Release the Gentle tumble button.
The electronics have now been locked.
Switch the dryer off.
^
To deactivate the lock
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
^ The procedure is the same as for
activating the lock. Carry out steps A to E as described previously.
At step E the indicator light for the Gentle tumble button will stop flashing and the key symbol 0-§ will go out.
The electronics are no longer locked.
:
C Slowly turn the programme selector
three positions stage by stage in a clockwise direction. Each of the three programme indicator lights must come on one after the other.
51
Programmable functions
Altering the residual moisture level in the Cottons programme
The tumble dryer is designed to dry effectively using as little energy as possible. However, if you require the laundry to be drier or damper, you can reduce or increase the default residual moisture in the Cottons programme.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
A number to show which option is selected will appear in the display alternating with the letter P.
0 Increased residual moisture.
Laundry damper.
I Standard residual moisture
(factory default setting)
(the Automatic plus indicator light will also flash once).
2 Reduced residual moisture.
Laundry drier.
(the Automatic plus indicator light will also flash twice).
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
The Gentle tumble indicator light will flash once briefly.
D Pressing the Start/Stop button
switches between the options.
E Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^
Carry out steps A to C.
^
Switch the dryer off after step C.
52
Altering the residual moisture level in the Minimum iron programme
The tumble dryer is designed to dry effectively using as little energy as possible. However, if you require the laundry to be drier or damper, you can reduce or increase the default residual moisture in the Minimum iron programme.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
Programmable functions
A number to show which option is selected will appear in the display alternating with the letter P.
0 Increased residual moisture.
Laundry damper.
I Standard residual moisture
(factory default setting)
(the Automatic plus indicator light will also flash once).
2 Reduced residual moisture.
Laundry drier.
(the Automatic plus indicator light will also flash twice).
E Pressing the Start/Stop button
switches between the options.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button once.
The Gentle tumble indicator light will flash twice briefly.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^
Carry out steps A to D.
^
Switch the dryer off after step D.
53
Programmable functions
Anti-crease
Anti-crease helps prevent creasing, if laundry is not normally removed im mediately after the end of a programme.
The anti-crease function
is activated when the tumble dryer is
delivered. You can shorten the duration of the anti-crease phase or deactivate it if wished.
is used in all programmes except
Woollens.
– should be left activated.
A number to show which option is selected will appear in the display
-
alternating with the letter P.
0 Anti-crease off
I 1 hour anti-crease
(the Automatic plus indicator light will also flash once).
2 2 hours anti-crease
(factory default setting) (the Automatic plus indicator light will also flash twice).
E Pressing the Start/Stop button
switches between the options.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button
twice.
The Gentle tumble indicator light will flash 3 times briefly.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^
Switch the dryer off after step D.
54
Altering the volume of the buzzer
The buzzer has two volumes.
Programmable functions
A number to show which option is selected will appear in the display alternating with the letter P.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
The tumble dryer is switched off.
The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button three
times.
– The Gentle tumble indicator light will
flash four times briefly.
0 Normal buzzer
(factory default setting)
I Loud buzzer
(the Automatic plus indicator light will also flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
55
Programmable functions
Altering the residual moisture level in the Automatic plus programme
The tumble dryer is designed to dry effectively using as little energy as possible. However, if you require the laundry to be drier or damper, you can reduce or increase the default residual moisture in the Automatic plus programme.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
A number to show which option is selected will appear in the display alternating with the letter P.
0 Increased residual moisture.
Laundry damper.
I Standard residual moisture
(factory default setting)
(the Automatic plus indicator light will also flash once).
2 Reduced residual moisture.
Laundry drier.
(the Automatic plus indicator light will also flash twice).
E Pressing the Start/Stop button
switches between the options.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button four
times.
The Gentle tumble indicator light will flash six times briefly.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^
Carry out steps A to D.
^
Switch the dryer off after step D.
56
Programmable functions
Standby
To save energy, the display and the programme sequence/check lights go out after 10 minutes and the Start/Stop button starts flashing slowly.
To come out of standby mode
Turn the programme selector or
^
press a button. Neither will have any effect if a programme is running.
On
The standby function is activated and the display and programme sequence/check lights will go out after 10 minutes:
– if a programme is not selected after
the dryer has been switched on.
– after a programme has started.
They will, however, come on for 10 minutes after a delay start time has counted down, at the end of the programme or the end of the anti-crease phase. The buzzer (if selected ) will sound for 10 minutes at the end of the programme.
Factory default setting: Not in current programme
As described under "On" above. However, the display and programme sequence/check lights will stay on after the programme has started and remain visible during the programme.
Off
The display and programme sequence/check lights will stay on while the dryer is switched on.
Follow steps (A,B,C ...) to programme and store in memory.
^ See next page.
57
Programmable functions
Before you begin, ensure that:
The tumble dryer is switched off.
The door is closed.
A number to show which option is selected will appear in the display alternating with the letter P.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button five
times.
– The Gentle tumble indicator light will
flash 8 times briefly.
0 On
I Not in current programme
(factory default setting)
(the Automatic plus indicator light will also flash once).
2 Off
(the Automatic plus indicator light will also flash twice).
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^
Switch the dryer off after step D.
58
Memory function
The electronics will memorise any extra options selected for a programme. The duration selected for the Warm air or Cool air timed drying programmes will also be stored in memory. These settings will be selected automatically the next time the programme is chosen. You can either accept these or change them by pressing the appropriate button.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps B-C.
Programmable functions
A number to show which option is selected will appear in the display alternating with the letter P.
0 Memory deactivated
(factory default setting)
I Memory activated
(the Automatic plus indicator light will also flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button six
times.
The Gentle tumble indicator light will flash 9 times briefly.
59
Programmable functions
Keypad tone
An audible tone sounds each time a button is pressed.
A number to show which option is selected will appear in the display alternating with the letter P.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
The tumble dryer is switched off.
The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button
seven times.
– The Gentle tumble indicator light will
flash on and off slowly once and then on and off quickly once.
0 Keypad tone deactivated
(factory default setting)
I Keypad tone activated
(the Automatic plus indicator light will also flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
60
Programmable functions
Adjusting the dryer's electronics for very soft water
In some areas of the UK, water is
,
extremely soft which can affect the sensitivity of the control electronics. If the dryer is installed in an area of very soft water, you should contact your local water supplier for information and advice regarding water hardness and water conductivity. If the water conductivity is less than 150 µS, the following programmable function will need to be activated.
Important. This programmable function should not be activated if, despite the water being extremely soft (as would be the case if a water softener were used), its conductivity is greater than 150 µS.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
The tumble dryer is switched off.
The door is closed.
The Gentle tumble indicator light will
flash on and off slowly once and then on and off quickly twice.
A number to show which option is selected will appear in the display alternating with the letter P.
0 Factory default setting
I Adjusted for very soft water
(the Automatic plus indicator light will also flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button eight
times.
61
Programmable functions
Extending the range of the drying levels
You can extend the range of the drying levels for many of the programmes:
Machine iron+
(drier than Machine iron).
Slightly dry
(drier than Hand iron).
Normal+
(drier than Normal).
This programmable function is only available for programmes with drying levels.
Follow steps (A,B,C ...) to programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up constantly ...
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button nine
times.
The Gentle tumble indicator light will flash on and off slowly once and then on and off quickly three times.
A number to show which option is selected will appear in the display alternating with the letter P.
0 Factory default setting
I Drying level range extended
(The Automatic plus indicator light will also flash).
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now stored in memory. You can change it again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
To select the extended drying level
^ Select a programme.
^
Press the drying level button repeatedly until one or two indicator lights come on.
Indicator lights Extra dry and Normal = Normal+
Indicator lights Normal and Hand iron = Slightly dry
Indicator lights Hand iron and Machine iron = Machine iron+
62
Optional accessories for this dryer are available from your Miele Dealer or from the Miele Spare Parts Department,
or via the internet at www.miele-shop.com.
Fragrance flacon
For a pleasant fragrance when drying your laundry.
Holder for fragrance flacon
The holder is required to fit the fragrance flacon to the fluff filter.
The holder comes with its own instructions.
Optional accessories
Dryer basket
This enables items which must not be subjected to mechanical action to be dried or aired.
The dryer basket comes with its own instructions.
63
Alteration rights reserved/0113
M.-Nr. 09 388 540 / 02
Loading...
