Operating instructions
Vacuum cleaners
S 700 series
To avoid the risk or accidents or damage
to the appliance, it is essential to read these
instructions before using it for the first time.
These operating instructions apply to
standard models S 770 - S 778 as well as to
other S 700 series vacuum cleaners which are
distinguished by names rather than numbers.
en-GB
HS05
M.-Nr. 09 395 970
Contents
Caring for our environment .........................................3
Description of the appliance.........................................4
Warning and Safety instructions .....................................6
Preparing for use .................................................10
Using the accessories supplied .....................................13
Use ............................................................14
Mains cable ......................................................14
To switch on and off................................................14
Adjusting the suction power .........................................15
Opening the air inlet valve on the handle ...............................16
Setting down, transportation and storage.............................17
Parking system for pauses in vacuuming ...............................17
Parking system for storage ...........................................18
Maintenance and care .............................................19
Purchasing new dustbags and filters ..................................19
When to change the dustbag ........................................20
Replacing the dustbag .............................................21
When to change the dust compartment filter (for motor protection) ...........22
How to change the dust compartment filter .............................22
When to change the exhaust filter .....................................22
Replacing the Air Clean filter .........................................23
Replacing an Active Air Clean filter or an Active HEPA filter.................24
Replacing one type of exhaust filter with another .........................25
When to change the thread lifters .....................................26
To replace the thread lifters..........................................26
Cleaning and care ................................................27
Problem solving guide / After sales service ...........................28
Optional accessories..............................................29
Electrical connection for the UK ....................................31
2
Caring for our environment
Disposal of packing material
The packaging is designed to protect
the vacuum cleaner from damage
during transportation. The packaging
materials used are selected from
materials which are environmentally
friendly for disposal and should be
recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposing of the dustbag and
filters
These are made from environmentally
friendly materials. The filters can be
disposed of with the normal household
waste. The dustbag can also be
disposed of in this way if it has been
used exclusively for general household
dust.
Disposing of your old
appliance
Before disposing of your old appliance
remove the dustbag and all the filters
and dispose of them with your normal
household waste.
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre, or contact your dealer for
advice.
Ensure that it presents no danger to
children while being stored for
disposal.
3
Description of the appliance
4
Description of the appliance
a Handle
b Air inlet valve
c Release button
d Easy lock, telescopic or triscopic suction tube *
e Suction tube release button *
f Dust compartment release button
g Dust compartment filter (for motor protection)
h Dustbag
i Floorhead *
j Carrying handle
k Parking system for storage
l Exhaust filter *
m Mains cable
n Foot control for automatic cable rewind
o Suction power selector
p Parking system for pauses in vacuuming
q On/Off foot control
r Accessories compartment
s Dustbag change indicator
t Release button for accessories compartment
u Connection socket
v Suction hose
The illustration shows the maximum number of features available on these Miele
vacuum cleaners.
Features marked * depend on the model, and may vary or not be available on
your model.
5
Warning and Safety instructions
This vacuum cleaner meets statutory safety requirements.
Improper use can, however, lead to personal injury and damage
to property.
To avoid the risk of accidents and damage to the vacuum
cleaner, please read these instructions carefully before using it
for the first time. They contain important information on its safety,
operation and maintenance.
Keep these instructions in a safe place and ensure new users are
familiar with the content. Pass them on to any future owner.
Always disconnect the vacuum cleaner from the mains supply
when you have finished using it, before changing over
accessories, as well as for maintenance work and cleaning.
Switch it off at the wall socket and unplug it.
Correct application
This vacuum cleaner is not designed for commercial use. It is
~
intended for use in domestic households and similar working and
residential environments.
The vacuum cleaner is not intended for outdoor use.
~
The vacuum cleaner must only be used for domestic household
~
purposes to vacuum dry floor surfaces. Do not use on people or
animals. Any other usage, modification or alteration is not supported
by the manufacturer and could be dangerous.
This appliance can only be used by people with reduced
~
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and understand the hazards
involved.
6
Warning and Safety instructions
Safety with children
This vacuum cleaner is not a toy! To prevent the risk of injury, do
~
not let children play with the appliance or its controls.
Children under 8 years of age must be kept away from the
~
appliance unless they are constantly supervised.
Children 8 years and older may only use, clean or maintain the
~
vacuum cleaner without supervision if they have been shown how to
do so in a safe way and understand the hazards involved.
Technical safety
Before using the vacuum cleaner, check for any visible signs of
~
damage. Do not use a damaged appliance.
Ensure that the connection data on the data plate (voltage and
~
frequency) match the mains electricity supply exactly.
The plug must be fitted with a 13 A fuse (UK).
~
While the vacuum cleaner is under guarantee, repairs should only
~
be undertaken by a service technician authorised by Miele.
Otherwise the guarantee will be invalidated.
Do not pull or carry the vacuum cleaner by the cable and be
~
careful not to damage the cable when withdrawing the plug from the
socket. Keep the cable away from sharp edges and do not let it get
squashed, for example, under a door.
Avoid running the vacuum cleaner over the cable.
This could damage the cable, plug or socket. The appliance must
not be used if any of these have suffered damage.
Do not use the vacuum cleaner if the cable is damaged. If the
~
cable is damaged it must be replaced together with a complete
cable rewind. For safety reasons this work must be done by the
Miele Service Department or a Miele authorised service technician.
7
Warning and Safety instructions
When vacuuming especially fine dust, e.g. sawdust, sand,
~
plaster, flour, talcum powder etc., electrostatic charges build up
naturally. Under certain conditions these charges will be released.
To avoid the unpleasant effects of these discharges, a metal inlay
has been incorporated into the underside of the handle. Please
make sure that you keep your hand in constant contact with this
metal strip during vacuuming.
Do not let the vacuum cleaner get wet. Clean only with a dry cloth
~
or slightly damp cloth when disconnected from the mains supply.
Repairs should only be carried out by a Miele authorised service
~
technician. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised
work.
Correct use
To avoid the risk of damage, do not use the vacuum cleaner
~
without the dustbag, dust compartment filter and exhaust filter in
place.
If the dustbag is not fitted correctly, the dust compartment cover
~
does not normally close. Do not force it.
Do not vacuum up anything which has been burning or is still
~
glowing e.g. cigarettes, ashes or coal, whether glowing or
apparently extinguished.
Do not vacuum up any water, liquid or damp dirt. Wait until any
~
freshly cleaned or shampooed carpets or floor coverings are
completely dry before attempting to vacuum.
Do not vacuum toner dust. Toner, such as that used in printers
~
and photocopiers, can conduct electricity.
8
Warning and Safety instructions
Do not vacuum up any inflammable or combustible matter or
~
gases and do not vacuum in areas where such substances are
stored.
Floor attachments, accessories and tubes must not be used at
~
head level to avoid the risk of injury, e.g. to eyes and ears.
Accessories
To avoid the risk of injury when vacuuming with a Miele
~
Turbobrush, do not touch the rotating roller brush.
It is not advisable to vacuum directly with the handle, i.e. without
~
an accessory attached, as the rim could get damaged and you
could hurt yourself on sharp edges.
Only use genuine dustbags, filters, accessories and optional
~
accessories with the "Original Miele" logo on them. This will ensure
optimum performance of the appliance throughout its life.
Miele cannot be held liable for damage caused by incorrect use
or operation or by non-compliance with these Warning and Safety
instructions.
9
Preparing for use
Connecting the suction hose
Insert the hose connector into the
^
socket until it clicks into position.
Removing the suction hose
from the cleaner
^ Press the release buttons at the side
of the hose connector, and lift the
hose from the socket.
Your vacuum cleaner is fitted with one
of the following suction tubes,
depending on model:
–
EasyLock suction tube
–
Telescopic suction tube
–
Triscopic suction tube

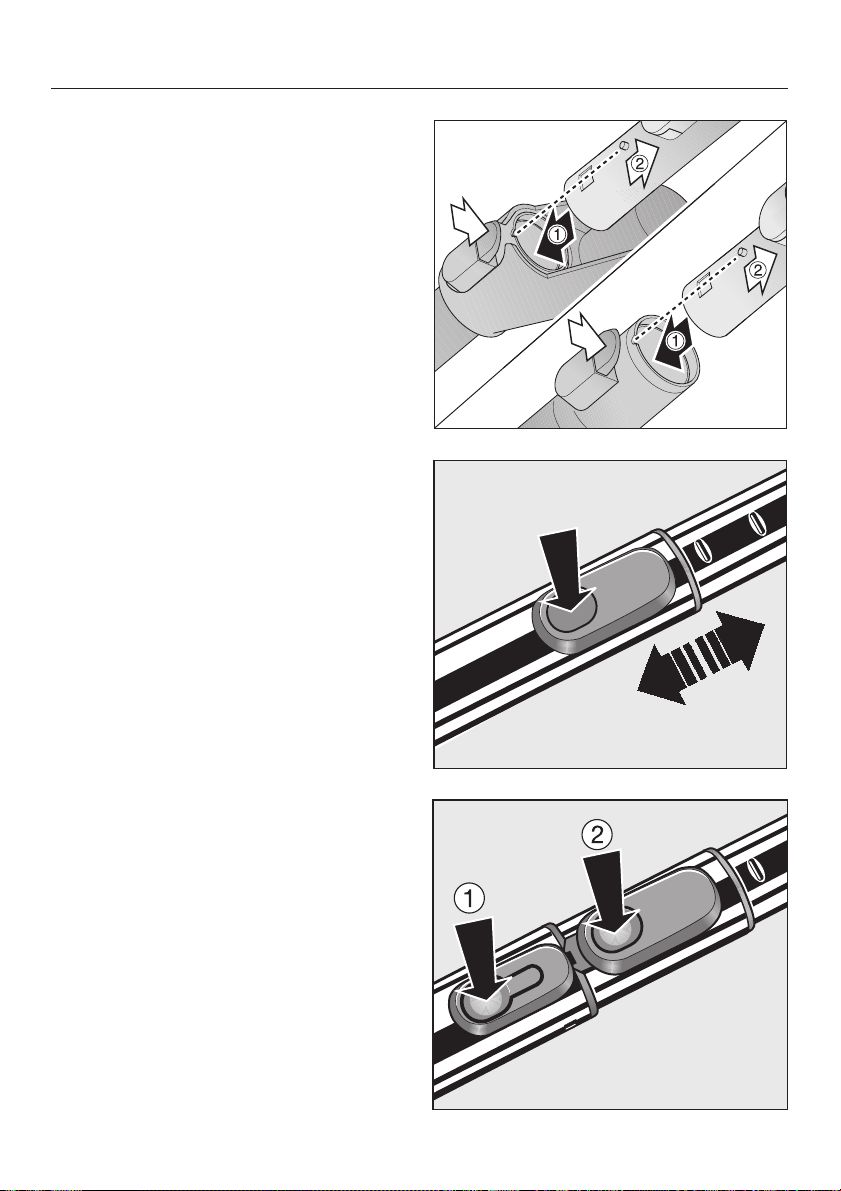

Connecting the EasyLock
suction tube sections
^
Take the section with the connecting
piece, insert it into the other section
and turn it clockwise or
anti-clockwise until it clicks into
position.
^
Push the connecting piece upwards
until it clicks into position.
10
Connecting the handle to the
suction tube
Insert the handle into the suction tube
^
until it clicks into position. To do this,
line up the guides on the two pieces.
To release the handle from the
^
suction tube, press the release
button and pull the handle away from
the suction tube.
Adjusting the telescopic
suction tube
One part of the telescopic tube is
packed inside the other and can be
adjusted to suit your height for
comfortable vacuum cleaning.
Preparing for use
^ Press the telescopic tube release
button (see arrow) to release the
tubes and adjust to the required
height.
Adjusting the triscopic suction
tube
The triscopic tube has three sections.
Two sections are packed together
inside a third outer tube.
^
Press the release button (see arrow
a) to release the lower tube and pull
it right out until it clicks. Press the
button again when you want to retract
the tube. The tube will click into place.
^
Press button b and pull the
adjustable tube out to the required
height.
11
Preparing for use

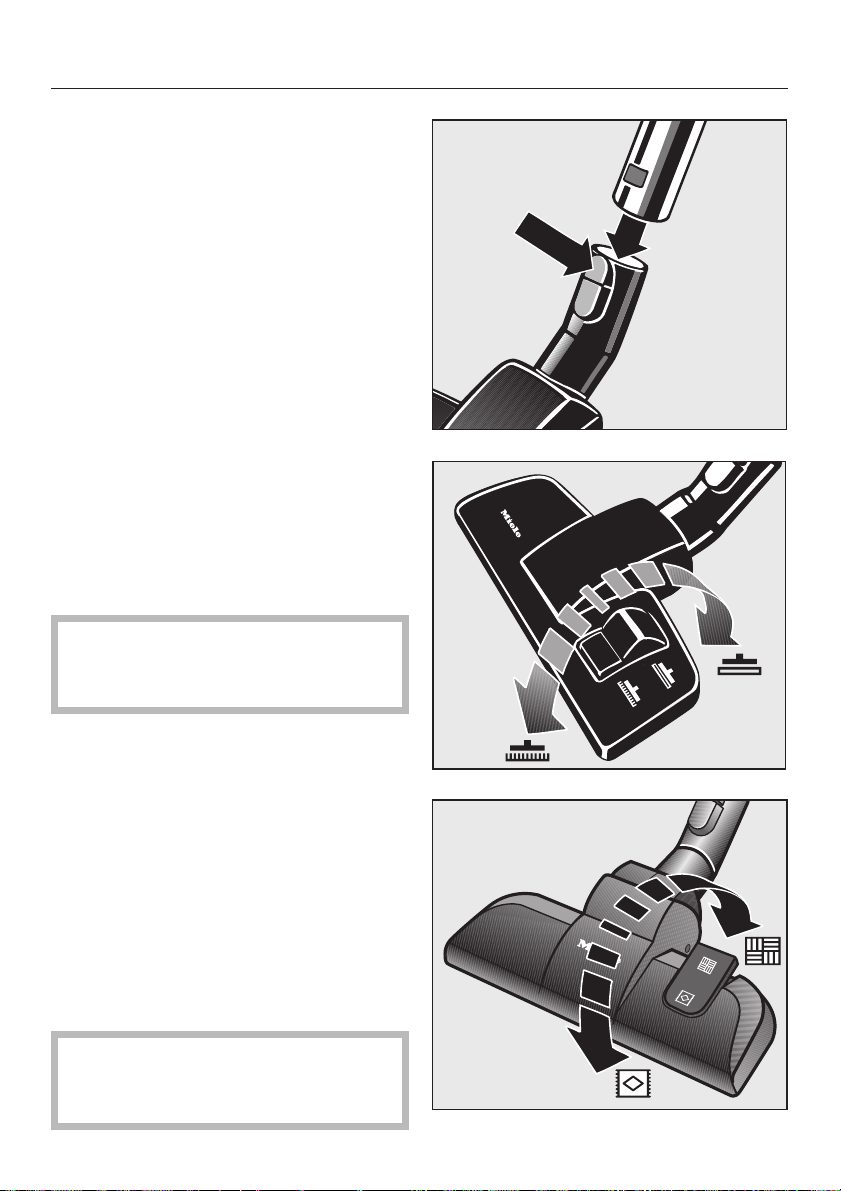

Fitting the standard floorhead
Push the suction tube into the
^
floorhead and turn it clockwise or
anti-clockwise until it clicks into
position.
To release the floorhead from the
^
suction tube, press the release
button (see arrow) and pull the
suction tube away from the floorhead.
The floorhead can be used for all
normal cleaning of carpets and rugs. It
can also be used with the brush
protruding to vacuum hard flooring. For
hard flooring, such as stone and
parquet, we recommend using one of
the special Miele floor brushes (see
"Optional accessories").
Adjusting the standard
floorhead
It is important to observe the flooring
manufacturer's cleaning and care
instructions.
Depending on model, the floorhead will
have the following symbols:
–
ö and ä
–
% and )
Vacuum carpets and rugs with the
brush retracted:
^
Press the ö or % foot control.
Clean hard flooring which is not
susceptible to scratching with the brush
protruding:
^
Press the ä or ) foot control.
Clean flooring which has deep
crevices or grooves with the brush
protruding.
12
Using the accessories supplied
a Crevice nozzle
For cleaning in folds, crevices or
corners.
b Dusting brush
For cleaning skirting boards, ornate
or carved objects.
The head can be swivelled to adjust
the angle.
c Upholstery nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers etc.
To open the accessories
compartment
^ Press the release button to open the
accessories compartment lid.
^ Take out the accessory you require.
^ Press down firmly on the lid to close
it.
Floorhead
For general use and also for vacuuming
stairs.
Warning: For safety reasons when
vacuuming stairs it is best to start at
the bottom of the stairs and move
upwards.
13
Use
Mains cable
Unwinding the cable
Pull the mains cable out to the
^
required length (max. approx. 5.5 m).
Insert the plug in the socket correctly.
^
Warning: If vacuuming for longer
than 30 minutes, the mains cable
must be pulled out to its fullest
extent. Otherwise there is a danger
of overheating and damage.
Rewinding the cable
^ Switch off at the wall socket and
unplug it.
^ Press the rewind foot control. The
cable will rewind automatically.
To switch on and off
^
Step on the On/Off foot control.
14
Adjusting the suction power
The suction power can be regulated to
suit the type of flooring being cleaned.
Reducing the suction power reduces
the amount of effort required to
manoeuvre the floorhead.
Some models also have symbols on the
controls. The symbols indicate the type
of use the settings are suitable for:
# - curtains, lightweight fabrics
$ - upholstery, cushions
% - thick pile carpets, rugs and
runners
* - for daily energy-saving vacuuming
(this setting is also very quiet)
( - loop-pile carpets
) - hard flooring and for intensive
cleaning of carpets
Use
^
Turn the suction power selector
manually to the suction power setting
you require.
15
Use
Opening the air inlet valve on
the handle
It is easy to reduce the suction power
for a short time, e.g. to prevent rugs or
other objects being sucked into the
vacuum cleaner.
Open the air inlet valve far enough to
^
reduce the suction power.
The floorhead will be easier to
manoeuvre. Close the valve when you
are ready to use full power again.
Vacuuming
^ When vacuuming, pull the cleaner
behind you on its wheels. You can
stand it upright for vacuuming stairs
and curtains etc.
Warning: When vacuuming
especially fine dust, e.g. sawdust,
sand, plaster, flour, talcum powder
etc., electrostatic charges build up
naturally. Under certain conditions
these charges will be released. To
avoid the unpleasant effects of these
discharges, a metal inlay has been
incorporated into the underside of
the handle. Please make sure that
you keep your hand in constant
contact with this metal strip during
vacuuming.
16
Setting down, transportation and storage
Parking system for pauses in
vacuuming
The parking system allows you to
conveniently park the vacuum cleaner
during pauses.
Slot the floorhead into the parking
^
attachment at the back of the
vacuum cleaner.
If the vacuum cleaner is on a sloping
suface, e.g. a ramp
- retract the telescopic / triscopic
suction tube fully
- do not use the parking system with
an EasyLock suction tube.
17
Setting down, transportation and storage
Parking system for storage
Warning. Always disconnect the
vacuum cleaner from the electrical
supply when you have finished
using it. Switch off at the wall socket
and unplug it.
If your vacuum cleaner has an
EasyLock tube you can separate the
suction tube sections for storage.
Press the release button on the
^
bottom section and pull the top
section of the suction tube out.
^ Push the connection piece of the top
section onto the bottom section.
^ Stand the vacuum cleaner upright
when it is not being used and when it
is being stored.
If your vacuum cleaner has a
telescopic / triscopic tube, retract it
fully so that it takes up less room for
storage.
^
Slot the floorhead downwards into the
parking attachment on the side of the
vacuum cleaner.
This makes the cleaner easier to carry
or store.
18
Warning: Always disconnect the
vacuum cleaner from the electrical
supply before any maintenance
work. Switch off at the wall socket
and unplug it.
The Miele filtration system consists of
three filters which must be replaced
from time to time to ensure that your
vacuum cleaner performs efficiently.
Dustbag
–
Dust compartment filter (for motor
–
protection)
– Exhaust filter
Only use genuine dustbags, filters,
accessories and optional
accessories with the "Original Miele"
logo on them. Only this will ensure
that the suction power of the
vacuum cleaner is maintained,
giving the best possible cleaning
results.
Maintenance and care
Purchasing new dustbags and
filters
Original Miele dustbags and filters can
be ordered from your Miele retailer,
from Miele or online at:
Only use original Miele F/J/M dustbags
with a red collar. Using any other
dustbags will damage the vacuum
cleaner. Original Miele dustbags are
identified by the "Original Miele" logo on
the packaging or directly on the
dustbag.
Warning: The use of dustbags made
from paper or paper-based
materials, or dustbags with a
cardboard collar, or dustbags that
do not carry the "Original Miele"
logo, can seriously damage the
vacuum cleaner and invalidate the
warranty.
An Air Clean filter and a dust
compartment filter are supplied with
every packet of Miele dustbags.
These can also be purchased
separately.
You can replace the exhaust filter fitted
in the vacuum cleaner with one of the
other Miele exhaust filters if you wish
(see "Optional accessories").
19
Maintenance and care
When to change the dustbag
Change the dustbag when the colour
marker in the dustbag change indicator
fills the display, or sooner if it is no
longer effective (see possible reasons
for this below).
Miele dustbags are disposable and
designed to be used only once.
Dispose of the dustbag when it is
full. Do not attempt to reuse it as
suction would be reduced.
Checking the dustbag change
indicator
^ Attach the standard floorhead to the
suction tube. Do not use any of the
other floorheads or attachments as
they will cause the dustbag change
indicator to give a false reading.
^ Switch the vacuum cleaner on and
select the maximum power setting.
^ Lift the floorhead off the floor a little. If
the marker completely fills the
dustbag change indicator, you
should replace the dustbag with a
new one.
How the dustbag change indicator
works
The dustbag change indicator is set for
normal household dust. This generally
contains a mixture of dust, hair, carpet
fluff, threads, grit etc.
However, if the cleaner has been used
to vacuum up fine dust, such as
plaster, brick dust, cement or flour, the
pores of the dustbag will become
blocked very quickly. This affects the
air permeability of the bag, and the
marker will indicate that the bag is "full"
even when it is not. If this happens you
must still change the dustbag because
suction power will be greatly reduced
by blocked pores in the dustbag.
If, on the other hand, you have
vacuumed up a large amount of hair
and carpet fluff which typically contains
a lot of air, the indicator may fail to
react even though the bag is full. You
should still change it. Both these
extremes can occur.
20
Replacing the dustbag
Press the release button for the dust
^
compartment lid and raise the lid as
far as it will go.
The dustbag has a closing flap which
closes automatically when the dust
compartment lid is raised to prevent
any dust escaping.
^ Pull the dustbag out by the grip next
to the self-closing flap on the collar.
Maintenance and care
^
Fit the new dustbag into the holder as
far as it will go. Leave it folded up
when you take it out of the box.
^
It should be unfolded in the dust
compartment.
^
Close the dust compartment lid
securely, making sure it clicks into
position. Take care not to trap the
dustbag when doing so.
Warning: The lid will not close
without a dustbag in place. Do not
use force!
21
Maintenance and care
When to change the dust
compartment filter (for motor
protection)
Replace this filter every time you start a
new packet of dustbags. A dust
compartment filter is supplied with
every packet of Miele dustbags.
How to change the dust
compartment filter
Open the dust compartment lid.
^
Unclip the filter frame, remove the old
^
filter and replace with a new one.
^ Close the filter frame.
^ Close the dust compartment lid
firmly.
When to change the exhaust
filter
Depending on model, your vacuum
cleaner will be fitted as standard with
one of the following exhaust filters:
a Air Clean
Replace this filter every time you start a
new packet of Miele dustbags. An Air
Clean exhaust filter and a dust
compartment filter are supplied with
every packet of Miele dustbags.
b Active Air Clean SF-AAC 30 (black)
c Active HEPA SF-AH 30 (blue)
Change these types of filters approx.
once a year.
Make a note of the date on the filter.
22
Replacing the Air Clean filter
Do not use more than one exhaust
filter at a time.
Open the dust compartment lid.
^
Release the filter grille and raise it
^
upwards. Grasp the used Air Clean
filter by the clean, unsoiled section
and take it out.
^ Replace it with a new Air Clean filter.
If you wish to replace the Air Clean
filter with an Active Air Clean filter or
with an Active HEPA filter, see
"Replacing one type of exhaust filter
with another".
Maintenance and care
^
Close the filter grille.
^
Close the dust compartment lid
firmly.
23
Maintenance and care
Replacing an Active Air Clean
filter or an Active HEPA filter
Do not use more than one exhaust
filter at a time.
Open the dust compartment lid.
^
Release the catch and remove the
^
filter.
^ Insert the new exhaust filter so that it
engages at the back and then close
the catch.
If you wish to use an Air Clean filter,
see "Replacing one type of exhaust
filter with another".
^ Close the dust compartment lid
firmly.
24
Replacing one type of exhaust
filter with another
Depending on model, your vacuum
cleaner will be fitted as standard with
one of the following exhaust filters:
a Air Clean
b Active Air Clean SF-AAC 30 (black)
c Active HEPA SF-AH 30 (blue)
Please note
1. If you wish to replace the Air Clean
filter a with an Active Air Clean filter b or
an Active HEPA filter c, it is essential
that you remove the filter grille before
fitting the new type of filter.
2. If you wish to replace exhaust filter b
or c with exhaust filter a, then it is
essential that you also fit the filter
grille*.
Maintenance and care
* Filter grille - see "Optional
accessories".
Do not use more than one exhaust
filter at a time.
25
Maintenance and care
When to change the thread
lifters
The thread lifters on the suction inlet of
the floorhead can be replaced.
Check them from time to time and
replace them if the pile has worn down.
To replace the thread lifters
Use a suitable screwdriver to remove
^
the thread lifters from the slots. There
are two grooves to help you.
Fit new thread lifters.
^
FiberTeQ floorhead
^ Use a suitable screwdriver to remove
the thread lifters from the slots.
^ Fit new thread lifters.
Cleaning the roller on the floorhead
(Not necessary for the FiberTeQ
floorhead)
a Release the bearing (with bayonet
fitting) using a coin.
b Press the bearing out, and remove it.
c Take out the roller.
^
Remove any threads and hair,
replace the roller and refit the
bearing.
Replacement parts are available from
your Miele retailer or from Miele (see
back cover for contact details).
26
Warning: Always disconnect the
vacuum cleaner from the electrical
supply for maintenance work and for
cleaning. Switch off at the wall
socket and unplug it.
Vacuum cleaner and accessories
External surfaces of the vacuum
cleaner and of the accessories can be
cleaned with a dry or a slightly damp
cloth, or with a proprietary cleaner
suitable for plastic.
Do not use abrasive cleaning
agents, glass cleaning agents,
all-purpose cleaners or oil-based
conditioning agents.
Dust compartment
The dust compartment can, if
necessary, be cleaned using a dry
duster, brush or, if available, a second
vacuum cleaner to vacuum the dust
out.
Cleaning and care
Warning: Do not let the vacuum
cleaner get wet. If moisture gets into
the appliance, there is a risk of
electric shock.
27
Problem solving guide / After sales service
The vacuum cleaner switches off
automatically
A temperature limiter switches the
vacuum cleaner off automatically if it
gets too hot.
This can occur if, for instance, large
articles block the suction tube or when
the filter bag is full or contains particles
of fine dust. A heavily soiled exhaust or
dust compartment filter can also be the
cause of overheating. Switch the
vacuum cleaner off immediately using
the On/Off foot control. Disconnect it
from the electricity supply. Switch it off
at the wall socket and unplug it.
After removing the cause, wait for
approx. 20 - 30 minutes to allow the
vacuum cleaner to cool down. It can
then be switched on again.
After sales service
In the event of a fault that you cannot
easily remedy, please contact
–
your Miele retailer
or
–
Miele (see back cover for contact
details).
Please note that telephone calls may
be monitored and recorded for
training purposes (UK only).
28
Please observe the flooring
manufacturer's cleaning and care
instructions.
Miele accessories, including
floorheads, filters and dustbags are
available to order through your Miele
retailer, Miele or online at:
Certain models are supplied as standard with one or more of the following
accessories:
Floorheads / brushes
Optional accessories
Parquet floor brush (SBB Parquet-3)
This brush has natural bristles and is
designed for use on parquet floors and
other surfaces which are susceptible to
scratching such as laminate flooring.
Parquet Twister swivel-action floor
brush (SBB 300-3)
This brush is suitable for a variety of
hard floor surfaces and has a swivel
joint enabling it to get into awkward
corners.
Parquet Twister XL swivel-action
floor brush (SBB 400-3)
This brush is extra wide making it suitable
for large areas of flooring and has a
swivel joint enabling it to get into
awkward corners.
Classic Allergotec floorhead
(SBDH 285-3)
This floorhead is suitable for daily
hygienic cleaning of all floor surfaces.
The level of cleanliness of the floor
shows in a colour "traffic light" display
when vacuuming.
Turbo Comfort Turbobrush (STB 205-3)
This turbobrush is ideal for cleaning cut
pile carpet.
Hard floor brush (SBB 235-3)
This brush is designed for use on hard
flooring such as tiled or stone floors.
Other accessories
MicroSet (SMC 20)
This set is specially designed for
cleaning small objects and difficult to
reach areas (such as PC keyboards,
stereo equipment, intricately carved
furniture and ornaments, models etc).
CarCare Set (SCC 10)
For valeting the interior of cars.
HomeCare Set (SHC 10)
Accessories for cleaning the living
areas of your home.
29
Optional accessories
Hand Turbobrush Turbo Mini
Compact (STB 20)
For cleaning upholstery, mattresses,
car seats etc.
Universal brush SUB 20
For dusting books, shelves, etc.
Dusting brush with natural bristles
(SSP 10)
This brush is suitable for particularly
delicate objects.
Radiator brush (SHB 20)
For cleaning radiators, narrow shelves
and crevices.
Mattress nozzle (SMD 10)
For cleaning upholstery, mattresses,
cushions, curtains, covers etc.
Crevice nozzle, 300 mm (SFD 10)
Hygiene seal with active charcoal
Helps prevent dust and odours
escaping when the suction hose has
been removed from the cleaner.
Filters
Active Air Clean exhaust filter
(SF-AAC 30)
This filter absorbs odours from the dirt
collected in the dustbag.
Active HEPA filter (SF-AH 30)
Excellent filtration level for very clean
exhaust air. This filter is particularly
suitable for allergy sufferers.
Filter grille
The filter grille is required if you wish to
fit an Air Clean filter instead of an Active
Air Clean filter or an Active HEPA filter.
Extra long crevice nozzle for cleaning in
folds, crevices or corners.
Crevice nozzle, 560 mm (SFD 20)
Flexible crevice nozzle for accessing
awkward to reach areas.
Upholstery nozzle, 190 mm (SPD 10)
Extra wide nozzle for cleaning
upholstery, mattresses, car seats etc.
Flexible extension hose (SFS 10)
For extending the suction hose by
approx. 1.5 m.
30
Electrical connection for the UK
All electrical work should be carried out
by a suitably qualified and competent
person in strict accordance with current
national and local safety regulations
(BS 7671 in the UK).
The voltage and connected load are
given on the data plate located
underneath the vacuum cleaner. Please
ensure that these match the household
mains supply. The fuse rating is quoted
on the plug.
The appliance is supplied with a cable
and moulded plug ready for connection
to a 230-240 V/50 Hz a.c. single phase
supply.
Non-rewireable plugs BS 1363
The fuse cover must be re-fitted when
changing the fuse, and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug, (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
31
Alteration rights reserved (S 770 - S 778) - 1912
M.-Nr. 09 395 970 / 00
Loading...
