Miele Refrigerators Operating instructions

Download
Page 1
Operating instructions Refrigerator
To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
en-GB M.-Nr. 12 584 030
Page 2
Contents
Installation site ...............................................................................................................
Side-by-side combinations ..................................................................................... 16
Climate range ............................................................................................................ 16
Ventilation.................................................................................................................. 17
Changing the door hinging ............................................................................................
Furniture door panel.......................................................................................................
Horizontal and vertical gaps.................................................................................... 18
Weight of the furniture door.................................................................................... 19
Building-in dimensions .................................................................................................
Installation in a tall unit/side view.......................................................................... 20
Connections and ventilation ................................................................................... 21
Limiting the opening angle of the appliance door......................................................
Electrical connection .....................................................................................................
Control panel with start display ...................................................................................
Settings mode...................................................................................................... 28
Selecting the desired function in Settings mode........................................... 30
Adjusting the interior fittings ........................................................................................
Moving the door shelf/bottle shelf......................................................................... 31
Clipping the egg trays on......................................................................................... 31
Adjusting or removing the bottle holder................................................................ 31
Moving the adjustable shelves ............................................................................... 31
Moving the bottle rack............................................................................................. 32
Space for a baking tray............................................................................................. 32
Moving the charcoal filters...................................................................................... 33
Accessories supplied.....................................................................................................
Optional accessories .....................................................................................................
Before using for the first time.......................................................................................
Connecting the refrigeration appliance ................................................................. 35
Switching the refrigeration appliance on ....................................................................
Switching off the refrigeration appliance....................................................................
Switching off for longer periods of time................................................................ 36
Temperature display.......................................................................................................
Setting the temperature................................................................................................
15
17 18
20
22 23
28
31
33 33
35
35 35
38 38
2
Page 3
Contents
Possible temperature settings......................................................................................
38
Switching DynaCool on and off......................................................................... 40
Explanation of the different settings............................................................................
41
Party mode............................................................................................................ 41
Holiday mode...................................................................................................... 41
Switching on the lock function/.................................................................... 41
Sabbath mode....................................................................................................... 43
Information on Sabbath mode............................................................................. 43
Changing the time before the door alarm is triggered.................................... 43
Miele@home............................................................................................................. 44
Adjusting the volume of alarms and buzzers/............................................ 46
Adjusting the display brightness....................................................................... 47
Switching off demo mode.................................................................................... 47
Resetting the settings to their default settings............................................. 47
Information............................................................................................................. 47
Charcoal filter change indicator......................................................................... 47
Cleaning mode.................................................................................................... 48
Different storage zones .................................................................................................
Food which is not suitable for storage in the refrigerator section...........................
Notes on buying food.....................................................................................................
Storing food correctly ....................................................................................................
50 51 51 52
Cleaning agents ..............................................................................................................
Preparing the refrigeration appliance for cleaning.....................................................
Cleaning the inside of the appliance ...........................................................................
Cleaning accessories by hand or in the dishwasher .................................................
Removing and dismantling accessories for cleaning ................................................
Cleaning the door seal...................................................................................................
Cleaning the ventilation gaps .......................................................................................
After cleaning ..................................................................................................................
56 57 57 58 58 61 61 62
Contact in the event of a fault......................................................................................
71
3
Page 4
Contents
EPREL database .............................................................................................................
Warranty..........................................................................................................................
71 71
4
Page 5

Warning and Safety instructions

This refrigeration appliance complies with current safety requirements. Inappropriate use can, however, lead to personal injury and material damage.
Please read the operating and installation instructions carefully before using the refrigeration appliance for the first time. They contain important information on safety, installation, use and maintenance. This is to protect yourself from injury, and from damaging your refrigeration appliance.
In accordance with standard IEC60335-1, Miele expressly and strongly advises that you read and follow all information provided on installing the refrigeration appliance, as well as the safety notes and warnings.
Miele cannot be held liable for injury or damage caused by non­compliance with these instructions.
Keep these operating and installation instructions in a safe place and pass them on to any future owner.
5
Page 6
Warning and Safety instructions

Correct application

This refrigeration appliance is intended for use in the home and in
similar environments, for example – in shops, offices and similar work settings – by the guests in hotels, motels, bed & breakfasts and other typical home settings. This refrigeration appliance is not intended for outdoor use.
This appliance is intended for domestic use only for cooling and
storing food and drink. It must not be used for any other purpose.
This refrigeration appliance is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or similar substances or products that are subject to the Medical Device Directive. Incorrect use of the refrigeration appliance for such purposes may cause deterioration of the items stored. The refrigeration appliance is also not suitable for use in areas where there is a risk of explosion. Miele cannot be held liable for damage caused by improper or incorrect use or operation of the appliance.
The appliance can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.
6
Page 7
Warning and Safety instructions

Safety with children

Children under 8 years of age must be kept away from the
refrigeration appliance unless they are constantly supervised.
Children 8 years and older may only use the appliance
unsupervised if they have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the appliance
unsupervised.
Please supervise children in the vicinity of the appliance and do
not let them play with it.
Danger of suffocation! Whilst playing, children could become
entangled in packaging (such as plastic wrapping) or pull it over their head and suffocate. Keep packaging material away from children.

Technical safety

The coolant circuit has been checked for leaks. The refrigeration
appliance complies with statutory safety requirements and the appropriate EU directives.
Warning: fire hazard/flammable materials. This symbol is on the
compressor and indicates flammable materials. Do not remove this sticker.
7
Page 8
Warning and Safety instructions
The refrigerant inside the appliance (details on the data plate) is environmentally friendly but flammable. The use of this refrigerant does, however, sometimes lead to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the refrigerant flowing around the cooling circuit. Unfortunately, this cannot be avoided, but it does not affect the performance of the refrigeration appliance. When transporting and installing the refrigeration appliance, ensure that no parts of the cooling circuit are damaged. Splashes of refrigerant can damage the eyes and leaking refrigerant can ignite. In the event of damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the mains electricity supply.
- Ventilate the room where the refrigeration appliance is located for several minutes.
- Contact the Miele Customer Service Department.
The more refrigerant there is in a refrigeration appliance, the larger
the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of a combustible gas/air mixture building up. For every 8g of refrigerant at least 1m3 of room space is required. The amount of refrigerant in the refrigeration appliance is stated on the data plate inside the appliance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply. Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.
8
Page 9
Warning and Safety instructions
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised with the mains power supply (e.g. island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with the specifications of EN50160 or an equivalent standard. The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronised with the mains power supply, or these measures must be replaced by equivalent measures in the installation. As described, for example, in the current version of BS OHSAS 18001–2 ISO
45001.
If the electrical connection cable supplied is damaged, it must only
be replaced by an original spare part to prevent a hazard for the user. Miele can only guarantee the safety of the appliance when original Miele spare parts are used. For safety reasons, such replacement may only be carried out by a qualified specialist or the Miele Customer Service Department.
Do not connect the appliance to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and do not guarantee the required safety of the appliance.
If moisture gets into electrical components or into the mains
connection cable, it could cause a short circuit. Therefore, do not operate this refrigeration appliance in areas which are exposed to moisture (e.g in a garage or utility room).
This appliance must not be used in a non-stationary location (e.g.
on a ship).
Do not use a damaged appliance. It could be dangerous. Check the
appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
The appliance must be isolated from the electricity supply during
installation, maintenance and repair work.
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician.
9
Page 10
Warning and Safety instructions
While the appliance is under warranty, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the warranty is invalidated.
Faulty components must only be replaced with genuine Miele
original spare parts. Miele can only guarantee the safety standards of the appliance when Miele replacement parts are used.
This refrigeration appliance is supplied with a special lamp to cope
with particular conditions (e.g. temperature, moisture, chemical resistance, abrasion resistance and vibration). This lamp must only be used for the purpose for which it is intended. The lamp is not suitable for room lighting. Replacement lamps may only be fitted by a Miele authorised technician or by the Miele Customer Service Department. This refrigeration appliance contains several light sources with at least energy efficiency classF.

Proper installation

When installing the refrigeration appliance, it is a mandatory
requirement to follow the installation instructions supplied with it.
Always wear protective gloves when transporting and installing the
refrigeration appliance.
Two people are required to install the refrigeration appliance.Change the door hinging (if necessary) as described in the
installation instructions supplied with the appliance.
Only install the refrigeration appliance in a solid, rectangular and
level housing unit, positioned on an even and level floor.

Correct use

This refrigeration appliance is designed for use within specific
ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed. The climate range is stated on the data plate in the interior cabinet of the refrigeration appliance. A lower ambient temperature will cause the compressor to switch off for longer periods, meaning that the refrigeration appliance is unable to maintain the required temperature.
Do not cover or block the air vents as this could impair the
efficiency of the appliance, increase the electricity consumption and could cause damage to the components.
10
Page 11
Warning and Safety instructions
If storing food which contains a lot of fat or oil in the appliance or
the door, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Risk of fire and explosion. Do not store explosive materials in the
refrigeration appliance or any products containing propellants (e.g. spray cans). Electrical components can cause flammable mixes of gases to ignite.
Danger of explosion. Do not operate any electrical equipment (e.g.
an electric ice-cream maker) inside the refrigeration appliance. Danger of sparking and explosion.
Observe the manufacturer's “use-by” dates and storage
instructions given on food to avoid the risk of food poisoning. Storage times will depend on several factors, including the freshness and quality of the food, as well as the temperature at which it is stored.

Accessories and spare parts

Only use original Miele accessories. If other parts are used,
warranty, performance and product liability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation of your refrigeration appliance.

Cleaning and care

Do not use any oils or grease on the door seals, as these will cause
the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean or defrost this
appliance. Steam could reach electrical components and cause a short circuit.
Sharp edged or pointed objects will damage the evaporator,
causing irreversible damage to the appliance. Do not use sharp edged or pointed objects to
- remove frost and ice,
- separate frozen food or remove ice trays.
Do not place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might cause the build-up of gases and pose a danger to health.
11
Page 12
Warning and Safety instructions

Transport

Always transport the appliance in an upright position and in its
original transport packaging to avoid damage in transit.
Danger of injury and damage to the appliance. The refrigeration
appliance is very heavy and must be transported by two people.

Disposal of your old appliance

Children playing could become trapped in the appliance and could
suffocate.
- Remove the appliance doors.
- Remove the drawers.
- Leave the adjustable shelves in the refrigeration appliance so children cannot climb inside.
- If your old refrigeration appliance has a door lock, destroy it. This will prevent the risk of children playing accidentally locking themselves in and endangering their lives.
Risk of electric shock!
- Cut the plug off the mains connection cable.
- Cut the mains connection cable off the old appliance.
Dispose of the plug and mains connection cable separately from
the old appliance.
During and after disposal, make sure that the refrigeration
appliance is not placed near petrol or other flammable gases and liquids.
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high enough concentrations, escaping refrigerant or oil may ignite if they come into contact with an external heat source. During disposal, make sure that the cooling circuit is not damaged in order to prevent refrigerant and oil escaping in an uncontrolled manner (see the data plate for details of the refrigerant).
Splashes of coolant can damage the eyes. Be careful not to
damage any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the coolant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
12
Page 13
Warning and Safety instructions

Symbol on the compressor (depending on model)

This information is only relevant for recycling. There is no risk during normal operation.
The oil in the compressor can be fatal if swallowed or if it
penetrates the airways.
13
Page 14

Caring for the environment

Disposing of the packaging material

The packaging material is used for handling and protects the appliance from transport damage. The packaging material used is selected from materials which are environmentally friendly for disposal and can generally be recycled.
Recycling the packaging material reduces the use of raw materials. Use material-specific collection points for valuable materials and take advantage of return options. Your Miele dealer will take the packaging material away.

Disposing of your old appliance

Electrical and electronic appliances contain many valuable materials. They also contain certain materials, compounds and components which were essential for their correct functioning and safety. These could be hazardous to human health and to the environment if disposed of with household waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with household waste.
your local community, with your dealer or with Miele, free of charge. By law, you are solely responsible for deleting any personal data from the old appliance prior to disposal. You are legally obliged to remove any old batteries which are not securely enclosed by the appliance and to remove any lamps without destroying them, where this is possible. These must be taken to a suitable collection point where they can be handed in free of charge. Please ensure that your old appliance poses no risk to children while being stored for disposal.
Take care not to damage your refrigeration appliance before or during disposal in an authorised, environmentally friendly manner. This is to ensure that refrigerant in the cooling circuit and oil in the compressor is contained, and will not leak into the environment.
Instead, please make use of officially designated collection and disposal points to dispose of and recycle electrical and electronic appliances in
14
Page 15
*INSTALLATION*

Installation

Installation site

Risk of damage and danger of
injury due to the refrigeration appliance tipping over.
This refrigeration appliance is very heavy and can tip forwards when the appliance door is open.
Keep the appliance door(s) closed until the refrigeration appliance has been built in. The refrigeration appliance must be secured in its building-in niche in accordance with the operating and installation instructions.
Fire risk and risk of damage from
appliances which give off heat. Appliances which give off heat can
catch fire and set fire to the refrigeration appliance.
This refrigeration appliance must not be installed underneath a hob.
Fire risk and danger of damage
from open flames. Open flames can set fire to the
refrigeration appliance. Keep open flames (e.g. a candle)
away from the refrigeration appliance.
This appliance should be installed in a dry, well-ventilated room.
Risk of damage due to high
humidity. In environments with high humidity,
condensation can build up on external refrigeration appliance panels. This condensate can cause corrosion on external appliance panels.
Install the refrigeration appliance in a dry and/or air-conditioned room with sufficient ventilation.
After installation please make sure that the appliance door(s) closes (close) properly and the refrigeration appliance is installed in accordance with these installation instructions. It is essential to comply with the specified ventilation cutout requirements.
When deciding on the installation site, please bear in mind that your refrigeration appliance will use more energy if installed near to a heater, a cooker or other appliance that gives off heat. Avoid direct sunlight. The higher the ambient temperature, the longer the compressor runs and the higher the energy consumption is.
15
Page 16
*INSTALLATION*
Installation
When installing the refrigeration appliance, please note the following:
- The socket must be easily accessible in an emergency, not concealed behind the appliance.
- The plug and mains connection cable must not touch the rear of the refrigeration appliance as they could be damaged by vibrations from the appliance.
- Other appliances must also not be plugged into a socket located directly behind the refrigeration appliance.
- When installing the refrigeration appliance, make sure that the mains connection cable does not get trapped or damaged.
- Do not position or operate multi­socket adapters, distributor strips or other electronic devices (e.g. halogen transformers) at the rear of the appliance.
- The floor at the installation site must be horizontal and level and must be as high as the surrounding floor.

Side-by-side combinations

Risk of damage due to
condensation on external appliance panels.
In environments with high humidity, condensation can build up on external appliance panels, which can cause corrosion.
Do not place different refrigeration appliance models directly next to or on top of one other.
contact your dealer for specific information about which combinations will work with your refrigeration appliance.

Climate range

This refrigeration appliance is designed for use within specific ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed. The climate range is stated on the data plate in the interior cabinet of the refrigeration appliance.
Climate range Ambient
temperature
SN 10to32°C
N 16to32°C
ST 16to38°C
T 16to43°C
SN-ST 10to38°C
SN-T 10to43°C
A lower ambient temperature leads to the compressor switching off for longer periods. This can cause the internal temperature in the refrigeration appliance to rise with the risk of food deteriorating and going off.
Exception: your refrigeration appliance can be installed next to another refrigeration appliance with an integrated heating unit if each appliance is built into a separate niche. Please
16
Page 17
*INSTALLATION*
Installation

Ventilation

Risk of fire and damage due to
insufficient ventilation. If the refrigeration appliance is not
ventilated sufficiently, the compressor will run more frequently and for longer periods. This will result in increased energy consumption and a higher operating temperature for the compressor. This may, in turn, cause damage to the compressor.
Please ensure that there is adequate ventilation around the refrigeration appliance.
It is essential to observe the required ventilation gaps.
The ventilation gaps must not be covered or blocked in any way.
They must also be regularly dusted.
Air at the back of the refrigeration appliance gets warm. The appliance housing unit must therefore be constructed to allow sufficient space for ventilation (see “Installation dimensions” and the installation instructions provided).

Changing the door hinging

Danger of injury and damage to
the appliance due to heavy door. There is an increased risk of injury
and damage if the door hinging is installed by a single person.
Always change the door hinging with the help of a second person.
The refrigeration appliance is supplied with hinges on the right. If left-hand hinging is required, the hinges must be changed (see accompanying installation instructions).
17
Page 18
*INSTALLATION*
Installation

Furniture door panel

Horizontal and vertical gaps

Depending on the style of kitchen furniture, the thickness and edge radius of the furniture door panel and the gap that runs around the door, vertically and horizontally, are specified.
It is essential to pay attention to the following:
- Horizontal gap
The gap between the furniture door panel and the housing unit door above or below it must be at least 3mm.
- Vertical gap
If the gap between the refrigeration appliance furniture door panel and the adjoining housing unit door or wall on the hinged side is too small, the appliance door could collide with the adjoining housing unit door or wall when opened.
It may be necessary to adjust the size of this gap to suit the thickness and edge radius of the appliance furniture door.
Appliance furniture door
Gap X [mm]
for different
edge radiiB
thickness A [mm]
R0 R1.2 R2 R3
≥16–19 min. 3 20 5 4 4 3.5 21 5.5 5 4.5 4 22 6.5 6 5.5 5
Adjoining kitchen furniture front A=Furniture front thickness
B=Edge radius X=Gap
This must be taken into consideration when planning your kitchen and when replacing an old refrigeration appliance with a new one to ensure the installation conditions required are met.
18
Adjoining side wall A=Furniture front thickness
B=Edge radius X=Gap
Tip: Fit a spacer between the housing unit carcase and the side wall. This way you will get a sufficiently wide gap.
Page 19
*INSTALLATION*

Weight of the furniture door

If the furniture door panel is too
heavy, this can cause damage. Fitting a furniture door panel which is
heavier than the maximum permitted weight could damage the hinges. This can cause subsequent functional problems.
The maximum permissible weight of the furniture door is:
Refrigeration appliance kg K 7715 ... 26
Installation
19
Page 20
*INSTALLATION*
Installation

Building-in dimensions

Installation in a tall unit/side view

All dimensions are given in mm.
* The declared energy consumption was calculated in a 560mm deep niche. The refrigeration appliance is fully functional in a 550mm niche but the energy consumption will be slightly higher.
Before installation, ensure the housing unit dimensions are the correct size.
20
Page 21
*INSTALLATION*
Installation

Connections and ventilation

All dimensions are given in mm.
The specified ventilation cross-sections must be adhered to in order to ensure the correct functioning of the refrigeration appliance.
a
View from the front
b
Mains connection cable, length = 2200mm
c
Ventilation cross-section min. 200 cm
d
Ventilation
e
No connection sockets in this area
2
21
Page 22
*INSTALLATION*
Installation

Limiting the opening angle of the appliance door

The door hinges are set ex works to enable the appliance door to be opened wide.
If the opening angle of the appliance door needs to be limited to approx. 90°, the hinge can be adjusted to accommodate this.
The locking pins for limiting the door opening must be fitted before the refrigeration appliance is installed.
Insert the locking pins supplied for
limiting the door opening into the hinges from above.
The appliance door opening angle is now limited to approx. 90°.
22
Page 23
*INSTALLATION*
Installation

Electrical connection

The refrigeration appliance must only be connected to an earthed socket using the mains connection cable supplied.
The socket must be easily accessible after the refrigeration appliance has been installed. If the socket is not easily accessible, ensure that a suitable means of disconnection is provided on the installation side for each pole.
Risk of fire from overheating.
Connecting the refrigeration appliance to a multi-socket plug adapter or to an extension lead can overload the cable.
For safety reasons, do not use an extension lead or multi-socket adapter.
The electrical installation must comply with VDE0100 requirements.
For safety reasons, we recommend using a type residual current device (RCD) in the assigned electrical installation for connecting the refrigeration appliance.
If the mains connection cable is damaged, it must only be replaced with a specific mains connection cable of the same type (available from the Miele Customer Service Department). For safety reasons, such replacement may only be carried out by a qualified specialist or the Miele Customer Service Department.
These operating instructions and the data plate indicate the nominal power consumption and the appropriate fuse rating. Compare this information with the data of the on-site electrical connection. If in any doubt, consult a qualified electrician.
Temporary or permanent operation on an autonomous power supply system or a power supply system that is not synchronised with the mains power supply (e.g. island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with the specifications of EN50160 or an equivalent standard. The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronised with the mains power supply, or these measures must be replaced by equivalent measures in the installation. As described, for example, in the current version of VDE-AR-E2510-2.
23
Page 24
*INSTALLATION*
Installation

Connecting the refrigeration appliance

Insert the plug connector into the
socket at the back of the refrigeration appliance.
Make sure that the plug connector has clicked into position correctly.
Insert the plug of the refrigeration
appliance into the socket.
The refrigeration appliance is now connected to the electricity supply.
24
Page 25

Saving energy

How to save energy: Installation site The refrigeration appliance has to cool more often at higher
ambient temperatures and consumes more energy in the process. Therefore, you should:
- Install the refrigeration appliance in a well-ventilated room.
- Do not install the refrigeration appliance near to a heat source (heater element, cooker).
- Protect the refrigeration appliance from direct sunlight.
- Ensure an ideal ambient temperature of 20°C.
- Clean the ventilation gaps on a regular basis to remove any dust.
Temperature setting
Use Energy consumption is increased by heat input and impeded air
The colder the temperature, the higher the energy consumption. The following settings are recommended:
- 4 to 5°C in the refrigerator section.
circulation. Therefore, you should:
- Only open the appliance door(s) when necessary and for as short a time as possible. Arrange the food in such a way that makes it easy to find in the appliance.
- Always close the appliance door(s) properly after opening them.
- Allow hot food and drinks to cool down before placing them in the refrigeration appliance.
- Store food well packaged or covered.
- Do not overfill the compartments to allow air to circulate.
- Place frozen food in the fridge zone to defrost.
- Keep drawers and shelves arranged as they were when the appliance was delivered.
25
Page 26

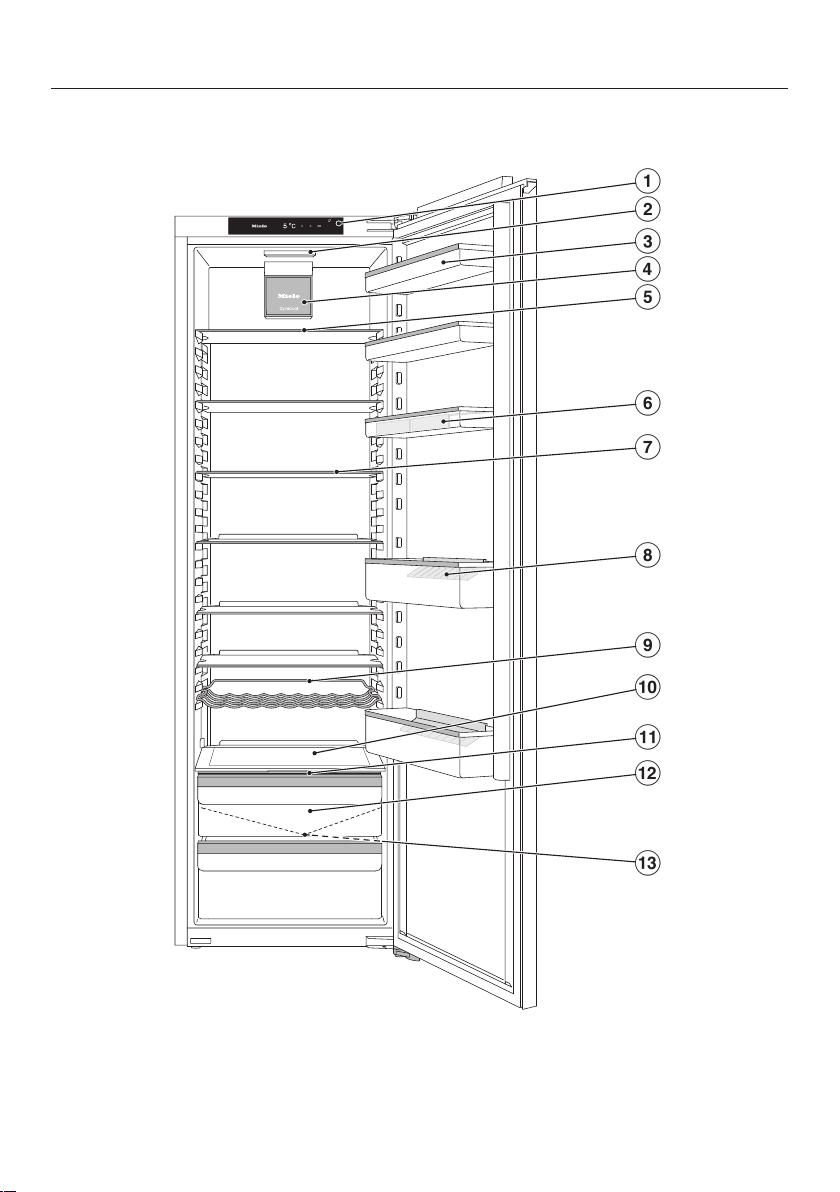

Guide to the appliance

This drawing is for illustration purposes only.
26
Page 27
Guide to the appliance
a
Display
b
Interior lighting
c
Shelves in the appliance door
d
Fan
e
Split shelf (FlexiBoard)
f
Egg tray
g
Adjustable shelf
h
Bottle shelf with bottle holder
i
Flexible bottle rack
j
Space for a baking tray (ComfortSize)
k
Compartment lid for setting the humidity level in the DailyFresh drawer
l
DailyFresh drawer for fruit and vegetables (humidity-controlled)
m
Condensate channel and drain hole
27
Page 28
Guide to the appliance
5
°C
OK
<
>
1
2
4
3

Control panel with start display

a
Temperature display for fridge zone
b
Sensor controls for selecting a setting
c
OKsensor control for confirming a selection and entering Settings mode
d
Display for Miele@home connection status (only visible when the Miele@home function has been set up)
Settings mode
In Settings mode, you can select the following appliance functions and alter their settings to some extent:
Symbol Function Factory
default
Switch the Party mode function on or off
Off
(see “Selecting further settings”)
Switch the Holiday mode function on or off
Off
(see “Selecting further settings”)
/ Switching the lock function on or off
(off)
(see “Selecting further settings”)
Switching off the refrigeration appliance ––
Switch the Sabbath mode function on or off
28
(see “Selecting further settings”)
Call up information on the Sabbath mode function (see “Selecting further settings”)
Off
––
Page 29
Guide to the appliance
Change the time before the door alarm is triggered
1:00
(see “Selecting further settings”)
Set up the Miele@home function for the first time,
App activate and deactivate WiFi or reset the network configuration (see “Selecting further settings”)
 / Switch the keypad tone on or off On
/ Change the volume of the alarms and buzzers or switch
them off entirely
On
/level5 (see “Selecting further settings”)
Change the display brightness
Level4 (see “Selecting further settings”)
°C / °F Change the temperature unit
°C
(°Celsius or °Fahrenheit)
Switch the Demo mode function off
Off (only visible when switched on) (see “Selecting further settings”)
Reset to default settings
–– (see “Selecting further settings”)
Call up information (model identifier and serial number)
about your refrigeration appliance (see “Selecting further settings”)
Switch on the reminder to change the
charcoal filter (see “Optional accessories”) (see “Selecting further settings”)
Switch Cleaning mode on or off
(see “Cleaning and care”)
––
Off
Off
29
Page 30
Guide to the appliance
Selecting the desired function in Settings mode
Touch the OKsensor control on the control panel.
will appear in the display.
Use the or sensor control to scroll to the symbol.Touch OK.Select the function you want using the or sensor control.Touch OK to select the function you want.
When the function is switched on, a dot appears in the upper corner of the display.
Touch OK to deselect a selected function. When the function is switched off, the dot in the upper corner of the display goes
out.
Exiting Settings mode
Use the or sensor control to scroll to the symbol.Touch OK.Use the or sensor control to scroll to the symbol and touch OK.Alternatively:
Wait approx. 15seconds after the last press of a button. Settings mode is then exited automatically.
30
Page 31
Guide to the appliance

Adjusting the interior fittings

Moving the door shelf/bottle shelf

Only move the door/bottle shelves in the appliance door when they are empty.
Push the door/bottle shelves
upwards, then remove them by pulling them forwards.
Replace the door/bottle shelves at
the required height.

Clipping the egg trays on

Clip the egg trays onto the rear edge
of the door shelf.

Adjusting or removing the bottle holder

The non-slip fins of the bottle holder make bottles more secure when you open and close the appliance door.

Moving the adjustable shelves

The shelves can be adjusted according to the height of the food.
Raise the shelf slightly at the front
and pull it forwards a little.
Lift it until the notches at the side are
in line with the shelf supports. The shelf can then be raised or lowered to the required level.
Push the shelf in.
Stoppers prevent the shelves from being dislodged by mistake.
The raised edge on the protective strip at the back must face upwards to prevent food from touching the back of the appliance and freezing to it.
The bottle holder can be moved to the left or right to create more room for drink cartons.
The bottle holder can be removed completely, e.g. for cleaning:
pull the bottle holder up to remove it.
31
Page 32
Guide to the appliance

Moving the bottle rack

The bottle rack can be placed at different positions in the refrigeration appliance.
Raise the bottle rack slightly at the
front, and pull it forwards a little until the notch at the side is in line with the shelf support. It can then be raised or lowered to the required level.
The rear rail must face upwards to prevent bottles from touching the back of the appliance.
Stoppers prevent the bottle rack from being dislodged by mistake.

Space for a baking tray

A baking tray can be placed above the drawers. The baking tray can be no more than 466mm wide, 386mm deep and 50mm high.
Open the appliance door as far as it
will go.
Place the baking tray on the dividing
plate.
Tip: Let the baking tray cool down to room temperature before putting it in the refrigerator section.
32
Page 33
Guide to the appliance

Moving the charcoal filters

KKF-FF charcoal filters with holder (Active AirClean) are available as optional accessories (see “Optional accessories”).

When storing very strong smelling food (e.g. very ripe cheese):

- Place the holder with the charcoal filters on the shelf where this food is kept.
- Change the charcoal filters sooner if necessary.
- Use more charcoal filters (with holders) in the refrigeration appliance.
The holder for the charcoal filters sits on the protective strip at the back of the shelf.
To move the charcoal filter, pull the
holder upwards to remove it from the protective strip.

Accessories supplied

Flexible bottle rack

Egg tray

Bottle holder

Optional accessories

A range of useful Miele accessories and care products are available for your appliance.

Multi-purpose microfibre cloth

The microfibre cloth is suitable for removing fingerprints and light soiling from surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals.

MicroCloth Kit

The MicroCloth Kit contains a universal cloth, a glass cloth and a polishing cloth. These cloths are extremely resistant to tearing and very robust. Thanks to very fine microfibres these cloths achieve an excellent cleaning performance.
Refit the holder on the protective strip
of the shelf you wish to use it on.

MicroCloth HyClean

The MicroCloth HyClean is a multi­purpose antibacterial cloth and is particularly tear resistant and durable. It can be used wet or dry, with or without cleaning agent.

KKF-FS charcoal filter with holder (Active AirClean)

Charcoal filters neutralise unpleasant odours in the refrigerator section for improved air quality.
33
Page 34
Guide to the appliance
KKF-RF replacement charcoal filters (ActiveAirClean)
Replacement filters to the fit the holder are available. We recommend replacing the charcoal filters every 6months.

Bottle rack

For a description, see “Guide to the appliance – Adjusting the interior fittings”.

Adjustable shelf with pivotable glass shelf (FlexiTray)

The pivotable glass shelf can be turned 180° clockwise, improving access to the food placed at the back.
Furthermore, the appliance door will close automatically if the angle of the open door is less than 30°.
Optional accessories can be ordered from the Miele webshop. They can also be ordered from the Miele Customer Service Department (see end of this booklet for contact details) or from your Miele dealer.

Organisation box

The organisation box makes it easier to sort the food in the fridge zone drawer in a clear manner.
Depending on the model, you may need to remove the entire drawer to insert and remove the organisation box.

Soft-close mechanism (SoftClose) (depending on the model)

The soft-close mechanism ensures that your appliance door closes very softly and quietly.
34
Page 35

Switching on and off

Before using for the first time

Remove all packaging material and
protective film.
Clean the inside of the appliance and
the accessories (see “Cleaning and care”).

Connecting the refrigeration appliance

Connect the refrigeration appliance to
the electricity supply as described in “Electrical connection”.
Miele will then appear on the appliance
display, followed by .

Switching the refrigeration appliance on

Open the appliance door.Touch the OKsensor control on the
control panel.
The refrigeration appliance will start to cool and the interior lighting will come on when the appliance door is opened.
The refrigeration appliance adjusts to the preset temperature.
To enable the temperature to get sufficiently cold inside the refrigeration appliance, allow the appliance to run for a few hours before placing food in it. Do not place food in the refrigeration appliance until it has reached the preset temperature.

Switching off the refrigeration appliance

Touch the OKsensor control on the
control panel.
will appear in the display.
Touch OK.Use the sensor control to scroll to
the symbol.
Touch OK. will appear in the display.
The cooling and interior lighting are switched off.
Please note: The refrigeration appliance is not disconnected from the power supply when it is switched off.
35
Page 36
Switching on and off

Switching off for longer periods of time

If, during a long absence, the refrigeration appliance is switched off but not cleaned and the door is left shut, there is a danger of mould building up inside the appliance.
It is essential to clean the refrigeration appliance before a long period of absence.
If the refrigeration appliance is not going to be used for a longer period of time, observe the following:
Switch the refrigeration appliance off.Switch off at the wall and disconnect
the plug from the socket, or disconnect the fuse.
Clean the refrigeration appliance and
leave the door ajar to air the appliance and avoid odours building up inside.
36
Page 37

The correct temperature

It is very important to set the correct temperature to ensure the shelf life of food. Reducing the temperature reduces the growth rate of microorganisms. Food does not spoil as quickly.
The temperature in the refrigeration appliance will rise:
- The more often the appliance door is opened and the longer it is kept open
- The more food that is stored in it
- The warmer the food is which is being put into it
- The higher the ambient temperature surrounding the refrigeration appliance. This refrigeration appliance is designed for use within specific ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed.
...in the refrigerator section
We recommend a temperature of 4°C in the refrigerator section.
37
Page 38
The correct temperature

Temperature display

In normal operation, the temperature display shows the current average
refrigerator section temperature
inside the refrigeration appliance.
Depending on the ambient temperature and the temperature setting, it can take the appliance a few hours to reach the temperature required and for this temperature to then be shown as a constant temperature on the display.

Setting the temperature

Touch the OKsensor control on the
control panel.
will appear in the display.
Touch OK.Use the andsensor controls to
change the temperature.
Touch OK. The temperature display changes back
to the actual temperature that is currently in the refrigeration appliance.

If you change the temperature setting:

check the temperature display after a
few hours. It will take this long for the appliance to give an accurate reading.
- Wait for approx.6hours if the refrigeration appliance is not very full
- Wait for approx.24hours if the refrigeration appliance is full
If, after this time, the temperature is still too high or too low:
Adjust the temperature again.

Possible temperature settings

- Refrigerator section: 2to9°C
38
Page 39

Using Super cool and DynaCool

SuperCool
When switched on, the SuperCool function can be used to rapidly reduce the temperature in the fridge zone to its lowest setting (depending on the ambient temperature). The refrigeration appliance will work at full power and lower the temperature. Select this function for the rapid chilling of large amounts of fresh food or drink.
When the SuperCool function is switched on, the appliance may make more noise than usual.
The SuperCool function should be switched on 4hours before placing food or drinks in the fridge zone.
The SuperCool function will switch itself off automatically after approx. 12hours. The refrigeration appliance will then run at normal power again.
Tip: To save energy, you can switch the SuperCool function off yourself once food and drinks are sufficiently chilled.
Switching SuperCool on and off
Touch the OKsensor control on the
control panel.
will appear in the display.
Touch OK.Use the sensor control to scroll to
the symbol. Touch OK. When the SuperCool function is
switched on, a dot appears in the upper corner of the display.
Use the sensor control to scroll to
the temperature you want and touch
OK.
39
Page 40
Using Super cool and DynaCool
DynaCool
When the DynaCool function is not switched on, the natural circulation of air in the appliance will cause different temperature zones in the fridge zone, as the cold, heavy air will sink to the lowest section of the appliance. You should bear this in mind when placing food in the appliance (see “Storing food in the refrigerator section”). However, if you are storing a large amount of similar food in the refrigerator at any one time, e.g. after your weekly shop, it is a good idea to turn on DynaCool. This way you can distribute the temperature on all the adjustable shelves inside the appliance more evenly so that all the food in the fridge zone will be chilled to about the same degree. The temperature is set as normal with the temperature control.
Also switch on the DynaCool function when:
- The ambient temperature is high (above approx. 35°C)
- The humidity levels are high (e.g. in the summer)
Switching DynaCool on and off
Touch the OKsensor control on the
control panel.
will appear in the display.
Touch OK.Use the sensor control to scroll to
the symbol. Touch OK. When the DynaCool function is
switched on, a dot appears in the upper corner of the display.
Use the sensor controls to scroll to
the temperature you want and touch
OK.
The fan will always switch on automatically when the compressor switches on.
Tip: As the energy consumption increases when DynaCool is switched on, you should turn the DynaCool function off again under normal conditions.
To save energy, the fan switches off automatically whilst the door is open.
40
Page 41

Selecting further settings

Explanation of the different settings

Only the settings that require further explanation are described below.
The door alarm and other warnings are automatically suppressed when you are in Settings mode.
Party mode
The Party mode function is particularly recommended for the rapid chilling of large amounts of fresh food or drink.
Tip: Switch on the Party mode function approx. 4hours before placing food and drinks in the appliance.
When Party mode is switched on, the DynaCool and SuperCool functions are switched on automatically.
Party mode cannot be switched on if Holiday mode is switched on.
The Party mode function will switch itself off automatically after approx. 24hours. However, you can switch the Party mode function off early at any time.
Holiday mode
The Holiday mode function is useful when you go on holiday, for example, if you do not wish to switch off the fridge zone completely or do not need a high degree of cooling.
The start display shows when Holiday mode is switched on.
The fridge zone is regulated to a temperature of 15°C. The fridge zone remains in operation whilst also saving energy.
Food which does not go off quickly can be stored in the refrigeration appliance for some time at this moderate refrigerator temperature. Energy consumption is lower than in normal operation. This also prevents the build-up of odours and mould which can occur if the fridge zone is switched off and the appliance door is closed.
Health risk caused by
decomposing food. The usability and quality of food in
the fridge zone may deteriorate if the temperature remains above 4°C for an extended period.
Only ever switch on the Holiday mode function for a limited period.
Do not store any temperature­sensitive food which goes off easily, such as fruit, vegetables, fish, meat and dairy products, during this time.
Switching on the lock function/
When the lock function is switched on, it protects the refrigeration appliance from being switched off
41
Page 42
Selecting further settings
inadvertently and against unintentional adjustments by unauthorised persons such as children.
In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK. When the lock function is switched
on, a dot appears in the upper corner of the display.
Close the appliance door. The lock
function is only activated now.
Briefly deactivating the lock function/
If, for example, you want to adjust the temperature, you can briefly deactivate the lock function:
Touch OK. will appear in the display. Touch the OKsensor control for
approx. 6seconds.
will appear in the display.
TouchOK.Now select the required settings.TouchOK.
Use the or sensor control to
scroll to the symbol. Touch OK.
When the lock function is switched off, appears in the display.
Closing the appliance door will reactivate the lock function .
Switching off the lock function/
Touch OK.
will appear in the display.
Touch the OKsensor control for
approx. 6seconds.
will appear in the display. Use the or sensor control to
scroll to the symbol.
TouchOK.
42
Page 43
Selecting further settings
Sabbath mode
The refrigeration appliance offers a Sabbath mode for the purposes of religious observance.
If Sabbath mode is switched on, this will be indicated on the start display.
The display switches off after 3seconds.
When Sabbath mode is switched on, you cannot make any settings on your refrigeration appliance.
Ensure that the appliance door is properly closed, as visual and audible alarms are switched off.
The Sabbath mode function will switch off automatically after approx. 80hours.
When Sabbath mode is switched on, the following are deactivated:
- Interior lighting when the door is opened
- All visual and audible signals
- The temperature display
- An active WiFi connection
All other functions switched on previously remain activated.
Health risk caused by
decomposing food. As power failures are not indicated
while Sabbath mode is active, food may be exposed to increased temperatures for a certain period of time. This will reduce the storage life of the food.
If there is a power failure during Sabbath mode, check the quality of the food.
Switching Sabbath mode on
In Settings mode, use the or
sensor control to scroll to thesymbol.
Tap OK. When the Sabbath mode function is
switched on, a dot appears in the upper corner of the display .
The display switches off after 3seconds.
Close the appliance door.
Switching Sabbath mode off
Touch the OKsensor control.
will appear in the display.
Tap OK. When the Sabbath mode function is
switched on, a dot appears in the upper corner of the display.
Tap OK. When the Sabbath mode function is
switched off, the dot in the upper corner of the display goes out.
Information on Sabbath mode
This product is certified by Star-K, an international institute for kosher certification. You can find the Star-K certification version here.
Changing the time before the door alarm is triggered
You can set how quickly the door alarm sounds after the appliance door is opened.
In Settings mode, use the or
sensor control to scroll to the symbol.
Touch OK.
43
Page 44
Selecting further settings
Use the andsensor controls to
set the time you want between 30seconds and 3minutes: 30seconds.
Touch OK.

Miele@home

Your refrigeration appliance is equipped with an integrated WiFi module.
Networking is deactivated at the factory.
To use this feature, you will need:
- A WiFi network
- The Miele app
- A Miele user account You can create a user account via the Miele app.
The Miele app will guide you as you connect your refrigeration appliance to your home WiFi network.
Once the refrigeration appliance is connected to your WiFi network, you can use the app to carry out the following activities, for example:
- Call up information on the operating status of your refrigeration appliance
- Change the settings on your refrigeration appliance
Connecting your refrigeration appliance to your WiFi network will increase energy consumption, even when the appliance is switched off.
44
Make sure that the signal of your WiFi network is sufficiently strong in the place where you want to set up your refrigeration appliance.

Availability of the WiFi connection

The WiFi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This can give rise to sporadic or even complete connection failures. Therefore, the availability of featured functions cannot be guaranteed.
Page 45
Selecting further settings

Miele@home availability

The ability to use the Miele app depends on the availability of the Miele@home service in your country.
The Miele@home service is not available in every country.
For information about availability, please visit www.miele.com.

Miele App

The Miele App is available to download free of charge from the Apple App Store® or from the Google Play Store™.

Setting up Miele@home for the first time

In Settings mode, use the or
sensor control to scroll to thesymbol.
TouchOK.Use the and sensor controls to
select the connection method you wish to use (app or WPS).
TouchOK. After you have successfully logged in,
will appear on the start display. If a connection could not be created,
the display shows. Start the process again.
45
Page 46
Selecting further settings

Deactivating or activating the WiFi connection

In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK. If the WiFi is deactivated, the symbol
will appear in the display. To reactivate the WiFi connection,
touch OK.
If the WiFi is activated, the symbol and a dot appear in the upper corner of the display.
When the WiFi connection is active, the symbol appears in the start display.

Resetting the network configuration

In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK.Use the sensor control to scroll to
the symbol.
Touch OK.Use the sensor control to scroll to
the symbol.
Touch OK.
Reset the network configuration if you are disposing of or selling your refrigeration appliance, or if you are putting a used refrigeration appliance into operation. All personal data is removed from the refrigeration appliance. This will also ensure that a previous owner is no longer able to access the refrigeration appliance.
Adjusting the volume of alarms and buzzers/
You can adjust the volume of alarms and buzzers (e.g. in the event of a door alarm or fault message). You can also switch off the alarms and buzzers if they disturb you.
In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK.Use the and sensor controls to
select the volume you want for alarms and buzzers.
Touch OK. appears in the display when the
alarms and buzzers are switched off.
All entered settings and values for Miele@home are reset to the default settings.
The WiFi connection has been deactivated, goes out in the start display.
46
Page 47
Selecting further settings
Adjusting the display brightness
You can adjust the display brightness to suit the lighting conditions in the room.
In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK.Use the and sensor controls to
select the display brightness you want.
Touch OK.
Switching off demo mode
Demo mode allows the refrigeration appliance to be presented by dealers without the cooling system being switched on. This setting is not needed for domestic use.
If demo mode has been switched on as a default setting, will show on the display when the refrigeration appliance is switched on.
Touch the OKsensor control on the
control panel.
Miele will appear initially in the display,
followed by the start screen.
Touch OK.In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK. After demo mode has been switched
off, the refrigeration appliance switches off and must be switched on again.
Resetting the settings to their default settings
All settings made on the refrigeration appliance will be reset to default settings (for settings, see “Guide to the appliance”).
In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK.Use the sensor control to scroll to
the symbol.
Touch OK. The refrigeration appliance switches off
and must be switched on again.
Information
Appliance data (model identifier and serial number) is shown on the display.
Keep this appliance data to hand:
- For integrating the refrigeration appliance into your WiFi network (see “Selecting further settings – Miele@home”) (depending on the model).
- When reporting an appliance fault to the Miele Customer Service Department (see “Service”).
- When retrieving information from the EPREL database (see “Service”).
Charcoal filter change indicator
After inserting the charcoal filter (optional accessory), you must activate the charcoal filter change indicator in Settings mode.
47
Page 48
Selecting further settings
The charcoal filter change indicator on the start display will remind you to replace the charcoal filter approx. every 6months (see “Cleaning and care – Replacing the charcoal filters”).
Cleaning mode
Cleaning mode makes it easier to clean the fridge zone (see “Cleaning and care”). The interior lighting remains switched on, even though the fridge zone is switched off. The buzzer will stop and the symbols on the display will also go out.
If Cleaning mode is switched on, this will be indicated on the start display.
After cleaning, Cleaning mode must be switched off. If the appliance door is closed for more than 10minutes, Cleaning mode switches itself off automatically.
48
Page 49

Door alarm

The refrigeration appliance is fitted with a door alarm to avoid increased energy consumption and food becoming warm if the door is left open.
If the appliance door is left open for a longer period of time, will appear in the temperature display. An alarm will also sound and the interior lighting will pulsate.
The time before the door alarm is triggered can be changed (see “Selecting further settings”).
The door alarm’s audible signal can be switched off (see “Selecting further settings”).
The alarm will stop and will go out on the display as soon as the door is closed.
Switching the door alarm off early
If you are bothered by the sound of the alarm, you can switch the alarm off early.
Tap OK.  goes out and the alarm will stop.
The interior lighting will light up constantly.
If the appliance door is not closed, the door alarm will sound again after around 1minute.
49
Page 50

Storing food in the fridge zone

Risk of explosion due to
flammable mixes of gases. Electrical components can cause
flammable mixes of gases to ignite. Do not store explosive materials in
the refrigeration appliance or any products containing propellants (e.g. spray cans). The spray cans in question can be identified by the contents printed on the can or by a flame symbol. Electrical components can cause escaping gases to ignite.
Risk of damage due to greasy or
oily foods. If storing food which contains a lot of
fat or oil in the refrigeration appliance or the appliance door, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Make sure that no fat or oil leaks onto the plastic parts of the refrigeration appliance.

Different storage zones

Due to natural air circulation, there are different temperature regions in the refrigerator section.
Cold, heavy air sinks to the lowest section of the refrigeration section. Make use of the different zones when placing food in the appliance.
This refrigeration appliance has dynamic cooling, which helps to keep an even temperature when the fan is running. The difference between the various temperature zones is therefore less pronounced.

Warmest area

The warmest area in the refrigerator section is at the top in the front area and in the door. Use this for storing butter and cheese.
If there is insufficient air circulation, the cooling performance will decrease and energy consumption will increase.
To allow air to circulate efficiently, do not pack food too closely together in the appliance.
Do not cover the fan in the rear wall of the appliance.
50
Page 51
Storing food in the fridge zone

Coldest area

The coldest area in the fridge zone is directly above the DailyFresh drawer and at the back of the appliance.
A temperature setting of 4°C combined with appropriate hygiene measures delays the propagation of bacteria, e.g. salmonella and listeria, which can lead to serious food poisoning.
Therefore, you should use these areas to store all delicate and highly perishable food, including:
- Fish, meat, poultry
- Cold cuts, ready meals
- Dishes or baked goods containing eggs or cream
- Fresh dough, cake mixtures, pizza or quiche dough
- Raw milk cheese and other raw milk products
- Hummus, vegetable spreads, plant­based cream cheese substitutes
- Pre-packed vegetables
- Other fresh food (with a label stating it should be kept at a temperature of approx. 4°C)
Tip: Store food in such a way that it does not touch the rear wall of the fridge zone. Otherwise it could freeze to the rear wall.

Food which is not suitable for storage in the refrigerator section

Not all food is suitable for refrigeration at temperatures below 5°C, because it may be sensitive to cold. Depending on the type of food, the appearance, consistency, flavour and/or vitamin content may be altered if stored at too cold a temperature.
Food which is sensitive to cold includes:
- Pineapples, avocados, bananas, pomegranates, mangoes, melons, papayas, passionfruit, citrus fruit such as lemons, oranges, mandarins, grapefruit
- Fruit (which is not yet ripe)
- Aubergines, cucumbers, potatoes, peppers, tomatoes, courgettes
- Hard cheeses (e.g. Parmesan, mountain cheese)

Notes on buying food

The freshness of the food when it is first placed in the appliance is the most important factor for how long it stays fresh. Take into account the use-by date and the correct storage temperature. Time out of the refrigerator, e.g. transporting food in a warm car, should be kept to a minimum.
51
Page 52
Storing food in the fridge zone

Storing food correctly

Ensure that food stored in the fridge zone is in packaging or covered properly (some exceptions apply in the DailyFresh drawer). This will prevent food odours from affecting other food, stop food from drying out and also prevent any cross­contamination of bacteria. This is particularly important when storing meat products. Make sure that food such as raw meat and fish in particular does not come into contact with other food.
By ensuring that the temperature settings are correct and by taking appropriate hygiene measures, you can prolong the storage life of your food considerably. This prevents food waste.

Protein-rich food

Please note that food rich in protein deteriorates faster than other types of food. Shellfish, for example, deteriorates faster than fish, and fish deteriorates faster than meat.
52
Page 53

Storing food in the DailyFresh drawer

The DailyFresh drawer provides good storage conditions for fruit and vegetables.
The humidity level in the DailyFresh drawer can also be regulated to suit the food being stored. Food retains its own moisture if stored at a higher humidity and so does not dry out as quickly. The temperature is approximately equivalent to the temperature in the fridge zone.
Remember that the fresher the food when placed in the appliance, the longer it will stay fresh.
Adjusting the humidity level in the DailyFresh drawer for fruit and vegetables
The moisture level greatly depends on the type and quantity of food being stored, if stored unwrapped. If the quantity of food being stored in this compartment is small, the humidity level may be too low.
Tip: If you are only storing a small amount of food, wrap it in airtight packaging.
Selecting low humidity
The appliance is delivered with increased humidity and the compartment cover pushed backwards .
Only change this position if the DailyFresh drawer is excessively humid:
Open the DailyFresh drawer.
Pull the compartment cover forwards
as far as it will go.
The compartment cover is open and the humidity drops .
Selecting increased humidity
Open the DailyFresh drawer.
Slide the compartment cover
backwards as far as it will go.
The compartment cover is closed and the humidity remains in the compartment .
53
Page 54
Storing food in the DailyFresh drawer
Observe the following tips if you find that food you have stored does not keep well (e.g. food becomes limp or wilts after only being stored for a short time):
Only place fresh food in the appliance. The initial condition of the food is crucial
to maintaining freshness.
Clean the DailyFresh drawer before storing food in it.Very wet food should be dried off before storing it.Do not store food which is sensitive to cold in the DailyFresh drawer (see
“Storing food in the fridge zone – Food which is not suitable for storage in the fridge zone”).
Set the compartment cover to the correct position for the food being stored
(humidity not increased or humidity increased ).
An increased humidity level in the humidity-controlled compartment is
achieved with the moisture present in the food being stored if it is stored unwrapped. The more food stored in the compartment, the higher the humidity.
If too much moisture collects in the compartment at the setting and the food
is affected, dry the floor and place a rack or similar item in the compartment so that excess moisture can drip down. Alternatively, reduce the humidity by pulling the compartment cover forwards.
If the humidity level is too low despite the setting, wrap the food in airtight
packaging.
54
Page 55

Fridge zone and DailyFresh drawer

The fridge zone and the DailyFresh drawer defrost automatically.
Condensate and frost can build up on the back wall of the fridge zone and the DailyFresh drawer whilst the compressor is running. You do not need to remove this.
The condensate drains through a channel and drain hole into an evaporation system at the back of the refrigeration appliance. The warmth generated by the compressor causes the condensate to evaporate automatically.
Keep the condensate channel and drain hole clean to enable this. Condensate must be able to drain away unhindered at all times.

Defrosting

55
Page 56

Cleaning and care

The data plate located inside the interior cabinet of the refrigeration appliance must not be removed. It contains information which is required in the event of a fault.
Do not let water get into the electronic unit or the lighting.
Risk of damage due to moisture
ingress. The steam from a steam cleaner can
damage plastic and electrical components.
Do not use a steam cleaner to clean the refrigeration appliance.
Cleaning water must not get into the drain hole.

Cleaning agents

Cleaning and conditioning agents used in the interior cabinet of the refrigeration appliance must be food safe.
To avoid damaging the surfaces of the appliance, do not use the following:
- Cleaning agents containing soda, ammonia, acids or chlorides
- Cleaning agents containing descaling agents
- Abrasive cleaning agents (e.g. scouring powder, scouring liquid or pumice stones)
- Cleaning agents containing solvents
- Stainless steel cleaners
- Dishwasher cleaner
- Oven sprays
- Glass cleaning agents
- Hard, abrasive sponges and brushes (e.g. pot scourers)
- Eraser stain remover blocks
- Sharp metal scrapers
We recommend using a clean sponge and lukewarm water with a little washing-up liquid to clean the surfaces of the appliance.
56
Page 57
Cleaning and care

Preparing the refrigeration appliance for cleaning

Tip: Switch Cleaning mode on. The
cooling system in the fridge zone is switched off, but the interior lighting remains switched on.
In Settings mode, use the or
sensor control to scroll to thesymbol.
Touch OK. When Cleaning mode is switched
on, a dot appears in the upper corner of the display.
The start display shows when Cleaning mode is switched on.
The cooling system in the fridge zone is switched off, but the interior lighting remains switched on.
Take any food out of the refrigeration
appliance and store it in a cool place.
Remove any accessories that can be
removed for cleaning (see “Removing, dismantling and cleaning the accessories”).

Cleaning the inside of the appliance

The refrigeration appliance should be cleaned regularly (at least once a month).
If soiling is left on for any length of time, it may become impossible to remove under certain circumstances.
Surfaces may suffer discolouration or damage.
It is therefore best to remove any soiling immediately.
Clean the interior with a clean
sponge, lukewarm water and a little washing-up liquid.
After cleaning, wipe with clean water
and dry with a soft cloth.
Clean the condensate channel and
drain hole frequently using a cotton swab or similar item to ensure that condensate can drain away freely.
Leave the door open to air the
refrigeration appliance sufficiently for a short while and to prevent odour build-up.
57
Page 58
Cleaning and care

Cleaning accessories by hand or in the dishwasher

The following components must be cleaned by hand only:
- The stainless steel trim
- Flexible bottle rack
- Adapters for the split shelf
- Protective strips at the back of the adjustable shelves
- Adjustable shelf with printing
- All drawers and compartment lids (these vary depending on model)
- The plastic parts of the adjustable shelf with pivotable glass shelf (available as optional accessory)
- Organisation box (available as an optional accessory)
The following components are dishwasher-safe:
Risk of damage due to high
dishwasher temperatures. Parts of the refrigeration appliance
may become unusable, e.g. deform, if they are washed in the dishwasher at more than 55°C.
For dishwasher-safe components, always select dishwasher programmes with a maximum temperature of 55°C.
- Adjustable shelves (without the trim or printing)
- The holder for the charcoal filter (available as an optional accessory)

Removing and dismantling accessories for cleaning

Dismantling the door shelf/bottle shelf

Remove the stainless steel trim before cleaning the door shelf/bottle shelf in the dishwasher.
To remove the stainless steel trim, proceed as follows:
Place the door shelf/bottle shelf on
the worktop.
Pull the trim off the shelf beginning at
one side.
After cleaning the door shelf/bottle
shelf, reattach the trim.
Contact with natural dyes from carrots, tomatoes and ketchup, etc., may discolour the plastic parts in the dishwasher. This discolouration does not affect the stability of the parts.
- Bottle holder, egg tray
- The door and bottle shelves in the appliance door (without stainless steel trim)
58
Page 59
Cleaning and care

Dismantling a split shelf

Remove the trim and the protective strip before cleaning the shelf. Proceed as follows:
Place the shelf on a worktop covered
with a soft material (e.g. a tea towel).
Pull the trim off the shelf, beginning at
one side.
Pull the protective strip off, beginning
at one side.
Pull the two adapters off the support
ribs on the left and right.
After cleaning, attach the two
adapters to the support ribs on the left and right at the desired height.
Reattach the trim and the protective
strip to the shelf.

Dismantling an adjustable shelf

Remove the trim and the rear protective strip before cleaning the shelf. Proceed as follows:
Place the shelf on a worktop covered
with a soft material (e.g. a tea towel).
Pull the trim off the shelf, beginning at
one side.
Then pull the protective strip off.After cleaning the shelf, reattach the
trim and the protective strip.

Removing a drawer

Pull the drawer forwards and out.After cleaning, slide the drawer back
in again.
59
Page 60
Cleaning and care

Removing the dividing plate

Remove the dividing plate.After cleaning, slide the dividing plate
back in again.

Removing the compartment cover

Replacing the charcoal filters (optional accessory)

Replace the charcoal filters in the holder every 6months.
The symbol in the start display reminds you to replace the charcoal filter.
Replacement KKF-RF charcoal filters can be obtained from the Miele Customer Service Department, from your dealer or from Miele’s website.
Pull the charcoal filter holder upwards
to remove it from the adjustable shelf.
When in position, the charcoal filters must not touch the rear wall of the refrigeration appliance as the moisture could cause them to stick to it.
Insert the new charcoal filters deep enough in the holder to ensure that they do not protrude over the edge of the holder.
Lift the cover at the front and pull it
out.
After cleaning, slide the compartment
cover back in again.
60
Remove both charcoal filters and
place the new filters with the surrounding edge pointing downwards in the holder.
Page 61
Place the holder in the middle of the
rear protective strip of any adjustable shelf, so that it clicks into position.
Touch the OKsensor control to
confirm that the filters have been replaced.
The “Replace charcoal filter” reminder will go out on the display and the counter will be reset.
The symbol will go out on the start display.
Cleaning and care

Cleaning the door seal

Risk of damage as a result of
incorrect cleaning. If you treat the door seal with oils or
grease, it can become porous. Do not use any oils or grease on the
door seal.
The door seal should be cleaned
regularly with clean water, and then wiped dry with a soft cloth.

Cleaning the ventilation gaps

A build-up of dust will increase the energy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a brush or vacuum cleaner (you could use a Miele vacuum cleaner dusting brush, for example).
61
Page 62
Cleaning and care

After cleaning

Touch the OKsensor control on the
control panel.
will appear in the display. TouchOK. When Cleaning mode is switched
off, the dot in the upper corner of the display goes out.
Use the and sensor controls to
scroll to the symbol and touch OK.
The refrigeration appliance will start cooling again.
Replace all shelves and accessories in
the refrigeration appliance.
Switch on the SuperCool function
for a while so that the temperature inside the refrigeration appliance will drop quickly.
Place food in the refrigeration
appliance as soon as it reaches the required coldness.
Close the appliance door(s).
62
Page 63

Problem solving guide

Many malfunctions and faults that can occur in daily operation can be easily remedied. You can save time and money in many cases, as you do not need to call the Miele Customer Service Department.
Information to help you rectify faults yourself can be found at www.miele.com/ service.
The following tables are designed to help you to find the cause of a malfunction or a fault and to resolve it.
To prevent unnecessary loss of temperature it is advisable not to open the door while waiting for the appliance to be serviced.
Problem Cause and remedy
The refrigeration appli­ance is not getting cold and the interior lighting does not come on when the appliance door is opened.
The compressor runs continuously.
The compressor is switching on more fre­quently and for longer periods of time. The temperature in the refri­geration appliance is too low.
The refrigeration appliance is not switched on and the symbol is lit up on the display.
Switch the refrigeration appliance on.
The plug is not inserted in the socket correctly. Insert the plug into the socket. If the refrigeration
appliance is switched off, will appear on the display.
The mains fuse has tripped. There could be a fault with the refrigeration appliance, the household electrical wiring or another electrical appliance.
Contact a qualified electrician or the Miele
Customer Service Department.
This is not a fault. To save energy, the compressor runs at a lower speed, but for longer, when less cooling is required.
The ventilation gaps have been covered or become too dusty.
Do not block the ventilation gaps.Dust the ventilation gaps regularly.
The appliance door has been opened too frequently. A large amount of fresh food has been placed in the appliance.
Only open the appliance door when necessary and
for as short a time as possible.
After a while, the temperature will return to normal by itself.
The appliance door is not properly closed.
63
Page 64
Problem solving guide
Problem Cause and remedy
Close the appliance door. After a while, the temperature will return to normal by
itself.
The ambient temperature is too high. The higher the ambient temperature, the longer the compressor runs.
See the information in “Installation – Installation
site”.
The refrigeration appliance was not properly installed in the niche.
Install the refrigeration appliance in the niche as
described in the installation instructions supplied with it.
The temperature setting in the refrigeration appliance is too low.
Correct the temperature setting.
The SuperCool function is still switched on. Switch off the SuperCool function earlier to save
energy.
The compressor comes on less and less often and for shorter periods of time.
Ice or condensation has built up inside the refri­geration appliance. The appliance door may not close correctly.
The door seal is dam­aged or needs to be re­placed.
This is not a fault. The temperature is too high.
Adjust the temperature.Check the temperature again after 24 hours.
The door seal has come out of its groove. Check that the door seal is correctly positioned in
the groove.
The door seal is damaged. Check whether the door seal is damaged.
No tools are required to change the door seal. Change the door seal. A replacement is available
from Miele or from specialist retailers.
64
Page 65

Other problems

Problem Cause and remedy
The floor of the refriger­ator section is wet.
There is no audible alarm even though the door has been open for a long time.
The condensate drain hole is blocked. Clean the condensate channel and drain hole.
This is not a fault. The alarm has been switched off in Settings mode. If you want to switch the audible alarm back on again:
Tap OK. will appear in the display.
Use the  or sensor control to scroll to the
symbol.
Tap OK.Use the or sensor control to scroll to the
symbol.
Tap OK.Use the and sensor controls to select the
volume you want for alarms and buzzers.
Tap OK. When the alarms and buzzers are switched on, will
appear.
Problem solving guide

Display warnings

Message Cause and remedy
lights up on the dis­play, the refrigeration appliance does not get cold even though the controls and the interior lighting are working.
Demo mode has been activated. Touch OK.
Miele will appear initially in the display, followed by the
start screen.
Touch OK.In Settings mode, use the or sensor control
to scroll to the symbol.
Touch OK. After demo mode has been switched off, the
refrigeration appliance switches off and must be switched on again.
65
Page 66
Problem solving guide
Message Cause and remedy
is lit up on the dis­play and the refrigeration appliance cannot be used.
Nothing is visible on the display. The display is completely blank.
is lit up on the display and the appliance can­not be used.
The symbol lights up in the start display and a buzzer sounds.
The Cleaning mode function is still switched on. Touch the OKsensor control on the control panel to
switch off Cleaning mode.
will appear in the display. TouchOK.
When Cleaning mode is switched off, the dot in the upper corner of the display goes out.
Use the or sensor control to scroll to the
symbol and touch OK.
The refrigeration appliance will start cooling again. Sabbath mode is switched on: the interior lighting is
switched off and the refrigeration appliance is cooling down.
TouchOK. will appear in the display.
Touch OK. When the Sabbath mode function is switched on, a
dot appears in the upper corner of the display. Touch OK.
When the Sabbath mode function is switched off, the dot in the upper corner of the display goes out.
The lock function has been activated. Unlock the refrigeration appliance temporarily or
switch the lock function off completely (see “Selecting further settings – Deactivating the lock function/ temporarily/switching off completely”).
The charcoal filter replacement indicator in the start display reminds you to replace the charcoal filter.
Replace the charcoal filter in the holder (see
“Cleaning and care – Replacing the charcoal filters (optional accessory)”) and confirm that the charcoal filter has been replaced by touching the OKsensor control.
The symbol will go out on the start display.
66
Page 67
Message Cause and remedy
lights up in the dis-
play; an alarm will also sound and the interior lighting will flash.
lights up in the dis­play and a fault code F with numbers may ap­pear. An alarm will also sound.
The door alarm has been activated.
TapOK. The alarm will stop, the symbol will go out and the
interior lighting will light up again constantly. Close the appliance door.
There is a fault.
Switch the alarm off by tapping OK.Contact the Miele Customer Service Department.
To report the fault, you need the fault code and also the model identifier and serial number of your refrigeration appliance. You can access this information in the display:
TapOK. The appliance data required will be shown on the
display.
TapOK.To switch off the refrigeration appliance, use the
or sensor control to scroll to the symbol.
To exit the information display, use the or
sensor control to scroll to the symbol.
TapOK.
Problem solving guide
There is an appliance fault: this display always has priority over any settings which have just been selected.
An appliance fault has priority over any current door and/or temperature alarms displayed.
67
Page 68
Problem solving guide

Interior lighting

Risk of electric shock due to exposed, live electrical components.
When removing the lighting cover, there is a risk of coming into contact with live electrical components.
Do not remove the lighting cover. The LED lighting may only be repaired or replaced by the Miele Customer Service Department.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a close range directly into the lighting with optical instruments (e.g. magnifying glass or similar).
Problem Cause and remedy
The interior lighting is not working.
The refrigeration appliance has not been switched on. Switch the refrigeration appliance on.
Sabbath mode is switched on: the display is dark and the refrigeration appliance is cooling.
TouchOK. will appear in the display.
Touch OK. When the Sabbath mode function is switched on, a
dot appears in the upper corner of the display. Touch OK.
When the Sabbath mode function is switched off, the dot in the upper corner of the display goes out.
The interior lighting is pulsating.
68
To avoid overheating, the lighting switches itself off automatically after approx. 15minutes if the appliance door is left open. If this is not the case, then there is a fault.
Call the Miele Customer Service Department.
This is not a fault. The door alarm has been activated. The interior lighting pulsates along with the alarm.
Page 69

Noises

The refrigeration appliance is producing various noises during operation. If the cooling performance is low, the refrigeration appliance will conserve energy but operate for longer. The volume will be lower. Food will be chilled faster if the cooling performance is high. The volume will be higher.
Normal noises
Hissing Refrigerant is being injected into the cooling circuit. Bubbling,
gurgling, splashing
Humming The refrigeration appliance is cooling. Clicking The thermostat is switching the compressor on or off. Humming,
whirring
Cracking Materials are expanding inside the refrigeration appliance. Rattling Valves or flaps are active. Buzzing
(refrigeration appliances with water container)
Slurping (refrigeration appliances with soft-close mechanism)
What is causing them?
Refrigerant is circulating through the pipes.
The fan is running. Automatic door opening is opening or closing the appliance door.
Water is being pumped out of the water container.
The appliance door with soft-close mechanism is being opened or closed.
Please bear in mind that a certain amount of noise is unavoidable (from the compressor and the refrigerant circulating through the cooling circuit).
69
Page 70
Noises
Noises Cause and remedy Vibrating,
rattling, clinking
The refrigeration appliance is uneven. Use a level to check and adjust the alignment of the refrigeration appliance. The refrigeration appliance is aligned by raising or lowering the adjustable feet (depending on the model) underneath it.
For niches of 140cm and more: place the stabilising rods supplied underneath the appliance base.
Drawers, baskets or shelves are jiggling or are stuck. Check all removable items and refit them correctly.
Bottles or containers are touching. Separate bottles or containers slightly.
The transport cable clips (depending on the model) are hanging loose at the back of the appliance. Remove the transport cable clips.
70
Page 71

Service

SN-ST
R600a:
XXXXXX
Nr. XX/ XXXXXXXXX.
XXX l
XXg
Information to help you rectify faults yourself and about Miele spare parts can be found at www.miele.com/ service.

Contact in the event of a fault

In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or Miele Customer Service.
You can book a Miele Customer Service call-out online at www.miele.com/service.
Contact information for Miele Customer Service can be found at the end of this document.
Please quote the model identifier and serial number of your appliance (SN) when contacting Miele Customer Service. Both numbers can be found on the data plate inside the refrigeration appliance or, depending on the model, in Settings mode under Information.

EPREL database

Since 1 March 2021, information on energy labelling and ecodesign requirements has been available in the European Product Database (EPREL). You can find the product database at the following link https:// eprel.ec.europa.eu/. You will be asked to enter the model identifier.
The model identifier can be found on the data plate inside the refrigeration appliance or, depending on the model, in Settings mode under Information.

Warranty

For information on the appliance warranty specific to your country please contact Miele. See back cover for address.
In the UK, your appliance warranty is valid for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.
71
Page 72

EU Conformity declaration

Miele hereby declares that this refrigerator complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to https:// miele.co.uk/manuals and enter the name of the product or the serial number
Frequency band of the WiFi module
Maximum transmitting power of the WiFi module
2.4000GHz –
2.4835GHz <100mW
72
Page 73

UK Conformity declaration

ThisStatement of Compliance confirms this Miele product fully complies with the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023.
1) Household Appliance –
2)
Manufactured by: Miele & Cie KG, Carl Miele Street 29, 33332 Gutersloh Germany Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road, Abingdon, Oxon, OX14 ITW Great Britain
The defined support period at the time of first supply is 10 years
3) To report vulnerabilities and cybersecurity issues please contact: psirt@miele.com4)
5) Signature Name: Paul Wright
Company Position: Head of Technical Management Date of signature: 19th March 2024 Place of signature:
Abingdon, Oxfordshire
Freezer - 120002, 120003, 320001, 320002 Refrigerator - 110001, 110002, 310001, 310002, 310003 Fridge-freezer - 130001, 130002, 130003, 130004, 330001, 330002 Wine unit - 210007, 310004, 330004
Miele hereby declares that this refrigerator complies with UK Radio Equipment Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to https://miele.co.uk/ manuals and enter the name of the product or the serial number
Frequency band of the WiFi module 2.4000GHz – 2.4835GHz Maximum transmitting power of the
WiFi module
<100mW
73
Page 74

Copyrights and licences

For the purpose of operating and controlling the communication module, Miele uses proprietary or third-party software that is not covered by open source licensing terms. This software/these software components are protected by copyright. The copyrights held by Miele and third parties must be respected.
Furthermore, the communication module integrated in the appliance contains software components which are distributed under open source licence conditions. The open source components contained in the appliance along with the corresponding copyright notices, copies of the licensing terms valid at the time and any further information can be accessed locally by IP via a web browser (http[s]:// <IP address>/Licenses). The liability and warranty arrangements for the open source licences displayed in this location only apply in relation to the respective rights holders.
74
Page 75
Page 76
K 7715 ...
M.-Nr. 12 584 030 / 01en-GB
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
