Operating and installation instructions
Refrigerator
K 2202 S-1
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these operating instructions
before it is installed or used for the
first time.
G
M.-Nr. 06 254 960
Contents
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching off for longer periods of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Temperature selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the refrigerator efficiently. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Different storage zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Coldest area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Warmest area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Food which should not be stored in a refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . 14
Storing food correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fruit and vegetables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjusting the interior fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Moving the shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Split shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Adjusting the door shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Moving the bottle divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Automatic defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning the outer casing, the interior and accessories . . . . . . . . . . . . . . . . . . . . 18
Ventilation gaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Metal grille at the back of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Contents
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Climate range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fitting the handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Aligning the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Changing the door hinging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Building under . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Description of the appliance
a Shelves
b Condensate channel and
drain hole
c Fruit and vegetable containers
d Butter and cheese compartment
e Egg tray
f Door shelf
g Temperature selector and
interior light with
contact switch
h Bottle shelf
4
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Please ensure that the appliance
presents no danger to children while
being stored for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind the
appliance to prevent misuse. See the
"Warning and Safety" section of this
booklet for further details.
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please dispose of your old appliance at
your local community waste collection /
recycling centre and not with your
household waste.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
5
Warning and Safety instructions
Technical safety
This appliance complies with all
relevant legal safety requirements.
Improper use can, however, present
a risk of both personal injury and
material damage.
To avoid the risk of accidents and
damage to the appliance, read
these instructions carefully before
installation and before using for the
first time. They contain important
notes on the installation, safety,
operation and care of the appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct use
This appliance is intended for
domestic use only for the cool
storage of food and drink.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage caused by
incorrect or improper use of the
appliance.
This appliance is not a toy! To avoid
the risk of injury, do not allow
children to play on or near it, or to
play with the controls. Supervise its
use by the elderly or infirm.
which is environmentally friendly.
Although it is flammable, it does not
damage the ozone layer and does not
increase the greenhouse effect. The
use of this coolant has, however, led to
a slight increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance. Care
must be taken during transportation
and setting up of the appliance that no
parts of the cooling system are
damaged. Leaking coolant can
damage the eyes.
In the event of any damage:
- avoid open fires and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
should be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every 8 g of coolant at least 1 m
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
This appliance contains the coolant
Isobutane (R600a), a natural gas
The more coolant there is in an
appliance, the larger the room it
3
of
6
Warning and Safety instructions
Before connecting the appliance to
the mains supply make sure that
the rating on the data plate
corresponds to the voltage and
connected load of the household
supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Safe operation of the appliance is
only assured if it has been installed
and connected in accordance with
these operating and installation
instructions.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Installation work, maintenance and
repairs may only be carried out by
suitably qualified and competent
persons in accordance with national
and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
Ensure current is not supplied to the
appliance until after maintenance or
repair work has been carried out.
The appliance is only completely
isolated from the electricity supply
when:
it has been switched off at the wall
–
socket and the plug has been
withdrawn, or
the mains fuse is withdrawn, or
–
the screw-out fuse is removed (in
–
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.
Do not use any electrical
equipment in this appliance, e.g.
ice cream makers. Danger of sparking
and explosion!
If storing alcohol with a high
percentage proof, make sure it is
tightly closed and stored upright.
Danger of explosion.
7
Warning and Safety instructions
Observe the "use by" dates given
on food to avoid the risk of food
poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer’s packaging on storage
conditions required, as well as the "use
by" date.
Do not use sharp edged objects to
remove frost and ice,
–
– separate food which has become
frozen. They will damage the
evaporator, causing irreversible
damage to the appliance.
Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
Do not use any oils or grease on
the door seal, as these will cause
the seal to deteriorate and become
porous with time.
The appliance is designed for use
within certain climate ranges
(ambient temperatures), and should not
be used outside this range. The climate
range for your appliance is stated on
the data plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
Do not use a steam-cleaning
appliance to clean this appliance.
Pressurised steam could reach the
electrical components and cause a
short circuit.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Do not store cooking oil in the
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
Do not block the ventilation gaps in
the appliance as this would impair
the efficiency of the appliance, increase
the electricity consumption and could
cause damage to the appliance.
8
Warning and Safety instructions
Disposal of your old appliance
Before disposing of an old
appliance, first make the door latch
or lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
Disconnect the appliance. Cut off
the cable and render any plug
unusable.
Be careful not to damage any part
of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
9
How to save energy
Normal energy consumption Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Where the ambient room
temperature is ideal at approx.
20°C.
Temperature setting with
a thermostat which is
approximate (set in
stages).
Temperature setting with
a thermostat which is
exact to the degree
(digital display).
Use Only open the door when
With a medium setting of 2 to 3. With a high setting: The lower the
Cellar section 8 to 12°C On appliances with winter setting,
Refrigerator section 4 to 5 °C
StayFresh zone just above 0 °C
Freezer section -18°C
necessary and for as short a time
as possible.
Store food in an organised way. If food is not stored in an
Allow hot food and drinks to cool
down before placing them in the
appliance.
Store food covered or packaged. The evaporation or condensation
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance to
allow air to circulate.
Situated near to a heat source
(radiator, oven.
Where there is a high ambient
room temperature.
temperature in the freezer, the
higher the energy consumption.
please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.
Frequent opening of the door for
long periods will cause a loss of
coldness.
organised way, searching for an
item will mean the door is open for
longer.
Placing hot food in the appliance
will cause the compressor to run
for a long time, as the appliance
will have to work harder to lower
the temperature.
of liquids will cause a loss of
coldness in the refrigerator.
10
How to save energy
Normal energy
consumption
Defrosting Defrost the freezer when a layer of
ice one centimetre thick has built
up.
Increased energy
consumption
A layer of ice hinders the cold
from reaching the frozen food, and
causes an increase in energy
consumption.
11
Switching on and off
Before using for the first time
Clean the inside of the appliance and
^
the accessories with warm water and
a little washing up liquid, and then
dry with a soft cloth.
Important:
To ensure the correct functioning of
the appliance, let it stand for
between ½ and 1 hour after
transporting it to its final location
before connecting it to the mains.
Switching on
^ Turn the temperature selector in a
clockwise direction away from "0".
The appliance starts cooling, and the
interior light will come on when the door
is opened.
Switching off
^ Turn the temperature selector in an
anti-clockwise direction from "1" back
to the "0" position.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday,
switch the appliance off,
^
switch off at the wall socket and
^
withdraw the plug,
clean the appliance out and
^
leave the door ajar to air the
^
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
mould and odours are likely to build
up inside the appliance.
The cooling system and the interior light
are now switched off.
12
The correct temperature
It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
the more often the door is opened
–
and the longer it is kept open,
– if too much food is stored in it at
once,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
We recommend a temperature of 4 °C
in middle of the refrigerator.
If you wish to check the temperature in
the refrigerator,
^
place a thermometer in a glass of
water and then place the glass in the
middle of the refrigerator.
Please note the following:
bathwater and other household
–
thermometers are not very accurate.
It is best to use an electronic
thermometer.
Do not measure the temperature of
–
the air in the appliance. The result
will not reflect the temperature in the
food.
Try to open the door as little as
–
possible during the measuring
period, as warm room air will enter
the refrigerator every time the door is
opened.
Temperature selection
The temperature is set with the
temperature selector.
^ Turn it to a setting between 1 and 7.
The higher the setting, the lower the
temperature in the appliance.
A middle range setting is usually
sufficient.
It is advisable to select a setting from 4
to 7, if the door is opened frequently,
large quantities of food are stored in the
refrigerator or there is a high ambient
temperature.
After about 24 hours, the thermometer
will show the approximate temperature
in the refrigerator.
13
Using the refrigerator efficiently
Different storage zones
Due to the natural circulation of the air
in the appliance, there are different
temperature zones in the refrigerator.
Cold, heavy air sinks to the lowest
section of the appliance. Make use of
the different zones when placing food
in the appliance.
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Danger of explosion.
If storing alcohol with a high
percentage proof, make sure it is
tightly closed, and store upright.
Coldest area
The coldest area in a refrigerator is
directly above the vegetable
containers.
Use this for all delicate and highly
perishable food, e.g.
– fish, meat, poultry,
– sausage products, ready meals,
– dishes or baked goods containing
eggs or cream,
– fresh dough, cake mixtures, pizza or
quiche dough,
–
soft cheese and other dairy
products,
–
pre-packed vegetables and other
fresh food with a label stating it
should be kept at a temperature of
approx. 4 °C.
Warmest area
If storing bottles of oil or food
containing high levels of fat or oil in
the appliance, take care not to let
the oil or fat come into contact with
plastic components. These can
cause stress cracks to occur in the
plastic components.
Food must not touch the back wall of
the appliance, as it may freeze to the
back wall.
Food which should not be
stored in a refrigerator
Not all food is suitable for storing in the
refrigerator. These include:
–
Fruit and vegetables which are
sensitive to cold, such as bananas,
avocado pears, papaya, passion
fruit, aubergines/eggplant,
peppers/capsicum, tomatoes and
cucumbers
The warmest area is in the top section
of the door. Use this for storing butter
and cheese.
14
–
Fruit which is not yet ripe
–
Potatoes
–
Some hard cheeses, e.g. Parmesan
Using the refrigerator efficiently
Storing food correctly
Store food covered or packaged. This
will prevent food smells or tastes from
affecting other foods, and prevent food
from drying out and also any
cross-contamination of bacteria. The
growth of bacteria, such as salmonella,
can be avoided by setting the correct
temperature and maintaining good
standards of hygiene.
Fruit and vegetables
Fruit and vegetables can be stored
loose in the vegetable containers.
However, you should bear in mind that
some types of vegetables give off a
natural gas which speeds up the rate at
which food perishes. Some fruit and
vegetables react strongly to this gas
and should not be stored together.
Examples of fruit which produce a
large amount of this natural gas are:
Apples, apricots, pears, nectarines,
peaches, plums, avocado pears and
figs.
Examples of fruit and vegetables
which react strongly to the natural
gases given off by other types of fruit
and vegetables are:
Kiwis, broccoli, cauliflower, Brussels
sprouts, mangos, honeydew melons,
apples, apricots, cucumbers, tomatoes,
pears, nectarines and peaches.
15
Adjusting the interior fittings
Moving the shelves
The shelves can be adjusted according
to the height of the food.
Pull the shelf forward as far as it will
^
go; then lift it upwards to remove it.
With the rear barrier facing upwards,
^
place the shelf at the required
position.
The rear barrier must face upwards to
prevent food from touching the back
of the appliance and freezing to it.
Split shelf
In order to accommodate tall items in
the appliance, one of the shelves is
divided. The front section can be
pushed under the rear section.
^ Pull the front half of the glass shelf
forwards slightly and then push it
carefully under the rear half.
Adjusting the door shelves
Push the door shelf upwards, then
^
remove it by pulling it forwards.
Replace the door shelf at the
^
required position. Ensure that it is
securely pushed back into position.
Moving the bottle divider
The bottle divider can be moved to the
left or right to ensure that bottles are
held securely in position when the door
is opened and shut.
16
Condensate and frost can build up on
the back wall of the refrigerator whilst it
is in use. These are automatically
removed and defrosted by the
appliance.
The condensate is drained away via a
channel and drain hole into an
evaporation system at the back of the
appliance.
Ensure that the condensate channel
and drain hole are kept clean and
are never blocked so that
condensate can flow away without
hindrance.
Automatic defrost
17
Cleaning and care
Never use cleaning agents
containing abrasive substances
such as sand, soda, acids or
chemical solvents.
"Non-abrasive" cleaning agents are
also unsuitable as they can cause
matt areas to appear.
Make sure that water cannot get into
the temperature selector or into the
light.
Do not let water get into the
drainage channel and drain hole
when cleaning.
Do not use steam cleaning
apparatus to clean the appliance.
Steam could reach the electrical
components and cause a short
circuit.
Cleaning the outer casing, the
interior and accessories
Clean the appliance at least once a
^
month using warm water and a little
washing-up liquid.
Accessories and shelves should all
^
be hand-washed. The butter dish is,
however, dishwasher safe.
Clean the condensate channel and
^
drain hole frequently, so that
condensate can drain away
unhindered. Use a straw or similar to
clear the drain if necessary.
^ After cleaning, wipe the outer casing,
the interior and accessories with a
damp cloth and dry with a soft cloth.
Leave the door open to air the
appliance for a short while.
E-Cloth
The data plate located inside the
appliance must not be removed. It
contains information which is
required in the event of a service
call.
Before cleaning
^
Switch the appliance off by turning
the temperature selector to "0",
switching off at the wall socket and
removing the plug.
^
Take any food out of the appliance
and store it in a cool place.
^
Take out any removable parts e.g.
shelves for cleaning.
18
^ A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals.
Ventilation gaps
^
The ventilation gaps should be
cleaned regularly with a brush or
vacuum cleaner. A build-up of dust
will increase the energy consumption
of the appliance.
Door seal
Do not use any oils or grease on the
door seal as these will cause the
seal to deteriorate and become
porous over time.
The door seal should be cleaned
regularly with clean water and then
wiped dry with a soft cloth.
Metal grille at the back of the
appliance
The metal grille at the back of the
appliance (heat exchanger) should be
dusted at least once a year. A build-up
of dust will increase the energy
consumption of the appliance.
When cleaning the grille, make sure
that the pipework and other
components do not get broken or
damaged in any way.
Cleaning and care
After cleaning
^
Replace all shelves and accessories
in the appliance.
^
Insert the plug and switch on at the
wall socket. Then switch the
appliance on with the temperature
selector.
^
Place food back in the appliance and
close the door.
19
Problem solving guide
Repairs to electrical appliances
should only be carried out by a
suitably qualified and competent
person in accordance with local and
national safety regulations. Repairs
and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable
for unauthorised work.
Some minor problems can be corrected
without contacting the Service
Department.
What to do if . . .
. . . the appliance does not get cool.
Check whether, the metal grille (heat
^
exchanger) at the back of the
appliance has become too dusty.
The appliance door is being opened
^
frequently.
Check that the door has been closed
^
properly.
. . . the interior light is not working.
Has the contact switch become
^
stuck?
Make sure that the temperature
^
selector is not pointing to the "0"
position.
If it is not pointing to the "0" position,
the lamp is defective:
^ Make sure that the temperature
selector is not pointing to the "0"
position.
^ Check that the plug is correctly
inserted in the socket and switched
on.
^
Check that the fuse is not defective
and that the mains fuse has not
blown. If it has, contact the Miele Ser
vice Department.
. . . the temperature in the refrigerator
is too low.
^
Turn the temperature selector to a
setting closer to "0".
. . . the appliance is switching in too
frequently and for too long.
^
Check whether the ventilation gaps
have been covered over or become
too dusty.
^ Disconnect the appliance from the
mains. Switch off at the wall and
withdraw the plug from the socket, or
disconnect the mains fuse or remove
the screw-out fuse in countries where
this is applicable.
-
^
Reach into the back of the light cover,
press upwards at the side a, and
then pull the cover off b.
^
Replace the lamp.
Lamp specification:
220 - 240 V, max. 15 W, E 14 fitting.
20
Push the cover securely back into
^
position.
. . . the floor is wet.
The drain hole is blocked.
Clean the condensate channel and
^
drain hole.
If you still cannot remedy the fault
having followed these suggestions,
please contact the Miele Service
Department.
To prevent unnecessary loss of
temperature it is advisable not to
open the door while waiting for the
appliance to be serviced.
Problem solving guide
21
Noises
Normal noises What causes them
Brrrrr... Humming noise made by the motor (compressor). This noise can
Blubb, blubb.... A gurgling noise can be heard when coolant is circulating
Click.... Clicking sounds are made when the thermostat switches the
Sssrrrrr.... On multi-zone and frost-free appliances you can sometimes just
Remember that the noise of the compressor and the coolant circulating in the
system is unavoidable.
get louder for brief periods when the motor is switching on.
through the pipes.
motor on and off.
hear the movement of air circulating inside the appliance.
Noises that you can
easily rectify
Rattling, vibrating The appliance is uneven: Realign the appliance using a spirit
What causes them, and what can you do about
them?
level, by raising or lowering the screw feet underneath the
appliance.
The appliance is touching another appliance or piece of
furniture: Move it away.
Drawers, baskets or shelves are unstable or sticking: Check
all removable items and refit them correctly.
Are any bottles or containers unstable or knocking against
each other? Separate them.
The transport cable clips are hanging loose at the back of
the appliance: Remove the clips.
22
After sales service
In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee, please contact:
your Miele Dealer
–
or
the Miele Service Department (see
–
back cover for address).
When contacting your Dealer or the
Service Department, please quote the
model and serial number of your
appliance. This information is given on
the data plate.
Please note that telephone calls may
be monitored and recorded for
training purposes.
23
Electrical connection
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person in accordance with local and
national safety regulations.
The appliance is supplied with a mains
cable and moulded plug ready for
connection to an a.c. single phase
220-240 V 50 Hz supply.
The voltage and connected load are
given on the data plate. Please ensure
that these match the household mains
supply. The fuse rating is quoted on the
plug.
Connection should be made via a
suitable switched socket which is easily
accessible. For extra safety it is
advisable to install a residual current
device (RCD) with a trip current of 30
mA (in accordance with DIN VDE 0664,
VDE 0100, Section 739).
Do not connect the appliance to the
mains electricity supply by an extension
lead. Extension leads do not guarantee
the required safety of the appliance
(e.g. danger of overheating).
Non-rewireable plugs (BS 1363)
The fuse cover must be re-fitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words in the base of the
plug (as applicable to the design of the
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING
THIS APPLIANCE MUST BE
EARTHED
The appliance must not be connected
to an inverter and must not be used
with a plug adapter as these can cause
damage to the appliance’s electronic
unit.
24
Installation
Do not place any appliance which
gives off heat, such as a toaster or
microwave oven, on top of this
appliance, as this would increase
the appliance’s energy consumption.
Important: Appliances without side
wall heating must not be installed
"side-by-side" next to another
refrigerator or freezer.
This could cause condensation and
subsequent damage between the
two appliances.
Location
The appliance should be installed in a
dry, well-ventilated room.
The room temperature should not go
above or below the climate range for
which the appliance is designed.
The higher the ambient temperature of
the room, the more energy the
appliance requires to operate.
Climate range Ambient room
SN
N
ST
T
SN - ST
SN - T
temperature
+10 °C to +32 °C
+16 °C to +32 °C
+18 °C to +38 °C
+18 °C to +43 °C
+10 °C to +38 °C
+10 °C to +43 °C
Operating in a room which is too cold
will cause the cooling system to switch
off for too long causing the internal
temperature in the appliance to rise
with the risk of food deteriorating and
going off.
Ventilation
Air at the back of the appliance gets
warm. To ensure sufficient ventilation,
the ventilation gaps must not be
covered over. The air inlet and outlet
must not be covered or blocked in any
way. They should be dusted on a
regular basis.
It should not be installed where it is
exposed to direct sunlight or directly
adjacent to a heat-producing appliance
such as an oven or a radiator.
Climate range
The appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range of
this appliance is stated on the data
plate inside the appliance.
25
Installation
Fitting the handle
If the door hinging does not require
changing, the handle should now be
fitted to the door.

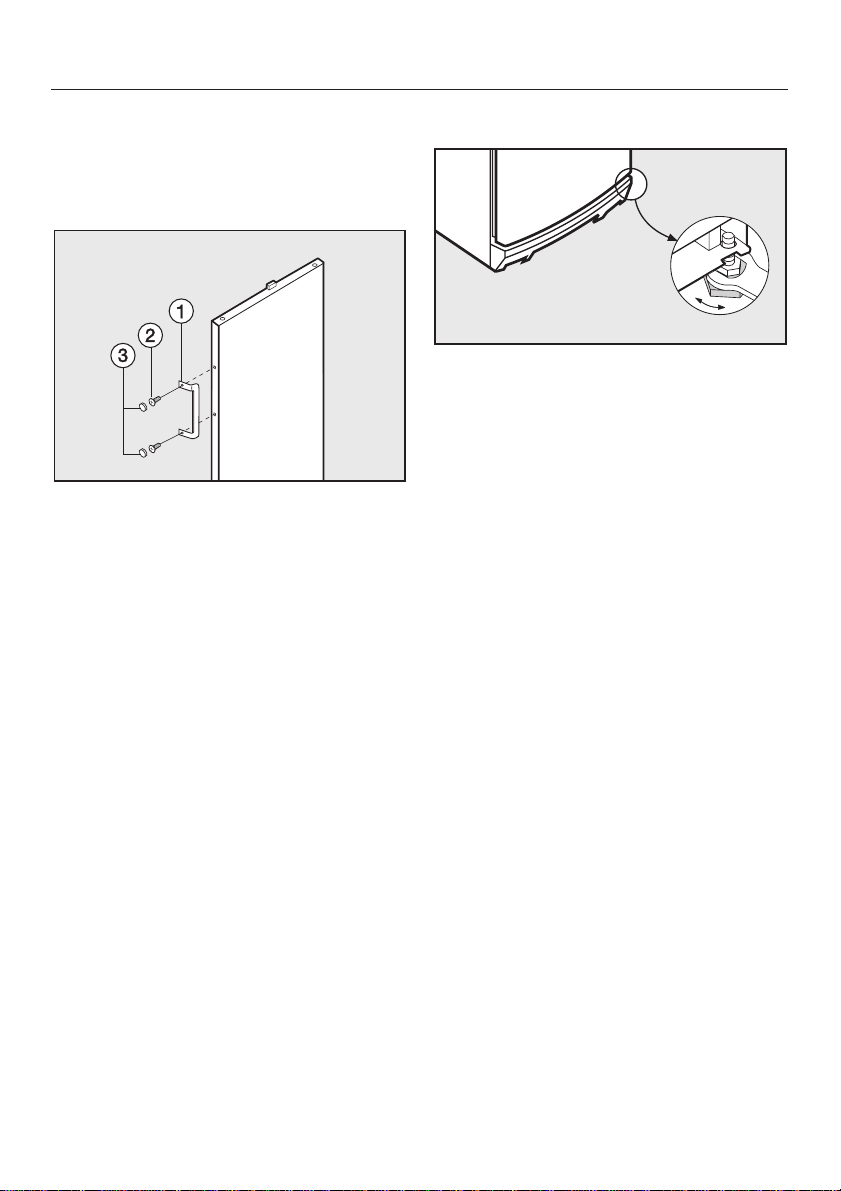

^ Secure handle a to the holes in the
door using screws b.
^ Fit covers c.
Installation
^ Remove any cable clips from the
back of the appliance.
Aligning the appliance
To align the appliance adjust the feet
^
using the spanner supplied.
^
Check that all parts at the back of the
appliance are unhindered. Remove
any hindrance.
^
Carefully push the appliance into
position. The appliance can be
placed directly against a wall.
26

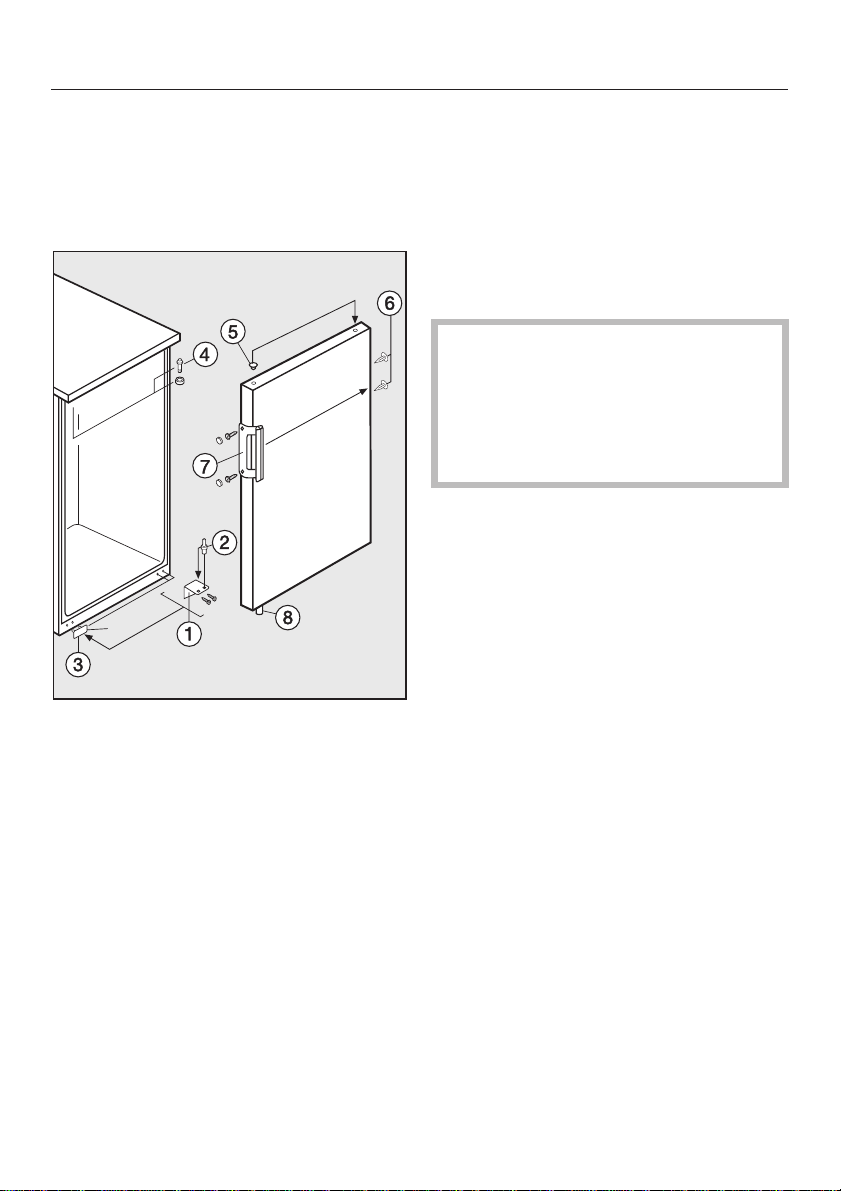

Changing the door hinging
The appliance is supplied right hand
hinged. If left hand door hinging is
required, follow the instructions below.
Appliance door
^
With the appliance door closed,
unscrew hinge bracket a and then
take the door down and off.
^
Take hinge pin b out of the hinge
bracket, then refit it in the second
hole of the hinge bracket.
Remove stoppers f, and unscrew
^
handle g. Refit the handle and
stoppers on the other side of the
door.
Grip the door support h using your
^
thumb and index finger and then
press to the side to release it. You
may need to use a bit of force.
This door support is not needed
when the door hinging is on the left.
Should you ever decide to change
the hinging back to right hand side
you will need to refit the door
support.
^ Fit the appliance door onto upper
hinge pin d and then close the
appliance door.
^ Fit lower hinge pin b together with
hinge bracket a into the appropriate
hole on the underside of the
appliance door and then securely
screw the hinge bracket to the
housing.
^
Align the appliance door using the
long slots in the hinge bracket before
tightening all screws.
^
Remove cover c and use it to plug
the holes on the other side.
^
Unscrew upper hinge pin d and refit
it on the other side.
^
Take stopper e out of the door
bearing bush and refit it on the other
side.
27
Building under
The appliance can be pushed
underneath a worktop run. If this is
done, then the top lid to the appliance
may need to be removed:
Remove screws a from the rear of
^
the appliance.
^ Lift the appliance lid up at the rear
and then pull it towards the front of
the appliance to remove it.
When placed under a worktop run it
is essential that adequate ventilation
is provided at the rear of the
appliance. A ventilation gap of at
least 140 cm
worktop.
2
must be made in the
With a building under depth of
600 mm, any backmould must not
exceed 10 mm in depth.
Make sure that the socket and on-off
switch are easily accessible after the
appliance has been pushed
underneath the worktop.
282930
31
Alteration rights reserved / 3305
K 2202 S-1
M.-Nr. 06 254 960 / 01
en/GB
Loading...
