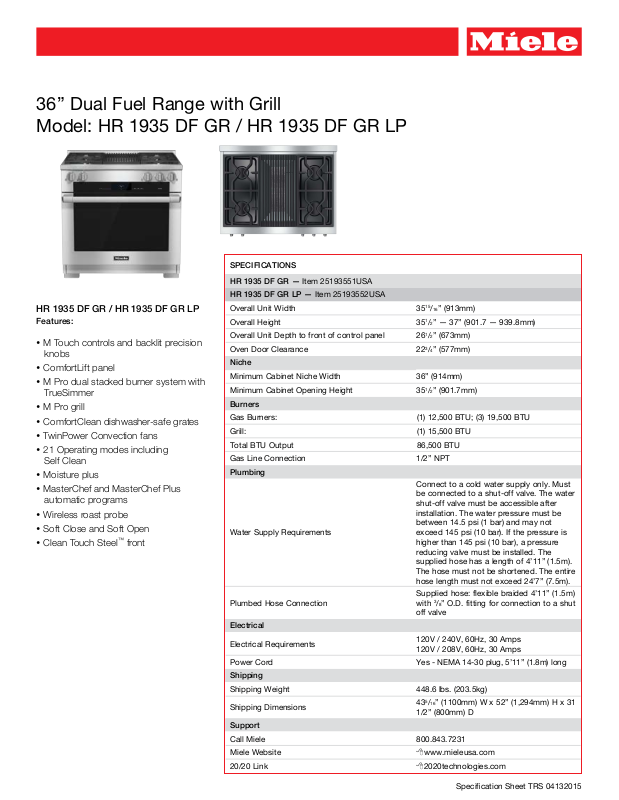

Miele HR 1935 DF GR Specification

36” Dual Fuel Range with Grill
Model: HR 1935 DF GR / HR 1935 DF GR LP

SPECIFICATIONS

HR 1935 DF GR — Item 25193551USA

HR 1935 DF GR LP — Item 25193552USA

HR 1935 DF GR / HR 1935 DF GR LP

Features:

 M Touch controls and backlit precision
knobs

 ComfortLift panel
 M Pro dual stacked burner system with

TrueSimmer

 M Pro grill
 ComfortClean dishwasher-safe grates
 TwinPower Convection fans
 21 Operating modes including

Self Clean

 Moisture plus
 MasterChef and MasterChef Plus

automatic programs

 Wireless roast probe
 Soft Close and Soft Open

™

 Clean Touch Steel

front

Overall Unit Width 35

Overall Height 35

Overall Unit Depth to front of control panel 26

Oven Door Clearance 22

Niche

Minimum Cabinet Niche Width

Minimum Cabinet Opening Height 35

Burners

Gas Burners: (1) 12,500 BTU; (3) 19,500 BTU

Grill: (1) 15,500 BTU

Total BTU Output 86,500 BTU

Gas Line Connection 1/2” NPT

Plumbing

Water Supply Requirements

Plumbed Hose Connection

Electrical

Electrical Requirements

Power Cord Yes - NEMA 14-30 plug, 5’11” (1.8m) long

Shipping

Shipping Weight 448.6 lbs. (203.5kg)

Shipping Dimensions

Support

Call Miele 800.843.7231

Miele Website

20/20 Link

15

/16” (913mm)

1

/2” — 37” (901.7 — 939.8mm)

1

/2” (673mm)

3

/4” (577mm)

36” (914mm)

1

/2” (901.7mm)

Connect to a cold water supply only. Must
be connected to a shut-off valve. The water
shut-off valve must be accessible after
installation. The water pressure must be
between 14.5 psi (1 bar) and may not
exceed 145 psi (10 bar). If the pressure is
higher than 145 psi (10 bar), a pressure
reducing valve must be installed. The
supplied hose has a length of 4’11” (1.5m).
The hose must not be shortened. The entire
hose length must not exceed 24’7” (7.5m).

Supplied hose: flexible braided 4’11” (1.5m)

3

with

/8” O.D. fitting for connection to a shut

off valve

120V / 240V, 60Hz, 30 Amps
120V / 208V, 60Hz, 30 Amps

5

43

/16” (1100mm) W x 52” (1,294mm) H x 31

1/2” (800mm) D

8www.mieleusa.com

82020technologies.com

Specication Sheet TRS 04132015

36” Dual Fuel Range with Grill
Model: HR 1935 DF GR / HR 1935 DF GR LP

PRODUCT VIEWS

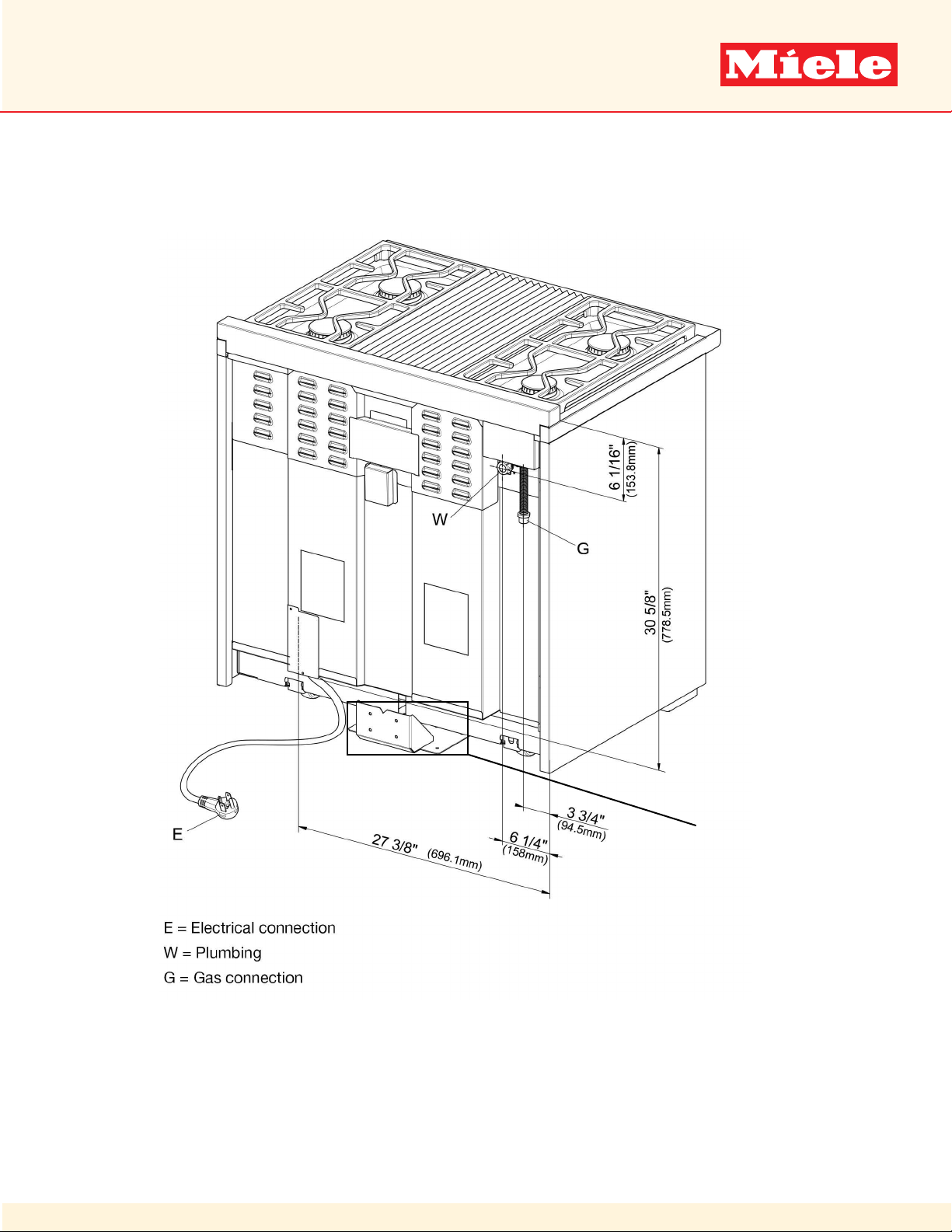

Isometric

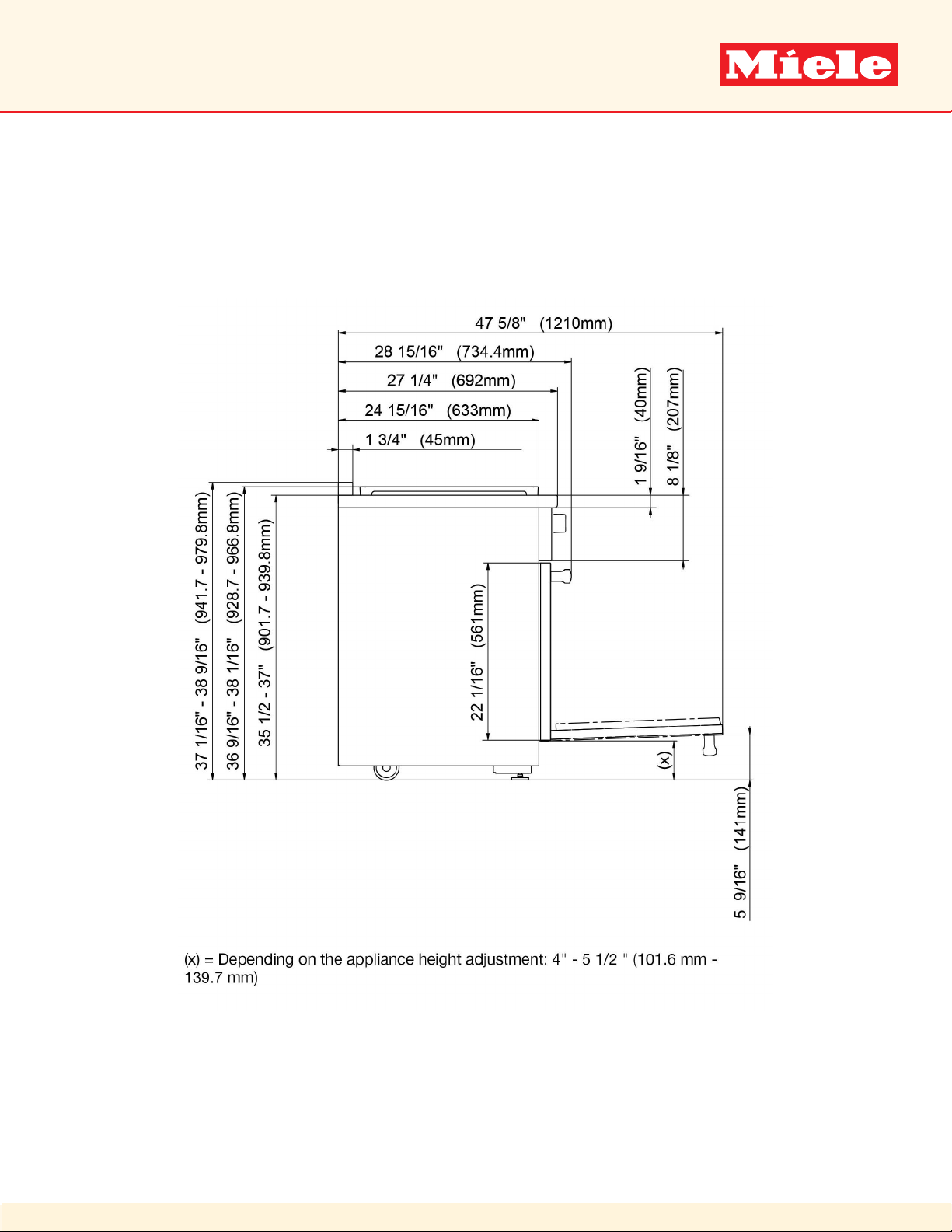

(x) = Toe-kick height adjustment 4” — 51/2” (101.6 — 139.7mm)

HR 1935

Page 2 of 6

Specication Sheet TRS 04132015
