30” Dual Fuel Range
HR 1724 DF, HR 1724 DF LP

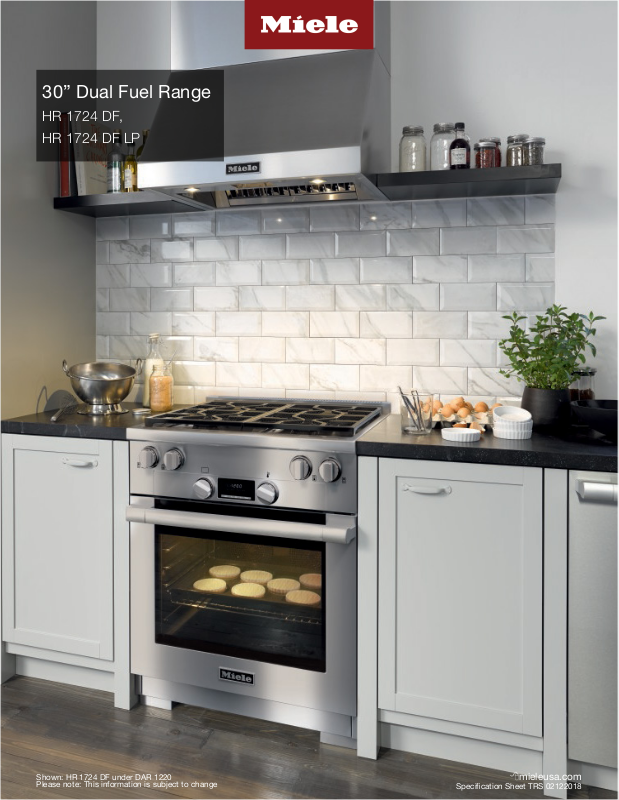

Shown: HR 1724 DF under DAR 1220 |
8mieleusa.com |
Please note: This information is subject to change |
Specification Sheet TRS 02122018 |
|
30” Dual Fuel Range |
|
|
|
|
SPECIFICATIONS |
|
|
Overall Unit Dimensions |
2915/16” (760 mm) W x 351/2” — 37” (902 — 940 mm) H x 261/2” (678 mm) D [Depth to control panel] |
|
Oven Door Clearance |
223/4” (577 mm) |
|
Niche |
|
|
|
|
|
Minimum Cabinet Niche Opening |
30” (762 mm) W x 351/2” (902 mm) H |
|
Burners (G/LP) |
|
|
Gas Burners: |
(1) 12,500 BTU (G/LP); (3) 19,500 BTU (G/LP) |
|
|
|
|
Total BTU Output |
71,000 BTU (G/LP) |
|
Gas |
|
|
|
|
|
Gas Line Connection |
1/2” NPT |
|
Operational Altitudes |
|
|
|
|
|
High Altitude |
Miele Natural Gas and LP Ranges and Rangetops will function up to 9,800 ft. in altitude without |
|
adjustment. If an installation exceeds these elevations, please contact rangejetkit@mieleusa.com. |
||
|
||
Electrical |
|
|
Electrical Requirements |
120V / 240V, 60Hz, 30A |
|
120V / 208V, 60Hz, 30A |
||
|
||
|
|
|
Power Cord |
NEMA 14-30 plug, 5’ 11” (1.8 m) long |
|
Shipping |
|
|
Shipping Weight |
385.1 lbs (174.7 kg) |
|
|
|
|
Shipping Dimensions |
377/16” (950 mm) W x 52” (1,294 mm) H x 311/2” (800 mm) D |
|
Installation Accessories |
|
|
12” Backguard |
RBGAG1230 |
|
|
|
|
20” Backguard |
RBGAG2030 |
|
40” Backsplash |
RBS30 |
|
Support |
|
|
Call Miele |
(800) 999-1360 |
|
|
|
|
Miele Website |
8www.mieleusa.com |
|
|
|
|
20/20 Link |
82020technologies.com |
|
|
|
HR 1724 DF
Item 25172451USA
HR 1724 DF LP
Item 25172452USA
HR 1724
