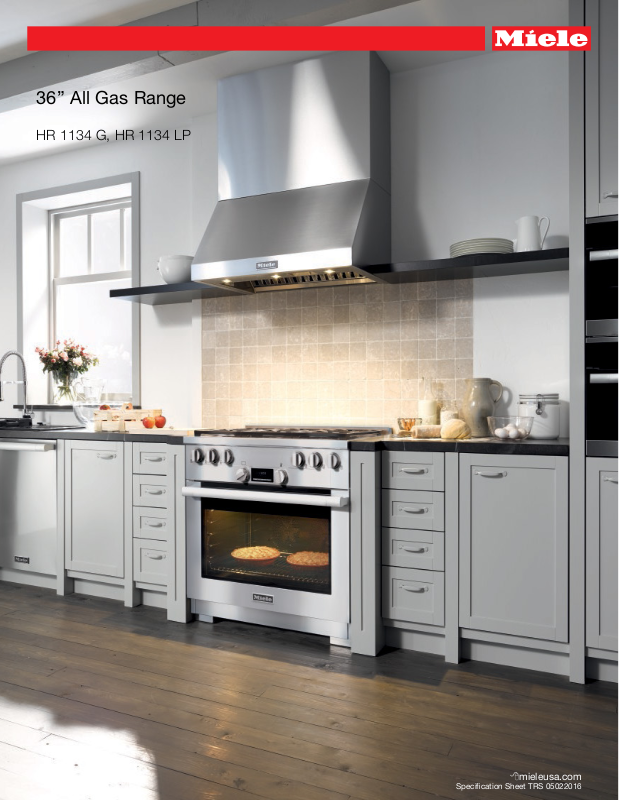

36” All Gas Range
HR 1134 G, HR 1134 LP
Specication Sheet TRS 05022016
8mieleusa.com
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
SPECIFICATIONS
HR 1134 G Item 25113451USA
HR 1134 LP Item 25113452USA
Overall Unit Width 35
Overall Unit Height to Cooktop 35
Overall Unit Depth to Front of Control Panel 26
Oven Door Clearance 22
Niche
Minimum Cabinet Niche Width
Minimum Cabinet Opening Height 35
Burners (G/LP) M Pro Power Plus - Standard Configuration*
Gas Burners: (1) 12,500 BTU (G/LP); (5) 19,500 BTU (G/LP)
Total BTU Output 110,000 BTU (G/LP)
Oven Burners (G/LP)
Oven Top Burner: 22,000 BTU (G); 20,150 BTU (LP)
Oven Bottom Burner: 25,500 BTU (G); 27,000 BTU (LP)
HR 1134 G / HR 1134 LP
Features:
DirectSelect controls
M Pro dual stacked burner system
with TrueSimmer
ComfortClean dishwasher-safe
grates
5 Operating modes including
Self Clean
Twin Convection fans
Soft Open and Soft Close
Clean Touch Steel™ front
Gas
Gas Line Connection 1/2” NPT
Operational Altitudes
High Altitude
Electrical
Electrical Requirements 120V, 60Hz, 15 Amps
Power Cord NEMA 5-15 plug, 5’ 11” (1.8 m) long
Shipping
Shipping Weight 438.7 lbs (199 kg)
Shipping Dimensions
Support
Call Miele 800.843.7231
Miele Website
20/20 Link
15
/16” (913 mm)
1
/2” — 37” (901.7 — 939.8 mm)
1
/2” (673 mm)
3
/4” (577 mm)
36” (914 mm)
1
/2” (901.7 mm)
Miele Natural Gas and LP Ranges and Rangetops
will function up to 9,800 ft. in altitude without
adjustment; the following exception will function up
to 6,500 ft. in altitude without adjustment:
• Griddle in LP: HR 1136 LP, HR 1936 LP,
HR 1956 LP, KMR 1136 LP, KMR 1356 LP
• Grill in G: HR 1135 G, HR 1935 G, HR 1955 G,
KMR 1135 G, KMR 1355 G
If an installation exceeds these elevations, please
contact rangejetkit@mieleusa.com.
5
43
/16” (1100 mm) W x 52” (1,294 mm) H x 311/2”
(800 mm) D
8www.mieleusa.com
82020technologies.com
* Please note if a BTU-reducing kit is necessary, an authorized installer is required to modify the product to meet ANSI Z21.
Specication Sheet TRS 05022016
HR 1134
Page 2 of 10
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
Optional Accessories:
12” Backguard
RBGAG1236
12” tall high-quality brushed stainless
20” tall high-quality brushed stainless
steel Backguard
20” Backguard
RBGAG2036
steel Backguard
40” Backsplash
RBS36
40” tall at stainless steel Backsplash
panel
HR 1134
Page 3 of 10
Specication Sheet TRS 05022016
36” All Gas Range
(3mm)
Model: HR 1134 G / HR 1134 LP
PRODUCT VIEWS
Isometric
(40mm)
1 9/16"
34"
(864.4mm)
8 1/8"
(207mm)
1 5/16"
(901.7mm - 939.8mm)
(43mm)
1 11/16"
35 1/2" - 37"
(x)
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
1/4"
(34mm)
(7mm)
28 5/8"
(727mm)
35 15/16"
(913mm)
(x) = abhängig von Gerätehöheneinstellung 5" - 6 "
y
1
(127mm - 165.1mm)
/
2
2 9/16"
(65.2mm)
13/16"
(20.85mm)
1 9/16"
27 1/4"
(452.2mm)
17 13/16"
(40mm)
(692mm)
(-1/16" / -2mm)
Ansicht y:
1/8"
1 3/4"
(45mm)
HR 1134
Page 4 of 10
Specication Sheet TRS 05022016
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
PRODUCT VIEWS
Rear View
Anti-Tip device*
*Anti-tip device must be fastened securely in place to all studs or oor. Please refer to the Anti-tip
device section in the installation manual for further details.
Specication Sheet TRS 05022016
HR 1134
Page 5 of 10
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
PRODUCT VIEWS
Detailed Side View
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
HR 1134
Page 6 of 10
Specication Sheet TRS 05022016
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
PRODUCT VIEWS
Detailed Bullnose and Handle View
HR 1134
Specication Sheet TRS 05022016
Page 7 of 10
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
M Pro Power Plus
Conguration
Standard Conguration with Pro
Hood*
M Pro Power Plus
SPECIFICATIONS
Burners (G/LP)
Gas Burners:
(1) 12,500 BTU (G/LP);
(5) 19,500 BTU (G/LP)
Total BTU Output 110,000 BTU (G/LP)
* Please note if a BTU-reducing kit is necessary, an authorized installer is
required to modify the product to meet ANSI Z21.
HR 1134
Specication Sheet TRS 05022016
Page 8 of 10
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
M Pro Power
Conguration
Seamless Conguration with Pro
Hood (Zero Gap)
M Pro Power
SPECIFICATIONS
Burners (G/LP)
Gas Burners:
(1) 10,000 BTU (G/LP);
(5) 14,700 BTU (G/LP)
Total BTU Output 83,500 BTU (G/LP)
Jets are a standard accessory and
are changed during installation
HR 1134
Specication Sheet TRS 05022016
Page 9 of 10
36” All Gas Range
Model: HR 1134 G / HR 1134 LP
M Pro
Conguration
Seamless Conguration with
Non-Pro (Décor)
M Pro
SPECIFICATIONS
Burners (G/LP)
Gas Burners:
(1) 10,000 BTU (G/LP);
(5) 12,200 BTU (G/LP)
Total BTU Output 71,000 BTU (G/LP)
Jets are a standard accessory and
are changed during installation
HR 1134
Specication Sheet TRS 05022016
Page 10 of 10
