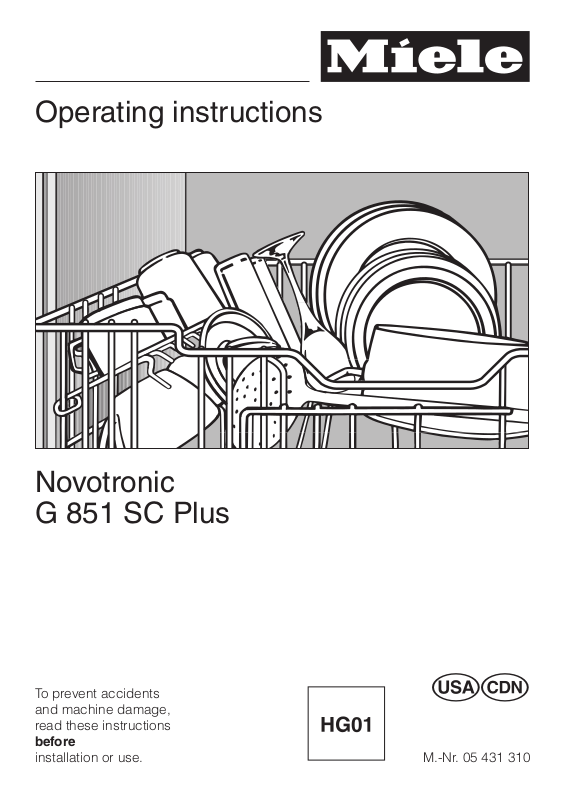

Miele G 851 User Manual
Operating instructions
Novotronic
G 851 SC Plus
To prevent accidents
and machine damage,
read these instructions
before
installation or use. M.-Nr. 05 431 310
UV
Contents
IMPORTANT SAFETY INSTRUCTIONS
MESURES DE SÉCURITÉ IMPORTANTES
Caring for the environment
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Guide to the dishwasher
Wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking the programmed water hardness. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjusting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Loading the dishwasher
Items not recommended for dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cutlery tray (SC units) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjustable cup racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Coffee bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lower basket inserts
Removing an insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Inserting an insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Foldable spike insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PlateGuard Plus insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Basket accessories
3
Contents
Operation
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Running the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Program sequence indicator (14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Additional features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
"Top Solo" (15). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Extended drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Frequently asked questions
After sales service
Transport
User Maintenance Instructions
Cleaning the filter in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the door and door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING –
When using your dishwasher, follow
basic precautions, including the fol
lowing:
Read all instructions before installa
tion or use of the dishwasher to pre
vent injury and machine damage.
The manufacturer cannot be held re
sponsible for damage or injury
caused by improper use of this appliance.
Use the dishwasher only for its intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Electrical safety
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Before installation or service, dis
connect the power supply to the
work area by unplugging the unit, “trip
ping” the circuit breaker or removing
the fuse.
Do not use an extension cord to
connect this appliance to electric
ity. Extension cords do not guarantee
the required safety of the appliance
-
(e.g. danger of overheating).
-
-
-
Be certain your appliance is prop
erly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance, conti
nuity must exist between the appliance
and an effective grounding system. It is
imperative that this basic safety require
ment be met. If there is any doubt, have
the electrical system of the house
checked by a qualified electrician. The
manufacturer cannot be held responsible for damages caused by the lack, or
inadequacy of, an effective grounding
system.
Installation
Installation and repair work should
be by a Miele authorized service
technician. Work by unqualified persons could be dangerous and could
void the warranty.
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or air
craft. However, under certain conditions
it may be possible for an installation in
these applications. Please contact the
nearest Miele dealer or the Miele Tech
nical Service Department with specific
requirements.
-
-
Inspect the dishwasher for ship
ping damage. Do not install or op
erate a damaged unit. Contact the
place of purchase.
-
-
-
-
-
-
-
-
5
IMPORTANT SAFETY INSTRUCTIONS
Ensure that any plastic wrappings,
bags etc. are disposed of safely
and kept out of the reach of babies and
young children. Danger of suffocation!
This dishwasher should only be in
stalled under a continuous
countertop secured to adjacent
cabinetry.
Do not install this dishwasher be
neath a cooking surface or oven.
Do not, under any circumstances
cut the intake hose or submerge in
liquid. This hose contains electrical
components that could cause injury or
property damage if cut or submerged.
-
Use
Only use the dishwasher if all pan-
els are properly in place.
Do not tamper with the controls.
To reduce the risk of injury, do not
allow children to play in, on, or
near the dishwasher.
Do not abuse, sit, or stand on the
door or baskets of the dishwasher.
Under certain conditions, hydrogen
gas may be produced in a hot
water system that has not been used
for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water
system has not been used for such a
period, turn on all hot water faucets and
let water flow from each for several min
utes before using the dishwasher. This
will release any accumulated hydrogen
gas. Do not smoke or use an open
flame during this time.
Do not wash plastic items unless
they are labeled "dishwasher safe"
or the equivalent. For items not labeled,
check the manufacturer’s recommenda
tions.
When loading tableware, place
sharp items away from the door
seal to prevent damage to the seal.
Load knives pointing downwards to
prevent injuries.
Only use detergents and rinse aids
recommended for residential dish
washers. Keep all detergents and rinse
aids out of the reach of children.
Do not drink water from the dishwasher! Harmful residues could be
present.
For dishwashers with visible heating
element
Do not touch the heating element
during or immediately after use.
Disposal of an appliance
If the appliance is removed from its
installation and will not be used,
the door to the wash cabinet should be
removed to prevent children from being
locked in the machine. When discard
ing an old dishwasher, unplug it from
the power outlet, remove the door to the
wash cabinet and cut off the power
cord.
-
SAVE THESE
INSTRUCTIONS
-
-
-
6
MESURES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT –
Au moment d’utiliser votre
lave-vaisselle, veuillez observer
toutes les mesures de sécurité de
base.
Cet appareil électroménager est conforme à tous les règlements et codes
sur la sécurité. Pour éviter de vous
blesser et d’endommager l’appareil,
veuillez lire soigneusement les in
structions sur l’utilisation.
N’utilisez le lave vaiselle que pour
laver la vaiselle.
Le fabricant ne peut être tenu
responsable des dommages ou
blessures causés par une utilisation
inadéquate ou par des utilisations
autres que celles auxquelles
l’appareil est destiné.
-
Les réparations doivent être effec
tuées uniquement par une per
sonne compétente. Débrancher l’appa
reil de la prise de courant avant d’en
faire l’entretien (enlever la fiche de la
prise ou fermer le disjoncteur).
Installer uniquement ce lave-vais
selle sous un comptoir continu qui
est fixé à des meubles adjacents.
Vous devez mettre le lave-vaisselle
à la terre. Installer le lave-vaisselle
en observant les instructions pour l’ins
tallation ci-jointes.
Utiliser des détersifs pour les
lave-vaiselle ménagers seulement
Utiliser uniquement des détersifs et des
produits de rinçage recommandés pour
les lave-vaisselle.
Ne pas utiliser votre lave-vaisselle
à moins que tous les panneaux
soient bien en place.
Ne pas permettre aux enfants de
jouer dans ou sur le lave-vaisselle.
-
-
-
-
-
.
Ranger tous les détersifs et pro
duits de rinçage hors de la portée
des enfants.
Ne pas modifier
les commandes.
Ne pas boire l’eau du meuble de
lavage.
-
7
MESURES DE SÉCURITÉ IMPORTANTES
Au moment de remplir le lave-vais
selle :
Mettre les articles pointus de
–
manière à ce qu’ils n’endommagent
pas le seau étanche de la porte.
Mettre le tranchant des couteaux
–
vers le bas afin de réduir les risques
de blessure.
Ne pas laver les articles en plas
tique à moins qu’ils n’indiquent "Va
au lave-vaisselle" ou l’équivalent. Véri
fier les recommandations du fabricant
poir les articles non étiquetés.
Dans certaines conditions, un sys-
tème d’eau chaude qui n’a pas été
utilisé pendant plus de deux semaines,
peut dégager de l’azote.
L’AZOTE EST EXPLOSIF. Si le système
d’eau chaude n’a pas été utilisé pendant une telle période de temps, ouvrir
tous les robinets d’eau chaude et laisser l’eau couler pendant plusieurs minutes avant d’utiliser le lave-vaisselle.
Ceci dissipera tout l’azote accumulé.
Ne pas fumer ni utiliser une flamme nue
durant ce temps.
-
-
-
Ne pas abuser et ne pas vous as
seoir ni vous tenir sur la porte ou
sur les paniers du lave-vaisselle.
Enlever la porte et couper le cor
don du lave-vaisselle avant de l’en
lever aux déchets afin d’empêcher les
enfants de se blesser ou de s’enfermer
dans l’appareil par accident.
Lave-vaiselle avec l’élément
chauffant
Ne touchez pas l’élément chauffant
pendant le fonctionnement de l’ap
pareil ou immédiatement après.
CONSERVER CES
INSTRUCTIONS
-
-
-
-
8
Energy saving washing
Caring for the environment
This dishwasher is exceptionally eco
nomical in the use of water and electric
ity. For best results follow these tips:
For lowest energy consumption and
^
the gentlest washing of china and
crystal, connect the dishwasher to a
cold water source.
For fastest possible wash times, yet
^
higher energy consumption, connect
the dishwasher to a hot water source.
Make full use of the baskets without
^
overloading for the most economical
washing.
^ Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^ For small loads:
Select the "Top Solo" feature (see
"Additional features").
^ If baskets are only half full, select the
"Economy" program.
-
-
^
Use the correct amounts of detergent
and rinse aid.
9
Guide to the dishwasher
Wash cabinet
1 Upper spray arm (not visible)
2 Cutlery tray
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
10
7 Four height adjustable feet
8 Triple Filter System
9 Salt reservoir
10 Detergent dispenser
11 Rinse aid reservoir
12 Data plate
Control panel
Guide to the dishwasher
13 "On/Off" button
14 Program sequence display
15 "Top solo" button
16 Program selector
17 "Start" button
Every dishwasher is tested before leaving the factory. Any water remaining in
the machine is from these tests and does not indicate that the machine has
been used.
18 Check/Refill indicators
19 Child Safety Lock
20 Door release
21 Drying vent
11
Before using for the first time
To open the door
^ Press the release catch inside the
door grip.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will restart.
To close the door
^ Push the baskets in.
^
Lift the door and push until it clicks
into position.
Child Safety Lock
The yellow key for the Child Safety
Lock is shipped on one of the spikes
at the front of the upper basket. Re
move the key before using the dish
washer.
The Child Safety Lock is designed to
prevent children from opening the dishwasher.
^
Use the provided key to lock or un
lock the dishwasher.
-
-
-
12
Horizontal:
the door is locked
Vertical:
the door can be opened
Before using for the first time
Water softener
To achieve good cleaning results, the
dishwasher needs soft water. Hard
water results in calcium deposits on
dishware and in the dishwasher.
If your tap water hardness is above
8 gr/gal (values are in US gallons)
(140 ppm), the water should be soft
ened. This takes place automatically in
the unit’s integrated water softener.
Your local water authority will be able
–
to advise you of the water hardness
level in your area.
– The dishwasher must be pro-
grammed to correspond to the water
hardness in your area.
– The water softener must be filled with
dishwasher salt for reactivation.
-
If your water hardness is consistently
lower than 8 gr/gal (140 ppm), you do
not need to add dishwasher salt. How
ever, the dishwasher must still be pro
grammed to correspond to the local
water hardness.
Where the water hardness fluctuates
e.g. between 9 - 17 gr/gal (160 - 310
ppm), always program the machine to
the higher value, 17 gr/gal (310 ppm) in
this example.
If there is a fault, it will help the service
technician to know the hardness of your
local water supply.
^ Please note the water hardness:
gr/gal
-
-
13
Before using for the first time
Programming the water softener
Your water hardness level must be pro
grammed into the dishwasher using the
program selector and buttons on the
control panel.
Make sure the dishwasher is turned
^
off.
Turn the program selector to "Stop".
^
Press and hold the "Top Solo" button
^
and at the same time turn on the
dishwasher with the "On/Off" button.
Release the "Top Solo" button within
two seconds.
The "Salt" indicator will flash.
If the "Rinse aid" indicator comes on,
the rinse aid dispenser needs to be
filled.
If any other indicator is lit or flashing,
the above steps must be repeated.
-
Turn the program selector to the posi
^
tion which corresponds to the water
hardness in your area (see table).
gr/gal* ppm Selector setting
1 - 4** 20 - 70 Normal Plus
5 - 7 90 - 130 Normal
8 - 10 140 - 180 China & Crystal
11 - 13 200 - 230 Rinse & Hold
14 - 16 250 - 290 5 o’clock position
17 - 22 310 - 400 6 o’clock position
23 - 35 410 - 630 7 o’clock position
36 - 70 650 - 1260 Energy Saver
-
14
* US gallons
** factory preset
Example:
Water hardness is 20 gr/gal.
Turn the program selector to the
"6 o’clock" position.
Before using for the first time
Press the "Top Solo" button.
^
The "Top Solo" indicator will light.
Turn the program selector to "Stop".
^
Turn off the dishwasher.
^
The programmed water hardness is
stored.
Checking the programmed water
hardness
Make sure the dishwasher is turned
^
off.
Turn the program selector to "Stop".
^
Press and hold the "Top Solo" button
^
and at the same time turn on the
dishwasher with the "On/Off" button.
Release the "Top Solo" button within
two seconds.
The "Salt" indicator will flash.
If the "Rinse aid" indicator comes on,
the rinse aid dispenser needs to be
filled.
If any other indicator is lit or flashing,
the above steps must be repeated.
^ Turn the program selector clockwise
until the "Top Solo" indicator comes
on.
The position where the "Top Solo" indi-
cator comes on corresponds to the programmed water hardness (see table in
"Programming the water softener").
^
Turn the program selector to "Stop".
^
Turn off the dishwasher.
15
Before using for the first time
Filling the salt reservoir
If your water hardness level is greater
than 8 gr/gal, the salt reservoir should
be filled before the first use and when
the "Salt" indicator lights.
Only use water softener salt specially
formulated for dishwashers. Other salts
may contain insoluble additives which
can impair the water softener.
The proper salt can be purchased from
your Miele dealer or Miele’s Technical
Service Department.
Inadvertently filling the salt
,
reservoir with dishwashing detergent will damage the water softener.
To fill the salt reservoir:
Remove the lower basket.
^
Unscrew and remove the salt reser
^
voir cap located on the floor of the
wash cabinet.
Place the provided funnel over the
^
salt reservoir.
The salt reservoir must be filled with
2 quarts (2 l) of water before adding
salt for the first time. Water does not
have to be added with subsequent
refills.
-
16
^
Carefully fill with salt. The salt reser
voir holds approximately 4.5 lbs
(2 kg) of salt. As it is filled, water will
run out.
^
Clean any excess salt from the
threads of the reservoir opening.
^
Screw the cap on firmly.
^
If the dishwasher will not be used im
mediately, run the "Rinse & Hold" pro
gram. This will remove any traces of
salt from inside the wash cabinet.
-
-
-
Loading...
