Miele G 6993 SCVi K2O Operating instructions

Operating instructions
for dishwashers

To avoid the risk of accidents or damage to the appliance, it is essential
to read these instructions as well as the installation sheet before it is
installed and used for the first time.

en-AE, SA M.-Nr. 10 651 350HG05

Contents

Guide to the appliance.......................................................................................... 5

Overview.................................................................................................................. 5

Control panel........................................................................................................... 6

Display..................................................................................................................... 7

Warning and Safety instructions.......................................................................... 8

Caring for the environment ................................................................................ 17

Energy saving washing.......................................................................................... 18

EcoFeedback consumption indicator.................................................................... 19

Before using for the first time ............................................................................ 20

Opening the door .................................................................................................. 20

Emergency door opener................................................................................... 21

Closing the door.................................................................................................... 21

Basic settings........................................................................................................ 22

Before using the appliance for the first time, you require: .................................... 24

Dishwasher salt ..................................................................................................... 24

Adding salt .......................................................................................................25

Add salt reminder ............................................................................................. 26

Rinse aid................................................................................................................ 27

Adding rinse aid ...............................................................................................27

Add rinse aid reminder ..................................................................................... 28

Loading the dishwasher...................................................................................... 29

Notes ..................................................................................................................... 29

FlexAssist .............................................................................................................. 31

Upper basket......................................................................................................... 31

Adjusting the upper basket .............................................................................. 34

Lower basket......................................................................................................... 35

Cutlery ................................................................................................................... 38

3D Cutlery tray + (depending on model) .......................................................... 38

Loading examples ................................................................................................. 40

Dishwashers with cutlery tray........................................................................... 40

Operation.............................................................................................................. 42

Detergent............................................................................................................... 42

Adding detergent.............................................................................................. 44

Switching on.......................................................................................................... 45

Selecting a programme ......................................................................................... 45

Starting the programme ........................................................................................ 46

Time display .......................................................................................................... 46

TimeControl........................................................................................................... 47

Energy management ............................................................................................. 47

2

Contents

At the end of the programme ................................................................................ 48

Switching off.......................................................................................................... 49

Unloading the dishwasher..................................................................................... 49

Interrupting a programme...................................................................................... 50

Changing a programme......................................................................................... 50

Programme options............................................................................................. 51

Extras .................................................................................................................... 51

Delay start with EcoStart....................................................................................... 53

Heat exchanger ..................................................................................................... 56

DetergentAgent ..................................................................................................... 57

Programme chart ................................................................................................58

Further programmes.............................................................................................. 62

Cleaning and care ............................................................................................... 63

Cleaning the wash cabinet .................................................................................... 63

Cleaning the door and the door seal..................................................................... 63

Cleaning the control panel .................................................................................... 63

Cleaning the reflector panel .................................................................................. 63

Cleaning the door front ......................................................................................... 64

Checking the filters in the wash cabinet ............................................................... 65

Cleaning the filters................................................................................................. 65

Cleaning the spray arms........................................................................................ 67

Problem solving guide ........................................................................................68

Technical problems ............................................................................................... 68

Water inlet fault ..................................................................................................... 71

Water drainage fault .............................................................................................. 72

General problems.................................................................................................. 73

Noises.................................................................................................................... 75

Unsatisfactory washing result ............................................................................... 76

Maintenance ........................................................................................................79

Cleaning the water inlet filter................................................................................. 79

Cleaning the drain pump and non-return valve..................................................... 80

After sales service............................................................................................... 81

Repairs .................................................................................................................. 81

Guarantee.............................................................................................................. 81

Optional accessories ..........................................................................................82

Electrical connection ..........................................................................................84

Electrical connection ............................................................................................. 84

3

Contents

Plumbing ..............................................................................................................85

The Miele waterproof anti-leak system ................................................................. 85

Connection to the water supply ............................................................................ 85

Drainage ................................................................................................................ 87

Technical data...................................................................................................... 88

Technical data ....................................................................................................... 88

Settings menu...................................................................................................... 89

To open the Settings menu ................................................................................... 89

Language  ........................................................................................................... 90

Time....................................................................................................................... 90

Water hardness ..................................................................................................... 91

Rinse aid................................................................................................................ 92

Consumption (EcoFeedback)................................................................................ 92

EcoStart................................................................................................................. 93

Change main menu ............................................................................................... 95

Save extras............................................................................................................ 95

Temperature .......................................................................................................... 95

Brightness ............................................................................................................. 95

Volume................................................................................................................... 96

Memory ................................................................................................................. 97

Check filters .......................................................................................................... 97

Automatic .............................................................................................................. 97

AutoOpen .............................................................................................................. 98

Knock2open .......................................................................................................... 98

Optimise standby .................................................................................................. 99

BrilliantLight........................................................................................................... 99

Heat exchanger ..................................................................................................... 99

Software version.................................................................................................. 100

Showroom programme........................................................................................ 100

Factory default..................................................................................................... 100

To close the Settings menu ................................................................................. 100

4

Overview

Guide to the appliance

a

Upper spray arm (not visible)

b

Cutlery tray (depending on model)

c

Upper basket

d

Middle spray arm

e

Heat exchanger (depending on

model)

f

Lower spray arm

g

Filter combination

h

Data plate

i

Rinse aid reservoir

j

Dual compartment detergent
dispenser

k

TimeControl in-operation indicator
lights

l

Salt reservoir

5

Guide to the appliance

Control panel

a

On/Off button 

For switching the dishwasher on and

off.

b

TimeControl in-operation indicator

lights

For displaying programme time

remaining with the door shut.

c

Information button 

For displaying additional information

about the option in the display.

d

Arrow buttons 

For selecting programmes.

For altering values shown in the

display.

For navigating between different

menus.

This instruction book applies to several different dishwasher models.
The specific dishwasher models are referred to as follows:
Standard = 80.5 cm high dishwashers (integrated)
and 84.5 cm high dishwashers (freestanding)
XXL = 84.5 cm high dishwashers (integrated).

e

Back button 
For navigating back to the previous
menu or deleting values which have
been set previously.

f

OK sensor

For selecting the option shown in the
display.
For confirming messages.

g

Display

See next page for more information.

h

Delay start sensor  with
indicator light

For selecting the "Delay start"
function.

6

Guide to the appliance

Display

General

The display is used to select or set the
following:

– the programme

– any extras

– the delay start function
– the Settings  menu

– information

The display can show the following:

– the programme name

– the stage the programme is at

– the current time of day

– the estimated time left for the

programme to run

– the energy and water consumption

(EcoFeedback)

– any relevant fault messages and

information

To save energy, the dishwasher
switches off after a few minutes if you
do not press any sensors during this
time.
To switch the dishwasher back on
again, press the  sensor.

The scroll bar  on the right of the

display indicates that more options or
more text are available which can be
displayed by touching the relevant
arrow sensor .

A dotted line will appear under the last
option available in a list.

The OK sensor is used to confirm a
message or setting and also to move to
the next menu or another level.

A tick  will appear beside the option
which is currently selected.

To exit a sub-menu, touch the Back
sensor .
If you do not press any of the sensors
for several seconds, the display will
return to the previous level. You may
need to enter your settings again.

The touch on metal sensor buttons
react to pressure and not simply to
touch.

The Settings  menu is used to alter
the dishwasher's electronics to suit
different requirements (see "Settings").

7

Warning and Safety instructions

This dishwasher complies with current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.

To avoid the risk of accidents and damage to the dishwasher,
please read the installation sheet and the operating instructions
carefully before it is installed and used for the first time. They
contain important information on its installation, safety, use and
maintenance.

Keep the installation sheet and the operating instructions in a safe
place and pass them on to any future owner.

Miele cannot be held liable for damage caused by non-compliance
with this information.

8

Warning and Safety instructions

Correct application

 This dishwasher is intended for use in domestic households and

similar working and residential environments.

 The dishwasher is not intended for outdoor use.
 It must only be used as a domestic appliance as specified in these

operating instructions, for cleaning domestic crockery and cutlery.
Any other usage is not supported by the manufacturer and could be
dangerous.

 The appliance can only be used by people with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge,
if they are supervised whilst using it, or have been shown how to use
it in a safe way and recognise and understand the consequences of
incorrect operation.

9

Warning and Safety instructions

Safety with children

 Children under 8 years of age must be kept away from the

appliance unless they are constantly supervised.

 Children 8 years and older may only use the dishwasher

unsupervised if they have been shown how to use it safely and
recognise and understand the consequences of incorrect operation.

 Children must not be allowed to clean or maintain the appliance

unsupervised.

 Please supervise children in the vicinity of the dishwasher and do

not let them play with it. There is a danger that children playing might
shut themselves in the dishwasher.

 If the automatic door opening mechanism (depending on model) is

active keep young children away from the area in which the door
opens. Danger of injury in the unlikely event of a fault with the
opening mechanism.

 Danger of suffocation. Packaging, e.g. plastic wrappings, must be

kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.

 Keep children away from detergents. Dishwasher detergents can

cause burning in the mouth, nose and throat if swallowed, or inhibit
breathing. Keep children away from the dishwasher when the door is
open. There could still be detergent residues in the cabinet. Seek
medical attention immediately if your child has swallowed or inhaled
detergent.

10

Warning and Safety instructions

Technical safety

 Unauthorised installation, maintenance and repairs can cause

considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.

 A damaged dishwasher is dangerous. Check it for any

recognisable damage. Never install or attempt to use a damaged
appliance.

 The electrical safety of this appliance can only be guaranteed

when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt, please have the electrical
installation tested by a qualified electrician.
Miele cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).

 Reliable and safe operation of this dishwasher can only be

assured if it has been connected to the mains electricity supply.

 The dishwasher must only be plugged into the electricity supply

via a suitable switched socket using a suitable fused plug (it must
not be hard-wired). The electrical socket must be easily accessible
after the dishwasher is installed so that it can be disconnected from
the electricity supply at any time.

 There must be no electrical sockets behind the dishwasher.

Danger of overheating and fire risk if the dishwasher were to be
pushed up against a plug.

 The dishwasher must not be installed under a hob. The high

radiant temperatures which are sometimes generated by a hob could
damage the dishwasher. For the same reason it should not be
installed next to open fires or other appliances which give off heat,
such as heaters etc.

11

Warning and Safety instructions

 To avoid the risk of damage to the dishwasher, make sure that the

connection data on the data plate (fuse rating, voltage and
frequency) match the mains electricity supply before connecting the
dishwasher to the mains. Consult a qualified electrician if in doubt.

 Do not connect the dishwasher to the mains supply until it has

been fully installed and any adjustment has been made to the door
springs.

 The dishwasher may only be operated if the door opening

mechanism is working correctly. Otherwise there could be a risk of
danger whilst the automatic door opening mechanism (depending on
model) is active.
To check that the door opening mechanism is working correctly:

– the door springs must be adjusted equally on both sides. They

are correctly adjusted when the door remains stationary when left
half open (approx. 45° opening angle). It is also important that the
door cannot fall open.

– the door locking pins automatically retract when the door opens

at the end of the drying phase.

 Do not connect the appliance to the mains electricity supply by a

multi-socket adapter or an extension lead. These do not guarantee
the required safety of the appliance (fire hazard).

 The appliance must not be used in a non-stationary location (e.g.

on a ship).

 Do not install the dishwasher in a room where there is a risk of

frost. Frozen hoses may burst or split. The reliability of the electronic
control unit may be impaired at temperatures below freezing point.

 To avoid any damage to the appliance, the dishwasher must only

be operated when it is connected to a fully vented plumbing system.

 The plastic housing of the water connection contains an electrical

component. It must not be dipped in water.

12

Warning and Safety instructions

 There are electrical wires in the water inlet hose. Do not shorten

the water inlet hose, even if it is too long.

 The integrated Waterproof system offers protection from water

damage, provided the following conditions are met:

– The dishwasher is correctly installed and plumbed in.

– The dishwasher is properly maintained and parts are replaced

where it can be seen that this is necessary.

– the stopcock is turned off during longer absences from the home

(e.g. whilst on holiday).

The Waterproof system will work even if the appliance is switched
off. However, the appliance must remain connected to the electricity
supply.

 The water pressure (flow pressure at the take-off point) must be

between 50 and 1000kPa (0.5 and 10bar).

 If the dishwasher gets damaged, switch it off at the mains

immediately and call your Miele Dealer.

 While the appliance is under guarantee, repairs should only be

undertaken by a Miele authorised service technician. Otherwise the
guarantee is invalidated.

 Miele can only guarantee the safety of the appliance when

genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.

 During installation, maintenance and repair work, the appliance

must be disconnected from the mains electricity supply (switch it off
and withdraw the plug from the socket).

 If the connection cable is damaged it must be replaced with a

special cable of the same type (available from Miele). For safety
reasons this work must be carried out by a Miele authorised service
technician only.

13

Warning and Safety instructions

 This dishwasher is supplied with a special lamp to cope with

particular conditions (e.g. temperature, moisture, chemical
resistance, abrasion resistance and vibration). This special lamp
must only be used for the purpose it is intended for. It is not suitable
for room lighting. Replacement lamps may only be fitted by a Miele
authorised person or your Miele dealer.

Correct installation

 The dishwasher must be installed and connected in compliance

with the installation sheet supplied.

 Take care, both before and during installation of the

dishwasher, not to cut yourself on the metal parts. Danger of
injury. Wear protective gloves.

 The dishwasher must be correctly aligned to ensure problem-free

operation.

 In order to ensure stability, built-under and integrated dishwashers

must only be installed under a continuous worktop which is secured
to adjacent cabinetry.

 If you want to convert your freestanding dishwasher to a built-

under ("U") model, you will need to order the appropriate conversion
kit. If you remove the existing plinth, you must replace it with a U­model plinth. This is necessary to avoid the risk of injury caused by
protruding metal parts.

 The door springs must be adjusted equally on both sides. They

are correctly adjusted when the door remains stationary when left
half open (approx. 45° opening angle). It is also important that the
door cannot fall open.
The appliance may only be used with correctly adjusted door
springs.

14

Warning and Safety instructions

Correct use

 Do not use solvents in the dishwasher. Danger of explosion.
 Do not inhale or ingest dishwasher detergent. Dishwasher

detergents can cause burning in the nose, mouth and throat if
swallowed, or inhibit breathing. Seek medical attention immediately
if detergent has been swallowed or inhaled.

 You could injure yourself on the open dishwasher door or trip over

it. Avoid leaving the door open unnecessarily.

 Do not sit or lean on the opened door. This could cause the

dishwasher to tip and be damaged, and you could get injured.

 Dishes can be very hot at the end of the programme. Allow them

to cool until they are comfortable enough to handle before
unloading.

 Only use detergent and rinse aid formulated for domestic

dishwashers. Do not use washing-up liquid.

 Do not use commercial or industrial detergents as these may

cause damage, and there is a risk of a severe explosive chemical
reaction (such as an explosive oxyhydrogen gas reaction).

 Do not fill the rinse aid reservoir with powder or liquid detergent.

This will cause serious damage to the reservoir.

 Inadvertently filling the salt reservoir with powder or liquid

dishwasher detergent will damage the water softener. Make sure you
have picked up the correct packet of dishwasher salt before filling
the salt reservoir!

 Only use special coarse grained dishwasher salt for reactivation.

Do not use other salts such as cooking salt, agricultural grade or
gritting salt. These may contain insoluble additives which can impair
the functioning of the water softener.

15

Warning and Safety instructions

 In an appliance with a cutlery basket (depending on model),

cutlery is cleaned and dried more efficiently if placed in the basket
with the handles downwards. However, to avoid the risk of injury,
place knives and forks etc. with the handles upwards.

 Plastic items which cannot withstand being washed in hot water,

such as disposable plastic containers or plastic cutlery should not
be cleaned in the dishwasher. The high temperatures in the
dishwasher may cause them to melt or lose shape.

 If you use the "FlexiTimer/Delay start" option (depending on

model), make sure that the dispenser is dry before adding detergent.
Wipe dry if necessary. Detergent will clog if poured into a damp
dispenser and may not be thoroughly dispersed.

 Please observe the information given in "Technical data" regarding

the capacity of the dishwasher.

Accessories

 Only use genuine original Miele accessories and spare parts with

this appliance. Using accessories or spare parts from other
manufacturers will invalidate the guarantee, and Miele cannot accept
liability.

Disposal of your old dishwasher

 Make the door lock inoperative so that children cannot

accidentally shut themselves in. Make appropriate arrangements for
the disposal of the appliance.

16

Caring for the environment

Disposal of the packing material

The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.

Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.

Disposal of your old appliance

Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.

Please dispose of it at your local
community waste collection / recycling
centre or contact your Miele dealer for
advice.

Ensure that it presents no danger to
children while being stored for disposal.

17

Caring for the environment

Energy saving washing

This dishwasher is exceptionally
economical in its use of water and
electricity.
You can make the most of your
appliance by following these tips:

– For most economical dishwashing,

make full use of the baskets without
overloading the dishwasher.

– Choose the programme to suit the

type of crockery being washed and
the degree of soiling.

– Select the ECO programme

(depending on model) for energy­saving dishwashing. This programme
is the most efficient in terms of its
combined energy and water
consumption at cleaning normally
soiled crockery.

– If your dishwasher is connected to a

hot water supply select the SolarSave
programme for washing a lightly to
normally soiled load. Because the
water is not heated in this
programme, crockery may still be
slightly damper at the end of this
programme than it would be with
other programmes.

– Follow the detergent manufacturer's

recommendations on detergent
dosage.

– When using powder or liquid

detergent you can use 1/3 less
detergent if baskets are only half full.

18

Caring for the environment

EcoFeedback consumption indicator

The Consumption function is used for
calling up information about the energy
and water consumption of your
dishwasher (see "Settings menu,
Consumption").

Three different types of information can
be displayed:

– an estimate of the consumption

before the programme begins

– the actual consumption at the end of

the programme

– the total consumption of the

dishwasher

1. Consumption estimate:

The estimated energy and water
consumption for a programme can be
shown in the display.

 Open the door.

2. Actual consumption

At the end of the programme you can
call up the actual amount of energy and
water used by the programme which
has just been run.

 Open the door at the end of the

programme.

 Press the  sensor.

Switching the dishwasher off at the
end of the programme will delete the
actual consumption values for the
programme which has just been run.

3. "Consumption" setting

The Consumption setting gives a total of
the energy and water which has been
used in all previous dishwasher
programmes (see "Settings menu,
Consumption").

 Select the programme you want.
 Select the Estimated consumption

option.

The estimated energy and water
consumption will appear in the display.

The estimated consumption levels will
be displayed as a bar chart. The more
bars () in the display, the more
energy or water will be used.

The values are influenced by the
programme selected and any
programme options selected.

The consumption indicator is switched
on as standard. However, you can also
switch the indicator off (see "Settings
menu, Consumption").

19

Before using for the first time

Opening the door

This dishwasher has a motorised door
opener which is activated by knocking
on the door front ("Knock2open
function").

 Knock twice in quick succession on

the top third of the door front

The door will open a little.

 There are two dark grips inside the

door at the top.
Take hold of them and pull to release
the door lock.

 Water in the dishwasher may be

hot. Danger of scalding.
Only open the door during operation

if absolutely necessary and exercise
extreme caution when doing so.

 Keep the area around the door

free of obstructions.

At the end of programmes with a drying
phase (see "Programme chart"), the
door will open automatically a little in
order to help the drying process.
This function can be deactivated, if
preferred (see "Settings menu,
AutoOpen").

The door locking pins will retract.

If the door is opened during operation
all functions are automatically
interrupted.

The number of knocks required for
opening the door can be changed if
wished (see "Settings, Knock2open").

20

Emergency door opener

If the door will not open when knocked
or if there is a power cut the door can
be opened manually with the
Knock2open device supplied with the
dishwasher.

 Push the device into the gap between

the dishwasher front and the
neighbouring unit door about 15 cm
below the worktop.

 Turn the device clockwise , until it

grips behind the dishwasher front.

Before using for the first time

 Then use it to pull the door open.

Closing the door

 Push the baskets right in.
 Raise the door upwards until the

catch engages.

The door will then close automatically.

 Danger of injury.

Do not put your hand inside the door
as it is closing.

21

Before using for the first time

Basic settings

 Open the door.
 Switch the dishwasher on using the

 sensor.

The welcome screen will appear when
the dishwasher is switched on for the
first time.

Language

The display will then change
automatically to the screen for setting
the language.

 Use the  arrows to select the

language you want and also the
country, if applicable, and confirm
your selection with OK.

See "Guide to the appliance, Display"
for more information about the display
and controls.

A tick will appear next to the
language that has been set.

Time of day

The display will then change to the
screen for setting the time.

The current time of day must be set
before you can use the Delay start
option.

 Use the  arrows to set the hour

and confirm with OK.

 Then set the minutes and confirm

with OK.

Keeping the relevant sensor pressed
in, will increase or decrease the time
automatically.

22

Before using for the first time

Water hardness

The display will change to the screen
for setting the water hardness.

– The dishwasher must be

programmed to the correct water
hardness for your area.

– Your local water authority will be able

to advise you of the water hardness
level in your area.

– Where the water hardness fluctuates

e.g. between 1.8 and 2.7 mmol/l (10 ­15 °d - German scale) always
programme the dishwasher to the
higher value (2.7 mmol/l or 15 °d in
this example).

In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.

Enter the water hardness below:

____________mmol/l or °d

The dishwasher is programmed at the
factory for a water hardness level of 2.7
mmol/l (15 °d - German scale).

Finally, prompts will appear in the
display.

After confirming these with OK, both the
 and  indicators will light up.

 Add salt and rinse aid if necessary

(see "Before using for the first time",
"Dishwasher salt" and "Rinse aid").

 Confirm the messages with OK.

The display will change to show the
main menu.

 Use the  arrows to select the

hardness you want and confirm with

OK.

See "Settings menu, Water hardness"
for more information.

23

Before using for the first time

Before using the appliance for the first time, you require:

– approx. 1 kg dishwasher salt,

– domestic dishwasher detergent,

– rinse aid formulated for domestic

dishwashers.

Every dishwasher is tested at the
factory. There will be residual water in
the appliance from this test. It is not
an indication that it has been used
previously.

Dishwasher salt

In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in a build-up of calcium deposits
on crockery and in the dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener. The water softener in
the dishwasher is suitable for a water
hardness level of up to 12.6 mmol/l (70
°d - German scale).

If the water in your area is very soft
and constantly lower than 0.9 mmol/l
(5 °d - German scale) you do not
have to add dishwasher salt. The
prompt to add salt will be switched off
automatically if the water softener has
been programmed for this to happen.

 Dishwasher detergent will

damage the water softener.
Do not fill the salt reservoir with

powder or liquid detergent.

 Only use special coarse grained

dishwasher salt for reactivation.
Other salts may contain insoluble

additives which can impair the
functioning of the water softener.

The water softener requires dishwasher
salt.
Depending on the water hardness level
(< 3.8 mmol/l, or 21 °d - German scale),
dishwasher salt is not required if
combination tablets are being used (see
"Operation, Detergent").

24

Before using for the first time

Adding salt

 When filling the salt reservoir only

open the door halfway to ensure

that all the salt gets into the reservoir.

 Press the button on the top of the salt

reservoir in the direction of the arrow.

The flap will spring open.

Do not fill the reservoir with water.

 Add salt only until the reservoir is full

or until water runs out of the opening.
The salt reservoir holds approx. 1 kg
of salt, depending on the brand used.

Do not add any more than 1 kg of
salt.

As the salt reservoir is filled, displaced
water may overflow.

 Lift up the funnel.

 Clean any excess salt from around

the reservoir opening, and then close
the flap.

 Immediately after filling the salt

reservoir, run the QuickPowerWash
programme with the Short option and
without any crockery in the
dishwasher to dissolve and remove
any traces of salt from the cabinet.

25

Before using for the first time

Add salt reminder

 When  Insufficient salt appears in the

display wait until the end of the
programme and then refill the salt
reservoir.

 Confirm with OK.

The message will go out.

 Risk of corrosion.

Immediately after filling the salt
reservoir, run the QuickPowerWash
programme with the Short
programme option selected and
without any crockery in the
dishwasher to remove any traces of
salt from the cabinet.

After the salt reservoir has been filled,
the refill reminder may still appear in the
display if the salt concentration has not
yet reached the correct level. If this is
the case, confirm again with OK.

The refill reminder will be switched off if
you have programmed the dishwasher
for a water hardness below 0.9mmol/l
(5°d - German scale).

If you only ever use combination
products containing salt and rinse aid
in your dishwasher, you can switch the
reminders off if you wish (see
"Settings menu, Refill reminders").

If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to add salt
and rinse aid and to switch the
reminders back on.

26

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.

 Inadvertently filling the rinse aid

reservoir with washing-up liquid or
powder or liquid detergent will
damage the reservoir. Only pour
rinse aid formulated for domestic
dishwashers into the reservoir.

Alternatively, it is possible to use

– Household vinegar with a max. 5%

acid content

or

– Liquid citric acid up to 10% acid

content

If you only ever use combination
products containing rinse aid in your
dishwasher, you do not need to add
rinse aid.

Adding rinse aid

 Press the button on the lid of the

rinse aid reservoir in the direction of
the arrow until the flap springs open.

The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.

 Do not use vinegar with a higher

acid content (e.g. vinegar essence
25% acid).

This would damage the dishwasher.

27

Before using for the first time

 Add rinse aid only until it is visible in

the opening.

Add rinse aid reminder

When the  Insufficient rinse aid
message appears, the reservoir
contains sufficient rinse aid for 2 - 3
programmes only.

 Add rinse aid in plenty of time.
 Confirm with OK.

The message will go out.

If you only ever use combination
products containing salt and rinse aid
in your dishwasher, you can switch
both reminders off if you wish (see
"Settings menu, Refill reminders").

The rinse aid reservoir holds
approx.110ml.

 Close the flap firmly so that it clicks

into place. Otherwise water can enter
the rinse aid reservoir during a
programme.

 Wipe up any spilled rinse aid. This

prevents over-foaming occurring
during the next programme.

You can adjust the rinse aid dosage
for best results (see "Settings menu,
Rinse aid").

If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to add salt
and rinse aid and to switch the
reminders back on.

28

Loading the dishwasher

Notes

Remove coarse food residues from
crockery.

There is no need to rinse items under
running water.

 Do not wash items soiled with

ash, sand, wax, lubricating grease or
paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, grease
and paint cause damage to the
dishwasher.

Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:

– Do not place crockery and cutlery

inside other pieces where they may
be concealed.

– Load the crockery so that water can

access all surfaces. This ensures that
they get properly cleaned.

– Make sure that small items cannot

fall through the holders in the
baskets.
Small items, e.g. lids, should
therefore be placed in the cutlery tray
or cutlery basket (depending on
model).

Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the dishwasher on the
crockery. The stability of plastic
items is not affected by this
discolouration.
Cleaning silver cutlery in the
dishwasher may also cause plastic
items to discolour.

– Make sure that all items are securely

positioned.

– Hollow items such as cups, glasses,

pans, etc. must be inverted in the
basket.

– Tall, narrow, hollow items should be

placed in the centre of the basket to
ensure better water coverage.

– Wide based items should be placed

at an angle so that water can run off
them freely.

– The spray arms must not be blocked

by items which are too tall or hang
through the baskets. If in doubt, test
for free movement by manually
rotating the spray arms.

29

Loading the dishwasher

Items not suitable for dishwashers:

– Wooden cutlery and crockery or

items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.

– Craft items, antiques, valuable vases

and decorative glassware: such items
are not suitable for dishwashers.

– Plastic items which are not heat

resistant: the high temperatures in
the dishwasher may cause them to
melt or lose shape.

– Copper, brass, tin and aluminium

items: these may discolour or
become matt.

– Colours painted over a glaze: these

may fade after a number of washes.

– Delicate glassware and glassware

containing lead crystal: clouding may
occur over time.

Please note

Silverware previously cleaned with a
silver polish may still be damp or

spotted at the end of a programme,
where water has not run off smoothly. It
may need to be rubbed dry with a soft
cloth.

Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.

 Aluminium components (e.g.

cooker hood grease filters) must not
be cleaned with caustic alkaline
commercial or industrial cleaning
agents.

These may damage the material, or
in extreme cases, there is a risk of a
severe explosive chemical reaction
(such as an explosive oxyhydrogen
gas reaction).

Tip: When purchasing new crockery
and cutlery, make sure they are
dishwasher-proof.

Glass care

– Clouding may occur on glasses after

frequent washing. If delicate
glassware is washed in the
dishwasher ensure that only very low
temperatures are used (see
programme chart), or a special glass­care programme is used (depending
on model). This will reduce the risk of
clouding.

– Purchase glassware which is

dishwasher safe (e.g. Riedel
glassware).

– Use detergents with glass protective

additives.

– Visit "http://

www.mieleglasscare.com/
international/en/glasscare/english" for
more information on glass care.

30

Loading the dishwasher

FlexAssist

The yellow coded FlexAssist parts
indicate which elements of the
dishwasher baskets and cutlery tray are
moveable. They also act as grips and
have symbols embossed on them to
show what the moveable parts are used
for.

Upper basket

See "Loading the dishwasher, Loading
examples" for examples of how to
load crockery and cutlery.

 For safety reasons, do not

operate the dishwasher without the
upper and lower baskets in place
(except when running the Tall items
programme, if available).

 Use the upper basket for small,

lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc.
Shallow pans or casserole dishes can
also be placed in the upper basket.

Cup rack

 Raise the rack upwards using the

yellow lever  to make room for tall
items.

Glasses can be arranged along the cup
rack for support during the programme.

 Lower the cup rack and lean the

glasses against it.

 Long items such as soup ladles,

mixing spoons and long knives
should be placed lying down across
the front of the upper basket.

31

Loading the dishwasher

Hinged spikes

The rows of spikes can be lowered to
make more room for larger items such
as casserole dishes.

 Press the yellow lever downwards 

and then lower the spikes .

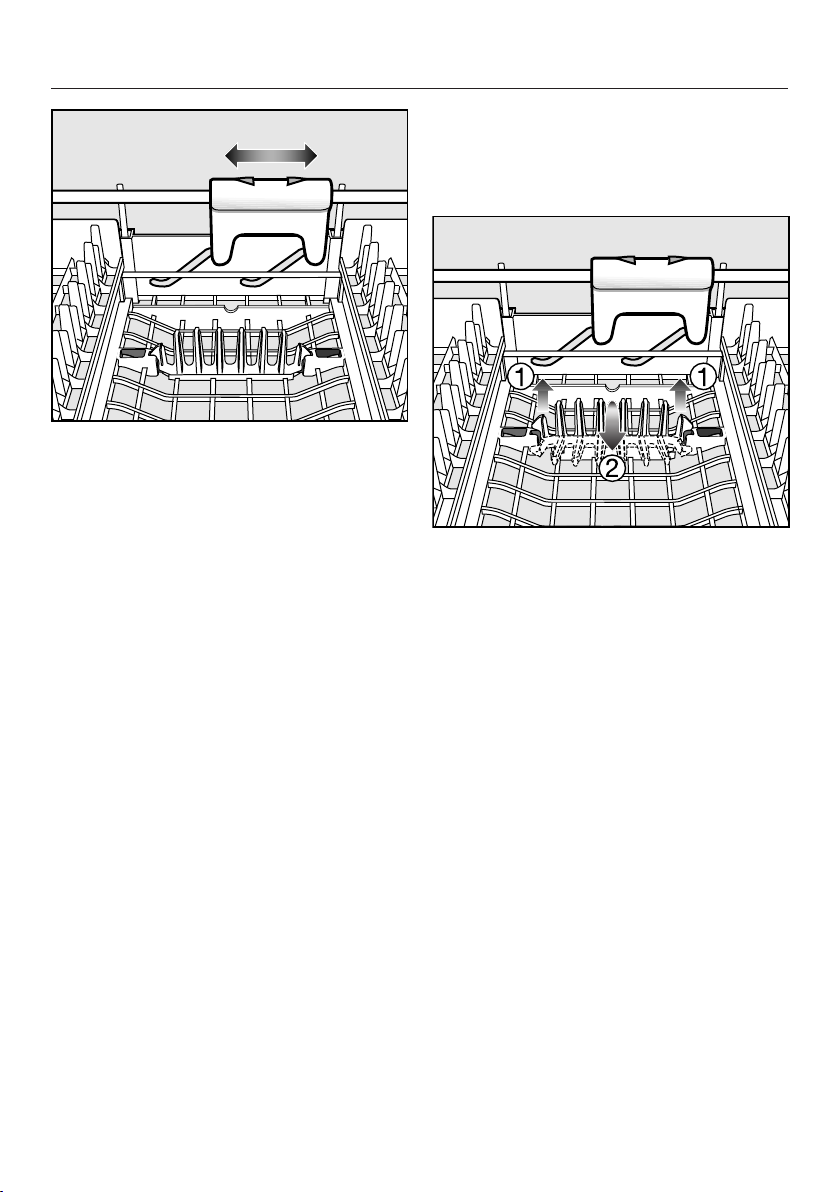

Jumbo cup rack (depending on model)

The cup rack can be set at two different
widths so that it can also accommodate
large cups.

 Pull the cup rack upwards and click it

back into position at the required
width.

32

Loading the dishwasher

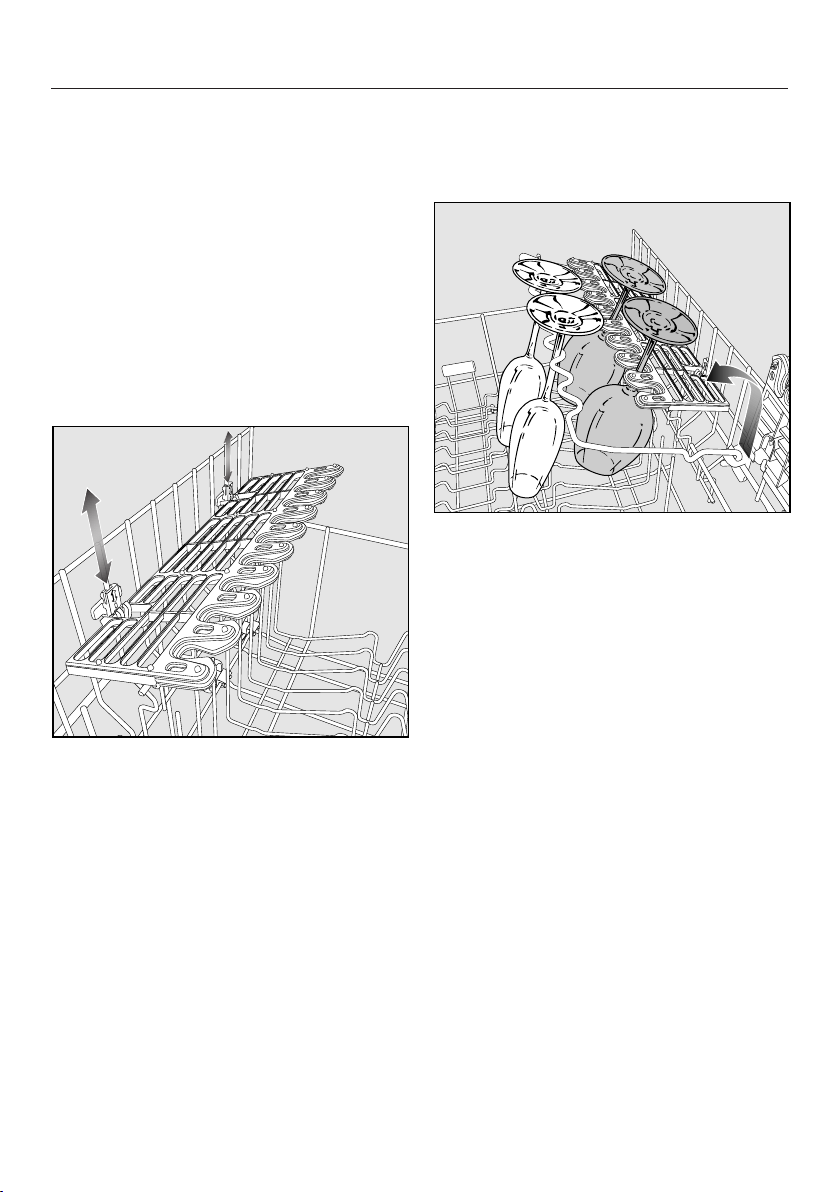

Glass rail

This rail is designed to hold tall glasses
and stemware securely.

 Lower the rail with the yellow lever 

and lean tall glasses against it.

 You can also move one of the side

inserts in the cutlery tray to make
more room for tall glasses (see
"Cutlery, 3D cutlery tray").

Adjusting the height

You can set the glass rail at two
different heights.

 Pull the rail upwards and click it back

into position at the required height.

Use the low setting for small glasses
and tumblers.

Use the high setting for tall glasses and
stemware.

33

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller
pieces of crockery in the lower or upper
basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.

The upper basket can also be set at an
angle with one side high and the other
side low. This can be useful to help
prevent water being left in deep dishes
etc. Ensure, however, that the basket
can be inserted smoothly into the
cabinet. It is better to adjust the basket
before loading it.

 Pull out the upper basket.

Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.

Dishwashers with cutlery basket

(see data plate for model number)

Upper

basket

level

StandardXXL

Top 20 24 31 (35*)

Middle 22 26 29

Bottom 24 28 27

Dishwashers with cutlery tray

(see data plate for model number)

Upper

basket

level

StandardXXL

Plate  in cm

Upper basket Lower

basket

Plate  in cm

Upper basket Lower

basket

To raise the upper basket:

 Lift the basket up until it clicks into

place.

To lower the upper basket:

 Pull upwards on the levers at either

side of the upper basket.

 Adjust the basket to the desired

height and then push the levers
securely back down into position.

34

Top 15 19 31 (35*)

Middle 17 21 29

Bottom 19 23 27

* When tilted, plates of up to 35 cm can be
accommodated (see "Lower basket).

Loading the dishwasher

Lower basket

See "Loading the dishwasher, Loading
examples" for examples of how to
load crockery and cutlery.

 Use the lower basket for larger and

heavier items such as plates, serving
platters, saucepans, serving dishes,
etc.
Glasses, cups and small items such
as saucers can also be placed in the
lower basket.

Removable MultiComfort insert

The rear section of the lower basket is
used for washing cups, glasses, plates
and pots.

You can remove the MultiComfort insert
to make more room for larger items
such as pans and casserole dishes.

To remove the insert

 Pull the yellow handle forwards and

remove the insert.

To replace the insert

 Place very large plates in the centre

of the lower basket.

When tilted, plates up to 35cm in
diameter can be accommodated.

 Fit the insert into the lower basket

with the hooks going under the long

cross-piece .

 Press down on the insert until it clicks

into position .

35

Loading the dishwasher

FlexCare glass holder

Silicone padding in the FlexCare glass
holder provides a stable and secure
hold for delicate stemware.

 Stemware, e.g. glasses and flutes,

can be leaned against the glass rack
or suspended from it.

 The glass rack can be raised to make

more room for tall items.

You can set the glass rack at two
different heights.

Glass rail

This rail is designed to hold tall glasses
and stemware securely.

 Lower the rail and lean tall glasses

against it.

 Slide the glass rack to the desired

height until the catches click into
place at the top or rest on the
bottom.

36

Loading the dishwasher

Hinged spikes

The spikes at the front are used for
washing plates, soup bowls, platters,
dessert bowls, and saucers.

Both rows of spikes can be lowered to
make more room for large items, e.g.
pots, pans and serving dishes.

 Press the yellow lever downwards ,

and then lower the spikes .

Bottle holder

The bottle holder can be used to wash
narrow items, e.g. milk and baby
bottles.

 If the bottle holder is not needed, lift

it up  and fold the sides down ,

as illustrated.

37

Loading the dishwasher

Cutlery

3D Cutlery tray + (depending on

model)

See "Loading the dishwasher, Loading
examples" for examples of how to
load crockery and cutlery.

 Arrange the cutlery in the tray as

shown.

To make unloading easier, cutlery
should be grouped in zones, one for
knives, one for forks, one for spoons,
etc.

Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them
freely.

The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).

The side sections of the tray can be
moved into the middle using the yellow
grips in order to accommodate tall
items of crockery in the upper basket
(see also "Upper basket, glass rail").

If spoon handles do not fit between the
holders, then lay them the other way
round.

For optimum cleaning results arrange
spoons with the inner part facing the
centre of the cutlery tray.

38

You can use the yellow slide to adjust
the height of the middle section of the
cutlery tray to make more room for large
items of cutlery, such as serving
spoons and ladles.

Loading the dishwasher

Both rows of spikes in the middle
section of the cutlery tray can be
flipped over to make room for larger
pieces of cutlery.

 Raise the spikes  and then flip them

over .

39

Loading the dishwasher

Loading examples

Dishwashers with cutlery tray

Upper basket

Lower basket

40

Cutlery tray

Heavily soiled items

Loading the dishwasher

41

Operation

Detergent

 Only use detergents formulated

for domestic dishwashers. Do not
use washing-up liquid.

Active ingredients

Modern detergents contain various
active ingredients, the most important
of which are:

– Complexing agents to prevent

calcification.

– Alkalis to aid removal of dried on

soiling.

– Enzymes to break down starch and

loosen protein.

– Oxygen based bleaching agents to

remove coloured stains (e.g. tea,
coffee, tomato sauce).

Most dishwasher detergents are mildly
alkaline and contain enzymes and
oxygen based bleaching agents.

You can also buy combination products
(see "Programme options,
DetergentAgent", if applicable).
In addition to detergent, these products
contain rinse aid and salt substitutes.
They are available as "3 in 1" or when
they also contain other components
such as glass and stainless steel
protective additives and enhanced
cleaning power, as "5 in 1", "7 in 1", "All
in 1" etc.
Refer to the manufacturer's packaging
as to whether combination products are
suitable for the water hardness level in
your area.
Please note that the cleaning and
drying results of combination
detergents can vary greatly.

For optimum cleaning and drying
results, use Miele dishwasher
detergent and add Miele salt and
Miele rinse aid separately. See
"Optional accessories".

Types of detergent:

– Powder and liquid gel detergents.

These detergents allow you to adjust
the amount dispensed according to
the size of the load and level of
soiling.

– Tab detergents. These are suitable for

most levels of soiling.

42

Operation

Detergent dosage

 Follow the dosage recommended by

the manufacturer on the packaging.

 Unless directed otherwise, use one

detergent tab or add 20 to 30 ml
detergent to compartment II,
depending on the level of soiling.
With very heavy soiling you can also
add a small amount of detergent to
compartment l.

 Tabs may not dissolve completely

when the QuickPowerWash
programme (if available) is used.

Failure to dispense the
recommended amount of detergent
may impair cleaning results.

 Dishwasher detergents can

cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing.

Avoid inhalation of powder
detergents and do not ingest
dishwasher detergent. Seek medical
attention immediately if detergent
has been swallowed or inhaled.
Keep detergent out of the reach of
children at all times. Keep children
away from the dishwasher when the
door is open. There could still be
detergent residues in the cabinet.
Only add detergent just before
starting the programme and close
the door, activating the safety lock (if
your dishwasher is fitted with one).

43

Operation

Adding detergent

 Press the opening catch on the

detergent dispenser. The flap will
spring open.

The flap is always open at the end of a
programme.

 Add the required amount of detergent

and close the flap.

 Make sure that the detergent

packaging is properly closed after
use to avoid it getting damp and
clumping together.

For information

Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml of
detergent.

44

There are marks in compartment II to
assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.

Operation

Switching on

 Open the stopcock, if it is closed.
 Open the door.
 Make sure the spray arms can rotate

freely.

 Switch the dishwasher on using the

 sensor.

The main menu will appear in the
display.

Switch the Memory function on (see
"Settings menu, Memory") if you want
the last programme used to appear in
the display instead of the main menu.

Selecting a programme

Choose your programme according to
the type of load and how dirty it is.

The different programmes and their
uses are described in the Programme
chart later on in this booklet.

 Use the  arrow buttons to select a

programme and confirm with the OK
button.

The display will change to show the
programme menu.

Touch the  sensor to access more
information about the programme
currently selected.

You can now select extra options for
your programme (see "Programme
options").

To select a different programme, touch
the  sensor to return to the main
menu.

45

Operation

Starting the programme

 Start the programme by closing the

door.

The TimeControl indicator will light up
to let you know the programme has
started.

If you open the door the message

Crockery can be added will show in the

display.
As long as this message is showing,
crockery can be added without
compromising wash results.

 Water in the dishwasher may be

hot. Danger of scalding from water in
the cabinet.

Make sure you open the door very
carefully.

A programme should only be
cancelled in the first few minutes, if
at all. Otherwise important
programme stages could be omitted.

Time display

The estimated duration of the
programme selected appears the
display before the programme begins.
During the programme, the time left
until the end of the programme is
displayed.

Symbols appear to indicate which stage
the programme is at:

 Pre-wash / Soak
 Main wash
 Interim rinse
 Final rinse
 Drying
 Finish

The programme duration displayed may
vary with the same programme. It is
influenced by, among other things, the
water temperature at each intake, the
reactivation process, the water
softening unit, the type of detergent, the
amount of crockery and how dirty it is.

46

When a programme is selected for the
first time, the display will show the
average programme duration for a cold
water intake.

The durations shown in the Programme
chart refer to standard test loads and
temperatures.

Each time a programme is run, the
electronic unit calculates the
programme duration required according
to the temperature of the water taken
into the dishwasher and the amount of
crockery.

Operation

TimeControl

The TimeControl indicator light lets you
know how much longer the programme
has to run with the door shut.

All four indicator lights under the
worktop will come on when the
programme starts. They will go out one
after the other from left to right in 20
minute intervals an hour before the end
of the programme to let you know how
long the programme still has left to run.

– 4 indicator lights:

Programme start / Time remaining
exceeds 60 minutes

– 3 indicator lights:

Time remaining 60-41 minutes

– 2 indicator lights:

Time remaining 40-21 minutes

– 1 indicator light:

Time remaining 20-1 minute

– All indicators off:

The programme has finished

Energy management

To save energy, the dishwasher will
switch off automatically 10 minutes
after the last time a sensor has been
pressed or after the end of the
programme (see "Settings, Optimise
standby").

 Press the  sensor to switch the

dishwasher back on.

The dishwasher will not switch off
whilst a programme is running, during
the Delay start period or if there is a
fault.

47

Operation

At the end of the programme

At the end of a programme, the
TimeControl indicator light will go out
with the door shut. The buzzer might
also be sounding.

The programme has finished when

Finished appears in the display and the

door has opened slightly (if applicable).
In the QuickPowerWash programme the

door will not open until a few minutes
after the programme has finished.

If the Consumption programmable
function is switched on (see "Settings,
Consumption") you can now view the
actual energy and water consumption
of the programme which has just
finished

The drying fan may continue to run for
a few minutes at the end of the
programme.

You can now empty the dishwasher.

 If you have deactivated the

automatic door opening function (see
"Settings menu, AutoOpen"), but
would still like to open the door at
the end of the programme, then
make sure that you open the door
fully.

Otherwise steam from the
dishwasher could damage the edge
of the worktop because the fan is no
longer running.

48

Operation

Switching off

At the end of a programme:

 Open the door.
 The dishwasher can be switched off

at any time using the  sensor.

Switching the dishwasher off during a
programme stops the programme.

Switching the dishwasher off during the
run-up to a delay start time will also
stop the process.

If the dishwasher is not going to be
used for a longer period of time, e.g.
whilst on holiday, the stopcock
should be closed.

Unloading the dishwasher

Dishes tend to break and chip more
easily when they are hot. Allow the
dishes to cool until they are comfortable
enough to handle before unloading
them.

If you open the door fully after switching
off, the dishes will cool much faster.

First unload the lower basket, then the
upper basket and finally the cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.

49

Operation

Interrupting a programme

A programme is interrupted as soon as
the door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.

 Water in the dishwasher may be

hot. Danger of scalding.
Only open the door if absolutely

necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then raise the door
up and push until the catch engages.

Changing a programme

If the detergent dispenser flap has
already opened, do not change the
programme.

If a programme has already started and
you wish to change it, proceed as
follows:

 Open the door.
 Press the Back sensor .
 Confirm the message Cancel

programme? with Yes.

The programme will be cancelled.

 Select the Main menu option.

The display will revert to the main
menu.

 Select the programme you want, and

then start it by shutting the door.

The in-operation indicator comes on to
show that a programme has been
started.

50

Programme options

Extras

Extras can be selected for the
programme you have chosen before
starting it.

 Open the door.
 Switch the dishwasher on using the

 sensor.

 Select a programme.
 Select the Extras option.

All available Extras will be shown in the
display.

 Select the Extras you want using the

OK sensor.

A tick  will appear beside the Extra to
show that it has been set.

Extras that cannot be combined will
have a lock symbol  next to them.

 To deselect an Extra that you have

chosen simply selectOK again.

 When you have finished selecting

Extras, confirm with Accept.

The display will change back to the
programme menu.
The number of Extras selected will
appear in the programme menu.

Short

The Short Extra reduces the duration of
the programmes in which this option is
available by up to 30% (see
"Programme chart").
The selection of the Short Extra may
take precedence over other selected
Extras.

In order to achieve optimum cleaning
results energy consumption may
increase slightly with this option.

When used in combination with the

QuickPowerWashprogramme, the Short

Extra results in a wash programme
without drying or automatic opening of
the door.

Energy save

The Energy save Extra reduces the
energy consumption of programmes in
which this option is available by up to
20%.

In order to achieve optimum cleaning
results the programme duration is
extended with this option.

You can save the selected Extras for the
respective programme (see "Settings,
Save extras").

51

Programme options

Intensive lower basket

The Intensive lower basket Extra
intensifies cleaning performance in the
lower basket in programmes in which
this option is available.

Energy and water consumption are
increased slightly due to the extended
wash duration in the lower basket.

Extra dry

The Extra dry Extra improves the drying
performance in programmes in which
this option is available.

Energy consumption is increased due
to an extended fan running time and an
increased final rinse temperature.

Soak

The Soak Extra is used for soaking
crockery with dried on soiling.

Energy and water consumption will
increase with this Extra.

If you are using powder dishwasher
detergent, add approx. 5 g to
compartment I.

Pre-wash

The Pre-wash Extra can be used for
removing easily soluble soiling from
crockery.

Adding a pre-wash will increase the
programme duration and increase
energy and water consumption levels.

52

Programme options

Delay start with EcoStart

There are three ways of starting the
programme by means of delaying the
start. You can set the start time or the
finish time of a programme. You also
have the option of taking advantage of
time variable economy rates of
electricity using the EcoStart function.

When using the Delay start function,
make sure that the detergent
compartment is dry before adding
detergent. Wipe dry with a cloth if
necessary. If the compartment is
wet, powder detergent can become
lumpy and stick to the dispenser,
with the result that it is not fully
dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run
into the dishwasher before it is
required.

 Open the door.

You then have a choice of Start at, Finish

at and EcoStart.

 Select the function you want.

Now enter the time you want.

If, while you are setting the time, you do
not press any sensors for several
seconds, the display will revert to the
previous menu. You will then have to
enter your settings again.
If you keep the relevant arrow sensor
 pressed, the value shown will
automatically increase or decrease.

 Switch the dishwasher on using the

 sensor.

 Select the programme you want from

the main menu.

 Press the  button.
The  indicator will light up.

53

Programme options

Start at

With the Start at function, you set the
exact time you want the programme to
start at.

 Use the  arrows to set the hour

and confirm with OK.

The hours will be saved and the minute
number block will be highlighted.

 Use the  arrows to set the

minutes and confirm with OK.

The display will change to show the
programme menu.

 Close the door.

The left hand in-operation indicator light
will start flashing on and off.

When the set time is reached, the
programme selected will begin
automatically.

Finish at

With the Finish at function, you set the
latest time at which you wish the
programme to end.

 Use the  arrows to set the hour

and confirm with OK.

The hours will be saved and the minute
number block will be highlighted.

 Use the  arrows to set the

minutes and confirm with OK.

The display will revert to the programme
menu and the estimated start time will
appear.

 Close the door.

The left hand in-operation indicator light
will start flashing on and off.

A message will appear in the display if
the programme cannot be completed
by the set finish time because it has too
long a running time.

The selected programme will start
automatically when the estimated start
time is reached.

54

Programme options

EcoStart

The EcoStart function allows you to take
advantage of time variable economy
rates of electricity. Before you can use
this option you must set up to three
electricity tariff time zones (see
"Settings, EcoStart").
You then set the latest time at which the
programme selected should end.
The dishwasher will start automatically
in the cheapest tariff zone within the
time set.

 Use the  arrows to set the hour

and confirm with OK.

The hours will be saved and the minute
number block will be highlighted.

 Use the  arrows to set the

minutes and confirm with OK.

The display will change to show the
programme menu.

 Close the door.

The left hand in-operation indicator light
will start flashing on and off.

Changing or deleting set times

You can change the set times or the
programme before the start time in the
display is reached.

 Open the door.
 Press the  button.
 Select the function that you want to

change or delete the time for.

After confirming the Change option you
can change the set time.

After confirming the Delete option the
set time will be deleted and the 
indicator light will go out.

You can now select and start a
programme.

The estimated start time for the
programme selected will appear in the
display.

The selected programme will start
automatically during the most cost
effective time zone. It will finish at the
latest by the set finish time.

55

Programme options

Heat exchanger

This dishwasher is equipped with a heat
exchanger, in which fresh water for the
programme is pre-heated, in order to
save energy. The heat exchanger is
refilled with fresh water towards the end
of each phase that uses fresh water and
is held there ready for the next part of
the programme.

If you do not wish to use this function it
can be switched off (see "Settings, Heat
exchanger").

If water in the heat exchanger is not
used for several weeks, it will be
automatically drained and pumped
away for hygiene reasons. This process
takes a few minutes and will also be
carried out if the dishwasher is
switched off or the door is open.
The display will remain dark. The
message Empty accumulat. will appear in
the display when the button is
pressed. No other functions are
available during this process.
Automatic drainage cannot be
interrupted.

The heat exchanger should only be
used in conjunction with a cold-fill
dishwasher.

This function should be switched off
if your dishwasher is connected to a
hot water supply.

The heat exchanger can be manually
drained for transporting the appliance,
e.g. before moving house (see"Settings,
Heat exchanger").

56

DetergentAgent

For optimum cleaning results, the
dishwasher automatically adjusts the
programme sequence to the type of
detergent being used. Depending on
the programme, this can mean that the
running time and energy consumption
vary slightly.

If you only ever use combination
products containing salt and rinse aid in
your dishwasher, you can switch the
reminders off if you wish (see "Settings
menu, Refill reminders"). The
DetergentAgent function will not be
affected by this.

Please make sure that if you start
using dishwasher salt and rinse aid
again, you switch the reminders back
on.

Programme options

57

Programme chart

Programme Programme sequence

Pre-wash Main wash Interim rinse Final rinse Drying

°C °C

1)

ECO

Automatic Variable programme sequence,

sensor-controlled adjustment according to the amount of crockery and

If required 45-65 If required 57-70 X

Intensive
75°C

QuickPower
Wash

Gentle X 45 X 58 X

Normal 55 °C X 55 X 58 X

ExtraQuiet 46 X 60 X

Hygiene 69 2X 70 X

SolarSave 2X X X X X

Tall
items65°C

Pasta/Paella X 75 X 58 X

Glasses
warm

Maintenance
programme

2X 75 X 58 X

X 65 X 58 X

54 X 44 X

level of food deposits

65 X 65 X

40 2X 54

75 2X 70 X

1)

This programme is the most efficient in terms of its combined energy and water
consumption for cleaning normally soiled crockery.

58

Programme chart

Consumption

2)

Duration

2)

Energy Water

Cold water Hot water Litres Cold water Hot water

15 °C 55 °C 15 °C 55 °C

kWh kWh h:min h:min

0.67 0.49 9.9 3:42 3:20

0.75 3) -1.05

4)

0.50 3) -0.65

4)

6.5 3) -15.0

4)

1:54-3:10 1:37-2:47

1.30 0.90 14.5 3:17 2:54

1.30 0.80 11.5 0:58 0:58

0.90 0.45 13.5 2:22 1:56

1.00 0.55 13.5 2:30 2:08

1.00 0.70 9.5 4:20 4:11

1.50 1.15 13.0 2:41 2:27

0.06 27.0 2:30

1.10 0.55 14.0 1:54 1:42

1.30 0.95 14.0 2:45 2:24

0.80 0.40 13.5 1:17 1:03

2.10 1.30 22.0 2:36 2:11

2)

Values quoted are in accordance with EN 50242. In practice there may be variations to
these figures due to variable conditions and data recorded by the sensors. Durations
shown will reflect your household conditions.
Selecting programme options will also affect consumption levels and programme
durations (see "Programme options").

3)

Part load with light soiling

4)

Full load with heavy soiling

59

Programme chart

Mixed,

everyday crockery

Heat-sensitive glasses

and plastic

Mixed crockery

Pots, pans, everyday crockery

and cutlery

No crockery

All normal food deposits

Fresh, easily removed

food deposits

Normal, lightly dried-on

food residues

Burnt-on, stubborn, dried-

on food deposits containing

starch or protein 1)

Residual salt after refilling the

salt container

Variable, sensor-controlled

programme

Short programme

Programme duration

less than 1 hour

3)

Gentle programme with

glass care

Short programme

Very quiet programme

Water and

energy saving programme

Short programme

Programme for everyday use

Short programme

Maximum cleaning power

Short programme

Flushes out salt residues

1)

Food such as potatoes, pasta, rice or stews can leave starchy deposits. Deposits containing protein

can be left by food such as meat, fish or eggs and bakes.

Crockery Food deposits Programme

features

60

Programme chart

-

25 ml

or

1 tab

Automatic

+short

- 1 tab

3)

QuickPowerWash

-

20 ml

or

1 tab

Gentle



+short

-

25 ml

or

1 tab

ExtraQuiet

-

25 ml

or

1 tab

ECO

+short

-

25 ml

or

1 tab

Normal 55 °C

+short

10 ml

25 ml

or

1 tab

Intensive 75 °C

+short

- -

QuickPowerWash

+short

2)

see "Detergent"

3)

best cleaning results are only achieved using Miele's quick dissolving UltraTab Multi

Detergent

Compartment I

2)

Compartment II

2)

Programme

61

Programme chart

Further programmes

Hygiene

Special programme for items which
need to be hygienically clean, e.g. baby
bottles and chopping boards.

SolarSave

This programme does not heat the
water. To use it the water intake
temperature must be at least 45 °C /
115 °F (see "Plumbing, Connection to
the water supply"). This programme is
suitable for mixed loads of crockery and
glassware with normal, slightly dried on
food residues.

Pasta/Paella

Programme with long soak phase
incorporated for mixed loads of
crockery, pots and pans and robust
porcelain. This programme is
particularly suitable for removing soiling
containing starch left by pasta, rice and
potatoes.

Glasses warm

This programme does not use rinse aid
and omits the drying phase. It is
particularly suitable for cleaning glasses
where a good head of froth is needed.

Maintenance programme

The wash cabinet is largely self­cleaning. However, if residues or soiling
build up in the cabinet, they can be
removed by running the "Maintenance
programme" without a load. This
programme is designed for cleaning the
wash cabinet using care products such
as Miele's dishwasher cleaner or
conditioner (see "Optional accessories,
Dishwasher care products"). Please
follow usage instructions on the
packaging.

Tall items 65 °C

Programme for very large heat-resistant
items, (e.g. very deep pans). In this
programme the upper basket is
removed to make space for large items
in the lower basket. This programme
has a medium action to remove normal,
slightly dried on residues.

62

Cleaning and care

Check your dishwasher regularly
(approx. every 4 - 6 months). This
way faults and problems can be
avoided.

 The external surfaces of the

dishwasher are susceptible to
scratching.

Contact with unsuitable cleaning
agents can alter or discolour the
external surfaces.

Cleaning the wash cabinet

The wash cabinet is largely self­cleaning, provided that the correct
amount of detergent is always used.

If, however, there are limescale or
grease deposits in the cabinet, these
can be removed with a special cleaning
agent (available from Miele). Follow the
instructions on the packaging.

If you mainly use low temperature
programmes (below 50 °C), there is a
risk of bacteria and unpleasant odours
building up in the wash cabinet. To
prevent this happening the dishwasher
will automatically increase the
temperature in the final rinse of the
selected programme after several
programmes using low temperatures
have been run.

Cleaning the door and the door seal

Mould could build up on the door seal
and the sides of the dishwasher door as
these surfaces are outside the wash
cabinet and so not accessed and
cleaned by the spray arm jets.

 Wipe the door seal regularly with a

damp cloth to remove food deposits.

 Wipe off any food or drink residues

which may have dripped onto the
sides of dishwasher door before
closing it.

Cleaning the control panel

 The control panel should only be

wiped with a damp cloth.

Cleaning the reflector panel

The reflector panel for the In-operation
indicator light is situated in the
coverplate underneath the worktop.

 The reflector panel should only be

wiped with a damp cloth or a suitable
cleaning agent designed for use on
plastic.

 Clean the filters in the wash cabinet

regularly.

63

Cleaning and care

Cleaning the door front

 Soiling that is left too long might

become impossible to remove and
could cause the external surfaces to
alter or discolour.

Remove any soiling immediately.

 Clean the front with a clean sponge

and a solution of hot water and
washing-up liquid. After cleaning dry
with a soft cloth.
A clean, damp microfibre cloth
without cleaning agent can also be
used.

To avoid damaging the external
surfaces, do not use:

– cleaning agents containing soda,

ammonia, acids or chlorides,

– cleaning agents containing descaling

agents,

– abrasive cleaning agents, e.g.

powder cleaners and cream cleaners,

– solvent-based cleaning agents,

– stainless steel cleaning agents,

– dishwasher cleaner,

– oven sprays,

– glass cleaning agents,

– hard, abrasive brushes or sponges,

e.g. pot scourers, brushes or
sponges which have been previously
used with abrasive cleaning agents,

– melamine eraser blocks,

– sharp metal scrapers,

64

– wire wool,

– steam cleaning appliances.

Cleaning and care

Checking the filters in the wash cabinet

The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.

 This dishwasher must not be

used without all the filters in place.

Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.

The message Check filters will appear in
the display after every 50 programme
cycles (factory default setting).

You can set the interval for this
message to appear to between 30 and
60 programme cycles (see "Settings
menu, Check filters").

Cleaning the filters

 Switch the dishwasher off.

 Turn the handle anti-clockwise to

release the filter combination .

 Lift the filter combination out of the

dishwasher . Remove any coarse

particles and rinse the filter well
under running water.
Use a nylon brush if necessary.

 Check the filter combination.
 Clean it, if necessary.
 Then confirm the message with OK.

The message goes out.
The display will change to show the
programme selection menu.

 Make sure that when cleaning

the filters, no coarse soil falls into the
circulation system, causing a
blockage.

65

Cleaning and care

To clean the inside of the filter, the flap
must be opened:

 Press catches  together in the

direction of the arrows as shown, and

open the filter .

 Rinse all the filters under running

water.

 Then close the flap so that the catch

engages.

 Replace the filter combination so that

it lies flat in the base of the wash
cabinet.

 Then turn the handle clockwise to

lock the filter combination in place.

 Take care when you are fitting

the filter combination that it is
secured in position correctly.

Otherwise coarse soil could get into
the circulation system and cause a
blockage.

66

Cleaning the spray arms

Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected and
cleaned regularly (approx. every 4 - 6
months).

 Switch the dishwasher off.

Remove the spray arms as follows:

 Take out the cutlery tray (if your

dishwasher is fitted with one).

 Push the top spray arm upwards to

engage the inner ratchet. Then
unscrew the spray arm.

Cleaning and care

 Pull the lower spray arm firmly

upwards to remove it.

 Push the middle spray arm upwards

 to engage the ratchet. Then
unscrew the spray arm .

 Remove the lower basket.

 Use a pointed object to push food

particles into the spray arm jets.

 Rinse thoroughly under running

water.

 Replace the spray arms and check

that they rotate freely.

67

Problem solving guide

Most minor faults in the performance of the appliance, some of which may result
from incorrect operation, can be put right without contacting your Miele dealer.

The following guide may help you to find the reason for a fault, and to correct it.
You should, however, note the following:

 Unauthorised or incorrect repairs could cause personal injury or damage to

the appliance.
Repair work to electrical appliances must only be carried out by a suitably

qualified and trained person in strict accordance with current local and national
safety regulations. The manufacturer cannot be held liable for unauthorised
work.

Technical problems

Issue Cause and remedy

The dishwasher will not
start.

The dishwasher stops
during a programme.

After the programme
has started, the In­operation indicator light
is not visible.

The door is not properly closed.

 Raise the door upwards until the catch engages.

The appliance is not plugged in.

 Insert the plug and switch on at the socket.

The mains fuse has tripped.

 Reset the trip switch in the mains fuse box or

replace the fuse in the plug (minimum fuse rating ­see data plate).

The dishwasher is not switched on.

 Switch the dishwasher on with the  button.

The mains fuse has tripped.

 Reset the trip switch in the mains fuse box or

replace the fuse in the plug (minimum fuse rating ­see data plate).

 If the mains fuse trips again, call your Miele dealer.

The reflector panel was not correctly fitted.

 Re-fit the reflector panel correctly (see Installation

sheet).

68

Issue Cause and remedy

All in-operation
indicators are flashing
quickly.
The warning buzzer is
sounding.
One of the following
faults is shown in the
display:

 Technical fault FXX

 Waterproof fault

 Technical fault F78

Before rectifying the problem:

 Switch the dishwasher off using the  sensor.

There may be a technical fault.

After a few seconds:

 Switch the dishwasher back on.
 Select the programme you want.
 Close the door.

If the fault message appears again, there is a
technical fault.

 Call your Miele dealer.

The Waterproof system has reacted.

 Close the stopcock.
 Call your Miele dealer.

A fault has occurred in the circulation pump.

 Switch the dishwasher off for at least 30 seconds

with the  sensor.

 Switch the dishwasher back on.
 Select the programme you want.
 Close the door.

If the fault message appears again, there is a
technical fault.

 Call your Miele dealer.

Problem solving guide

69

Problem solving guide

Issue Cause and remedy

All in-operation
indicators are flashing
quickly.
The warning buzzer is
sounding.
One of the following
faults is shown in the
display:

Fault auto. door closing The door might be obstructed by an item inside the

Fault auto. door opening There may be a technical fault.

Before rectifying the problem:

 Switch the dishwasher off with the  button.

appliance.

 If this is the case, remove the item causing an

obstruction and switch the dishwasher on again.

 If the same message appears again, call your

Miele dealer.

 Open the door manually (see "Opening the door,

Emergency door opener").

 If the same message appears again, call your

Miele dealer.

70

Problem solving guide

Water inlet fault

Issue Cause and remedy

All in-operation
indicators are flashing
quickly.
The warning buzzer is
sounding.
One of the following
faults is shown in the
display:

Water inlet fault. Please

open the stopcock

Water inlet fault Before rectifying the problem:

The following message
appears in the display
during the SolarSave
programme:
 Water in. temp. too low

The stopcock is closed.

 Open the stopcock fully.

 Switch the dishwasher off using the  sensor.

The water intake is restricted.

 Open the stopcock fully and start the programme

again.

 Clean the water inlet filter (see "Maintenance").
 The water pressure at the intake is lower than 50

kPa (0.5 bar).
Seek professional advice.

The intake water has not reached the required
temperature of 45°C (see "Plumbing, Connection to
the water supply").

 Start the programme again.
 If the fault message appears again, select a

different programme.

71

Problem solving guide

Water drainage fault

Issue Cause and remedy

All in-operation
indicators are flashing
quickly.
The warning buzzer is
sounding.
The following fault is
shown in the display:
Drain fault

Before rectifying the problem:

 Switch the dishwasher off with the  button.

The water outlet is restricted.
There might be water in the wash cabinet.

 Clean the filter combination (see "Cleaning and

care, Cleaning the filters").

 Clean the drain pump (see "Maintenance").
 Clean the non-return valve (see "Maintenance").
 Remove any kink or loop in the drain hose.

72

General problems

Issue Cause and remedy

The door will not open
when knocked.

The interior lighting
does not come on when
the door is opened.

The following fault is
shown in the display:
 Salt reservoir lid
During the programme
the warning buzzer is
also sounding and the
In operation indicator
light is flashing.

Detergent residue is left
in the dispenser at the
end of a programme.

The detergent
dispenser lid cannot be
closed properly.

At the end of a
programme there is a
film of moisture on the
inside of the door and
the interior walls.

The Knock2open function has been permanently
disabled.

 Switch the door opening mechanism on again (see

"Settings, Knock2open").

If the door will still not open or if there is a power cut
the door can still be opened with the door opening
device supplied (see "Before using for the first time,
Emergency door opener").

The lighting has been switched off permanently.

 Switch the lighting back on again (see "Settings

menu, BrilliantLight").

The salt reservoir lid has not been closed properly.

 Close the salt reservoir lid.

If the salt reservoir lid has opened during a
programme:

 Switch the dishwasher off and back on again with

the  button.

 Close the salt reservoir lid.
 Start the programme again.

The dispenser was still damp when detergent was
added.

 Make sure the dispenser is dry before adding

detergent.

Clogged detergent residue is blocking the catch.

 Clean the detergent from the catch.

This is caused by the drying system and does not
indicate a fault. The moisture will dissipate after a
while.

Problem solving guide

73

Problem solving guide

Issue Cause and remedy

Water remains in the
wash cabinet at the end
of a programme.

Before rectifying the problem:

 Switch the dishwasher off using the  sensor.

The filter combination in the wash cabinet is clogged.

 Clean the filter combination (see "Cleaning and

care, Cleaning the filters").

The drain pump or non-return valve may be blocked.

 Clean the drain pump or the non-return valve (see

"Maintenance").

The drain hose is kinked.

 Remove any kink from the drain hose.

74

Noises

Issue Cause and remedy

Knocking noise in the
wash cabinet.

Rattling noise in the
wash cabinet.

Knocking noise in the
water pipes.

A spray arm is knocking against an item in a basket.

 Interrupt the programme, and rearrange the items

which are obstructing the spray arm.

Items of crockery are insecure in the wash cabinet.

 Interrupt the programme, and rearrange the items

of crockery.

A foreign object (e.g. a cherry stone) has become
lodged in the drain pump.

 Remove the foreign object from the drain pump

(see "Maintenance, Cleaning the drain pump and
non-return valve").

This may be caused by the on-site installation or the
cross-section of the piping.

 This has no influence on dishwasher function. If in

doubt, contact a suitably qualified plumber.

Problem solving guide

75

Problem solving guide

Unsatisfactory washing result

Issue Cause and remedy

The dishes are not
clean.

Smearing appears on
glassware and cutlery.
There is a bluish sheen
on the surface of
glassware; film can be
wiped off.

The dishes were not loaded correctly.

 See notes in "Loading the dishwasher".

The programme was not powerful enough.

 Select a more powerful programme (see

"Programme chart").

There is some stubborn soiling although most of the
crockery is only lightly soiled (e.g. with tea stains).

 Use the Automatic programme option (see

"Settings menu, Automatic").

Not enough detergent was dispensed.

 Use more detergent, or change your detergent.

Items are blocking the path of the spray arms.

 Rearrange the items so that the spray arms can

rotate freely.

The filter combination in the base of the wash cabinet
is not clean or is not correctly fitted.
This may cause the spray arm jets to get blocked.

 Clean and/or fit the filter combination correctly.
 Clean the spray arm jets, if necessary (see

"Cleaning and care, Cleaning the spray arms").

The non-return valve is open and blocked. Dirty water
has flowed back into the wash cabinet.

 Clean the drain pump and the non-return valve

(see "Maintenance, Cleaning the drain pump and
non-return valve").

The rinse aid dosage is set too high.

 Reduce the dosage (see "Settings menu, Rinse

aid").

76

Issue Cause and remedy

Crockery is not dry or
cutlery and glasses are
flecked.

Glassware has a brown
or blue tinge, and film
cannot be wiped off.

Glassware is dull and
discoloured; film cannot
be wiped off.

Tea or lipstick stains
have not been
completely removed.

Plastic items are
discoloured.

The rinse aid dosage is set too low or the rinse aid
reservoir is empty.

 Replenish the reservoir, increase the dosage or

change the brand of rinse aid (see "Before using
for the first time, Rinse aid").

Crockery was taken out of the cabinet too soon.

 Leave it in for longer (see "Operation").

Combination products have been used which have
impaired drying performance.

 Change your detergent, or replenish the rinse aid

(see "Before using for the first time, Rinse aid").

This may be caused by the detergent.

 Change your detergent.

The glassware is not dishwasher-proof. The surfaces
are affected.

 There is no remedy.

Purchase glassware which is dishwasher-proof.

The wash temperature of the selected programme
was too low.

 Select a programme with a higher wash

temperature.

The bleaching effect of the detergent used is too low.

 Change your detergent.

Natural dyes e.g. from carrots, tomatoes or ketchup
may be the cause. The amount of detergent used or
its bleaching effect was not sufficient to deal with
natural dyes.

 Use more detergent (see "Operation, Detergent").

Discolouration is irreversible.

Problem solving guide

77

Problem solving guide

Issue Cause and remedy

White residue is visible
on crockery and cutlery,
clouding occurs on
glassware; film can be
wiped off.

There are rust stains on
cutlery.

The rinse aid dosage is set too low.

 Increase the dosage (see "Settings menu, Rinse

aid").

There is no salt in the salt reservoir.

 Fill the salt reservoir (see "Before using for the first

time, Dishwasher salt").

An unsuitable combination product has been used.

 Change your detergent. Use a standard liquid,

tablet or powder detergent.

The water softener is programmed to too low a water
hardness level.

 Programme the water softener to a higher water

hardness level (see "Settings menu, Water
hardness").

The affected items are not corrosion resistant.

 There is no remedy.

Purchase cutlery which is dishwasher-proof.

A programme was not run after dishwasher salt was
added. Traces of salt have got into the wash cycle.

 Always run the QuickPowerWash programme with

the Shortprogramme option selected and without
any crockery in the dishwasher after adding
dishwasher salt.

78

Cleaning the water inlet filter

A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.

 The plastic housing of the water

connection contains an electrical
component.

The housing must not be dipped in
water.

Maintenance

Recommendation

If the mains water contains a large
number of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded
union.
This filter is available from Miele.

Cleaning the filter:

 Disconnect the dishwasher from the

mains supply.
Switch off at the mains socket and
withdraw the plug.

 Close the stopcock.
 Unscrew the inlet hose.

 Carefully remove the seal.
 Withdraw the filter using pointed

pliers and rinse clean under running
water.

 Replace the filter and seal, making

sure they are sitting correctly.

 Reconnect the inlet hose to the

stopcock, making sure it goes on
correctly and is not cross-threaded.

 Open the stopcock.

If water leaks out, the inlet hose may
not be connected securely or it may
have been screwed on at an angle.

 Unscrew and reconnect the water

inlet valve correctly.

79

Maintenance

Cleaning the drain pump and non-return valve

If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean.

 Disconnect the dishwasher from the

mains supply. Switch off at the mains
socket and withdraw the plug.

 Take the filter combination out of the

wash cabinet (see "Cleaning and
care", "Cleaning the filters").

 Scoop the water out of the cabinet

using a suitable container or utensil.

The drain pump is situated under the
non-return valve (see arrow).

 Remove all foreign objects from the

drain pump carefully (watch out for
glass splinters which are particularly
difficult to detect). Turn the drain
pump impeller by hand to check that
there are no more obstructions. You
will feel a little resistance when you
turn the impeller.

 Press the catch for the non-return

valve inwards .

 Tilt the non-return valve inwards until

it is released.

 Rinse it thoroughly under running

water and remove any soiling from
the non-return valve.

80

 Carefully replace the non-return

valve.

 Ensure that the catch engages

correctly.

 Be very careful not to damage

sensitive components when cleaning
the drain pump and the non-return
valve.

After sales service

Repairs

In the event of any faults which you
cannot remedy yourself, please contact:

– your Miele Dealer

Contact details for Miele are given at
the end of this booklet. N.B. A call­out fee will be charged for service
visits where the problem could have
been resolved as described in these
instructions.

When contacting your Miele dealer,
please quote the model and serial
number of your dishwasher, both of
which are shown on the data plate on
the right hand side of the door.

Guarantee

The appliance is guaranteed for 2 years
from the date of purchase. For further
information on the appliance guarantee
specific to your country please contact
Miele.

81

Optional accessories

Dishwasher detergent and rinse aid as
well as cleaning and care products are
available as optional accessories.
All the products are designed for use
with Miele dishwashers.

Dishwasher detergent, rinse aid and salt

When you decided to buy a Miele
dishwasher you chose excellent quality
and performance. However, ensuring
that your dishwasher always delivers
the best possible results will also
depend on your choice of dishwasher
detergent, rinse aid and salt, as
cleaning results can vary depending on
the brand used.
With Miele products, you can be sure of
optimum results as these products have
been specially designed for Miele
dishwashers.

Detergent tabs

– sparkling results even with stubborn

food deposits

– combination product with other

components such as rinse aid, salt
and glass protection additives

– phosphate free - helps protect the

environment

– water-soluble wrapping - no need to

unwrap

Powder detergent

– with active oxygen for thorough

cleaning

– with enzymes which are effective

even in low temperature programmes

– with glass protection against

corrosion

Rinse aid

– for gleaming glasses

– helps crockery to dry

82

– with glass protection against

corrosion

– specially designed cap for precise,

easy dispensing

Dishwasher salt

– prevents limescale on crockery and

in the appliance

– extra coarse-grained

Dishwasher care products

Miele cleaning and care products
provide optimum care for your
dishwasher.

Dishwasher cleaner

– cleans the dishwasher effectively and

thoroughly

– removes grease, bacteria and

unpleasant odours

– ensures excellent dishwashing results

Dishwasher descaler

– removes heavy limescale deposits

– mild and gentle with natural citric

acid

Dishwasher conditioner

– removes odours, limescale and light

deposits

Optional accessories

– maintains the elasticity and leak

tightness of the seals

Dishwasher freshener

– neutralises unpleasant odours

– fresh, pleasant lime and green tea

scent

– easy to attach to the dishwasher

basket

– very economical, lasts for 60 wash

cycles

83

Electrical connection

Electrical connection

The appliance is supplied with a mains
cable with moulded plug for
connection. Please ensure the
connection data (voltage and
frequency) quoted on the data plate
match the household mains supply.
Please consult a qualified electrician if
you are in any doubt.

Connection should be made via a
suitable switched socket which is easily
accessible after installation.

For extra safety it is advisable to
operate the appliance via a suitable
residual current device (RCD). Contact
a qualified electrician for advice.

Do not connect the appliance to the
mains electricity supply by a
multisocket adapter or an extension
lead. These are a fire hazard and do not
guarantee the required safety of the
appliance.

If the connection cable is faulty, it may
only be replaced by a qualified
electrician in order to avoid a hazard.

Non-rewireable plugs BS 1363

The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of plug
fitted).

Replacement fuses must be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING: THIS APPLIANCE MUST BE EARTHED

84

Plumbing

The Miele waterproof anti-leak system

Provided your dishwasher has been
installed correctly, the Miele WaterProof
System will protect you from water
damage throughout its lifetime.

Connection to the water supply

 Water in the dishwasher must

not be used as drinking water.

– The dishwasher may be connected to

a cold or hot water supply, max.
60°C.
We would only recommend
connection to a hot water supply if it
is economical, e.g. a solar powered
supply. When connected to a hot
water supply all programme stages
which would otherwise be carried out
with cold water will be carried out
with hot water.

– The SolarSave programme (if

available) requires a hot water supply
of between 45 °C (minimum) and 60
°C (maximum).
The higher the water intake
temperature, the better the cleaning
and drying results.

85

Plumbing

– The inlet hose is approx. 1.5m long.

A 1.5m long flexible metal extension
hose (pressure tested to 14000
kPa/140 bar) is available as an
optional accessory, if required.

– A stopcock with a 3/4" male thread

must be provided on site.

– This appliance is constructed to

comply with IEC/EN/DIN 61770 //
VDE 0700 Section 600, and may be
connected to a suitable supply
without an extra non-return valve if
national regulations permit.

– The water pressure (flow pressure at

the take-off point) must be between
50 and 1000kPa (0.5 and 10bar). If
the water pressure is lower than this,
the fault message Water intake will
appear in the display (see "Problem
solving guide"). If the water pressure
is too high, a pressure reducer valve
must be fitted.

After connecting the dishwasher to
the water supply, check that all
plumbing connections are watertight.

 To avoid any damage to the

appliance, the dishwasher must only
be operated when it is connected to
a fully vented plumbing system.

 The inlet hose must not be

shortened or damaged in any way as
it contains electrical components
(see illustration).

86

Plumbing

Drainage

– The appliance drainage system is

fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.

– The dishwasher is supplied with

approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.

– The drain hose can be extended

using a connection piece to attach a
further length of hose. The drainage
length must not be longer than 4 m,
and the delivery head must not
exceed 1 m.

– If the hose is to be directly fitted to

the drainage outlet on site, use the
hose clip supplied (see installation
sheet).

– The hose can be directed to the left

or the right of the appliance.

– The on-site connector for the drain

hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.

Venting the drainage system

If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door, the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.

 To vent it: Open the dishwasher door

fully.

 Pull the lower spray arm firmly

upwards to remove it.

 Cut off the top of the vent valve in the

wash cabinet.

– The drain hose must not be

shortened.

 Make sure that there are no kinks

in the hose, and that it is not
squashed or stretched.

After connecting the dishwasher to
the drainage system, check that all
plumbing connections are watertight.

87

Technical data

Technical data

Dishwasher model Standard XXL

Height 80.5 cm

(adjustable +6.5cm)

Height of building-in recess Min. 80.5 cm

(+6.5cm)

Width 59.8 cm 59.8 cm

Width of building-in recess 60 cm 60 cm

Depth 57 cm 57 cm

Weight max. 53 kg max. 59 kg

Voltage See data plate

Connected load See data plate

Fuse rating See data plate

Power consumption when
switched off

Power consumption when not
switched off

Test certificates awarded See data plate

Water pressure (flow rate) 50 - 1000 kPa

0.3 W 0.3 W

3.0 W 3.0 W

(0.5 - 10 bar)

84.5 cm
(adjustable +6.5cm)

Min. 84.5 cm
(+6.5cm)

50 - 1000 kPa
(0.5 - 10 bar)

Hot water connection Up to max. 60 °C Up to max. 60 °C

Delivery head Max. 1 m Max. 1 m

Drainage length Max. 4 m Max. 4 m

Mains cable Approx. 1.7 m Approx. 1.7 m

Capacity 13/14 place settings* 13/14 place settings*

* depending on model

88

Settings menu

Settings menu for changing standard settings

To open the Settings menu

 Switch the dishwasher on with the 

sensor if it is switched off.

The main menu will appear in the
display.
If the memory function is activated, the
programme menu for the programme
last selected will be displayed instead
(see "Settings, Memory"). If this is the
case use the  sensor to get to the
main menu.

See "Guide to the appliance, Display"
for more information about the display
and controls.

 Select the Settings  option.

The display will change to show the

Settings  menu.

 Select the option you want to

change.

Touch the  sensor to call up more
information about the programme
currently selected.

Sub-menu options which have already
been selected will have a tick 
beside them.

 To exit a sub-menu again use the 

sensor.

The display will revert to the menu
above.

89

Settings menu

Language 

The display can be set to appear in one
of several different languages.

You can change the language in the
display via the Language  sub-menu.

 Select the language you want and

confirm this with OK.

Some languages also have a country
option to select.

 If so, select the country you want and

confirm your selection with OK.

The flag after the word Language 
acts as a guide if a language which
you do not understand has already
been set.
If this the case, keep selecting the
option which has a flag after it until
you reach the Language  sub-menu.

Time

The current time of day must be set
before you can use the Delay start
option.

Setting the clock format

You can select either a 24 hour or 12
hour clock.

 Select the Clock format option.
 Select the setting you want and

confirm with OK.

Setting the time of day

 Select the Set option.
 Set the hour with the  arrow

buttons and confirm with OK.
Then set the minutes and confirm
with OK.

The time of day has now been saved.

90

Settings menu

Water hardness

Your dishwasher is fitted with a water
softener which you need to programme
to the water hardness level in your area.

– The dishwasher must be

programmed to the correct water
hardness for your area.

– Your local water authority will be able

to advise you of the water hardness
level in your area.

– Where the water hardness fluctuates

e.g. between 1.8 and 2.7 mmol/l (10 ­15 °d - German scale) always
programme the dishwasher to the
higher value (2.7 mmol/l or 15 °d in
this example).

 Select the water hardness you want,

and confirm your selection with OK.

A tick  will appear beside the water
hardness which has been set.

°d mmol/l °f Display

1 0.2 2 1

2 0.4 4 2

3 0.5 5 3

4 0.7 7 4

5 0.9 9 5

6 1.1 11 6

7 1.3 13 7

8 1.4 14 8

9 1.6 16 9

10 1.8 18 10

°d mmol/l °f Display

11 2.0 20 11

12 2.2 22 12

13 2.3 23 13

14 2.5 25 14

15 2.7 27 15

16 2.9 29 16

17 3.1 31 17

18 3.2 32 18

19 3.4 34 19

20 3.6 36 20

21 3.8 38 21

22 4.0 40 22

23 4.1 41 23

24 4.3 43 24

25 4.5 45 25

26 4.7 47 26

27 4.9 49 27

28 5.0 50 28

29 5.2 52 29

30 5.4 54 30

31 5.6 56 31

32 5.8 58 32

33 5.9 59 33

34 6.1 61 34

35 6.3 63 35

36 6.5 65 36

37-45 6.6-8.0 66-80 37-45

46-60 8.2-10.7 82-107 46-60

61-70 10.9-12.5 109-125 61-70

91

Settings menu

Rinse aid

You can adjust the rinse aid dosage for
best results.
The rinse aid dosage is set in stages
from 0 to 6.
It is set to 3 at the factory.

If the function to adjust the Automatic
programme has been activated, the
amount of rinse aid dispensed in the

Automatic programme can be higher

than that set.

If spots appear on crockery and
glassware:

– Increase the rinse aid dosage.

If clouding or smearing appears on
crockery and glassware:

– Decrease the rinse aid dosage.

 Use the  arrow buttons to set the

level you want and confirm with OK.

Consumption (EcoFeedback)

You can programme the dishwasher so
that the energy and water consumption
of the currently selected programme
appears in the display. The estimated
consumption can be displayed before
the programme starts and the actual
consumption can be displayed after the
programme has finished.
In this menu you can also call up the
total energy and water used in all
previous dishwasher programmes (see
"Caring for the environment,
EcoFeedback consumption indicator").

Consumption indicator

 Select the Display consumption option.
 Select the setting you want and

confirm with OK.

Total consumption

You can display the values for Energy
and Water.

 Select the Total consumption option.

92

You can also reset the values for the
total consumption to 0.

 Select the Reset option.
 Select the Yes option.
 Confirm the message with OK.

The values are now reset to 0.

Settings menu

EcoStart

In order to run your dishwasher in the
most economical way, you can use the

EcoStart option to take advantage of

your electricity supplier's time variable
tariffs (see "Programme options, Delay
start, EcoStart").
With this option selected, your
dishwasher will start automatically at
your electricity supplier's cheapest tariff
times.

To use this option you must first set up
to three electricity tariff time zones in
which the dishwasher can start. You
can allocate different priorities to these
time zones. The time with the cheapest
electricity tariff will be given Priority 1.

Contact your electricity supplier to find
out the times of the cheapest electricity
tariffs.

Once the electricity tariff times have
been set, you can use the EcoStart
option to set the latest finish time
required for each programme.
The dishwasher will then start
automatically in the cheapest electricity
tariff time and the programme will end
at the latest at the finish time set.

Setting the electricity tariff times

Before you can use the EcoStart option,
you must set at least one electricity
tariff time.

 Select an electricity tariff time from

T1-T3 to set.

The start of the electricity tariff time
selected will appear in the display and
the hour number block will be
highlighted.

 Use the  arrow buttons to set the

hours and minutes for the start time
and confirm both with OK.

The end of the electricity tariff time
selected will appear in the display and
the hours number block will be
highlighted.

 Use the  arrow buttons to set the

hours and minutes for the end time
and confirm both with OK.

The electricity tariff time will be saved
and its priority will appear in the display.

 Select the priority you want and

confirm this with OK.

 Confirm the message with OK.

The electricity tariff time will be
activated.

93

Settings menu

Changing the electricity tariff times

You can change the start, finish or
priority of an electricity tariff time.

 Select an electricity tariff time from

T1-T3 to change.

 Select the setting you want to

change.

 Use the  arrow buttons to change

the setting and confirm with OK.

The change will be saved.

Deleting the electricity tariff times

 You can delete the settings for an

electricity tariff time and in doing so
deactivate the EcoStart option for this
time zone.

 Select an electricity tariff time from

T1-T3 to delete.

 Select Delete.
 Confirm the query Delete tariff T1? with

Delete.

The settings for the electricity tariff time
selected will be reset.

 Confirm the message with OK.

The electricity tariff time will be deleted.

94

Settings menu

Change main menu

You can change the order of the
programmes in the programme
selection menu and also enter your
favourite programmes into the first two
programme places.

 Select the programmes you want to

place in the first and second position
of the programme selection menu.

 Confirm each position with OK.

The programmes you have selected will
then appear together in the display.

 If you are happy with the order they

are shown in confirm with OK.

 To change the order they are shown

in select Change main menu.

Enter the settings again.

Save extras

Additional programme options can be
added to some programmes, e.g. Short
(see "Programme options, Extras").

You can use the Save extras option to
save settings you have chosen for a
particular programme so that they are
automatically selected when you run
the programme in the future.

The dishwasher is delivered with this
function deactivated.

 Select the setting you want and

confirm with OK.

Temperature

The temperature can be displayed in
°C/Celsius or °F/Fahrenheit.

The factory default setting is °C.

 Select the option you want and

confirm with OK.

Brightness

There are seven different display
brightness settings.

 Select the brightness you want and

confirm this with OK.

95

Settings menu

Volume

A sequence of audible tones will sound
at the end of the programme or if there
is a fault as long as the buzzer has been
activated.

Buzzer in the event of a fault

The buzzer in the event of a fault will
sound 4 times at intervals with a short
pause between each set of tones.

The buzzer which sounds when there
is fault cannot be deactivated.

Buzzer at the end of a programme

The buzzer at the end of a programme
will sound 4 times at intervals with a
short pause between each set of tones.

Buzzer tones

The volume of the tone at the end of the
programme can be selected in seven
stages or switched off.

 Select the volume you want using the

Quieter and Louder sensors, or switch

the buzzer off.

Night time

You can select the times for night time
to begin and end.

 Select the Start at option.
 Use the arrow sensors  to set the

time in hours and minutes for the
night time to begin and confirm both
with OK.

 Select the Finish at option.
 Use the arrow sensors  to set the

time in hours and minutes for the
night time to end and confirm both
with OK.

Keypad tone

An audible tone sounds each time a
sensor is pressed.

The volume for the keypad tone can be
set in seven stages, or switched off.

 Select the volume you want using the

Quieter and Louder sensors, or switch

the keypad tone off.

 Confirm with OK.

 Confirm with OK.

Night time buzzer tone

You can select a different volume for
the buzzer at night, or switch it off.

 Select the volume you want for the

night time buzzer using the Quieter
and Louder sensors, or switch the
night time buzzer off.

 Confirm with OK.

96

Settings menu

Memory

With the Memory function activated, the
dishwasher will save the last
programme that was run.
When you switch the dishwasher off
and back on again, the last programme
used will appear in the display instead
of the ECO programme.

 Select the setting you want and

confirm with OK.

Refill reminders

If you only ever use combination
products containing salt and rinse aid in
your dishwasher, you can switch the
reminders for salt and rinse aid off if
you wish (see "Settings menu, Refill
reminders"). Switching off the reminders
will not affect the DetergentAgent
function (see "Programme options,
DetergentAgent").

 Select the setting you want and

confirm with OK.

Check filters

You can adjust the interval at which the
reminder to check the filters appears.
You can set an interval of between 30
and 60 programme cycles.

The reminder to check the filters is set
at the factory to appear after every 50
programme cycles.

 Select the interval you want and

confirm with OK.

Automatic

You can adjust the Automatic
programme so that it will remove
stubborn soiling from a lightly soiled
load. Energy consumption will increase
with this option.

 Select the setting you want and

confirm with OK.

If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to add salt
and rinse aid and to switch the
reminders back on.

97

Settings menu

AutoOpen

At the end of programmes with a drying
phase the door will open automatically
a little in order to help the drying
process (see "Programme chart").
In the ECOprogramme the door will
open automatically during the drying
phase. In the

QuickPowerWashprogramme it will open

a few minutes after the programme has
finished.

This function can be deactivated if
wished.

 Select the setting you want and

confirm with OK.

 If you have deactivated the

automatic door opening function and
would like to open the door as soon
as the programme has finished make
sure that you open the door fully.
Otherwise steam from the
dishwasher could damage the edge
of the worktop because the fan is no
longer running.

Knock2open

You can choose whether the door
should open with 1 or 2 knocks.

 Select the setting you want and

confirm with OK.

This function can also be disabled in
which case the door has to be fitted
with a handle to open it.

98

Settings menu

Optimise standby

The dishwasher is supplied with the

Optimise standby function set as

standard.

To save energy the dishwasher will
switch off automatically a few minutes
after the last time a button has been
pressed or after the end of a
programme.

The dishwasher will not switch off in
the event of a fault.

Optimise standby can be switched off if
you prefer. If you do this the duration
before the dishwasher switches off
increases to 6 hours. Doing this will
increase energy consumption.

 Select the setting you want and

confirm with OK.

BrilliantLight

This dishwasher has interior lighting.
When the door is open the lighting will
switch off automatically after 15
minutes.

Heat exchanger

This dishwasher is equipped with a heat
exchanger (see"Programme options,
Heat exchanger).

Conditions

The heat exchanger function can be
switched off if you do not wish to use it.

 Select the State option.
 Select the setting you want and

confirm with OK.

Manual discharge

You can manually empty the heat
exchanger, e.g. for a longer period of
down time, or before moving the
appliance to a new location.

 Select the Empty manually option and

confirm with OK.

The process starts straight away.

You can also switch off the interior
lighting permanently.

 Select the setting you want and

confirm with OK.

99

Settings menu

Software version

You can call up the electronic software
version of your dishwasher for technical
support purposes.

 Confirm the display with OK.

Showroom programme

For demonstration purposes only.

The dishwasher is equipped with
various demo programmes for
showroom use.

– Demo mode

Programme for use in showrooms to
demonstrate the TimeControl
function.

– Demo with sound

This programme activates the
circulation pump to demonstrate the
sound of the dishwasher.

– Demo AutoOpen

The door will open automatically.

Factory default

You can reset all dishwasher settings to
the factory default settings.

You will be given the choice of Appliance

settings or Main menu.

WLAN module settings (where
applicable) have to be reset separately
(see "Settings, Miele@home, module
settings").

 Select the one you want to reset.
 Confirm the message Reset settings?

or Reset main menu? with Yes.

To close the Settings menu

To close the Settings  menu use the 
sensor. This will take you back to the
main menu.

– Cont. BrilliantLight

The interior lighting is on constantly.

100
