Operating instructions
for dishwashers
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the
first time.
en - GB, IE
M.-Nr. 07 888 720
Contents
Guide to the appliance .............................................5
Appliance overview .................................................5
Control panel ......................................................6
Warning and Safety instructions .....................................7
Caring for the environment.........................................12
Disposal of the packing material ......................................12
Disposal of your old appliance .......................................12
Energy saving washing .............................................13
Before using for the first time.......................................14
To open the door ..................................................14
To close the door ..................................................14
Safety lock .......................................................14
Water softener ....................................................15
To programme the water hardness level .............................16
Checking the programmed water hardness level ......................17
Before using the appliance for the first time you require: ...................18
Filling the salt reservoir .............................................18
Salt indicator .....................................................19
Rinse aid ........................................................20
Adding rinse aid ..................................................20
Rinse aid indicator .................................................21
Setting the rinse aid dosage .........................................22
Loading the dishwasher ...........................................23
Items not suitable for dishwashers: ....................................24
Upper basket .....................................................25
Hinged cup rack ................................................25
Positioning rail (depending on model) ...............................25
Adjusting the upper basket .......................................26
Lower basket .....................................................27
Hinged spikes..................................................27
Removable spiked insert .........................................28
Bottle holder (depending on model).................................28
Cutlery ..........................................................29
Cutlery tray (depending on model)..................................29
Cutlery basket (depending on model) ...............................30
2
Contents
Operation .......................................................31
Detergent ........................................................31
Adding detergent..................................................32
Switching on .....................................................33
Selecting a programme .............................................33
Starting a programme ..............................................33
Programme sequence indicators .....................................33
At the end of a programme ..........................................34
Switching off .....................................................34
Unloading the dishwasher ...........................................34
Interrupting a programme ...........................................35
Changing a programme ............................................35
Additional functions ................................................36
Factory default setting ...........................................36
Cleaning and care ................................................37
Cleaning the wash cabinet ..........................................37
Cleaning the door and the door seal ...................................37
Cleaning the door front .............................................37
Cleaning the filters in the wash cabinet.................................38
Cleaning the spray arms ............................................40
Problem solving guide ............................................41
Technical problems ................................................41
The dishwasher does not fill/drain. ....................................43
General problems .................................................44
Noises ..........................................................45
Unsatisfactory washing result ........................................46
Maintenance .....................................................49
Cleaning the water inlet filter .........................................49
Cleaning the drain pump and non-return valve...........................50
After sales service ................................................51
Repairs .......................................................51
Future updates .................................................51
For testing institutes................................................51
Programme chart .................................................52
Optional accessories..............................................56
3
Contents
Electrical connection..............................................57
Plumbing........................................................58
The Miele waterproof anti-leak system .................................58
Connection to the water supply .......................................58
Drainage ........................................................59
Technical data ...................................................60
4
Appliance overview
Guide to the appliance
a Upper spray arm (not visible)
b Cutlery tray (depending on model)
c Upper basket
d Middle spray arm
e Air inlet for drying
(depending on model)
f Lower spray arm
g Filter combination
h Data plate
i Child safety lock in door grip (not
visible)
j Rinse aid reservoir
k Dual compartment detergent
dispenser
l Salt reservoir
5
Guide to the appliance
Control panel
a Check/Refill indicators
b Programme sequence indicators
c Start/Stop button with indicator light
This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1023 etc. = G 1XXX
G 2023 etc. = G 2XXX
d Programme selector
e On/Off button K
The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.
6
Warning and Safety instructions
This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place and pass them on to any
future owner.
Correct application
This dishwasher is intended
~
exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance, would be
unauthorised and could be dangerous.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.
This dishwasher is not intended for
~
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it or they
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
This appliance is not a toy! To avoid
~
the risk of injury, keep children well
away and do not allow them to play in
or around the dishwasher, or to use the
controls. They will not understand the
potential dangers posed by it. They
should be supervised whenever you
are working in the kitchen. There is a
danger that children playing might shut
themselves in the dishwasher.
Older children may only use the
~
dishwasher when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
Keep children away from
~
detergents. Dishwasher detergents
contain irritant and corrosive
ingredients which can cause burning in
the mouth, nose and throat if
swallowed, or inhibit breathing. Keep
children away from the dishwasher
when the door is open. There could still
be detergent residues in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.
7
Warning and Safety instructions
Technical safety
Before setting up the appliance,
~
check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.
The dishwasher must only be
~
plugged into the electricity supply via a
suitable switched socket. The electrical
socket must be easily accessible after
the dishwasher has been installed so
that it can be disconnected from the
electricity supply at any time. (See
"Electrical connection").
There must be no electrical sockets
~
behind the dishwasher. Danger of
overheating and fire risk if the
dishwasher were to be pushed up
against a plug.
The dishwasher must not be
~
installed under a hob. The high radiant
temperatures which are sometimes
generated by a hob could damage the
dishwasher. For the same reason it
should not be installed next to open
fires or other appliances which give off
heat, such as heaters etc.
Do not connect the dishwasher to
~
the mains supply until it has been fully
installed.
Before connecting the appliance,
~
check that the connection data on the
data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this
~
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and regularly
tested and where there is any doubt the
electrical system in the house should
be checked by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the appliance to the
~
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
8
Warning and Safety instructions
This appliance may only be installed
~
in mobile installations such as ships if a
risk assessment of the installation has
been carried out by a suitably qualified
engineer.
The plastic housing of the water
~
connection contains an electrical
component. The housing must not be
dipped in water.
There are live wires in the water inlet
~
hose. Never cut the water inlet hose,
even if it is too long.
The integrated Waterproof System
~
offers protection from water damage,
provided the following conditions are
met:
– The dishwasher is correctly installed
and plumbed in.
– The dishwasher is properly
maintained and parts are replaced
where necessary.
– The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).
The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.
A damaged appliance could be
~
dangerous. If the dishwasher gets
damaged, switch it off at the mains and
call your Miele Dealer or the Miele
Service Department.
Unauthorised repairs could result in
~
unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Faulty components must only be
~
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
Always disconnect the dishwasher
~
from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).
If the connection cable is damaged
~
it must be replaced with a Miele cable
by a Miele approved service technician
only.
In countries where there are areas
~
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
9
Warning and Safety instructions
Installation
The dishwasher must be installed
~
and connected in compliance with the
installation diagram supplied.
The dishwasher must be correctly
~
aligned to ensure problem-free
operation.
In order to ensure stability,
~
built-under and integrated dishwashers
must only be installed under a
continuous worktop which is secured to
adjacent cabinetry.
If you want to convert your
~
freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.
Correct use
Do not use solvents in the
~
dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher
~
detergent. Dishwasher detergents
contain irritant or corrosive ingredients
which can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if detergent has been swallowed or
inhaled.
Avoid leaving the door open
~
unnecessarily, as you could trip over it.
Do not sit or lean on the opened
~
door. This could cause the dishwasher
to tip and be damaged, and you could
get injured.
Only use detergent and rinse aid
~
formulated for domestic dishwashers.
Do not use washing-up liquid.
Do not use commercial or industrial
~
detergents as these may cause
damage, and there is a risk of severe
chemical reaction.
-
10
Do not fill the rinse aid reservoir with
~
powder or liquid detergent. This will
cause serious damage to the reservoir.
Warning and Safety instructions
Inadvertently filling the salt reservoir
~
with powder or liquid dishwasher
detergent will damage the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!
Please only use special coarse
~
grained dishwasher salt for reactivation,
as other salts may contain insoluble
additives which can impair the
functioning of the softener.
In an appliance with a cutlery basket
~
(depending on model) cutlery is
cleaned and dried more efficiently if
placed in the basket with the handles
downwards. However, to avoid the risk
of injury, place knives and forks etc.
with the handles upwards.
Plastic items which cannot withstand
~
being washed in hot water, such as
disposable plastic containers, or plastic
cutlery and crockery should not be
cleaned in the dishwasher. The high
temperatures in the dishwasher may
cause them to melt or lose shape.
Accessories
Only use genuine Miele spare parts
~
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
Disposal of your old
dishwasher
Make the door lock inoperative so
~
that children cannot accidentally shut
themselves in. Make appropriate
arrangements for the disposal of the
appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
On models with "Delay start", make
~
sure that the dispenser is dry before
adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispersed.
11
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
The packaging consists of the following
materials:
Outer packaging:
– Corrugated cardboard made from up
to 100% recyclable material,
or: Polyethylene (PE) shrink wrap
– Polyproplylene (PP) strapping
Inner packaging:
– Chlorine and fluorine free expanded
polystyrene (EPS)
–
Base, lid frame and support battens
made from untreated natural wood
from renewable forests.
–
Polyethylene (PE) protective wrap
Rather than just throwing these
materials away, please ensure they are
recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
To enable sorting by type of plastic for
recycling, all plastic parts of the
appliance are labelled with international
standard symbols.
12
Energy saving washing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
If your water supply is suitable, this
^
dishwasher can be connected to hot
water for further economies. If the
water is heated by solar panels, for
example, this would be energy
efficient.
However, if your water is heated by
electricity we would recommend
connection to cold water.
^ For most economical dishwashing,
make full use of the baskets without
overloading the dishwasher.
^ Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
Caring for the environment
^ Select the Energy save programme
for energy-saving dishwashing.
^
Follow the detergent manufacturer's
recommendations on detergent
dosage.
^
When using powder or liquid
detergent, you can use
detergent if baskets are only half full.
1
/3less
13
Before using for the first time
To open the door
^ Press the release catch inside the
door grip upwards and pull the door
open.
If the door is opened during operation
all functions are automatically
interrupted.
To close the door
Safety lock
Use the safety lock to prevent children
opening the dishwasher door.
^ To lock the door, push the slide
underneath the door grip to the right.
^ To unlock the door, push the slide to
the left.
^ Push the baskets right in.
^
Then lift the door upwards and push
until it clicks into position.
14
Before using for the first time
Water softener
In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d – German
scale) needs to be softened. This takes
place automatically in the integrated
water softener.
The water softener requires
–
reactivation salt.
– The dishwasher must be
programmed for the water hardness
in your area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
Where the water hardness fluctuates
e.g. between 6.7 - 9.0 mmol/l (37 50 °d German scale) always
programme the dishwasher to the
higher value (9.0 mmol/l in this
example).
The dishwasher is set at the factory
for a hardness level of 2.2 -
2.7 mmol/l (12 - 15 °d ).
If this setting corresponds to the
hardness of your water you do not need
to do anything more.
If your water is harder or softer, you will
need to programme the water hardness
level. See following section.
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
^
Enter the water hardness below:
mmol/l or °d
15
Before using for the first time
To programme the water hardness
level
Each time a button is pressed, one of
the indicator lights will flash and light
up in the control panel. However, only
the indicator lights mentioned in the
following programming process stages
are significant.
The programming procedure can be
cancelled at any time by pressing the
K button. The procedure can then be
re-started from the beginning again.
^ Switch the dishwasher off using the
K button.
^ Turn the programme selector to the
"12 o'clock" position.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the K button.
Keep the Start/Stop button pressed in
until the Start/Stop indicator comes
on.
If this does not happen, start the
procedure from the beginning again.
^
Turn the programme selector to the
"3 o'clock" position.
The "Wash/Rinse" programme
sequence indicator will flash briefly four
times at intervals (factory default
setting).
The number of times the Wash/Rinse
programme sequence indicator flashes
tells you the value which has been set
(see chart).
°d mmol/l °f Wash/Rinse
1 - 4 0.2 - 0,7 2- 7 Once briefly
5 - 7 0.9 - 1.3 9- 13 Twice briefly
8 - 11 1.4 - 2.0 14- 20 3 times briefly
12 - 15 2.2 - 2.7 22- 27 4 times briefly
16 - 20 2.9 - 3.6 29- 36 5 times briefly
21 - 25 3.8 - 4.5 38- 45 6 times briefly
26 - 30 4.7 - 5.4 47- 54 7 times briefly
31 - 36 5.6 - 6.5 56- 65 8 times briefly
37 - 45 6.7 - 8.1 67- 81 9 times briefly
46 - 70 8.3 - 12.6 83-126 Once for longer
indicator
flash
frequency
^ Use the Start/Stop button to select
the number of flashes which equates
to your water hardness level.
Each press of the button moves you
up a level. When the highest water
hardness level is reached, the setting
starts from the beginning again.
Example:
If your water hardness level is
4.0 mmol/l (22 °d), the Wash/Rinse
indicator should flash briefly six times
at intervals.
^
Switch the dishwasher off using the
K button.
16
Checking the programmed water
hardness level
Switch the dishwasher off using the
^
K button.
Turn the programme selector to the
^
"12 o'clock" position.
Press the Start/Stop button in and
^
whilst holding it in switch the
dishwasher on using the K button.
Keep the Start/Stop button pressed in
until the Start/Stop indicator comes
on.
Turn the programme selector to the
^
"3 o'clock" position.
The Wash/Rinse indicator will flash for
the number of times which corresponds
to the water hardness level which has
been set (see chart).
^ Switch the dishwasher off using the
K button.
Before using for the first time
17
Before using for the first time
Before using the appliance for
the first time you require:
Approx. 2 litres of water,
–
Approx. 2 kg dishwasher salt,
–
Domestic dishwasher detergent,
–
Rinse aid formulated for domestic
–
dishwashers.
Miele branded products are available
from the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been used
previously.
Filling the salt reservoir
If you use combination products
which have salt in them, such as
"3 in 1" or "4 in 1" products in your
dishwasher, you should still add salt
in order to achieve optimum results
and to ensure that the water softener
continues to function.
If the water in your area is very soft
and constantly lower than
0.7 mmol/l (4 °d -German scale)
you do not need to add dishwasher
salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area.
Important! Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with
approx. 2 litres of water to enable
the salt to dissolve. Once the
dishwasher has been used, there is
always sufficient water in the
reservoir.
,
Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent will damage
the water softener. Make sure you
have picked up the correct packet
of dishwasher salt before filling the
salt reservoir!
,
Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.
18
Before using for the first time
Remove the lower basket and
^
unscrew the salt reservoir cap.
Water or saline solution will run out
of the reservoir when the cap is
removed. It should therefore only be
removed in order to refill the salt
reservoir.
Fill the reservoir with approx. 2 litres
^
of water (first use only).
^
Place the funnel provided over the
salt reservoir and carefully fill with
salt until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt
depending on the brand used.
Salt indicator
Fill the salt reservoir with dishwasher
^
salt when the salt indicator light
comes on. (If it comes on during a
programme, wait until the end of the
programme).
After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.
The salt refill indicator will not come on
if the dishwasher has been
programmed for a water hardness level
of less than 0.7 mmol/l (4°d, German
scale).
,
After refilling the salt reservoir,
run the Quick wash programme
immediately without any crockery in
the dishwasher to remove any traces
of salt from the cabinet (do not use
the Turbo function if your
dishwasher has this feature).
^
Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.
^
Run the Quick wash programme im
mediately without any crockery in the
dishwasher to remove any traces of
salt from the cabinet (do not use the
Turbo function if your dishwasher has
this feature).
-
19
Before using for the first time
Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.
Inadvertently filling the rinse aid
,
reservoir with powder or liquid
detergent will damage the reservoir.
Only pour rinse aid formulated for
domestic dishwashers into the
reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 10% acid
content.
Adding rinse aid
^ Press the button on the lid of the
rinse aid reservoir in the direction of
the arrow. The flap will spring open.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
,
Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.
If you only ever use combination
products containing rinse aid in your
dishwasher, you do not need to add
rinse aid.
20

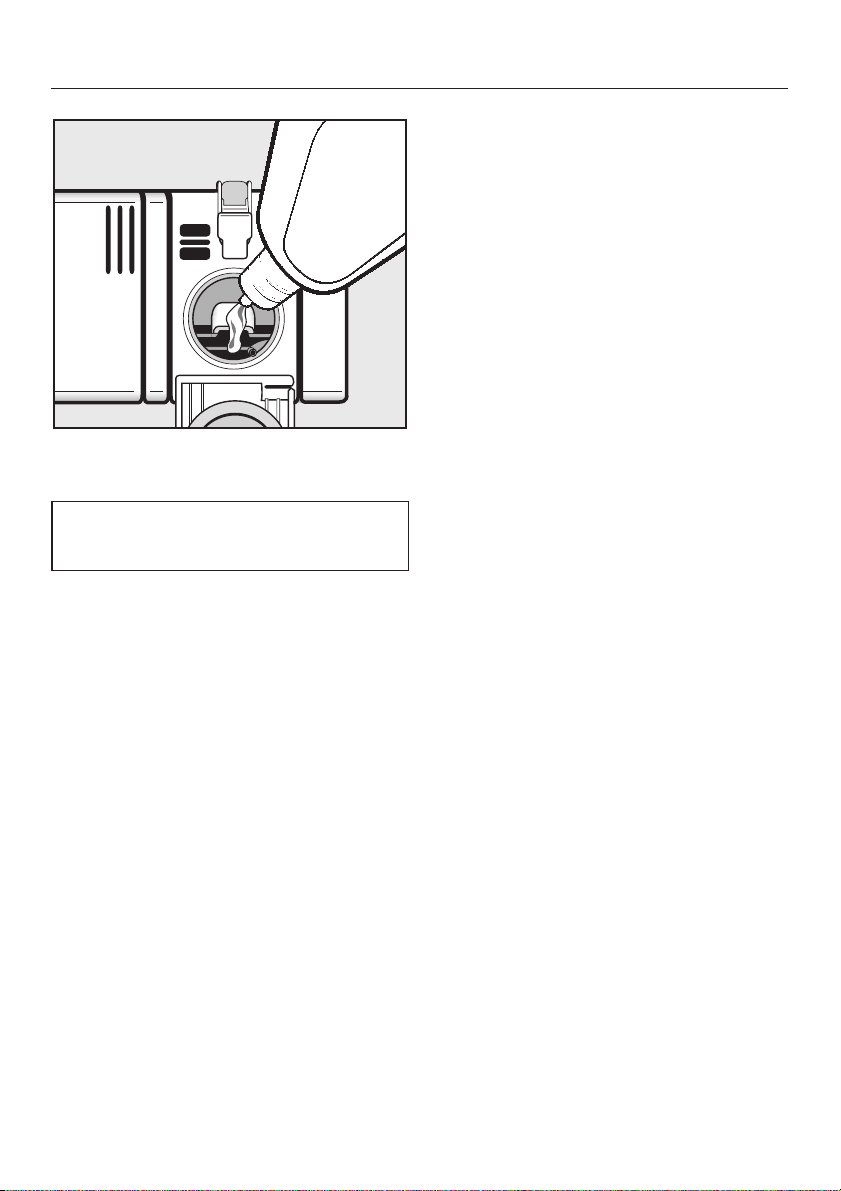

Add rinse aid only until it is visible in
^
the opening.
The rinse aid reservoir holds approx.
110 ml.
^ Close the flap firmly so that it clicks
into place. Otherwise water can enter
the rinse aid reservoir during a
programme.
Before using for the first time
Rinse aid indicator
When the light comes on the reservoir
contains sufficient rinse aid for2-3
programmes only.
Add rinse aid in plenty of time.
^
^ Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.
21
Before using for the first time
Setting the rinse aid dosage
You can adjust the rinse aid dosage for
best results.
The rinse aid dosage can be set from
approx. 0-6 ml. It is set to a
recommended setting of approx. 3 ml
at the factory.
If spots appear on crockery and
glassware:
Increase the rinse aid dosage.
^
Turn the programme selector to the
^
"5 o'clock" position.
The Wash/Rinse indicator will flash
briefly three times at intervals.
This means that approx. 3 ml of rinse
aid will be used per programme
(factory default setting).
The number of times the Wash/Rinse
programme sequence indicator flashes
tells you the value which has been set
(see chart).
If clouding or smearing appears on
crockery and glassware:
^ Decrease the rinse aid dosage.
^ Switch the dishwasher off using the
K button.
^ Turn the programme selector to the
"12 o'clock" position.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the K button.
Keep the Start/Stop button pressed in
until the Start/Stop indicator comes
on.
If this does not happen, start the
procedure from the beginning again.
Rinse aid
in ml
0-
1 Once
2 Twice
3 Three times
4 Four times
5 Five times
6 Six times
^
Use the Start/Stop button to select
"Wash/Rinse"
flash frequency
the rinse aid dosage you want.
The dosage amount alters each time
you press the button.
The programmed rinse aid dosage is
now stored in memory.
^
Switch the dishwasher off using the
K button.
22
Loading the dishwasher
Note
Remove coarse food residues from
crockery.
There is no need to rinse items under
running water.
Do not wash items soiled with
,
ash, sand, wax, lubricating grease
or paint in the dishwasher.
These substances will damage the
dishwasher.
Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:
– Do not place crockery and cutlery
inside other pieces where they may
be concealed.
– Load the crockery so that water can
access all surfaces. This ensures
that they get properly cleaned.
– Make sure that all items are securely
positioned.
Wide based items should be placed
–
at an angle so that water can run off
them freely.
The spray arms must not be blocked
–
by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.
Make sure that small items cannot
–
fall through the holders in the
baskets. Small items, e.g. lids,
should therefore be placed in the
cutlery tray or cutlery basket
(depending on model).
Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.
–
Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.
–
Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.
23
Loading the dishwasher
Items not suitable for
dishwashers:
Wooden cutlery and crockery or
–
items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.
Craft items, antiques, valuable vases
–
and decorative glassware are also
not suitable for dishwashers.
Plastic items which are not heat
–
resistant: the high temperatures in
the dishwasher may cause them to
melt or lose shape.
– Copper, brass, tin and aluminium
items may discolour or become matt.
– Colours painted over a glaze may
fade after a number of washes.
– Clouding may occur on glasses after
frequent washing. Do not wash
delicate glassware, or glassware
containing lead crystal in a
dishwasher.
We recommend:
When purchasing new crockery and
–
cutlery, make sure they are
dishwasher-proof.
If delicate glassware is washed in the
–
dishwasher ensure that only very low
temperatures are used (see
programme chart), or a special
glass-care programme is used
(depending on model). This will
reduce the risk of clouding.
If in doubt, wash delicate glassware
–
by hand.
Please note
Silverware previously cleaned with a
silver polish may still be damp or
spotted at the end of a programme,
where water has not run off smoothly. It
may need to be rubbed dry with a soft
cloth.
Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.
24
,
Aluminium components (e.g.
grease filters) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage the material, or in
extreme cases, cause a severe
chemical reaction. See section
"Adding detergent" for information
on suitable detergents.
Loading the dishwasher
Upper basket
For safety reasons, do not
,
operate the dishwasher without the
upper and lower baskets in place.
^ Use the upper basket for small,
lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc. Shallow pans or casserole
dishes can also be placed in the
upper basket.
^
Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.
Hinged cup rack
To make room for tall items, raise the
^
rack upwards.
Positioning rail (depending on model)

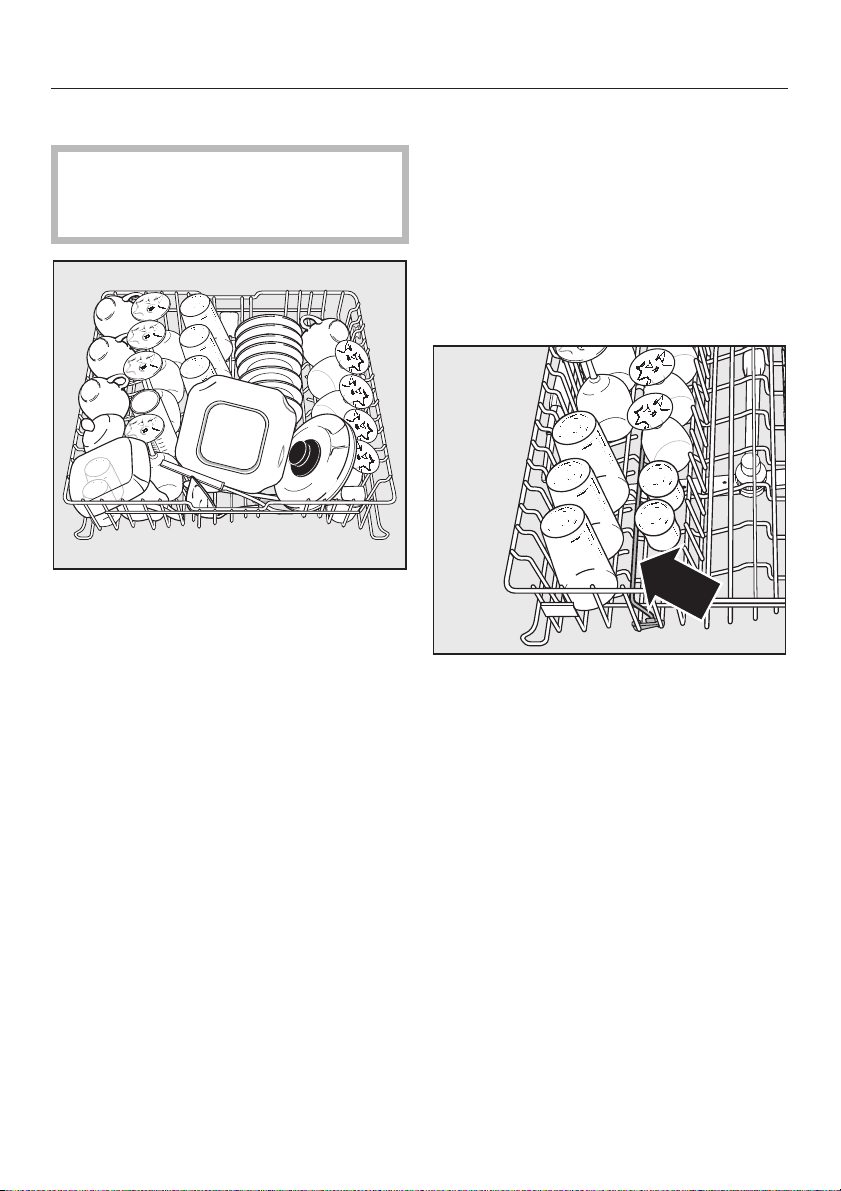

Glasses can be arranged along the
positioning rail to give them some
support during the programme.
^ Raise the rail, and lean the glasses
against it.
The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.
25
Loading the dishwasher
Adjusting the upper basket
In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.
The upper basket can also be set at an
angle with one side high and the other
side low. This can be useful to help
prevent water collecting in deep dishes
etc. Ensure, however, that the basket
can be inserted smoothly into the
cabinet. It is better to adjust the basket
before loading it.
^ Pull out the upper basket.
Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.
Dishwasher with cutlery tray
(see data plate for model number)
Upper
basket
level
G1XXX G2XXX
Top 15 19 31
Middle 17 21 29
Bottom 19 23 27
Dishwasher with cutlery basket
(see data plate for model number)
Upper
basket
level
G1XXX G2XXX
Top 20 24 31
Plate C in cm
Upper basket Lower
basket
Plate C in cm
Upper basket Lower
basket
To raise the upper basket:
^
Pull the basket up until it clicks into
place.
To lower the upper basket:
^
Pull upwards on the levers at either
side of the upper basket.
^
Adjust the basket to the desired
height and then push the levers
securely back down into position.
26
Middle 22 26 29
Bottom 24 28 27
Loading the dishwasher
Lower basket
For larger and heavier items such as
^
plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers can also
be placed in the lower basket.
Do not place delicate glassware in
the lower basket.
Dishwashers with cutlery tray
Hinged spikes
The spikes are used for washing plates
and saucers.
Both rows of spikes at the back can be
lowered to make more room for large
items, e.g. pots, pans and dishes.
Dishwashers with cutlery basket
^
Press the yellow lever downwards a,
and then lower the spikes b.
27
Loading the dishwasher
Removable spiked insert
You can remove the spiked insert to
make more room for larger items of
crockery, e.g. a large, flat pot, or
another type of insert.
To remove the insert a
^ Pull it upwards by the handle as
shown.
Bottle holder (depending on model)
The bottle holder can be used to wash
narrow items, e.g. milk and baby
bottles.
^ Place the bottle holder in the position
shown in the bottom basket. If
placed anywhere else, water will not
be able to access the bottle properly,
and cleaning results will be impaired.
To replace the insert b
^
Fit the insert into the lower basket
with the hooks going under the long
cross-piece as illustrated.
^
Press down on the handle until the
insert is held securely in position.
28
Cutlery
Cutlery tray (depending on model)
^ Arrange the cutlery in the tray as
shown.
To make unloading much easier,
cutlery should be grouped in zones,
one for knives, one for forks, one for
spoons, etc.
Loading the dishwasher
If spoon handles do not fit between the
holders, then lay them the other way
round.
Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them
freely.
The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).
29
Loading the dishwasher
Cutlery basket (depending on model)
^ To avoid the risk of injury, knives and
forks should be placed with the
handles upwards in the basket.
However, cutlery placed handle
down in the basket will come out
cleaner and drier.
^ Place small spoons in the individual
slots to either side of the cutlery
basket.
Fit it into the cutlery basket if
^
required.
Cutlery insert for the cutlery basket
Use the insert supplied for heavily
soiled spoons.
The insert separates the items so that
they can be more easily accessed by
water.
30
^
Insert cutlery with the handles facing
downwards, and distribute them
evenly along the insert.
Operation
Detergent
Only use detergents formulated
,
for domestic dishwashers. Do not
use washing-up liquid.
Miele branded dishwasher cleaning
products are available from the Miele
Spare Parts Department or via the
Internet at www.miele-shop.com.
Active ingredients
Modern detergents contain various
active ingredients, the most important
of which are:
– Phosphates to prevent calcification.
– Alkalis to aid removal of dried on
soiling.
– Enzymes to break down starch and
dissolve protein.
– Oxygen based bleaching agents to
remove coloured stains (e.g. tea,
coffee, tomato sauce).
Most dishwasher detergents contain
phosphates and are mildly alkaline with
enzymes and oxygen based bleaching
agents. Phosphate free products are
rare.
Types of detergent:
–
Powder and liquid gel detergents.
These detergents allow you to adjust
the amount dispensed according to
the size of load and level of soiling.
–
Tab detergents. These are suitable
for most levels of soiling.
A variety of combination products is also
available (see section "Additional
functions, Combi-tab", depending on
model).
In addition to detergent, combi tabs
contain rinse aid and salt substitutes.
Combi tabs are available as "3 in 1" or,
when they also contain other components
such as glass and stainless steel
protective additives and enhanced
cleaning power, as "4 in 1", "5 in 1" etc.
Refer to the manufacturer's packaging as
to whether the combi tabs are suitable for
the water hardness level in your area.
Please note that the cleaning and drying
results of tab detergents can vary greatly.
For optimum cleaning and drying
results use Miele dishwasher
detergent and add Miele salt and
Miele rinse aid separately.
Dispensing
^ Follow the dosage recommended on
the packaging.
^
Unless directed otherwise, use one
detergent tab or add 20 to 30 ml
detergent in compartment II,
depending on the level of soiling.
With very heavy soiling you can also
add a small amount of detergent to
compartment l (see "Programme
chart").
^
Do not use tabs with the "Quick wash"
programme, as they will not dissolve
properly.
Failure to dispense the
recommended amount of detergent
may impair cleaning results.
31
Operation
Avoid inhalation of powder
,
detergents and do not ingest
dishwasher detergent. Dishwasher
detergents contain irritant or corrosive
ingredients which can cause burning
in the nose, mouth and throat if
swallowed, or inhibit breathing.
Consult a doctor immediately if
detergent has been swallowed or
inhaled.
Keep detergent and other household
agents out of the reach of children at
all times. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet. To avoid the danger of
children coming into contact with the
dishwasher detergent, only add
detergent just before starting the
programme and close the door,
activating the child safety lock (if your
dishwasher is fitted with one).
The flap is always open at the end of a
programme.
^ Add the required amount of
detergent and close the flap.
^ Make sure that the detergent
packaging is properly closed after
use to avoid it getting damp and
becoming lumpy.

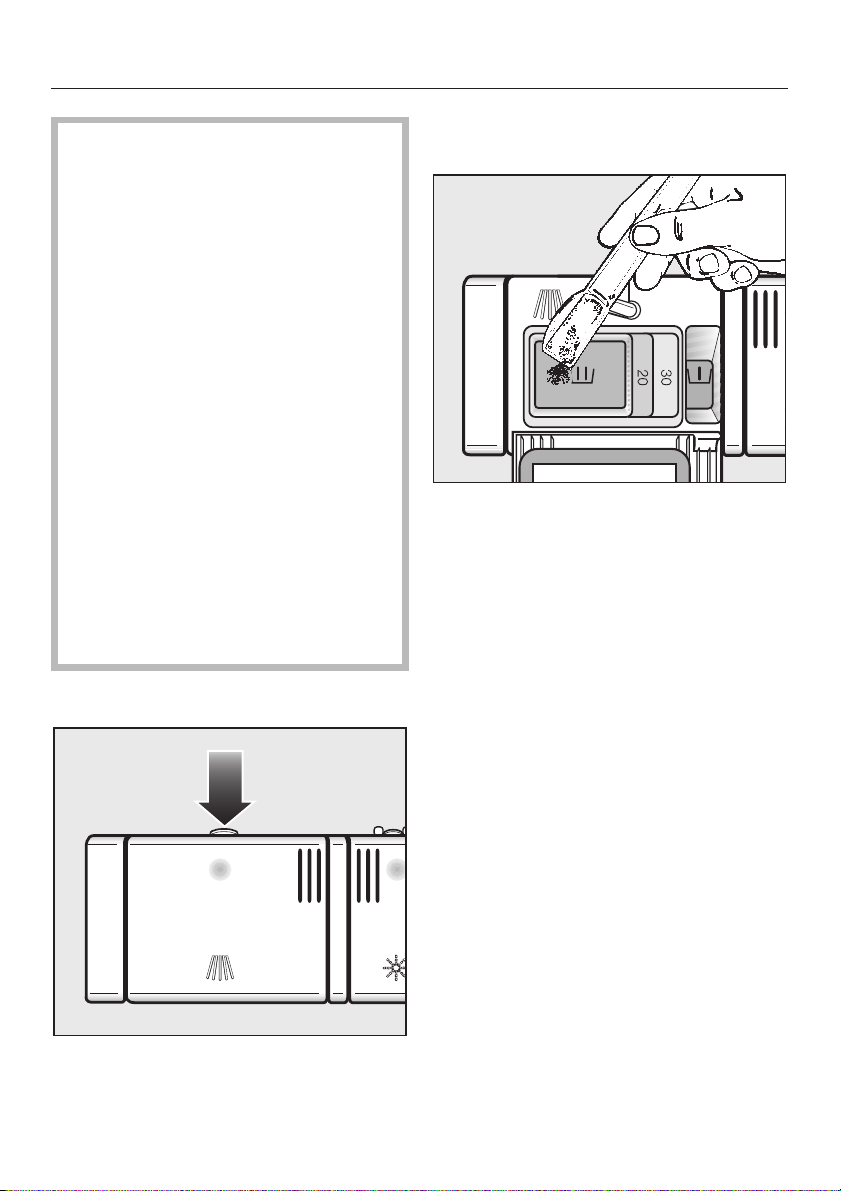

Adding detergent
^
Press the opening catch on the
detergent dispenser. The flap will
spring open.
32
For information
Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.
There are markings in compartment II
to assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.
Operation
Switching on
Make sure the spray arms are not
^
obstructed.
Close the door.
^
Open the stopcock, if it is closed.
^
Switch the dishwasher on using the
^
K button.
The End indicator light comes on if the
programme selector is not pointing at a
programme.
Selecting a programme
Choose your programme according to
the type of load and how dirty it is.
The different programmes and their
uses are described in the Programme
Overview later on in this booklet.
Starting a programme
Turn the programme selector
^
clockwise or anti-clockwise to the
required programme.
The Start/Stop indicator light will flash.
Press the Start/Stop button.
^
The programme will begin. The
Start/Stop and Wash/Rinse indicator
lights will come on.
A programme can only be cancelled
in the first few minutes. Otherwise
the programme must continue to the
end so that important programme
stages (e.g. reactivating the water
softener) are not omitted.
Programme sequence
indicators
After a programme has been started
the current stage of the programme is
indicated by the programme sequence
indicator lights.
33
Operation
At the end of a programme
The End indicator light will come on at
the end of the programme.
The dishwasher can now be opened
and unloaded (see "Unloading the
dishwasher").
To prevent the risk of steam
,
damage to the worktop edging
above the dishwasher, it is
advisable to leave the door closed
until you are ready to unload the
crockery. Alternatively you can open
the door fully until the crockery is
cool enough to unload. Do not leave
the door only partially open.
Switching off
At the end of a programme:
^ Switch the dishwasher off using the
K button.
The dishwasher will continue to use
electricity until it is switched off with
the K button.
Unloading the dishwasher
Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.
If you open the door fully after switching
off, the dishes will cool much faster.
First unload the lower basket, then
^
the upper basket and finally the
cutlery tray (depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.
If the dishwasher is not going to be
used for a longer period of time, e. g.
whilst on holiday, the stopcock should
be turned off.
34
Operation
Interrupting a programme
A programme is interrupted as soon as
the door is opened.
When the door is closed again, the
programme will continue from the point
it was at before the door was opened.
Water in the dishwasher may be
,
hot. Danger of scalding.
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then close the
door firmly, making sure that it clicks
into place.
Changing a programme
If the detergent dispenser flap has
already opened, do not change the
programme.
If a programme has already started and
you wish to change it, proceed as
follows:
Press the Start/Stop button for at
^
least one second.
The programme will be cancelled. The
Start/Stop indicator light will flash.
^ Select the programme you want, and
then start it.
35
Operation
Additional functions
Factory default setting
If you have altered any settings from
the factory default, you can re-set them
back to the factory default settings as
follows:
Switch the dishwasher off using the
^
K button.
Turn the programme selector to the
^
"12 o'clock" position.
Press the Start/Stop button in and
^
whilst holding it in switch the
dishwasher on using the K button.
Keep the Start/Stop button pressed in
until the Start/Stop indicator comes
on.
If this does not happen, start the
procedure from the beginning again.
^ Turn the programme selector to the
"11 o'clock" position.
The Wash/Rinse indicator light shows
whether a setting other than the factory
default setting has been set.
If the Wash/Rinse indicator light is
–
flashing:
All settings are factory default
settings.
If the Wash/Rinse indicator light is
–
not lit up:
At least one setting has been altered
from the factory default setting.
Press the Start/Stop button if you
^
wish to re-set all the factory default
settings.
^ Switch the dishwasher off using the
K button.
The "Wash/Rinse" indicator light will not
be lit up (indicating that at least one
setting has been altered from the
factory default settings).
^
Press the Start/Stop button.
The "Wash/Rinse" indicator will now
flash briefly at intervals (indicating that
all settings are now the factory default
ones).
^
Turn the programme selector to the
"9 o'clock" position.
36
Check your dishwasher regularly
(approx. every4-6months). This
way faults and problems can be
avoided.
Miele branded cleaning and
conditioning products are available
from the Miele Spare Parts
Department or via the Internet at
www.miele-shop.com.
The external surfaces of the
,
dishwasher are susceptible to
scratching.
Contact with unsuitable cleaning
agents can alter or discolour the
outer surfaces.
Cleaning and care
When the dishwasher is being loaded,
^
food and drink residues may drip onto
the sides of the dishwasher door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms. Any
soiling should be wiped off these
surfaces before the door is closed.
Cleaning the door front
Remove any soiling immediately.
,
If not, it might become impossible to
remove and could cause the outer
surface to alter or discolour.
^ Clean the front using a damp Miele
microfibre E-cloth or with a sponge and
a solution of hot water and washing-up
liquid. Then dry with a soft cloth.
Cleaning the wash cabinet
The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.
If, however, there are limescale or
grease deposits in the cabinet, these
can be removed with a proprietary
dishwasher cleaner or conditioner.
Cleaning the door and the door
seal
^
Wipe the door seals regularly with a
damp cloth to remove food deposits.
To avoid damaging the external
surfaces, do not use:
– cleaning agents containing soda,
ammonia, acids or chlorides,
–
cleaning agents containing
descaling agents,
–
abrasive cleaning agents, e.g.
powder cleaners and cream cleaners.
–
solvent-based cleaning agents,
–
stainless steel cleaning agents,
–
dishwasher cleaner,
–
oven sprays,
–
glass cleaning agents,
–
hard, abrasive sponges and
brushes, e.g. pot scourers,
–
sharp metal scrapers.
37
Cleaning and care

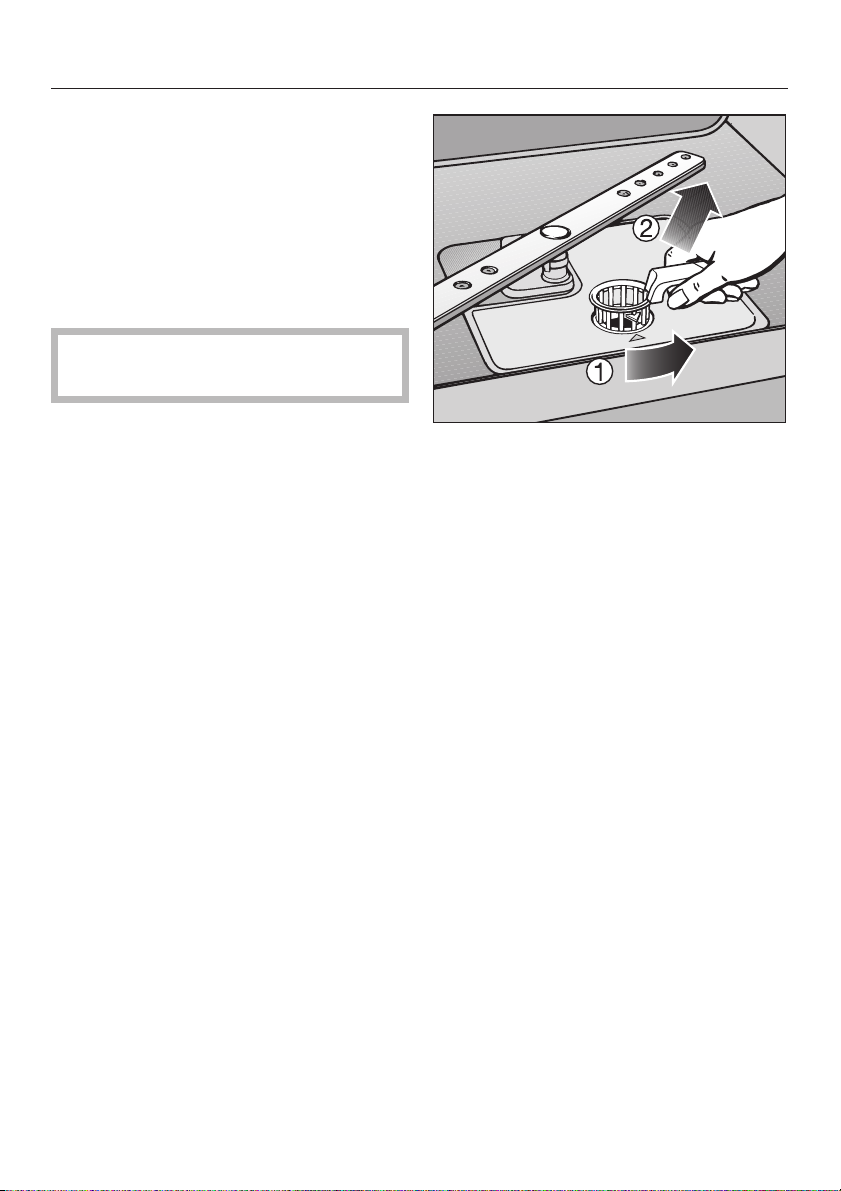

Cleaning the filters in the wash
cabinet
The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.
The dishwasher must not be
,
used without all the filters in place.
Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.
Check the condition of the filters
regularly and clean them if necessary.
^ Switch the dishwasher off.
Turn the handle anti-clockwise to
^
release the filter combination a.
^ Lift the filter combination out of the
dishwasher b. Remove any coarse
particles and rinse the filter well
under running water. Use a nylon
brush if necessary.
38
Cleaning and care

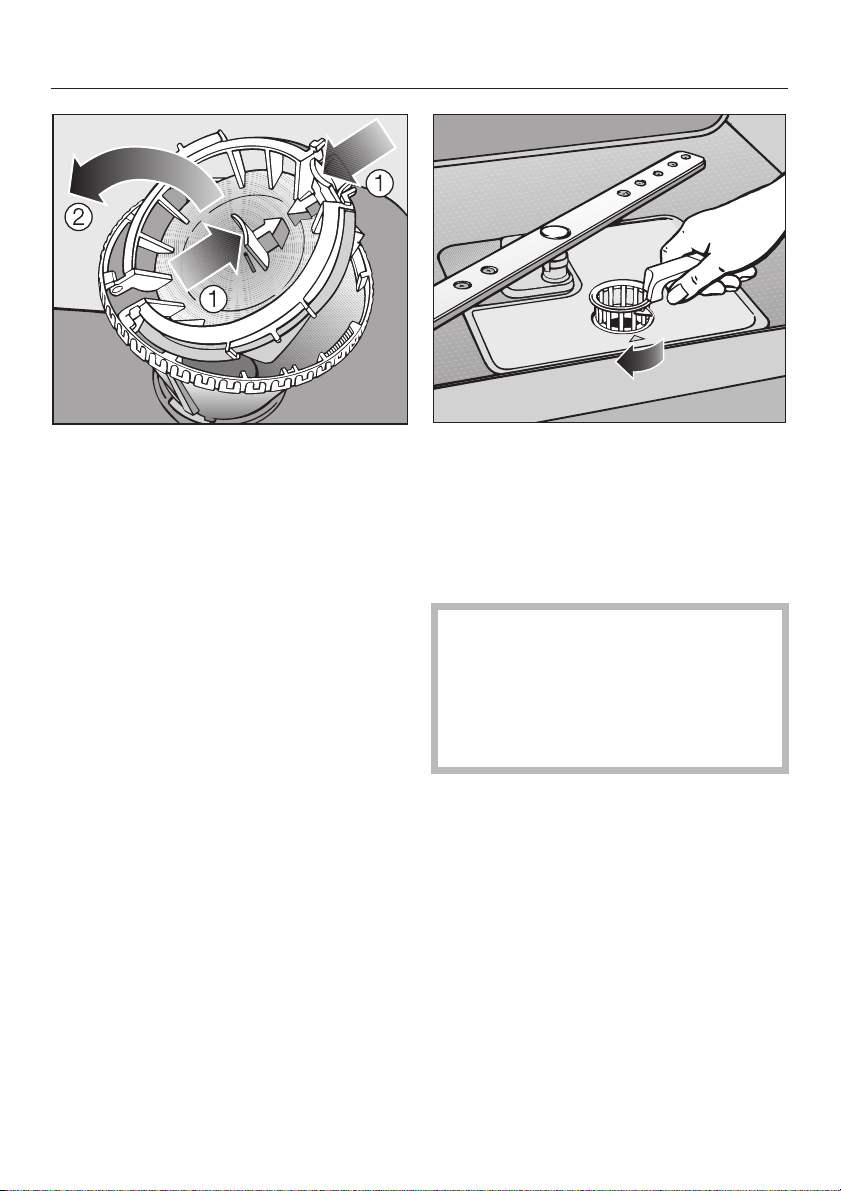

To clean the inside of the filter, the flap
must be opened:
^ Press catches a together in the
direction of the arrows as shown,
and open the filter b.
^ Rinse all the filters under running
water.
^ Then close the flap so that the catch
engages.
Replace the filter combination so that
^
it lies flat in the base of the wash
cabinet.
^ Then turn the handle clockwise, until
the arrows line up, to lock the filter
combination in place.
,
Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.
39
Cleaning and care

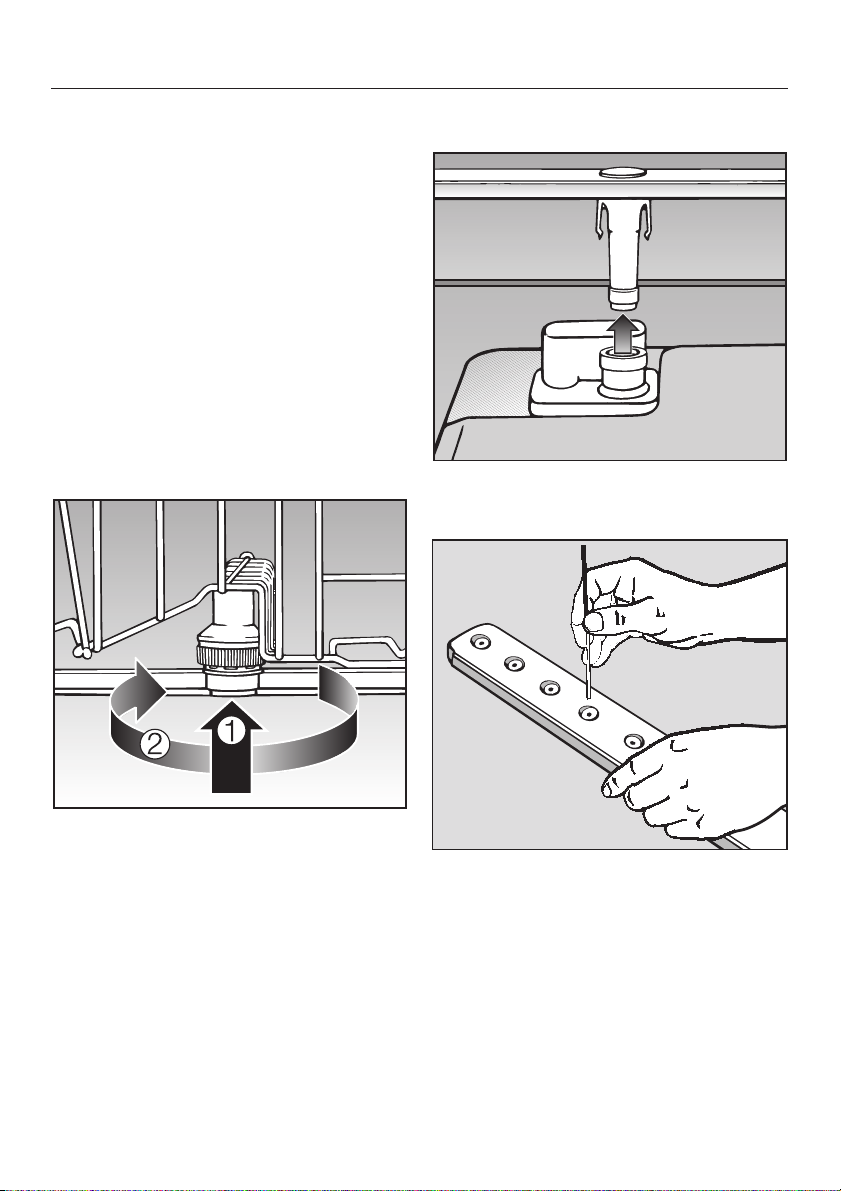

Cleaning the spray arms
Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).
Switch the dishwasher off.
^
Remove the spray arms as follows:
Take out the cutlery tray (if your
^
dishwasher is fitted with one).
Push the top spray arm upwards to
^
engage the inner ratchet. Then
unscrew the spray arm.
Remove the lower basket.
^
^ Pull the lower spray arm firmly
upwards to remove it.
^
Push the middle spray arms upwards
a to engage the ratchet. Then
unscrew the spray arm b.
40
^
Use a pointed object to push food
particles into the spray arm jets.
^
Rinse thoroughly under running
water.
^
Replace the spray arms and check
that they rotate freely.
Problem solving guide
With the aid of the following guide, minor problems can be easily corrected
without calling in a Miele service technician, saving you both time and money.
Repairs should only be carried out by a suitably qualified and trained
,
person in strict accordance with current local and national safety regulations.
Unauthorised or incorrect repairs could cause personal injury or damage to the
appliance.
Technical problems
Problem Possible cause Remedy
No indicator lights are
lit up or flashing.
The dishwasher does
not start after the
Start/Stop button has
been pressed.
The dishwasher stops
during a programme.
The appliance is not
plugged in.
The fuse is defective or has
tripped.
The programme selector is
not pointing to a
programme position.
The fuse is defective or has
tripped.
Insert the plug and switch
on at the socket.
Reset or replace the fuse.
(Minimum fuse rating - see
data plate).
– Turn the programme
selector to the required
programme.
– Press the Start/Stop
button.
Reset or replace the fuse.
(Minimum fuse rating - see
data plate).
41
Problem solving guide
Problem Possible cause Remedy
The Wash/Rinse,
Drying and End
indicator lights flash
simultaneously.
The drain pump works
even when the door is
open.
There may be a technical
fault.
The Waterproof system
has reacted.
Switch the dishwasher off
–
using the K button.
After a few seconds:
Switch the dishwasher
–
on.
Turn the programme
–
selector to the required
programme.
Press the Start/Stop
–
button.
If the programme sequence
indicator lights flash again,
there is a technical fault.
– Call the Service
Department.
– Close the stopcock.
– Call the Service
Department.
42
Problem solving guide
The dishwasher does not fill/drain.
Problem Possible cause Remedy
The Inlet/Drain check
indicator flashes.
The dishwasher
stops during a
programme.
The Inlet/Drain
indicator flashes.
The stopcock is
closed.
Water intake is
restricted.
Water outlet is
restricted, water
remains in the wash
cabinet at the end of
a programme.
Open the stopcock fully.
Before rectifying the problem you
must:
Switch the dishwasher off
–
using the K button.
Open the stopcock fully.
–
Clean the water inlet filter (see
–
"Maintenance").
The water pressure at the
–
intake is lower than 30 kPa
(0.3 bar).
Seek professional advice.
– Clean the filter combination.
See "Cleaning and care".
– Clean the drain pump. See
"Maintenance".
– Clean the non-return valve.
See "Maintenance".
–
Remove any kink in the drain
hose.
43
Problem solving guide
General problems
Problem Possible cause Remedy
Detergent residue is left
in the dispenser at the
end of a programme.
The detergent
dispenser lid cannot be
closed properly.
At the end of a
programme there is a
film of moisture on the
inside of the door and
the interior walls.
Water remains in the
wash cabinet at the end
of a programme.
The dispenser was still
damp when detergent
was added.
Clogged detergent
residue is blocking the
catch.
This is caused by the
drying system and does
not indicate a fault.
The filter combination in
the wash cabinet is
clogged.
The drain pump or
non-return valve may be
blocked.
The drain hose is kinked. Remove any kink from the
Make sure the dispenser is
dry before adding
detergent.
Clean the detergent from
the catch.
The moisture will dissipate
after a short while.
Before rectifying the
problem you must:
– Switch the dishwasher
off with the K button.
Clean the filter
combination. See
"Cleaning and care".
Clean the drain pump or
the non-return valve. See
"Maintenance".
drain hose.
44
Problem solving guide
Noises
Problem Possible cause Remedy
Knocking noise in the
wash cabinet.
Rattling noise in the
wash cabinet.
Knocking noise in the
water pipes.
A spray arm is knocking
against an item in a
basket.
Items of crockery are
insecure in the wash
cabinet.
This may be caused by
the on-site installation or
the cross-section of the
piping.
Interrupt the programme,
and rearrange the items
which are obstructing the
spray arm.
Interrupt the programme,
and rearrange the items of
crockery.
This has no influence on
dishwasher function. If in
doubt, contact a suitably
qualified plumber.
45
Problem solving guide
Unsatisfactory washing result
Problem Possible cause Remedy
The dishes are not
clean.
Smearing appears
on glassware and
cutlery, there is a
bluish sheen on
the surface of
glassware; film can
be wiped off.
The dishes were not loaded
correctly.
The programme was not
powerful enough.
Not enough detergent was
dispensed.
Items are blocking the path
of the spray arms.
The filter combination in the
base of the wash cabinet is
not clean or is not correctly
fitted. This may cause the
spray arm jets to get
blocked.
The non-return valve is open
and blocked. Dirty water has
flowed back into the wash
cabinet.
The rinsing agent dosage is
set too high.
See notes in "Loading the
dishwasher"
Select a more intensive
programme. See Programme
chart.
Use more detergent, or
change your detergent.
Rearrange the items so that
the spray arms can rotate
freely.
Clean and/or fit the filter
combination correctly. Clean
the spray arm jets. See
"Cleaning and care".
Clean the drain pump and
the non-return valve. See
"Maintenance - Cleaning the
drain pump and non-return
valve".
Reduce the dosage. See
"Before using for the first
time - Rinse aid".
46
Problem solving guide
Problem Possible cause Remedy
Dishes, cutlery
and glasses are
not dry or are
flecked.
White residue is
visible on cutlery
and crockery,
clouding occurs
on glassware; film
can be wiped off.
The amount of rinse aid
may be insufficient, or the
rinse aid reservoir empty.
Crockery was taken out of
the cabinet too soon.
Not enough rinse aid was
used.
There is no salt in the salt
reservoir.
The salt reservoir cap has
not been screwed on
correctly.
An unsuitable combination
detergent has been used.
The water softener is
programmed to a setting
which is too low.
Replenish the reservoir,
increase the dosage or
change the brand of rinse aid.
See "Before using for the first
time".
Leave it in for longer. See
"Operation".
Increase the dosage. See
"Before using for the first time
- Rinse aid".
Fill the salt reservoir. See
"Before using for the first time
- Filling the salt reservoir".
Replace it, making sure that it
screws back on correctly.
Change your detergent. Use a
standard liquid, tablet or
powder detergent.
Select a higher water softener
setting. See "Before using for
the first time".
47
Problem solving guide
Problem Possible cause Remedy
Glassware has a
brown or blue tinge,
and film cannot be
wiped off.
Glassware is dull and
discoloured; film
cannot be wiped off.
Tea or lipstick stains
have not been
completely removed.
Plastic items are
discoloured.
There are rust stains
on cutlery.
This may be caused by the
detergent.
The glasses are not
dishwasher-proof. The
surfaces are affected.
The wash temperature of
the selected programme
was too low.
The bleaching effect of the
detergent used is too low.
Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the cause.
The amount of detergent
used or its bleaching effect
was not sufficient to deal
with natural dyes.
The affected items are not
corrosion resistant.
A programme was not run
after dishwasher salt was
added. Traces of salt have
got into the wash cycle.
The salt reservoir cap has
not been screwed on
correctly.
Change your detergent.
There is no remedy.
Purchase glassware which
is dishwasher-proof.
Select a programme with a
higher wash temperature.
Change your detergent.
Use more detergent. See
"Operation".
Discolouration is irreversible.
There is no remedy.
Purchase cutlery which is
dishwasher-proof.
Always run the Quick wash
programme, without any
crockery in the dishwasher
and without selecting the
Turbo function (if present),
after adding dishwasher
salt.
Replace it, making sure
that it screws back on
correctly.
48

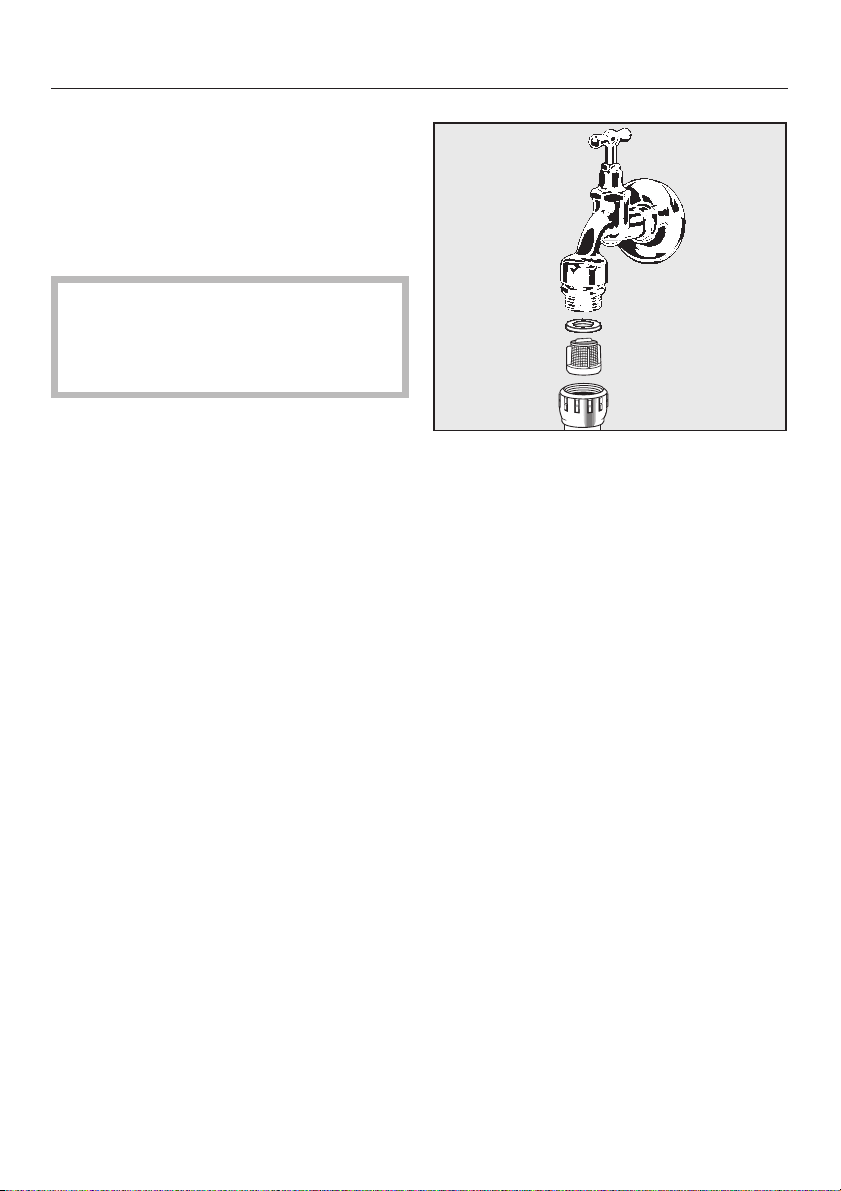

Cleaning the water inlet filter
A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.
The plastic housing of the water
,
connection contains an electrical
component. It must not be dipped in
water.
Recommendation
Maintenance
If the mains water contains a large
amount of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded
union. This filter is available from the
Miele Spares Parts dept.
Cleaning the filter:
^ Disconnect the dishwasher from the
mains supply. Switch off at the mains
socket and withdraw the plug.
^
Close the stopcock.
^
Unscrew the inlet hose.
Carefully remove the seal.
^
^ Withdraw the filter using pointed
pliers and rinse clean under running
water.
^ Replace the filter and seal, making
sure they are sitting correctly.
^ Reconnect the inlet hose to the
stopcock, making sure it goes on
correctly and is not cross-threaded.
^
Turn on the stopcock gradually to
test for leaks. If there is a leak, the
inlet hose might not be on securely,
or it may have been screwed on at an
angle. Unscrew and reconnect the
water inlet valve correctly.
49
Maintenance

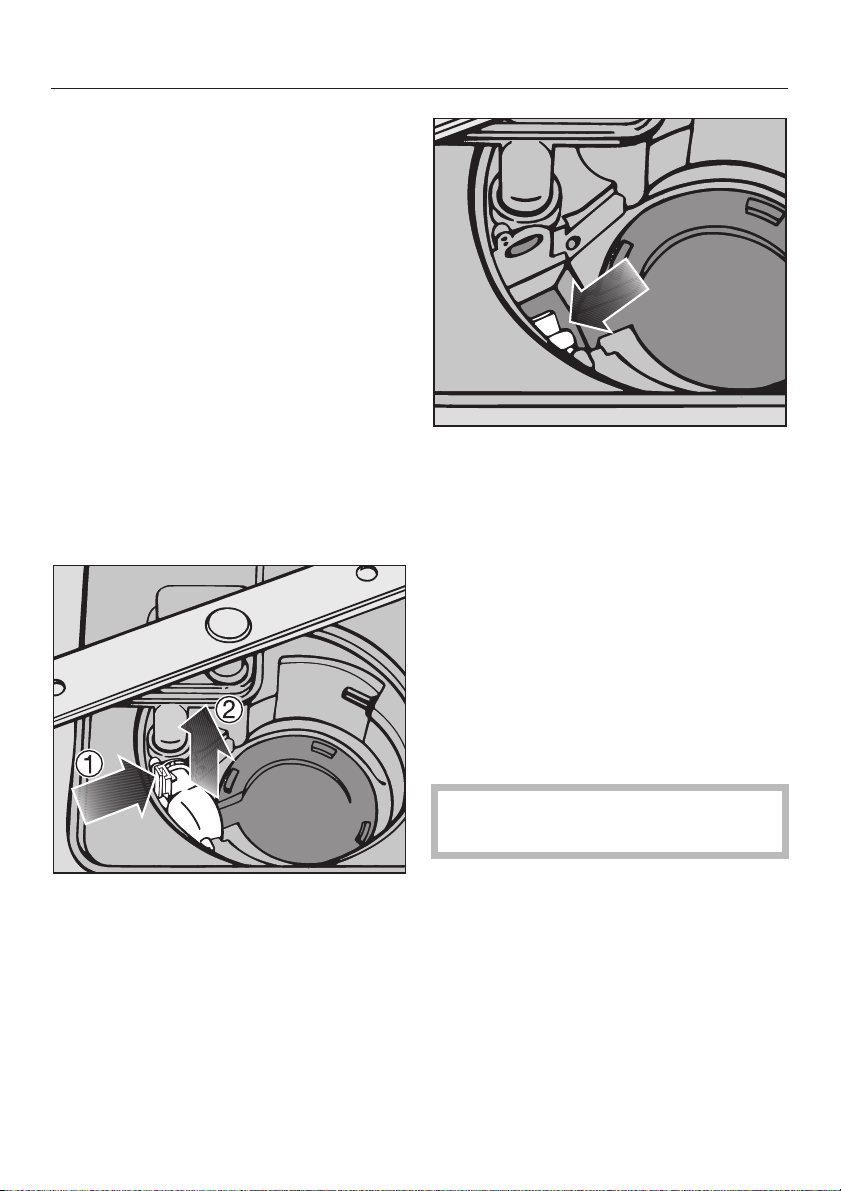

Cleaning the drain pump and
non-return valve
If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean.
Disconnect the dishwasher from the
^
mains supply. Switch off at the mains
socket and withdraw the plug.
Take the filter combination out of the
^
wash cabinet (see "Cleaning and
care - Cleaning the filters in the wash
cabinet").
^ Scoop the water out of the cabinet
using a suitable container or utensil.
The drain pump is situated under the
non-return valve (see arrow).
^ Remove all foreign objects from the
drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions. You will feel a little
resistance when you turn the
impeller.
^
Press the catch for the non-return
valve inwards a.
^
Lift out the non-return valve b, and
rinse well under running water.
^
Remove all foreign objects from the
non-return valve.
50
^
Carefully replace the non-return valve
and secure it with the catch.
,
Ensure that the catch engages
correctly.
After sales service
Repairs
In the event of any faults that you
cannot remedy yourself, please
contact:
Your Miele dealer, or
–
the Miele Service Department (see
–
back cover for address).
Please note that telephone calls may
be monitored and recorded to
improve our service.
When contacting your Dealer or the
^
Service Department, please quote
the model type and number of your
appliance, both of which are shown
on the data plate on the right hand
side of the door.
N.B. A call-out charge will be
applied for service visits where the
problem could have been rectified
as described in these instructions.
Future updates
The programme update function is
designed to enable a service
technician to update your appliance's
electronics in keeping with advances in
technology.
Information regarding programme
updates will be made known by the
Miele Company as and when such
developments become available.
For testing institutes
All information required regarding
comparison testing and measuring
noise levels is given in the
"Comparison tests" leaflet.
The latest version of this leaflet can be
ordered on-line from:
– testinfo|miele.de
^ Please give your postal address, as
well as the model type and number of
your dishwasher (see data plate).
51
Programme chart
Crockery Food deposits Action required
Mixed,
everyday crockery
Heat-sensitive glasses
and plastic
Mixed crockery
Pots, pans, everyday
porcelain and cutlery
All normal
food deposits
Fresh,
easily removed
food deposits
Normal food deposits
which have begun to dry
Burnt-on, stubborn,
deposits containing
on
dried-on food
starch or protein
1)
This needs an
adaptable programme...
This needs a short
programme...
This needs a standard
programme...
To save water and
energy...
This needs a powerful
programme...
All types
of crockery
1)
Food such as potatoes, pasta, rice or casseroles can leave starchy deposits. Deposits containing
protein can be left by food such as fried meat, fish or eggs and bakes.
Food deposits with a
strong smell
This needs rinsing before
running a programme...
52
Programme chart
Programme Detergent
2)
Compartment II
Sensor wash 55-65°
Quick wash 40°C
Light soiling 50°C
Energy save
Compartment I
–or
–
–
–or
25 ml
1 tab
25 ml
or
1 tab
25 ml
or
1 tab
25 ml
1 tab
2)
3)
Pots & pans 75°C
Pre-wash
2)
see "Detergent"
3)
In some cases, tabs may not dissolve completely.
25 ml
10 ml
––
or
1 tab
53
Programme chart
Programme When to use
Sensor wash
55-65°C
Pots & pans 75°C For very heavily soiled crockery and normally soiled pots, pans, dishes etc
Energy save
Pre-wash For rinsing crockery to avoid smells, if a complete cycle is not yet needed.
Quick wash 40 °C "Quick programme" for lightly soiled crockery, e.g. party crockery;
Light soiling 50 °C With a shorter wash time for lightly to normally soiled crockery
1) Standard programme for energy labelling.
1)
Sensor controlled programme
for normally soiled crockery
with dried on soiling;
use 20% more detergent than recommended for a full load.
For normally soiled crockery where soiling has not dried on.
Energy saving programme using low temperatures and a longer wash duration;
includes glass care system.
for flushing out salt residues after replenishing the salt reservoir;
includes glass care system;
not suitable for tablet detergents.
where soiling has not dried on;
includes glass care system.
54
Programme chart
Programme sequence Consumption Duration
Energy Water
Drying Cold
Pre-
wash
required
Main
wash
°C
If
55-65 If
X 75 X 65 X 1.70 1.20 17 2:39 2:29
45 X 60 X 1.05 0.70 13 2:54 2:44
X 0.02 0.02 5 0:12 0:12
40 X 45 0.70 0.22 13 0:33 0:25
Interim
rinse
12
required
Final
rinse
°C
65 X 1.30-1.60 0.75-1.00 13-22 1:45-2:30 1:35-2:16
water
connec-
tion
(15 °C)
kWh
Hot
water
connec-
tion
(55 °C)
kWh
Litres Cold
water
connec-
tion
(15 °C)
kWh
Hot
water
connec-
tion
(55 °C)
kWh
50 X 65 X 1.25 0.90 13 1:32 1:20
On G 2XXX models (see data plate), the max. energy consumption is 0.1 kWh and the water
consumption is up to 1litre higher, except on the Pre-wash programme.
The durations given can vary depending on individual circumstances.
Values quoted are in accordance with EN 50242. Results may differ, depending on individual
conditions and the level of soiling.
55
Optional accessories
To make the most of your dishwasher
Optional accessories for particular purposes are available from your Miele dealer,
the Spare Parts Department or online at www.miele-shop.com (some may be
supplied as standard, depending on model).
If you would like to … you will need to order …
… wash long-stemmed glassware … a glassware insert for the upper
basket
... wash bottles,
e. g. milk or baby bottles
… wash additional items of cutlery … a small cutlery basket for the lower
... wash a lot of glasses … a glassware insert for the lower
... wash large plates ... an insert for plates up to:
… a bottle holder
basket
basket
- 33 cm diameter
- 35 cm diameter
56
Electrical connection
Electrical connection U.K.
All electrical work must be
,
carried out by a suitably qualified
and competent person, in
accordance with current local and
national safety regulations (BS 7671
in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. Please ensure the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to install
a suitable residual current device
(RCD). Contact a qualified electrician
for advice.
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
57
Plumbing
The Miele waterproof anti-leak
system
Providing your dishwasher has been
installed correctly, the Miele waterproof
anti-leak system will protect you from
water damage throughout its lifetime.
Connection to the water
supply
Water in the dishwasher must
,
not be used as drinking water.
The dishwasher may be connected
–
to a cold or hot water supply, max.
60 °C. We would only recommend
connection to a hot water supply if it
is economical, e.g. a solar powered
supply. When connected to a hot
water supply all programme stages
which would otherwise be carried out
with cold water will be carried out
with hot water.
The water pressure (flow pressure at
–
the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar).
If the water pressure is too high, a
pressure reducer valve must be
fitted.
To avoid any damage to the
,
appliance, the dishwasher must only
be connected to a fully vented
plumbing system.
– The inlet hose is approx. 1.5 m long.
A 1.5 metre long flexible metal
extension hose, pressure tested to
14,000 kPa/ 140 bar, is available as
an optional accessory if required.
–
A stopcock with a
must be provided on site.
–
This appliance is constructed to
comply with IEC/EN/DIN 61770 //
VDE 0700 Section 600, and may be
connected to a suitable supply
without an extra non-return valve if
national regulations permit.
58
3
/4" male thread
! The inlet hose must not be
shortened or damaged in any way
as it contains electrical components
(see illustration).
Plumbing
Drainage
The appliance drainage system is
–
fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.
The dishwasher is supplied with
–
approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.
The drain hose can be extended
–
using a connection piece to attach a
further length of hose.
The drainage length must not be
longer than 4 m, and the delivery
head must not exceed 1 m.
– If the hose is to be directly fitted to
the drainage outlet on site, use the
hose clip supplied (see installation
diagram).
– The hose can be directed to the left
or the right of the appliance.
– The on-site connector for the drain
hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.
Venting the drainage system
If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door, the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.
To vent it:
Open the dishwasher door fully.
^
^
Pull the lower spray arm firmly
upwards to remove it.
^
Cut off the top of the vent valve in the
wash cabinet.
–
The drain hose must not be
shortened.
,
Make sure that there are no
kinks in the hose, and that it is not
squashed or stretched.
59
Technical data
Dishwasher model G 1XXX G 2XXX
Height freestanding 84.5 cm
(adjustable +3.5 cm)
Height built-in 80.5 cm
(adjustable + 6.5 cm)
Height of building-in
recess
Width 59.8 cm 59.8 cm
Width of building-in
recess
Depth:
Freestanding
Built-in
Weight Max. 66 kg Max. 58 kg
Voltage 230 V 230 V
Connected load 2200 W 2200 W
Fuse rating 10 A 10 A
Test certificates awarded KEMA, VDE, radio and
Water pressure (flow rate) 30 - 1000 kPa
Hot water connection Up to max. 60 °C Up to max. 60 °C
Delivery head Max. 1 m Max. 1 m
Drainage length Max. 4 m Max. 4 m
Mains cable Approx. 1.7 m Approx. 1.7 m
Capacity 12/14 place settings* 12/14 place settings*
Min. 80.5 cm (+ 6.5 cm) Min. 84.5 cm (+ 6.5 cm)
60 cm 60 cm
60 cm
57 cm
television suppressed
(0.3 - 10 bar)
-
84.5 cm
(adjustable + 6.5 cm)
57 cm
KEMA, VDE, radio and
television suppressed
30 - 1000 kPa
(0.3 - 10 bar)
* depending on model
606162
63
Alteration rights reserved/
G1023/G2023 / 3310
M.-Nr. 07 888 720 / 00
Loading...
