Operating and Installation Instructions
Warming Drawer
To prevent accidents and machine damages, read these instructions
before installation or use.
M.-Nr. 09 800 170en - US, CA
Contents
IMPORTANT SAFETY INSTRUCTIONS.................................3
Guide to the appliance .............................................6
Warming drawer ...................................................6
Control panel ......................................................7
Standard accessories ...............................................8
Before using for the first time........................................9
Operation .......................................................10
Operating modes..................................................10
Temperature settings...............................................11
Duration .........................................................12
Keeping food warm ...............................................13
Warming dishes ..................................................15
Capacity.........................................................16
Other uses ......................................................17
Sabbath mode ...................................................18
Cleaning and care ................................................19
Frequently asked questions ........................................20
Optional accessories..............................................21
IMPORTANT SAFETY INSTRUCTIONS................................24

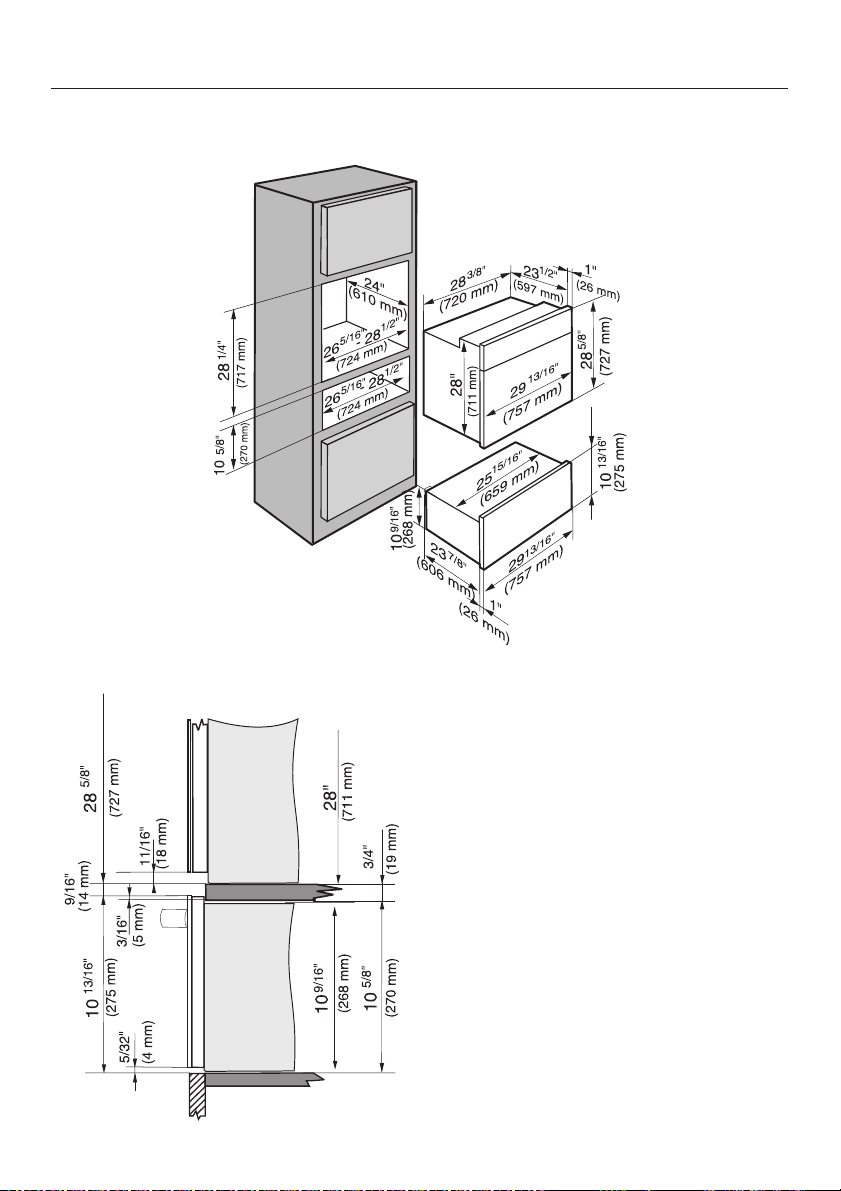

Installation dimensions ............................................25
Installation ......................................................27
Installing the front panel ...........................................28
Electrical connection..............................................30
Technical Service.................................................31
Help protect our environment.......................................32
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING- When using your
appliance follow basic precautions,
including the following:
Children
Close supervision is necessary
~
when any appliance is used by or near
children.
Read all instructions before
installation or use to prevent injury
and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations.
Keep these operating instructions in
a safe place and pass them on to
any future user.
SAVE THESE INSTRUCTIONS
Proper use
This gourmet warming drawer is
~
intended for domestic use and similar
installation conditions. Use only as
described in this manual. Any other use
is prohibited.
This gourmet warming drawer is not
~
designed for outdoors use.
Persons who lack physical, sensory
~
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
The appliance becomes hot during
~
use and remains hot for some time after
turning off. Keep children away from
the warming drawer until it has cooled
to a safe temperature.
Ensure that any packing material, is
~
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Technical safety
Installation, repair and maintenance
~
work should be performed by a Miele
authorized service technician in
accordance with local building and
safety codes. Work by unqualified
persons could be dangerous and may
void the warranty.
Before installing the appliance,
~
check for externally visible damage. Do
not operate a damaged appliance.
Do not operate any appliance with a
~
damaged cord. Contact Miele’s
Technical Service Department.
To guarantee the electrical safety of
~
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
3
IMPORTANT SAFETY INSTRUCTIONS
Before installation, make sure that
~
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
Power bars and extension cords are
~
not safe for use with this appliance.
Risk of fire. Do not use them to connect
the gourmet warming drawer to the
electrical power supply.
Do not use the appliance until it has
~
been properly installed in the cabinetry.
This gourmet warming drawer must
~
not be operated in mobile installations
(boats).
Under no circumstance open the
~
outer casing of the appliance. This is a
safety hazard and may damage the
appliance.
Defective components should be
~
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
Do not operate any appliance with a
~
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser
vice Department.
Before servicing, turn off the gas
~
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually "tripping" the circuit
breaker.
Proper use
Protect your hands with oven mitts
~
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns.
Do not store plastic containers or
~
flammable objects in the drawer. They
can melt or catch fire when the
appliance is turned on. Fire hazard!
The use of accessories not
~
recommended by Miele may cause
injury.
Make certain that the power cords of
~
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
Objects in the vicinity of the
~
activated drawer may burn due to the
high temperatures. Never use the
appliance to heat rooms.
Do not replace the non-slip mat with
~
kitchen towels or similar objects.
Do not overload the appliance or sit
~
or stand on the opened drawer as this
would damage the drawer.
The drawer can be loaded with
maximum 55 lbs (25 kg).
If the appliance is installed in a
~
closed kitchen cabinet, only use it when
the cabinet door is open.
4
IMPORTANT SAFETY INSTRUCTIONS
Do not heat unopened food
~
containers. Pressure can build up
causing an explosion that will damage
the cooking compartment. There is also
a danger of personal injury and
scalding.
Before serving, be sure food is at a
~
safe temperature.
This is particularly important when
preparing food for babies and children.
Be aware of loose fitting or hanging
~
clothing while using the warming
drawer. They may present a fire hazard.
The floor of the drawer becomes hot
~
during use. Caution, do not touch. Use
the handle for opening and closing the
appliance.
Do not use plastic containers or
~
plastic wrap in the warming drawer.
These items may melt and cause
damage to the warming drawer or
injury.
Never add water to food in a hot
~
drawer. The steam created could cause
serious burns or scalds.
Liquids entering the appliance
~
interior through the air vents may cause
a short-circuit.
Open and close the loaded drawer
carefully to prevent liquids from spilling.
The "Keep food warm" operating
~
mode must be only used for keeping
hot food warm, but not for heating cold
food. Ensure that the food is sufficiently
heated before you place it in the
appliance.
It is possible that some bacterial
~
growth may occur in foods kept for
lengthy period of time at low
temperature levels.
Do not use a steam cleaner to clean
~
the drawer. Steam could penetrate
electrical components and cause a
short circuit.
Never warm undiluted alcohol in the
~
warming drawer, this can easily ignite.
Exercise caution when warming
~
food with a high sugar content. If
heated for too long the sugar may
caramelize or ignite.
Be sure that the vents are not
~
covered. Food and tableware may not
warm evenly otherwise.
Do not leave the warming drawer
~
unattended while in use.
Do not use water on grease fires!
~
A violent steam explosion may result.
Smother the fire with a dry chemical or
foam fire extinguisher.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
5
Guide to the appliance
Warming drawer
a Non-slip mat
b Control panel
c Vents
d Rack
6
Control panel
Sensors
Indicators
Guide to the appliance
s Turns the warming drawer on and off
Menu Selects the operating mode
Temperature Sets the temperature
Duration Sets the duration
Operating modes:
H For warming cups and glasses
H For warming plates and dishes
2 For keeping food warm
¯ For low temperatures
Temperature:
Q Q Q Q Q
Duration:
1h 1 hour
2h 2 hours
3h 3 hours
4h 4 hours
7
Guide to the appliance
Standard accessories
All standard and additional accessories can be reordered if
necessary (see "Optional accessories") from Miele.
Rack
For increasing the loading area
Non-slip mat
Provides a secure base for your dishes
8
Before using for the first time
Clean and heat the appliance
Remove any protective wrapping.
^
Remove the non-slip mat and the
^
rack, if provided, from the appliance
and clean both with a sponge cloth,
warm water and liquid dish soap.
Then dry with a cloth.
Wipe your appliance inside and
^
outside with a damp cloth and then
dry.
Reinsert the non-slip mat and the
^
rack, if provided.
Heat the empty drawer for at least 2
hours.
^ Touch the ON/OFF sensor s to turn
the appliance on.
^ Tap "Menu" until the s symbol is
illuminated.
^ Tap "Temperature" until the LED on
the far right is illuminated.
The appliance will turn off automatically
after two hours.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated. The smell will dissipate after a
short time and does not indicate a
faulty connection.
Ensure proper ventilation of the area
during this time.
^ Tap "Duration" until 2h is illuminated.
^
Close the drawer.
The heater and the fan of the
appliance will only turn on when the
drawer is closed.
9
Operation
Operating modes
Touch the "Menu" sensor to select the
operating mode; the corresponding
symbol will be illuminated:
H
–
Warming cups and glasses
H
–
Warming dishes and plates
2
–
Keeping food warm
¯
–
Low temperature
The last selected operating mode is
automatically set when the appliance is
turned on the next time and will be
displayed on the control panel.
The appliance is fitted with a fan
distributing the warmed air within the
drawer. The fan runs continuously in the
"Cups/glasses" and "Warming
dishes/plates" modes. It works
intermittently in the "Keeping food
warm" and "Low temperature" modes.
The appliance lets you keep food warm
while simultaneously warming dishes.
For this purpose, use the "Keeping food
warm" operating mode.
Caution! The dishes need more time
to warm up but may become very
hot!
10
Temperature settings
Every operating mode has its own temperature range. The
factory settings for recommended temperatures are shown in
bold. By touching the 6 sensor, you can change the
temperature in 5 degree increments.
The last selected temperature is automatically set when the
appliance is turned on the next time and will be displayed on
the control panel (Exception: Low temperature).
Operation
Temperature
Display
] ^ ^ ^ ^ 104/40 140/60 150/65 150/65
^ ] ^ ^ ^ 113 / 45 150 / 65 158 / 70 158 / 70
^ ^ ] ^ ^ 122/50 158/70 167/75 167/75
^ ^ ^ ] ^ 131/55 167/75 176/80 176/80
^ ^ ^ ^ ] 140/60 176/80 185/85 185/85
* Approximate temperatures, measured in the center of an
empty drawer
Temperature °F / °C *
H H 2 ¯
11
Operation
Duration
The appliance is set to continuous
operation (Exception: Low
temperature).
You can select a limited duration by
touching the "Duration" sensor: 1 touch:
1 hour (1h), 2 touches 2 hours, (2h),
and so on, up to a maximum of 4 hours.
A fifth touch returns the appliance to
continuous operation.
Do not leave the appliance
unattended for longer periods of
time when in continuous mode.
Long warming times cause food to
dry out and possibly burn.
Your appliance is fitted with a safety
device that will turn the warming
drawer off after 12 hours (max.) of
continuous use.
Operating principle
Open the drawer.
^
Touch the ON/OFF sensor s to turn
^
the appliance on.
Tap "Menu" until the desired
^
operating mode is illuminated.
If you want to change the
^
temperature, tap "Temperature" until
the LED with the desired temperature
is illuminated.
Tap "Duration" until the desired
^
number of hours is illuminated.
^ Close the drawer.
Keep the ON/OFF sensor s clean
and dry. The sensor key may not
respond otherwise, or cause
uncontrolled switching actions.
12
Select only the 2 operating mode
to ensure that the required minimum
temperature (150 °F / 65 °C) for
keeping food warm is maintained.
This mode is for keeping food that has
just been cooked warm, that is, food
that is still hot. It is not intended for
reheating food that is cold.
Select 2.
^
Select the desired duration.
^
^ Preheat the appliance for 15 minutes
to ensure that the interior has
reached the required temperature.
Put the dishes into the drawer during
preheating.
^ Remove the warmed dishes from the
drawer. Use pot holders when
removing the dishes.
^ Place hot food on warmed dishes.
^
Replace the dishes in the drawer,
and carefully close the drawer to
prevent liquid food from spilling.
Keeping food warm
Tips
Fill the hot food into pre-warmed
–
dishes. Put the dishes into the
drawer during preheating.
Do not cover roasted or fried food
–
that should be crispy. Keep these
foods warm at a higher temperature.
Moist and liquid foods, and those
–
that may generate a skin, should be
covered with aluminum foil or a plate.
Do not overfill dishes to prevent
–
spilling.
– Freshly prepared food is hotter than
food kept warm. Serve food kept
warm on warmed plates.
– Loss of nutrients begins with the
preparation of the food and
continues while it is being kept warm.
The longer food is kept warm, the
greater the loss of nutrients.
– It is not recommended to keep food
warm over a longer period of time, as
it will continue to cook.
–
Do not use force when opening or
closing the drawer. Liquid may spill
from the containers and enter the
ventilation slots.
–
The food may cool down if the
drawer is opened frequently.
13
Keeping food warm
Settings
Food Dishes Cover
Steak, rare Plate no ] ^ ^ ^ ^ xx
Casserole, soufflé,
gratin
Roast Plate yes ^ ^ ] ^ ^ x
Stew Pot yes ^ ^ ^ ] ^ x
Meat in gravy Pot yes ^ ^ ^ ] ^ x
Vegetable in sauce Pot yes ^ ^ ^ ] ^ x
Mashed potatoes Pot yes ^ ^ ] ^ ^ x
Plated meal Plate yes ^ ^ ^ ] ^ x
Baked potato/
Boiled potato
Breaded poultry /
meat
Pancakes Plate no ^ ^ ^ ^ ] xx
Pizza Plate no ^ ^ ^ ^ ] x
Sauce Pot yes ^ ^ ^ ] ^ x
Strudel Plate no ^ ^ ^ ] ^ x
Warming bread loaf - no ] ^ ^ ^ ^ xx
Warming rolls - no ] ^ ^ ^ ^ xx
Gratin dish yes ^ ^ ^ ] ^ x
Plate/pot yes ^ ^ ] ^ ^ x
Pan no ^ ^ ^ ^ ] x
dishes
Temperature at
setting 2
Position
Bottom Rack*
* Depending on the appliance mode
14
Warming dishes
Try to distribute the dishes over the
–
entire surface. High stacks of plate
will warm up slower than individual
dishes. If you cannot avoid plate
stacks, place them in the front of the
appliance. Use the rack (if provided
with your model).
Do not place large platters vertically
–
in front of the venting slots. They will
cover the outlets for the warm air.
The dishes won't be warmed up
evenly.
For cups and glasses, use only the
–
H mode to ensure that the maximum
temperature (140 °F / 60 °C) is not
exceeded.
– Warmed dishes will quickly lose their
heat. Remove them only immediately
prior to use.
–
Warming times
Various factors can affect the heating
time:
Material and thickness of your dishes
–
Load size
–
Load distribution
–
Temperature setting
–
Use the following values as guidelines:
When set to H, even warming requires
the times shown in the list below:
Place settings for 6 persons
–
approx. 30 - 35 minutes
– Place settings for 12 persons
approx. 40 - 45 minutes
– With time you will get to know the
optimum settings for your household.
15
Warming dishes
Capacity
The quantity that can be loaded depends on the size and
weight of your dishes.
Do not overload the drawer. The maximum load is 55 lbs
(25 kg).
The following examples are provided as guidelines:
– 12 place settings::
12 dinner plates C 10 1/4" (26 cm)
12 soup bowls C 9 1/16" (23 cm)
12 dessert plates C 7 1/2 (19 cm)
1 oval platter 12 5/8" (32 cm)
1 serving dish C 7 1/2 (19 cm)
1 serving dish C 6 5/16 (16 cm)
1 serving dish C 5 1/8" (13 cm)
16
or alternatively
- 40 dinner plates C 10 1/4" (26 cm)
- 60 soup bowls C 9 1/16" (23 cm)
- 45 soup cups C 4" (10 cm)
- 20 dinner plates C 10 1/4" (26 cm)
- 20 soup bowls C 9 1/16" (23 cm)
- 20 pizza plates C 14 3/16" (36 cm)
- 142 espresso cups C 2 5/16" (5.9 cm)
- 90 cappuccino cups C 2 11/16" (8.8 cm)
- 30 tea glasses C 2 5/8" / 3 1/8"
(6.7 cm/8 cm) height
You can increase the load area by using the rack. The rack
can be used as needed. With two racks you can increase the
load area even more by placing one rack on the left and the
other on the right. You can obtain another rack from Miele.
Other uses
Food Dishes Cover
Defrosting
berries
Dissolving
gelatin
Proofing
yeast dough
Preparing
yogurt
Soaking
rice pudding
Melting
chocolate
Defrosting
vegetables
Bowl/plate no ] ^ ^ ^ ^ x 0:50
Bowl no ^ ^ ^ ^ ] x x 0:15
Bowl yes
Yogurt
glasses
with lid
Pot yes
Bowl no ^ ^ ^ ^ ] x x 0:20
Bowl no ^ ^ ] ^ ^ x 1:00
dishes
with plate
- ^ ] ^ ^ ^ x 5:00
^ ^ ^ ^ ] x x 0:40
with lid
* Depending on appliance model
Temp. at
setting
¯
Temp. at
setting
H
] ^ ^ ^ ^ x 0:30
Position Duration
Bottom Rack*
in hours:
min.
17
Sabbath mode
To activate
To deactivate
Sabbath mode can be selected to facilitate religious customs.
Sabbath mode will turn off after about 72 hours and normal
operation will resume.
In Sabbath mode the timer is deactivated and the sensors
have to be touched longer than usual.
Press and hold the Duration sensor.
^
At the same time press and hold the s sensor.
^
Press and hold both sensors until all 4 timer indicators light
^
up.
Select the desired operating mode and temperature.
^
You can deactivate the Sabbath mode before the 72 hours
are up.
^ Press and hold the s sensor until all the indicators go out.
^ The drawer returns to normal operation.
18
Cleaning and care
Allow the appliance to cool before
cleaning.
Do not use a steam cleaner to clean
this appliance. Pressurized steam
could penetrate electrical
components and cause a short
circuit.
Do not use commercial cleaning
agents. Only use agents
recommended for domestic use.
Appliance front / interior
Remove spills as soon as possible.
Otherwise the soiling may become
hard to remove.
If spills are allowed to sit for an
extended period of time or if
unsuitable cleaning agents are used
the surfaces may discolor or
change.
^
Clean the appliance with a solution of
warm water and liquid soap applied
with a soft sponge. Dry with a soft
cloth.
All surfaces of the appliance are
susceptible to scratching.
Breakages can occur on glass
surfaces.
Glass cleaners may be used to
clean the exterior. However do not
allow them to sit or "puddle", this can
cause damage to the surface.
Remove the cleaner promptly.
To better maintain your appliance
avoid the following:
cleaners containing soda, ammonia,
–
thinners, or chlorides
cleaners containing descaling
–
agents or lime removers,
– abrasive cleaners,
– stainless steel cleaners,
– dishwasher soap (powder),
– caustic (oven) cleaners,
– scouring pads, steel wool, hard
brushes,
– metal scrapers.
Non-slip mat
The mat can be removed to clean the
bottom of the drawer.
^
Clean the mat by hand with warm
water and liquid dish soap.
^
Dry thoroughly. Do not return the mat
until it is completely dry.
Never clean in the washing
machine.
19
Frequently asked questions
Repairs should only be carried out by an authorized technician in
,
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
What if the drawer does not heat?
Possible fault Solution
There is no power to the warming
drawer.
The circuit breaker has tripped. Reset the circuit breaker. If in doubt
What if the food is not warm enough?
Adjust the temperature setting. Check that the vents have not been blocked by
large plates or dishes.
What if the food or dishes are too hot?
Check the temperature setting and make sure the food is not too close to the
heating element.
What if the dishes are not warm enough?
Possible fault Solution
The wrong temperature was selected. Check the temperature setting.
The vents were blocked by dishes. Reload the dishes.
The dishes need more time to warm. See "Warming times".
A noise is heard during use.
This is not a fault. This is the circulation fan which distributes the heated air. The
fan works in intervals during the "2 Keep food warm" mode.
Insert the plug into the outlet.
contact an electrician.
20
Rack
Non-slip mat
Optional accessories
Miele offers a variety of additional accessories for its
appliances including Miele cleaning and conditioning
products.
These products can be easily ordered from Miele.
For increasing the load capacity.
To keep the dishes securely in place
21
22
Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
Information is subject to change.
Please refer to our website to obtain the most current product specification,
technical & warranty information.
To prevent accidents
and machine damage
read these instructions
before
installation or use.
IMPORTANT SAFETY INSTRUCTIONS
Before installation make sure that
~
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond in order to avoid risk
of damage to the appliance. If in doubt,
consult a qualified technician.
The electrical outlet should be easily
~
accessible after installing the unit.
The gourmet warming drawer must
~
be installed only in combination with
other appliances specified by Miele.
When installed with other appliances,
the warranty is void since the
manufacturer cannot guarantee the
safe use of the warming drawer.
A solidly installed base must be
~
present for the installation of the
gourmet warming drawer and the
combination device to ensure the
required load carrying capacity for both
appliances.
The combination appliance is
~
placed directly onto the installed
gourmet warming drawer; an
intermediate base is not required.
The gourmet warming drawer is
~
available in two variants differing in
height. The required niche dimensions
result from the installation dimensions
of the gourmet warming drawer and the
installation dimensions of the
combination device.
Note to the installer:
Please leave these instructions with the
consumer of the appliance for the local
building inspectors use.
SAVE THESE
INSTRUCTIONS
The appliance must be installed in
~
such a manner that the contents of the
dishes can be seen. Scalding due to
spilling of hot food can be avoided.
Sufficient space must be given to pull
the drawer out.
24
Solo installation
Installation dimensions
Side view
a Fixed shelf
* Appliances with glass front
** Appliances with stainless steel front
25
Installation dimensions
Installation with an oven
26
Side view with oven
* Appliances with glass front
** Appliances with stainless steel front
Installation
Check that the base of the warming drawer is clean and
level. Only then will it function properly.
When inserting the appliance, wear work gloves to avoid
injuries.
Push the drawer into the cabinet as far as the vapor strip,
^
and align it.
^ Open the drawer, and use the 4 screws provided to secure
the drawer to the side walls of the cabinet.
^
Install the combination appliance according to the manual
included with that appliance.
27
Installing the front panel
ESW 6380 FB
The front panel must be at least 3/4" (19 mm) thick and
made of heat resistant material 140° F (60° C). The front
panel, including handle, must not exceed 11 lb (5 kg) in
weight.
Attach the handle to the front panel using countersunk
^
screws.
Remove the screws from the left and right sides of the
^
drawer front and carefully lift the control panel out. Be
28
careful not to pull on or damage the power cord.
^ Remove the two screws on the inside of the front and
remove the panel from the front of the drawer.
^
Pre-drill the custom front panel (see illustration).
C 3/8" (10 mm), t = 3/8" (10 mm)
Installing the front panel
Remove the cable tie from the panel.
^
^ Screw the removed panel to the front panel (see
illustration).
^
Hook the panel into the bottom. Make sure the seal is
seated correctly.
^
Replace and slightly tighten the screws on the inside of the
drawer front.
^
Align the front.
^
Tighten the screws on the inside of the drawer front.
^
Replace the control panel. Use caution with the power
cord.
^
Replace and tighten the screws on the left and right side of
the drawer front.
29
Electrical connection
CAUTION: Before servicing,
,
disconnect the power supply by
either removing the fuse, shutting off
the power main or manually
"tripping" the circuit breaker.
Power supply
This appliance is equipped witha5ft
(1.5 m) long power cord with a
three-prong grounding plug ready for
connection to a 120 V, 15 A, 60 Hz
power supply.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous.
Before connecting the appliance to
the power supply, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This
data must correspond to prevent
machine damage. Consult an
electrician if in doubt.
When another appliance is installed
in combination with the warming
drawer to the same circuit,
operating both appliances at the
same time may cause an overload.
If in doubt consult a qualified
electrician.
Further installation details are on the
wiring diagram.
30
Technical Service
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance. This
information is visible on the silver data
plate supplied with the appliance.
MieleCare
(USA only)
MieleCare, our Extended Service
Contract program; gives you the
assurance of knowing that your
appliance investment is covered by 5
years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by the Miele Service department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://mieleusa.com/mielecare
31
Help protect our environment
Disposal of packing materials
The cardboard box and packing
materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
disconnect it from the electrical supply
and cut off the power cord to prevent it
from becoming a hazard.
323334
INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE
TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL
& WARRANTY INFORMATION.
35
ESW 6380 / ESW 6380 FB / ESW 6580 / ESW 6680 / ESW 6780
ESW 6880
M.-Nr. 09 800 170 / 00en - US, CA
Loading...
