ESW 4714

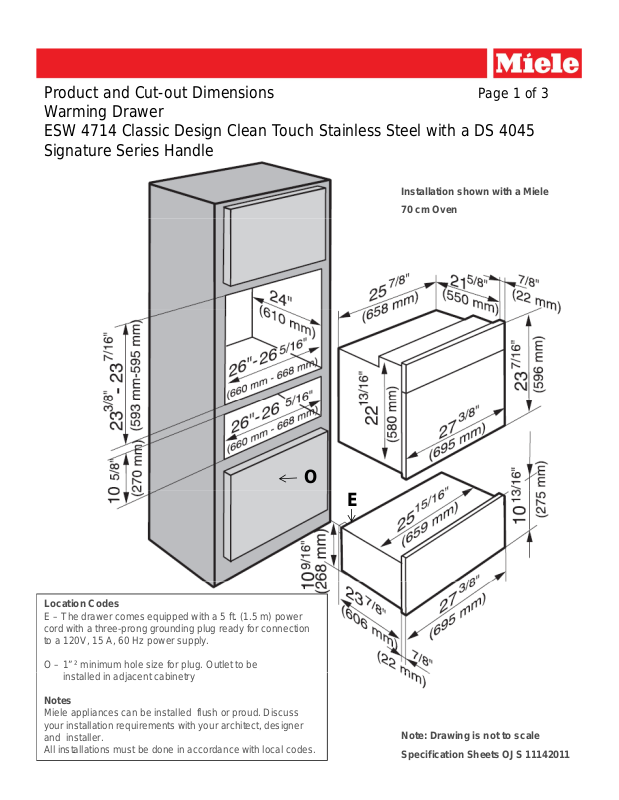

Product and Cut-out Dimensions Page 1 o f 3
ESW
4714
ith
4045
Warming Drawer
Classic Design Clean Touch Stainless Steel w
Signature Series Handle
a DS
Installation shown with a Miele
70 cm Oven
O
Location Codes
E – The drawer comes equipped with a 5 ft. (1.5 m) power
cord with a three-prong grounding plug ready for connection
to a 120V, 15 A, 60 Hz power supply.
O – 1” ² minimum hole size for plug. Outlet to be
installed in adjacent cabinetry
Notes
Miele appliances can be installed flush or proud. Discuss
your installation requirements with your architect, designer
and installer.
All installations must be done in accordance with local codes.
E
Note: Drawing is not to scale
Specification Sheets OJS 11142011
