Miele DWW 656 (EX), DWW 650 (EX), DWW 756 (EX), DWW 750 (EX), DWW 956 (EX) Installation Instruction

Operating and Installation Instructions

..............................................................................................................................

Cooker Hoods

DWW 656 (EX) DWW 650 (EX)
DWW 756 (EX) DWW 750 (EX)
DWW 956 (EX) DWW 950 (EX)
DWW 1256 (EX) DWW 1250 (EX)

Q

Contents

Contents

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operation

Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Switching on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Run-on option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching the lighting on or off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning and care

Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Fitting / replacing the recirculation micro-filters. . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Changing a halogen light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installation

Retaining plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Vapour canopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Motor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Exhaust socket and control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Air extraction connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Recirculation connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Extension piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Fitting the tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Installation - extraction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connection for extraction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Condensate trap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

External fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Caring for the environment

Disposal of packing material

The transport and protective packa­ging has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.

Rather than just throwing these ma­terials away, please ensure they are of­fered for recycling.

Caring for the environment

Disposal of your old appliance

Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your waste collec­tion centre or scrap merchant about
potential recycling schemes.

Ensure that the appliance presents no
danger to children while being stored
for disposal.

See the appropriate section in the
Warning and Safety instructions.

3

Wa rning and Safety instructions

Warning and Safety instructions

This appliance conforms to current
safety requirements. Inappropriate
use could, however lead to risk of
accidents to the user and damage
to the appliance.

Before using this appliance for the
first time read the operating instruc­tions carefully. They contain import­ant information on safety, use and
maintenance of the appliance. This
way you will avoid the risk of acci­dents and damage to the appliance.

Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner.

Appropriate use

The appliance is intended for do-

mestic use only.
The manufacturer cannot be held re­sponsible for any damage caused by
improper use or by non-observance of
these instructions.

T echnical safety

sure that the voltage and frequency de­tails given on the data plate corre­spond with the on-site electricity sup­ply, otherwise the appliance could be
damaged. If in doubt consult a quali­fied electrician.

when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import­ant that this basic safety re qu irement is
tested by a qualified electrician.
The manufacturer cannot be held re­sponsible for the consequences of an
inadequate earthing system. (e.g. elec­tric shock).

qualified and competent persons to en­sure safety. Repairs and other work by
unqualified persons could be dan­gerous and the manufacturer will not
be held responsible.

Before connecting the cooker
hood to the mains supply make

The electrical safety of this ap­pliance can only be guaranteed

Installation work and re pa ir s may
only be carried out by suitably

4

Wa rning and Safety instructions

The appliance is only completely

isolated from the mains supply
when:

– it is switched off at the fuse d spu r

connection, or

– it is switched off at the wall soc ke t

and the plug has been withdrawn
(do not pull on the cable, only on the

plug), or
– the mains fuse is withdrawn.
Ensure current is not supplied to the ap-

pliance while maintenance or repair
work is being carried out.

Do not connect the appliance to

the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the ap­pliance.(e.g. danger of overheating).

Use of the appliance

Do not let small children play with

the appliance or its controls. Super­vise its use by the elderly or infirm.

When fitted above an open grill the

cooker hood must not be used in
recirculation mode.

by the suction of the cooker hood,
parts of which could then be damaged.

Always switch the cooker hood on

when a cooking zone is in use,
otherwise condensatio n may collect in
the hood, which could cause co rrosion.

When cooking with oil or fat, chip

pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can ig­nite and could set the cooker hood on
fire.

Do not use the cooker hood with-

out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the ap­pliance and hindering its smooth oper­ation.

Clean or change the filter regularly.

An over-greasy filter is a fire ha­zard.

Under no circumstances use a

steam cleaner to clean this ap­pliance. Pressurised steam could reach
the electrical components and cause a
short circuit.

Never use an open flame beneath

the cooker hood. To avoid the
danger of fire do not flambé or grill over
an open flame. When switched on the
cooker hood could draw flames into the
filters. Fat particles drawn into the
cooker hood present a fire hazard.

When using the cooker hood over

a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up

5

Wa rning and Safety instructions

Installation

The distance between the top of

the cooker/hob and the bottom of
the cooker hood must measure at least:

– 45 cm above electric cookers/hobs
– 65 cm above gas cookers/hobs.
– 65 cm above an open grill.

For other manufacturer’s cooking ap­pliances maintain the safety distance
as recommended in their Installation
and Operating instructions.

If more than one appliance is fitted be­neath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the higher dis­tance.

Safety regulations prohibit the fit-

ting of a cooker hood over solid
fuel stoves.

All ducting, pipework and fittings

must be of non-flammable ma­terial. These can be obtained from the
Spare Parts department or from buil­ders’ merchants.

The appliance must not be con-

nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.

heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustio n .

In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta­neously , an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.

Ventilation can be maintained by air in­lets which cannot be blocked, in win­dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating ap­pliance is switched off or vice-versa.

N.B.: The overall ventilation condition of
the dwelling must be taken into ac­count.

If in any doubt, the advice of a compe­tent builder or, for gas, a “Corgi” instal­ler must be sought.

If the cooker hood is used in recircula­tion mode (with the recirculation Micro­Filte r ) , there are no restrictions.

If exhaust air is to be extracted into

a chimney or ventilation duct no
longer used for other purposes, take
professional advice.

When using the cooker hood at the

same time as another heating ap­pliance which depends on the air in the
room, (e.g. gas, oil or coal fired

6

Wa rning and Safety instructions

In countries where there are areas

which may be subject to infesta­tion by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any dam­age which might be caused by cock­roaches or other vermin will not be
covered by the appliance guarantee.

Appliances with external fans

For appliances with an external fan
motor fitted (EX models) the connection
of the two units must be made using
the connection cable and the plug con­nectors. Make sure the correct combi­nation of the two appliances has been
selected.

Separate fitting instructions are sup­plied with the external fan.

Disposal of your old appliance

Before discarding an old ap-

pliance switch off and disconnect
it from the power supply. Cut off and
render any plug useless. Cut off the
cable directly behind the appliance to
prevent misuse. This should be done
by a competent person.

The manufacturer cannot be held re­sponsible for any damage caused
by non-observance of these instru c ­tions.

7

Guide to the appliance

Guide to the appliance

8

Guide to the appliance

T elescopic

b

extension piece

c T ower
d Vapour canopy
e Control panel
f Main switch

If the cooker hood is not to be used for
a longer period of time (e.g. overnight
or during holidays), switch it off using
the main switch.

g Recirculation grille / vent
h Halogen lighting

i Grease filter

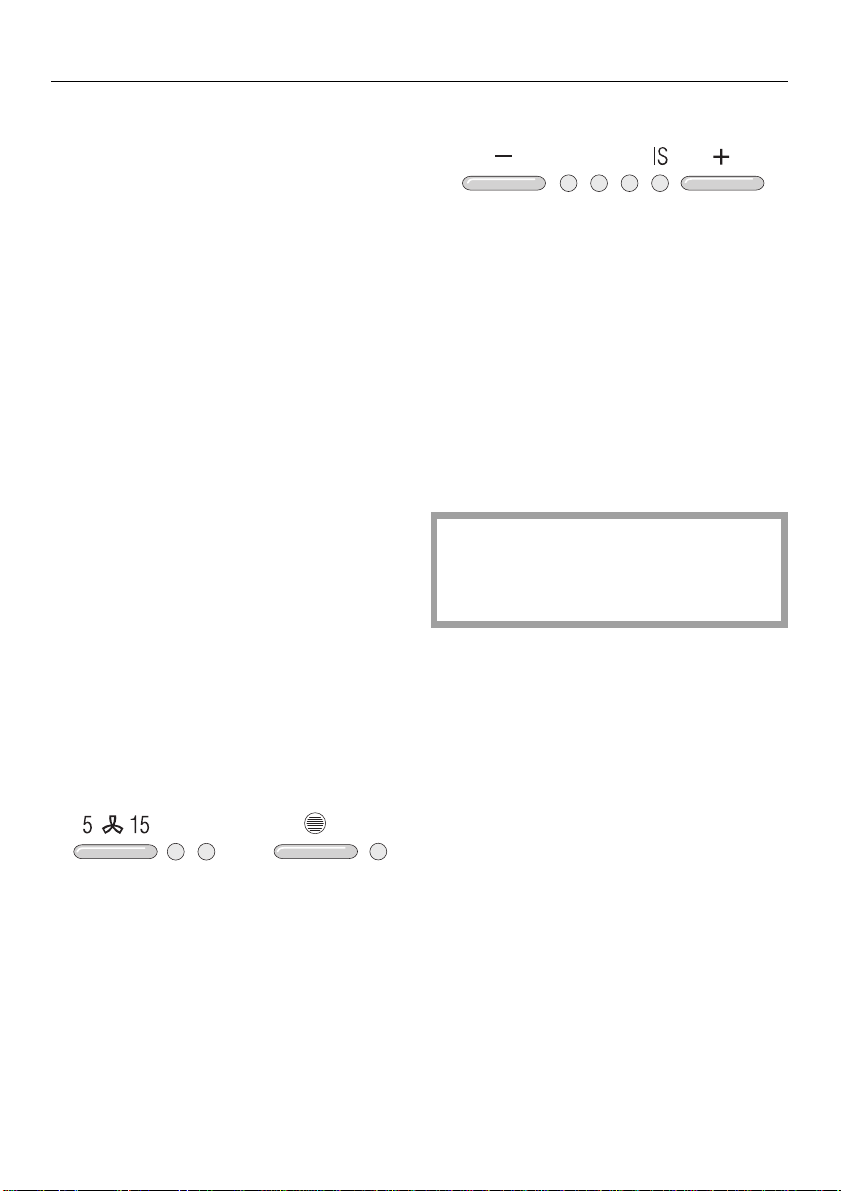

Lighting touch control

j

n T ouch control for the

grease filter

The indicator lamp next to the grease fil­ter touch control lights up when the
grease filter needs to be cleaned.

The touch control is used
– to show how long the grease filter

has been in use (see section on
"Operation / Filter operating hours
counter").

– together with the run-on option touch

control to alter the number of hours
counted by the filter operating hours
counter (see section "Operation / Al­tering the filter operating hours
counter").

o Micro-filter touch control

The indicator lamp next to the micro-fil­ter touch control lights up when the
micro-filter used in recirculation mode
needs to be replaced.

k On/Off touch control f or

the fan

l Power level touch controls

You can select one of three power le­vels or an intensive level, depending on
how much the air needs to be filtered.

m T ouch control for the

run-on option

This control activates the run-on option.
The fan is switched off automatically
after either 5 or 15 minutes.

The touch control is used
– to show how long the micro-filter has

been in use (see section on "Oper­ation / Filter operating hours counter" )

– together with the run-on option touch

control to alter the number of hours
counted by the filter operating hours
counter (see section "Operation / Al­tering the filter operating hours
counter").

9

Description of the functions

Description of the functions

The cooker hood works

. . . by air extraction:

The air is drawn in, cleaned by the
grease filters and directed outside.

The cooker hood is fitted with a
non-return flap, (see "Installation").
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown di­rectly outside.

. . . by air recirculaton:

The air is drawn in and cleaned first by
the grease filters. In addition it is then
cleaned by the Recirculation Micro-
Filters. The cleaned air is then recircu­lated back into the kitchen through a
vent in the top of the cooker hood.

. . . with an external fan

The EX models are designed to be con­nected to an external fan located out­side the room.

The external fan is connected to the
cooker hood by a control cable and is
operated by the control panel on the
cooker hood.

Before using the cooker hood for
the first time in recirculation mode,
ensure that the recirculation micro­filters are in place. See Section on
"Cleaning and care".

10

Operation

Main switch

When the main switch is set to “I” the
cooker hood is ready for operation.
When the cooker hood is switched off
using the main switch, it will retain the
most recent setting when next switched
on.

Switching on

– Press the On/Of f tou c h co n trol.
The indicator lamp for this touch control

lights up and at the same time the
motor switches on. The motor runs at
power level “lI”.

Operation

Selecting the power level

Depending on how much the air needs
to be filtered, there are four power le­vels available. For normal cooking a
low to medium level is usually suffi­cient. For frying or cooking food with a
strong aroma the highest level marked
IS (Intensive Setting) is recommended.

– Use the – /+ controls to select the

power level required.

Touch control + = higher setting
Touch control – = lower setting

The indicator lamps show which power
level has been chosen.

11

Operation

Run-on option

If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.

The fan motor will then switch off auto­matically after a further 5 or 15 minutes.

– Press the run-on option touch control.
Press once = 5 minutes run-on time

Press twice = 15 minutes run-on time
Press three times = fan is switched off

The relevant indicator lamp glows to
confirm the time selected.

If no run-on time is selected neither
lamp lights up.

To deactivate the run-on option time,
press the run-on option touch control
until both indicator lamps go out.

Switching off

– Use the On/Off touch control to

switch the fan off.

If the cooker hood is not to be used for
a longer period of time (e.g. overnight
or during holidays), switch it off using
the main switch.

Switching the lighting on or off

The lighting for illuminating the hob can
be switched on or off independently of
the fan.

12

– Press the lighting touch control.
– When the lighting is switched on the

lamp next to the lighting touch con­trol glows.

Operation

Filter operating hours counter

An indicator lamp shows when the
grease filter needs to be cleaned. The
operating hours counter for the grease
filter is set at the factory for a certain
number of hours but these can be
changed if required.

The operating hours counter for the re­circulation micro-filter is set at the fac­tory for an unlimited number of hours
but these can be changed if required.

After this set time has elapsed, the indi­cator lamp next to the grease filter /
micro-filter touch control glows. The
grease filter must then be cleaned or
the micro-filter replaced by a new one.

After the grease filter has been cleaned
and put back in place or the micro-filter
has been replaced by a new one, the fil­ter operating hours counter must be re­set.

Reading the filter operating
hours counter

To check the percentage of the time set
already used:

– Use the On/Off touch control to

switch the fan on.

– Press the grease filter / micro-filter

touch control.

One or several of the indicator lamps
between the – /+ touch controls will
flash.

– To do this press the grease filter /

micro-filter touch control and hold for
about 4 seconds.

The indicator lamp will go out.

The number of flashing lamps indicates
the percentage of operating time set al­ready used up.

1 lamp = 25%
2 lamps = 50%
3 lamps = 75%
4 lamps = 100%

The number of operating hours used re­mains in memory, even when the ap­pliance is switched off or there is a
power cut.

13

Operation

Altering the filter operating
hours counter

You can set the operating hours
counter to suit the type of cooking you
do.

Select a short time if you roast or fry a
lot.

If you use very little fat fo r cooking, se­lect a longer time.

If, however, you only cook occasionally
we recommend that you select a short
time because grease which has built
up gradually over a long period of time
will harden on the grease filters and
make cleaning more difficult.

Grease filters

The operating hours counter for the
grease filters is set to 30 hours. This
time can be lengthened or shortened.
You can choose from 20, 30, 40 or 50
hours.

The lamps between the – /+ touch con­trols show the time which has been set:
1st lamp from left = 20 hours
2nd lamp from left = 30 hours
3rd lamp from left = 40 hours
4th lamp from left = 50 hours

– Use the – /+ touch controls to select

the desired time.

– Confirm the procedure by pressing

the grease filter touch control.

If the procedure is no t co n firmed
within 4 minutes of programming
the steps, the cooker hood wil l auto ­matically revert to the “old” data.

– Use the On/Off touch control to

switch the fan off.

– Press the run-on option touch control

and the grease filter touch control at
the same time.

The indicator lamp for the grease filter
touch control and one of the lamps be­tween the – /+ touch controls will flash.

14

Micro-filters

The micro-filter is needed for recircula­tion mode. They are not used for
vented extraction.

Operation

As the cooker hood is set up ex-works
for vented extraction, the operating
hours counter for the micro-filter is set
to “unlimited”.

For recirculation mode the operating
hours counter needs to be set to the re­quired time:

– Use the On/Off touch control to

switch the fan off.

– Press the run-on option touch control

and the micro-filter touch control at
the same time.

The indicator lamp for the micro-filter
touch control and one of the lamps be­tween the – /+ touch controls will flash.

The lamps between the – /+ touch con­trols show the time which has been set:

1st lamp from left = 120 hours
2nd lamp from left = 180 hours
3rd lamp from left = 240 hours
4th lamp from left = unlimited

– Use the – /+ touch controls to select

the desired time.

– Confirm the procedure by pressing

the micro-filter touch control.

If the procedure is no t co n firmed
within 4 minutes of programming
the steps, the cooker hood wil l auto ­matically revert to the “old” data.

15

Cleaning and care

Cleaning and care

Before any cleaning or maintenance
work the cooker hood must be dis­connected from the mains supply.

Ensure that:

- it is switched off at the fused spur
connection or

- it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on
the plug), or

- the mains fuse is withdrawn.
Ensure current is not supplied to the

appliance while maintenance or re­pair work is being carried out.

Housing

Lacquered surfaces can be cleaned
using hot water to which a little mild
washing-up liquid has been added.
Dry with a soft cloth.

Grease filters

Re-usable metal grease filters are fitted
which remove solid particles (oil, dust,
etc.) from the kitchen vapo urs, prevent­ing soiling of the cooker hood.
The grease filters should be cleaned
regularly to avoid a build-up of fat, (ap­prox. 3-4 weeks on average, but
sooner if necessary). Always clean the
filters immediately if the lamp for the
grease filter touch control comes on.

An over saturated filter is a fire
hazard.

For stainless steel surfaces a mild non­abrasive proprietary stainless steel
cleaner is suitable.

Never use cleaners which scour or
contain chlorine, acids or soda.
These would damage the surface of
the cooker hood.

16

– To take out the grease filters press

the filter retention clips in towards
the middle of the filter.

– Holding carefully, lower and remove

the filter.

Cleaning and care

– Clean the filters

– by hand: with a nylon brush in a
mild solution of warm water and
washing up liquid.
– in a dishwasher: pl ac e th e filter
with the short side upright in the
lower basket, ensuring the spray
arm is not obstructed.

Depending on the cleaning agent
used, cleaning the grease filters in
a dishwasher can cause permanent
discolouration to the surface of the
filters. However, this will not affect
the functioning of the grease filters
in any way.

– After cleaning, leave the filters to dry

on an absorbent surface before put­ting them back in place.

– When removing the filters for clean-

ing also clean off any residues of oil
or fat from the now accessible hous­ing to prevent the risk of these ca tc h­ing fire.

control for appr ox. 4 secon d s to re­set the operating hours counter.

Fitting / replacing the recircula­tion micro-filters

For recirculation mode two micro-filters
have to be used in addition to the
grease filters. The micro-filters are de­signed to absorb cooking odours and
are fitted in the canopy above the
grease filters.

– Before fitting the micro-filters the

grease filters must first be taken out,
(see previous section for instructions
on how to do this).

The micro-filters are supplied with fit­ting instructions. Ensure these are care­fully followed.

When fitting for the first time:
– Set the operating hours counter to

suit your requirements, (see “Oper­ation - Altering the filter operating
hours counter”).

When replacing the filters, make
sure that the clips are visible, facing
down towards the hob.
Should a filter be replaced upside
down, insert a small screwdriver
blade into the slits to disengage the
clip. Do not let the filter drop onto
the hob below.

– After putting the grease filters back

in place, press the grease filter touch

Always replace the filters immediately if
the lamp for the micro-filter touch con­trol comes on, or if they are no longer
effective in absorbing kitchen odours.
They should, however, be replaced at
least every 6 months.

– After fitting new micro-filters, press

the micro-filter touch control for ap­prox. 4 seconds to re-set the opera­ting hours counter.

17

Cleaning and care

Changing a halogen light lamp

Before any cleaning or maintenance
work the cooker hood must be dis­connected from the mains supply.

Ensure that:

- it is switched off at the fused spur
connection or

- it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on
the plug), or

- the mains fuse is withdrawn.
Ensure current is not supplied to the

appliance while maintenance or re­pair work is being carried out.

When in use the halogen lamps
become very hot. Do not touch im­mediately as they remain hot for
some time after being switched off.

You must not touch the surface of a
halogen lamp when changing it as
this will damage it. Please follow the
manufacturer’s instructions.

– To change the halogen lamp first

remove lamp cover

– The halogen lamp

push-in connection socket. To re­place, pull out the old lamp and fit a
new one.

– Replace the lamp cover

carefully, making sure it engages se­curely in position.

Never use the lighting without the
lamp cover
ter designed to cut out harmful rays.

in place as it has a fil-

b

.

b

is fitted to a

c

b

18

After sales service

In the event of any faults which you can­not remedy yourself, please contact:

– Your dealer
or

– The Service Dept., (see address on

back page).

When contacting the Service depart­ment, please quote the Model and Ser­ial number of your appliance, both of
which are given on the data plate
which is visible on removing th e grease
filter.

Please note that telephone calls
may be monitored and recorded to
improve our service.

After sales service

19

Appliance dimensions

Appliance dimensions

: The shaded area represents the

wall or ceiling area for the vent cut­out, for feeding the connection cable
through to an external fan and for fitting
the connection socket. (F or recircula­tion mode the connection socket may
only be fitted in the wall area).

Recirculation
H = 820 – 1110 mm

Connection for recirculation ø 125 mm

Extraction
H = 800 – 1020 mm with extraction

through the wall.
H = 730 – 1020 mm with extraction
through the ceiling.

Connection for air extraction ø 150
mm, or ø 125 mm with reducing collar.

To fit the tower, distance A between the
top of the tower and the ceiling must
be at least 20 mm.

20

Safety regulations prohibit the fitting
of this cooker hood over a solid fuel
stove.

The minimum safe distance (X) be­tween the top of the cooker/hob and
the bottom of the cooker hood
should be at least:
450 mm above electric
cookers/hobs
650 mm above gas cookers/hobs
650 mm above an open grill.
A distance of 650 mm above elec­tric cookers/hobs may be prefer­rable to give more working space.

When fitted above an open grill the
cooker hood must not be used in recir­culation mode.

Appliance dimensions

See “Warning and Safety instructions”
for further notes on s afe installation.

21

Installation

Installation

Retaining plates

The retaining plates A, B and C are
used to secure the cooker hood to the
wall.

First drill holes for fitting retaining plate
A.

– Before fitting the retaining plates

draw a centre line vertically on the
back wall at the selected position.

– Mark the measurement X above the

cooking surface. This marks the
height of the lower rim of the cooker
hood.

Retaining plate A

– Drill two ø 8 mm holes, one at X +

100 mm and one at X + 425 mm on
the centre line for the retaining plate.
Insert S8 plugs.

22

Installation

Retaining plate B

– Hold retaining plate B up to the wall

and push up until directly below the
ceiling. Use the notches and the
centre line to align it horizontally.
Mark the positions for the four ho les
to be drilled on the wall.

– Drill four ø 8 mm holes into the wall,

and push the S8 plugs into the holes.

– Lightly secure retaining plate A into

position using two 5 x 40 mm screws
as shown and use the two notches
to align with the middle line.

– Drill 6 more ø 8 mm holes through

the now fitted retaining plate and
press S8 plugs into the holes.

– Screw on the retaining plate with four

5 x 40 mm screws.

Retaining plate C

Retaining plate C only needs to be
fitted if dimension Y is greater than 415
mm. It provides greater stability for the
extension piece.

– Screw four 5 x 40 mm screws into

the two upper and the two lower
holes.

23

Installation

– Hold the retaining plate C at a maxi-

mum distance of 415 mm from the
ceiling and use the two notches to
align it with the centre line. Mark the
position of the two drill holes.

– Drill two ø 8 mm holes into the wall ,

and press the S8 plugs into the
holes.

– Screw on retaining plate C with two

5 x 40 mm screws.

Vapour canopy

– Secure the vapour canopy using the

5 x 40 mm screws in both drill holes.

– Hang the vapour canopy on the

angle brackets on retaining plate A.

24

Motor unit

(only for appliances with an integrated fan)

– First loosely fit the two self-loc ki ng

nuts onto the threaded bolts on re­taining plate A. Leave enough space
to be able to hang the motor on after­wards.

– Fit the motor unit onto the hooks on

retaining plate A and slide down be­hind the nuts.

Installation

– Connect the 6 pole and the 15 pole

plugs from the vapour canopy into
the corresponding couplings on the
motor unit.

Exhaust socket and control unit

(...EX models only)
The exhaust socket for the vapour ca-

nopy is supplied with the appliance.
It has an integrated non-return flap.
It is designed to take ø 125 mm ex­haust ducting. If 150 mm ø exhaust
ducting has to be used the socket
needs to be adapted:

– Tighten the nuts.

– Use a sharp knife to cut the exhaust

socket for the vapour canopy off at
the join.

25

Installation

– Secure the exhaust socket to the va-

pour canopy with 4 screws.

– On EX model cooker hoods the con-

trol unit is fitted instead of the motor
unit and then secured with self lock­ing nuts.

Air extraction connection

– Fit the non-return flap supplied into

the exhaust socket in the motor unit
(this does not apply to EX models).

– Connect the 6 pole and the 15 pole

plugs from the vapour canopy into
the corresponding couplings on the
underside of the control unit.

– Connect the cooker hood to the ex-

ternal fan with the connecting cable
and the 6 pole plug.

26

Non EX model cooker hoods are de­signed to take ø 150 mm exhaust duct­ing.
If ø 125 mm ducting has to be used the
reducing collar needs to be fitted into
the exhaust socket on the motor unit.

– For extraction connection secure a

flexible hose or an extraction pipe to
the exhaust socket of the motor unit
or to the vapour canopy using a
hose clip. Lead the top end through
the wall or ceiling cut-out.

Installation

– Proceed to “Connection for air ex-

traction” section.

Recirculation connection

If site conditions are not suitable for the
cooker hood to be used for air extrac­tion the appliance must be connected
for recirculation.

– Push the directional unit on to the

top retaining plate.

– Fit the reducing collar ø150 / ø125

mm into the exhaust socket of the
motor unit.

The recirculation micro-filters
necessary for recirculation are avail­able from the Spare Parts Depart­ment or your dealer.

– Insert the mains supply plug into the

socket before carrying out further in­stallation.

Extension piece

An extension piece allows the c ooker
hood to be fitted at varying distances
from the ceiling (see section on “Ap­pliance dimensions”).

The extension piece has an opening on
each side. These are needed when the
appliance is being used in recirculation
mode.

– Secure the flexible hose supplied to

the directional unit and to the reduc­ing collar on the motor unit using
hose clips.

– Insert the recirculation micro-filters

(see section “Cleaning and care”).

Recirculation Extraction

For recircul a ti o n th e ext ension piece is
fitted with the openings at the top.

For air extraction the openings are not
required. In this case the extension
piece is fitted with the openings at the
bottom. They are then covered by the
tower shaft.

27

Installation

– Bend the top hanging retainers ap-

prox. 45° inward s. Th i s make s fit ti ng
easier.

For recirculation make sure that the
openings in the extension piece are po­sitioned at the same height as the air
vents in the directional unit.

– Screw the extension piece firmly to

the upper retaining plate at each
side with two 3.9 x 7.5 mm screws.

– Cover the screw heads with the

cover caps supplied.

Only for recirculation:

Recirculation Extraction

– Pull the extension piece slightly out-

wards and push over the upper re­taining plate.

28

– Fit the recirculation grilles into the ex-

tension piece and into the directional
unit behind so that the slats point
downwards.

The paper protective sheets protect the
extension piece from accidental scrat­ches when the tower is being fitted.
They are removed when fitting is com­plete.

– Fold each protective sheet at the top.
– Remove the protective foil from

around the sticking points.

– Stick the protective sheet to the ex-

tension piece so that it is flush at the
sides and at the bottom.

Installation

Fitting the tower

– Hold the main shaft gently apart and

fit it over the extension piece.

– Then push the shaft downwards ap-

prox. 2 cm into the canopy.
– Adjust the shaft.
– Remove the protecti ve shee ts .
– Now secure the shaft on both sides

at the bottom with two 3.9 x 7.5 mm

screws.
– Cover the screw heads with the caps

supplied.

29

Installation - extraction

Installation - extractio n

Connection for extraction

Danger of toxic fumes.
Please heed the “Warning and
Safety instructions” to avoid the
danger of toxic fumes.

The cooker hood should be in­stalled according to local building
regulations. Seek approval from the
building inspector where necessary.

Air extraction ducting

– All ducting, pipework and fittings

must be of non-flammable material.

– The extraction ducting should be as

short and straight as possible.

To ensure efficient air extract ion the
diameter of the exhaust ducting
should not be less than 150 mm.

If exhaust ducting with a diameter
of less than 150 mm or flat ducting
were to be used the noise level of
the cooker hood would increase
and extraction would be less effi­cient.

– When ducting is horizontal it must be

laid to slope away at 1 cm per metre,

to ensure no condensate drains into

the appliance.
– If the exhaust air is to be ducted in to

the open air the installa tion of a tele-

scopic wall vent is recommended.

– If the exhaust air is to be ducted in to

a vent flue the ducting must be di-

rected in the flow direction of the flue.

– Only reduce the diameter of the duct-

ing if absolutely necessary, e.g.
where narrower ducting has already
been installed.

– Only use wide radius bends. Tight

bends reduce the air throughput of
the cooker hood.

– Only use smooth pipes or flexible

hoses made from non-flammable ma­terials for extraction connection .

30

Important
If the exhaust ducting is to run
through rooms, ceiling space etc.,
where there may be great variations
in temperature between the different
areas, the problem of sweating or
condensation will need to be ad­dressed.
The exhaust ducting will need to be
suitably insulated.

Condensate trap

In addition to insulating the exhaust
ducting we recommend that a suitable
condensate trap is also installed to col­lect and evaporate any condensate
which may occur.

When installing a condensate trap en­sure that it is positioned vertically and if
possible directly above the exhaust
socket.

Installation - extraction

31

Electrical connection

Electrical connection

Electrical connection

All electrical work should only be car­ried out by a suitably qualified and com­petent person in accordance with na­tional and local safety regulations.

The cooker hood is supplied for con­nection to a 220-230 V single phase
50 Hz supply.

The data plate gives the necessary
data for connection. This is visible
when the grease filter has been
removed.

Connection should be made either by a
double pole fused spur connection
unit, or a fused plug and a suitable
switched socket. The On-Off switch
should be easily accessible after the
appliance has been built in.

When switched off there must be an all­pole contact gap of 3 mm in the switch
(including switch, fuses and relays ac­cording to EN 60 335).

If the socket is not accessible after in­stallation (depending on country ) an ad­ditional means of disconnection must
be provided for all poles.

Important

The wires in the mains lead are col­oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.

If the appliance is to be connected via
a plug and socket, please note the fol­lowing:

As the colours of the wires in the mains
lead of this appliance may not corre­spond with the coloured markings ident­ifying the terminals in your plug, pro­ceed as follows:

The wire which is coloured green and
yellow must be connected to the termi­nal in the plug which is marked with the
letter E or by the earth symbol z or
coloured green or green and yellow.

The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.

The wire which is coloured brown must
be connected to the terminal which is
marked with the letter L or coloured red.

For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA (in accordance
with DIN VDE 0664).

32

WARNING:
THIS APPLIANCE MUST BE
EARTHED

Non-rewireable plugs BS 1363 (UK)

If this machine or appliance is fitted
with a non-rewireable plug, the follow­ing information applies:

If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted. The fuse carrier and the
fuse should be removed from the old
plug and disposed of. The plug cut
from the flexible cord should then be
disposed of, and on no account be in­serted into any socket elsewher e in th e
house (electric shock hazard).

The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.

The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug (as applicable to
the design of plug fitted).

Electrical connection

The correct fuse rating of the replace­ment fuses that are ASTA approved to
BS 1362 should be fitted. Replacement
fuse covers may be purchased from
your local electrical suppliers or Ser­vice agent.

33

T echnical data

Technical data

T echnical data

Rated load

DWW 656, 650, 756, 750 . . . . . . 240 W

DWW 956, 950, 1256, 1250. . . . 260 W

Lighting
DWW 656, 650,

756, 750 (EX) . . . . . . . . . . . . . 2 x 20 W

DWW 956, 950,

1256, 1250 (EX) . . . . . . . . . . . 3 x 20 W

Voltage. . . . . . . . . . . . . . . . . . . . . 230 V

Frequency . . . . . . . . . . . . . . . . ~ 50 Hz

Fuse rating (UK). . . . . . . . . . . . . . . 13 A

Fan power

Extraction power according to EN
61591

Extraction system ø 150 mm:

Level I. . . . . . . . . . . . . . . . . . . 220 m

Level II . . . . . . . . . . . . . . . . . . 335 m

Level III. . . . . . . . . . . . . . . . . . 440 m

Intensive level. . . . . . . . . . . . . 640 m

3

/h

3

/h

3

/h

3

/h

For EX models the rated load and ex­traction power will depend on the type
of external fan fitted.

Extraction system ø 125 mm:

Level I. . . . . . . . . . . . . . . . . . . 210 m

Level II . . . . . . . . . . . . . . . . . . 305 m

Level III. . . . . . . . . . . . . . . . . . 405 m

Intensive level. . . . . . . . . . . . . 590 m

Recirculation mode:

Level I. . . . . . . . . . . . . . . . . . . 180 m

Level II . . . . . . . . . . . . . . . . . . 290 m

Level III. . . . . . . . . . . . . . . . . . 390 m

Intensive level. . . . . . . . . . . . . 485 m

Unrestricted . . . . . . . . . . . . . . 690 m

34

3

/h

3

/h

3

/h

3

/h

3

/h

3

/h

3

/h

3

/h

3

/h

External fans

The types of appliance available are listed in the table below.

External fans

Fan type: Roof

ventilator

Model: DV 1100 DV 1005/1

Roof­ventilator

DV 1005/1G

Outside
wall fan

AWG

1005/1

Outside
wall fan

Extractor
fan

Extractor
fan (wall)

AWG 1100 ABLG 940/1 MG 1100

AWG

1005/1G

Dimensions:
width mm
depth mm
height mm

Ø 301

244

380
460
230

380
460
160

Ø 301

124

360
400
245

310

280-390

390

Installed:
on flat roof

–

–

–

–

–

–

on pitched

X

X

–

–

–

–
roof
on / in

–

–

X

X

–

X
outside wall
free choice

–

–

–

–

X

–
Air

throughput:
(unducted)

in practice *
pipe
connection

3

/h

850 m

3

/h

730 m

Ø 150 mm

3

/h

950 m

3

/h

780 m

Ø 150 mm/

125 mm

3

/h

950 m

3

/h

780 m

Ø 150 mm/

125 mm

850 m3/h
730 m3/h

Ø 150 mm

3

/h

900 m

3

/h

720 m

Ø 150 mm/

125 mm

850 m
730 m

Ø 150 mm

Nominal
voltage: AC 220 /230 V 50 Hz

Motor
output: 330 W 170 W 170 W 330 W 315 W 330 W

3

/h

3

/h

* Measured in the following
built-in situation:
cooker hood, 90° bend,
4m extraction ducting, external fan.

N.B. Not all models are available in all countries. Consult your supplier for further details.

35

External fans

External fan version

Installation:

Depending on the model involved, exter ­nal fans can be installed on an outside
wall, on a pitched roof or in a suitable lo­cation indoors.

Model DV 1100
Model DV 1005/1
Model DV 1005/1G

– For installation on a pitched roof, con-

sult the roof tiler beforehand.

Model AWG 1100
Model AWG 1005/1 - 1005/1G

– Installation on an outside wall:

First unscrew the sheet metal screws
attached to the sides then remove the
housing case.

Fit the flexible hose or exhaust duct
on to the suction socket, and feed
through a prepared opening in the
wall, together with the power cable,
and make connection with the hood.
Then fix the fan to the wall.
Put back the housing case and se­cure with the sheet metal screws.

drilled. Then drill the holes and insert
plugs.
Screw the housing together.
Position the interior telescopic part
and insert foam into the intervening
space. Secure the stainless steel lid to
the housing.
Fit the extraction flexible hose and
connect the control cable connectors
together , (if an extension is needed
use the connection cable suppl ie d).

Models ABLG 940/1

– Other suitable location

These fan units can be installed at
any suitable location indoors and se­cured by means of the four holes
drilled in the base plate. Connection
to the hood as well as any possible ex­tension behind the fan unit is likewi se
made via a flexible hose or exhaust
duct.

Electrical connection:

Electrical connection is made by a
power cable connecting the fa n an d the
cooker hood, thus allowing the fan to
operate at four different settings.

Model MG 1100

– Installation in an outside wall

Make a hole in the external wall as di­rected in the installation instructions
for the wall fan.
Remove the four fixing screws and
take off the housing lid. Mark where
the holes for the screws are to be

36

Separate fitting instructions are sup­plied with the external fan.

M-No. 08 255 570 / 00- 1299 Alteration rights reserved.
