ContourLine Plumbed
Combi-Steam Oven XXL
DGC 6765 XXL
Specification Sheets TRS 05252017
8mieleusa.com
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
SPECIFICATIONS
23676553USA
DGC 6765 XXL
Features:
• Plumbed water connection
• Class leading capacity with 41% more
space than XL (with 4 shelf levels)
• M Touch innovative and revolutionary
controls are both easy-to-operate and
navigate
• MultiSteam technology delivers powerful
external steam generation and optimum
steam distribution via 6 inlet ports
• Wired roast probe for perfect
roasting
• 3-in-1 appliance
1. True European convection oven
2. Steam oven
3. Combination of steam and
convection oven
• MasterChef and MasterChef Gourmet
menus offer over 100 food types to cook
to perfection
• Lift up control panel conceals water and
condensate container (both containers
are dishwasher safe)
• Clean Glass door for easy clean-up
• ComfortSwivel handle moves with
the motion of your wrist, creating a
more ergonomic feel when opening
and closing the oven door
DGC 6765 XXL — Item
Overall Fascia Dimensions
Overall Unit Width - Excluding Fascia Dimension 21
Overall Unit Height - Excluding Fascia Dimension 23
Overall Unit Depth - Excluding Fascia Dimension 22
Built-In
Minimum Cabinet Width 22
Minimum Cabinet Depth 22
Minimum Opening Height 23
Additional Cut-Outs Required
Plumbing
Water Supply Requirements
Drainage Requirements
Water Intake Hose Connection
Drain Hose Connection
Electrical
Electrical Requirements 208/240V, 60Hz, 20A
Power Cord
Shipping
Shipping Weight 136 lbs (62 kg)
Shipping Dimensions 28
Support
Call Miele 800.843.7231
Miele Website
20/20 Link
237/16” (595 mm) W x 237/16” (595 mm) H x
7
/8” (23 mm) D
9
/16” (548 mm)
1
/4” (590 mm)
3
/8” (567 mm)
1
/16” (560 mm)
1
/2” (572 mm)
3
/8” (593 mm)
Venting and plumbing cut-out required
11
19
/16” x 19/16” (500 mm x 40 mm)
Connect to a cold water supply only. Must
be connected to a shut-off valve. The water
shut-off valve must be accessible after
installation. The water pressure must be
between 14.5 psi (1 bar) and may not
exceed 87 psi (6 bar). If the pressure is
higher than 87 psi (6 bar), a pressure
reducing valve must be installed.
The drainage trap must not be located
higher than the drain hose connection point
on the appliance. This is to ensure that water
can drain out completely after a program.
The top of the drain hose must not be higher
11
than 19
connects to the drain trap. The drain hose
must not be shortened. See installation
manual for additional information.
Supplied hose: flexible braided hose 9’10”
(3 m) with a 3/8” compression fitting for
connection to a shut off valve. The hose
must not be shortened.
Supplied hose: flexible pastic hose 9’10”
(3 m) with a 3/4” end for connection to
siphon. The plastic drain hose supplied must
not be shortened.
Molded plug - NEMA 6-20 power cord
6’ 6
8www.mieleusa.com
82020technologies.com
/16” (500 mm) to where it
3
/4” (2 m)
7
/8” W x 283/8” H x 265/8” L
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 2 of 9
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
PRODUCT SPECIFICATIONS
Isometric View
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 3 of 9
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
INSTALLATION SPECIFICATIONS
Door Swing Detail
Lift Panel Side View
For handle dimensions please
see page 9
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 4 of 9
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
INSTALLATION SPECIFICATIONS
Tall Cabinet Installation
Tall Cabinet Installation —
Venting and/or Plumbing Requirements
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 5 of 9
Combi-Steam Oven
ContourLine Plumbed Combi-Steam Oven
GENERIC DGC XXL
DGC 6765 XXL
INSTALLATION SPECIFICATIONS
Tall Cabinet Installation Plumbed-In Unit Installation
9’ 10 1/8” (3,000 mm)
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 6 of 9
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
INSTALLATION SPECIFICATIONS
Undercounter Installation
Undercounter Installation—
Venting Requirements
To ensure that the Combi Steam Oven has adequate ventilation,
the following cut-outs measuring 19 11/16” x 1 9/16” (500 x 40 mm)
must be made:
jin the appliace suppot base
kin the bottom of the cabinet space below
The cabinet housing must not have a back panel tted behind the
installation niche.
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 7 of 9
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
INSTALLATION SPECIFICATIONS

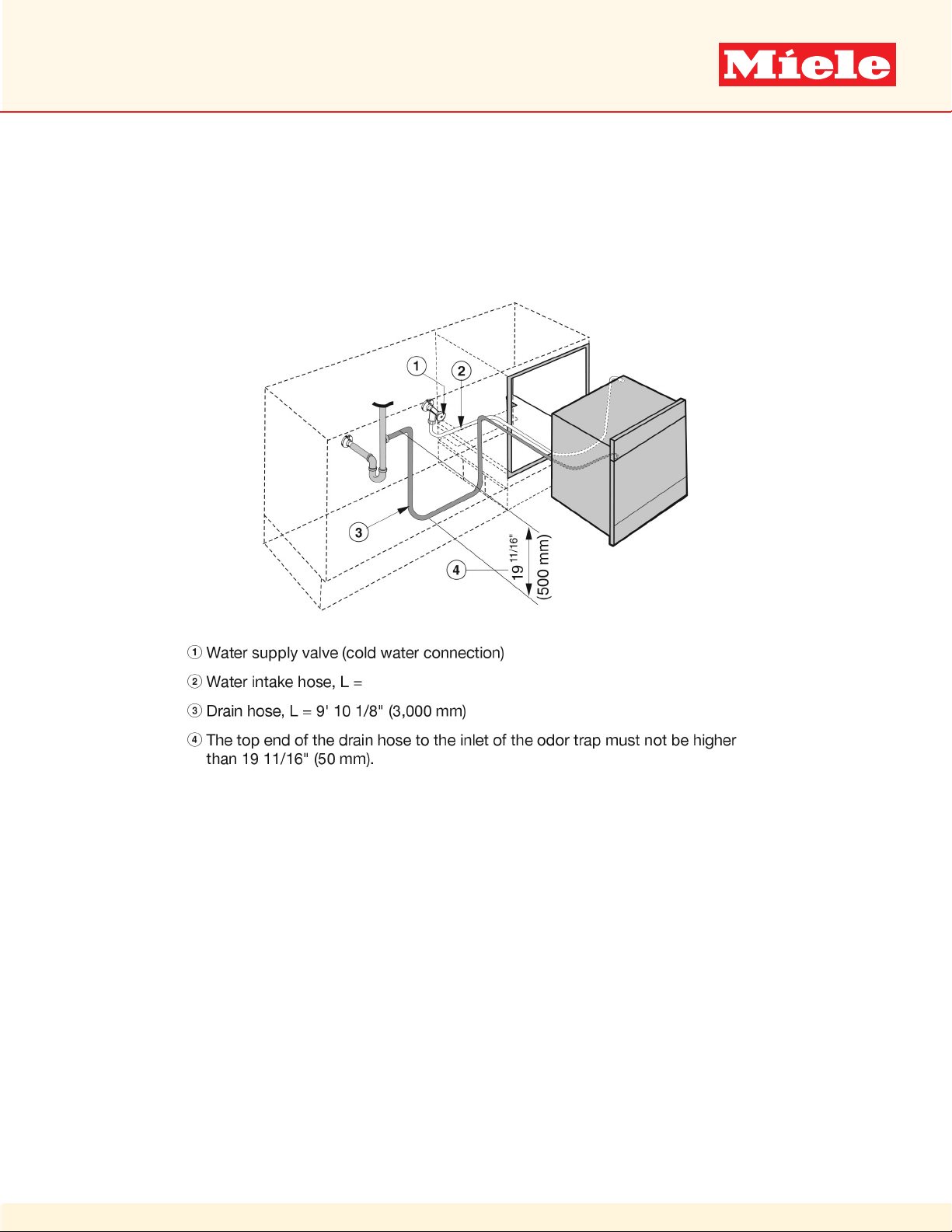

Undercounter InstallationPlumbed-In Unit Installation
9’ 10 1/8” (3,000 mm)
DGC 6765 XXL
Specification Sheets TRS 05252017
Page 8 of 9
ContourLine Plumbed Combi-Steam Oven
DGC 6765 XXL
HANDLE DETAILS
All Miele Signature And PureLine
Handle Dimensions
Please note hinges may require adjusting or replacing when changing from a ContourLine Handle to
All ContourLine Handle
Dimensions
a PureLine or Miele Signature Handle.
Please note hinges may require adjusting or replacing when changing from a PureLine or Miele
Signature Handle to a ContourLine Handle.
Specification Sheets TRS 05252017
DGC 6765 XXL
Page 9 of 9
