ContourLine Combi-Steam Oven
DGC 6700 XL
DGC 6700 XL
Features:
•M Touch innovative and revolutionary controls are both easy- to-operate and navigate. An intuitive swipe of the screen will quickly lead you to your desired selection.
•MultiSteam technology delivers powerful external steam generation and optimum steam distribution via 6 inlet ports
•Wired roast probe for perfect roasting
•3-in-1 appliance
1.True European convection oven
2.Steam oven
3.Combination of steam and convection oven
•MasterChef and MasterChef Gourmet menus offer over 150 food types to cook to perfection
•XL stainless steel cavity
•Lift up control panel conceals water and condensate container (both containers are dishwasher-safe)
•ComfortSwivel handle moves with the motion of your wrist, creating a more ergonomic feel when opening and closing the oven door
SPECIFICATIONS
DGC 6700 XL — Item 23670052USA
|
Overall Fascia Dimensions |
237/16” (595 mm) W x 18” (455.5 mm) H |
|
|
x 7/8” (23 mm) D |
|
|
|
|
|
|
|
Overall Unit Width - Excluding Fascia Dimension |
219/16” (548 mm) |
|
|
Overall Unit Height - Excluding Fascia Dimension |
1711/16” (449 mm) |
|
|
Overall Unit Depth - Excluding Fascia Dimension |
215/8” (550 mm) |
|
|
Oven Door Clearance |
131/16” (332 mm) |
|
|
Depth with door open |
3411/16” (898 mm) |
|
|

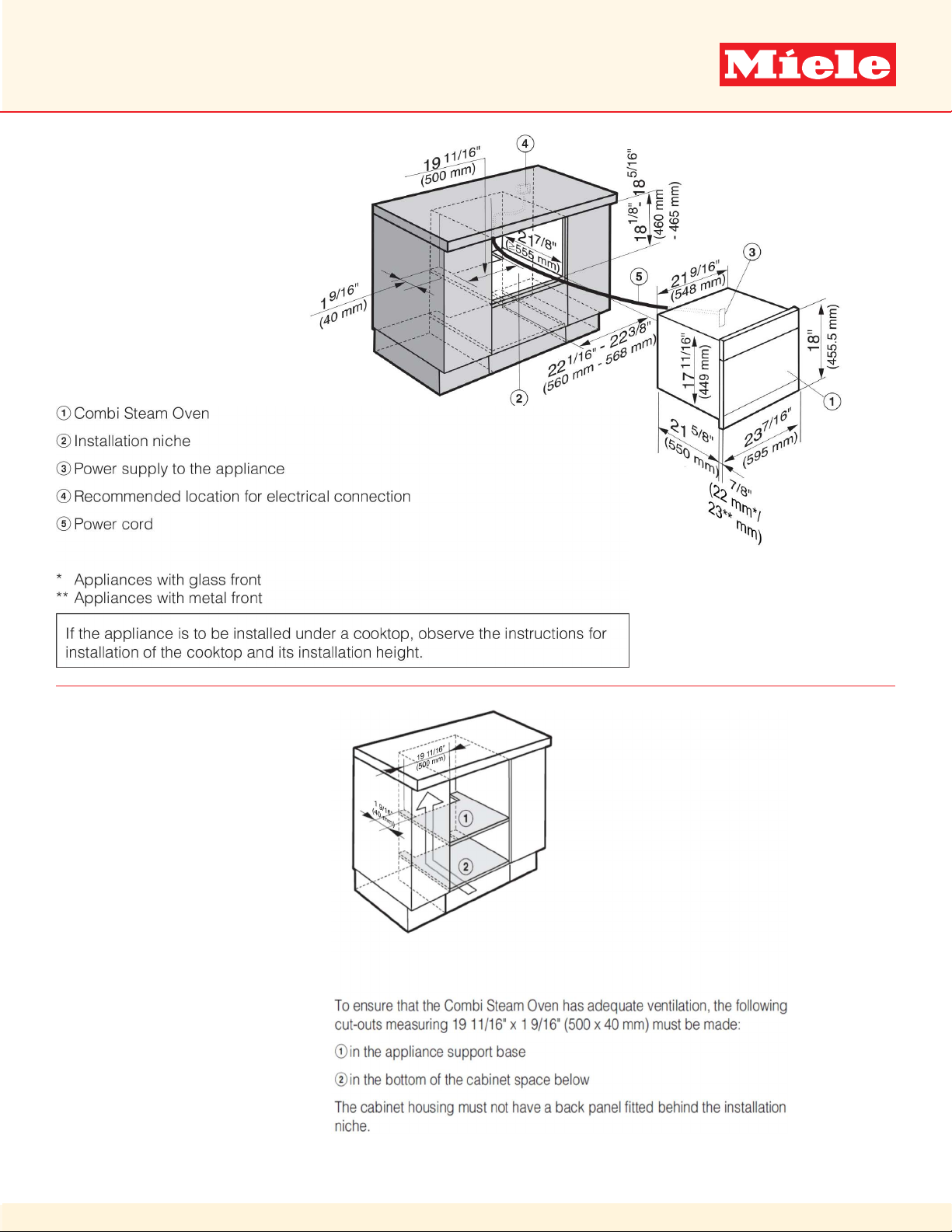

Built-In |
|
|
|
|
|
|
|
Minimum Cabinet Width |
221/16” (560 mm) |
|
|
Minimum Cabinet Depth |
217/8” (555 mm) |
|
|
Minimum Opening Height |
1711/16” (450 mm) |
|
|
Minimum Base Support |
60 lbs |
|
|
|
|
|
|
Additional Cut-outs Required |
Venting cut-out required |
|
|
1911/16” x 19/16” (500 x 40 mm) |
|
|
|
|
|
|
|
Electrical |
|
|
|
Electrical Requirements |
240V, 60Hz, 20A |
|
|
|
|
|
|
Power Cord |
Molded plug - NEMA 6-20, 240V power cord |
|
|
5 ft (1.5 m) |
|
|
|
|
|
|
|
Shipping |
|
|
|
Shipping Weight |
65 lbs |
|
|
|
|
|
|
Shipping Dimensions |
267/32” (666 mm) W x 215/8”(549 mm) H x |
|
|
231/16” (535 mm) L |
|
|
|
|
|
|
|
Support |
|
|
|
Call Miele |
800.843.7231 |
|
|
|
|
|
|
Miele Website |
8www.mieleusa.com |
|
|
|
|
|
|
20/20 Link |
82020technologies.com |
|
