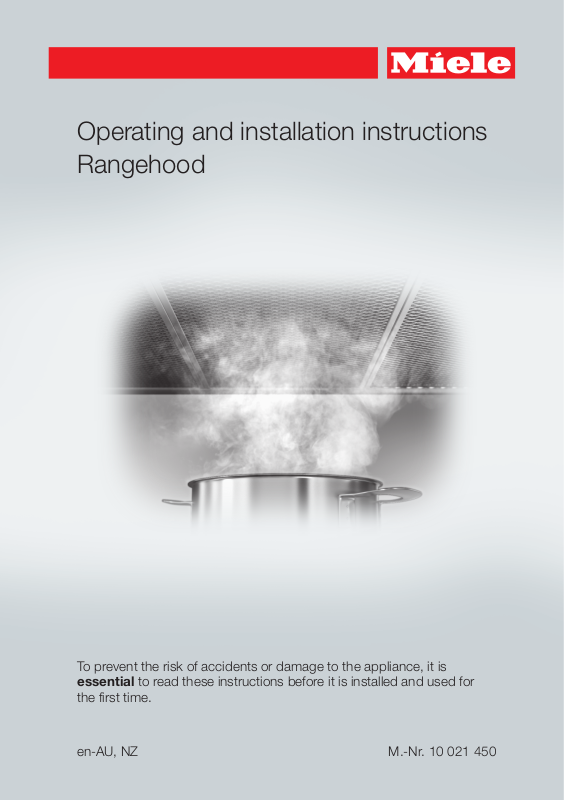

Operating and installation instructions
Rangehood
To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.
en-AU, NZ |
M.-Nr. 10 021 450 |
Contents |
|
Warning and Safety instructions.......................................................................... |
4 |
Caring for the environment ................................................................................ |
13 |
Description of the functions............................................................................... |
14 |
Con@ctivity 2.0 function........................................................................................ |
15 |
Guide to the appliance........................................................................................ |
16 |
Operation (automatic mode) .............................................................................. |
18 |
Cooking with Con@ctivity 2.0 (Automatic mode) .................................................. |
18 |
Leaving automatic mode temporarily .................................................................... |
20 |
Returning to automatic mode................................................................................ |
20 |
Operation (manual mode) ................................................................................... |
21 |
Cooking without Con@ctivity 2.0 (manual mode) ................................................. |
21 |
Remote control...................................................................................................... |
21 |
Extending the deflector plate, switching the fan on .............................................. |
21 |
Switching on manually ..................................................................................... |
21 |
Selecting a power level ......................................................................................... |
22 |
Selecting the run-on time...................................................................................... |
22 |
Switching the fan off ............................................................................................. |
22 |
Dimming/Switching the cooktop lighting on/off.................................................... |
23 |
Power management .............................................................................................. |
23 |
Operation (automatic and manual modes)........................................................ |
25 |
Operating hours counter ....................................................................................... |
25 |
Altering the operating hours counter for the grease filters............................... |
25 |
Activating and altering the operating hours counter for the NoSmell active |
|
charcoal filter.................................................................................................... |
26 |
Reading the filter operating hours counter....................................................... |
27 |
Cleaning and care ............................................................................................... |
28 |
Housing ................................................................................................................. |
28 |
Grease filters ......................................................................................................... |
29 |
NoSmell active charcoal filters .............................................................................. |
31 |
Resetting the operating hours counter for the charcoal filters ......................... |
32 |
Disposing of the charcoal filters....................................................................... |
32 |
Remote control...................................................................................................... |
33 |
Cleaning the remote control ............................................................................. |
33 |
Changing the battery........................................................................................ |
33 |
Installation............................................................................................................ |
34 |
Appliance dimensions ........................................................................................... |
34 |
Safety distance (S) ................................................................................................ |
36 |
2
|
Contents |
Installation recommendations ............................................................................... |
37 |
Before installation.................................................................................................. |
37 |
Assembly parts...................................................................................................... |
38 |
Set up for extraction mode.................................................................................... |
48 |
Set up for recirculation mode................................................................................ |
49 |
Mains connection .................................................................................................. |
49 |
Electrical connection .......................................................................................... |
50 |
Connection for air extraction ............................................................................. |
51 |
Condensate trap.................................................................................................... |
52 |
Silencer.................................................................................................................. |
52 |
Activating Con@ctivity 2.0 .................................................................................. |
54 |
Installing the Con@ctivity 2.0 dongle .................................................................... |
54 |
Activating Con@ctivity 2.0..................................................................................... |
54 |
Activating the rangehood ................................................................................. |
54 |
Activating the cooktop ..................................................................................... |
55 |
Activation failed................................................................................................ |
55 |
Deactivating Con@ctivity 2.0................................................................................. |
55 |
Signing on/off the remote control...................................................................... |
56 |
After sales service and warranty ....................................................................... |
58 |
Position of the data plate ...................................................................................... |
58 |
Warranty: Other countries ..................................................................................... |
58 |
Technical data...................................................................................................... |
59 |
Conformity declaration .......................................................................................... |
60 |
3
Warning and Safety instructions
This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important notes on the safety, installation, use and maintenance of the appliance. Miele cannot be held liable for noncompliance with these instructions.
Keep these instructions in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.
Correct application
This rangehood is designed for domestic use and for use in similar environments by guests in hotel or motel rooms, bed & breakfasts and other typical living quarters. This does not include common/ shared facilities or commercial facilities within hotels, motels or bed & breakfasts.
The appliance is not suitable for outdoor use.
It must only be used to extract vapours and remove odours from cooking.
Any other usage is at the owner's risk. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning its use by a person responsible for their safety, and are able to recognise the dangers of misuse.
4
Warning and Safety instructions
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the supervision of an adult.
Children should be supervised near the appliance. Ensure that they do not play with the appliance.
Danger of suffocation! Children may be able to wrap themselves in packing material or pull it over their head with the risk of suffocation. Keep children away from any packing material.
Keep the battery for the remote control out of the reach of children.
5
Warning and Safety instructions
Technical safety
Repairs and other work by unqualified persons could be dangerous. Installation, maintenance work and repairs to electrical appliances must only be carried out by a Miele approved service technician.
A damaged appliance can be dangerous. Check it for visible signs of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective earthing system. It is most important that this basic safety requirement is present and tested regularly and, where there is any doubt, the household wiring system should be inspected by a qualified electrician.
Reliable and safe operation of this rangehood can only be assured if it has been connected to the mains electricity supply.
Before connecting the appliance to the mains supply, ensure that the connection data on the data plate (voltage and frequency) matches the mains electricity supply. This data must correspond in order to avoid the risk of damage to the appliance. Consult a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. Extension leads are a fire hazard and do not guarantee the required safety of the appliance.
For appliances with an external motor fitted (...EXT models) the connection of the two units must be made using the control cable and the plug connectors.
These models may only be combined with a Miele external motor.
6
Warning and Safety instructions
For safety reasons, this appliance may only be used after it has been built in.
This rangehood must not be installed and operated in mobile installations (e.g. on a ship).
Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults.
Only open the housing as described in the instructions given in the installation sheet and in the Cleaning and care section of this booklet. Under no circumstances should any other parts of the housing be opened.
The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
If the mains connection cable is damaged, it must only be replaced by a Miele authorised service technician or suitably qualified electrician in order to avoid a hazard.
During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:
–the mains circuit breaker is switched off, or
–it is switched off at the wall socket and the plug is withdrawn from the socket. Do not pull the mains connection cable but the mains plug to disconnect your appliance from the mains electricity supply.
7
Warning and Safety instructions
Using at the same time as other heating appliances that depend on the air
from the room
Warning - danger of toxic fumes
Great care should be taken when using the rangehood at the same time and in the same room or area of the house as another heating appliance which depends on the air in the room.
Such appliances include gas, oil, wood or coal-fired boilers and heaters, continuous flow or other water heaters, gas cooktops, or ovens which draw air in from the room and duct exhaust gases out through a chimney or extraction ducting.
When used in extraction mode, with or without an external motor fitted, or in recirculation mode with a recirculation box installed outside the room, the appliance draws air in from the room in which it is installed and from neighbouring rooms.
If there is insufficient air, an underpressure will occur. The heating appliance will be starved of oxygen, impairing combustion. Harmful gases could be drawn out of the chimney or extraction ducting back into the room, with potentially fatal consequences.
8
Warning and Safety instructions
In order to ensure safe operation, and to prevent gases given off by the heating appliances from being drawn back into the room when the rangehood and the heater are in operation simultaneously, an underpressure in the room of 0.04 mbar (4 pa) is the maximum permissible.
Ventilation can be maintained by air inlets which cannot be blocked, in windows, doors or outside wall vents, or by other technical measures, such as ensuring that the rangehood can only be switched on when the heating appliance is switched off or vice versa. A ventilation brick alone is not generally sufficient to ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into account. If in any doubt, the advice of a competent builder, or for gas a qualified gas fitter (registered with an official gas safety body in accordance with national safety regulations), must be sought.
If the rangehood is used in recirculation mode, where the air is directed back into the room in which it is located, operating a heating appliance which depends on the room air at the same time is not hazardous.
9
Warning and Safety instructions
Correct use
Never use an open flame beneath the rangehood. To avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the rangehood could draw flames into the filter. Fat deposits could ignite, presenting a fire hazard.
The rangehood can become damaged when exposed to excessive heat.
–When using the rangehood over a gas cooktop, ensure that any burners in use are always covered by a pan. Switch the cooking zone off when a pan is removed, even for a short time.
–Select a pan which is suitable for the size of the burner.
–Regulate the flame so that it does not burn up the sides of the pan.
–Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the rangehood on when a cooking zone is in use, otherwise condensation may collect in the rangehood, which could cause corrosion.
When cooking with oil or fat, chip pans and deep fat fryers etc., do not leave the pans unattended. Never leave an open grill unattended when grilling. Overheated oil and fat can ignite and could set the rangehood on fire.
10
Warning and Safety instructions
Do not use the rangehood without the filters in place. This way you will avoid the risk of grease and dirt getting into the appliance and hindering its smooth operation.
There is a risk of fire if cleaning is not carried out as described in these operating instructions.
The rangehood can get very hot during cooking due to heat rising from the cooktop.
Do not touch the housing or the grease filters until the rangehood has cooled down.
Correct installation
Refer to the cooktop manufacturer's instructions as to whether a rangehood may be operated above the cooktop.
Safety regulations prohibit the fitting of a rangehood over solid fuel stoves.
Insufficient distance between the cooktop and the rangehood can result in damage to the rangehood.
The minimum safety distances between the top of the cooktop and the bottom of the rangehood given in the "Installation" section must be maintained, unless the cooktop manufacturer states that a greater distance is required.
If more than one cooking appliance is fitted beneath the rangehood, and they have different minimum safety distances to the rangehood, select the greater distance.
The distances given in "Installation" must be observed when fitting the rangehood.
All ducting, pipework and fittings must be of non-flammable material. These can be obtained from builders' merchants.
The appliance must not be connected to a chimney or vent flue which is in current use for exhausting fumes from appliances burning gas or other fuels. Neither should it be connected to ducting which ventilates rooms with fireplaces.
11
Warning and Safety instructions
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if cleaning is not carried out as described in these operating instructions.
In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the machine warranty.
Do not use a steam cleaning appliance to clean this appliance. The steam could reach electrical components and cause a short circuit.
Important information on handling the remote control battery:
–Do not short circuit or recharge the battery, or throw it into a fire. Danger of explosion!
–Do not throw old batteries away with your general household waste. Please dispose of them in a designated battery collection and recycling system.
Accessories
Use only genuine original Miele spare parts. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Miele cannot accept liability.
12
Caring for the environment
Disposal of the packing
material
The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Disposing of your old
appliance
Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances. You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.
Disposing of old batteries and
rechargeable batteries
Some electrical and electronic appliances contain batteries and rechargeable batteries which, when depleted, must not be thrown away with your household waste. You should remove any removable batteries or rechargeable batteries and dispose of them immediately in a suitable recycling box for batteries.
Batteries and rechargeable batteries contain substances which can be harmful to human health and the environment and should be kept out of the reach of children. Even flat batteries can still be dangerous. If you suspect a child has swallowed a battery, seek medical advice immediately.
Further instructions regarding disposal are given on batteries and rechargeable batteries. A crossed out bin means that the battery or rechargeable battery must on no account be disposed of with your household waste. A crossed out bin, which also has one or several chemical symbols below it, indicates that the battery or rechargeable battery contains lead (Pb), cadmium (Cd) and/ or mercury (Hg).
3E &G +J
Old batteries and rechargeable batteries contain important raw materials which can be recycled. Disposing of batteries and rechargeable batteries separately makes them easier to handle and recycle.
13
Description of the functions
Depending on the model of the rangehood, the following options are available:
Air extraction mode
The air is drawn in and cleaned by the grease filters and directed outside.
Non-return flap
The non-return flap is designed to prevent the exchange of room and outside air taking place.
The flap is closed when the rangehood is switched off.
When the rangehood is switched on, the non-return flap opens for the cooking vapours to be blown directly outside.
If the on-site ventilation system does not have a non-return flap, the nonreturn flap supplied must be fitted.
Recirculation mode
(available as an optional extra with a conversion kit and charcoal filter: see "Technical Data")
The air is drawn in and cleaned first by the grease filters and then by a charcoal filter. The cleaned air is then recirculated back into the kitchen.
Operation with an external
motor
(...EXT model rangehoods)
Rangehoods set up for operation with an external motor have to be connected to a Miele external motor located in a suitable position outside the room in which the rangehood is installed. The external motor is linked to the rangehood via a connection cable and then operated using Con@ctivity 2.0, the controls on the rangehood, or the remote control.
14
Description of the functions
Con@ctivity 2.0 function
Automatic control
The rangehood has a communication facility which enables the automatic operation of the rangehood depending on the operational state of a Miele electric cooktop.
To enable the communication function, the cooktop must be equipped with the corresponding Con@ctivity 2.0 dongle
.
Please refer to the installation instructions for the Con@ctivity 2.0 dongle to determine whether connection to your cooktop is possible.
In order to use the Con@ctivity 2.0 function, radio contact between the cooktop and the rangehood must be activated (see "Activating Con@ctivity 2.0").
The cooktop transmits information about its operational status via a radio signal to the rangehood.
–When the cooktop is switched on, the cooktop lighting comes on independently and the fan also switches on and the deflector plate comes out.
–During cooking the rangehood automatically sets the power level according to the number of cooking zones in operation and their power levels.
–After the cooktop has been switched off, the rangehood fan and the cooktop lighting will switch off and the deflector plate will retract.
See "Operation" for detailed information about this function.
15
Guide to the appliance
16 |
Guide to the appliance
a Retractable deflector plate
b Touch controls
c Grease filters
d Cooktop lighting
e Exhaust collar
The exhaust collar can also be fitted at the back.
f Slots for the charcoal filters
g Slots for the grease filters
h NoSmell active charcoal filters
(special accessory for recirculation mode)
i Touch control for the cooktop lighting
j On/Off control for the retractable deflector plate and the fan
k Touch controls to select the fan power setting
The controls on the remote control are also used to extend and retract the deflector plate and to switch the fan on and off.
l Touch control for the run-on option
m Operating hours control
n Indicator light
o Controls for programming
17
Operation (automatic mode)
If Con@ctivity 2.0 is activated, the rangehood always operates in automatic mode (see "Activating Con@ctivity 2.0").
To operate the rangehood manually, see "Cooking without Con@ctivity 2.0 (manual mode)".
Cooking with Con@ctivity 2.0
(Automatic mode)
Switch a cooking zone on at the power setting you want.
The rangehood lighting will come on.
After a few seconds the fan will come on, first at power level 2, then it will switch immediately to power level 1. The deflector plate will come out.
The rangehood selects the power setting automatically during cooking.
This is determined by the total output of the cooktop, i.e. the number of cooking zones in operation and the power settings selected.
If you select a higher power setting or are using several cooking zones, the rangehood will switch to a higher power setting.
When you reduce the power setting or the number of cooking zones on the cooktop, the rangehood power setting will also be reduced.
Examples for power levels 1 to 4
Reaction time
The rangehood reacts with a slight delay because altering the power setting on the cooktop does not immediately result in a reduction or increase in cooking vapours.
Because the cooktop transmits the information to the rangehood at intervals, this can also cause delays.
The reaction can vary from a few seconds to a few minutes.
18
Operation (automatic mode)
Cooking process
If, for example, you switch on a cooking zone at the highest power setting to heat a pan for frying and reduce the power level after approx. 60 to 90 seconds*, a cooking process is recognised (*60 seconds to 5 minutes for a HiLight cooktop).
The rangehood switches itself on and when the cooktop power level has been reduced, the rangehood switches to power setting 3 and remains at that level for approx. 5 minutes.
After that the rangehood power setting is determined automatically by the Con@ctivity function.
You can select another power setting manually before then.
Switching off
Switch off all cooking zones.
The rangehood fan will reduce its power level over the next few minutes and will eventually switch itself off.
This helps to neutralise any lingering vapours and odours in the air.
–From the intensive setting IS the fan switches immediately to setting 3.
–If the fan is operating at level 3, it will switch to level 2 after approx. 1 minute.
–From level 2, the fan switches to level 1 after 2 minutes.
–After 2 minutes at level 1 the fan switches itself off. The deflector plate retracts.
–After another 30 seconds, the lighting switches off.
The cooking process is then finished.
19
Operation (automatic mode)
Leaving automatic mode
temporarily
To leave automatic mode temporarily during cooking:
Manually select a different power setting, or
Manually switch the rangehood off, or
Activate the rangehood run-on option
. The fan will switch off after the selected time, the deflector plate will retract and the lighting remains switched on.
The rangehood functions can now be operated manually (see "Cooking without Con@ctivity 2.0").
Returning to automatic mode
The rangehood returns to automatic mode:
if the rangehood has not been used for approx. 5 minutes after selecting a power setting manually, or
if the manually selected power setting corresponds to the automatic one again, or
if the rangehood fan and the cooktop have been switched off for at least 30 seconds.
Automatic mode will resume next time the cooktop is switched on.
If you wish to operate the rangehood manually for a complete cooking process, switch on the rangehood fan before switching on the cooktop.
If the rangehood and the cooktop have been switched off for at least 30 seconds after cooking, automatic mode will resume the next time the cooktop is switched on.
