Miele DA 259, DA 252 Operating instructions

Operating and installation instructions
for the DA 259 DA 252 Ventilation System
To prevent accidents and machine damage, ö]
read these Operating Instructions
before installation or use. M.-Nr. 05 306 960
Contents
Contents
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation
Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cooktop illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Indirect lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting a fan setting.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Activating the Delayed Shut Down feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning off the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grease filter operating hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Checking grease filter usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing the lamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cooktop illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Indirect lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

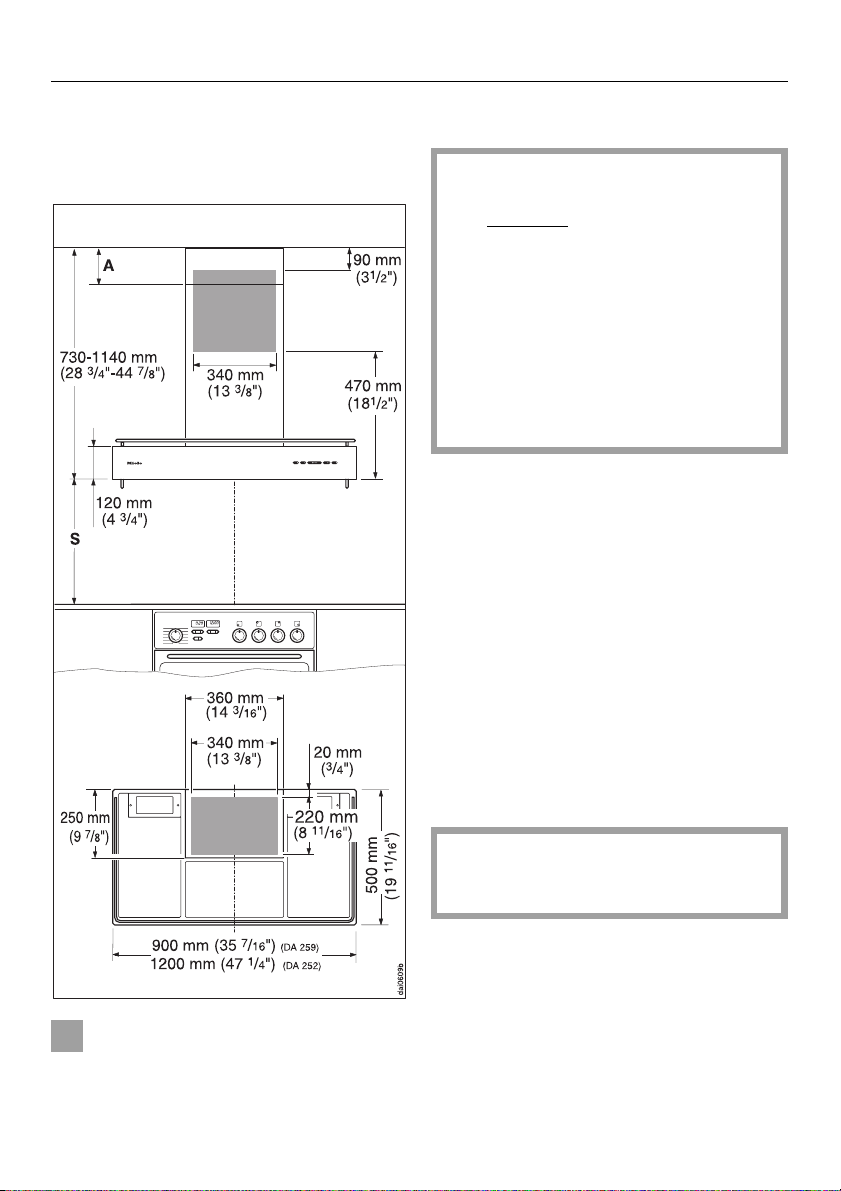

Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Electrical connection and Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Help protect our environment
Disposal of packing materials
The cardboard box and packing ma­terials protect the appliance during shipping. They have been designed to be biodegradable and recyclable. Please recycle.
Help protect our environment
Disposal of your old appliance
Old appliances contain materials that can be recycled. Please contact your local recycling center about the possi­bility of recycling these materials.
Before discarding an old appliance, unplug it from the outlet and cut off its power cord and remove any doors to prevent it from becoming a hazard.
3
Warning and Safety Instructions
Warning and Safety Instructions
Read these Operating Instructions carefully before installing or using the Ventilation System.
This appliance is intended for residential use only. Use the ap­pliance only for its’ intended pur­pose. The manufacturer can not be held responsible for damages caused by improper use of the hood.
Read all the instructions carefully before installing or using for the first time.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is designed to vent cooking smoke \ odors only.
Be certain your appliance is properly installed and grounded
by a qualified technician.
To guarantee the electrical safety
of this appliance, continuity must exist between the appliance and an effective grounding system. It is impera­tive that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufac­turer cannot be held responsible for damages caused by the lack, or inade­quacy of, an effective grounding system.
Do not connect the appliance to
the main electrical supply using an extension cord. Extension cords do not meet the safety requirements of this ap­pliance.
Do not turn on the hood until it has
been properly installed.
Repairs on electric appliances
should only be performed by quali­fied technician. Do not repair or re­place any part of the appliance unless specifically recommended in this ma­nual.
Before servicing, disconnect the
power supply by either removing the fuse or unplugging the unit or ma­nually “tripping” the circuit breaker.
When installing the hood, make
sure that the minimum safety distances between cooktops and the hood are maintained. – For electric cooktops: 18" (45 cm) – For gas cooktops: 26" (65 cm) – For a Miele Open grill: 26" (65 cm)
For non-Miele cooking appliances main­tain the safety distance as recom­mended by the manufacturer in their In­stallation and Operating instructions.
If more than one appliance is installed beneath the ventilation hood and they have different minimum safety dis­tances to the ventilation hood, select the higher distance.
Do not install this ventilation hood
over cooktops burning solid fuel.
4
Warning and Safety Instructions
WARNING To reduce the risk of fire, use only metal ductwork.
Any fittings, sealant, or materials used to install the ductwork must be made of approved non-flammable materials.
Never connect a ventilation hood
to an active chimney, dryer vent, vent flue, or room ventilating ductwork. Seek professional advice before con­necting a ventilation hood vent to an existing, inactive chimney or vent flue.
Never operate gas burners without
pots. Heat generated by pro­longed operation of gas burners with­out pots could damage the hood.
Do not flambé beneath the ventila-
tion hood. Flames could be drawn up into the hood by the suction or the grease filters may ignite.
Do not allow children to play with
the hood or its controls.
WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
Keep the fan, filters and all sur­faces clean.
Always turn hood "ON" when cook­ing at high heat.
Use high cooktop settings only when necessary. Heat oil slowly on
low to medium settings.
Dont leave range or cooktop unat­tended when cooking.
Always use cookware and utensils appropriate for the type and
amount of food being prepared.
Do not leave cooking surfaces un-
attended while in use. Overheated food can ignite.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could pene­trate electrical components and cause a short circuit.
5
Warning and Safety Instructions
WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLLOWING:
Smother flames with a close fit-
ting lid, cookie sheet, or metal tray, then turn off the burner.
Be careful to prevent burns.
If the flames do not go out immediately,
evacuate and call the fire department.
Never pick up a flaming pan -
You may be burned.
Do not use water, including wet
dishcloths or towels - a violent steam explosion will occur.
Use an extinguisher
only if:
– You know you have a Class ABC ex-
tinguisher, and you already know how to operate it.
– The fire is small and contained in the
area where it started.
The fire department is being called.You can fight the fire with your back
to an exit.
WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner in-
tended by the manufacturer. If you have questions, contact Miele (see back cover).
Before servicing or cleaning the
hood, disconnect it from the electri­cal supply by unplugging it from the outlet, removing the fuse or by “trip- ping the circuit breaker.
Installation and electrical work
must be performed by qualified technicians in accordance with all ap­plicable codes and standards.
Make sure that the airflow in the
room is sufficient for combustion and exhausting of all non-electric heat­ing appliances (water heaters, gas cooktops, gas ovens, etc.), otherwise back drafts may occur. Follow the heat­ing maunfacturers guidelines and safety standards or those published by the National Fire Protection Association (NFPA), or the American Society for Heating, Refrigeration and Air Condi­tioning Engineers (ASHRAE). If in doubt, consult an experienced pro­fessional.
Be careful not to damage hidden
electrical wiring or plumbing when cutting or drilling into the wall or ceiling.
Ducted fans must always be
vented outdoors.
6
Warning and Safety Instructions
When connecting the hood to an ex­ternal vent, make sure that there is adequate ventilation in the room where the ventilation hood is to be used.
When using the hood in the same area as other appliances requiring room air (e.g. non-electric water heaters, gas cooktops, gas ovens, etc.) make cer­tain that the air extracted by the hood does not hinder their operation. These appliances need air for combustion.
Adequate ventilation can be main­tained by installing air vents in windows or walls or by ensuring that the hood can only be turned on when the other appliances are off, or vice versa.
To prevent combustible gases being drawn back into the room by the hood, the underpressure in the room must be no greater than 0.0006 psi (0.04 mbar) when the hood and these appliances are running simultaneously.
Disposal of old appliances
Before discarding an old appliance, remove its power cord and any door to prevent it from becoming a hazard.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
Throughout the manual, important safety items will be highlighted in boxes and should be read in con­junction with these Warning and Safety instructions”.
If there are any doubts as to whether there is adequate ventilation, consult an experienced professional.
7
Guide to the appliance
Guide to the appliance
DA 259, DA 252
8
Guide to the appliance
Chimney extension
b
Chimney
c
d Canopy
e Grease filter
f Overhead cooktop lighting
DA 259: 3 Halogen lamps,
DA 252: 4 Halogen lamps
Indirect lighting
g
Glass shelves
h
Each holds up to 8 lbs.
Hood top storage surface
i
Max. weight on entire surface not to exceed 17 lbs.
j Controls
Main power switch
k
If the hood is not going to be used for an extended period (during vacation, etc.), turn the appliance off using the main power switch.
Light button
m
The lights can be turned on and off in­dependently of the fan.
On/Off button
n
Press this switch to turn the fan on or off.
– / + button
o
Four fan speed selection.
Delayed Shut Down
p
Pressing this button activates the De­layed Shut Down feature. The hood will then automatically shut off after 5 or 15 minutes.
Grease filter button
q
The indicator next to the grease filter button will light when the grease filters need to be cleaned.
This button is also used to program and monitor the Filter Operating Hours.
Indirect lighting button
l
9
Functional description
Functional description
The hood draws the air in through a grease filter and then directs it into the exhaust ductwork.
The hood comes with a non-return ex­haust valve that is placed inside the ductwork during the installation proce­dure. This valve automatically closes when the hood is turned off so that no exchange of outside air and room air can occur. When the hood is turned on, the air pressure of the exhaust fan auto­matically opens the valve, allowing the inside air and odors to be vented out­side.
10
Operation
Main power switch
Operation
Indirect lighting
In order for the hood to operate, the main power switch must be set to “I”. If the hood is turned off using this switch, the settings in use at that time will be active when it is turned back on.
Turning on the fan
Press the On/Off button.
Its corresponding indicator will illumi­nate, and the fan will operate at speed 2.
Turning on the lights
Cooktop illumination
The lights can be turned on and off in­dependently of the fan.
To turn on the indirect lights, press the switch to “I”.
The Indirect lighting can be turned on even if the Main power switch is shut off.
Selecting a fan setting.
Four fan speeds are available to suit the ventilation needs of your kitchen. A low or medium setting is usually suffi­cient for normal cooking. Higher set­tings are recommended for strong odors or heavy smoke.
If the hood is turned off using the Main power switch or after a power failure, it will operate at the last selected speed when it is turned back on.
Select the desired fan speed by pressing the – or + button.
Press the light button.
The indictor to the right of the button will be lit whenever the lights are turned on.
– lowers the fan speed + increases the fan speed
The left light indicates the lowest speed, while the right most light indi­cates that the highest speed has been selected.
11
Operation
Activating the Delayed Shut Down feature.
If odors or smoke remain in the kitchen after cooking has been completed, the Delayed Shut Down feature can be se­lected to allow the hood to continue run­ning for either 5 or 15 minutes.
Set the time interval as follows:
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
Press three times = Delayed Shut Down feature is cancelled.
Turning off the hood
Turn the fan off by pressing the On/Off button.
The hood should only be turned off using the Main Power switch if it will not be used for an extended period (during vacations for example).
Automatic Safety Shut off
The fan will be turned off automatically 10 hours after the last button was acti­vated. The halogen lamps however, will remain on.
Press the On/Off button to turn the fan back on.
12
Operation
Grease filter operating hours
An internal timer monitors the hours of fan operation and will light the indicator above the Grease filter button to notify you when the filters need cleaning.
Once the filters have been cleaned, the timer must be reset as follows:
Press and hold the Grease filter but­ton for 4 seconds.
The indicator will go out when the timer has been reset.
Checking the grease filter usage
The percentage of programmed opera­ting hours that the filter has been used can be displayed as follows:
Turn on the fan.
Press the Grease filter button.
The number of indicators flashing on the –/+ button shows the percentage of programmed hours that the filter has been used.
1 indicator = 25 % 2 indicator = 50 % 3 indicator = 75 % 4 indicator = 100 %
This value will remain stored in memory in the event of a power failure.
13
Operation
Programming the timer
The amount of operating time before a reminder to clean the filters is dis­played can be changed to suit individ­ual cooking habits. The timer is preset for 30 hours. Settings of 20, 30, 40 or 50 hours are possible.
If your cooking consists of frequent pan or deep fat frying, set the hood for 20 hours.
To change the setting:
Turn off the fan using the On/Off but­ton (not the Main Power switch).
Press the Delayed Shut Down and Grease Filter button simultaneously.
The grease filter indicator and one of the – /+ indicators will flash.
Select the desired reminder time by pressing the – or + button.
14
The lit indicator shows the selected re­minder time:
1st indicator = 20 hours 2nd indicator = 30 hours 3rd indicator= 40 hours 4th indicator = 50 hours
Store the selection by pressing the Grease Filter button.
If your selection is not stored within 4 minutes previous, the hood will go back to using the old setting.
Cleaning and care
Before servicing or cleaning the hood, disconnect it from the power supply by either removing the fuse, unplugging it, or manually “tripping” the circuit breaker.
Cleaning the casing
The casing can be cleaned using a mild solution of water and dishwashing detergent. Dry with a soft cloth.
Never use abrasive cleaners, scour­ing pads, steel wool or caustic (oven) cleaners to clean the hood.
will damage the surface.
They
A mild, non-abrasive stainless steel cleaner can also be used to clean the hood.
Cleaning and care
Grease filters
The reusable metal grease filters will absorb any grease, dust, or other solid particles that are pulled into them by the fan. The filters should be cleaned every 3–4 weeks, or whenever the grease filter in­dicator illuminates.
Continued operation with dirty grease filters is dangerous. They could ignite and cause personal in­jury and property damage.
To release the filters, press the lat­ches toward the middle of the filters.
Remove the filters.
15
Cleaning and care
To clean the grease filters:
By hand - use a scrub brush in hot water with a mild detergent.
In a dishwasher - place the grease fil­ters in the lower basket.
Depending on the detergent, clean­ing the grease filters in a dish­washer may cause permanent dis­coloration of the filter surface. Performance of the filter will be unaf­fected, however.
After cleaning, the filters can be dried by placing them on a towel.
While the filters are removed, clean any dirt or grease from the filter cas­ing to prevent the risk of fire.
Before replacing the filters, make sure that the latches are facing down. If you inadvertently install a fil­ter upside down, insert a small screwdriver into the slit along its edge to disengage it from the cas­ing.
Once the filters have been replaced, reset the timer by pressing and hold­ing the Grease filter button until the indicator light goes out.
16
Cleaning and care
Changing the lamps
Before changing the lamps, discon­nect the hood from the power sup­ply by either removing the fuse, un­plugging it, or manually “tripping” the circuit breaker.
Cooktop illumination
When in use the halogen bulbs become extremely hot, and they can burn your hands. Do not at­tempt to change the bulbs until they have had sufficient time to cool down.
Do not touch the bulb surface when changing the bulb. Fingerprints or body oils deposited on the bulb will decrease the life of the bulb. Please follow the bulb manufacturer’s in- structions.
Reinstall the glass lens.
Never use the lights without the glass installed. The glass is spe­cially made to filter harmful light rays.
Indirect lighting
Remove the two screws holding down the lamp cover.
To change the bulb, first pull off the glass lens
Pull the old bulb, c,out of its socket and replace it with a new one.
b
.
Carefully raise the front of the lamp, then pull it out of its socket.
Insert the new lamp into the socket, then lower it into its holder.
Replace the lamp cover and its two screws.
17
After Sales Service
After Sales Service
In the event of a problem which you can not remedy yourself, please con­tact:
– Your Miele dealer or
– The Miele Technical Service Depart-
ment, (see address on back page).
When contacting the Technical Service Department, please quote the model and serial number of your appliance, both of which are shown on the data plate, visible when the grease filters are removed.
18
Installation Instructions
Appliance dimensions
Installation Instructions
Installation
DA 259, DA 252
Do not install this hood over any ap­pliance that burns solid fuel.
minimum distance allowed be-
The tween the top of the cooking sur­face and the bottom of the hood (S) is: 18 inches (45 cm) when installed above an electric cooktop or; 26 inches (65 cm) when installed above a gas cooktop or; 26 inches (65 cm) when installed above a Miele Open grill.
26 inches (65 cm) is recommended for all installations in order to allow more work space under the hood.
See Warning and Safety instructions for further information.
See enclosed installation sheet for in­structions on how to install this ap­pliance.
Before proceeding with the installation it is important to read the information given on the following pages as well as the Warning and safety instructions at the beginning of this book.
= Cut out area in wall or ceiling for entrance of 6" (150 mm) ductwork.
Please read these installation in­structions completely before at­tempting to install the hood.
19
Installation Instructions
The majority of the weight of the in­stalled Ventilation System will be supported by the canopy. Its mount­ing bracket must be firmly attached to the stud framing
behind the dry­wall. If studs are not located in the required locations, a plywood back-
1
ing (min. ning at least two studs
/2 (13mm) thick) span-
must be in­stalled. Failure to adequately support the weight as stated may re­sult in the Ventilation System falling off the wall, thereby causing per­sonal injury and property damage.
Example:
To install a plywood backing board
Find the studs to the left and right of the mounting location by tapping the wall or using a stud finder.
Mark the center of each of the studs with a vertical line.
Be careful not to damage any wiring or plumbing that may be located be­hind the wall. Make sure that the power supply to the area being worked in has been turned off at the breaker panel before cutting into the wall.
Cut out the drywall along the marked lines and replace it with plywood of a
1
matching thickness (min.
/2 (13mm) thick). Tape the joints and refinish the wall.
See enclosed installation sheet for in­structions on how to install the ap­pliance.
Determine and mark the location of the retaining plate for the canopy as outlined on the Installation sheet.
Make a cutting line 3 (76 mm) above and 3 (76 mm) below the out­line of the retaining plate.
20
Air extraction
Air extraction
Danger of toxic fumes.
Gas cooking appliances release carbon monoxide that can be harm­ful or fatal if inhaled. The exhaust gases extracted by the hood should be vented outside of the building Do not terminate the exhaust ducts in attics, garages, crawlspaces, etc.
Please read and follow the "Warning and Safety Instructions“ to reduce the risk of personal injury, and follow all local building codes when installing the hood.
Exhaust ducting and connections
– The ducting should be as short and
straight as possible, and the number of sharp bends should be minimized.
– For most efficient air extraction, the
diameter of the ductwork should not be less than 6" (150 mm). Use of flat ducts also reduces the air extraction efficiency.
only.
– Use smooth or flexible pipes made
from non-flammable materials for ex­haust ducting.
– Where the ductwork is horizontal, it
must slope away from the hood at least 1/8" per foot (1cm per meter) to prevent condensation dripping into the appliance.
– If the exhaust is ducted through an
outside wall, a Miele Telescopic Wall Vent can be used.
– Noise levels of the hood will increase
if flat ducts or round ducts of less than 6" (150 mm) in diameter are used.
WARNING To reduce the risk of fire, Use only metal ductwork.
CAUTION To reduce risk of fire and to properly exhaust air, be sure to duct air out­side - Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
– If the exhaust is ducted into an inac-
tive flue, the air must be expelled parallel to the flow direction of the flue.
21
Air extraction
Never connect an exhaust hood to an active chimney, dryer vent, vent flue, or room venting ductwork. Seek professional advice before connecting an exhaust hood vent to an existing, inactive chimney or vent flue.
Ductwork with a diameter of less than 6" (150 mm) should only be used when absolutely necessary. As duct diameter decreases, the hoods performance and sound le­vels will be affected.
Note:
If the ductwork runs through rooms, ceilings, garages, etc. where tempera­ture variations exist, it may need to be insulated to reduce condensation. In some cases, a condensate trap may also be required.
22
Electrical connection and Technical data
Electrical connection and Technical data
Electrical Connection
All electrical work should only be per­formed by a qualified electrician in ac­cordance with national and local safety regulations.
The hood comes equipped with a 1,5 m (5 ft) power cord for connection to a 120 VAC, 60 Hz, 15 A power outlet.
Verify that the information on the data plate (located behind the grease filters) matches your electrical supply before installing the hood.
Technical data
Maximum load
DA 259 . . . . . . . . . . . . . . . . . . . . 436 W
DA 252 . . . . . . . . . . . . . . . . . . . . 456 W
Cooktop illumination
DA 259 . . . . . . . . . . . . . . . . . . 3 x 20 W
DA 252 . . . . . . . . . . . . . . . . . . 4 x 20 W
Indirect lighting
DA 259, DA 252 . . . . . . . . . . . 2 x 13 W
Voltage . . . . . . . . . . . . . . . . . . 120 VAC
Frequency . . . . . . . . . . . . . . . . . . 60 Hz
Important
CAUTION: Ensure that power supply is OFF during installation.
If there are any questions on how to connect this hood to your power supply, please call Miele or consult a licensed electrician.
WARNING THIS APPLIANCE MUST BE GROUNDED
Fuse rating . . . . . . . . . . . . . . . . . . 15 A
Fan
Values derived using 6" (150 mm) ducting and EN 61591 test procedures.
Settings 1 – 3. . . . . . . . . 210 – 430 cfm
(360 – 730 m
Setting 4 . . . . . . . . . . . . . . . . . 495 cfm
(840 m
unrestricted flow . . . . . . . . . . . 560 cfm
(950 m
3
/h)
3
/h)
3
/h)
23
Alteration rights reserved / 44 / 001 USA/CDN - 1100
This paper is made from cellulose which was bleached without the use of chlorine.
Loading...
