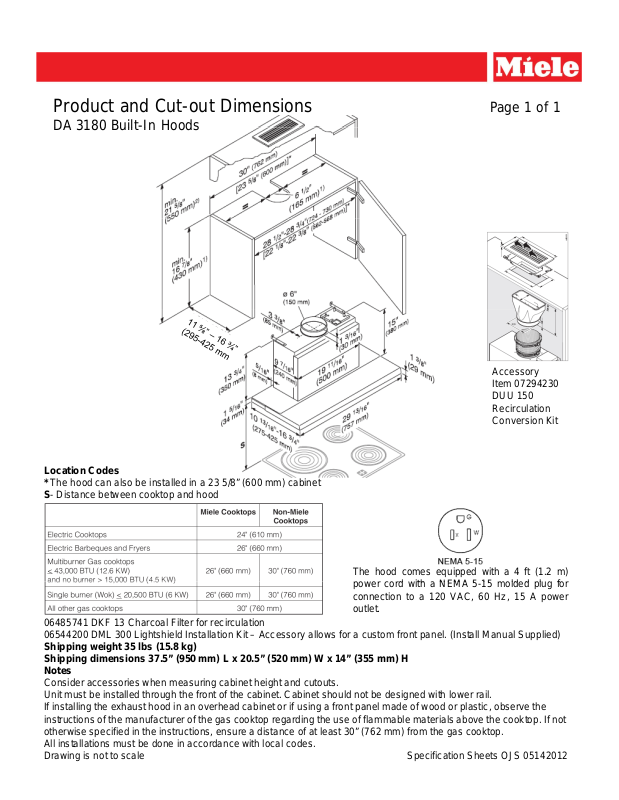

Product and Cut-out Dimensions Page 1 o f 1

DA 3180 Built

In Hoods

ithaNEMA

5-15molded

Notes

-

Accessory
Item 07294230
DUU 150
Recirculation
Conversion Kit

Location Codes
* The hood can also be installed in a 23 5/8” (600 mm) cabinet
S- Distance between cooktop and hood

The hood comes equipped witha4ft(1.2m)
power cordw
connection to a 120 VAC, 60 Hz, 15 A power
outlet.

06485741 DKF 13 Charcoal Filter for recirculation
06544200 DML 300 Lightshield Installation Kit – Accessory allows for a custom front panel. (Install Manual Supplied)

Shipping weight 35 lbs (15.8 kg)
Shipping dimensions 37.5” (950 mm) L x 20.5” (520 mm) W x 14” (355 mm) H

Consider accessories when measuring cabinet height and cutou ts.
Unit must be installed through the front of the cabinet. Cabinet should not be designed with lower rail.
If installing the exhaust hood in an overhead cabinet or if using a front panel made of wood or plastic, observe the
instructions of the manufacturer of the gas cooktop regarding the use of flammable materials above the cooktop. If not
otherwise specified in the instructions, ensure a distance of at least 30” (762 mm) from the gas cooktop.
All installations must be done in accordance with local codes.
Drawing is not to scale Specification Sheets OJS 05142012
