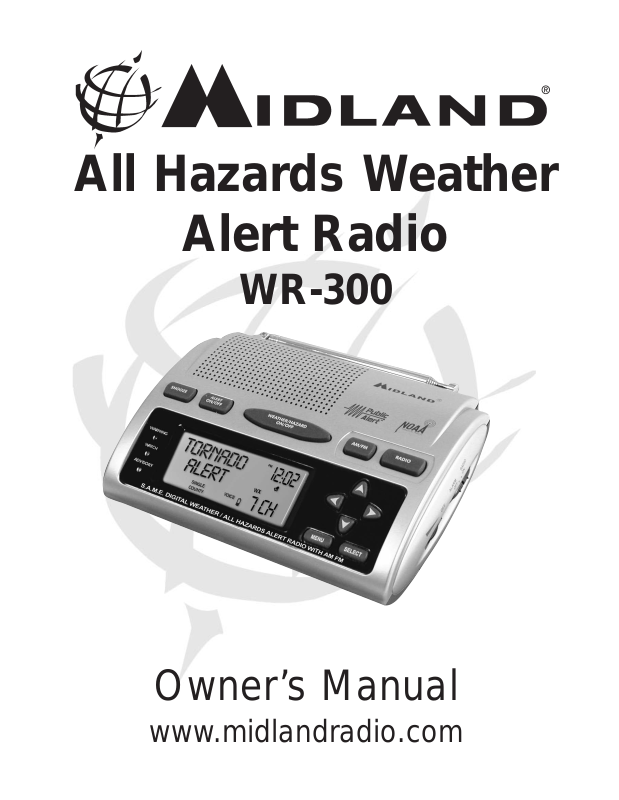

All Hazards Weather

Alert Radio

WR-300

Owner’s Manual

www.midlandradio.com

WR-300 Owner’s Manual

Quick Start Instructions:

Please see pg. 5 for important buttons and controls.

1. Place 4 AAbatteries (not supplied) into the compartment on the underside of the radio. (Note:batteries are important because they provide emrgency power for the radio in case of

a power outage.)

2. Plug the AC adapter into a standard house outlet. Plug the other end of the adapter into the

DC jack on the back of the radio.

3. Pull out the antenna and extend to its full length above the weather radio.

4. Program the Weather Channel for Your Area-

(A). Turn the radio on with power/volume wheel on side of the radio (Ensure the volume is up so you will be able to hear the broadcast). (B). Press the “MENU” button. (C). Press the “UP” (or “DOWN”) arrow until “WEATHER CHANNEL” is displayed on the

LCD. (D). Press the “SELECT” button. (E). Press the “UP” arrow to manually scroll through the weather channels

until you hear the weather broadcast. (F). Press the “SELECT” button to save this channel. (G). Press the “MENU” button to exit programming mode.

5. Press the “WEATHER/HAZARD ON/OFF” button to listen to the weather radio. Then use the power/volume wheel to adjust the volume to a desired listening level.

You are now able to receive weather alerts for your area and surrounding areas. To narrow the alerts to just your county, see pg. 8 to program the S.A.M.E. code for your county into the radio.

eather Channel Frequencies:

WWeather Channel Frequencies:

Channels Preset on the

Weather Radio

1 162.400 2 162.425

3 162.450

4 162.475 5 162.500 6 162.525 7 162.550

o get the S.A.M.E. code for your area, call

TTo get the S.A.M.E. code for your area, call

Broadcast Frequency

(MHz)

1-888-697-7263 or visit

www

. nws.noaa.gov/nwr/indexnw

.htm

Page 2 www.midlandradio.com

WR-300 Owner’s Manual

Table of Contents

Quick Start Guide Table of Contents Product Information WR-300 Controls Icons on the Display WR-300 Accessory Jacks Set the Time Set the Date Set the ALARM Time Choosing an Alarm Type Programming Notes Getting your S.A.M.E. County Codes Programming S.A.M.E. County Codes Helpful Tip All S.A.M.E. County Code A Single S.A.M.E. County Code Multiple S.A.M.E. County Code Reviewing Stored S.A.M.E. Codes Choosing an Alert Type(Voice or Siren) To Turn the Alert ON and OFF Setting the Alert Volume Selectable Testing the Alert Reviewing the Alert Test Signals Broadcast by NWS No Reception Warning AM/FM Radio Turning the AM/FM Radio On Changing the AM/FM Memory Channels Troubleshooting Reception About NOAA,NWS,&S.A.M.E.County Codes S.A.M.E. County Code Record Specification FCC Compliance Specification Warranty Info Service Other Midland Products

Alert Option

AM/FM Stations

2 3 4 5 5 5 6 6 6 6 7 7 8 8 8 8 8 9 9 9 9 9 10 10 10 10 11 11 11 11 12 13 14 15 16 16 17 18 19

Page 3 www.midlandradio.com

WR-300 Owner’s Manual

Product Information:

Thank you for choosing Midland! Your new WR-300 weather radio is the latest in weather and hazard alert monitoring technology, providing you with the information needed to keep you safe. Your WR-300 weather radio has a special receiver that tunes to the 24/7 broadcast issued by the National Weather Service. The combined All Hazards/Weather Alert broadcast network is the single, most immediate source for comprehensive weather and emergency information available to the public.

This WR-300 weather radio has an innovative automatic alert system. In the event of a special warning broadcast, the radio is automatically activated along with a loud tone, a flashing LED indicator and an “alert” message on the LCD. Emergency weather bulletins include alerts about: tornadoes, hurricanes, floods, ice/snow storms and other severe weather. Other emergencies might include: Amber alert, hazardous explosions, fires, chemical spills and other civil emergencies.

In addition, this WR-300 weather radio has the “S.A.M.E. Digital Weather/Hazard Alert” feature, providing you with constant monitoring of your localized NWS broadcast. The S.A.M.E. decoding receiver allows you to hear only messages for the area(s) concerning you. You now have a choice as to what information will be brought to you.

We encourage you to read this owner’s manual thoroughly before operating this radio. This manual is a valuable part of your new weather radio. See the “Quick Start Instructions” section of this manual for the initial weather radio setup and programming. After your new weather radio is programmed and operating properly, store the manual in a safe place for future reference.

Page 4 www.midlandradio.com

WR-300 Owner’s Manual

WR-300 Controls:

Snooze

Alert

On/OFF

Weather/ Hazard

On/OFF Button

AM/FM Button

Radio Button

Warning Light-

Red

Watch Light-

Orange

Advisory

Light- Yellow

ICONS on the Display

Alphanumeric Message

County Code

Indicator

Alarm Clock

On/Off Switch

Programming

(Arrow)

Buttons

Power On/Off

and Volume

Select Button

Menu Button

Time Indicator

Clock Alarm

Weather Channel Indicator

LCD Bac

klighting

Alert Type Indicator

Low Battery indicator

Press and release any button to turn the backlight on for 5 seconds. For continuous backlight, press the “MENU” button, then the press the “DOWN” arrow until “LIGHT” displays on the screen. Then press the “SELECT” button. Then press the “UP” arrow to change the backlight setting from “NORMAL” to “CONTINUOUS”. Press the “SELECT” button to save your settings.

WR-300

Accessory Jacks

DC Jack

Programming

Cable Port

External

Alert Jack

External Antenna

Connector

Earphone

Jack

Page 5 www.midlandradio.com

WR-300 Owner’s Manual

Setting the

Set the Time:

(A). Turn on the weather radio with power/volume wheel on side of the radio. (B). Press the “MENU” button. (C). Press the “DOWN” arrow button until “SET UP TIME” is displayed. (D). Press the “SELECT” button, hour setting will begin to flash. (E). Press the “UP” button to adjust the hour setting. (Note: the am/ pm setting cannot be

manually changed; it changes automatically as you scroll through the hours.) (F). Press the “RIGHT” arrow to adjust minutes and save your hour setting. (G). Press the “UP” button to adjust the minute setting. (H). Press the “SELECT” button to store the time setting. (I). Press the “MENU” button to return to the main menu.

Set the DATE:

(A). Turn on the weather radio with power/volume wheel on side of the radio. (B). Press the “MENU” button. (C). Press the “DOWN” arrow until “SET UP DATE” is displayed. (D). Press the “SELECT” button. (E). Press the “UP” arrow to adjust the day. (F). Press the “RIGHT” arrow to select the month. (G). Press the “UP” arrow to adjust the month. (H). Press the “RIGHT” arrow to select the year. (I). Press the “UP” arrow to adjust the Year. (J). Press the “SELECT” button to store DAY/MONTH/YEAR. K). Press the “MENU” button to return to the main menu.

Set the ALARM Time (for the AM/FM Clock Radio)

(A). Turn on the weather radio with power/volume wheel on side of the radio. (B). Press the “MENU” button. (C). Press the “DOWN” arrow until “SET UP ALARM” is displayed . (D). Press the “SELECT” button. The alarm hour setting will begin to flash. (E). Press the “UP” arrow to adjust the alarm hour setting. (Note: the AM/ PM setting

cannot be manually changed; it changes automatically as you scroll through the hours.) (F). Press the “RIGHT” arrow to choose setting alarm minutes. (G). Press the “UP” arrow to adjust the alarm minute setting.

AM /FM Clock Radio Functions:

To Choose the Type of Alarm:

(A). Press the “MENU” button.

(B). Use the “UP” arrow to choose radio or sound for clock alarm. (The icons are

located below the clock display.) (C). Press the “SELECT” button to store the type of alarm setting. (D). To activate the alarm, set the “ALARM OFF/ON” switch to the “ON” position.

The clock face icon will appear.

(E). The “SNOOZE” button on the top of the WR-300 is for advancing the alarm time

by 9 minutes each time the alarm sounds. The “SNZ” icon will be displayed. (F). Turn the alarm off with the ”ALARM OFF/ON” switch on side of the radio. (G). Press the “UP” arrow to adjust the alarm minute setting.

Page 6 www.midlandradio.com

WR-300 Owner’s Manual

Programming Notes:

*Your WR-300 can be programmed with up to 23 different S.A.M.E. codes for your county and

the surrounding counties of your choice. This ensures you receive alerts for only those counties concerning you. * Please note: Embedded in an alert message is the amount of time for which the alert is active. The WR-300 will continue to display the alert until the expiration time. Ex: END 12-55P indicates the event ends at 12:55 PM.

Getting your S.A.M.E. County Codes:

Getting your S.A.M.E. County Codes

A. First, determine the counties you are interested in. Then, do one of the following

three steps to get the codes:

1. The National Weather Service Toll-Free Number provides S.A.M.E. County Codes at:1-888-NWS-S.A.M.E. (1-888-697-7263)

This is what to expect when you call the NWS number. When you call the NWS toll-free number, automated instructions will guide you to the S.A.M.E. County Code(s) you need. The number will be six digits long.

•You will hear “Welcome to the National Weather Service. You have reached

the Specific Area Message Encoding Program Service.”

• If you select “touch tone” to make your entries, you will be prompted to enter

the name of your state using the telphone keypad.

• Next you will be prompted to enter your county name.

• Then you will hear, “Your geographic code is XXXXXX”. (This is your S.A.M.E. County Code.

2. The Internet Web Site of National Weather Servicewww.nws.noaa.gov/nwr/indexnw.htm

When you pull up this URL, you will see a list of states .

• Click on your state.

• Find your county, and record the S.A.M.E. number listed next to your county.

3. Go to the Midland Radio Corporation website at www.midlandradio.com

• Click on the weather radio link at the top of the page.

• At the top of the weather radio page will be a link to the NWS list of states and corresponding county codes. Click on this link.

• Click on your state and a list of counties and codes will be listed. Find your county and then find your code.

Page 7 www.midlandradio.com

WR-300 Owner’s Manual

Programming S.A.M.E. County Codes into the WR-300

Helpful Tip: The S.A.M.E. code is created using the following method:

• The first digit is the subcounty code-currently 0 in most areas.

• The second two digits represent the state code.

• The last three digits represent the county code.

“ALL” S.A.M.E. County Codes is the Factory Setting:

Your WR-300 weather radio is preprogrammed to receive NWS weather and hazard alert transmissions for all S.A.M.E. county codes within range. If this is what you want, leave the radio set to “ALL”.

A Single S.A.M.E. County Code:

• Press the “MENU” button to open menu options.

• Press the “UP” arrow to scroll through menu options until “County Code” is displayed.

• Press the “SELECT” button and then the “UP” arrow to scroll through ”SINGLE”, “MULTIPLE” or “ALL”.

• Display “SINGLE”, then press the “SELECT” button.

• “Code 01” will be displayed. Press the “SELECT” button to program this code. The first digit space will start blinking.

• Use the “UP” arrow to scroll through the digits 0-9. Input the first digit then press the “RIGHT” arrow to save that selection and move to the next digit.

• Continue programming all 6 digits in this way. When finished, press the “SELECT” button and your entered code will be saved.

Multiple S.A.M.E. County Codes:

• Press the “MENU” button to open menu options.

• Press the “UP” arrow to scroll through menu options until “County Code” is displayed.

• Press the “SELECT” button and then the “UP” arrow to scroll through “SINGLE”, “MULTIPLE” or “ALL”.

• Display “MULTIPLE”, then press “SELECT”.

• Use the “UP” arrow to scroll through code locations 1-23. You are able to program up to 23 different county codes into your WR-300 weather radio.

• Display the location you want then press the “SELECT” button. The first digit space will start blinking.

• Use the “UP” arrow to scroll through the digits 0-9. Input the first digit then press the “RIGHT” arrow to save that selection and move to the next digit.

• Continue programming all 6 digits in this way. When finished, press the “SELECT” button

and your entered code will be saved.

• To program your next code, press the “UP” arrow to go to the next code location.

• When you have entered all your desired codes, press the “MENU” button to store your settings.

Page 8 www.midlandradio.com

WR-300 Owner’s Manual

Reviewing Stored S.A.M.E. Codes

To review your saved S.A.M.E. codes, do the following:

• Press the “MENU” button.

• Press the “UP” arrow until “COUNTY CODE” is displayed on the screen.

• Press “SELECT”

• Use the “UP” arrow to scroll through the S.A.M.E. memory code locations.

• All empty memory locations will appear as “------”.

• Press the “MENU” button when finished reviewing the S.A.M.E. codes.

Choosing an

1. Press the “MENU” button to open menu options.

2. Press the “UP” arrow until Alert Mode is displayed on the screen. Press the “SELECT” button and “VOICE” will start blinking.

3. If you want the voice alert, press the “SELECT” button.

4. If “VOICE” is chosen, the alert would sound for 8 seconds followed by 5 minutes of weather broadcast.

5. If you want the siren alert, press the “UP” arrow until “SIREN” is displayed, then press the “SELECT” button to save your setting.

6. If “SIREN” is chosen, alert tones will sound for 5 minutes or until the “ALERT ON/OFF” button is pressed.

o T

TTo T

Setting the

urn the

To turn the alert on and off, press and hold the “ALERT ON/OFF” button for 5 seconds until you see “ALERT ON” blinking. While still holding down the button, press the “UP” arrow to switch between “ALERT ON” and “ALERT OFF”. Press the “SELECT” button to save your selection.

• To set the alert volume, press the “MENU” button.

• Press the “UP” arrow until “SIREN LEVEL” is displayed.

• Press the “SELECT” button and “LEVEL HIGH” or “LEVEL LO” will start blinking.

• Then press the “UP” arrow to choose “LEVEL HI” or “LEVEL LO” volume.

• Press the “SELECT” button to save your setting.

Alert T

Alert ON and OFF:

Alert V

ype (V

olume:

oice or Siren):

Selectable

You can program the WR-300 weather radio to only sound the voice or siren alert for certain weather emergency messages. Those messages unimportant to you can be programmed to only display a message, minimizing annoyance. To program the emergeny messages you want to silence, do the following:

• Press the “MENU” button until “DEFEAT SIREN” is displayed. Press the “SELECT”button.

• Using the “UP” arrow, scroll through the dif

• When you have selected one, press the “RIGHT” arrow to change the status of the event from “ALERT ENABLE” to “ALER

• Press the “MENU” button to save your selection and exit the programming option.

Alert Option:

ferent alerts you may want to silence.

T DISABLE”.

Page 9 www.midlandradio.com

WR-300 Owner’s Manual

esting the

TTesting the

To test the alert function to ensure it is working, press the “MENU” button, then press the “UP” arrow until “SIREN TEST” is displayed. Press the “SELECT” button to sound the alert siren. Press the “SELECT” button again to silence the alarm.

Reviewing

The WR-300 weather radio can store 10 different alerts (with overlapping effective times) in its memory. If the radio receives a new alert while a previous alert is still in effect, it automatically displays the new alert description. To review past alerts that are still in effect, press the “DOWN” arrow to scroll through the last 10 alerts. If an alert is expired, it will be marked “EXP”.

est Signals Broadcast by NWS:

TTest Signals Broadcast by NWS:

All National Weather Service stations periodically transmit test signals. You can find out when your local NWS station broadcasts test signals by calling the NOAA National W Forecast Office (listed under “Weather” in the Federal Government section of the telephone book.)

During the weekly test signal, the local NWS station will give a list of counties covered by their transmitter. The NWS test signal allows everyone with weather radio receivers to verify the operation of their equipment.

Alert:

Alerts:

eather Service

The following test signals may be sent by the NWS during testing:

required monthly test, system demo, and national periodic test.

No Reception W

If no alerts are received for 10 days, the display will flash “CHECK RECEPTION” every 30 seconds. If this happens, check your channel settings and county codes for setting errors. If you receive a clear signal from the NWS, try using the “ALL” county code setting to receive all alerts for all counties.

Note: If you have trouble finding reception, please move your radio closer to a window and away from flourescent lighting.

arning:

required weekly test,

Page 10 www.midlandradio.com

WR-300 Owner’s Manual

AM/FM Radio:

There is an AM/FM radio built into the WR-300 weather radio that you can listen to without interrupting the weather radio functions. If an alert is received, the radio automatically switches from the AM/FM radio to the weather radio alert.

Turning the AM/FM Radio On: Press the “RADIO” button to turn the AM/FM radio on and

off.

Changing AM/FM Stations: Press the “RIGHT” arrow or “LEFT” arrow to scan through the

radio stations. When you find a station you like, stop pressing the arrow and the radio will stay on that station.

AM/FM Memory Channels: You can program 3 AM and 3 FM radio stations into the radio’s

memory. To program a memory channel, do the following:

• Turn the AM/FM radio on and use the “LEFT” or “RIGHT” arrow to tune to the desired station.

• Press the “MENU” button. The “MEMORY” number will flash on the display.

• Use the “UP” or “DOWN” arrow to choose the desired memory channel you wish to program.

• Press the “SELECT” button to save your frequency selection to the chosen memory channel.

Page 11

www.midlandradio.com

WR-300 Owner’s Manual

roubleshooting:

TTroubleshooting:

Problem

No power

No sound

No weather broadcast when you press WEATHER/ SNOOZE button

Suggestion

Make sure the AC Power Adapter is securely plugged into both DC jack on back of weather radio and into wall outlet. Make sure batteries are installed in case AC power fails.

Check VOLUME control to ensure volume is turned up to an audible level.

Ensure that telescoping antenna is up and fully extended.

If you are using an external antenna, ensure that it is connected properly.

Ensure that the radio is set to the NWS weather channel in use in your area.

Contact NWS to ensure they are presently broadcasting.

If in a metal structure, make sure you are close to a window.

If in a weak signal area, you will need an external antenna.

Check to see that you have programmed in

The radio is not responding properly to NWS weather alert broadcasts

the correct S.A.M.E. County Code(s). Check with the NWS that the tower is

broadcasting.

Page 12 www.midlandradio.com

WR-300 Owner’s Manual

Reception:

The National Weather Service operates a system of weather and hazard alert broadcasts covering a large area of the United States. Currently, only a few areas are not covered. Typical broadcasts are within reception distance of 25-50 miles of the weather station. Your WR-300 weather radio can receive broadcasts from up to 50 miles from the weather station, depending on your location and conditions of weather, terrain, etc. If you find reception is not good in your area, try different locations in your home or office to find a spot of improved reception. Placement near a window usually improves reception.

If a weather broadcast cannot be heard on any of the 7 channels, contact your local NWS office and verify the closest station is on air. Also verify the channel frequencies the station is broadcasting. you may need an external antenna. Please visit our website at www.midlandradio.com to view our suggested antenna, the 18-259W VHF Through-Glass Antenna. This antenna improves reception when applied to a window.

Please note: Metal structures are more difficult to receive reception in, because metal interferes with the signal. If you live in a metal structure, you may need an external antenna.

If your NWS is transmitting and you are not receiving the broadcasts,

Page 13 www.midlandradio.com

WR-300 Owner’s Manual

About NOAA, NWS, & S.A.M.E. County Codes

In 1994, NOAA began broadcasting coded emergency signals that identify the specific geographic area (such as the county within a state) that is affected by an emergency. Until that time, such specific emergency weather information was not available directly to the public. NOAA transmits the coded emergency signals using a technique called Specific Area Message Encoding (S.A.M.E.) The WR-300 weather radio is designed to receive these S.A.M.E. county code transmissions.

The National Weather service divides the United States by state and county (or parish) and assigns a six digit code number called a FIPS (Federal Information Processing System) code, also known as a S.A.M.E. county code. You can program the weather radio with up to 23 S.A.M.E. county codes. The weather radio allows you to receive broadcast alerts for either your own county, or for up to 23 counties. This will eliminate any alerts that are not within your area of interest.

When you program your S.A.M.E. county code(s) into the WR-300 weather radio, you eliminate any alerts that are not within those counties. Warnings, watches and advisories of weather and other area emergencies, about 50 different types, will activate the weather radio for only your programmed specific area. The S.A.M.E. message the NWS sends contains information pertaining to the period for which the alert is valid. NWS can set the active time of the alert from 15 minutes up to 6 hours. When the designated time has passed, the weather radio display message and light will automatically reset to their normal appearance.

Page 14 www.midlandradio.com

WR-300 Owner’s Manual

S.A.M.E. County Code Record:

County Name S.A.M.E. County Code NWS Channel

Page 15 www.midlandradio.com

WR-300 Owner’s Manual

Specifications:

Specifications are nominal and subject to change.

General

requency Range

(162.40, 162.425, 162.45, 162.475, 162.50, 162.525,

162.55 MHz)

Number of WX Channels

Input Voltage

Dimensions

20 dB Quieting Sensitivity 0.5 uV

FIPS County code Sensitivity

Channel Selectivity

Speaker Impedance

Speaker Output at10%THD 200 mW max.

FCC Compliance Information:

at5kHz Dev

9-14 Volts DC

7.0x5.5x2.25

0.5uV

±25kHz, 60dB

8 ohms

MIDLAND (NOAA) Weather Radio Model WR-300, “S.A.M.E. Digital Weather/Hazard Alert Radio”. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received including interference that may cause undesired operation.

Page 16 www.midlandradio.com

WR-300 Owner’s Manual

One YY

One

ear Limited W

MIDLAND Radio Corporation will repair or replace, at its option without charge, your WR-300 weather radio which fails due to a defect in material or workmanship within one year following the initial consumer purchase.

This warranty does not include any antennas, which may be a part of or included with the warranted product, or the cost of labor for removal or re-installation of the product in a vehicle or other mounting.

Performance of any obligation under this warranty may be obtained by returning the warranted product, freight prepaid, along with a copy of the original sales receipt to Midland Radio Corporation at the address provided below.

This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state.

Note: The above warranty applies only to merchandise purchased in the United States of America or any of the territories or possessions thereof, or from a U.S. Military exchange.

For warranty coverage on merchandise purchased elsewhere, ask your dealer.

arranty:

Midland Radio Corporation

Warranty Service Department

5900 Parretta Drive

Kansas City, Missouri 64120

Phone: (816) 241-8500

Fax: (816) 241-5713 E-mail: mail@midlandradio.com Website:www.midlandradio.com

Page 17 www.midlandradio.com

WR-300 Owner’s Manual

Service:

If your MIDLAND Weather Radio fails to operate properly, check the “Troubleshooting” section in this manual before returning it for service. If necessary, return as follows:

1. Pack the unit in its original box and packing. Then pack the original box in a suitable shipping carton. Caution: Improper packing may result in damage during shipment.

2. Include the following: a. full description of any problems b. money order for $7.50 to cover shipping and handling (this may not be

required in some states)

c. daytime telephone number, name & address

3. For warranty service include a photocopy of the bill of sale from an authorized dealer or other proof of purchase showing the date of sale.

4. You do not need to return accessory items (AC/DC Adapter, batteries, Owners Guide) unless they might be directly related to the problem.

5. A flat rate of $45.00 will apply to repairs not covered by warranty or units

that are over one year old. Send only cashier’s check, money order or

Master Card or Visa card number.

Page 18 www.midlandradio.com

WR-300 Owner’s Manual

Come see Our Other Midland Products at www

.midlandradio.com

Page 19 www.midlandradio.com

Midland Radio WR-300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
