Midland ML801 Instruction Manual
1
Instruction Manual

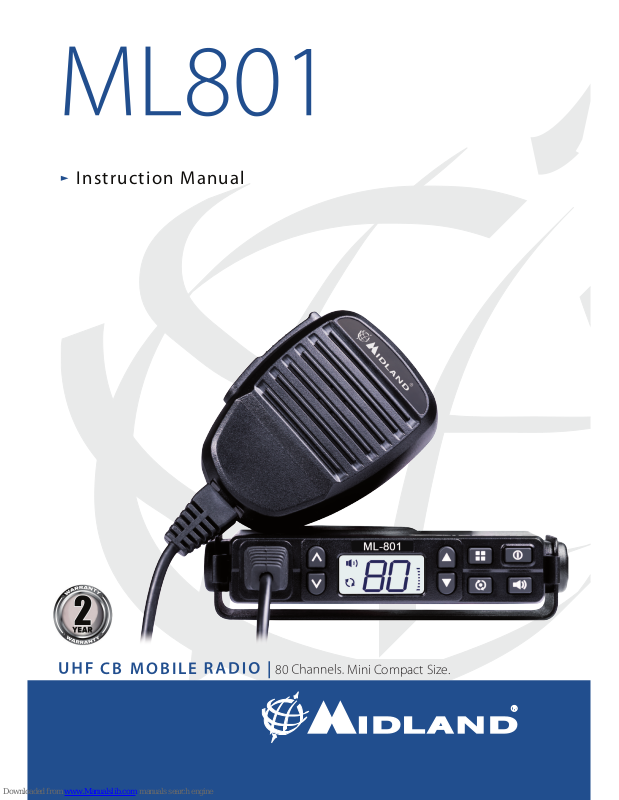

CB MOBILE | 80 Mini Compact Size.
2
CONTENTS
Specications.................................................................................................................................................02
Introduction.................................................................................................................................................. 03
What’s Included............................................................................................................................................ 04
Emergency/Telecommand Channels......................................................................................................... 04
Features.......................................................................................................................................................... 05
General Operation........................................................................................................................................ 06
Appendix: Frequency/CTCSS/DCS List.................................................................................................... 14
Warranty.........................................................................................................................................................16
SPECIFICATIONS
Output Power: 5 Watts
CB Channels - RX/TX: 80
CB Frequency Range: 476.425 ~ 477.4125MHz
Channel Width: 12.5kHz (narrowband)
Power Source (nominal): 13.8V
Max Absorption Current in TX: 1.3A
Microphone: MK801 w RJ45 Connector
Base Speaker Power: 2W Max
Digital Coded Squelch (DCS): 104
Interference Eliminator CTCSS: 50
Duplex Capability: Yes
Channel Memory Scan: Yes
LCD Display: Segment
Backlit LCD & Keypad: Light Blue (adjustable)
Flip LCD: Yes
External Speaker Jack: Yes
TX/RX Indicator: Yes
Scanning Receive Functions: Yes
Key Lock: Yes
Key Beep On/O: Yes
Auto Squelch: Yes
Dimensions (excl Bracket): 103W x 24H x 85D mm
Typical Range: 18km Line of Sight
Max Operating Temperature: 50° (Temperature test executed according to
the current law that allows a value up to 55°)
3
INTRODUCTION
ank you for purchasing this MIDLAND in-vehicle UHF Band CB radio.
Please read this manual carefully to understand its functions and operations.
e ML801 you purchased is an advanced UHF in-vehicle two way radio.
ML801 combines the very latest in electronic hardware with the most up-to date computer aided
design and manufacturing techniques to produce an extremely compact mobile radio with
outstanding specications and performance.
ML801 has front mounted controls and is designed for unobtrusive mounting in modern vehicles
with limited space. Its innovative features include a built-in loud-speaker housed within an extremely
compact case.
Note: e use of the Citizen Band radio service is licensed in Australia by
ACMA Radio Communications (Citizen Band Radio Stations) Class license and
in New Zealand by the Ministry of Economic Development New Zealand.
ank you for your support and interest in our products!
Maintenance service and support
e Company provides long-term support for its products. is support includes maintenance,
spare parts and warranty within the warranty period.
Aer the expiry of the warranty
e company provides technical services and spare parts to authorized radio dealers.
e ordering of replacement parts
When ordering replacement parts or equipment information, please specify the com-plete part code.
All parts include part number, components or chassis. If you do not know the part code,
please indicate the chassis or group that the part relates to.
Personal safety
For personal safety, please disconnect all power and RF cables before attempting any repair work.
All articles displaying this symbol on the body, packaging or instruction manual must not be
thrown away in normal waste bins but should be placed in recycling bins or taken to a specialised
waste disposal centre.
is symbol assures that a device complies with all applicable ACMA regulatory arrangements
for radiocommunication equipment used in Australian UHF citizen band radio service.
4
WHAT’S INCLUDED
Please carefully unpack the transceiver from the carton. Please check that all accessories are included.
SPARE PARTS UNITS QUANTITY
In-vehicle radio pc 1
Mounting bracket pc 1
Microphone pc 1
Microphone bracket pc 1
User manual pc 1
Power cable pc 1
Screws pc 1
Please contact the retailer if any parts are missing.
EMERGENCY CHANNEL
ACMA has pre-allocated channels 5/35. Channel 5 is only for emergency application. Channel 5
repeater access is available in most areas. Activate duplex on Channel 5.
Telecommand Channels
ACMA has reserved Channel 22 and Channel 23 as telecommand channels. Transmission is
prohibited on these channels. ML801 blocks transmission on these 2 channels. Channels 61, 62 and
63 are for future use and TX is inhibited on these channels.
5
FEATURES
Microprocessor Controlled Frequency Synthesiser
Allows user programmable control of scanning, channel memories and selected options.
Scanning Function
Quickly nds radio channels.
Individually Programmable DUPLEX Function
Selectable only for individual channels in areas that have a repeater. is leaves others free for use as
simplex channels.
High Contrast Liquid Crystal Display
Fully detailed LCD provides a visual indication of the selected channel and all selected functions.
Backlit for night viewing.
Flip Feature
Unit can be mounted with the speaker facing up or down and the display inverted. Use the simple
key-press sequence to allow viewing of the display in either mounting orientation. Symbols used
provide readability for most installations.
Compact Size
Fits into the smallest locations allowing installations in space challenged environments.
CTCSS & DCS
A built-in Continuous Tone Coded Squelch and Digital Coded Squelch System option provides quiet
channel operation.
Overvoltage Protection
Special overvoltage detection circuitry protects the radio and warns of excessive voltage conditions
by ashing the display.
Surface Mount Technology
e very latest surface-mount components, design, assembly techniques and quality control
procedures are used to ensure high performance and reliability.
