MXT115 Owner’s Manual
5
MXT115
XT11
Page 2
Model MXT115
Table of Contents....................................................................
WELCOME TO THE WORLD OF MIDLAND RADIO.......................................................
FEATURES.....................................................................................................................
FCC NOTICE...................................................................................................................
Exposure To Radio Frequency Energy............................................................................
INSTALLING YOUR RADIO.............................................................................................
Preparation for Installation.....................................................................................
Installing the Mounting Bracket..............................................................................
Installing the Antenna.............................................................................................
Electrical and Rear Panel Connections.................................................................
Connecting the Microphone...................................................................................
Using an External Speaker....................................................................................
CONTROLS AND INDICATORS......................................................................................

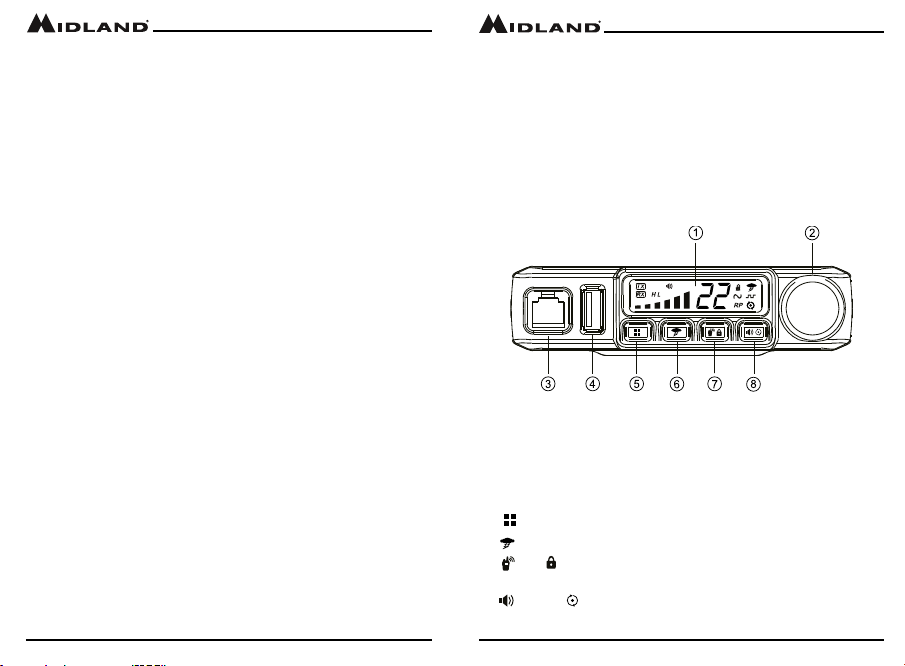

Operating Controls.................................................................................................
Microphone Controls..............................................................................................
Rear Panel Connections........................................................................................
LCD Display...........................................................................................................
OPERATING YOUR RADIO............................................................................................
About Range..........................................................................................................
Power On/O.........................................................................................................
Selecting the Active Channel.................................................................................
Adjusting the Volume.............................................................................................
Transmitting and Receiving a Call.........................................................................
UTILITY FUNCTIONS......................................................................................................
Locking the Keypad...............................................................................................
Using Monitor Mode..............................................................................................
Scanning for Active Channels................................................................................
NOAA Weather Radio/Scan..................................................................................
To Manually Set the Weather Channel..................................................................
To Enable Weather Alert........................................................................................
MENU MODE FUNCTIONS.............................................................................................
MXT115 Menu Mode Quick Reference Chart........................................................
Selecting a Privacy Code......................................................................................
Selecting the Transmit (TX) Power Level..............................................................
Adjusting Squelch Sensitivity.................................................................................
Roger Beep...........................................................................................................
Call Alert Tone.......................................................................................................
Silent Operation.....................................................................................................
Repeater Channels................................................................................................
Selecting the LCD Display Background Color.......................................................
RESTORING THE DEFAULT SETTINGS........................................................................
CARE AND MAINTENANCE............................................................................................
TROUBLESHOOTING GUIDE........................................................................................
Page 2
midlandusa.com
Model MXT115
2
SPECIFICATIONS........................................................................................................
3
3
4
4
5
5
6
7
8
8
9
9
9
10
10
11
12
12
13
13
13
13
14
14
15
16
16
17
17
18
18
18
20
20
21
22
22
23
23
24
25
25
GMRS Frequency Chart.....................................................................................
Wx Band Chart...................................................................................................
CTCSS Privacy Codes Frequency Chart...........................................................
DCS Privacy Codes Chart..................................................................................
LIMITED WARRANTY (United States and Canada)....................................................
WELCOME TO THE WORLD OF MIDLAND RADIO
Congratulations on your purchase of a high quality MIDLAND product.Your
MXT115 2-way radio represents state-of-the-art high tech engineering.
Designed for General Mobile radio Service (GMRS) operation, this
compact package is big on performance. It is a quality piece of electronic
equipment, skillfully constructed with the nest components. The circuitry
is all solid-state and mounted on a rugged printed circuit board. Your
MXT115 radio is designed for reliable and trouble-free performance for
years to come.
FEATURES
– 15 GMRS Channels
– 10 NOAA Weather Channels
– 8 Repeater Channels
– 142 Privacy Codes (38 CTCSS / 104 DCS)
– Monitor Function
– Keypad Lock
– Power Hi/Lo Settings
– External Speaker Jack
IMPORTANT!
Changes or modications to this unit not expressly approved by
MIDLAND RADIO CORPORATION could void your right to operate this
unit. Your radio is set up to transmit a regulated signal on an assigned
frequency. It is against the law to alter or adjust the settings inside the
COMMUNICATOR to exceed those limitations. Any adjustment to your
radio must be made by qualied technicians.
midlandusa.com
Page 3
26
26
26
27
27
30
Page 3
Model MXT115
Model MXT115
FCC NOTICE
The MXT115 operates on GMRS (General Mobile Radio Service)
frequencies, which require a Federal Communications Commission (FCC)
license. You must be licensed prior to operating on channels 1-7, 15-22
and repeater channels 15-22, which comprise the GMRS channels of
the MXT115. Serious penalties may result from unlicensed use of GMRS
channels, in violation of FCC rules, as stipulated in the Communications
Act’s Sections 501 and 502 (amended). You will be issued a call sign
by the FCC that should be used for station identication when operating
your radio on GMRS channels. You should also cooperate by engaging in
permissible transmissions only, avoiding channel interference with other
GMRS users, and being prudent with the length of your transmission time.
To obtain a license or ask questions about the license application, contact
the FCC at 1-888-CALL FCC or go to the FCC’s website:
http:// www.fcc.gov and request form 605.
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human
beings to radio frequency electromagnetic energy.
▪ United States Federal Communications Commission, Code of Federal Regula-
tions: 47 CFR part 2 sub-part J
▪ American National Standards Institute (ANSI)/Institute of Electrical & Electronics
Engineers (IEEE) C95. 1-1992
▪ Institute of Electrical and Electronics Engineers (IEEE) C95. 1-1999 Edition
▪ National Council on Radiation Protection and Measurements (NCRP) of the United
States, Report 86, 1986
▪ International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998
▪ To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the time.
The radio generates measurable RF energy exposure only when transmitting.
▪ The consumer must maintain a minimum safe separation distance of 26.37 inches
(67 cm) from the antenna when transmitting.
Page 4
midlandusa.com
INSTALLING YOUR RADIO
Preparation for Installation
This radio may be installed in any 12-volt negative ground system vehicle.
Most current U.S. and Foreign vehicles use a negative ground system,
but some older models and some newer large trucks may have a positive
ground. Check the specications for your vehicle before beginning
installation. Generally, you have a negative-ground system if the negative
(-) battery terminal is connected to the motor block. Contact your dealer if
you are unable to determine your vehicle’s polarity system.
1. Read these instructions completely before beginning installation
2. Read and follow all safety precautions in your vehicle’s Service Manual.
3. Make sure all necessary tools, materials, and parts are on hand.
4. Disconnect the negative (-) battery cable before installing your radio. Be
sure to reconnect the cable when installation is complete.

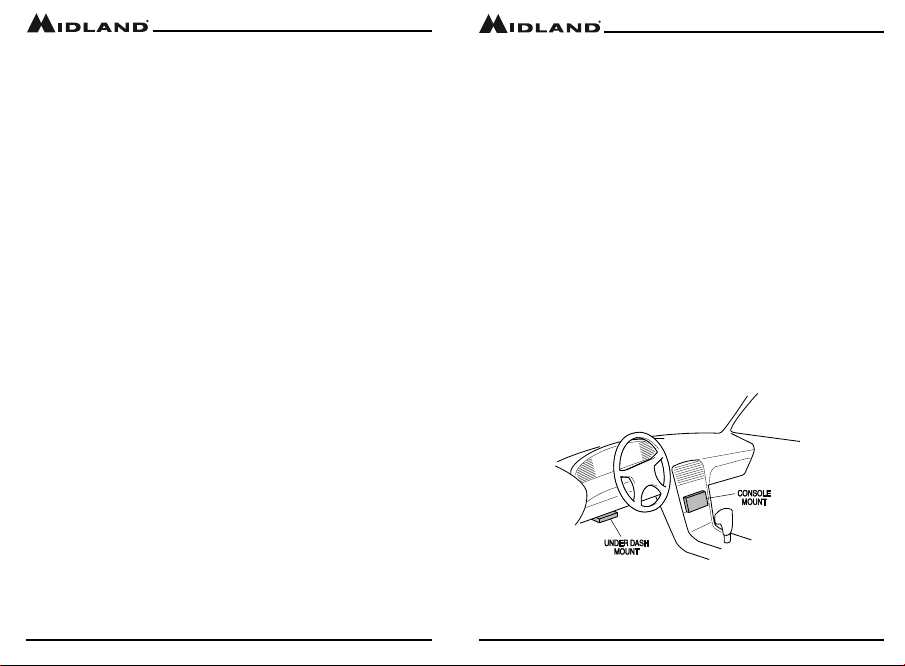

5. Determine a mounting location for your radio. The MXT115 is designed
to be installed under the dash or vertically on the center console. Choose
a location that does not impair visibility or interfere with driving. Also take
into consideration the routing and length of the lead wires and cables to
the power source, antenna, and/or optional external speaker.
CAUTION: Extreme care should be exercised when drilling into
the dash to avoid damage to under dash electronic ignition,
cruise control, instrument and/or accessory wiring.
midlandusa.com
Page 5
Page 4
Model MXT115
Model MXT115

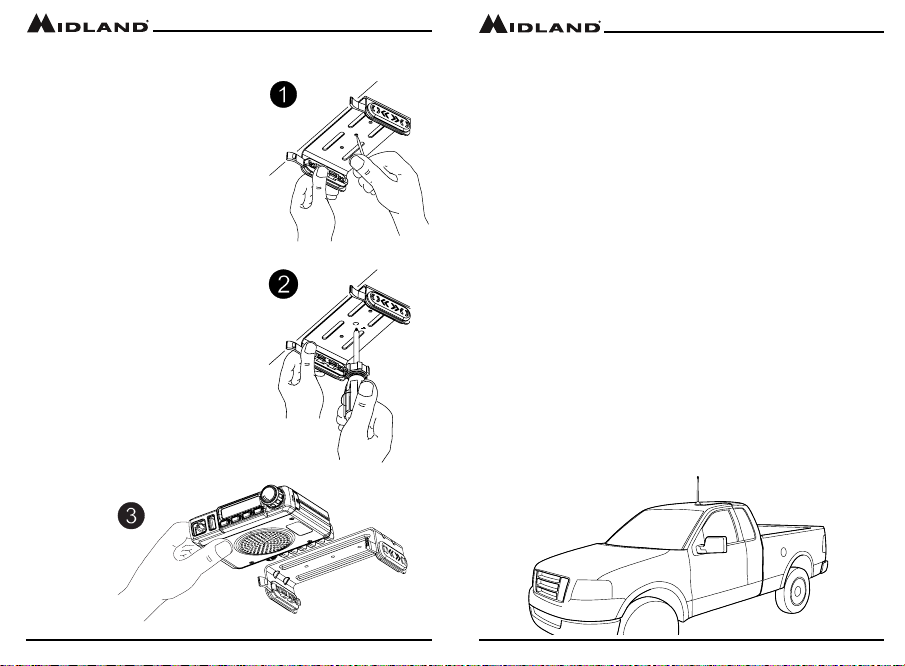

Installing the Mounting Bracket
1. Using the mounting bracket as a
template, mark the location of each
screw hole under the dash. Use a
nail or other sharp pointed object to
mark the hole locations.
2. Attach the bracket to the dash with
the Phillips head sheet metal screws
provided. Tighten the screws
securely. DO NOT OVER-TIGHTEN.
3. Slide the radio into the mounting
bracket. BE SURE the mounting
bracket retainers engage the slots
in the sides of the radio to prevent
movement while driving.
Page 6
midlandusa.com
Installing the Antenna
The MXT115 includes a “magnetic mount” antenna, intended to be
attached to the vehicle’s roof, trunk or similar location. Specic installation
requirements vary between vehicles. Use the following guidelines to install
the antenna.
*Where you locate your antenna does make a dierence.*
Some general rules for antenna location that can aid radio
performance.
1. Metal surfaces covered by berglass or vinyl may aect radio range.
Avoid these locations.
2. Mount the antenna as high on the vehicle as possible. The higher the
better.
3. If possible, mount the antenna in the center of whatever surface you
choose.
4. The antenna cable is 19.7 feet (6 meters) long. Be sure the mounting
location will allow for connection of the cable to the radio.
5. Be sure the mounting location is clean and dry before installing the
antenna.
6. Route the antenna cable through an accessible entry point, such as a
rear door or trunk opening.
7. When routing the antenna cable inside the vehicle, keep the cable
away from noise sources, such as the ignition system, gauges, etc.
8. Exercise care to prevent cable damage. Make use of existing gaskets,
grommets and weather stripping to protect the cable along its route.
midlandusa.com
Page 7
Page 5
Model MXT115
Model MXT115
Electrical and Rear Panel Connections
Refer to Rear Panel Connections for rear panel connector locations.
NOTE: Radio antenna is installed separately.
1. The power cord supplied with the MXT115 is equipped with a cigarette
lighter adapter for easy installation. Simply plug the connector into the
vehicle’s cigarette lighter. If a “hard-wired” installation is desired, connect
the power cord to the vehicle’s electrical system as follows:
▪ Cut the power cord just after the cigarette lighter adapter.
▪ Connect the positive lead (RED wire with in-line fuse holder) to
either (a) the fuse block or (b) directly to the positive post of the
vehicle’s battery.
NOTE: The fuse block is usually the most convenient connection
point. The power cord positive lead can also be connected to the
accessory terminal on the fuse block or ignition switch, so the radio
automatically turns o when the ignition is turned o.
▪ Securely connect the ground lead (BLACK wire) directly to the
vehicle’s metal frame. A good direct metal-to-metal ground is
essential for optimum performance.
2. Attach the antenna cable to the ANT jack on the rear panel.
3. If desired, an optional external speaker (purchased separately) can be
connected to the EXT SPKR jack (see Using an External Speaker).
Connecting the Microphone
Insert the RJ11 connector into the front of the MXT115. The microphone
mounting bracket can be attached to the vehicle dash or other convienent
location in a manner similar to the radio’s mounting bracket..
Page 8
midlandusa.com
Using an External Speaker
The MXT115 provides a rear-panel jack for connection of an optional
external speaker (purchased separately).
When selecting an external speaker, ensure the speaker has 8-ohm
impedance and is rated for 4.0 watts.
NOTE: When an external speaker is connected, the radio’s internal
speaker is automatically disabled.
CONTROLS AND INDICATORS
Operating Controls
1. LCD Display
2. On/O Volume
3. Microphone Jack
4. USB Charging Jack
5. Menu - Press to access menu
6. Weather - Press to access weather mode
7. Call /
keypad
8.
monitor mode
midlandusa.com
Lock - Press to send a call signal, or long press to lock the
Monitor / Scan - Press to enter scan mode, or long press to enter
Page 9
Page 6
Model MXT115
EXT SP
ANT
Model MXT115

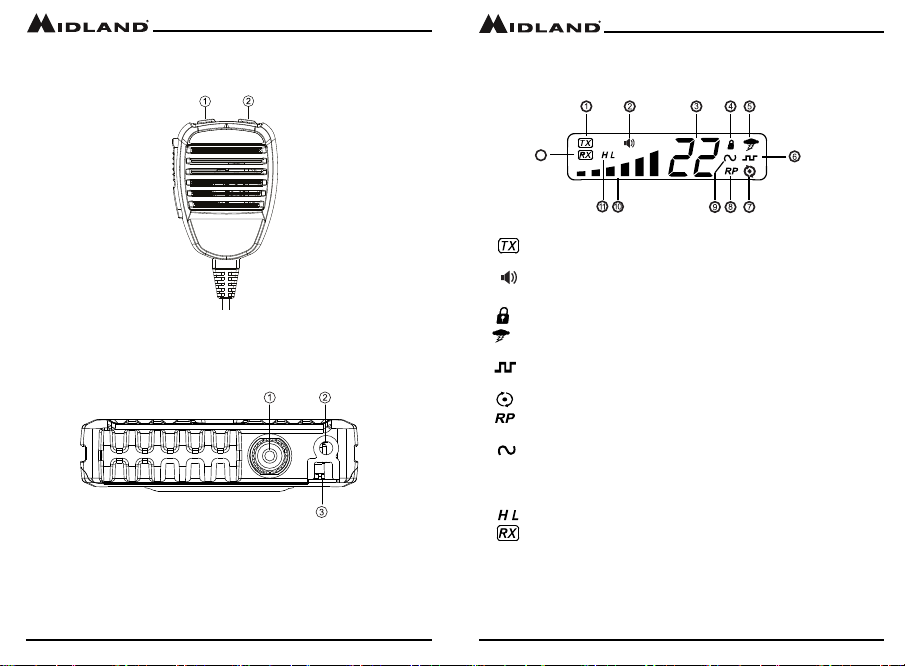

Microphone Controls
1. Channel Up
2. Channel Down
Rear Panel Connections
1. ANT Jack - SO-239 UHF connector for external antenna (included)
2. EXT SPKR Jack - 3.5mm Audio connector for optional external speaker
(purchased separately) (see Using an External Speaker for
specications).
3. 13.8V DC Cable - 2-wire DC connector for 12V DC nominal input power
connection
Page 10
midlandusa.com
LCD Display
12
1. Transmitting Icon - Indicates the radio is transmitting to another
user.
2. Monitor Icon - Indicates when the radio is in monitor mode
3. Channel Icon - Shows the selected transmit/receive channel.
4. Key Lock Icon - Indicates KEY LOCK mode is on
5. NOAA Weather Band Icon - Indicates when the radio is in the
Weather Band mode
6. DCS Icon - Indicates a Digitally Coded Squelch Privacy Code has
been enabled for the currently selected channel
7. Scanning Icon - Indicates the “auto-scan” function is active.
8. Repeater Icon - Shows the selected transmit/recieve repeater
channel
9. CTCSS Icon - Indicates a Continuous Tone Coded Squelch System
Code has been enabled for the currently selected channel.
10. Signal Strength - Indicates the strength of the current transmit or
receive signal.
11. Transmit Power Level Icon - Indicates the transmit power setting
12. Recieving Icon - Indicates the radio is recieving a transmission
from another user.
midlandusa.com
Page 11
Page 7
Model MXT115
OPERATING YOUR RADIO
About Range
Your MXT115 is designed to give you maximum operating range under
optimum conditions.

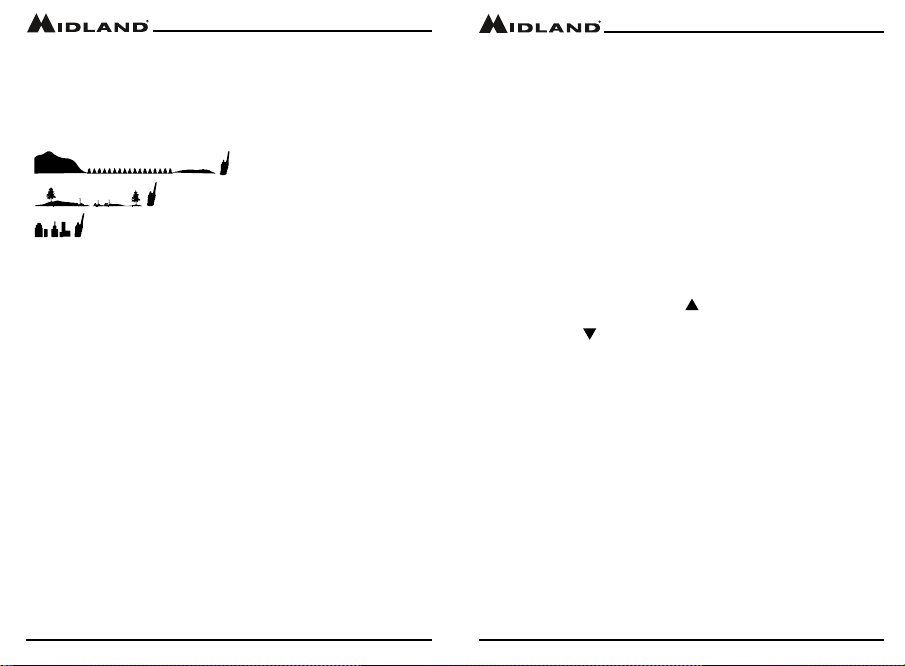

Maximum Range / No Sight Obstruction
Medium Range / Partial Obstruction to Line of Sight
Short Range / Major Obstruction to Line of Sight
Optimum conditions for maximum operating range are:
▪ Over water
▪ In open rural areas without obstructions
▪ On at areas where you can see the other radio user
To ensure you get maximum range:
▪ Be sure to mount the antenna (included) as high as possible on your
vehicle
▪ Be sure to set your radio to use Hi power (see Selecting the
Transmit (TX) Power Level)
Model MXT115
Power On/O
To turn the radio on and o:
1. With the radio o, turn the knob clockwise. You will hear a tone when
the radio is on.
▪ The LCD display will show all icons for one second and then display
the most recently selected channel.
2. With the radio on, turn the knob counter clockwise.
▪ The LCD display will go blank when the radio turns o.
Selecting the Active Channel
IMPORTANT! To communicate between two radios, both radios must be
set to the same channel (see Selecting a Privacy Code) selections.
To Select the Active channel:
1. Be sure the radio is turned on (See Power On/O)
2.
Press and release the Channel Up button on the microphone to
scroll forward through the available channels. Press and release the
Channel Down button on the microphone to scroll backward
through the available channels.
▪ The Channel icon on the LCD display will show the active channel.
▪ To make the repeater channels selectable, see Activate Repeater
Channels.
Adjusting the Volume
1. Turn the Volume knob clockwise to increase the volume
2. Turn the Volume knob counter clockwise to decrease the volume
Transmitting and Receiving a Call
IMPORTANT! To communicate between two radios, both radios must be
set to the same channel (see Selecting a Privacy Code) selections.
Page 12
midlandusa.com
midlandusa.com
Page 13
Page 8
Model MXT115
To transmit and receive a call:
1. Be sure the radio is turned on (see Power On/O)
2. To transmit a call, press and hold the PTT button on the microphone,
and speak into the microphone in a normal voice.
NOTE: For maximum clarity, hold the microphone 2 to 3 inches from your
mouth when speaking.
▪ The TX icon will show continuously on the LCD display while
transmitting.
3. To receive a call, release the PTT button on the microphone.
▪ The RX icon will show on the LCD display when your radio is receiv-
ing a transmission.
4. If necessary, turn the volume knob clockwise or counter clockwise to
increase or decrease the radio volume.
UTILITY FUNCTIONS
Utility functions let you congure several operational parameters of the
MXT115 to suit your personal preferences. For additional functions, see
“MENU” MODE FUNCTIONS.
Locking the Keypad
You can use the keypad “lock” function to prevent accidentally changing
your radio’s settings. When the function is enabled, the current radio
settings are “locked” in place.
NOTE: When the “lock” function is enabled, the PTT button on the microphone and the Volume Knob on the radio remain active.
Model MXT115
To “lock” and “unlock” the keypad:
1. Be sure the radio is turned on (see Power On/O)
2. Press and hold the Call/Lock / button for three seconds.
▪ The Keypad Lock icon will show on the LCD display when the
keypad is “locked.”
3. Repeat steps 1 and 2 to “unlock” the keypad.
▪ The Keypad Lock icon will turn o when the keypad is
“unlocked”.
Using Monitor Mode
Monitor mode lets you check for activity on the current active channel. You
can also use Monitor mode to adjust the volume of your radio when not
receiving a signal.
To enter and exit Monitor mode:
1. Be sure the radio is turned on (see Power On/O)
2. Be sure you have selected the desired channel (see Selecting the
Active Channel)
3. Press and hold the Monitor/Scan / button to enter
Monitor mode. (the display will show the icon if the radio
channel is busy)
▪ You will hear any activity on the current selected channel.
4. Turn the Volume Knob to increase or decrease the volume
5. Once the volume has been adjusted to the desired level, press and hold
(3 seconds) the Monitor/Scan / button to exit Monitor mode.
Page 14
midlandusa.com
midlandusa.com
Page 15
Page 9
Model MXT115
Scanning for Active Channels
Your MXT115 includes an “auto-scan” mode that continuously scans all 15
available channels for activity.
To enter and exit “auto-scan” mode:
1. Be sure the radio is turned on (see Power On/O)
2. Press and release the Monitor/Scan / button to enter “auto-scan”
mode
▪ The Scanning icon will show on the LCD display when the radio
is in “auto-scan” mode.
▪ Your radio will rapidly scan through the 15 available channels and
will pause on any active channel.
▪ “Auto-scan” will resume when there has been no activity on the
current channel for four seconds.
3. To transmit during “auto scan,” press and hold the PTT button on the
microphone while the radio is paused on the desired channel.
▪ The radio will remain on the active channel for three seconds after
the PTT button is released.
4. To exit the “auto-scan” mode, press and release the / Monitor/
Scan button.
▪ The Scanning icon will turn o when the radio is no longer in
“auto-scan” mode.
NOAA Weather Radio/Scan
Your MXT115 has a NOAA Weather Radio function, to enable the user to
receive weather reports from designated NOAA stations. Your radio also
has a NOAA Weather Scan function, to enable the user to scan all 10
channels for the NOAA National Weather Service.
To enter and exit Weather Scan
1. Press and release the Weather button to enter weather mode.
Page 16
midlandusa.com
Model MXT115
2. The radio will then scan all 10 weather channels and will lock on to the
strongest weather channel in your area (the active channel and Weather
icon will continuously ash).
3. Use the Channel Up or Channel Down on the microphone to
force the radio to re-scan the weather channels
▪ Pressing the Monitor/Scan / button takes the radio out of
scanning mode, locking in the active channel. Press and release
the Monitor/Scan / button to reactivate weather scan.
4. Press the PTT to exit Weather Mode.
To Manually Set the Weather Channel:
1. With the Weather Scan activated, press the Monitor/Scan button /
button to exit scanning mode
▪ The Weather icon and active channel will stop ashing and will
continuously be displayed on the LCD
2. Using the Channel Up / Channel Down buttons on the microphone, manually set the active weather channel.
To Enable Weather Alert:
1. With Weather mode activated, press the Monitor/Scan / button to
exit scanning mode
▪ The weather icon and active channel will stop ashing and will
continuously be displayed on the LCD
2. Use the Channel Up or Channel Down on the microphone to
select the desired Weather Channel
3. Press and hold the Weather button to turn the Weather Alert on.
▪ The weather icon will begin ashing
4. To return to GMRS mode, press and release the weather/PTT
button.
▪ When a Weather Alert goes o, the MXT115 will sound a siren.
Pressing any button on the mobile will take you to the assigned
weather channel and you will be able to hear the weather alert. If
the siren stops prior to you entering the weather mode, the mobile
will automatically take you to weather mode.
midlandusa.com
Page 17
Page 10
Model MXT115
MENU MODE FUNCTIONS
The “Menu” mode provides access to the features and functions shown in
the chart below. For additional utility functions, see UTILITY FUNCTIONS.
MXT115 “Menu” Mode Quick Reference Chart
CA
01 05
bP
ON-OFF
MENU
oF/
Pt
/
Pr
Hi/LoSq09
oF
rb
ON-OFF
Pt - Privacy Tones - Use this option to set the privacy code.
Pr - Transmit Power Level - Use this option to change the trasnmit power
level to Hi or Lo.
Sq - Squelch Sensitivity - Use this option to adjust squelch sensitivity.
rb - Roger Beep - Use this option to set the option for the Roger Beep.
CA - Call Alert Tone - Use this option to select the Call Alert tone.
bP - Silent Operation - Use this option to set the option for the kepad
audible “beep” tones.
rP - Repeater Channels - Use this option to set the option for Repeater
channels.
db - Display Background - Use this option to select the color of the
display background.
ON-OFF
db
rP
01~08
Selecting a Privacy Code
Continuous Tone Coded Squelch System (CTCSS) and Digitally Coded
Squelch (DCS) are systems that allow several users to share the same
channel without disturbing each other. When CTCSS or DCS is enabled
for a selected channel, the channel is muted to all incoming signals unless
they carry the correct CTCSS or DCS tone.
Model MXT115
When a transmission with the correct tone is received, the mute is
removed and the voice audio can be heard. When the transmission ends
the channel is muted again. Transmissions that do not have the correct
tone are not heard.
The MXT115 has 142 Privacy Codes (38 CTCSS codes and 104 DCS
codes), which can be applied to any channel. If desired, you can select
a dierent Privacy Code for each channel. See CTCSS Privacy Codes
Frequency Chart and DCS Privacy Codes Chart for lists of available
Privacy Codes.
IMPORTANT! To communicate between two radios, both radios must be
set to the same channel (see Selecting the Active Channel) and Privacy
Code selections.
To select a Privacy Code:
1. Press and release the Menu button to a place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down button to scroll through
the menu options until the LCD display shows Pt, then press the
Monitor/Scan / button.
3. Use the Channel Up or Channel Down button to selct the
privacy tone type you would like to use: for CTCSS or for DCS
4. Press the Monitor/Scan / button to conrm your selection.
▪ The (for CTCSS) or (for DCS) icon will show on the LCD
display, according to your selection
5. Use the Channel Up or Channel Down button to scroll forward or
backward through the available Privacy Codes until the desired Privacy
Code is shown on the LCD display.
NOTE: DCS Privacy Codes 100-104 are shown on the LCD display as
A0-A4.
NOTE: Selecting a Privacy Code of “oF” will disable the Privacy feature.
Page 18
midlandusa.com
midlandusa.com
Page 19
Page 11
Model MXT115
6. When the desired Privacy Code is shown on the LCD display, press the
Monitor/Scan / to conrm your selection. YOU MUST PRESS THE
Monitor/Scan BUTTON TO CONFIRM YOUR SELECTION OR THE PRIVACY CODE
WILL NOT BE CHANGED
NOTE: If you select a CTCSS Privacy Code, any pre-selected DCS
Privacy Code will be cancelled, and vice-versa.
Selecting the Transmit (TX) Power Level
The MXT115 provides two transmit power levels; HI and Lo. the Lo power
level is generally suitable when operating under optimum conditions (see
About Range). The HI power level is recommended to ensure you get
maximum range from your radio.
To adjust the Transmit Power Level:
1. Press and release the Menu button to place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down buttons to scroll the
menu options until the LCD display shows Pr
3. Press the Monitor/Scan / button to conrm your selection.
4. Use the Channel Up or Channel Down button to toggle the
transmit power setting between HI and Lo.
5. When the desired transmit power level is shown on the LCD display,
press the Monitor/Scan / button to conrm your selection.
MUST PRESS THE MONITOR/SCAN BUTTON TO CONFIRM YOUR SELECTION
OR THE POWER LEVEL WILL NOT BE CHANGED.
Note: Due to output power regulations channels 1 through 7 cannot be
removed from the Lo transmit power setting.
YOU
Adjusting Squelch Sensitivity
The MXT115 has adjustable squelch sensitivity. The minimum squelch
level of 00 is the most sensitive, which allows the squelch to open on very
weak signals. Setting the squelch to the maximum setting of 09 requires
very strong signals to open the squelch.
Model MXT115
To adjust the Squelch Sensitivity:
1. Press the Menu button to place the radio in “Menu” mode.
2. Use the Channel Up or Channel Down button to scroll through
the menu options until the LCD display shows Sq.
3. Press the Monitor/Scan / button to conrm your selection
4. Use the Channel Up or Channel Down button to scroll forward
or backward to select the desired squelch level, from oF to 09.
▪ The default squelch setting is 04, which generally provides reliable
squelch operation for most applications.
5. When the desired squelch level is shown on the LCD display, press
the Monitor/Scan / button to conrm your selection. YOU MUST
PRESS THE MONITOR/SCAN BUTTON TO CONFIRM YOUR SELECTION OR THE
SQUELCH SENSITIVITY WILL NOT BE CHANGED.
Roger Beep
When the PTT button on the mic is released, the radio will beep to conrm
to other users that your transmission is complete
To Activate the Roger Beep:
1. Press and release the Menu button to place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down button to scroll through
the menu options until the LCD display shows rb.
3. Press the Monitor/Scan / button to conrm your selection.
4. Use the Channel Up Channel Down button to select ON or OFF.
5. When the desired selection is shown in the LCD display press the Mon-
itor/Scan / button to conrm your selection.
THE MONITOR/SCAN BUTTON TO CONFIRM YOUR SELECTION OR THE ROGER
BEEP WILL NOT BE CHANGED.
YOU MUST PRESS
Page 20
midlandusa.com
midlandusa.com
Page 21
Page 12
Model MXT115
Call Alert Tone
Your MXT115 has 5 selectable Call Alert Tones
Selecting a Call Alert Tone:
1. Press and release the Menu button to place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down button to scroll through the
menu options until the LCD display shows CA.
3. Press the Monitor/Scan / button to conrm your selection.
4. Use the Channel Up or Channel Down button to scroll forward or
backward through the tone options (01 - 05). When scrolling through the
5 options the sound will be played for you.
5. When the desired tone is found, press the Monitor/Scan / button
to conrm your selection.
TO CONFIRM YOUR SELECTION OR THE CALL ALERT TONE WILL NOT BE
CHANGED.
YOU MUST PRESS THE MONITOR/SCAN BUTTON
Silent Operation
The MXT115 has a SILENT OPERATION mode. In this mode, all “beeps”
and “tones” are disabled.
To Set the Silent Operation:
1. Press and release the Menu button to place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down button to scroll through
the menu options until the LCD display shows bP
3. Press the Monitor/Scan / button to conrm your selection
4. Use the Channel Up or Channel Down button to select ON or
OFF.
5. When the desired selection is shown on the LCD display, press the
Monitor/Scan / button to conrm your selection.
THE MONITOR/SCAN BUTTON TO CONFIRM YOUR SELECTION OR THE SILENT
OPERATION SELECTION WILL NOT BE CHANGED
YOU MUST PRESS
Model MXT115
Repeater Channels
Your MXT115 has the ability to access repeater channels. The use of a re-
peater can signicantly increase a radio’s range and coverage area. Prior
to using a repeater you must coordinate with the owner of the repeater to
gain permission to use the repeater. Be sure to understand and follow the
sharing and usage rules for each repeater system.
To Set the Repeater Channel:
1. Press and release the Menu button to place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down button to scroll through
the menu options until the LCD display shows rP
3. Press the Monitor/Scan / button to conrm your selection.
4. Use the Channel Up or Channel Down button to select ON or OFF.
5. Press the Monitor/Scan / button to conrm your selection.
MUST PRESS THE MONITOR/SCAN BUTTON TO CONFIRM YOUR SELECTION
OR THE REPEATER CHANNEL SELECTION WILL NOT BE CHANGED
▪ When activated the repeater channels will be displayed as the
channel number (Ex. 15,16,17,ect.) and the rP icon
▪ Repeater channels will appear immediatly following the standard
GMRS channels (ex: 20,21,22,15
rP,16rP17rP
etc)
YOU
Selecting the LCD Display Background Color
Your MXT115 has 8 dierent color options for the LCD Display
background.
To select the LCD Display background:
1. Press and release the Menu button to place the radio in “Menu”
mode.
2. Use the Channel Up or Channel Down button to scroll through
the menu options until the LCD display shows db
3. Press the Monitor/Scan / button to conrm your selection
4. Use the Channel Up or Channel Down button to selct the LCD
Display background color (01 - 08)
Page 22
midlandusa.com
midlandusa.com
Page 23
Page 13
Model MXT115
5.When the desired color has been selected, press the Monitor/Scan
/ button to conrm your selection.
SCAN BUTTON TO CONFIRM YOUR SELECTION OR THE BACKGROUND COLOR
WILL NOT BE CHANGED
YOU MUST PRESS THE MONITOR/
RESTORING THE DEFAULT SETTINGS
You can restore the original (factory default) settings for your MXT115 at
any time.
To restore the default settings:
1. Be sure the radio is turned o (see Power On/O).
2. Press and hold the PTT and the Weather button simultaneously..
3. With the buttons still held, turn on the radio.
▪ All user settings will be cleared, returning the radio to all default
settings.
Model MXT115
CARE AND MAINTENANCE
CAUTION: DO NOT use alcohol or cleaning solutions to clean the
radio. DO NOT immerse the radio in water.
1. Use a soft cloth moistened with water to clean the radio.
2. Dry the radio with a dry lint-free cloth should it get wet.
TROUBLESHOOTING GUIDE
If you experience diculties using your MXT115, refer to the following
chart to correct common operation problems. If you have a problem which
you believe requires service, please call rst and speak with a service
technician at 816-241-8500. Many problems can be remedied over the
phone without returning the unit for service.
PROBLEM
No Power
Cannot Receive
Messages
Keypad is not
Responding
Display Backlight
is Dim
Check vehicle power source (battery); replace
as needed.
Check input power connection and/or wires to
vehicle power source.
Verify both radios have the same channel
selection and Privacy Code settings.
Make sure you are within range of the other radio.
Conrm communication is not aected by buildings
and other structures ( see About Range)
Make sure keypad “lock” is not on
(see Locking the Keypad)
Reset the radio ( turn radio o then back on)
Conrm your backlight setting is enabled
SOLUTION
.
Page 24
midlandusa.com
midlandusa.com
Page 25
Page 14
SPECIFICATIONS
DCS Privacy Codes Chart
2
2
2
2
2
4
4
4
5
Model MXT115
Model MXT115
Channels:
15 GMRS Channels and
10 NOAA Weather Channels
Privacy Codes:
Operating Frequency:
Repeater Frequency:
Power Source:
38 CTCSS; 104 DCS
UHF; 462.5500 ~ 462.725 MHz
UHF; 467.5500 ~ 467.725 MHz
13.8 VDC Nominal
GMRS Frequency Chart
Ch. No. Ch. Freq. (MHz) Ch. No. Ch. Freq. (MHz)
1 462.5625 15 462.550
2 462.5875 16 462.575
3 462.6125 17 462.600
4 462.6375 18 462
5 462.6625 19 462.650
6 462.6875 20 462.675
7 462.7125 21 462.700
Ch 8 ~ 14 Reserved for FRS
WX Band Channels
Channel Number Frequency (MHz)
1
2
3
4
5
6
7
8
9
10
162.550
162.400
162.475
162.425
162.450
162.500
162.525
161.650
161.775
163.275
22 462.725
GMRS Repeater Channels
Ch. Number TX Freq. (MHz) RX Freq. MHz)
15RP 467.5500 462.5500
16RP 467.5750 462.5750
17RP 467.6000 462.6000
18RP 467.6250 462.6250
19RP 467.6500 462.6500
20RP 467.6750 462.6750
21RP 467.7000 462.7000
22RP 467.7250 462.7250
Page 26
.625
midlandusa.com
CTCSS Privacy Codes Frequency Chart
Code Freq. Code Freq. Code Freq. C ode Freq Code Freq
1 67.0 9 9 91.5 17 118.8.8 25 156.7 33 210.7
2 71.9 1 0
3 74.4 1 1 97.4 19 127.3 27 167.9 3 5 225.7
4 4 77.0 12 100.0 2 0 131.8 2 8 173.8 36 233.6
5 79.7 1 3 103.5 21 136.5 29 179.9 3 7 241.8
6 82.5 1 4 107.2 22 141.3 30 186.2 3 8 250.3
7 85.4 1 5 110.9 23 146.2 31 192
8 88.5 1 6 114.8 24 151.4 32 203.5
No. Code No. Code No. Code No. Code
1 23 27 165 53 413 79 731
2 25 28 172 54 423 80 732
3 26 29 174 55 431 81 734
4 31 30 205 56 432 82 743
5 32 31 223 57 445 83 754
6 43 32 226 58 464 84 36
7 47 33 243 59 465 85 53
8 51 34 244 60 466 86 122
9 54 35 245 61 503 87 145
10 65 36 251 62 506 88
11 71 37 261 63 516 89
12 72 38 263 64 532 90
13 73 39 265 65 546 91
14 74 40 271 66 565 92
15 114 41 306 67 606 93 266
16 115 42 311 68 612 94 274
17 116 43 315 69 624 95 325
18 125 44 331 70 627 96 332
19 131 45 343 71 631 97 356
20 132 46 346 72 632 98 446
21 134 47 351 73 654 99 452
22 143 48 364 74 662 100
23 152 49 365 75 664 101
24 155 50 371 76 703 102
25 156 51 411 77 712 103
26 162 52 412 78 723 104 526
9
18 123.0 26 162.2 34 218.1
.8
midlandusa.com
12
25
46
52
55
54
55
62
23
Page 27
Page 15
Model MXT115
Model MXT115
ACCESSORIES
Accessories can be purchased at midlandusa.com
Page 28
2-Way Radios
2-Way Radios
Weather Radios
Emergency Crank Radios
HD Wearable Video Cameras
CB Radios
midlandusa.com
midlandusa.com
Page 29
Page 16
Model MXT115
LIMITED WARRANTY (United States and Canada)
Subject to the exclusions set forth below, Midland Radio Corporation will repair or replace,
at its option without charge, any Midland FRS/GMRS which fails due to a defect in
material or workmanship within One Year following the initial consumer purchase.
This warranty does not apply to water damage, battery leak, abuse or misuse of
unauthorized accessories, unauthorized service or modication or altered products.
Accessories have a 90 day warranty from date of purchase including the power cable,
antenna, and microphone that are included with the unit.
ANY IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED AS SET FORTH HEREIN AND TO THE DURATION
OF THE LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MIDLAND BE
LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING BUT NOT LIMITED TO
NEGLIGENCE, GROSS NEGLIGENCE, BODILY INJURY, PROPERTY DAMAGE
AND DEATH) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO
USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT THESE DAMAGES
MAY BE DISCLAIMED BY LAW.
For Product Purchased in the USA:
Performance of any obligation under this warranty may be obtained
by returning the warranted product, prepaid freight, along with proof of
purchase to:
Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120
This warranty gives you specic legal rights, and you may also have other
rights, which vary from state to state.
NOTE: The above warranty applies only to merchandise purchased in the United
States of America or any of the territories or possessions thereof, or from a U.S. Military
exchange.
For Product Purchased in Canada:
Performance of any obligation under this warranty may be obtained by returning the
warranted product, along with proof of purchase, to your place of purchase in Canada.
This warranty gives you specied legal rights. Additional warranty rights may be provided
by law in some areas within Canada.
Model MXT115
THIS PAGE IS
INTENTIONALLY
LEFT BLANK
Page 30
midlandusa.com
midlandusa.com
Page 31
Page 17
MIDLAND RADIO CORPORATION
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
We’d love to hear from you! Let us know what
you think of your new Midland product at:
or by visiting us at:
midlandusa.com
Note: Features and Specications are subject to change without
notice. MIDLAND RADIO CORPORATION is not responsible for
unintentional errors or omissions on its packaging.
Loading...
