Midea MT18DDWBR1RCM, MRT18S4AWW, MT18DDSBR1RCM, MT18DDSCR1RCM User Manual
Top-Freezer
Refrigerator
Power supply: 115 V
Frequency: 60Hz
Capacity: 18 cu. ft.
en
USER MANUAL
Warning:
Before using this product,
please read this manual carefully
and keep it for future reference.
The design and specifications
are subject to change without
prior notice for product
improvement. Consult with your
dealer or manufacturer for
details.
version A - 12 - 2019
Free 3 months
extension of the
original limited warranty
period!* Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the
three months immediately following
the completion of the product’s
original warranty period.
MODEL NUMBER MT18DDSCR1RCM
MT18DDSBR1RCM
MT18DDWBR1RCM
MRT18S4AWW
www.midea.ca
Dear user
THANK YOU and
high-quality Midea product. Your Midea refrigerator is designed
for reliable, trouble-free performance. Please take a moment to
register your new refrigerator.
Register your new refrigerator at www.midea.ca under the
Support tab.
For future reference, record your product model and serial
numbers located on the back of the refrigerator above the
compressor compartment.
Model Number________________________________________
Serial Number_________________________________________
CONGRATULATIONS on your purchase of this
REFRIGERATOR SAFETY .................................................................3
OPERATION REQUIREMENTS .........................................................6
Location Requirements ..........................................................................6
Electrical Requirements .........................................................................7
PARTS AND FEATURES ...................................................................8
INSTALLATION ...................................................................................9
Unpack ..........................................................................................................9
Move to Final Location ...........................................................................9
Level Refrigerator ...................................................................................10
Reverse the Door Swing ......................................................................10
Installing an Optional Ice Maker ....................................................... 13
BEFORE USE .................................................................................... 1
aiting Period ......................................................................................... 1
W
Cleaning ..................................................................................................... 14
REFRIGERATOR USE....................................................................... 1
General ....................................................................................................... 1
Controls ......................................................................................................16
REFRIGERATOR CARE ....................................................................18
Cleaning .................................................................................................... 18
Moving ....................................................................................................... 18
Storage ...................................................................................................... 19
TROUBLESHOOTING ......................................................................19
General ...................................................................................................... 19
4
4
5
5
Error Codes .............................................................................................. 21
WARNING
WARRANTY ..................................................................................... 22
REFRIGERATOR SAFETY
Refrigerator
Safety
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY
IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage, including death.
The level of risk is shown by the following indications.
This symbol indicates the possibility of death or serious
WARNINGWARNING
CAUTION
injury.
This symbol indicates the possibility of injury or damage to
property.
This symbol indicates the possibility of dangerous voltage
constituting a risk of electrical shock is present that could
result in death or serious injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
GENERAL APPLIANCE SAFETY
Read all safety warnings, instructions, illustrations and specifications
•
provided with this appliance. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
•
Requirements
Operating
Parts and
Features
Installation
Before
Use
Refrigerator
Use
Refrigerator
Care
ELECTRICAL SAFETY
• Plug into a grounded 3 prong outlet.
• Do not remove ground plug.
• Do not use an adapter.
• Unplug the power cord by holding the plug, never by pulling the
cord.
• DO NOT turn the appliance on or off by plugging or unplugging the
power cord.
• DO NOT use an extension cord.
• Unplug the refrigerator before cleaning or defrosting.
Troubleshooting
3
Refrigerator
Safety
Requirements
Operating
Parts and
Features
Installation
Grounding requirement
This refrigerator must be grounded. This refrigerator is equipped with
•
a grounding plug. The plug must be inserted into an outlet that is
properly installed and grounded.
Improper use of the grounding plug can result in a risk of electric
•
shock. Consult a qualified electrician or service person if the
grounding instructions are not completely understood or if doubt
exists as to whether the refrigerator is properly grounded.
LOCATION SAFETY
This refrigerator is intended to be used in household and similar
•
environments.
Install in accordance with the manufacturer’s instructions.
•
This refrigerator should not be recessed or built-in an enclosed
•
cabinet. It is designed for freestanding installation only.
WARNING - Keep ventilation openings, in the refrigerator, clear of
obstruction.
DO NOT install near any heat sources, such as radiators, heat
•
registers, stoves, other cooking appliances or in direct sunlight.
DO NOT store or use gasoline or any flammable liquids inside or in
•
the vicinity of this refrigerator.
Before
Use
Refrigerator
Use
Refrigerator
Care
Troubleshooting
4
USE AND CARE SAFETY
Flammable refrigerant used. Follow handling instructions carefully.
•
Risk of fire or explosion due to puncture of refrigerant tubing.
Flammable refrigerant used. Do not use mechanical devices to
•
defrost freezer. Do not puncture refrigerant tubing.
This appliance is not intended for use by persons (including children)
•
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Keep key away from children.
•
Children should be supervised to ensure that they DO NOT play with
•
the appliance.
DO NOT touch the interior of the freezer with wet hands. This could
•
result in frostbite.
Clean only with a damp cloth. Use nonflammable cleaner.
•
SERVICE SAFETY
Disconnect power before servicing.
•
Flammable refrigerant used. To be repaired only by trained service
•
personnel. Do NOT puncture refrigerant tubing.
Refer all servicing to qualified service personnel. Do not repair or
•
replace any part of this appliance unless specifically recommended
in this manual. Servicing is required when the appliance has been
damaged in any way, such as the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the
appliance, the appliance has been exposed to rain or moisture, does
not operate normally, or has been dropped.
If the supply cord is damaged, it must be replaced by the
•
manufacturer, its service agent, or similarly qualified person, in order
to avoid a hazard.
If component part is damaged, it must be replaced by the
•
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
Replace all parts and panels before operating.
•
SAVE THESE INSTRUCTIONS
Refrigerator
Safety
Requirements
Operating
Parts and
Features
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
State of California Proposition 65 Warnings:
WARNING: Cancer and Reproductive Harm
-www.P65Warnings.ca.gov.
PROPER DISPOSAL
WARNING
Suffocation Hazard
Before you throw away your old refrigerator:
Remove the door or lid so that children cannot hide or get trapped
•
inside your old appliance.
Leave any shelves in place so that children may not easily climb
•
inside.
Failure to follow these instructions can result in death or brain
•
damage.
IMPORTANT: Flammable gas and refrigerant used. It is the consumer’s
responsibility to comply with Federal and Local regulations when
disposing of this product. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with established
procedures.
Installation
Before
Use
Refrigerator
Use
Refrigerator
Care
Troubleshooting
5
Refrigerator
Safety
Requirements
Operating
Parts and
Features
Installation
Before
Use
Refrigerator
Use
OPERATION REQUIREMENTS
LOCATION REQUIREMENTS
WARNING
Explosion and Fire Hazard
Keep flammable materials and vapors, such as gasoline, away from
•
appliance.
Failure to do so, can result in death, explosion or fire.
•
This refrigerator is designed to be freestanding only, and should not be
recessed or built-in.
• Place your refrigerator on a floor that is level and strong enough to
support the refrigerator when it is fully loaded.
• Place your refrigerator where there is access to the required electrical
connection. See “Electrical Requirements.”
• Position the refrigerator in a location away from direct sunlight, because
it may affect the acrylic coating and heat sources may increase
electrical consumption. To ensure optimal performance, install in areas
with an ambient temperature between 41°F (5°C) and 109°F (42.8°C).
NOTES:
– Direct sunlight may affect the acrylic coating and heat sources may
increase electrical consumption.
– Extremely cold temperatures may also prevent the refrigerator from
performing properly.
• Avoid locating the refrigerator in areas with high humidity.
• Adequate air circulation is required for efficient operation. Maintain the
recommended clearance to ensure adequate air circulation.
RECOMMENDED CLEARANCE
Refrigerator
Care
Troubleshooting
NOTE: If you place the refrigerator next to a fixed wall, allow sufficient
space on the hinge-side for the door to swing open.
6
a
a
a
a 3" (7.6 cm)
Clearance at the
top, back and
both sides of
the refrigerator
a
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
•
Do not remove the ground prong from the power cord plug.
•
Do not use an adapter.
•
Do not use an extension cord.
•
Failure to do so can result in death, fire or electrical shock.
•
Refrigerator
Safety
Requirements
Operating
IMPORTANT: A 115 Volt, 60 Hz., AC only, 15-amp fused, grounded electrical
supply is required.
Use an electrical outlet that accepts the grounding prong.
•
NOTE: The power cord is equipped with a 3-prong (grounding) plug
which mates with a standard 3-prong (grounding) electrical outlet.
We recommend that the refrigerator be plugged into an electrical
•
circuit serving ONLY this appliance.
Use an electrical outlet that cannot be turned off with a switch or pull-
•
chain.
DO NOT use an extension cord.
•
b
a
a 3-prong plug
b 3-prong receptacle
c Receptacle box cover
c
Parts and
Features
Installation
Before
Use
Refrigerator
Use
Refrigerator
Care
Troubleshooting
7
Safety
PARTS AND FEATURES
Refrigerator
Requirements
Operating
Parts and
Features
Installation
Before
Use
Refrigerator
Use
Refrigerator
Care
Troubleshooting
a
b
c
a
d
a Shelves ( 1
- wire shelf,
- glass
3
shelf)
b Freezer control
c Refrigerator control
d Crisper drawers (2)
e
f
e
g
e Door bins (6)
f Dairy bin
g Leveling feet (3 - bottom front)
Wheels ( 2 - bottom front,
2 - bottom back)
8
INSTALLATION
UNPACK
Refrigerator
Safety
WARNING
Fire or Explosion Hazard
Do not puncture refrigerant tubing.
•
Follow handling instructions carefully.
•
Flammable refrigerant used.
•
Failure to do so can result in death, explosion or fire.
•
IMPORTANT: Remove ALL exterior and interior packing materials
including the foam packing between the exterior condenser and the
refrigerator cabinet.
MOVE TO FINAL LOCATION
WARNING
Fire or Explosion Hazard
Do not puncture refrigerant tubing.
•
Follow handling instructions carefully.
•
Flammable refrigerant used.
•
Failure to do so can result in death, explosion or fire.
•
IMPORTANT:
If the refrigerator has been in a horizontal position for any period of
•
time, wait 24 hours to allow the refrigerant to settle before plugging in
the refrigerator.
When moving the refrigerator, DO NOT tilt it beyond 45° from upright.
•
NOTE: Tilting the refrigerator more than 45° could damage the
compressor and the sealed system.
Requirements
Operating
Parts and
Features
Installation
Before
Use
Refrigerator
Use
Refrigerator
Care
Troubleshooting
9
Refrigerator
Safety
Requirements
Operating
Parts and
Features
LEVEL REFRIGERATOR
IMPORTANT: Level the refrigerator for proper operation and to avoid
cooling, frost and moisture problems that can occur when the door does
not close properly.
1. Move the refrigerator to its final location. See “Move to Final Location.”
2. Place a carpenter's level on the top of the refrigerator cabinet.
3. Adjust the two leveling feet, (one foot located at each of the two front
corners of the refrigerator cabinet) until the refrigerator is level.
NOTE: The leveling feet are easier to adjust if you have someone push
against the top front of the refrigerator to take some w
feet.
Installation
Use
Use
Care
Troubleshooting

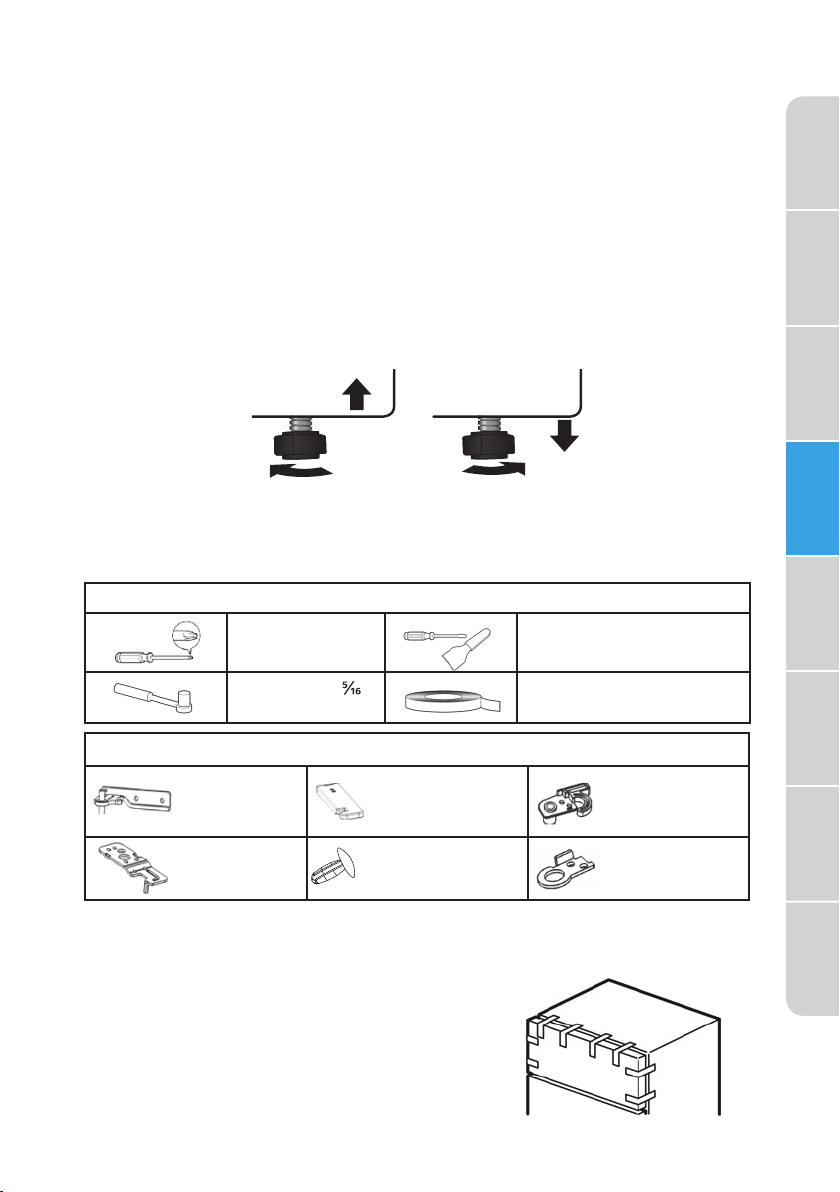

To Raise - Turn the leveling feet clockwise.
To Lower - Turn the leveling feet counterclockwise.
REVERSE THE DOOR SWING
Before
Refrigerator
Refrigerator
1. Unplug your refrigerator and remove all food from the door shelves.
Remove all food from the inner door liner.
Tape the freezer door in place with masking tape.
List of tools to be provided by the user
Phillips-head
Screwdriver
" socket and
ratchet
Parts included with the hinge kit
Center left
hinge (1)
Top left
hinge (1)
Left top
hinge cover
(1)
Extra hole
caps (2)
Putty knife
Flat-head
Screwdriver
Masking tape
Left door-
self-locking
block (1)
Left dooropen stopper
(1)
10
Refrigerator
Safety
Operating
Requirements
Parts and
Features
Installation
Refrigerator
Use
Refrigerator
Care
Troubleshooting
Before
Use
2.

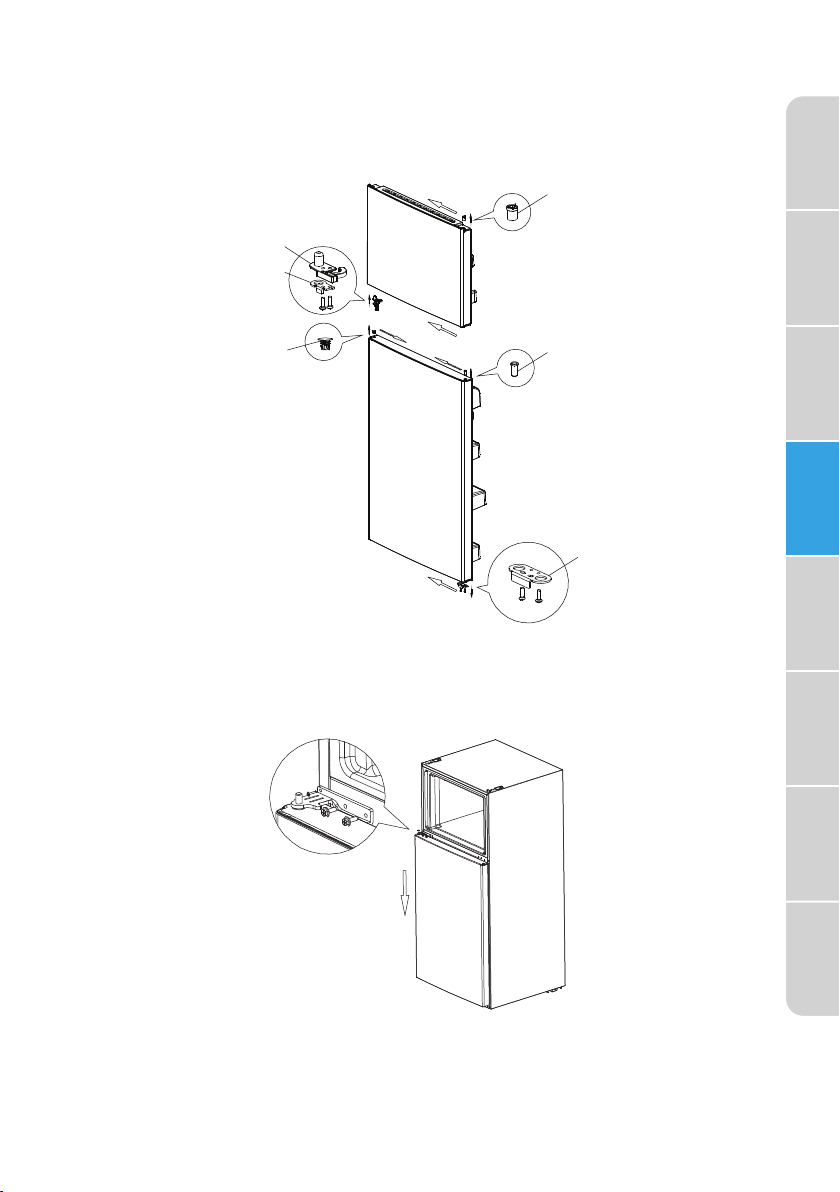

Remove the hole cover and the right top hinge cover, then unscrew
screws and remove the right top hinge. Keep the screws to reuse.
Hole cover
Right top hinge cover
3. Lift the freezer door up and away from your refrigerator.
4. Unscrew screws of middle hinge, remove the hinge, then lift the
refrigerator door up and away from your refrigerator. Save the screws
to reuse.
Center hinge
5. Unscrew screws of the bottom hinge, then remove the bottom hinge
from the bottom right side of the refrigerator.
6. Unscrew the hinge shaft from the right side of the bottom hinge and
move it to the left side, then secure the bottom hinge to the bottom
left side of the refrigerator, using the screws you removed previously.
7. Remove the sleeves from the top right of doors and hole cap from top
Remove the bottom hinge
Reattach the bottom hinge
Hinge shaft
Hinge shaft
left of doors, and assemble them on the opposite sides.
11
Refrigerator
Safety
Operating
Requirements
Parts and
Features
Installation
Refrigerator
Use
Refrigerator
Care
Troubleshooting
Before
Use
8. Remove the refrigerator door open bottom stopper and install it
other side of the door. Remove the freezer right door self-locking
block and right door open stopper and save. Them to reuse take out
the left freezer self-locking block and left door open stopper from
the accessory bag in the refrigerator and installed on the left of
freezer door.
Left door self-locking block
Left door open stopper
Hole cap
Sleeves
Sleeves
Bottom stopper
9. Install the refrigerator door vertically onto the bottom hinge. Take out
12
the center left hinge from the accessory bag then assemble the
center left hinge on the left side of the refrigerator.
Center left hinge
Refrigerator
Safety
Operating
Requirements
Parts and
Features
Installation
Refrigerator
Use
Refrigerator
Care
Troubleshooting
Before
Use
10. Install the freezer door vertically onto the center hinge. Take out the
left top hinge and left top hinge cover from accessory bag,
assemble left top hinge, left top hinge cover and hole cover.
Left top hinge cover
Top left hinge
Hole cover
(The picture above is only for reference. The actual configuration
may vary.)
INSTALLING AN OPTIONAL ICE MAKER
The refrigerator comes set up for ice maker installation, This refrigerator
is compatible with Midea IM1800MD ice maker. Please refer to individual
ice maker installation instruction manual.
WARNING
Unplug the refrigerator. To eliminate the danger of electric shock during
installation, you must unplug the refrigerator from its electrical outlet.
13
Refrigerator
Safety
Requirements
Operating
Parts and
Features
Installation
Before
Use
BEFORE USE
WAITING PERIOD
Before plugging the refrigerator into a grounded 3-prong electrical
•
outlet, allow it to stand upright for approximately 2 hours.
NOTE: This reduces the possibility of a malfunction in the cooling
system from improper handling during transportation.
CLEANING
1. Wash the refrigerator interior using a soft cloth dampened with a
baking soda solution (2 tablespoons baking soda mixed with 1 quart of
warm water).
2.
Using a soft cloth, thoroughly dry all surfaces.
Refrigerator
Use
Refrigerator
Care
Troubleshooting
14
REFRIGERATOR USE
GENERAL
The storage life of frozen foods varies and the recommended storage
•
time should not be exceeded.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
•
Do not remove the ground prong from the power cord plug.
•
Do not use an adapter.
•
Do not use an extension cord.
•
Failure to do so can result in death, fire or electrical shock.
•
Refrigerator
Safety
Requirements
Operating
Parts and
Features
1. Plug in your refrigerator. Wait for 30 minutes, and then open the
refrigerator door to determine if the refrigerator is working properly.
2. Place frozen food into the refrigerator as quickly as possible after
purchase. If there are instructions on the package, carefully follow
these instructions regarding storage times.
ENERGY SAVING TIPS
Allow hot foods to cool to room temperature before placing them in
•
the refrigerator. Foods that freeze too slowly may lose quality or spoil.
Overloading the refrigerator forces the compressor to run longer.
•
Wrap foods properly and wipe containers dry before placing them in
•
the refrigerator. This cuts down on frost build-up inside the refrigerator.
Do not line refrigerator storage shelves with aluminum foil, wax paper
•
or paper toweling. Liners interfere with cold air circulation, making the
refrigerator less efficient.
Organize and label food to reduce door openings and extended
•
searches. Remove as many items as needed at one time, and then
close the door as soon as possible.
Do NOT add a large amount of unfrozen food to the refrigerator at one
•
time. This will lower the cooling efficiency of the refrigerator.
Installation
Before
Use
Refrigerator
Use
Refrigerator
Care
Troubleshooting
1
5
Loading...
