Microsoft Xbox 360 - Big Button Pad User Guide

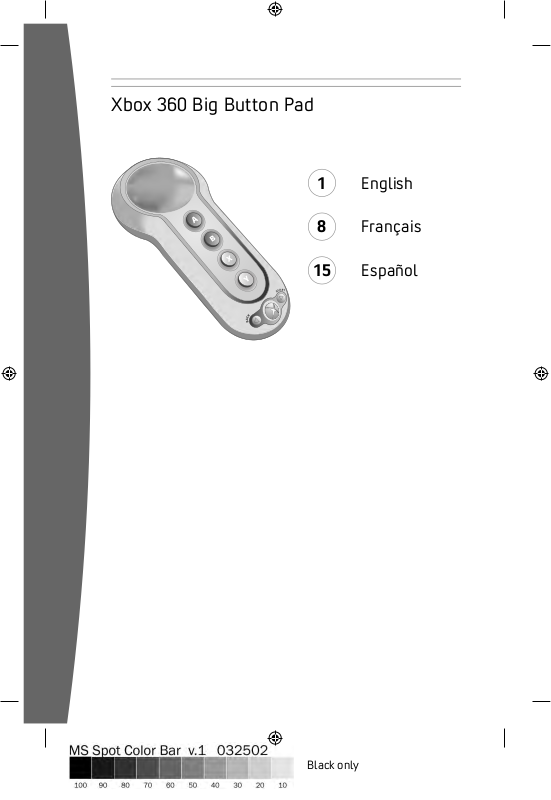

Xbox 360 Big Button Pad

1 English

8 Français

15 Español

English

Thanks for choosing the Xbox 360™ Big Button Pad. The Big Button Pad lets you experience the joy of wireless freedom with the simplicity of a comfortable, one-handed, fun-to-use game controller. The Xbox 360 Big Button Pad features:

• Comfortable, ambidextrous, one-handed use.

• A big button for trivia and fast response gameplay as well as a four-way directional pad.

• The familiar A, B, X, and Y buttons and Xbox Guide button for easy access to the Xbox Dashboard.

• Up to four-player simultaneous gameplay (supported on a game-by-game basis).

• A high performance, extended range infrared receiver.

The Xbox 360 Big Button Pad is for use exclusively with the Xbox 360 video game and entertainment system. For information about using the Big Button Pad with a particular game, see your game manual.

warning

Before using this product, read this

manual and the Xbox 360 console

manual and the Xbox 360 console manuals for important safety and health

manuals for important safety and health information. Keep all manuals for future

information. Keep all manuals for future reference. For replacement manuals, go

reference. For replacement manuals, go to www.xbox.com/support or call Xbox

to www.xbox.com/support or call Xbox Customer Support (see “If You Need

Customer Support (see “If You Need More Help”).

More Help”).

2 Disposable Battery Safety

3 Set Up Your Big Button Pads

4 Using Your Big Button Pads

4 Cleaning Your Big Button Pads

5 Troubleshooting

5 If You Need More Help

6 Disposal of Waste Electrical and

Electronic Equipment

6 For Customers in the United States

6 For Customers in Canada

english

The limited warranty covering this product is contained in the Xbox 360 Warranty manual (Volume 2) and is available online at www.xbox.com/support.

DISPOSABLE BATTERY SAFETY

Improper use of batteries may result in

batter y uid leakage, overheating, or explosion. Risk of re if batteries are

replaced by an incorrect type. Released

batter y uid is corrosive and may be toxic. It

can cause skin and eye burns, and is harmful if swallowed. To reduce the risk of injury:

• Keep batteries out of reach of children.

• Do not heat, open, puncture, mutilate, or

dispose of batteries in re.

• Use only alkaline batteries, type AA (LR6).

• Do not mix new and old batteries.

• Remove the batteries if they are worn out or before storing your Big Button Pad for an extended period of time.

• If a battery leaks, remove all batteries,

taking care to keep the leaked uid from

touching your skin or clothes. If uid

from the battery comes into contact

with skin or clothes, ush skin with

water immediately. Before inserting new batteries, thoroughly clean the battery compartment with a damp paper towel, or follow the battery manufacturer’s recommendations for cleanup.

• Dispose of batteries in accordance with local and national disposal regulations (if any).

• Do not short-circuit power supply terminals on batteries.

• Do not attempt to recharge nonrechargeable batteries.

Insert batteries according to the following instructions (see “Insert Batteries”).

Avoid dropping or throwing the Big Button

Pad. Avoid spilling uid over it. Handle with

care as it is a sensitive electronic device.

english

Arrange the infrared receiver cable so that people and pets are not likely to trip over or accidentally pull on it as they move around

or walk through the area. When the infrared receiver is not in use, you may need to disconnect the cable from the console to keep it out of the reach of children and pets. Do not allow children to play with the receiver cable or wrap the cable around themselves.

SET UP YOUR BIG BUTTON PADS

Before you can use your Xbox 360 Big Button Pads with your Xbox 360 console, you need to:

1 Insert batteries. The Big Button Pad uses

only AA disposable, alkaline batteries.

2 Insert the infrared receiver cable into one

of the console’s controller ports.

Insert Batteries

To insert batteries into the Big Button Pad:

1 Remove the battery cover. 2 Insert two new alkaline AA (LR6) batteries

as shown on the underside of the battery cover. For best performance, do not use rechargeable batteries.

3 Replace the battery cover.

Connect Your Big Button Pads

infrared receiver cable into an open controller port on your Xbox 360 console. Then position the receiver so that all pads have a clear line of sight to the receiver.

Tip

For best results, place the infrared receiver above or below your TV.

To disconnect all Big Button Pads, remove the infrared receiver cable from the console.

Turn Your Console on with a Big Button Pad

english

To turn on your console with a Big Button Pad, point any Big Button Pad at the infrared receiver and press and hold the Xbox Guide button or the Start button.

Turn Your Console off with a Big Button Pad

To turn your console off, point any Big Button Pad at the infrared receiver and press and hold the Xbox Guide button for three seconds.

nOTEs

• When you turn off your console, as long as the infrared receiver cable is still connected, your Big Button Pads will work the next time you turn the console on.

• Big Button Pads work within a 10-15 foot range of the infrared receiver. Objects blocking the clear line of sight between the Big Button Pads and the infrared receiver may interfere with the Big Button Pads’ normal operation.

Up to four Big Button Pads can be actively connected to a console at one time. Plug the

USING YOUR BIG BUTTON PADS

Each of the four Big Button Pads has a unique color that corresponds to the same color screen character. They are automatically

con gured in a preset sequence:

• The green pad is in the  rst player position.

• The red pad is in the second player position.

• The blue pad is in the third player position.

• The yellow pad is in the fourth player position.

english

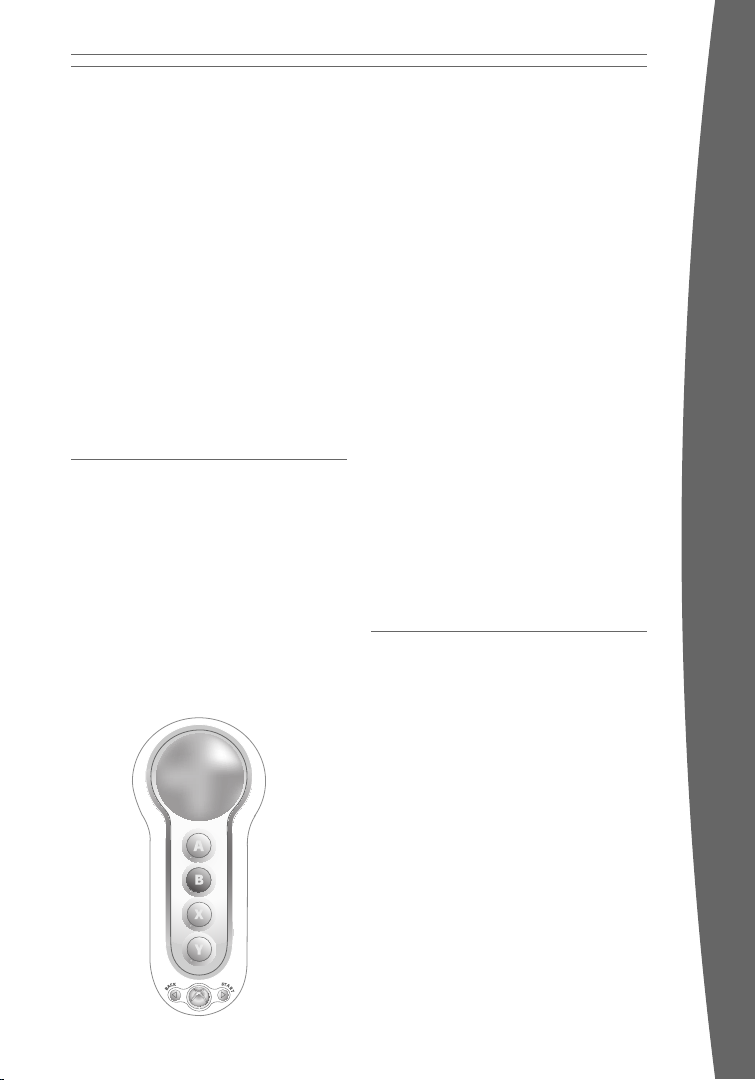

Big Button Pad Buttons

The big button works not only as expected— as a button—but as a directional pad as well. Use this button and the A, B, X, Y, Back, Xbox Guide, and Start buttons to move around and control the Xbox Dashboard, just as you would with your wired or wireless controller.

Wired and Wireless Controllers

The Big Button Pad does not interfere with the existing connections of wired or wireless Xbox 360 controllers. You may even use connected wired or wireless controllers along with the Big Button Pads for team gameplay.

For example, if you have a wireless controller assigned to quadrant 1 in the Ring of Light, both the wireless controller and the green Big Button Pad affect the green player in the game. Likewise, the second wired or wireless controller corresponds to red, the third to blue, and the fourth to yellow.

nOTE

Team gameplay is supported on a game-bygame basis.

CLEANING YOUR BIG BUTTON PADS

Clean only with a dry or slightly damp cloth. Using cleaning solutions or attempting to clean connectors may damage your Big Button Pads.

Always remove batteries before cleaning.

TROUBLESHOOTING

If you encounter problems, try the possible solutions provided below.

Big Button Pad Does Not Work

Big Button Pads automatically connect and communicate with your console when you press a button. If the console is turned on, the infrared receiver cable is plugged in, and you do not get any response from the Big Button Pad:

• Move the Big Button Pad and the infrared receiver closer to each other, making sure there is nothing blocking the line of sight between the two.

• Remove and reinsert the infrared receiver cable into the console controller port, or try using another open controller port on the console.

• Make sure that the Big Button Pad’s batteries are fresh, AA alkaline batteries and are installed correctly.

nOTE

The Big Button Pad does not support vibration.

Poor Performance with the Xbox 360 Console

• Make sure that you have fresh batteries in the Big Button Pad.

• Point the Big Button Pad directly at the infrared receiver.

• Verif y that the infrared receiver is not blocked or covered.

• Make sure that you’re using the Big Button Pad within the 10-15 foot range of the infrared receiver.

• Close drapes and blinds during daylight hours to minimize stray light.

IF YOU NEED MORE HELP

Go to www.xbox.com/support or call Xbox Customer Support:

• United States and Canada: 1-800-4MYXBOX (1-800-469-9269)

TTY users: 1-866-740-XBOX (1-866-740-

9269)

• Mexico: 001-866-745-83-12 (TTY users: 001-866-251-26-21)

• Colombia: 01-800-912-1830

• Brazil: 0800-891-9835

• Chile: 1230-020-6001

Do not take your Xbox 360 console or its accessories to your retailer for repair or service unless instructed to do so by an Xbox Customer Support representative.

DO nOT aTTEmpT rEpairs

Do not attempt to take apart, service, or modify the Xbox 360 console, power supply, or its accessories in any way. Doing so could present the risk of serious

injury or deat h from electric shock or re,

and it will void your warranty.

english

DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol means that the disposal of this product may be regulated. Disposal with household waste may therefore be restricted. It is your responsibility to comply with applicable recycling law or regulations pertaining to electrical and electronic waste. Separate collection and recycling will help to conserve natural resources and prevent potential negative consequences for human health and the environment, which inappropriate disposal could cause due to the possible presence of hazardous substances in electrical and electronic equipment. For more information about where to drop off

your electrical and electronic waste, please contact your

local city/municipality ofce,

your household waste disposal service, or the shop where you purchased this product.

FOR CUSTOMERS IN THE UNITED STATES

This device complies with Part 15 of the FCC

english

Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful

interference, and

2 This device must accept any interference

received, including interference that may cause undesired operation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modications made

on the system not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

FOR CUSTOMERS IN CANADA

This Class B digital apparatus complies with Canadian ICES-003.

Trade Name: Microsoft Corp. Responsible Party: Microsoft Corporation Address: One Microsoft Way

Redmond, WA 98052 U.S.A.

Telephone No.: (800) 4MY-XBOX

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Informat ion in this docu ment, including URL and other I nternet Web site re ferences, is su bject to change w ithout notice. Unless o therwise noted , the example comp anies, organiza tions, products, domain names, e -mail addresse s, logos, people ,

places a nd events depicte d herein are cti tious, and no a ssociation with any real company, organization, pr oduct, domain

name, e- mail address, l ogo, person, pl ace or event is in tended or should be inferred. Com plying with all ap plicable copyright laws is the re sponsibility of the user. Without limiting the ri ghts under copyri ght, no part of this document m ay be reprod uced, stored in o r introduced into a retrieval system , or transmitted in any form or by any means (elect ronic, mechanica l, photocopying , recording, or o therwise), or for any purpose, without the expr ess written per mission of Microsof t Corporation.

Microsof t may have patents , patent applica tions, trademarks , copyrights, or other intellectua l property right s covering subject m atter in this d ocument. Except a s expressly provide d in any written license agreeme nt from Microsof t, the furnishi ng of this docu ment does not gi ve you any license to these patent s, trademarks, co pyrights, or oth er intellectual propert y.

trademarks of Microsoft C orporation in th e United States and/or other countr ies.
