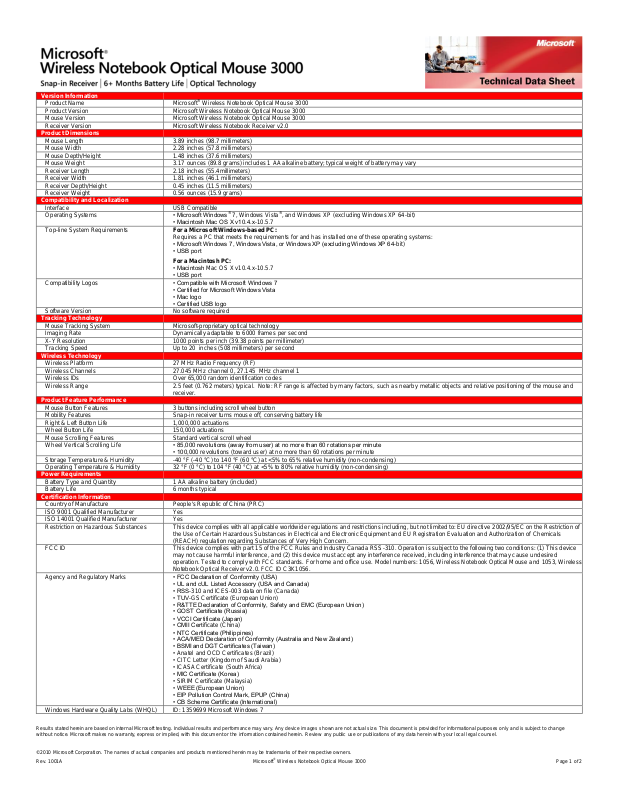

Microsoft WIRELESS NOTEBOOK OPTICAL MOUSE 3000 DATASHEET
Version Information
Product Name
Microsoft® Wireless Notebook Optical Mouse 3000
Product Version
Microsoft Wireless Notebook Optical Mouse 3000
Mouse Version
Microsoft Wireless Notebook Optical Mouse 3000
Receiver Version
Microsoft Wireless Notebook Receiver v2.0
Product Dimensions
Mouse Length
3.89 inches (98.7 millimeters)
Mouse Width
2.28 inches (57.8 millimeters)
Mouse Depth/Height
1.48 inches (37.6 millimeters)
Mouse Weight
3.17 ounces (89.8 grams) includes 1 AA alkaline battery; typical weight of battery may vary
Receiver Length
2.18 inches (55.4millimeters)
Receiver Width
1.81 inches (46.1 millimeters)
Receiver Depth/Height
0.45 inches (11.5 millimeters)
Receiver Weight
0.56 ounces (15.9 grams)
Compatibility and Localization
Interface
USB Compatible
Operating Systems
• Microsoft Windows
®
7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)
• Macintosh Mac OS X v10.4.x-10.5.7
Top-line System Requirements
For a Microsoft Windows-based PC:
Requires a PC that meets the requirements for and has installed one of these operating systems:
• Microsoft Windows 7, Windows Vista, or Windows XP (excluding Windows XP 64-bit)
• USB port
For a Macintosh PC:
• Macintosh Mac OS X v10.4.x-10.5.7
• USB port
Compatibility Logos
• Compatible with Microsoft Windows 7
• Certified for Microsoft Windows Vista
• Mac logo
• Certified USB logo
Software Version
No software required
Tracking Technology
Mouse Tracking System
Microsoft-proprietary optical technology
Imaging Rate
Dynamically adaptable to 6000 frames per second
X-Y Resolution
1000 points per inch (39.38 points per millimeter)
Tracking Speed
Up to 20 inches (508 millimeters) per second
Wireless Technology
Wireless Platform
27 MHz Radio Frequency (RF)
Wireless Channels
27.045 MHz channel 0, 27.145 MHz channel 1
Wireless IDs
Over 65,000 random identification codes
Wireless Range
2.5 feet (0.762 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and
receiver.
Product Feature Performance
Mouse Button Features
3 buttons including scroll wheel button
Mobility Features
Snap-in receiver turns mouse off, conserving battery life
Right & Left Button Life
1,000,000 actuations
Wheel Button Life
150,000 actuations
Mouse Scrolling Features
Standard vertical scroll wheel
Wheel Vertical Scrolling Life
• 85,000 revolutions (away from user) at no more than 60 rotations per minute
• 100,000 revolutions (toward user) at no more than 60 rotations per minute
Storage Temperature & Humidity
-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)
Operating Temperature & Humidity
32 °F (0 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)
Power Requirements
Battery Type and Quantity
1 AA alkaline battery (included)
Battery Life
6 months typical
Certification Information
Country of Manufacture
People's Republic of China (PRC)
ISO 9001 Qualified Manufacturer
Yes
ISO 14001 Qualified Manufacturer
Yes
Restriction on Hazardous Substances
This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals
(REACH) regulation regarding Substances of Very High Concern.
FCC ID
This device complies with part 15 of the FCC Rules and Industry Canada RSS-310. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1056, Wireless Notebook Optical Mouse and 1053, Wireless
Notebook Optical Receiver v2.0. FCC ID C3K1056.
Agency and Regulatory Marks
• FCC Declaration of Conformity (USA)
• UL and cUL Listed Accessory (USA and Canada)
• RSS-310 and ICES-003 data on file (Canada)
• TUV-GS Certificate (European Union)
• R&TTE Declaration of Conformity, Safety and EMC (European Union)
• GOST Certificate (Russia)
• VCCI Certificate (Japan)
• CMII Certificate (China)
• NTC Certificate (Philippines)
• ACA/MED Declaration of Conformity (Australia and New Zealand)
• BSMI and DGT Certificates (Taiwan)
• Anatel and OCD Certificates (Brazil)
• CITC Letter (Kingdom of Saudi Arabia)
• ICASA Certificate (South Africa)
• MIC Certificate (Korea)
• SIRIM Certificate (Malaysia)
• WEEE (European Union)
• EIP Pollution Control Mark, EPUP (China)
• CB Scheme Certificate (International)
Windows Hardware Quality Labs (WHQL)
ID: 1359699 Microsoft Windows 7
Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change
without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
©2010 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners.
Rev. 1001A Microsoft® Wireless Notebook Optical Mouse 3000 Page 1 of 2
Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change
without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
©2009 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners.
Rev. 0906A Microsoft® Wireless Notebook Optical Mouse 3000 Page 2 of 2
