Welcome

Congratulations on your purchase of a Microsoft® wireless laser mouse, which includes:

1 2 3

4

1

Wireless laser mouse

2

Receiver (desktop or notebook version, depending on your mouse model)

3

One or more batteries for your wireless mouse, depending on your mouse model

4

CD with Microsoft IntelliPoint mouse sof tware

5

This Get ting Started manual

5

Important

● Check the system requirements (located on the packaging) to make sure
that your system is compatible with the product that you purchased.

● If you don’t already have a mouse, you can install the IntelliPoint software
after you have completed Steps 2 through 5 and your wireless laser mouse
is working.

0605 Part No. X11-33043

1

2

3

About the Laser Mouse

This Microsoft mouse features the performance, precision,
and power of high definition laser technology.

Microsoft laser mouse products emit an invisible infrared
beam from the bottom of the mouse, not a red light like
Microsoft optical mouse products.

1 Install IntelliPoint Mouse Software

IntelliPoint software enables the unique features of your mouse.

To install IntelliPoint software (Microsoft Windows® operating system)

1 Insert the software CD into your computer’s

CD drive. If the Setup screen doesn’t appear
automatically, do the following:

● Click Start, and then click Run

● Type [drive]:setup. For example, if your CD
drive is drive E, type e:setup

2 On the Setup screen, click Install, and then follow

the Setup Wizard instructions on the screen. Restart
the computer, if prompted to do so.

To install IntelliPoint software (Macintosh)

1 Insert the software CD into your computer’s CD drive.

2 Double-click the Microsoft-Desktop.dmg file.

3 Double-click the Microsoft Desktop.mpkg icon, and then follow the

instructions on the screen. Restart the computer, if prompted to do so.

.

2 Insert the Batteries

Whenever you insert batteries, always make sure that each of them is new.
Alkaline batteries provide maximum battery life and are included in the package.

Desktop Mouse Notebook Mouse

1 Remove the battery compartment
cover.

2 Insert the batteries, making sure
to correctly orient the positive (+)
and negative (–) ends as specified
by the battery compartment
labels.

1 Press the Open button on the
bottom of the mouse, and then
pull out the batter y compartment.

2 Insert the battery, making sure to
correctly orient the positive (+)
and negative (–) ends as
by the battery compartmen

labels.

specified

t

4

5

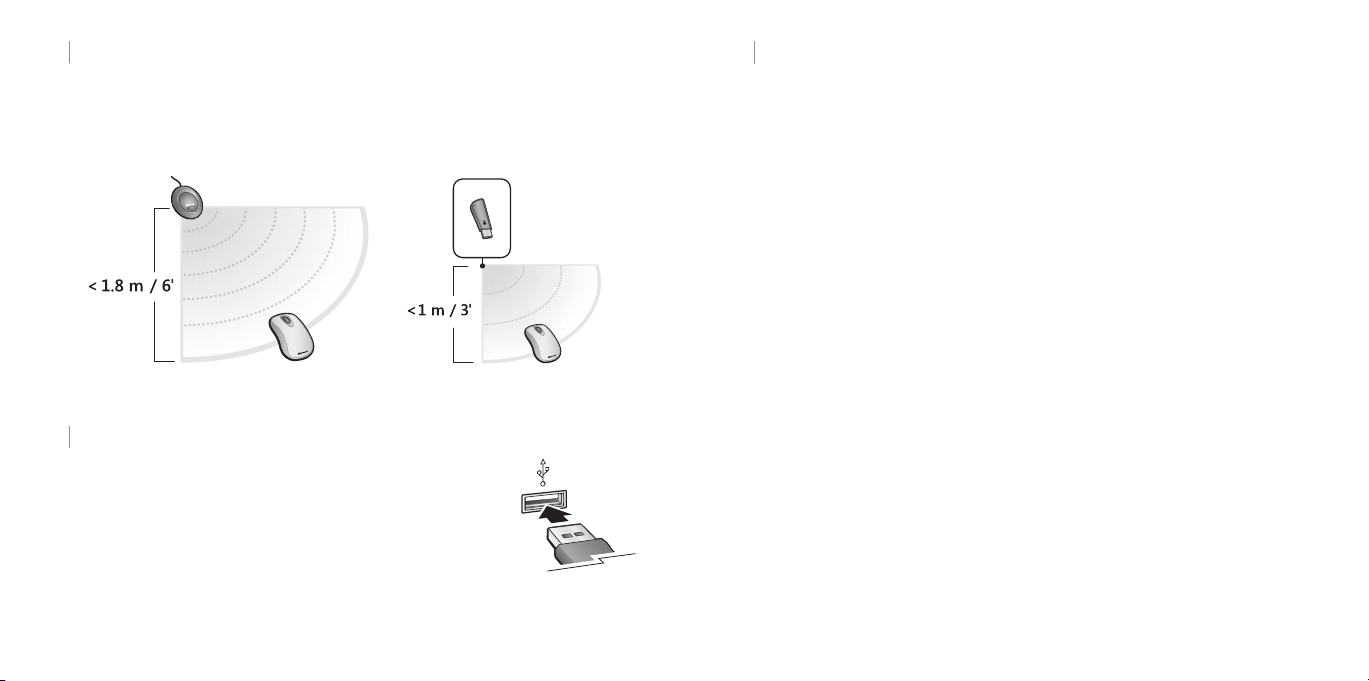

3 Position the Wireless Mouse and Receiver

For optimum performance, position the receiver away from any items that might
cause interference, such as computer monitors, large metal objects (including
metal furniture), desktop fans, or fluorescent lights. Make sure that the distance
between the mouse and receiver is within the wireless range specified on the
packaging.

Desktop mouse positioning Notebook mouse positioning

4 Connect the Receiver to the Computer

● Turn on your computer, and then plug the rectangular USB

connector

into your computer’s rectangular USB port.

USB connector

5 Test the Mouse

Microsoft laser mouse products emit an invisible infrared beam from the bottom
of the mouse, not a red light like Microsoft optical mouse products. Try using the
mouse to make sure it works. If it doesn’t work as expected, make sure that you
completed the following procedures as specified earlier in these instructions:

● The battery or batteries are new and inserted correctly.

● The receiver is correctly connected to the computer.

● The receiver and mouse are correctly positioned within their wireless range
and there are no nearby items that might cause interference.

If the mouse is still not working, try changing the wireless connection channel.
Changing the channel is useful if your mouse is experiencing interference.

To change the wireless connection channel

● Press the Connect button on the bottom of the wireless laser mouse.

If changing the channel doesn’t solve the problem, you may need to reconnect
the mouse to the receiver.

To reconnect the mouse to the receiver

1 Make sure that the mouse and receiver are positioned as specified earlier in

this manual.

2 Press the button on the receiver, and then immediately press the Connect

button on the bottom of the mouse. Using the tip of a pen may make it easier
to press smaller buttons.

Important Depending on the orientation of your USB ports, the combined

Connect button/status light on the notebook receiver might be facing away
from you.

6

7

6 Read On-Screen Help

Microsoft Mouse Help contains the following important product information
in a searchable format:

● Hardware and software feature descriptions and instructions

● Troubleshooting topics and Product Support Services information

● Healthy Computing Guide

● Battery removal and safety information

● End-User License Agreement (EULA), Limited Warranty, and regulatory
information

To open Microsoft Mouse Help

● Windows: Click Start, point to All Programs, point to Microsoft Mouse,
and then click Mouse Help

● Macintosh

1 Choose Apple > System Preferences > Microsoft Mouse.

2 Choose Help > Microsoft Mouse Help

:

.

.

Important

● Before boarding any aircraft, remove the batteries from the wireless mouse or
snap the receiver into its slot on the bottom of the notebook mouse (turning it
off). The wireless mouse can transmit radio frequency (RF) energy, much like a
cellular telephone, whenever batteries are installed and the mouse is activated
either by touch or button press. The notebook mouse can transmit RF energy
whenever batteries are installed and the receiver is detached from its slot on
the bottom of the mouse (turning it on).

● For detailed information about U.S. and Canadian radio interference
regulations, search for “regulations” in on-screen Help installed with the
software. For information about how to access on-screen Help, see Step 6.

Using the Magnifier

You can use the Magnifier like a magnifying glass to enlarge text and images
on your screen.

To turn the Magnifier on and off

● Click the mouse button assigned to Magnify to display the Magnifier,
and then click the button again to turn it off.

7 Customize Your Mouse (optional)

By using IntelliPoint software, you can reassign any button, including the wheel
button, to a different command. You can also change your mouse settings, such
as the wheel scrolling rate.

To start IntelliPoint software

● Windows: Click Start, point to All Programs, point to Microsoft Mouse,
and then click Microsoft Mouse

● Macintosh: Choose Apple > System Preferences > Microsoft Mouse

.

Storing the Receiver in the Mouse

(notebook mouse models only)

For added portability or when the mouse isn’t in use, you can
snap the receiver into its slot on the bottom of the mouse.
Attaching the receiver to the mouse in this way automatically
turns the mouse off.

.

8

9

Product Information and Software Updates

For general product information and software updates, go to the
Microsoft Hardware Web site at
www.microsoft.com/hardware

Troubleshooting

If you have a question about your wireless laser mouse, try the following options:

● Check the system requirements (located on the packaging) to make sure that
your system is compatible with the product that you purchased.

● Read on-screen Help, which contains product information and
troubleshooting tips.

● Look in the Readme file for late-breaking product information.

● Go to the Microsoft Hardware Web site at
www.microsoft.com/hardware
for additional product information and software updates.

● See the Product Support Services topics in on-screen Help, or go to
http://support.microsoft.com
for information about how to contact Microsoft Product Support Services.

Patent Information

For patent information , see on-screen Help.

Important Battery Information

Caution Use and replace only with A A (LR6) Alkaline, Zin c-Carb on, or Zinc- Chloride Batteries.

General Precautions

● Keep batteries out of re ach of children.

● Insert the batter ies in the prop er direction as indicated by the positive (+) and negative (-) markings
on the batte ry and bat tery compartment.

● Do not mix old and new batter ies or batteries of dif ferent types (fo r example, carbon and alkaline
batteries).

● Always rem ove old, weak , or worn-out batte ries promptly and rec ycle or dispose of them in
accordance with Local and National Disposal Re gulations.

● If a batter y leaks , remove all batterie s and recycle or dispose of them in accordance with the bat tery
manufac turer’s ins tructions and Loc al and National Disposal Regulations. Before inser ting new
batteries, thoroughly clean the battery compartment with a damp paper towel, or follow the battery
manufac turer’s re commendations for cle anup. If fluid from the batte ry comes into contac t with skin
or clothes, flush skin with water immediately.

● Remove the bat teries if your device is to be stored for an extended period of time without being
used.

Special Precautions

The precautions below are to prevent the sudden re lease of electrol ytes, which these prohibited actions
can cause :

● Do not insta ll the batte ries incor rectl y. Carefully observe the positive (+) and negative (-) markings
on the batte ry for pro per installation.

● Do not open, puncture , or mutilate the batteri es.

● Do not heat bat teries.

● Do not use a fire to disp ose of batteries.

Release d batter y elec troly te is corrosive, can cause damage to the eyes and skin, and may be toxic if
swallowe d.

10

11

Regulatory Information

Tested to comply with FCC (U.S. Federal Communications Commission) Standards. For home or office
use. Not intended for use in machiner y, medical or ind ustrial ap plicatio ns. Any changes or
modifications not expressly approved by Microsoft could void the user’s authori ty to operate this
device.

This product is for use with NRTL Listed (UL, CSA , ETL, etc.), and/or IEC/EN 6 0950 compliant (CE
marked) Information Technology equipment. No serviceable par ts included.

This device is rated as a commercial product for operation at +41ºF (+5ºC) to +95ºF (+35ºC).

Note: For detaile d informati on on U.S. and Canadian radio interference re gulations, search for

“regulations” in on-scre en Help installed with the soft ware.

This Class B digital apparatus complie s with Part 15 of the U.S. Federal Communications Commission
(FCC) rules, Canadian ICES-003 and RSS-210. Operation is subject to the fo llowing t wo conditions: (1)
this device may not cause inte rference, and (2) this device mus t accept any interference received,
including interfer ence that may cause undesired operation.

Cet appareil numériqu e de la classe B est conforme aux normes NMB -003 et CNR-210 du Canada. Son
fonctio nnement est assujetti aux deux condition s suivantes : (1) Cet appareil ne peut pas provo quer
d’interférence s nuisibles et (2) cet appar eil doit accepter toute interférence reçue, y compris les
interférences pouvant entr aîner un fonc tionnement non désiré

Microsof t Corporation; One Microsof t Way; Redmond, WA 98052-6399 ; U.S. A.

United States: (80 0) 426-9400 Cana da: (80 0) 933-4750

RF Technical Specifications

RF output power: < 54 dBµV/m at 3 m

Keyboard with two channels – RF frequencies : 27.095MHz (channel 1), 27.195MHz (channel 2)

Keyboard with a single channel – RF frequency: 27.195MHz

Mouse with t wo channel s – RF frequen cies: 27.045MHz (channel 1), 27.145MHz (chann el 2)

Mouse with a sin gle channel – RF frequency: 27.145MHz

Information About Laser Devices

This device co mplies with International Standa rd IEC 60825-1:20 01-08 for a Class 1 laser produ ct. This
device also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.
50, dated July 26, 2001.

● This device emits a collimated (parallel) beam of infrared light (invisible to the user).

● Maximum output of the laser radiation : < 716 microwatts (at 832 nanome ters) to 834 microwatts
(at 865 nanome ters).

● Emitted laser wavelength(s): nomina l: 850 nanometers, range: (832-865 nanometers).

● This optica l device has no serviceable par ts.

Caution Use of controls or adjustments or performance of procedures other than th ose specified

herein may re sult in hazardous radiation exposure.

● Do not disas semble the device.

● Do not use the device outside of its specified operating tempe rature ran ge +41ºF (+5ºC) to +95ºF
(+35ºC). If the device is exposed to an environment outside of its prescribed operation, unplug the
device or rem ove the batteries (if wireless) and allow the temperatur e to stabilize within the specified
operatin g range before using the device.

A Class 1 laser pr oduct is safe under reasonably foreseeable conditions
of operatio n as describ ed by IEC 60825-1 and 21 CFR 1040.10. However,
it is recomme nded that you not direct the laser beam (which is emit ted
from the bot tom of the mous e) at anyone’s eyes.

CLASS 1 INVISIBLE

LASER PRODUCT

IEC 60825-1:2001-08

Product Disposal Information

Dispose of this product in accordance with local an d national disposal regulations (if any),
including those governing the recovery and re cycling of waste elec trical
and electronic equipment (W EEE).

Informati on in this document, including URL and othe r Internet Web site references, is subject to
change without notice. Unless otherwise noted, the example companies, organizations, products,
domain name s, e-mail addresse s, logos , people, places, an d events dep icted herein are fictitious, and
no association with any real company, organization , product, domain nam e, e-mail address, logo,
person , place, or eve nt is intende d or should be inferred. Complying with all applicable copyright laws
is the responsibilit y of the user. Witho ut limiting the rights under copyright, no part of this document
may be reproduced, sto red in or introduced into a retrieval system, or transmitted in any form or by
any means (electronic, mechanical, photo copying, recording, or other wise) , or for any purpos e, without
the expres s writte n permission of Microsoft Corporation.
Microsof t may have patents, patent applications, trademark s, copyrights, or other intellectual propert y
rights covering subject matte r in this document. Except as expressly provided in any writ ten license
agreeme nt from Microsoft, the furnishing of this document does not give you any license to these
patents , trademarks, copyrights , or other intellectual proper ty.
Microsof t Corporation grants the purchaser of this product the right to reproduce one (1) copy of this
user manual for each Hardware Device you purchase d in the packag e.
©2005 Microsoft Corpo ration. All rights res erved.
Microsof t and Windows are either registered trademarks or trademark s of Microsoft Corporation in the
United States and/or other countries.
All other trademark s are property of the ir respective owne rs.

12
