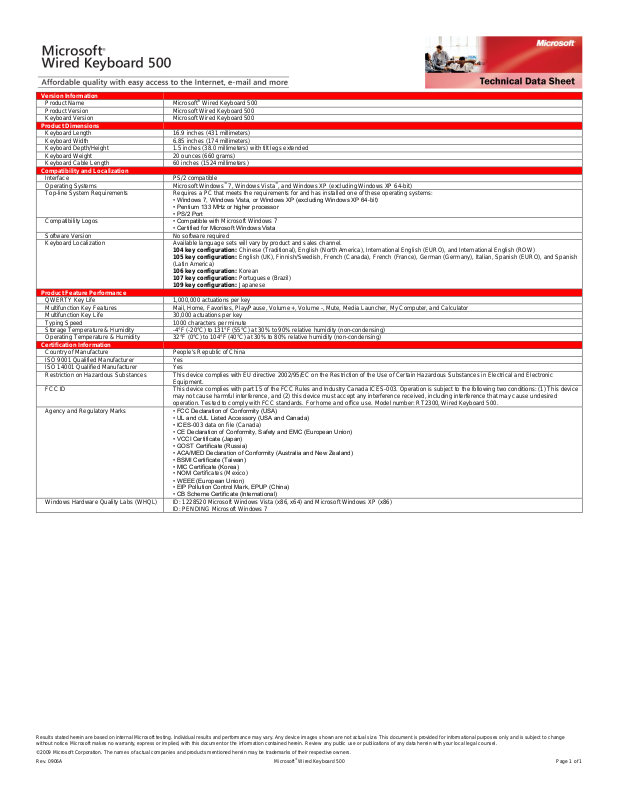

Microsoft WIRED KEYBOARD 500 DATASHEET

Version Information

Product Name

Microsoft® Wired Keyboard 500

Product Version

Microsoft Wired Keyboard 500

Keyboard Version

Microsoft Wired Keyboard 500

Product Dimensions

Keyboard Length

16.9 inches (431 millimeters)

Keyboard Width

6.85 inches (174 millimeters)

Keyboard Depth/Height

1.5 inches (38.0 millimeters) with tilt legs extended

Keyboard Weight

20 ounces (660 grams)

Keyboard Cable Length

60 inches (1524 millimeters)

Compatibility and Localization

Interface

PS/2 compatible

Operating Systems

Microsoft Windows® 7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)

Top-line System Requirements

Requires a PC that meets the requirements for and has installed one of these operating systems:

• Windows 7, Windows Vista, or Windows XP (excluding Windows XP 64-bit)

• Pentium 133 MHz or higher processor

• PS/2 Port

Compatibility Logos

• Compatible with Microsoft Windows 7

• Certified for Microsoft Windows Vista

Software Version

No software required

Keyboard Localization

Available language sets will vary by product and sales channel.

104 key configuration: Chinese (Traditional), English (North America), International English (EURO), and International English (ROW) 105 key configuration: English (UK), Finnish/Swedish, French (Canada), French (France), German (Germany), Italian, Spanish (EURO), and Spanish

(Latin America)

106 key configuration: Korean 107 key configuration: Portuguese (Brazil) 109 key configuration: Japanese

Product Feature Performance

QWERTY Key Life

1,000,000 actuations per key

Multifunction Key Features

Mail, Home, Favorites, Play/Pause, Volume +, Volume -, Mute, Media Launcher, My Computer, and Calculator

Multifunction Key Life

30,000 actuations per key

Typing Speed

1000 characters per minute

Storage Temperature & Humidity

-4°F (-20°C) to 131°F (55°C) at 30% to 90% relative humidity (non-condensing)

Operating Temperature & Humidity

32°F (0°C) to 104°F (40°C) at 30% to 80% relative humidity (non-condensing)

Certification Information

Country of Manufacture

People's Republic of China

ISO 9001 Qualified Manufacturer

Yes

ISO 14001 Qualified Manufacturer

Yes

Restriction on Hazardous Substances

This device complies with EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.

FCC ID

This device complies with part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model number: RT2300, Wired Keyboard 500.

Agency and Regulatory Marks

• FCC Declaration of Conformity (USA)

• UL and cUL Listed Accessory (USA and Canada)

• ICES-003 data on file (Canada)

• CE Declaration of Conformity, Safety and EMC (European Union)

• VCCI Certificate (Japan)

• GOST Certificate (Russia)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• BSMI Certificate (Taiwan)

• MIC Certificate (Korea)

• NOM Certificates (Mexico)

• WEEE (European Union)

• EIP Pollution Control Mark, EPUP (China)

• CB Scheme Certificate (International)

Windows Hardware Quality Labs (WHQL)

ID: 1228520 Microsoft Windows Vista (x86, x64) and Microsoft Windows XP (x86) ID: PENDING Microsoft Windows 7

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
