Microsoft RX-42 User Manual
Telephone

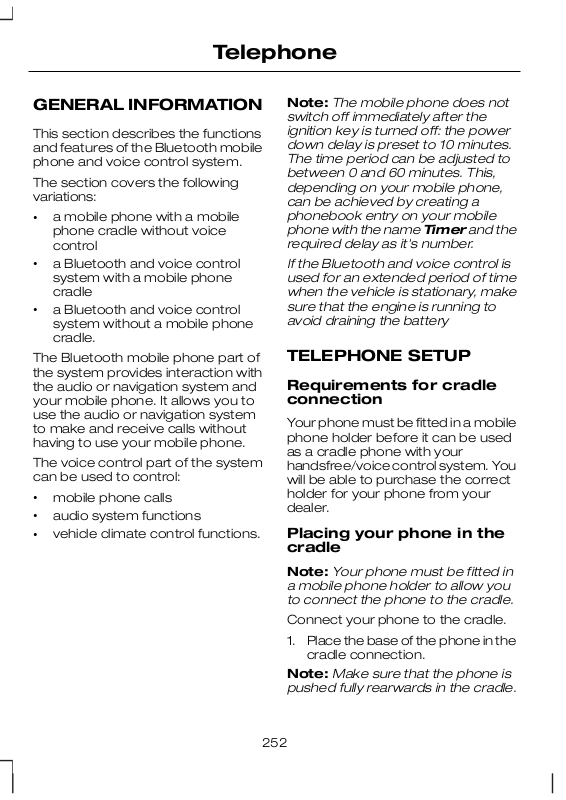

GENERAL INFORMATION
This section describes the functions and features of the Bluetooth mobile phone and voice control system.
The section covers the following variations:
•a mobile phone with a mobile phone cradle without voice control
•a Bluetooth and voice control system with a mobile phone cradle
•a Bluetooth and voice control system without a mobile phone cradle.
The Bluetooth mobile phone part of the system provides interaction with the audio or navigation system and your mobile phone. It allows you to use the audio or navigation system to make and receive calls without having to use your mobile phone.
The voice control part of the system can be used to control:
•mobile phone calls
•audio system functions
•vehicle climate control functions.
Note: The mobile phone does not switch off immediately after the ignition key is turned off: the power down delay is preset to 10 minutes. The time period can be adjusted to between 0 and 60 minutes. This, depending on your mobile phone, can be achieved by creating a phonebook entry on your mobile phone with the name Timer and the required delay as it's number.
If the Bluetooth and voice control is used for an extended period of time when the vehicle is stationary, make sure that the engine is running to avoid draining the battery
TELEPHONE SETUP
Requirements for cradle connection
Your phone must be fitted in a mobile phone holder before it can be used as a cradle phone with your handsfree/voice control system. You will be able to purchase the correct holder for your phone from your dealer.
Placing your phone in the cradle
Note: Your phone must be fitted in a mobile phone holder to allow you to connect the phone to the cradle.
Connect your phone to the cradle.
1.Place the base of the phone in the cradle connection.
Note: Make sure that the phone is pushed fully rearwards in the cradle.
252
Telephone
2.Push the phone downwards until a click is heard.
2
1
E87688
Note: The connection to the system will be displayed on your phone.
Phonebook
After start up access to the phonebook can be delayed for up to two minutes.
Phonebook categories
Depending on your phonebook entry, different categories can be displayed in the audio or navigation unit.
For example:
M Mobile
O Office
H Home
F |
Fax |
Note: Entries may be displayed without a category attachment.
The category can also be indicated as an icon:
Phone
Mobile
Home
Office
Fax
Making a phone an active phone
When using the system for the first time, no phone is connected to the system.
After switching on the ignition the cradle phone and the Bluetooth phone are recognized differently by the system.
Bluetooth phone
After bonding a Bluetooth phone to the system, this becomes the active phone. For further information refer to the phone menu.
However, in some cases the Bluetooth phone has to be activated by pressing the appropriate station button on the audio or navigation unit.
Turning the ignition back on again, the last active phone is picked up by the system.
253
Telephone
Bond another Bluetooth phone
Note: Before another Bluetooth phone can be bonded, the existing active Bluetooth connection has to be deactivated by the mobile phone.
Bond a new Bluetooth phone as described in the requirements for a Bluetooth connection.
Phones stored in the system are accessible by using the phone list on the audio or navigation unit.
Note: If six (five Bluetooth phones for cradle phone system) Bluetooth phones have been bonded, one of these has to be deleted in order to bond a new phone.
Cradle phone
With your phone fitted in the mobile phone cradle this does not automatically become the active phone.
In these cases refer to Changing the active phone in the appropriate section which describes the system fitted to your vehicle.
BLUETOOTH SETUP
Before you can use your telephone with your vehicle it must be bonded to the vehicle telephone system.
Handling of phones
A phone can be connected to the vehicle system by using either a cradle connection or a Bluetooth connection.
On vehicles with a mobile phone cradle, up to five Bluetooth phones can be bonded to the vehicle system.
On vehicles without a mobile phone cradle, up to six Bluetooth phones can be bonded to the vehicle system.
Note: If there is an ongoing call when the phone in use is selected as the new active phone, the call is transferred to the vehicle audio system.
Note: Even if connected to the car system, your phone can still be used in the usual way.
Requirements for Bluetooth connection
The following are required before a Bluetooth phone connection can be made.
1.The Bluetooth feature must be activated on the phone and on the audio unit. For additional information, refer to your phone user guide
2.The private mode must not be activated on the Bluetooth phone.
3.Search for audio device.
4.Select Ford Audio.
5.The Bluetooth PIN number 0000 must be entered on the phone keypad.
254
Telephone
Note: A phone call will be disconnected if the audio/navigation system is switched off. If the ignition key is turned to the off position the phone call will remain in progress.
Compatibility of phones
CAUTION
As no common agreement exists, mobile phone
manufacturers are able to implement a variety of profiles in their Bluetooth devices. Because of this, an incompatibility can occur between the phone and hands-free system, which in some cases may significantly degrade the system performance. To avoid this situation, only recommended phones should be used. Please contact your dealer for more details regarding the current compatibility list.
Phones with Symbian operating system
Note: Certain phones require a special file to be installed to enable full phonebook access via Bluetooth. This is referred to as a SIS file and will be available via the Ford website. Please consult your dealer for full details.
TELEPHONE CONTROLS
Ending or rejecting calls
By pressing one of several function buttons on the audio or navigation unit (example: AM/FM,CD/AUX) active calls can be ended or incoming calls can be rejected.
Remote control
One of several different types of remote control may be fitted to your vehicle:
Voice and mode button
1
2
E87661
1 Voice button
2Mode button
Incoming calls can be accepted by pressing the MODE button once or ended by pressing twice.
255
Telephone
Voice and accept/reject button Mode button only
1 2
E87662
1Voice button
2Accept/Reject button
The VOICE button is used to activate or switch off the Voice control.
On vehicles with an accept/reject button, phone calls can be accepted and rejected by pressing the appropriate button.
Note: Some audio units have the accept/reject buttons on the front bezel. These operate in the same way.
Mode button on the steering wheel
E87663
E87664
On vehicles without a VOICE button, the MODE button on the remote control is used to activate or switch off the voice control.
Note: You will not be able to use the MODE button to activate the voice control during an incoming or active call.
You will not be able to use the MODE button to control the audio system.
USING THE TELEPHONE - VEHICLES WITHOUT: NAVIGATION SYSTEM
This chapter describes the phone functions of the audio unit.
Note: Refer to your audio guide for details of the controls.
An active phone must be present.
Even if connected to the audio unit, your phone can still be used in the usual way.
Note: You can exit the phone menu by pressing any source button CD,
AM/FM or AUX.
256
Telephone
Making a call
Dialling a number
You can access your phone address book either with the phone docked in the cradle or via Bluetooth. The entries will appear in the audio unit display.
1.Press the PHONE or the call accept button.
2.Press the MENU button.
3.Keep pressing the MENU button until PHONEBOOK appears.
4.Press the seek buttons to select the desired phone number.
Note: Press and hold the seek button to skip to the next letter in the alphabet.
5.Press the PHONE or the call accept button to dial the selected phone number.
If you have an audio unit with a telephone keypad (buttons 0-9, * and #), you can also direct dial by entering the number on the radio display via the keypad and pressing the call accept button:
1.Press the call accept button.
2.Dial the number using the telephone keypad on the audio unit.
3.Press the call accept button.
Note: If you enter an incorrect digit whilst entering a phone number, press the seek down button to erase the last digit. A long press will erase the complete string of digits.
Press and hold 0 to enter a + digit.
Ending a call
Calls can be ended by either:
•pressing one of the following buttons on the audio unit:
PHONE, CD, AM/FM or
ON/OFF
•pressing the MODE button on the remote control
•pressing the call reject button.
Note: If you have an audio unit with a telephone keypad you can end a call only with the call reject button.
Redialling a number
1.Press the PHONE or the call accept button.
2.Press the MENU button.
3.Select the CALL OUT list or the
CALL IN list.
Note: If the active phone does not provide a call out list, the last outgoing call number/entry is displayed.
4.Press the seek button on the audio unit.
5.Press the PHONE or the call accept button to dial the desired phone number.
Redialling the last dialled number
Note: This applies to only audio units with a telephone keypad
1. Press the call accept button.
257
Telephone
2.Press the call accept button again to display the last dialled number.
3.Press the call accept button a third time to dial the number.
Receiving an incoming call
Accepting an incoming call
Incoming calls can be accepted by either:
•pressing the PHONE button
•pressing the MODE button on the remote control
•pressing the call accept button.
Rejecting an incoming call
Incoming calls can be rejected by either:
•pressing the call reject button
•pressing the CD button
•pressing the AM/FM button.
Note: If you have an audio unit with a telephone keypad you can only reject a call with the call reject button.
Note: You cannot reject an incoming call using the remote control.
Handling a second incoming call
Note: The second incoming call function must be activated in your phone.
If there is an incoming call whilst there is an ongoing call, a beep will be heard and you will have the option to end the active call and to accept the incoming call.

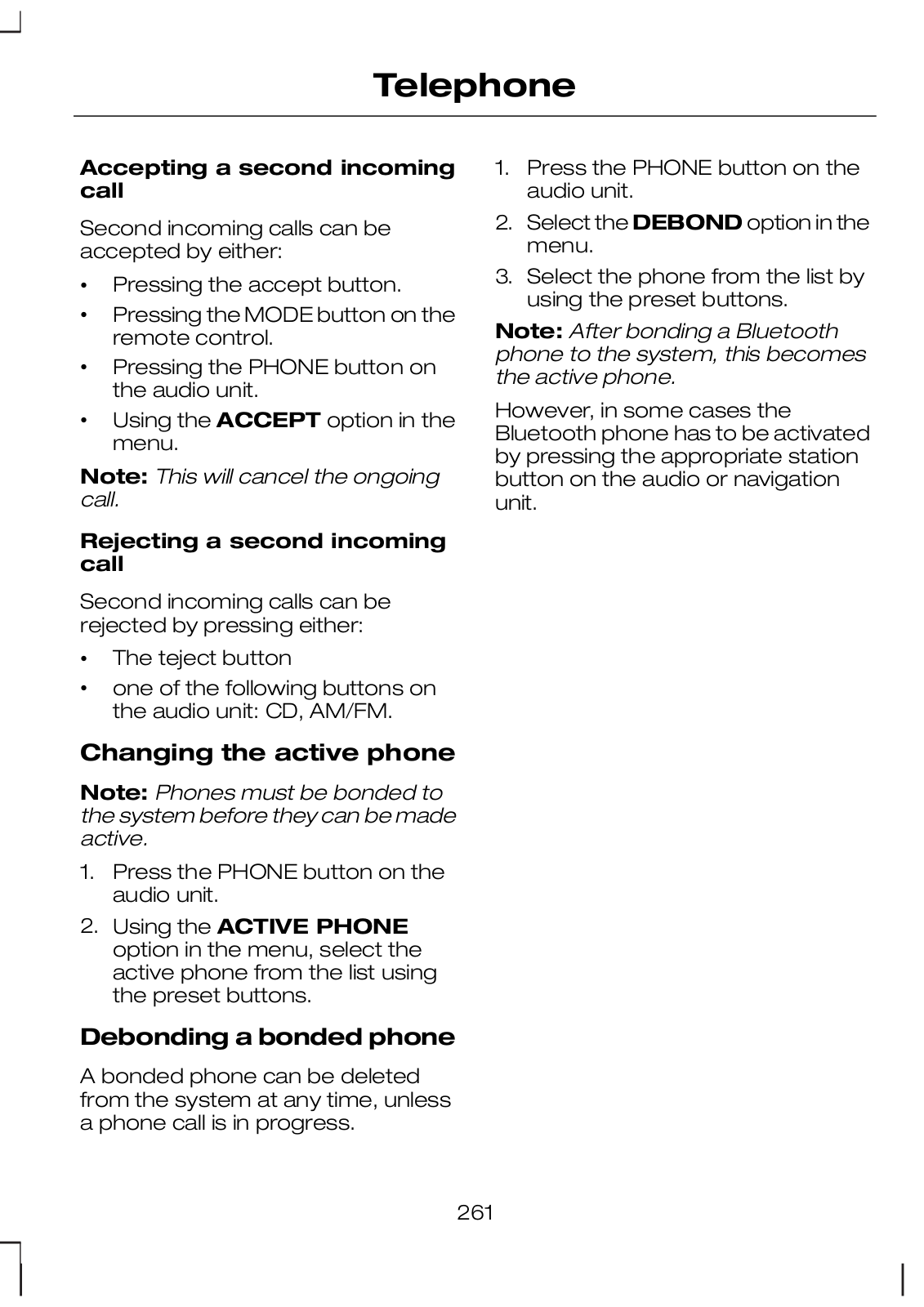

Accepting a second incoming call
Second incoming calls can be accepted by either:
•pressing the call accept button
•pressing the MODE button on the remote control
•pressing the PHONE button.
Note: This will cancel the ongoing call.
Rejecting a second incoming call
Second incoming calls can be rejected by pressing either:
•pressing the call reject button
•pressing the CD button
•pressing the AM/FM button.
Note: If you have an audio unit with a telephone keypad you can only reject a call with the call reject button.
Changing the active phone
Note: Phones must be bonded to the system before they can be made active.
Using the station storage button
1.Press the PHONE button on the audio unit.
2.Press the preset number required (using the station preset buttons 1 - 6).
Note: This process is only for audio units without a telephone keypad.
258
Telephone
Using the audio unit menu
1.Press the PHONE or call accept button.
2.Press the MENU button on the audio unit.
3.Select the ACTIVE PHONE option on the audio unit.
4.Scroll through the different stored phones by using the seek buttons to display the bonded phones.
5.Press the MENU button to select the phone which is to be the active phone.
Note: After bonding a Bluetooth phone to the system, this becomes the active phone.
Debonding a bonded phone
A bonded phone can be deleted from the system at any time, unless a phone call is in progress.
1.Press the PHONE or call accept button.
2.Press the MENU button on the audio unit.
3.Select the DEBOND option on the audio unit.
4.Scroll through the different phones by using the seek buttons and display the phone to be debonded.
5.Press the MENU button to select the phone which is to be debonded.
USING THE TELEPHONE - TRAVEL PILOT EX
This chapter describes the phone functions of the Navigation System TravelPilot EX.
Note: Refer to your Navigation System TravelPilot EX guide for details of the controls.
An active phone must be present.
Even if connected to the Navigation System TravelPilot EX, your phone can still be used in the usual way.
Making a call
Dialling a number - cradle phone
Using the cradle phone allows you to access your mobile phone address book. The entries will appear in the TravelPilot EX display.
1.Press the PHONE button on the audio unit.
2.Using the PHONEBOOK option in the menu.
3.Choose one of the letter areas.
4.Turning the right rotary entry control, select the desired phone number.
5.By pressing the INFO button the details of the phonebook entry can be displayed.
6.Press the right rotary entry control button.
259
