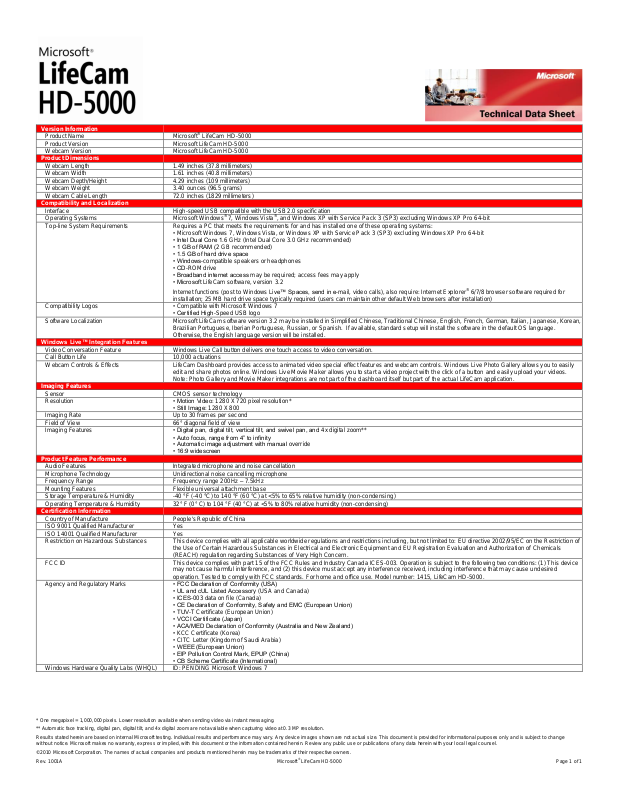

Microsoft LIFECAM HD-5000 DATASHEET
Version Information
Product Name
Microsoft® LifeCam HD-5000
Product Version
Microsoft LifeCam HD-5000
Webcam Version
Microsoft LifeCam HD-5000
Product Dimensions
Webcam Length
1.49 inches (37.8 millimeters)
Webcam Width
1.61 inches (40.8 millimeters)
Webcam Depth/Height
4.29 inches (109 millimeters)
Webcam Weight
3.40 ounces (96.5 grams)
Webcam Cable Length
72.0 inches (1829 millimeters)
Compatibility and Localization
Interface
High-speed USB compatible with the USB 2.0 specification
Operating Systems
Microsoft Windows® 7, Windows Vista®, and Windows XP with Service Pack 3 (SP3) excluding Windows XP Pro 64-bit
Top-line System Requirements
Requires a PC that meets the requirements for and has installed one of these operating systems:
• Microsoft Windows 7, Windows Vista, or Windows XP with Service Pack 3 (SP3) excluding Windows XP Pro 64-bit
• Intel Dual Core 1.6 GHz (Intel Dual Core 3.0 GHz recommended)
• 1 GB of RAM (2 GB recommended)
• 1.5 GB of hard drive space
• Windows-compatible speakers or headphones
• CD-ROM drive
• Broadband internet access may be required; access fees may apply
• Microsoft LifeCam software, version 3.2
Internet functions (post to Windows Live™ Spaces, send in e-mail, video calls), also require: Internet Explorer® 6/7/8 browser software required for
installation; 25 MB hard drive space typically required (users can maintain other default Web browsers after installation)
Compatibility Logos
• Compatible with Microsoft Windows 7
• Certified High-Speed USB logo
Software Localization
Microsoft LifeCam software version 3.2 may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean,
Brazilian Portuguese, Iberian Portuguese, Russian, or Spanish. If available, standard setup will install the software in the default OS language.
Otherwise, the English language version will be installed.
Windows Live™ Integration Features
Video Conversation Feature
Windows Live Call button delivers one touch access to video conversation.
Call Button Life
10,000 actuations
Webcam Controls & Effects
LifeCam Dashboard provides access to animated video special effect features and webcam controls. Windows Live Photo Gallery allows you to easily
edit and share photos online. Windows Live Movie Maker allows you to start a video project with the click of a button and easily upload your videos.
Note: Photo Gallery and Movie Maker integrations are not part of the dashboard itself but part of the actual LifeCam application.
Imaging Features
Sensor
CMOS sensor technology
Resolution
• Motion Video: 1280 X 720 pixel resolution*
• Still Image: 1280 X 800
Imaging Rate
Up to 30 frames per second
Field of View
66° diagonal field of view
Imaging Features
• Digital pan, digital tilt, vertical tilt, and swivel pan, and 4x digital zoom**
• Auto focus, range from 4” to infinity
• Automatic image adjustment with manual override
• 16:9 widescreen
Product Feature Performance
Audio Features
Integrated microphone and noise cancellation
Microphone Technology
Unidirectional noise cancelling microphone
Frequency Range
Frequency range 200Hz – 7.5kHz
Mounting Features
Flexible universal attachment base
Storage Temperature & Humidity
-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)
Operating Temperature & Humidity
32° F (0° C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)
Certification Information
Country of Manufacture
People's Republic of China
ISO 9001 Qualified Manufacturer
Yes
ISO 14001 Qualified Manufacturer
Yes
Restriction on Hazardous Substances
This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals
(REACH) regulation regarding Substances of Very High Concern.
FCC ID
This device complies with part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Tested to comply with FCC standards. For home and office use. Model number: 1415, LifeCam HD-5000.
Agency and Regulatory Marks
• FCC Declaration of Conformity (USA)
• UL and cUL Listed Accessory (USA and Canada)
• ICES-003 data on file (Canada)
• CE Declaration of Conformity, Safety and EMC (European Union)
• TUV-T Certificate (European Union)
• VCCI Certificate (Japan)
• ACA/MED Declaration of Conformity (Australia and New Zealand)
• KCC Certificate (Korea)
• CITC Letter (Kingdom of Saudi Arabia)
• WEEE (European Union)
• EIP Pollution Control Mark, EPUP (China)
• CB Scheme Certificate (International)
Windows Hardware Quality Labs (WHQL)
ID: PENDING Microsoft Windows 7
* One megapixel = 1,000,000 pixels. Lower resolution available when sending video via instant messaging.
** Automatic face tracking, digital pan, digital tilt, and 4x digital zoom are not available when capturing video at 0.3 MP resolution.
Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change
without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
©2010 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners.
Rev. 1001A Microsoft® LifeCam HD-5000 Page 1 of 1
