LTE Tracker
Document Title
Prime PT200V User manual
Version
1.00
Finale Date
2019-12-04
Status
Released
Document Control ID
TRACKER Prime PT200V
Prime PT200V User Manual
Revision: 1.00
2
Contents
1 Introduction
2 Product Overview

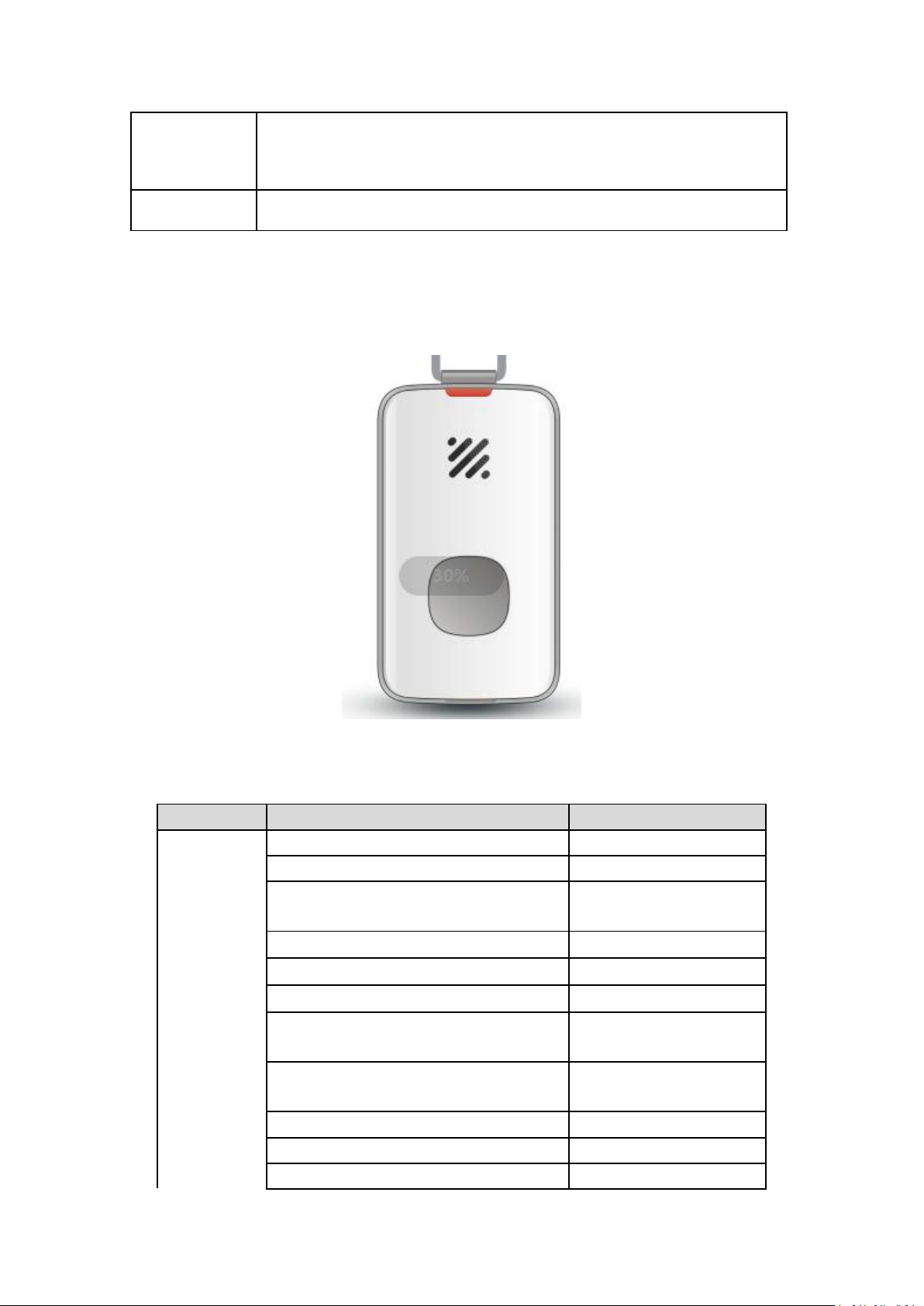

2.1 Appearance
2.2 Buttons/4PIN Interface Description
2.3 LED Description
3 Getting Started
3.1 Parts List
3.2 Battery Charging
3.3 Prime PT200V Charging Dock
3.4 Power on/Power off
4 Frequency
5 Trouble shooting and Safety info
5.1 Trouble shooting
5.2 Safety info
......................................................................................................................................
.............................................................................................................................
...........................................................................................................................
.....................................................................................................................
.................................................................................................................................
................................................................................................................................
....................................................................................................................
..............................................................................................................
.........................................................................................................................................
...................................................................................................................
..............................................................................................................................
......................................................................................
................................................................................................
.....................................................................................................
3
3
3
3
4
5
5
5
5
6
7
7
7
7
3
1 Introduction
Button /12PIN Interface Description
KEY/interface
Description
Power Key
Power on Prime PT200V
Power off Prime PT200V (If power key is enabled)
Function Key
SOS mode
Prime PT200V is a powerful GPS locator which is designed for vehicle, human, pets and
assets tracking. It works on LTE B4/B13 with superior receiving sensitivity. Its location can be real
time or schedule tracked by backend server or specified terminals. Based on the embedded
wireless tracking protocol, Prime PT200V can communicate with the backend server through LTE
network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS
position etc… Service provider is easy to setup their tracking platform based on the functional
wireless tracking protocol.
The WIFI function will be activated and report the MAC addresses once the device is in
alerting state. GPS will be activated and report location information and the back-end server will
be notified with location data once the device is in alerting state. The BLE function will be
activated and scan the third-party BLE data or Beacon broadcast by custom setting or protocol.
2 Product Overview
2.1 Appearance
2.2 Buttons/4PIN Interface Description
Figure 1-1
4
4 PIN interface
Connected to a charging dock can power on Prime PT200V
Backend server developer or administrator can use the debug dock to
configure Prime PT200V (by engineer not by end user).
TEST Key
Long press to make a call
2.3 LED Description
Light
Event
State
Power on
Flash every 2 seconds
Power off
Dark
Power key was pressed and prepare to
power on
Solid
Power LED
Power on and normal
Dark
Fully charged
Solid
In charging
Slow flash
Power key was pressed and prepare to
power off
Solid
Power key was pressed and prepare to
power on
Solid
GPS positioning successful
Solid
GPS failed
Dark
Power key was pressed and prepare to
Solid
Figure 1-2
There are 3 LED lights in Prime PT200V device, the description as following.
LED
LED
5
power on
Power off
Dark
3 Getting Started

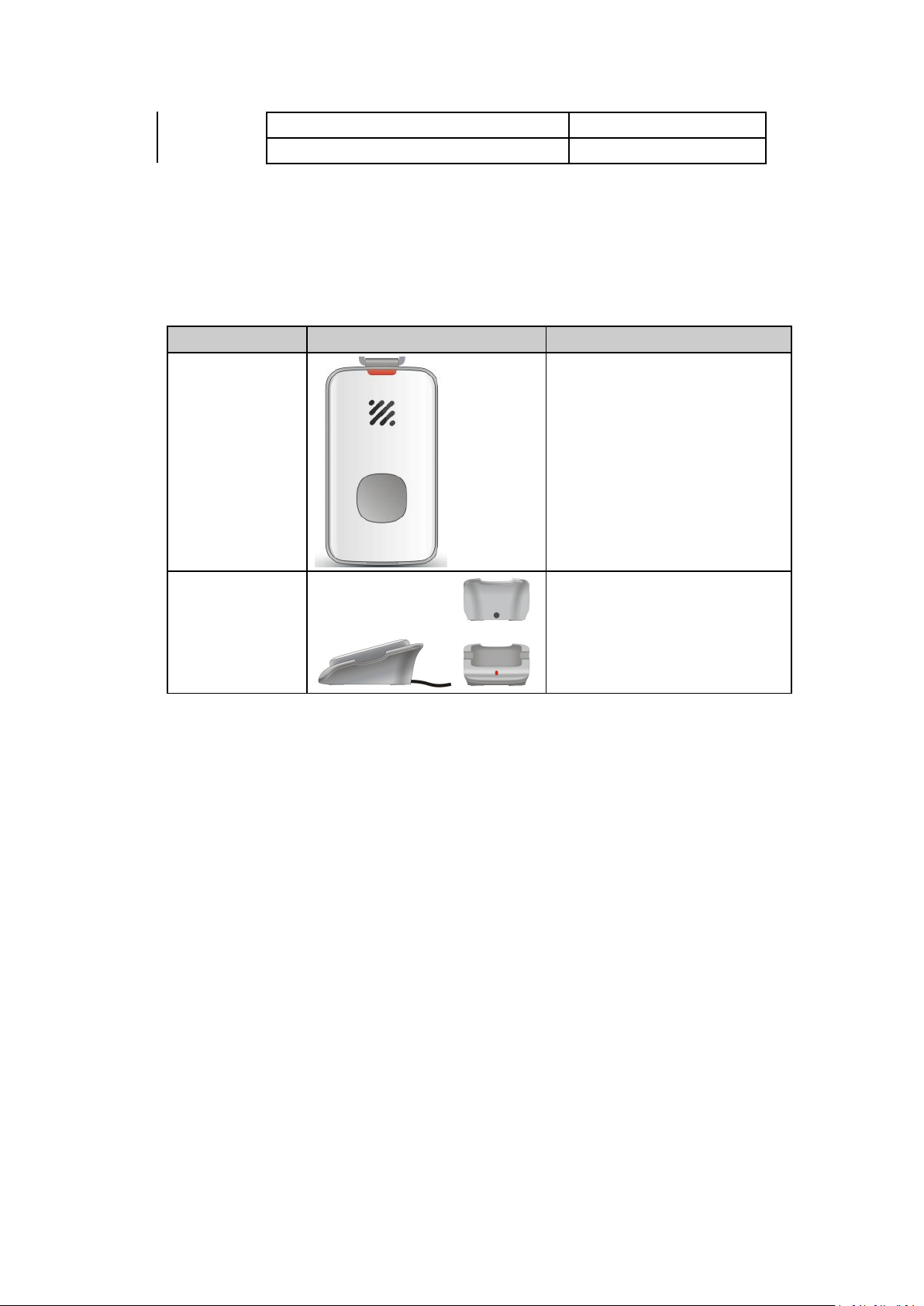

Name
Remark
Prime PT200V
Locater
The LTE/GPS locator.
Prime PT200V
charging Dock
It used to be charging for the
Prime PT200V.
3.1 Parts List
3.2 Battery Charging
The following items are suggestion for battery charge, please pay more attention.
Note: If the Prime PT200V device is firstly used, please make sure the battery is fully
charged, which will make the life of battery much longer.
3.3 Prime PT200V Charging Dock
During the charging process, the Power LED light will slow flash. When the battery is
fully charged, the Power LED light will be Ever-dark.
You can charge the battery using charging dock which connects Prime PT200V
device with the Adapter.
Charging will last about 5 hours.
Prime PT200V Charging Dock is a base with an AC Adapter.
The charging dock is used for device charging , which can be used for charging at the
any time ( by end user)..
6

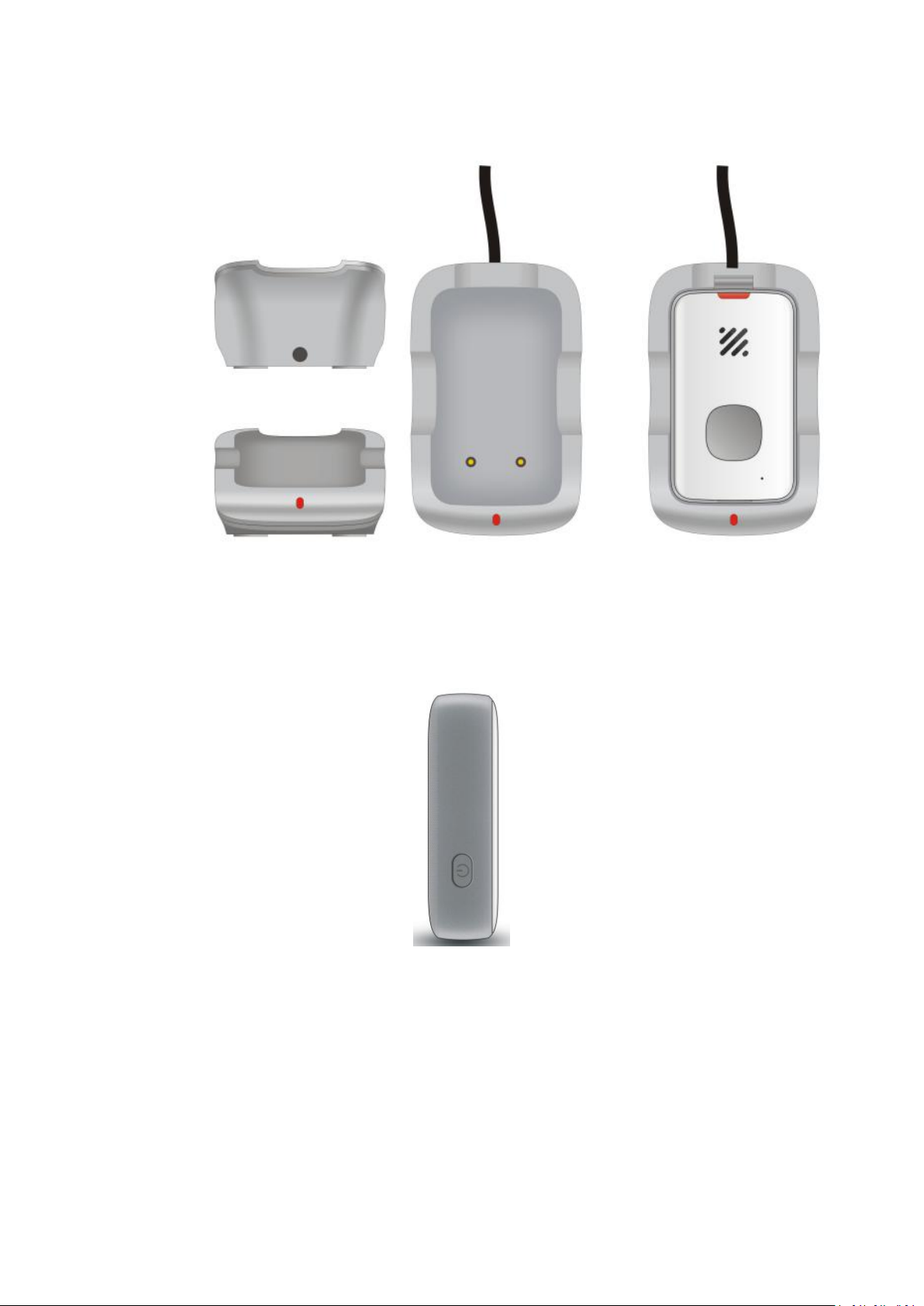

3.4 Power on/Power off
Power on:
Press the Power key at least 3 seconds and release it to power on Prime PT200V
device. Note that, the Power LED light will light for a moment and then turn off.
Figure 2-1
Figure 2-2
Power off:
Press the power key about 3 seconds; Power LED light will light for a moment and
then turn off, which indicates that Prime PT200V device has been powered off.
7
Note: the user can not power off Prime PT200V if the power key is disabled
Trouble
Possible Reason
Solution
Messages can’t be
reported to the
backend server by
Mobile network.
APN is wrong. Some APN
can not visit the internet
directly.
Ask the network operator for the right
APN.
The IP address or port of
the backend server is
wrong.
Make sure the IP address for the
backend server is an identified address
in the internet.
Unable to power
off Prime PT200V.
The function of power key
was disabled by
AT+GTFKS.
Enable the function of power key by
AT+GTFKS.
Battery can not be
charged
The battery has not been
used for too long time
and has been locked.
Using a external power source with 3.6V
to 4.2V DC power supply to active the
battery or apply for after sale help.
Prime PT200V can’t
fix GPS successfully.
The GPS signal is weak.
Please move Prime PT200V to a place
with open sky.
It is better to let the top surface face to
the sky. (The same surface with
indication LED)
by protocol.
4 Frequency
LTE: Band4、Band13
GPS:1575.42MHz
WIFI/BT:2.4GHz
5 Trouble shooting and Safety info
5.1 Trouble shooting
5.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid
exposure to direct sunlight. Too high temperature will damage the device or even
cause the battery explosion.
8
Please do not use Prime PT200V on the airplane or near medical equipment.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
