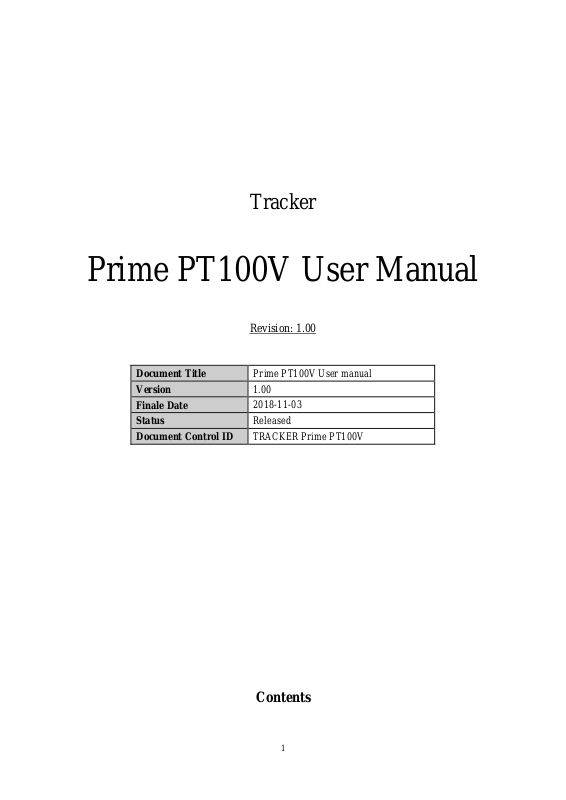

Tracker
Prime PT100V User Manual
Revision: 1.00
Document Title
Version
Finale Date
Status
Document Control ID
Prime PT100V User manual
1.00
2018-11-03
Released
TRACKER Prime PT100V
Contents
1
1 Introduction .................................................................................................................................... 3
2 Product Overview .......................................................................................................................... 3
2.1 Appearance .......................................................................................................................... 3
2.2 Buttons/12PIN Interface Description .................................................................................. 3
2.3 LED Description ................................................................................................................. 4
3 Getting Started ............................................................................................................................... 4
3.1 Parts List ............................................................................................................................. 4
3.2 Battery Charging ................................................................................................................. 5
3.3 Prime PT100V Charging Dock ........................................................................................... 5
3.4 Power on/Power off ............................................................................................................. 7
4 Frequency ....................................................................................................................................... 7
5 Trouble shooting and Safety info ................................................................................................... 7
5.1 Trouble shooting ................................................................................................................. 7
5.2 Safety info ........................................................................................................................... 8
2
1 Introduction
Prime PT100V is a powerful GPS locator which is designed for vehicle, human, pets and assets
tracking. It works on LTE B4/B13 with superior receiving sensitivity. Its location can be real time
or schedule tracked by backend server or specified terminals. Based on the embedded wireless
tracking protocol, Prime PT100V can communicate with the backend server through LTE
network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS
position etc… Service provider is easy to setup their tracking platform based on the functional
wireless tracking protocol.
2 Product Overview

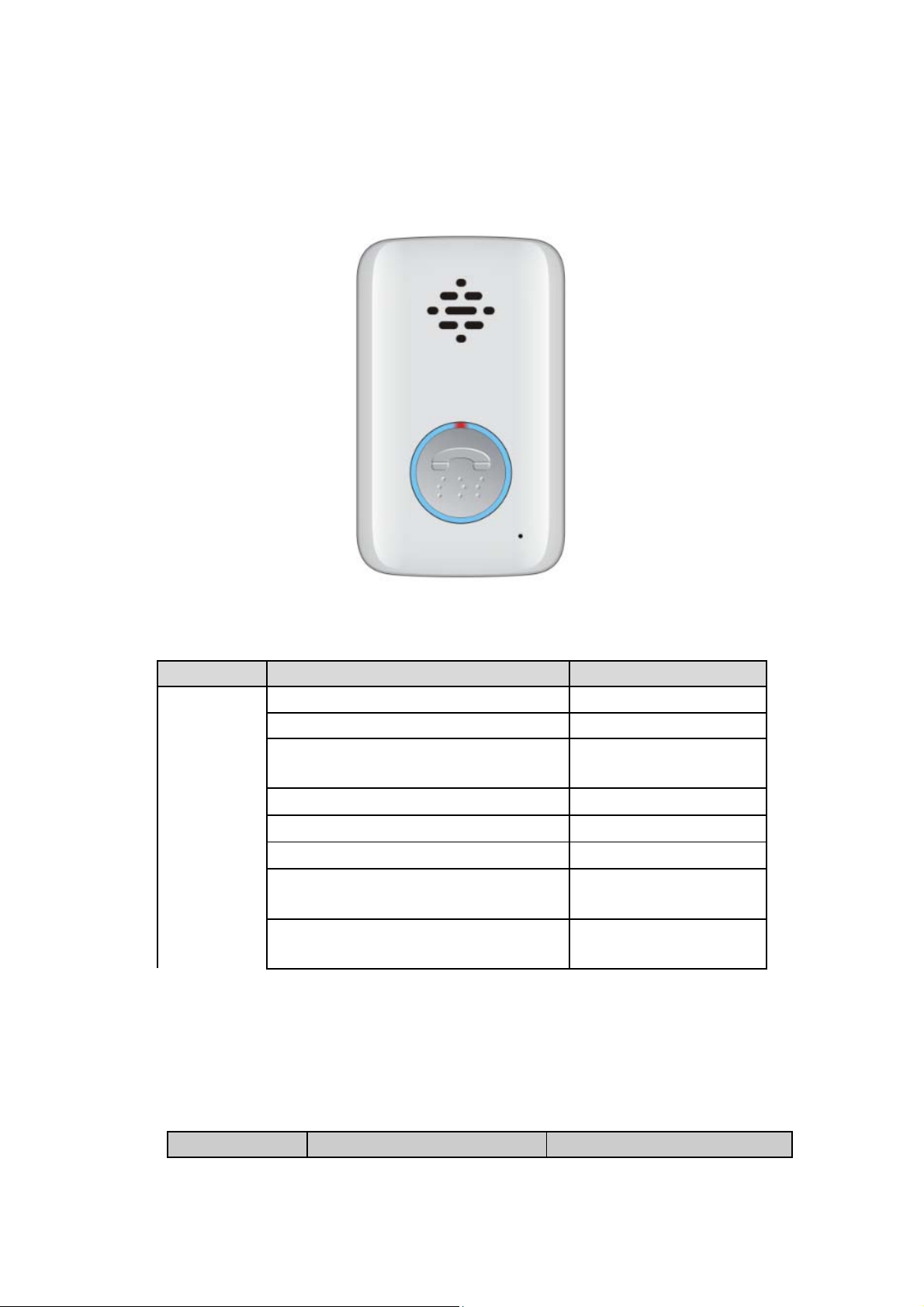

2.1 Appearance
Figure 1-1
2.2 Buttons/4PIN Interface Description
Button /12PIN Interface Description
KEY/interface Description
Power Key
Function Key
4 PIN interface
Reset Key
Power on Prime PT100V
Power off Prime PT100V (If power key is enabled)
SOS mode
Connected to a charging dock can power on Prime PT100V
Backend server developer or administrator can use the debug dock to
configure Prime PT100V (by engineer not by end user).
Click the key will turn off internal VBAT when OS is abnormal, and then
press Power Key to restart Prime PT100V.
3
2.3 LED Description
Figure 1-2
There are four LED lights in Prime PT100V device, the description as following.
Light Event State
GSM LED Power on Flash every 2 seconds
Power off Dark
Power key was pressed and prepare to
power on
Power LED Power on and normal Dark
Fully charged Solid
In charging Slow flash
Power key was pressed and prepare to
power off
Power key was pressed and prepare to
power on
Solid
Solid
Solid
3 Getting Started

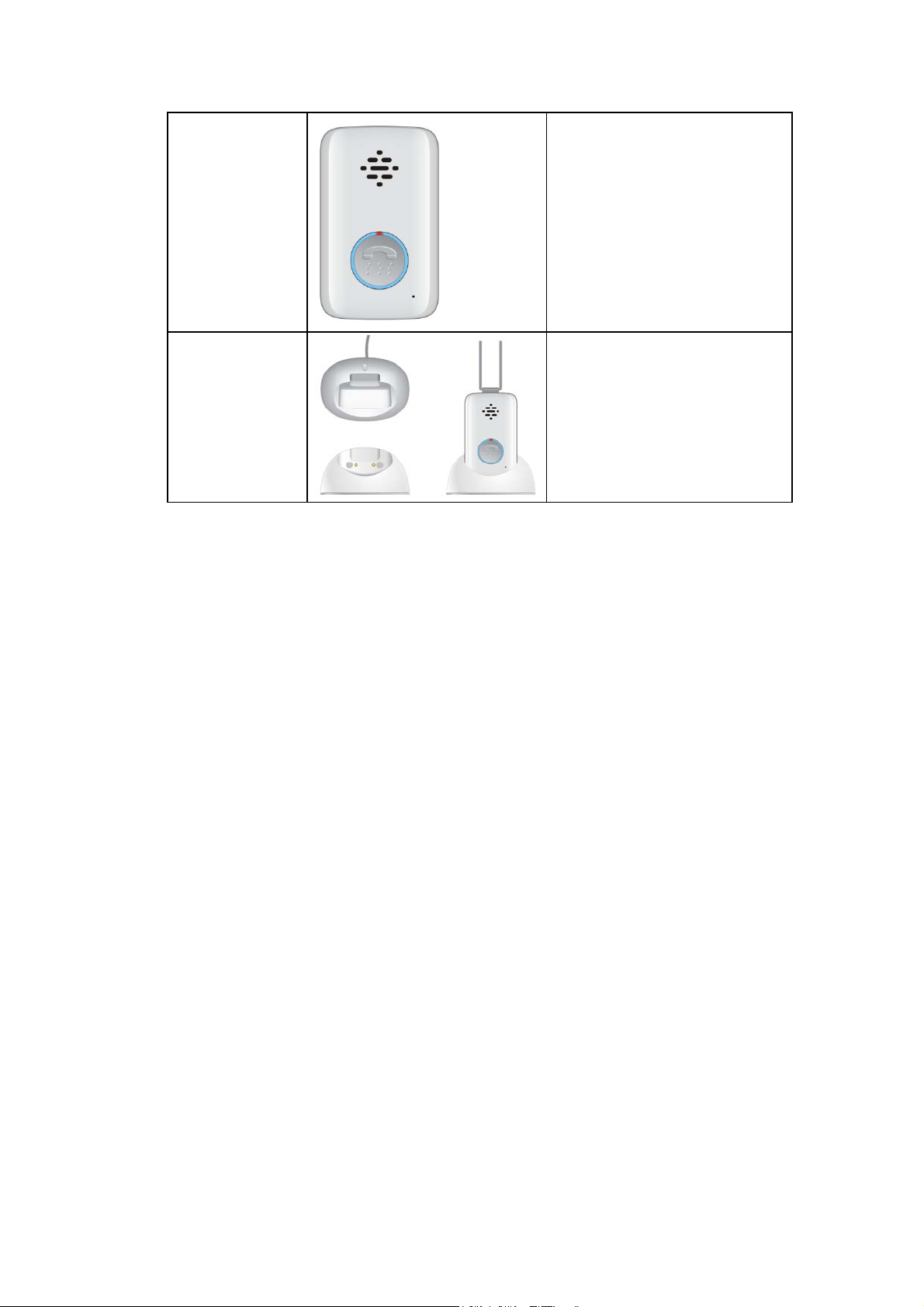

3.1 Parts List
Name Picture Remark
4
Prime PT100V
Locater
The LTE/GPS locator.
Prime PT100V
charging Dock
It used to be charging for the
Prime PT100V.
3.2 Battery Charging
The following items are suggestion for battery charge, please pay more attention.
During the charging process, the
is fully charged, the
You can charge the battery using charging dock which connects Prime PT100V
device with the Adapter.
Charging will last about 5 hours.
Note: If the Prime PT100V device is firstly used, please make sure the battery is fully
charged, which will make the life of battery much longer.
Power LED light will be Ever-dark.
Power LED light will slow flash. When the battery

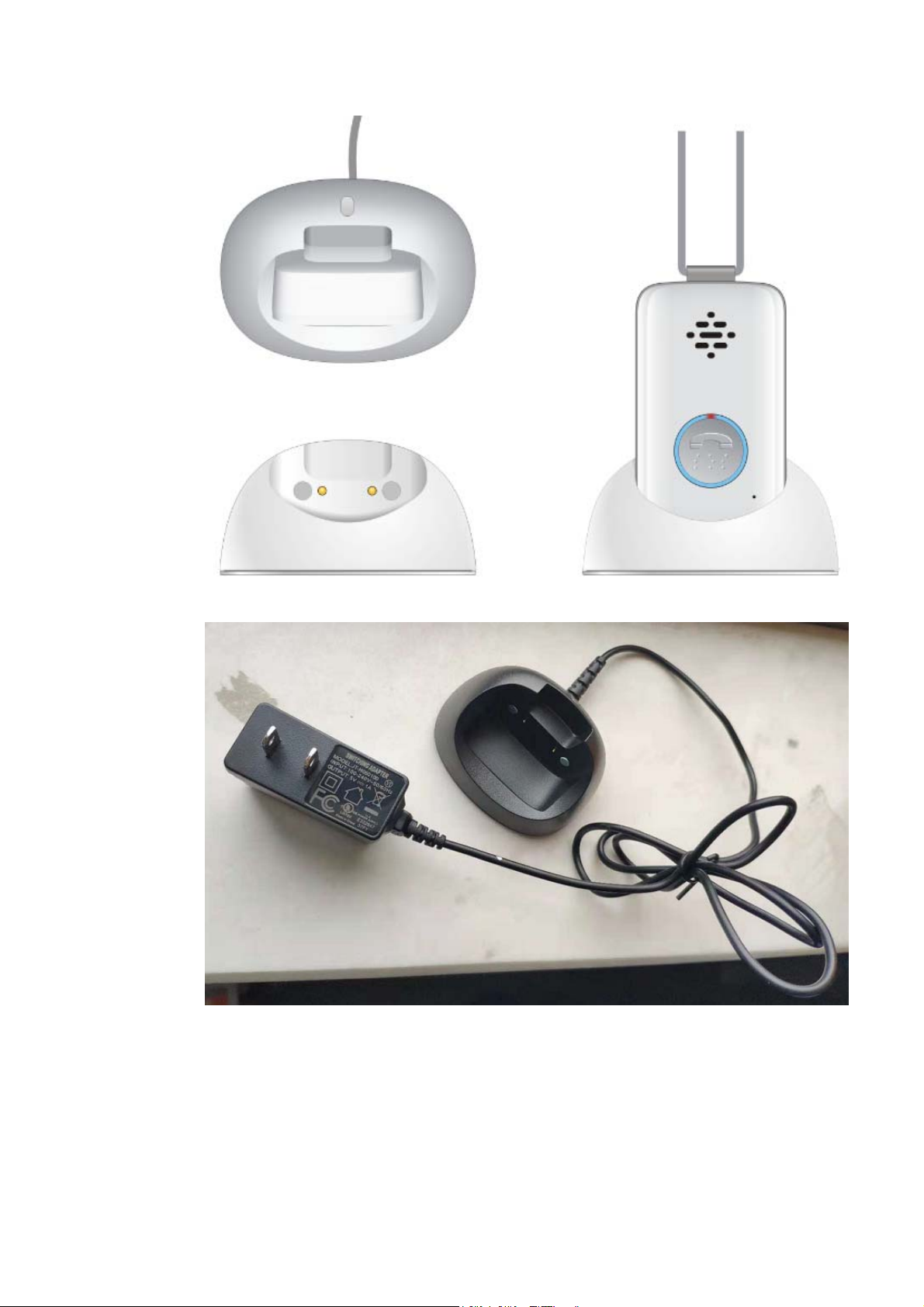

3.3 Prime PT100V Charging Dock
Prime PT100V Charging Dock is a base with an AC Adapter.
The charging dock is used for device charging , which can be used for charging at the
any time ( by end user)..
5
Figure 2-1
Figure 2-2
6

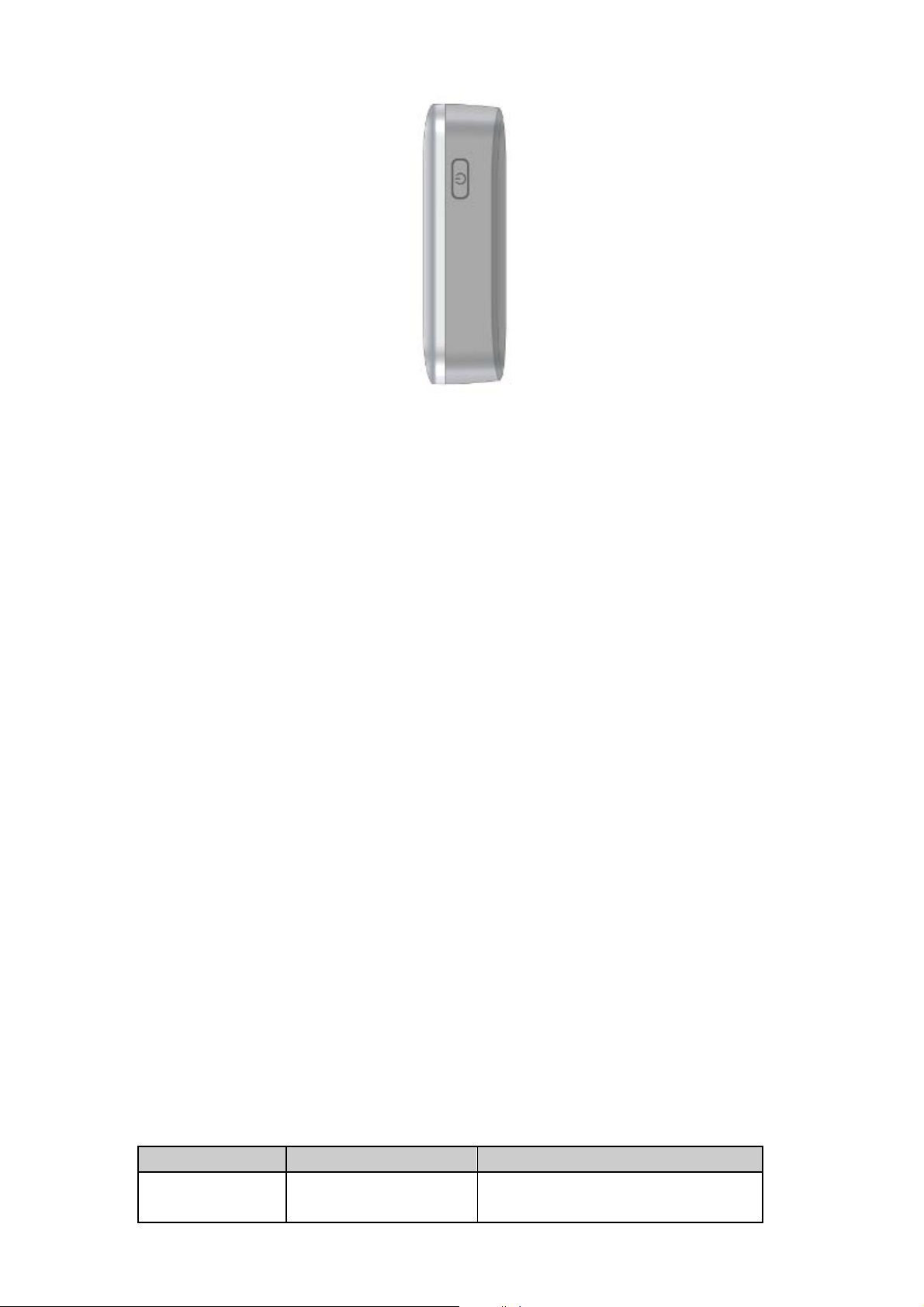

3.4 Power on/Power off
Power on:
Press the Power key at least 3 seconds and release it to power on Prime PT100V
device. Note that, the
Power LED light will light for a moment and then turn off.
Figure 2-2
Power off:
Press the power key about 3 seconds; Power LED light will light for a moment and
then turn off, which indicates that Prime PT100V device has been powered off.
Note: the user can not power off Prime PT100V if the power key is disabled
by protocol.
4 Frequency
LTE: Band4、Band13
GPS:1575.42MHz
WIFI:2.4GHz
4.1 WIFI
The device role of WIFI could be Master and Slave.
When the device role is Master, the device will provide below services: the others devices
can read or use the above services after connecting devices,
device to read the data or related information of the designated WIFI devices. After
reading the data, the server can be reported to the server by the corresponding message.
connect the designated
5 Trouble shooting and Safety info
5.1 Trouble shooting
Trouble Possible Reason Solution
Messages can’t be
reported to the
APN is wrong. Some
APN can not visit the
Ask the network operator for the right
APN.
7
backend server by
Mobile network.
Unable to power off
Prime PT100V.
Battery can not be
charged
Prime PT100V
can’t fix GPS
successfully.
internet directly.
The IP address or port of
the backend server is
wrong.
The function of power key
was disabled by
AT+GTFKS.
The battery has not been
used for too long time and
has been locked.
The GPS signal is weak. Please move Prime PT100V to a place
Make sure the IP address for the
backend server is an identified address
in the internet.
Enable the function of power key by
AT+GTFKS.
Using a external power source with 3.6V
to 4.2V DC power supply to active the
battery or apply for after sale help.
with open sky.
It is better to let the top surface face to
the sky. (The same surface with
indication LED)
5.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use Prime PT100V on the airplane or near medical equipment.
FCC Caution.
FCC Statement
Any Changes or modifications not expressly approved by the party responsible
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
for compliance
8
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
ISED RSS Warning:
This device complies with Innovation, Science and Economic Development Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
RF Exposure Information (SAR) :
The SAR limit of USA (FCC) is 1.6 W/Kg averaged over one gram of tissue. Product Type:
Tracker ,(FCC ID: ZKQ-PT100V) has also been tested against this SAR limit. The device was
test for typical body-worn operations with the back of tracker kept 0 mm from the body and head
face up operations with the front kepting 10 mm distance from the face.
The SAR limit of IC is 1.6W /Kg averaged over one gram of tissue. Product Type:Tracker,
model number: Prime PT100V (IC: 8414B-PT100V) has also been tested against this SAR limit.
The device was test for typical body-worn operations with the back of
tracker kept 0 mm from
the body and head face up operations with the front kept 10 mm from the face.
La limite SAR de IC est de 1.6 W/Kg en moyenne sur un gramme de tissu. Type de produit:
Tracker, numéro de modèle: Prime PT100V (IC: 8414B-PT100V) a également été testé par rapport à
cette limite en SAR. Le dispositif a été testé pour des opérations typiques portées sur le corps avec
le dos du tracker maintenu à 0 mm du corps et la tête face à la face supérieure, à 10 mm de la tête.
distance entre le corps de l'utilisateur et le dos du tracker.
