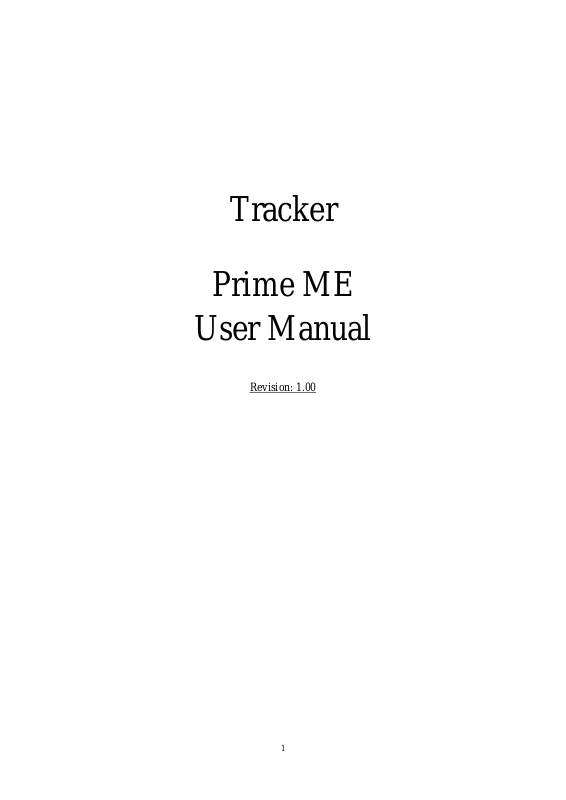

Tracker
Prime ME
User Manual
Revision: 1.00
1
Contents
1 Introduction
2 Product Overview ..........................................................................................................................3
2.1 Appearance..........................................................................................................................3
2.2 Buttons/Micro USB Interface Description..........................................................................3
2.3 LED Description.................................................................................................................4
3 Getting Started...............................................................................................................................5
3.1 Parts List .............................................................................................................................5
3.2 Battery Charging.................................................................................................................5
3.3 Prime-ME Data Cable.........................................................................................................6
3.4 Power on/Power off.............................................................................................................6
4 Trouble shooting and Safety info...................................................................................................7
4.1 Trouble shooting.................................................................................................................7
4.2 Safety info...........................................................................................................................7
....................................................................................................................................3
2
1 Introduction
e-ME is a powerful GPS locator which is designed for vehicle, pets and assets tracking. With
Prim
superior receiving sensitivity, fast TTFF and GSM frequencies 850/900/1800/1900, and WiFi
hotspot aiding position function. Its location can be real time or schedule tracked by backend
server or specified terminals. Based on the embedded wireless tracking protocol, Prime-ME can
communicate with the backend server through GPRS/GSM network, and transfer reports of device
status and scheduled GPS position, WiFi hotspot aiding position etc… Service provider is easy to
setup their tracking platform based on the functional wireless tracking protocol.
2 Product Overview
2.1 Appearance
Figure 1-1
2.2 Buttons/Micro USB Interface Description
Button /Micro
KEY/interface
Power Key
3
USB Interface Description
Description
Power on Prime-ME
Power off Prime-ME (If SIM card is not inserted)
Micro USB
interface
Reset Key
Connect a 5V DC adapter can power on Prime-ME and charge the internal
battery
Backend server developer or administrator can use the data cable to configure
Prime-ME
Click the key will turn off internal VBAT when OS is abnormal, and then
press Power Key to restart Prime-ME.
2.3 LED Description

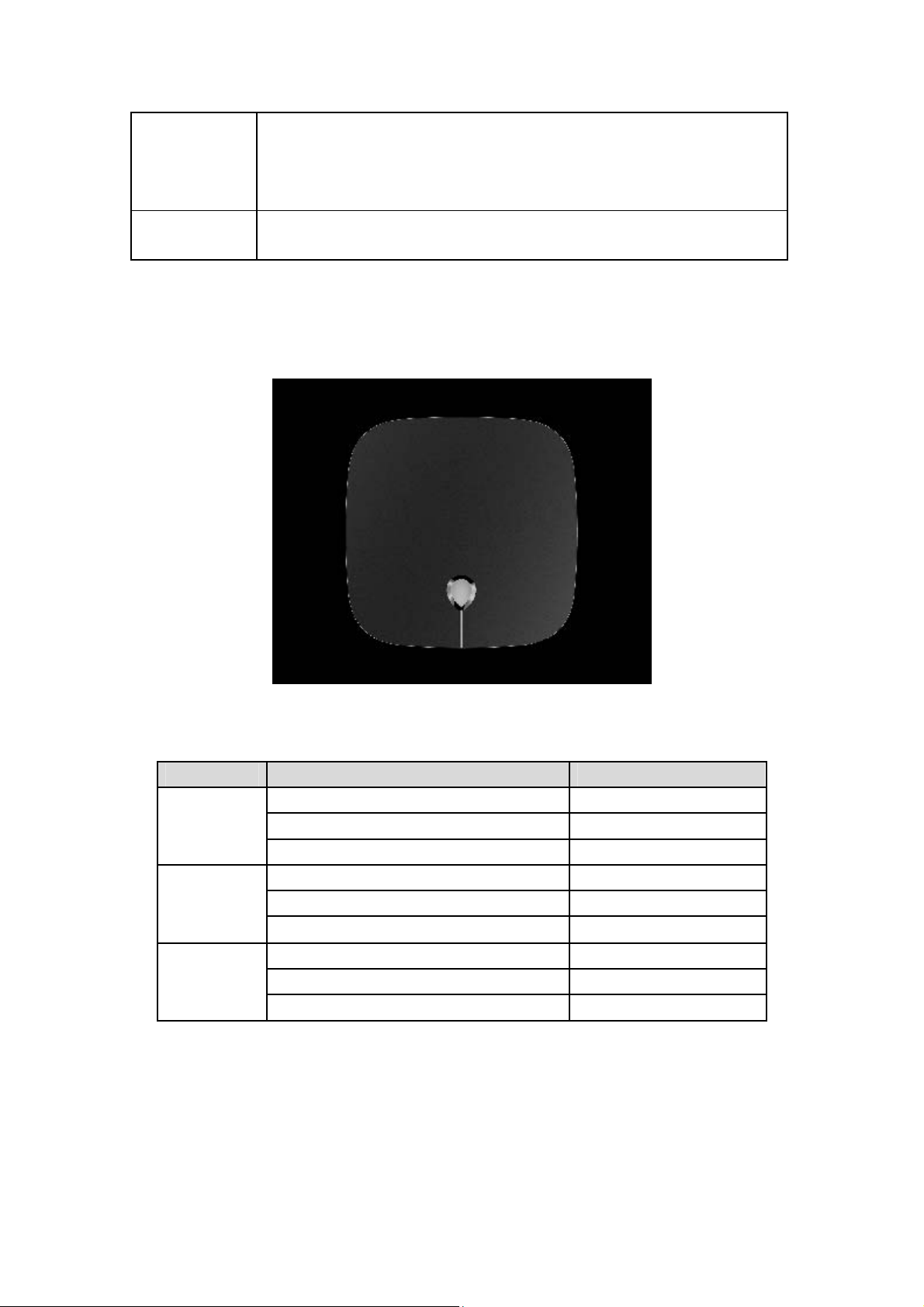

Figure 1-2
There are three LED lights in Prime-ME device, the description as following.
Light Event State
BLUE LED
RED LED
GREEN LED
GPS fixed Fast flash
GPS has been turned off Dark
Device standby Slow flash per 30 seconds
Power on and normal Dark
Power on and low battery voltage Slow flash
Power off process solid
Power on and normal Dark
Fully charged Solid
In charging Slow flash
4
3 Getting Started

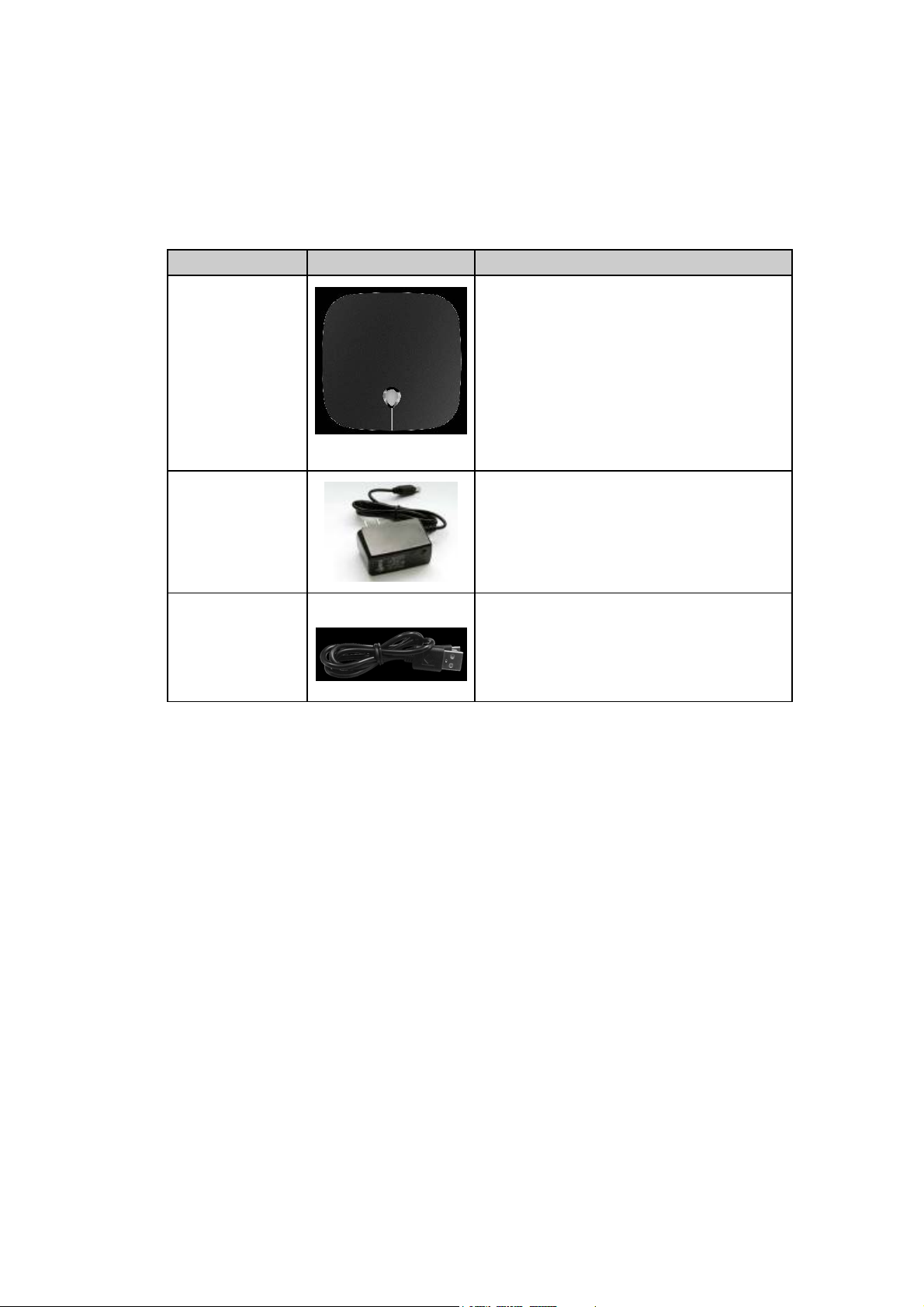

3.1 Parts List
Name Picture Remark
Prime-ME Locater
AC-DC Power
Adapter
The GSM/GPRS/GPS locator.
It is used to charge the internal battery of
Prime-ME.
Prime-ME Data
and charger Cable
It the USB data cable which can be used for
firmware upgrading and configuration.
It also includes the charger interface on the
Prime-ME.
3.2 Battery Charging
The following items are suggestion for battery charge, please pay more attention.
Please connect AC-DC power adapter with Prime-ME device.
Insert the AC-DC power adapter into the power socket.
During the charging process, the
is fully charged, the
You can also charge the battery using USB cable which connects Prime-ME device
with the PC.
Charging will last about 2 hours.
Note: If the Prime-ME device is firstly used, please make sure the battery is fully charged,
which will make the life of battery much longer.
GREEN LED light will be Ever-light.
GREEN LED light will flash slow. When the battery
5
3.3 Prime-ME Data Cable
Prime-ME Data Cable is a cable with a Micro USB connector.
The USB data cable is used for data download, which will be used for firmware update
or configuration and can be used for charging at the same time.
3.4 Power on/Power off

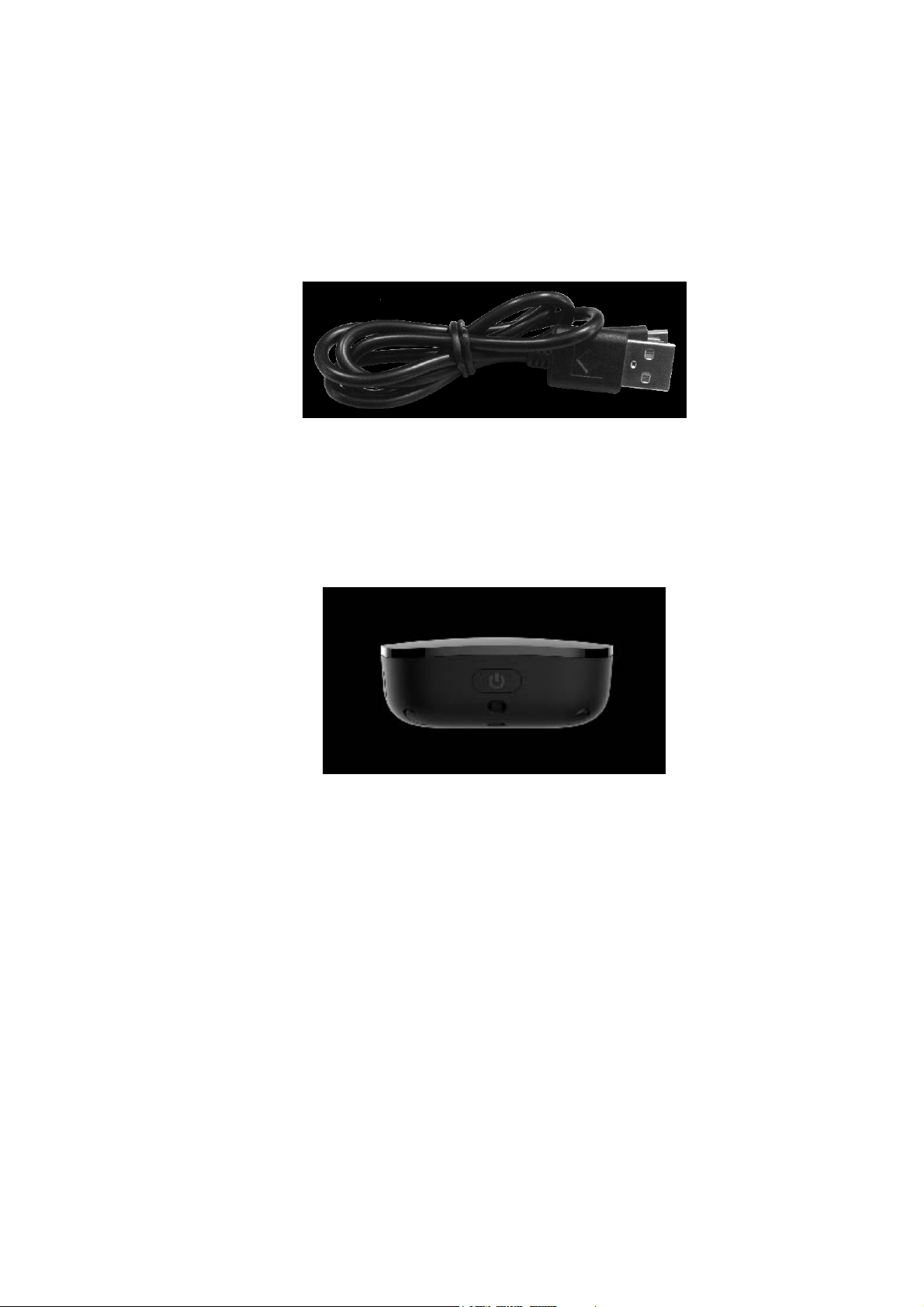

Figure 2-1
Figure 2-2
Power on:
Press the Power key at least 3 seconds and release it to power on Prime-ME device.
Note that, the
Power off (if SIM card is not inserted):
Press the power key about 3 seconds; RED LED light will be solid and then turn
off, which indicates that Prime-ME device has been powered off.
three LED lights will flash in turn.
Note: the user can not power off Prime-ME by power key if SIM card is
inserted.
6
4 Trouble shooting and Safety info
4.1 Trouble shooting
Trouble Possible Reason Solution
Messages can’t be
reported to the
backend server by
Mobile network.
Battery can not be
charged
Prime-ME can’t fix
GPS successfully.
The IP address or port of
the backend server is
wrong.
The battery has not been
used for too long time and
has been locked.
The GPS signal is weak.
Make sure the IP address for the
backend server is an identified address
in the internet.
Using a external power source with 3.6V
to 4.2V DC power supply to active the
battery or apply for after sale help.
Please move Prime-ME to a place with
open sky.
It is better to let the top surface face to
the sky. (The same surface with
indication LED)
4.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use Prime-ME on the airplane or near medical equipment.
7
FCC Notice:
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device
, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protec tion against harmful interference in a
residential installation. Th is equipment generates us es and can radiate radio
frequency energy and, if not install ed and used in accordance with the
instructions, may ca use harmful interference to radio communication s.
However, there is no guar antee that interference will not occur in a particular
installation. If this equipment does c ause harmful i nterference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressl
y approved by the party
responsible for compliance could void the user's authorit y to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This devic e may not cause harmful interference.
(2) This device must accept any interf erence received, including interference
that may cause undesired operation.
RF Radiation Exposure Statement:
1. This Transmitter has been demonstrated co-location compliance
requirements as documented in this filing.
2. This equipment compliance with FCC RF radiation exposure limits
set forth for an uncontrolled environment for body-worn configuration,
it must be used for the distance minimum 5mm from the body.
3. The maximum summation of SAR was 1.33W/Kg(1g) for Body.
8
WARNINGS:
BATT
ERY AND CHARGERS:
Unplug the charger from the electrical plug and the device when not in use.
Use the AC power s upply defined in the specifications of the charger. An
improper power voltage may cause a fire or a malfunction of the charger.
If the power cable is damaged (for example, the cord is exposed or broken), or
the plug loosens, stop using the cable at once. Otherwise, it may lead to an
electric shock, a short circuit of the charger, or a fire.
Adapter shall be installed near the equipment and shall be easily accessible.
CAUTION:
RISK OF EXPLOSION IF AN INCORR ECT TYPE OF BATTERY IS USED.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
DO NOT disassemble or replace the battery. If you suspect there is something
wrong with the battery, please carry the unit to the service centre for help.
The battery should not be disposed together with other waste. The battery has
to be disposed at an authorized place for re cycling of electrical and electroni c
appliances. By collecting and recycli ng waste, you help save natural
resources, and make sure the product is disposed in an environmental friendly
and healthy way.
Keep the device away from source of heat and fire, such as a heater,
microwave oven, stove, water heater, radiator, or candle.
Stop using your device or applications for a while if the device is overheated. If
skin is exposed to an overheated devic e for an extended period, low
temperature burn symptoms, such as red spots and darker pigmentation, may
occur.
Do not allow children or pet s to bite or suck the dev ice or accessories. Doing
so may result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal rights of
others.
9
EU Regulatory
Conformance
Hereby, we dedares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Certification Inform
ation (SAR)
This devic e meets guidelines for exposur e to radio waves. Your device is a
low-power radio transmitter and receiv er. As recommended by international
guidelines, the device is designed not to exceed the limits for exposure to radio
waves. These guidelines were dev eloped by the i ndependent scientific
organization International Commission on Non-Ionizing Radiation Protection
(ICNIRP) and include safety measures designed to ensure safety for all users,
regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for the amount
of radio frequency energy absorbed by the body when using a device. The
SAR value is determined at the highest certified power level in laboratory
conditions, but the actual SAR level of the device when being operated can be
well below the value. This is becaus e the device is designed to use the
minimum power required to reach the network.
The SAR limit also adopted by Europe is 2.0/4.0 W/kg averaged over 10 grams
of tissue. The highest SAR value for this device type when properly worn on
the body is 0.707W/kg.
Operation Environment
Keep the ambient temper ature between -10°C and 50°C while the device
working.
