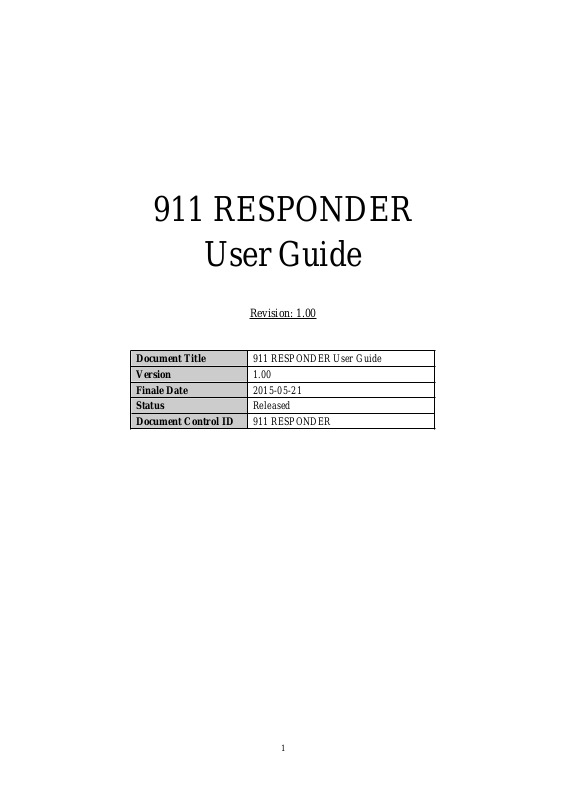

Micron Electronics PMA User Manual

911 RESPONDER

User Guide

Revision: 1.00

Document Title 911 RESPONDER User Guide
Version 1.00
Finale Date 2015-05-21
Status Released
Document Control ID 911 RESPONDER

1

Contents

.

.

1 Introduction...........................................................................................................................................................................

2 Product Overview.................................................................................................................................................................

2.1 Appearance............................................................................................................................3

2.2 Buttons/Micro USB Interface Description........................................................................... 3

2.3 LED Description...................................................................................................................4

3 Getting Started......................................................................................................................................................................

3.1 Parts List................................................................................................................................5

3.2 Battery Charging...................................................................................................................5

3.3 911 Responder Data Cable....................................................................................................6

3.4 Power on/Power off.............................................................................................................. 6

4 Trouble shooting and Safety info..........................................................................................................................................

4.1 Trouble shooting................................................................................................................... 7

4.2 Safety info.............................................................................................................................7

2

1 Introduction

911 Responder is a mobile phone which mainly is used for emergency call. With superior
receiving sensitivity, fast WCDMA frequencies 850/1900 and GSM frequencies
850/900/1800/1900. Based on the embedded wireless protocol, 911 Responder can communicate
with the backend server through WCDMA or GSM/GPRS network, and transfer reports of
emergency, low battery, device information etc…

2 Product Overview

2.1 Appearance

Figure 1-1

2.2 Buttons/Micro USB Interface Description

Button /Micro USB Interface Description

KEY/interface Description

SOS Key Power on 911 Responder and make a call（If call number is set by user.
Micro USB

interface

Reset Key Click the key will turn off internal VBAT when OS is abnormal, and then

Connect a 5V DC adapter can power on 911 Responder and charge the
internal battery
Connect a 3.7V Li-ion or Li-Polymer battery can power on 911 Responder
Backend server developer or administrator can use the data cable to configure
911 Responder

press Power Key to restart 911 Responder.

Note: Reset key is invalid when external battery is used.
