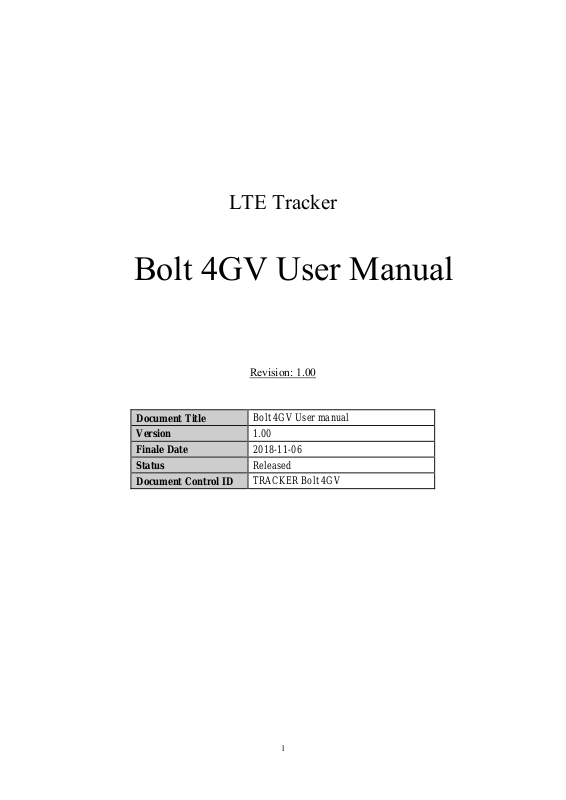

Micron Electronics BOT4GV User Manual

LTE Tracker

Bolt 4GV User Manual

Revision: 1.00

Document Title
Version
Finale Date
Status
Document Control ID

Bolt 4GV User manual

1.00
2018-11-06
Released
TRACKER Bolt 4GV

1

Contents

1 Introduction .................................................................................................................................... 3

2 Product Overview .......................................................................................................................... 3

2.1 Appearance .......................................................................................................................... 3

2.2 Buttons/USB Interface Description ..................................................................................... 3

2.3 LED Description ................................................................................................................. 4

3 Getting Started ............................................................................................................................... 4

3.1 Parts List ............................................................................................................................. 4

3.2 Battery Charging ................................................................................................................. 5

3.3 Bolt 4GV Charger ................................................................................................................ 5

3.4 Power on/Power off ............................................................................................................. 6

4 Frequency ....................................................................................................................................... 6

4.1 WIFI..................................................................................................................................... 6

4

.1 433 ..................................................................................................................................... 6

4.1 users are using the 433 method............................................................................................ 6

5 Trouble shooting and Safety info ................................................................................................... 7

5.1 Trouble shooting ................................................................................................................. 7

5.2 Safety info ........................................................................................................................... 7

2

1 Introduction

Bolt 4GV is a powerful GPS locator which is designed for vehicle and assets tracking. It

works on LTE CATM1 with superior receiving sensitivity. Its location can be real time or

schedule tracked by

tracking protocol, Bolt 4GV can communicate with the back-end server through LTE

network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS

position etc… Service provider is easy to setup their tracking platform based on the functional

wireless tracking protocol.

back-end server or specified terminals. Based on the embedded wireless

2 Product Overview

2.1 Appearance

Figure 1-1

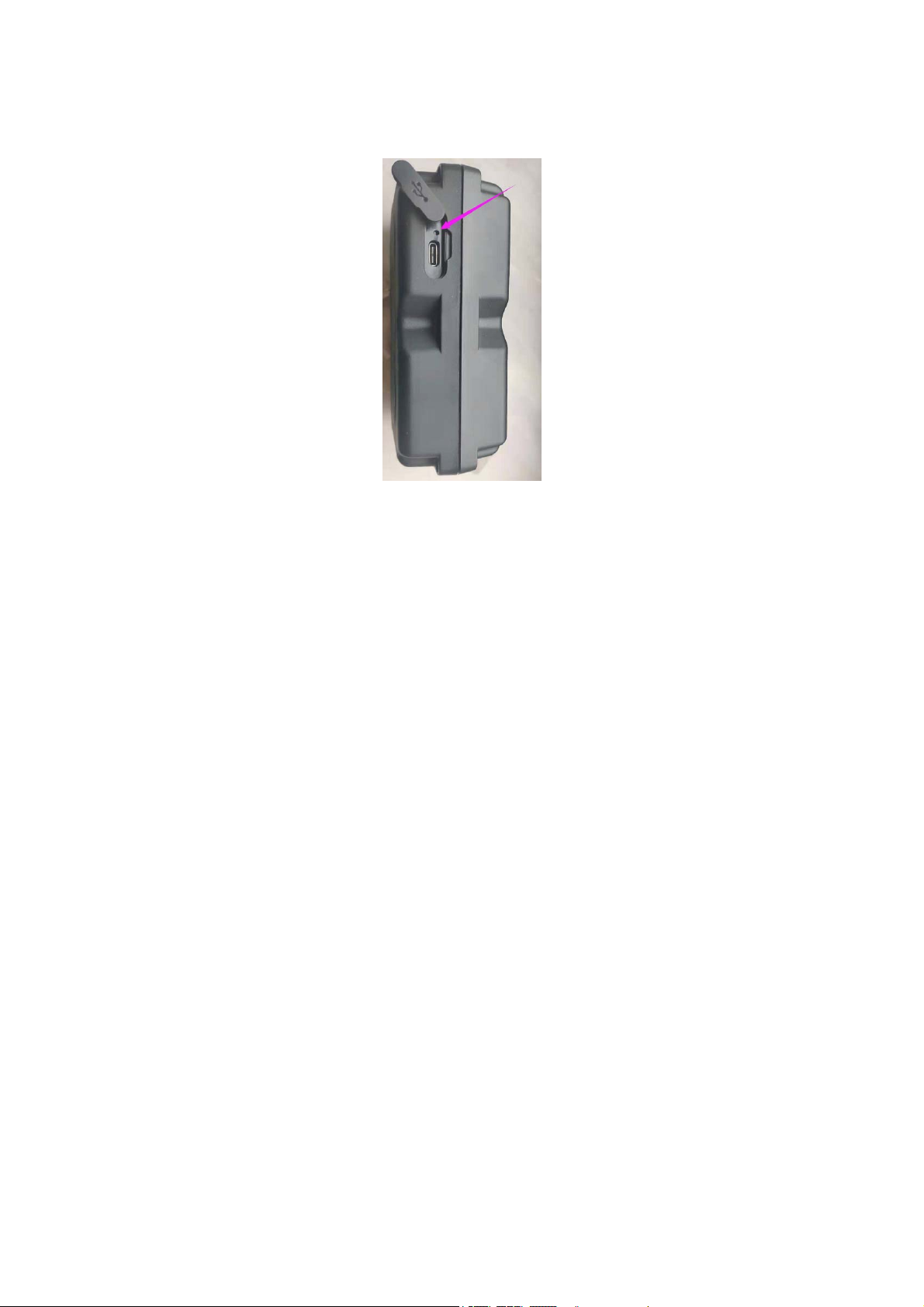

2.2 Buttons/USB Interface Description

Button /12PIN Interface Description

KEY/interface Description

Power Key

USB interface

Reset Key

No Power Key, the Bolt 4GV can only be powered on by charger plug in.

Connected to a charger can power on Bolt 4GV

Back-end server developer or administrator can use the debug cable

to configure Bolt 4GV

Click the key will turn off internal VBAT when OS is abnormal, and then

plug in a charger to restart Bolt 4GV.

(by engineer not by end user).

3
