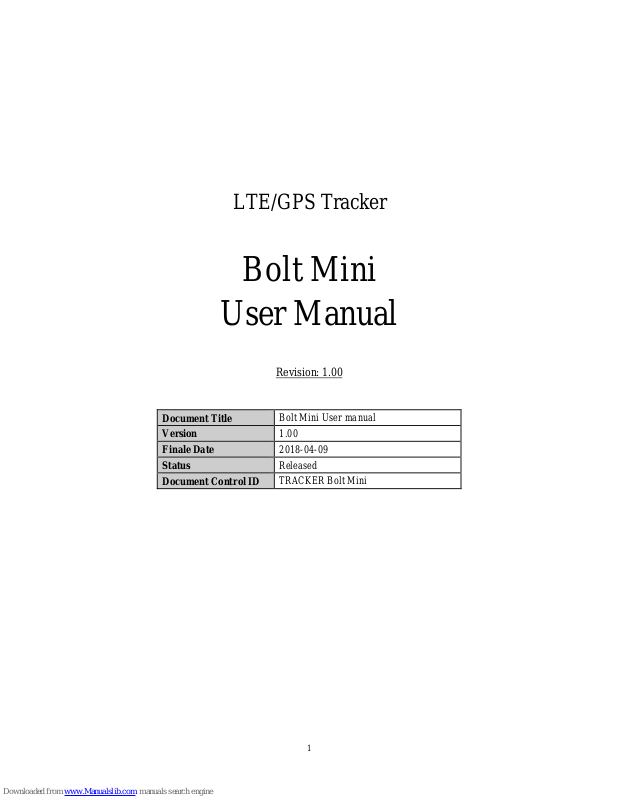

LTE/GPS Tracker
Bolt Mini
User Manual
Revision: 1.00
Document Title
Bolt Mini User manual
Version
1.00
Finale Date
2018-04-09
Status
Released
Document Control ID
TRACKER Bolt Mini
2
Contents
1 Introduction .................................................................................................................................... 3
2 Product Overview .......................................................................................................................... 3
2.1 Appearance .......................................................................................................................... 3
2.2 LED Description ................................................................................................................. 4
3 Getting Started ............................................................................................................................... 5
3.1 Parts List ............................................................................................................................. 5
3.2 How GPS position Fix ........................................................................................................ 5
3.3 Disassemble Introduction ................................................................................................ 5
3.4 Insert SIM Card ................................................................................................................... 7
3.5 Device Power on ................................................................................................................. 8
3.6 Install ................................................................................................................................... 8
4 Frequency ....................................................................................................................................... 8
5 Trouble shooting and Safety info ................................................................................................... 9
5.1 Trouble shooting ................................................................................................................. 9
5.2 Safety info ........................................................................................................................... 9
3
1 Introduction
Bolt Mini use primary batteries. it is a powerful GPS locator which is designed for vehicle, and
assets tracking . With superior receiving sensitivity, Its location can be real time or schedule
tracked by backend server or specified terminals. Based on the embedded wireless tracking
protocol, Bolt Mini can communicate with the backend server through LTE Cat-M network, and
transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc…
Service provider is easy to setup their tracking platform based on the functional wireless tracking
protocol.
2 Product Overview
2.1 Appearance
Figure 2-1
4
2.2 LED Description
Figure 2-2
There is one tricolour LED lights in Bolt Mini device, the description as following.
Light Event State
LED show blue GPS fixed Solid
LED show red low power Solid
LED show green standby mode Slow Flash
During Call Solid
5
3 Getting Started
3.1 Parts List
Name Picture Remark
Bolt Mini
The LTE/GPS locator.
3.2 How GPS position Fix
Your device has an unobstructed view of the sky,lying face up,so it can obtain the initial
GPS Fix
Figure 3-1
3.3 Disassemble Introduction
1.Dismantling machine tools：
Tweezers、Cross Screwdriver
6
2.Machine appearance：
Figure 3-2
3.Disconnect the screw plug
Figure 3-3
4.Disconnect the screw
7
Figure 3-4
5.Tear down the base
Figure 3-5
3.4 Insert SIM Card
Figure 3-6
8
3.5 Device Power on
Figure 3-7
3.6 Install
Figure 3-8
4 Frequency
LTE CatM:B4(TX 1710-1755MHz,RX 2110-2155MHz)
LTE CatM:B13(TX 777-787MHz,RX 746-757MHz)
GPS:1575.42MHz
WIFI:2.4G
9
5 Trouble shooting and Safety info
5.1 Trouble shooting
5.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use Bolt Mini on the airplane or near medical equipment.
Trouble Possible Reason Solution
Messages can’t be
reported to the
backend server by
Mobile network.
APN is wrong. Some
APN can not visit the
internet directly.
Ask the network operator for the right
APN.
The IP address or port of
the backend server is
wrong.
Make sure the IP address for the
backend server is an identified address
in the internet.
Unable to power
off BOlt Mini.
The function of power key
was disabled by
AT+GTFKS.
Enable the function of power key by
AT+GTFKS.
Battery can not be
charged
The battery has not been
used for too long time and
has been locked.
Using a external power source with
3.65V DC power supply to active the
battery or apply for after sale help.
Bolt Mini can’t fix
GPS successfully.
The GPS signal is weak. Please move Bolt Mini to a place with
open sky.
It is better to let the top surface face to
the sky. (The same surface with
indication LED)
10
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. The antennas used for the transmitter must be installed to
provide a separation distance of at least 20cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
