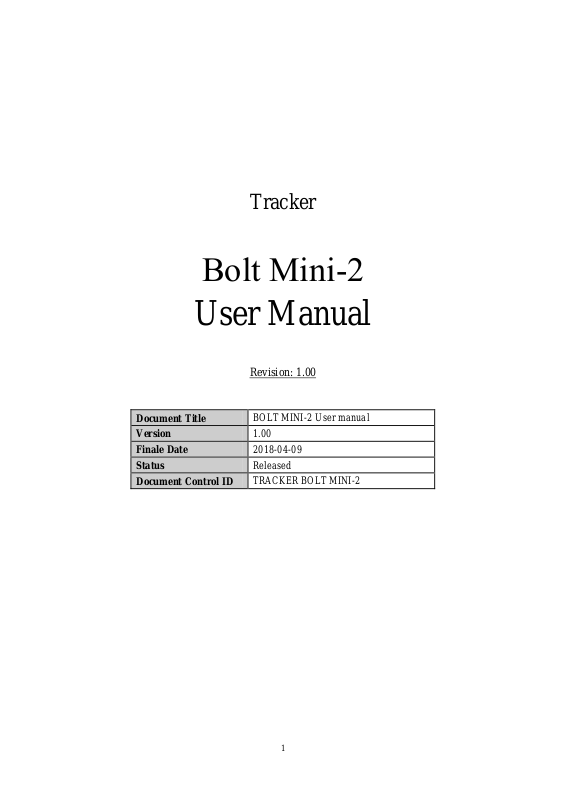

Tracker
Bolt Mini-2
User
Document Title
Version
Finale Date
Status
Document Control ID
Manual
Revision: 1.00
BOLT MINI-2 User manual
1.00
2018-04-09
Released
TRACKER BOLT MINI-2
1
Contents
1 Introduction .................................................................................................................................... 3
2 Product Overview .......................................................................................................................... 3
2.1 Appearance .......................................................................................................................... 3
2.2 LED Description ................................................................................................................. 4
3 Getting Started ............................................................................................................................... 5
3.1 Parts List ............................................................................................................................. 5
3.2 How GPS position Fix ........................................................................................................ 5
3.3 Disassemble Introduction ................................................................................................ 5
3.4 Insert SIM Card ................................................................................................................... 7
3.5 Device Power on ................................................................................................................. 8
3.6 Install ................................................................................................................................... 8
Wi-Fi introduction...........................................................................................................................8
4
5 Trouble shooting and Safety info ................................................................................................... 9
5.1 Trouble shooting ................................................................................................................. 9
5.2 Safety info ........................................................................................................................... 9
2
1 Introduction
BOLT MINI-2 use primary batteries. it is a powerful GPS locator which is designed for vehicle,
and assets tracking . With superior receiving sensitivity, Its location can be real time or schedule
tracked by backend server or specified terminals. Based on the embedded wireless tracking
protocol, BOLT MINI-2 can communicate with the backend server through LTE Cat-M network,
and transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc…
Service provider is easy to setup their tracking platform based on the functional wireless tracking
protocol.
2 Product Overview
2.1 Appearance
Figure 2-1
3
2.2 LED Description
Figure 2-2
There is one tricolour LED lights in BOLT MINI-2 device, the description as following.
Light Event State
LED show blue GPS fixed Solid
LED show red low power Solid
LED show green standby mode Slow Flash
During Call Solid
4
3 Getting Started
3.1 Parts List
Name Picture Remark
BOLT MINI-2 The LTE/GPS locator.
3.2 How GPS position Fix
Your device has an unobstructed view of the sky,lying face up,so it can obtain the initial
GPS Fix
Figure 3-1

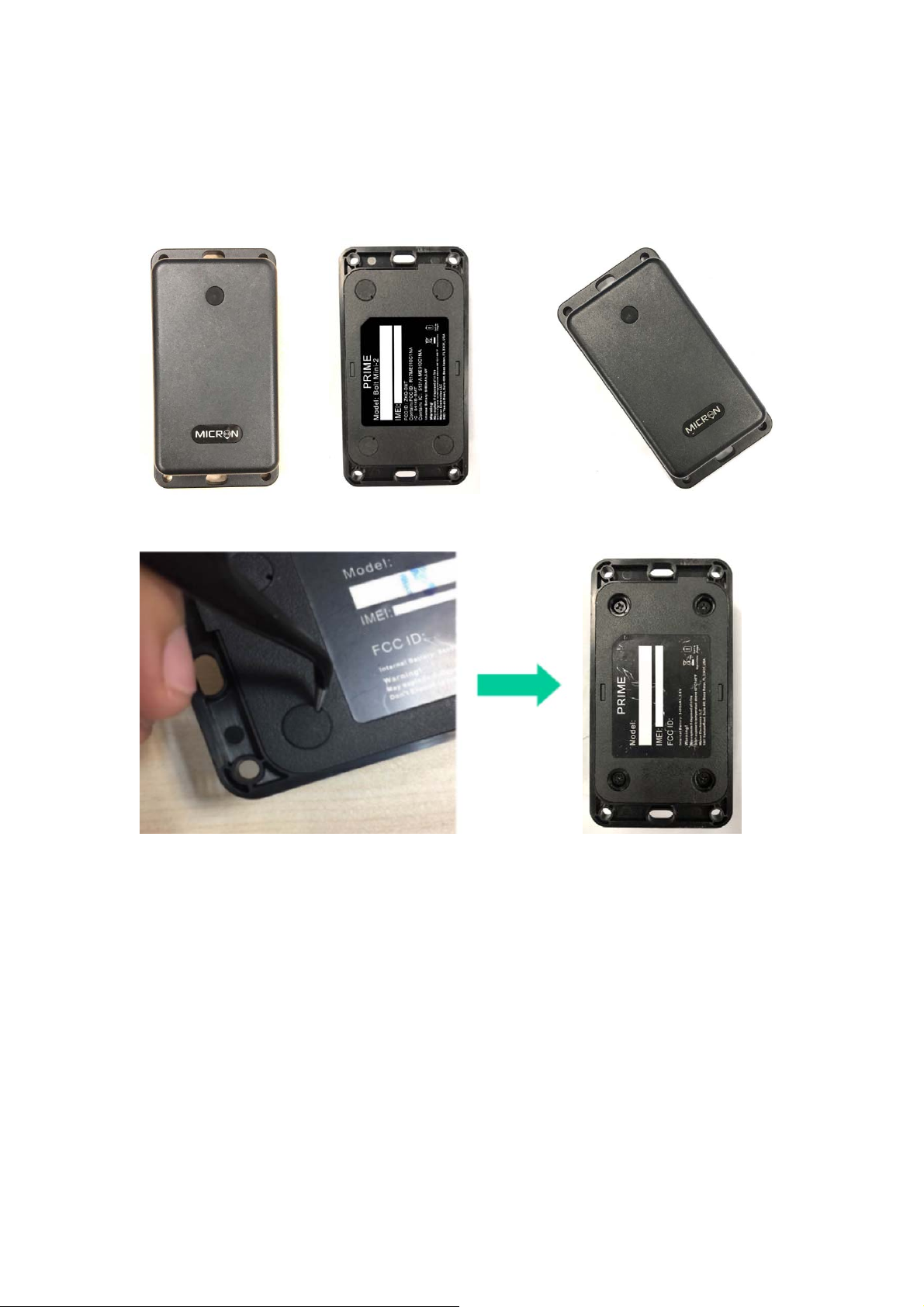

3.3 Disassemble Introduction
1.Dismantling machine tools：
Tweezers、Cross Screwdriver
5
2.
Machine appearance：

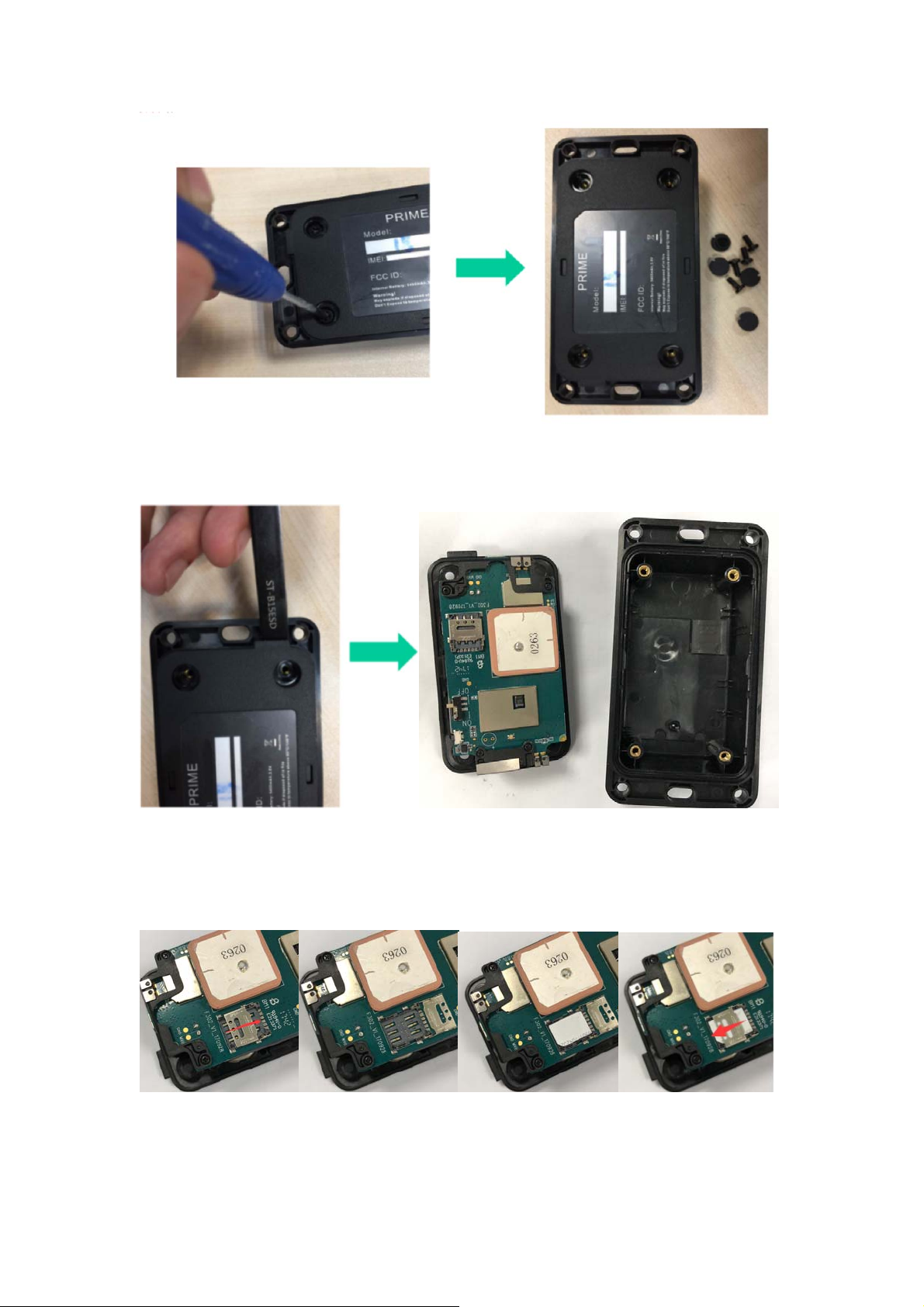

3.Disconnect the screw plug
4.Disconnect the screw
Figure 3-2
Figure 3-3
6
5.Tear down the base
Figure 3-4
3.4 Insert SIM Card
Figure 3-5
Figure 3-6
7

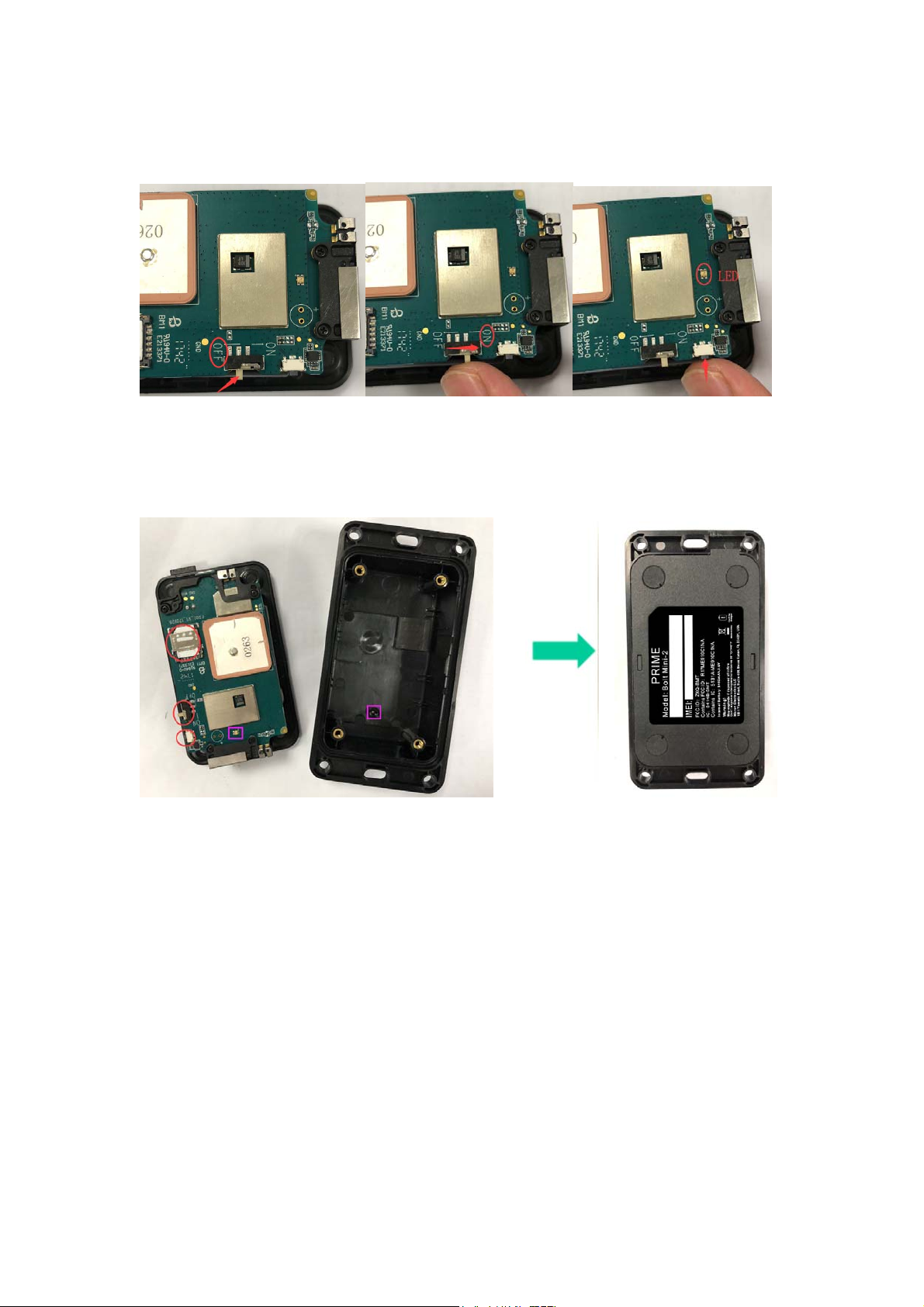

3.5 Device Power on
3.6 Install
Figure 3-7
Figure 3-8
Wi-Fi introduction
4
The device role of WIFI could be Master an
When the device role is Master, the device will provide below services: the others devices can read
or use the above services after connecting devices, connect the designated device to read the data or
related information of the designated WIFI devices. After reading the data, the server can be
reported to the server by the corresponding message.
d Slave.
8
5 Trouble shooting and Safety info
5.1 Trouble shooting
Trouble Possible Reason Solution
Messages can’t be
reported to the
backend server by
Mobile network.
APN is wrong. Some
APN can not visit the
internet directly.
The IP address or port of
the backend server is
wrong.
Ask the network operator for the right
APN.
Make sure the IP address for the
backend server is an identified address
in the internet.
Unable to power
off BOLT MINI-2.
BOLT MINI-2
can’t fix GPS
successfully.
5.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use BOLT MINI-2 on the airplane or near medical equipment.
The function of power
was disabled by
AT+GTFKS.
The GPS signal is weak.
key
Enable the function of power key by
AT+GTFKS.
Please move BOLT MINI-2 to a place
with open sky.
It is better to let the
the sky. (The same surface with
indication LED)
top surface face to
Frequency
LTE CatM:B2(TX 1850-1910MHz,RX 1930-1990MHz)
LTE CatM:B4(TX 1710-1755MHz,RX 2110-2155MHz)
LTE CatM:B12(TX 699-716MHz,RX 729-746MHz)
GPS:1575.42MHz
WIFI:802.11b/g/n-HT20: 2412-2462 MHz
802.11n-HT40:2422-2452MHz
9
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
ISED RSS Warning:
This device complies with Innovation, Science and Economic Development Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
ISED RF exposure statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with minimum distance 20cm between the
radiator& your body.This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter. Le rayonnement de la classe b repecte ISED fixaient un
environnement non contrôlés.Installation et mise en œuvre de ce matériel devrait avec
échangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pas coexister
cette antenne ou capteurs avec d’autres.
