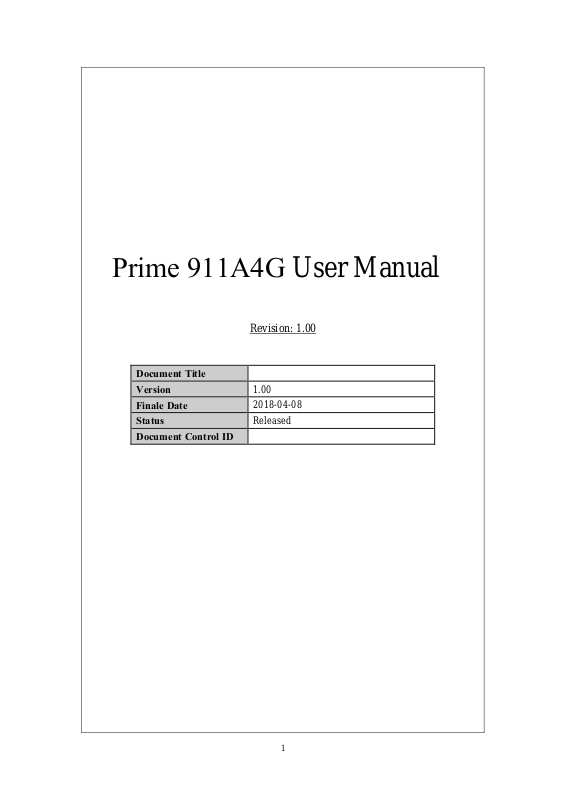

Micron Electronics 911A4G User Manual
Prime 911A4G User Manual
Revision: 1.00
Document Title
Version
Finale Date
Status
Document Control ID
1.00
2018-04-08
Released
1
Contents
1 Introduction .................................................................................................................................... 3
2 Product Overview .......................................................................................................................... 3
2.1 Appearance .......................................................................................................................... 3
2.2 Buttons Description ............................................................................................................. 3
2.3 LED Description ................................................................................................................. 4
3 Getting Started ............................................................................................................................... 4
3.1 Parts List ............................................................................................................................. 4
3.2 Battery Charging ................................................................................................................. 5
3.3 Charging Dock .................................................................................................................... 5
3.4 Power on/Power off ............................................................................................................. 6
4 Frequency ....................................................................................................................................... 6
5 Trouble shooting and Safety info ................................................................................................... 7
5.1 Trouble shooting ................................................................................................................. 7
5.2 Safety info ........................................................................................................................... 7
2
1 Introduction
Prime 911A4G is a rescue device with voice function.It works on LTE B2 / B4 / B12
network with superior receiving sensitivity. Based on the embedded wireless tracking
protocol, Prime 911A4G can communicate with the backend server through LTE network,
and transfer emergency reports.
2 Product Overview
2.1 Appearance
Figure 1-1
2.2 Buttons Description
Button /12PIN Interface Description
KEY/interface Description
Energy query
Key
SOS Key
Reset Key
Query How much energy left.
Press this key to dial a phone number through LTE network
Press this key to shut down the device in abnormal condit ion
3
