Microchip Technology Inc 93LCS66T-I-SN, 93LCS66T-I-SM, 93LCS66T-I-SL, 93LCS66T-I-P, 93LCS66T-SN Datasheet
...
1996 Microchip Technology Inc.
Preliminary
DS11181D-page 1
FEATURES
• Single supply with programming operation down
to 2.5V
• Low power CMOS technology
- 1 mA active current typical
-5 µ A standby current (typical) at 3.0V
• x16 memory organization
- 128x16 (93LCS56)
- 256x16 (93LCS66)
• Software write protection of user defined memory
space
• Self timed erase and write cycles
• Automatic ERAL before WRAL
• Power on/off data protection
• Industry standard 3-wire serial I/O
• Device status signal during E/W
• Sequential READ function
• 1,000,000 E/W cycles guaranteed
• Data retention > 200 years
• 8-pin PDIP/SOIC and 14-pin SOIC packages
• Temperature ranges supported
- Commercial (C): 0˚C to +70˚C
- Industrial (I): -40˚C to +85˚C
BLOCK DIAGRAM
DESCRIPTION
The Microchip Technology Inc. 93LCS56/66 are low voltage Serial Electrically Erasable PROMs with memory
capacities of 2K bits/4K bits respectively. A write protect
register is included in order to provide a user defined
region of write protected memory. All memory locations
greater than or equal to the address placed in the write
protect register will be protected from any attempted write
or erase operation. It is also possible to protect the
address in the write protect register permanently by using
a one time only instruction (PRDS). Any attempt to alter
data in a register whose address is equal to or greater
than the address stored in the protect register will be
aborted. Advanced CMOS technology makes this device
ideal for low power non-volatile memory applications.
MEMORY
ARRAY
ADDRESS
DECODER
V
CC VSS
DATA REGISTER
DO
MODE
DECODE
LOGIC
CLOCK
GENERATOR
OUTPUT
BUFFER
DI
CS
CLK
PRE
ADDRESS
COUNTER
PE
93LCS56/66
2K/4K 2.5V Microwire
Serial EEPROM with Software Write Protect
PACKA GE TYPES
93LCS56
93LCS66
93LCS56
93LCS66
93LCS56
93LCS66
SOIC
1
2
3
4
5
6
7
14
13
12
11
10
9
8
NC
V
CC
PRE
NC
PE
V
SS
NC
NC
CS
CLK
NC
DI
DO
NC
SOIC
1
2
3
4
8
7
6
5
VCC
PRE
PE
VSS
CS
CLK
DI
DO
1
2
3
4
8
7
6
5
V
CC
PRE
PE
V
SS
CS
CLK
DI
DO
DIP
Microwire is a registered trademark of National Semiconductor Incorporated.
93LCS56/66
DS11181D-page 2
Preliminary
1996 Microchip Technology Inc.
1.0 ELECTRICAL CHARACTERISTICS
1.1 Maxim
um Ratings*
V
CC
...................................................................................7.0V
All inputs and outputs w.r.t. V
SS
............... -0.6V to V
CC
+1.0V
Storage temperature.....................................-65˚C to +150˚C
Ambient temp. with power applied................-65˚C to +125˚C
Soldering temperature of leads (10 seconds).............+300˚C
ESD protection on all pins................................................4 kV
*Notice: Stresses above those listed under “Maximum ratings”
may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any
other conditions above those indicated in the operational listings
of this specification is not implied. Exposure to maximum rating
conditions for extended periods may affect device reliability.
TABLE 1-1: PIN FUNCTION TABLE
Name Function
CS Chip Select
CLK Serial Data Clock
DI Serial Data Input
DO Serial Data Output
V
SS
Ground
PE Program Enable
PRE Protect Register Enable
V
CC
Power Supply
TABLE 1-2: DC AND AC ELECTRICAL CHARACTERISTICS
V
CC
= +2.5V to +6.0V
Commercial(C): Tamb = 0˚C to +70˚C
Industrial (I): Tamb = -40˚C to +85˚C
Parameter Symbol Min Max Units Conditions
High level input voltage V
IH
2.0 V
CC
+1 V V
CC
≥
2.5V
Low level input voltage V
IL
-0.3 0.8 V V
CC
≥
2.5V
Low level output voltage V
OL
1 — 0.4 V I
OL
= 2.1 mA; V
CC
= 4.5V
V
OL
2 — 0.2 V I
OL
= 100 µ A; V
CC
= 2.5V
High level output voltage V
OH
1 2.4 — V I
OH
= -400 µ A; V
CC
= 4.5V
V
OH
2V
CC
-0.2 — V I
OH
= -100 µ A; V
CC
= 2.5V
Input leakage current I
LI
-10 10
µ
AV
IN
= 0.1V to V
CC
Output leakage current I
LO
-10 10
µ
AV
OUT
= 0.1V to Vcc
Pin capacitance
(all inputs/outputs)
C
IN
, C
OUT
— 7 pF V
IN
/V
OUT
= 0V (Note 1 & 2)
Tamb = +25˚C; F
CLK
= 1 MHz
Operating current I
CC
Write — 3 mA F
CLK
= 2 MHz; V
CC
= 3.0V (Note 2)
I
CC
Read — 1
500
mA
µ
A
F
CLK
= 2 MHz; V
CC
= 6.0V
F
CLK
= 1 MHz; V
CC
= 3.0V
Standby current I
CCS
— 100
30
µ A µ
A
CLK = CS = 0V; V
CC
= 6.0V
CLK = CS = 0V; V
CC
= 3.0V
Clock frequency F
CLK
—2
1
MHz
MHz
V
CC
≥
4.5V
V
CC
< 4.5V
Clock high time T
CKH
250 — ns
Clock low time T
CKL
250 — ns
Chip select setup time T
CSS
50 — ns Relative to CLK
Chip select hold time T
CSH
0 — ns Relative to CLK
Chip select low time T
CSL
250 — ns
PRE setup time T
PRES
100 — ns Relative to CLK
PE setup time T
PES
100 — ns Relative to CLK
PRE hold time T
PREH
0 — ns Relative to CLK
PE hold time T
PEH
500 — ns Relative to CLK
Data input setup time T
DIS
100 — ns Relative to CLK
Data input hold time T
DIH
100 — ns Relative to CLK
Data output delay time T
PD
— 400 ns CL=100 pF
Data output disable time T
CZ
— 100 ns CL=100 pF (Note 2)
Note 1: This parameter is tested at Tamb = 25˚C and F
CLK
= 1 MHz.
2: This parameter is periodically sampled and not 100% tested.
1996 Microchip Technology Inc.
Preliminary
DS11181D-page 3
93LCS56/66
TABLE 1-3: INSTRUCTION SET FOR 93LCS56*/66
Status valid time T
SV
500 ns CL=100 pF
Program cycle time T
WC
10 ms ERASE/WRITE mode (Note 3)
T
EC
15 ms ERAL mode
T
WL
30 ms WRAL mode
Endurance — 1M — cycles 25 ° C, Vcc = 5.0V, Block Mode
(Note 4)
3: Typical program cycle time is 4 ms per word.
4: This parameter is not tested but guaranteed by characterization. For endurance estimates in a specific appli-
cation, please consult the Total Endurance Model which can be obtained on our BBS or website.
93LCS56/66 (x 16 organization)
Instruction SB Opcode Address Data In Data Out PRE PE Comments
READ 1 10 A7 - A0 — D15-D0 0 X Reads data stored in memory, start-
ing at specified address (.Note).
EWEN 1 00 1 1XXXXXX — High-Z 0 1 Erase/Write Enable must precede all
programming modes.
ERASE 1 11 A7 - A0 — (RDY/
BSY
)
1 Erase data at specified address
location if address is unprotected
(Note).
ERAL 1 00 10XXXXXX — (RDY/
BSY
)
0 1 Erase all registers to “FF”. Valid only
when Protect Register is cleared.
WRITE 1 01 A7 - A0* D15 - D0 (RDY/
BSY
)
0 1 Writes register if address is unpro-
tected.
WRAL 1 00 01XXXXXX D15 - D0 (RDY/
BSY
)
0 1 Writes all registers. Valid only when
Protect Register is cleared.
EWDS 1 00 00XXXXXX — High-Z 0 X Erase/Write Disable deactivates all
programming instructions.
PRREAD 1 10 XXXXXXXX — A7-A0 1 X Reads address stored in Protect
Register.
PREN 1 00 11XXXXXX — High-Z 1 1 Must immediately precede
PRCLEAR, PRWRITE and PRDS
instructions.
PRCLEAR 1 11 11111111 — (RDY/
BSY
)
1 1 Clears the Protect Register such that
all data are NOT write-protected.
PRWRITE 1 01 A7 - A0* — (RDY/
BSY
)
1 1 Programs address into Protect Reg-
ister. Thereafter , memory addresses
greater than or equal to the address
in Protect Register are write-protected.
PRDS 1 00 00000000 — (RDY/
BSY
)
1 1 ONE TIME ONLY instruction after
which the address in the Protect
Register cannot be altered.
Note: Address A7 bit is a “don’t care” on 93LCS56.
TABLE 1-2: DC AND AC ELECTRICAL CHARACTERISTICS
V
CC
= +2.5V to +6.0V
Commercial(C): Tamb = 0˚C to +70˚C
Industrial (I): Tamb = -40˚C to +85˚C
Parameter Symbol Min Max Units Conditions
(Continued)
93LCS56/66
DS11181D-page 4
Preliminary
1996 Microchip Technology Inc.
2.0 FUNCTIONAL DESCRIPTION
The 93LCS56/66 is organized as 128/256 registers by
16 bits. Instructions, addresses and write data are
clocked into the DI pin on the rising edge of the clock
(CLK). The DO pin is normally held in a high-Z state
except when reading data from the device, or when
checking the ready/busy status during a programming
operation. The ready/busy status can be verified during
an Erase/Write operation by polling the DO pin; DO low
indicates that programming is still in progress, while DO
high indicates the device is ready. The DO will enter the
high-Z state on the falling edge of the CS.
2.1 ST
ART Condition
The START bit is detected by the device if CS and DI
are both HIGH with respect to the positive edge of CLK
for the first time.
Before a STAR T condition is detected, CS, CLK, and DI
may change in any combination (except to that of a
STAR T condition), without resulting in any device operation (READ, WRITE, ERASE, EWEN, EWDS, ERAL,
WRAL, PRREAD, PREN, PRCLEAR, PRWRITE, and
PRDS). As soon as CS is HIGH, the device is no longer
in the standby mode.
An instruction following a START condition will only be
executed if the required amount of opcode, address
and data bits for any particular instruction is clocked in.
After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become don't care bits until a new start condition is
detected.
2.2 DI/DO
It is possible to connect the Data In and Data Out pins
together. However, with this configuration it is possible
for a “bus conflict” to occur during the “dummy zero” that
precedes the READ operation, if A0 is a logic HIGH
level. Under such a condition the voltage level seen at
Data Out is undefined and will depend upon the relative
impedances of Data Out and the signal source driving
A0. The higher the current sourcing capability of A0, the
higher the voltage at the Data Out pin.
2.3 Data Pr
otection
During power-up, all programming modes of operation
are inhibited until V
CC
has reached a level greater than
1.4V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
V
CC
has fallen below 1.4V.
The EWEN and EWDS commands give additional protection against accidentally programming during normal operation.
After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.
2.4 READ
The READ instruction outputs the serial data of the
addressed memory location on the DO pin. A dummy
zero bit precedes the 16 bit output string. The output
data bits will toggle on the rising edge of the CLK and
are stable after the specified time delay (T
PD
). Sequential read is possible when CS is held high. The memory
data will automatically cycle to the next register and
output sequentially.
2.5 Erase/Write Enab
le and Disable
(EWEN, EWDS)
The 93LCS56/66 powers up in the Erase/Write Disable
(EWDS) state. All programming modes must be preceded by an Erase/Write Enable (EWEN) instruction.
The PE pin MUST be held “high” while loading the
EWEN instruction. Once the EWEN instruction is executed, programming remains enabled until an EWDS
instruction is executed or V
CC
is removed from the
device. To protect against accidental data disturb, the
EWDS instruction can be used to disable all Erase/
Write functions and should follow all programming
operations. Execution of a READ instruction is independent of both the EWEN and EWDS instructions.
2.6 ERASE
The ERASE instruction forces all data bits of the specified address to the logical “1” state. CS is brought low
following the loading of the last address bit. This falling
edge of the CS pin initiates the self-timed programming
cycle. The PE pin MUST be latched “high” during loading the ERASE instruction but becomes a “don't care”
after loading the instruction.
The DO pin indicates the READY/BUSY
status of the
device if CS is brought high after a minimum of 250 ns
low (T
CLS). DO at logical “0” indicates that program-
ming is still in progress. DO at logical “1” indicates that
the register at the specified address has been erased
and the device is ready for another instruction. ERASE
instruction is valid if specified address is unprotected.
The ERASE cycle takes 4 ms per word typical.
2.7 WRITE
The WRITE instruction is followed by 16 bits of data
which are written into the specified address. After the
last data bit is put on the DI pin, CS must be brought low
before the next rising edge of the CLK clock. Both CS
and CLK must be low to initiate the self-timed autoerase and programming cycle. The PE pin MUST be
latched “high” while loading the WRITE instruction but
becomes a “don't care” thereafter.
1996 Microchip Technology Inc. Preliminary DS11181D-page 5
93LCS56/66
The DO pin indicates the READY/BUSY status of the
device if CS is brought high after a minimum of 250 ns
(T
CSL) and before the entire write cycle is complete. DO
at logical “0” indicates that programming is still in
progress. DO at logical “1” indicates that the register at
the specified address has been written with the data
specified and the device is ready for another instruction. WRITE instruction is valid only if specified address
is unprotected.
The WRITE cycle takes 4 ms per word typical.
2.8 Erase All (ERAL)
The ERAL instruction will erase the entire memory
array to the logical “1”. The ERAL cycle is identical to
the ERASE cycle except for the different opcode. The
ERAL cycle is completely self-timed and commences at
the falling edge of the CS. PE pin MUST be held “high”
while loading the instruction but becomes “don't care”
thereafter. Clocking of the CLK pin is not necessary
after the device has entered the self clocking mode.
The ERAL instruction is guaranteed at V
CC = 4.5 to 6V
and valid only when Protect Register is cleared.
The DO pin indicates the READY/BUSY
status of the
device if CS is brought high after a minimum of 250 ns
low (T
CSL) and before the entire write cycle is complete.
The ERAL cycle takes 15 ms maximum (8 ms typical).
2.9 Write All (WRAL)
The WRAL instruction will write the entire memory array
with the data specified in the command. The WRAL
cycle is completely self-timed and commences at the
falling edge of the CS. PE pin MUST be held “high”
while loading the instruction but becomes “don't care”
thereafter. Clocking of the CLK pin is not necessary
after the device has entered the self clocking mode.
The WRAL command does include an automatic ERAL
cycle for the device. Therefore, the WRAL instruction
does not require an ERAL instruction but the chip must
be in the EWEN status. The WRAL instruction is guaranteed at V
CC = 4.5 to 6V and valid only when Protect
Register is cleared.
The DO pin indicates the READY/BUSY
status of the
device if CS is brought high after a minimum of 250 ns
low (T
CSL).
The WRAL cycle takes 30 ms maximum (16 ms typical).
Note: In order to execute either READ, EWEN,
ERAL, WRITE, WRAL, or EWDS instructions, the Protect Register Enable (PRE)
pin must be held LOW.
2.10 Protect Register Read (PRREAD)
The Protect Register Read (PRREAD) instruction outputs the address stored in the Protect Register on the
DO pin. The PRE pin MUST be held HIGH when loading the instruction and remains HIGH until CS goes
LOW. A dummy zero bit precedes the 8-bit output
string. The output data bits in the memory Protect Register will toggle on the rising edge of the CLK as in the
READ mode.
2.11 Protect Register Enable (PREN)
The Protect Register Enable (PREN) instruction is used
to enable the PRCLEAR, PRWRITE, and PRDS
modes. Before the PREN mode can be entered, the
device must be in the EWEN mode. Both PRE and PE
pins MUST be held “high” while loading the instruction.
The PREN instruction MUST immediately precede a
PRCLEAR, PRWRITE, or PRDS instruction.
2.12 Protect Register Clear (PRCLEAR)
The Protect Register Clear (PRCLEAR) instruction
clears the address stored in the Protect Register and,
therefore, enables all registers for programming
instructions such as ERASE, ERAL, WRITE, and
WRAL. The PRE and PE pin MUST be held HIGH when
loading the instruction. Thereafter, PRE and PE pins
become “don't care”. A PREN instruction must immediately precede a PRCLEAR instruction.
2.13 Protect Register Write (PRWRITE)
The Protect Register Write (PRWRITE) instruction
writes into the Protect Register the address of the first
register to be protected. After this instruction is executed, all registers whose memory addresses are
greater than or equal to the address pointer specified in
the Protect register are protected from any programming instructions. Note that a PREN instruction must
be executed before a PRWRITE instruction and, the
Protect Register must be cleared (by a PRCLEAR
instruction) before executing the PRWRITE instruction.
The PRE and PE pins MUST be held HIGH while loading PRWRITE instruction. After the instruction is
loaded, they become “don't care”.
2.14 Protect Register Disable (PRDS)
The Protect Register Disable (PRDS) instruction is a
ONE TIME ONLY instruction to permanently set the
address specified in the Protect Register. Any attempts
to change the address pointer will be aborted. The PRE
and PE pins MUST be held HIGH while loading PRDS
instruction. After the instruction is loaded, they become
“don't care”. Note that a PREN instruction must be executed before a PRDS instruction.
93LCS56/66
DS11181D-page 6 Preliminary 1996 Microchip Technology Inc.
FIGURE 2-1: SYNCHRONOUS DATA TIMING
FIGURE 2-2: READ TIMING
FIGURE 2-3: EWEN TIMING
CLK
STATUS VALID
VIH
VIL
CS
TCSS
TDIS
TDIH
TSV
TCSH
TCKH TCKL
TPD
TCZ
TCZ
TPD
VIH
VIL
DI
VIH
VIL
DO
(READ)
VOH
VOL
DO
(PROGRAM)
VOH
VOL
TPRES
PRE
VIH
VIL
PE
VIH
VIL
TPES
TPREH
TPEH
CLK
CS
T
CSL
A2 • • • A001 1
DI
DO
* The memory automatically cycles to the next register.
Tri-State is a registered trademark of National Semiconductor.
D15 • • • D00 D15* • • • D0 D15*
TRI-STATE
PRE = 0
PE = X
• • •
CLK
CS
T
CSL
0 01
DI
1 1
• • •
XX
PRE = 0
DO = TRI-STATE
PE
6 DON'T CARE BITS
1996 Microchip Technology Inc. Preliminary DS11181D-page 7
93LCS56/66
FIGURE 2-4: EWDS TIMING
FIGURE 2-5: WRITE TIMING
FIGURE 2-6: WRAL TIMING
CLK
CS
T
CSL
0 01
DI
0 0
PRE = 0
PE = X
DO = TRI-STATE
• • •
XX
6 DON'T CARE BITS
CLK
CS
T
CSL
01
DI
• • •
BUSY
D01 A0 • • •D15
READY
T
WC
DO
TRI-STATE
A7
PE
PRE = 0• Address bit A7 becomes a "don't care" for 93LCS56.
CLK
CS
T
CSL
01
DI
• • •
BUSY
D0X0 X • • •D15
READY
TWL
DO
01
TRI-STATE
PE
Guaranteed at VCC = 4.5V to 6.0V
Protect Register must be cleared PRE = 0
6 DON'T CARE BITS
TRISTATE
93LCS56/66
DS11181D-page 8 Preliminary 1996 Microchip Technology Inc.
FIGURE 2-7: ERASE TIMING
FIGURE 2-8: ERAL TIMING
FIGURE 2-9: PRREAD TIMING
CLK
CS
T
CSL
1
DI
A7
BUSY
A0
• • •
READY
T
WC
DO
11
CHECK STATUS
STANDBY
TCZ
TRI-STATE
TSV
TRI-STATE
PE
PRE = 0• Address bit A7 is a "don't care" for 93LCS56.
CLK
CS
T
CSL
0
DI
0
BUSY
0
READY
T
EC
DO
11
CHECK STATUS
STANDBY
TCZ
TRI-STATE
TSV
TRI-STATE
Guarantee at VCC = 4.5V to 6.0V
Protect Register must be cleared
PE
PRE = 0
• • •
XX
6 DON'T CARE BITS
CLK
CS
T
CSL
1DI
X • • •
DO
10
PRE
X
A6 • • • A00A7
• X •
PE = X• Address bit A7 is a "don't care" for 93LCS56.
8 DON'T CARE BITS
1996 Microchip Technology Inc. Preliminary DS11181D-page 9
93LCS56/66

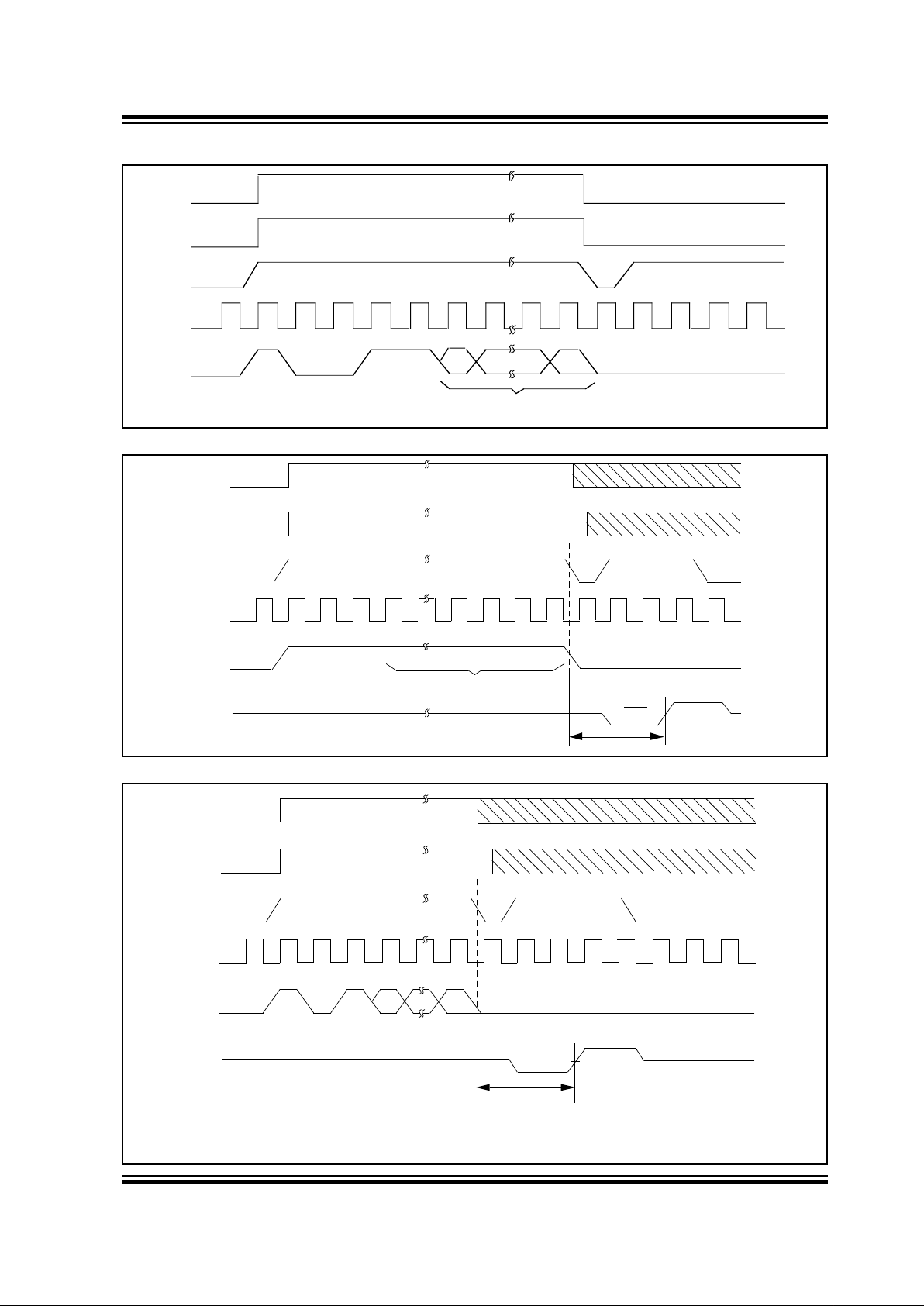

FIGURE 2-10: PREN TIMING
FIGURE 2-11: PRCLEAR TIMING
FIGURE 2-12: PRWRITE TIMING
CLK
CS T
CSL
1
DI
X • • •01
PE
X
DO = TRI-STATE
A EWEN cycle must precede a PREN cycle.
PRE
01
6 DON'T CARE BITS
CLK
CS
T
CSL
1
DI
BUSY
• • •
READY
T
WC
DO
1
TRI-STATE
PE
PRE
111111
A PREN cycle must immediately precede a PRCLEAR cycle.
8 BITS OF "1"
CLK
CS
T
CSL
0
DI
BUSY
READY
T
WC
DO
1
PE
PRE
1 A7 • • • A0
Protect Register MUST be cleared before a PRWRITE cycle.
A PREN cycle must immediately precede a PRWRITE cycle.
Address bit A7 is a "don't care" for 93LCS56.
93LCS56/66
DS11181D-page 10 Preliminary 1996 Microchip Technology Inc.
FIGURE 2-13: PRDS TIMING
CLK
CS
T
CSL
0
DI
BUSY
• • •
READY
T
WC
DO
1
ONE TIME ONLY instruction. A PREN cycle must immediately precede a PRDS cycle.
PE
PRE
000000
8 BITS OF "0"
3.0 PIN DESCRIPTION
3.1 Chip Select (CS)
A HIGH level selects the device. A LOW level deselects
the device and forces it into standby mode. However, a
programming cycle which is already initiated and/or in
progress will be completed, regardless of the CS input
signal. If CS is brought LOW during a program cycle,
the device will go into standby mode as soon as the
programming cycle is completed.
CS must be LOW for 250 ns minimum (T
CSL) between
consecutive instructions. If CS is LOW, the internal
control logic is held in a RESET status.
3.2 Serial Clock (CLK)
The Serial Clock is used to synchronize the communication between a master device and the 93LCS56/66.
Opcode, address, and data bits are clocked in on the
positive edge of CLK. Data bits are also clocked out on
the positive edge of CLK.
CLK can be stopped anywhere in the transmission
sequence (at HIGH or LOW level) and can be continued anytime with respect to clock HIGH time (TCDD)
and clock LOW time (T
CKL). This gives the controlling
master freedom in preparing opcode, address, and
data.
CLK is a “Don't Care” if CS is LOW (device deselected).
If CS is HIGH, but START condition has not been
detected, any number of clock cycles can be received
by the device without changing its status (i.e., waiting
for START condition).
CLK cycles are not required during the self-timed
WRITE (i.e., auto ERASE/WRITE) cycle.
After detection of a start condition the specified number
of clock cycles (respectively LOW to HIGH transitions
of CLK) must be provided. These clock cycles are
required to clock in all required opcode, address, and
data bits before an instruction is executed (see instruction set truth table). CLK and DI then become don't
care inputs waiting for a new start condition to be
detected.
3.3 Data In (DI)
Data In is used to clock in a START bit, opcode,
address, and data synchronously with the CLK input.
3.4 Data Out (DO)
Data Out is used in the READ and PRREAD mode to
output data synchronously with the CLK input (T
PD
after the positive edge of CLK).
This pin also provides READY/BUSY
status information during ERASE and WRITE cycles. READY/BUSY
status information is available on the DO pin if CS is
brought HIGH after held LOW for minimum chip select
low time (T
CSL) and an ERASE or WRITE operation
has been initiated.
The status signal is not available on DO, if CS is held
LOW or HIGH during the entire WRITE or ERASE
cycle. In all other cases DO is in the HIGH-Z mode. If
status is checked after the WRITE/ERASE cycle, a
pull-up resistor on DO is required to read the READY
signal.
3.5 Program Enable (PE)
This pin should be held HIGH in the programming
mode or when executing the Protect Register programming instructions.
3.6 Protect Register Enable (PRE)
This pin should be held HIGH when executing all Protect Register instructions. Otherwise, it must be held
LOW for normal operations.
Note: CS must go LOW between consecutive
instructions.
93LCS56/66
1996 Microchip Technology Inc. Preliminary DS11181D-page 11
93LCS56/66 Product Identification System
To order or to obtain information, e.g., on pricing or delivery, please use the listed part numbers, and refer to the factory or the listed
sales offices.
Package:
P = Plastic DIP (300 mil Body), 8-lead
SN = Plastic SOIC (150 mil Body), 8-lead
SM = Plastic SOIC (207 mil Body), 8-lead
SL = Plastic SOIC (150 mil Body), 14-lead
Temperature
Blank = 0°C to +70°C
Range:
I = -40°C to +85°C
Device:
93LCS56/66 Microwire Serial EEPROM
93LCS56T/66T Microwire Serial EEPROM (Tape and Reel)
93LCS56/66 –/P
DS11181D-page 12 Preliminary 1996 Microchip Technology Inc.
Information contained in this publication regarding device applications and the like is intended for suggestion only and may be superseded by updates. No representation
or warranty is given and no liability is assumed by Microchip T echnology Incorporated with respect to the accuracy or use of such information, or infringement of patents
or other intellectual property rights arising from such use, or otherwise. Use of Microchip’s products as critical components in medical devices is not authorized except
with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights. The Microchip logo and name are
registered trademarks of Microchip Technology Inc. in the USA and other countries. All rights reserved. All other trademarks mentioned herein are the property of their
WORLDWIDE SALES & SERVICE
ASIA/PACIFIC
China
Microchip Technology
Unit 406 of Shanghai Golden Bridge Bldg.
2077 Yan’an Road West, Hongiao District
Shanghai, Peoples Republic of China
Tel: 86 21 6275 5700
Fax: 011 86 21 6275 5060
Hong Kong
Microchip Technology
RM 3801B, Tower Two
Metroplaza
223 Hing Fong Road
Kwai Fong, N.T. Hong Kong
Tel: 852 2 401 1200 Fax: 852 2 401 3431
India
Microchip Technology
No. 6, Legacy, Convent Road
Bangalore 560 025 India
Tel: 91 80 526 3148 Fax: 91 80 559 9840
Korea
Microchip Technology
168-1, Youngbo Bldg. 3 Floor
Samsung-Dong, Kangnam-Ku,
Seoul, Korea
Tel: 82 2 554 7200 Fax: 82 2 558 5934
Singapore
Microchip Technology
200 Middle Road
#10-03 Prime Centre
Singapore 188980
Tel: 65 334 8870 Fax: 65 334 8850
Taiwan, R.O.C
Microchip Technology
10F-1C 207
Tung Hua North Road
Taipei, Taiwan, ROC
Tel: 886 2 717 7175 Fax: 886 2 545 0139
EUROPE
United Kingdom
Arizona Microchip Technology Ltd.
Unit 6, The Courtyard
Meadow Bank, Furlong Road
Bourne End, Buckinghamshire SL8 5AJ
Tel: 44 1628 850303 Fax: 44 1628 850178
France
Arizona Microchip Technology SARL
Zone Industrielle de la Bonde
2 Rue du Buisson aux Fraises
91300 Massy - France
Tel: 33 1 69 53 63 20 Fax: 33 1 69 30 90 79
Germany
Arizona Microchip Technology GmbH
Gustav-Heinemann-Ring 125
D-81739 Muenchen, Germany
Tel: 49 89 627 144 0 Fax: 49 89 627 144 44
Italy
Arizona Microchip Technology SRL
Centro Direzionale Colleone Pas Taurus 1
Viale Colleoni 1
20041 Agrate Brianza
Milan Italy
Tel: 39 39 6899939 Fax: 39 39 689 9883
JAPAN
Microchip Technology Intl. Inc.
Benex S-1 6F
3-18-20, Shin Yokohama
Kohoku-Ku, Y okohama
Kanagawa 222 Japan
Tel: 81 45 471 6166 Fax: 81 45 471 6122
9/3/96
AMERICAS
Corporate Office
Microchip Technology Inc.
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 602 786-7200 Fax: 602 786-7277
Technical Support:
602 786-7627
Web:
http://www.microchip.com
Atlanta
Microchip Technology Inc.
500 Sugar Mill Road, Suite 200B
Atlanta, GA 30350
Tel: 770 640-0034 Fax: 770 640-0307
Boston
Microchip Technology Inc.
5 Mount Royal Avenue
Marlborough, MA 01752
Tel: 508 480-9990 Fax: 508 480-8575
Chicago
Microchip Technology Inc.
333 Pierce Road, Suite 180
Itasca, IL 60143
Tel: 708 285-0071 Fax: 708 285-0075
Dallas
Microchip Technology Inc.
14651 Dallas Parkway, Suite 816
Dallas, TX 75240-8809
Tel: 972 991-7177 Fax: 972 991-8588
Dayton
Microchip Technology Inc.
Suite 150
Two Prestige Place
Miamisburg, OH 45342
Tel: 513 291-1654 Fax: 513 291-9175
Los Angeles
Microchip Technology Inc.
18201 Von Karman, Suite 1090
Irvine, CA 92612
Tel: 714 263-1888 Fax: 714 263-1338
New Y ork
Microchip Technmgy Inc.
150 Motor Parkway, Suite 416
Hauppauge, NY 11788
Tel: 516 273-5305 Fax: 516 273-5335
San Jose
Microchip Technology Inc.
2107 North First Street, Suite 590
San Jose, CA 95131
Tel: 408 436-7950 Fax: 408 436-7955
Toronto
Microchip Technology Inc.
5925 Airport Road, Suite 200
Mississauga, Ontario L4V 1W1, Canada
Tel: 905 405-6279 Fax: 905 405-6253
All rights reserved. 1996, Microchip Technology Incorporated, USA. 4/96
Loading...
